Ignition Coil for Yamaha 1700 Road Star & Silverado 2008-2014 - Replaces 5VN-82310-20-00
Ignition Coil for Yamaha 1700 Road Star & Silverado 2008-2014 - Replaces 5VN-82310-20-00
SKU:RM06188
Free shipping over £150. Terms apply
Couldn't load pickup availability

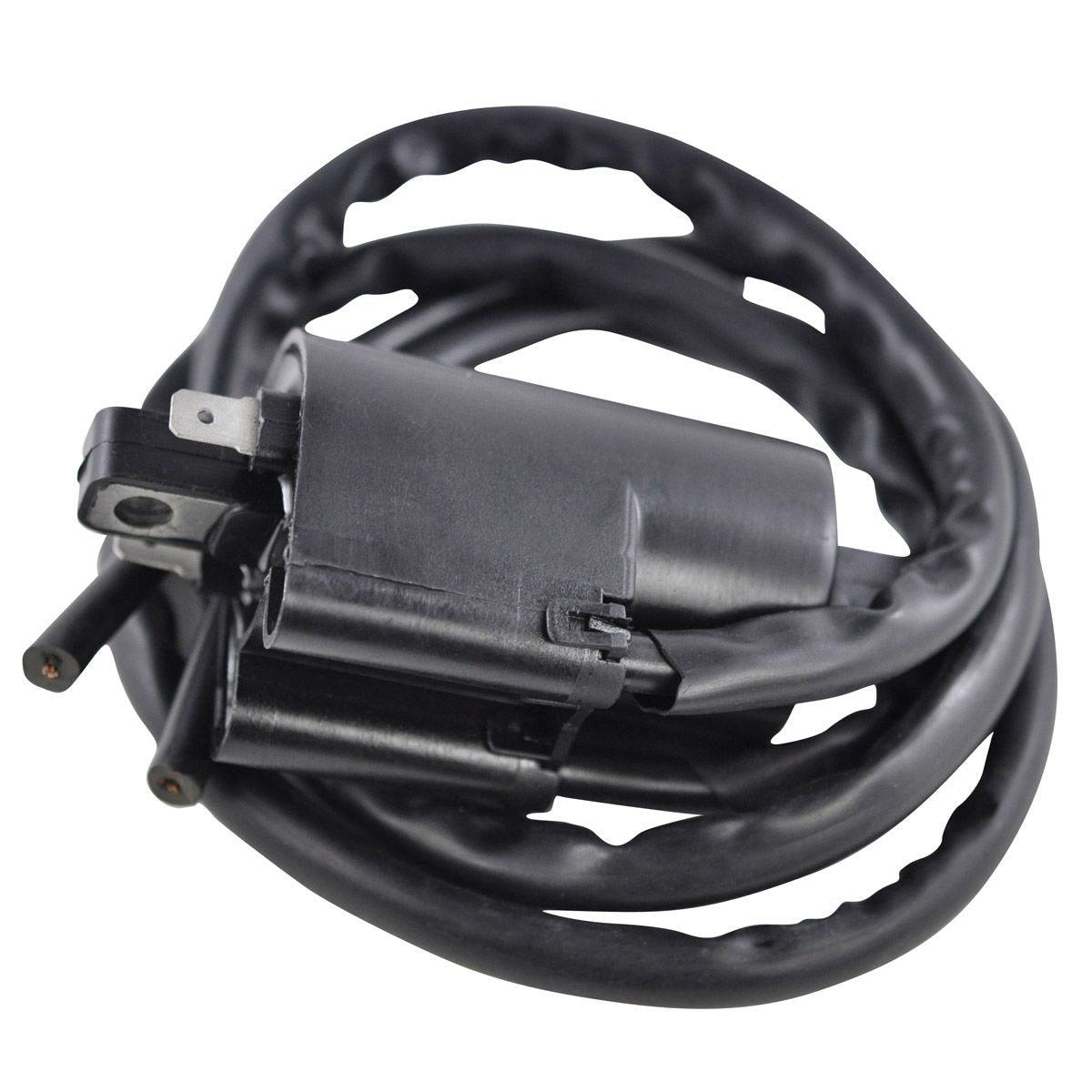

Ignition Coil for Yamaha 1700 Road Star & Silverado
Yamaha Road Star, Road Star S, Silverado & Silverado S 1700, 2008-2014
This ignition coil is a direct replacement for the original unit fitted to the Yamaha 1700 Road Star, Road Star S, Road Star Silverado and Road Star Silverado S, built to OEM specifications for correct fit, function and spark output.
It uses the standard 90mm bracket hole spacing and a 375mm wiring loom to reach the factory harness, giving a straightforward swap for a weak, cracked or failed original coil. On these big-twin cruisers a failing coil typically shows up as a misfire or backfire under load, or as one cylinder cutting out intermittently once the engine reaches operating temperature.
Key Features
- Direct OEM fit for the Yamaha 1700 Road Star range
- 90mm bracket center-to-center mounting spacing
- 375mm wire length to reach the factory harness
- 2.8 ohm primary / 13.8 ohm secondary resistance
- Uses the original mounting bracket and connector
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Width | 95 mm |
| Length | 150 mm |
| Height | 50 mm |
| Wire Length | 375 mm |
| Fixation Holes Center-to-Center | 90 mm |
| Primary Resistance | 2.8 ohms |
| Secondary Resistance | 13.8 ohms (200K) |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha Road Star 1700 | 2008-2009 |
| Yamaha Road Star S 1700 | 2008-2014 |
| Yamaha Road Star Silverado 1700 | 2008-2010 |
| Yamaha Road Star Silverado S 1700 | 2008-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5VN-82310-20-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes, it uses the standard 90mm bracket spacing and factory wiring connector for the listed models, so no cutting or splicing is required.
What's included?
One ignition coil, ready to fit in place of the original unit.
How can I tell my old coil has failed?
Common symptoms include a weak or no spark, hard starting, misfiring, or the engine cutting out under load.
Does this replace OEM part 5VN-82310-20-00?
Yes, this coil is a direct replacement for Yamaha OEM part number 5VN-82310-20-00.
