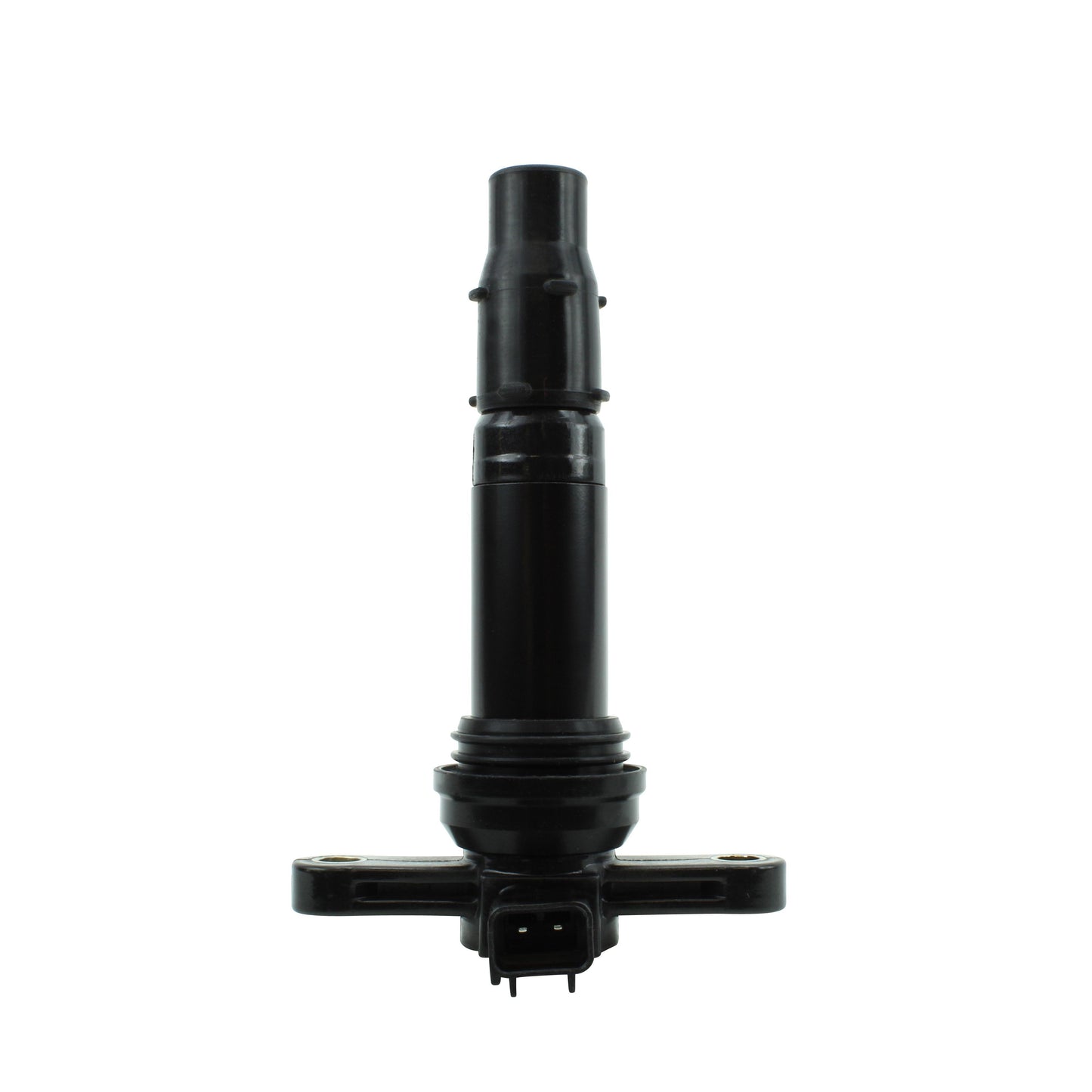

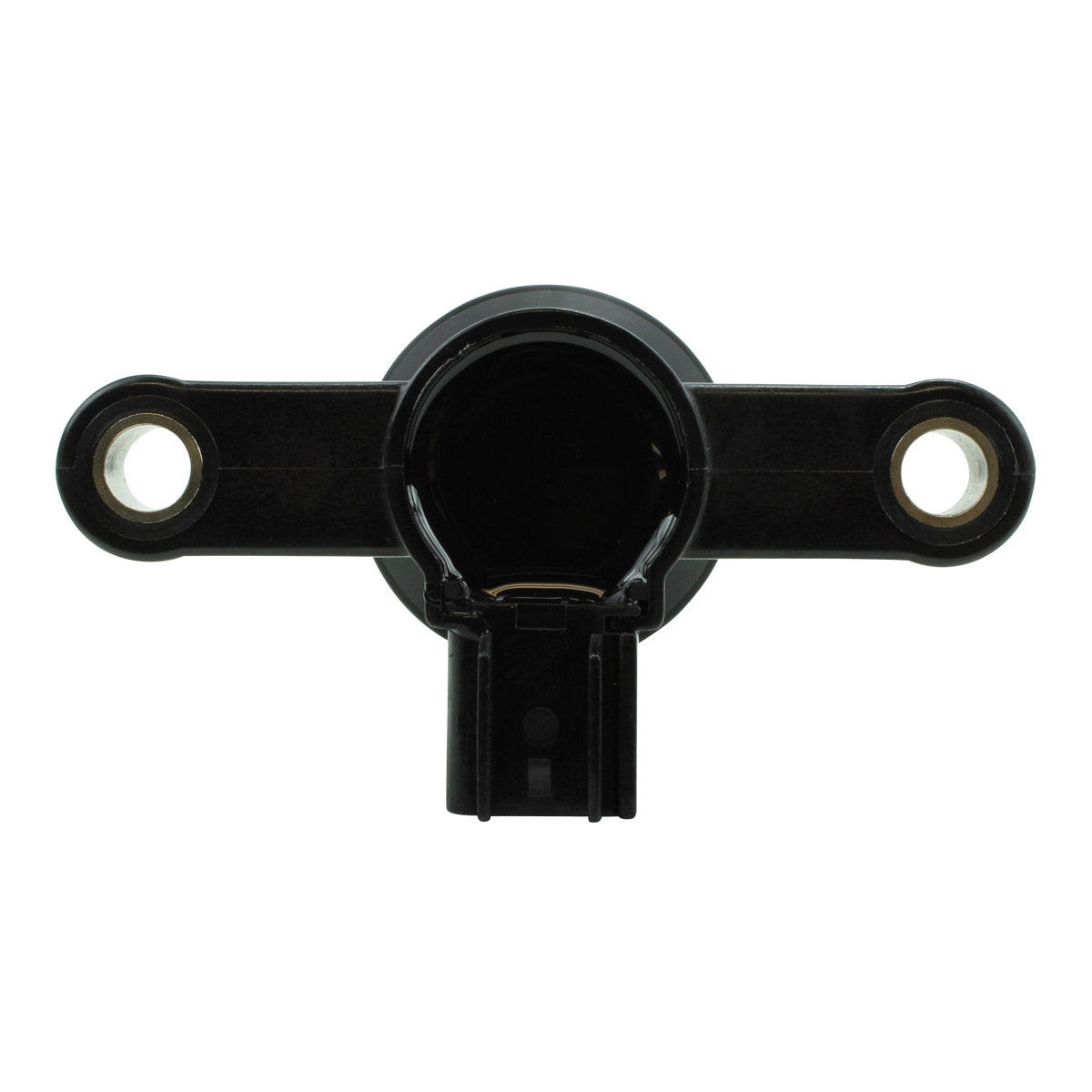

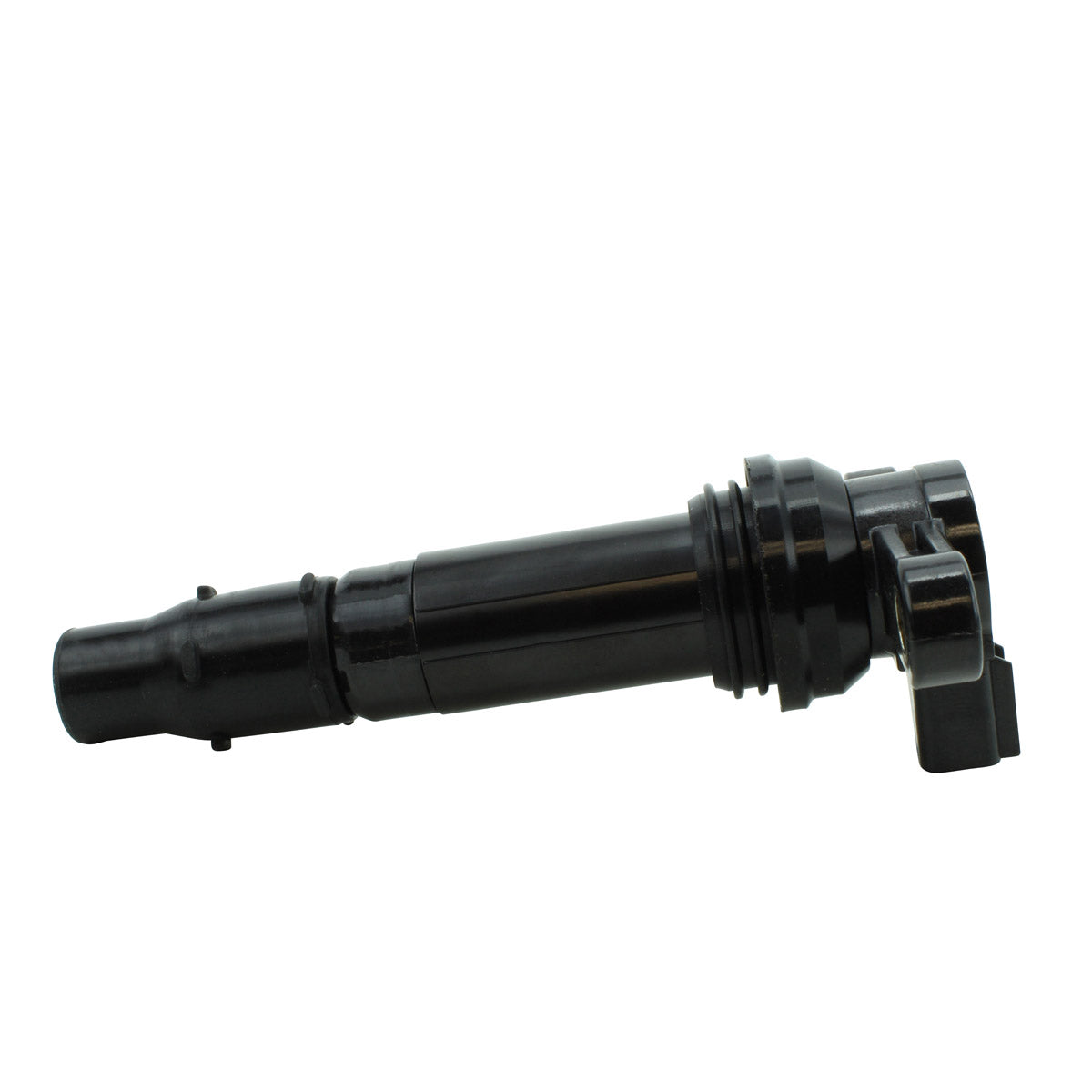

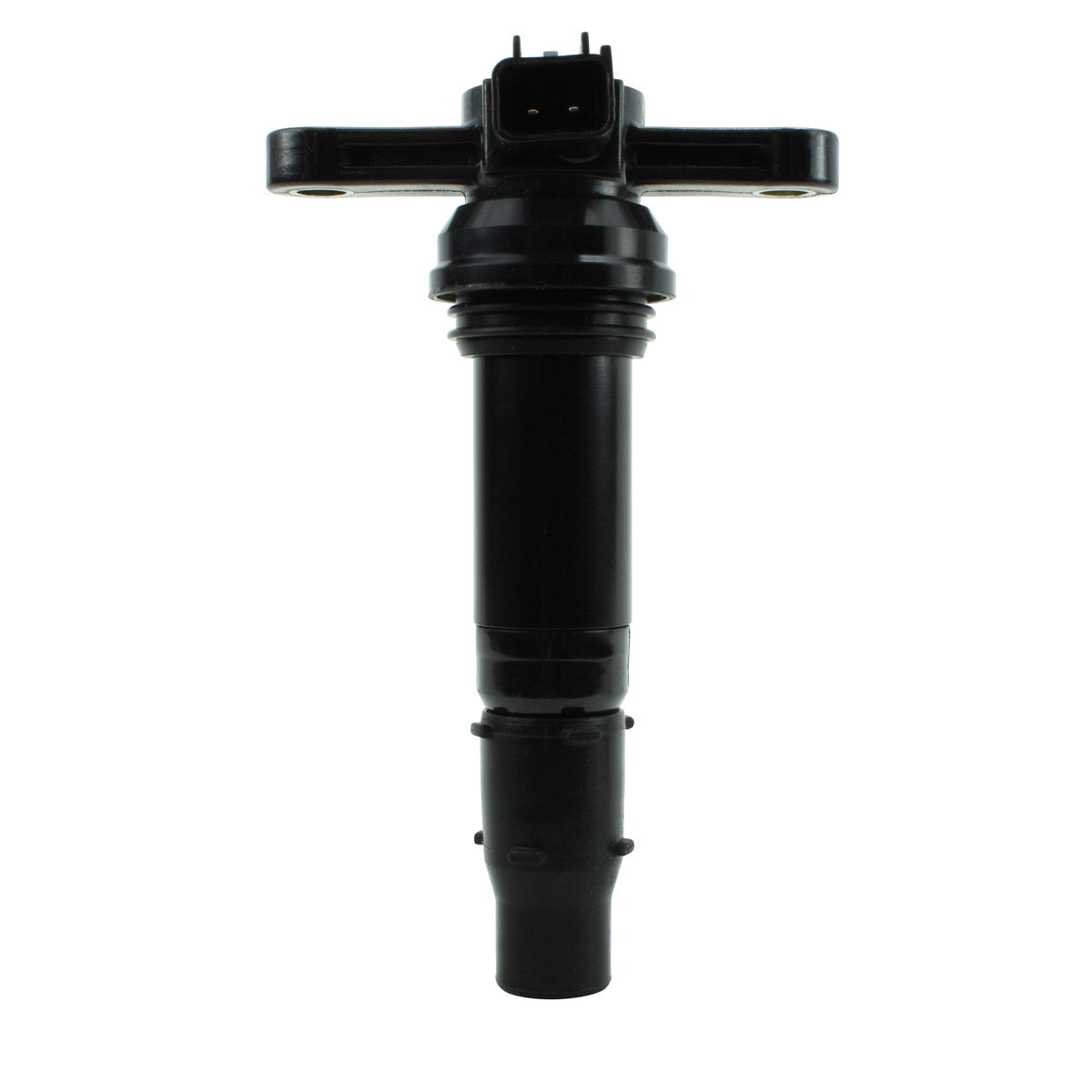

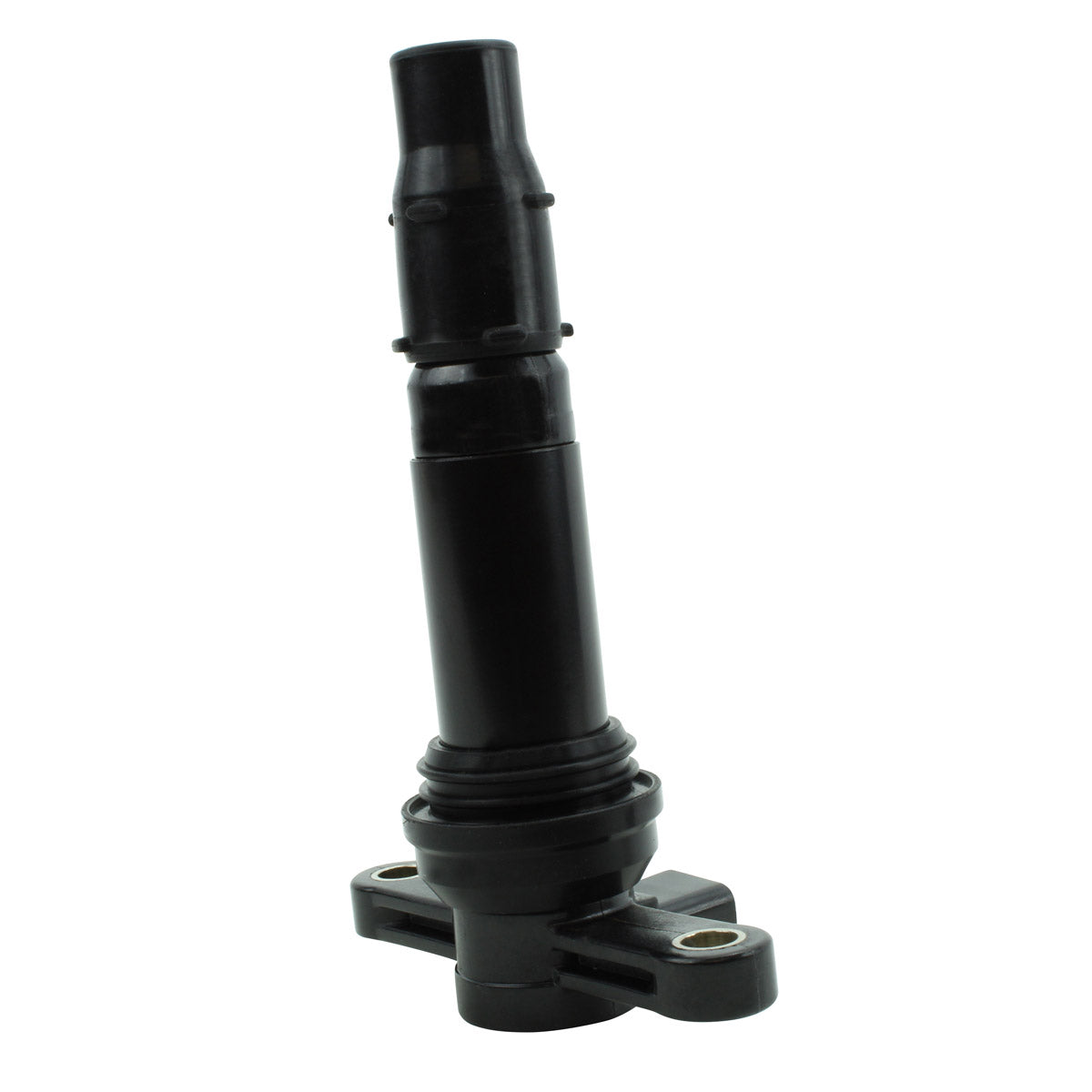

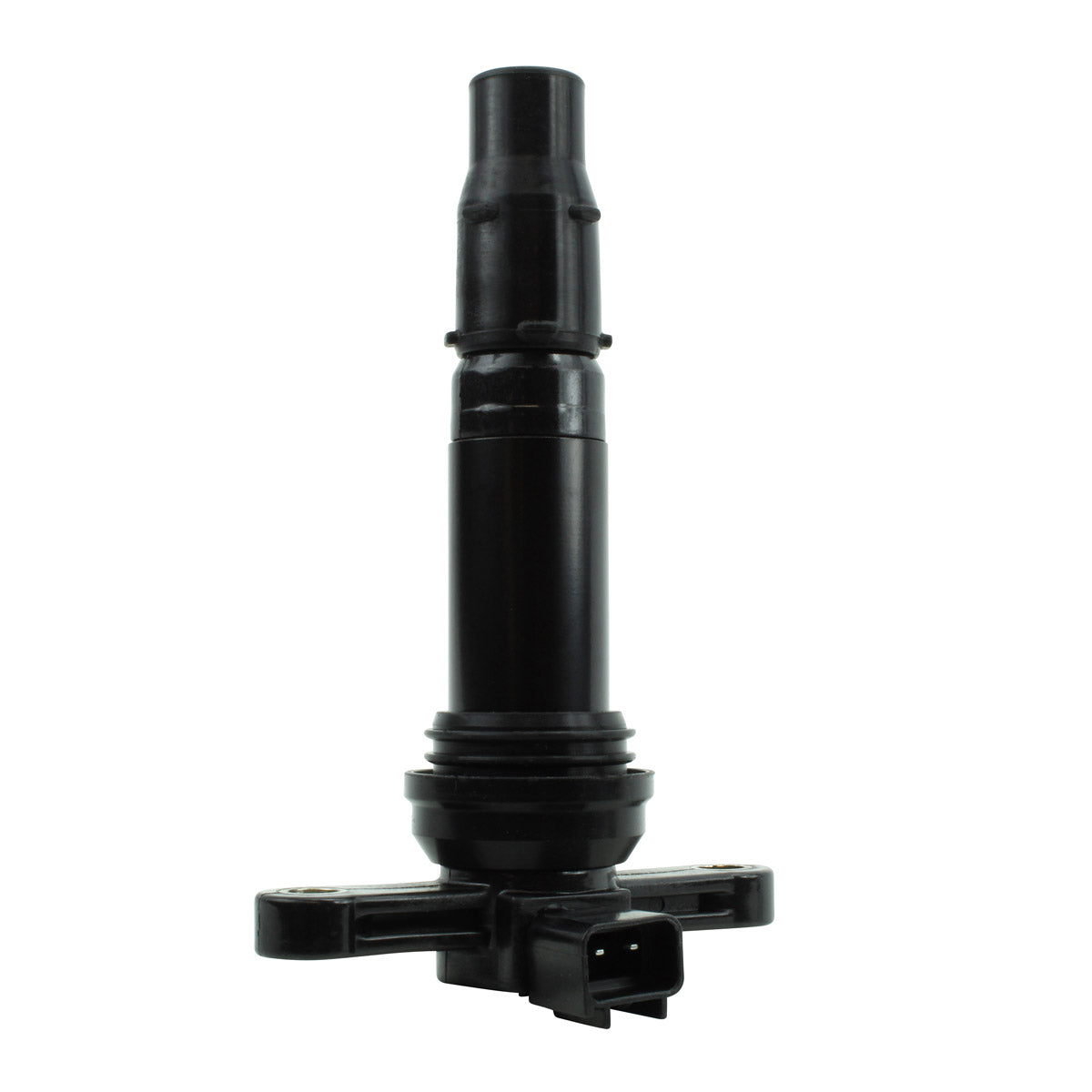

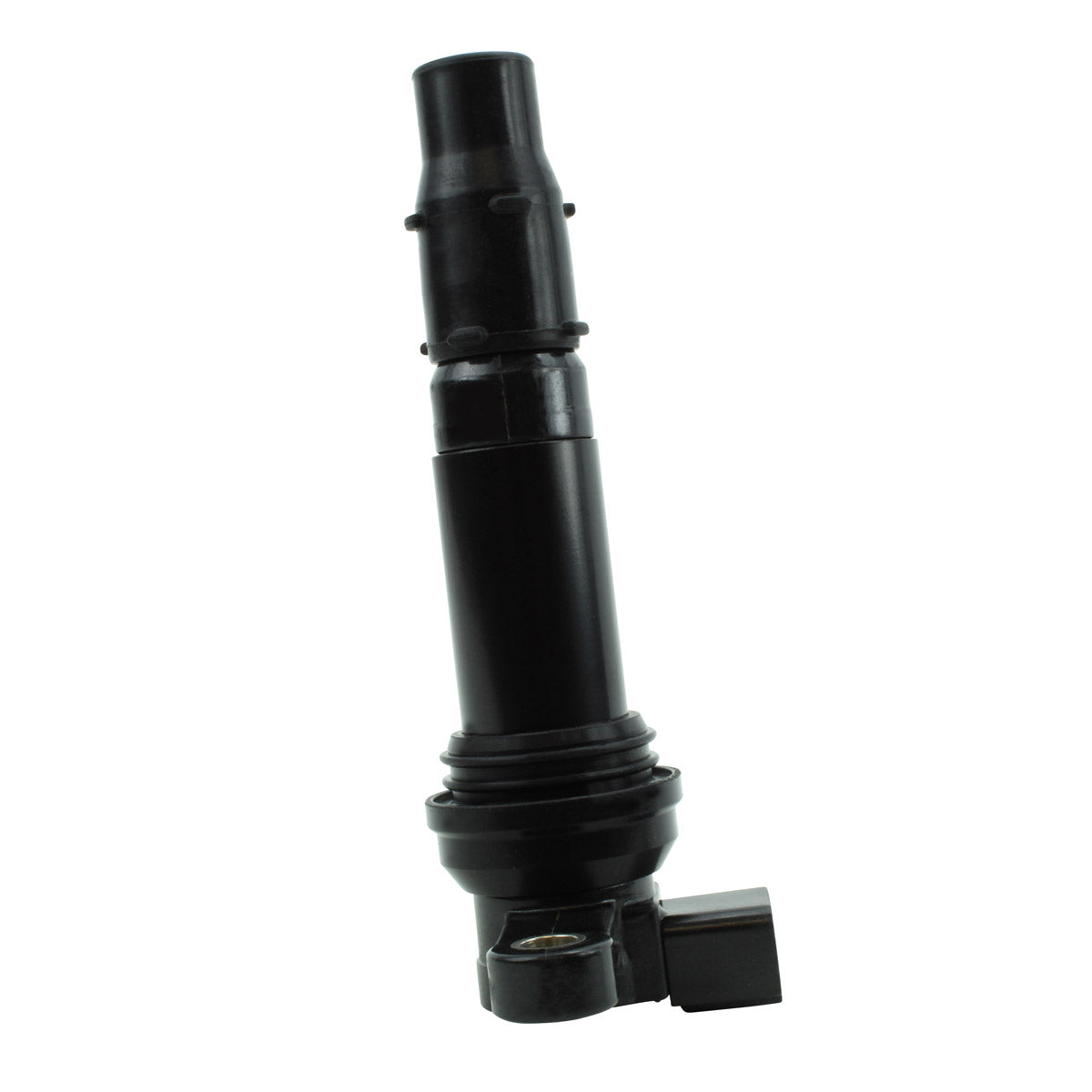

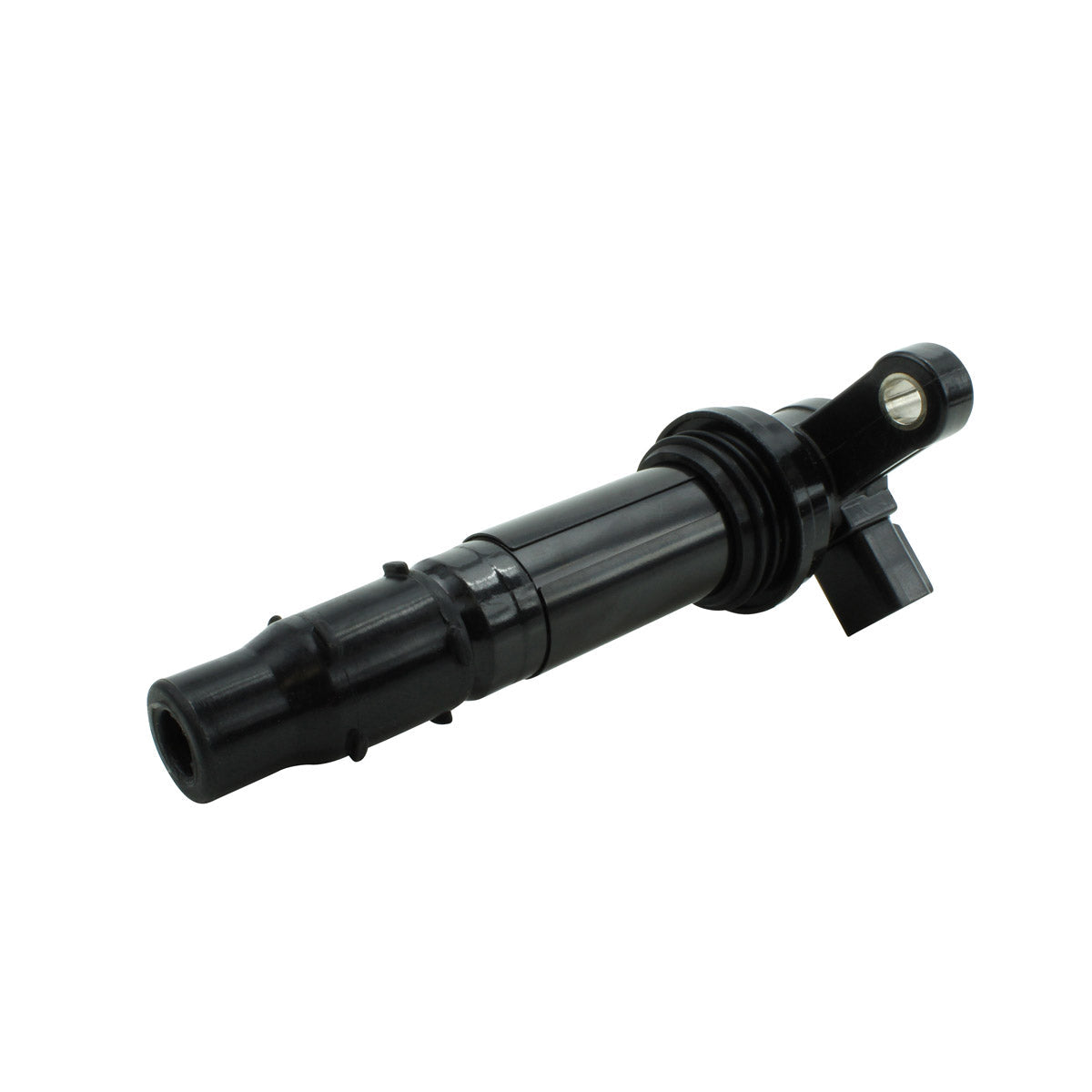

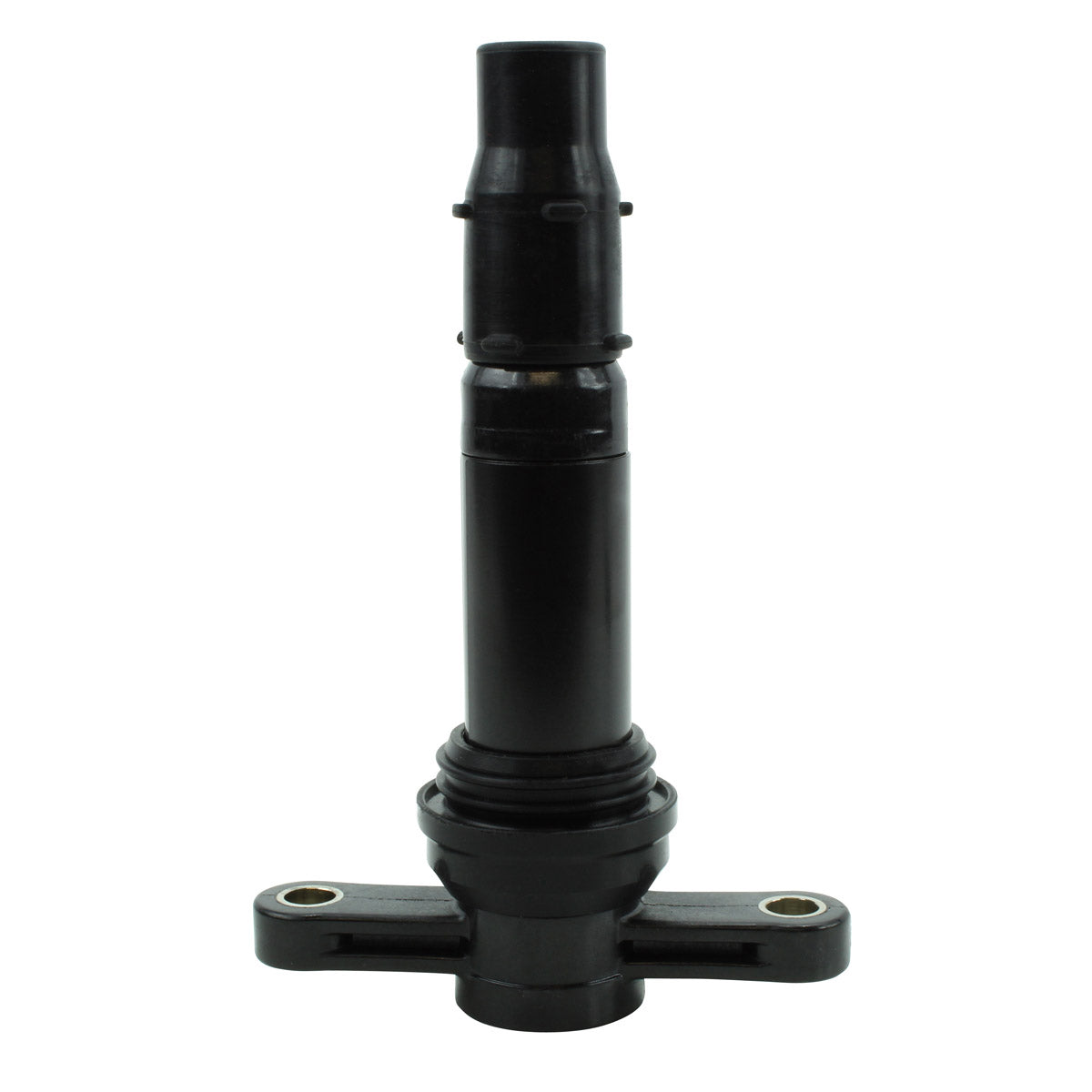

This is a brand new ignition stick coil from RMSTATOR, part number RMS260-106070, supplied as a direct replacement for the original unit fitted to the Arctic Cat Wildcat XX 1000 and the Yamaha YXZ 1000 R in EPS, SS and SE forms. It replaces Yamaha part number 2HC-82310-00-00 and Arctic Cat part number 3021-930. RMSTATOR state that the quality of this coil exceeds the OEM equipment.
A stick coil sits directly on top of the spark plug rather than feeding it through a separate HT lead, so the coil, the cap and the plug boot are a single sealed assembly. That design keeps the high tension path short and reliable, but it also means the whole unit has to be replaced when the winding goes open circuit, the internal insulation breaks down, or the rubber seal hardens and lets moisture reach the plug well. Typical symptoms of a failing stick coil on a three cylinder YXZ 1000 R or Wildcat XX are a persistent misfire on one cylinder, a rough or uneven idle, hesitation and loss of power under load, hard starting when the engine is hot, or a stored misfire fault. Each coil is supplied complete with one cap.
Key Features
- Brand new ignition stick coil
- Direct replacement to your original unit
- Quality exceeds the OEM equipment
- Replaces Yamaha 2HC-82310-00-00 and Arctic Cat 3021-930
- 1 cap coil included
- Rated resistance 1.8 ohms

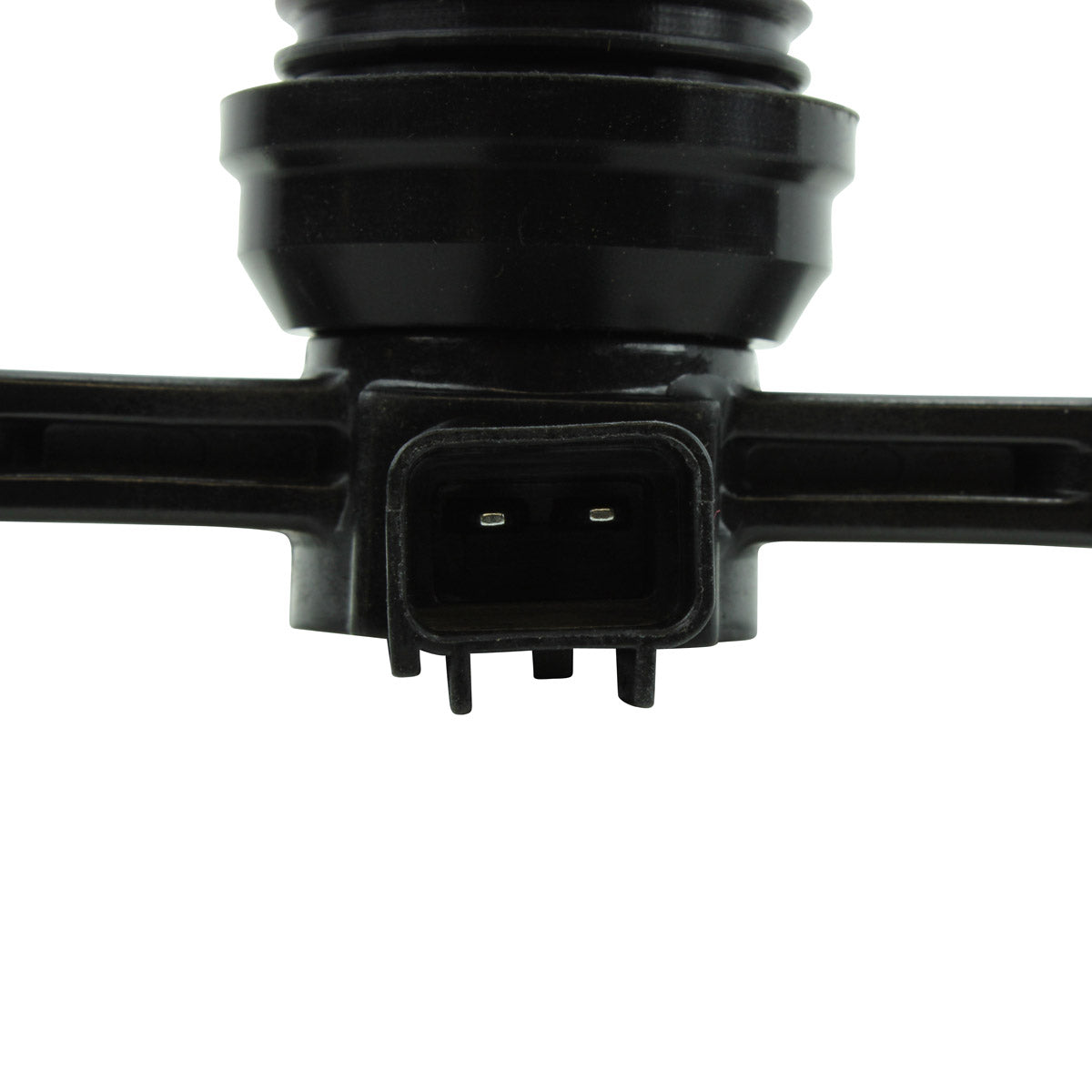

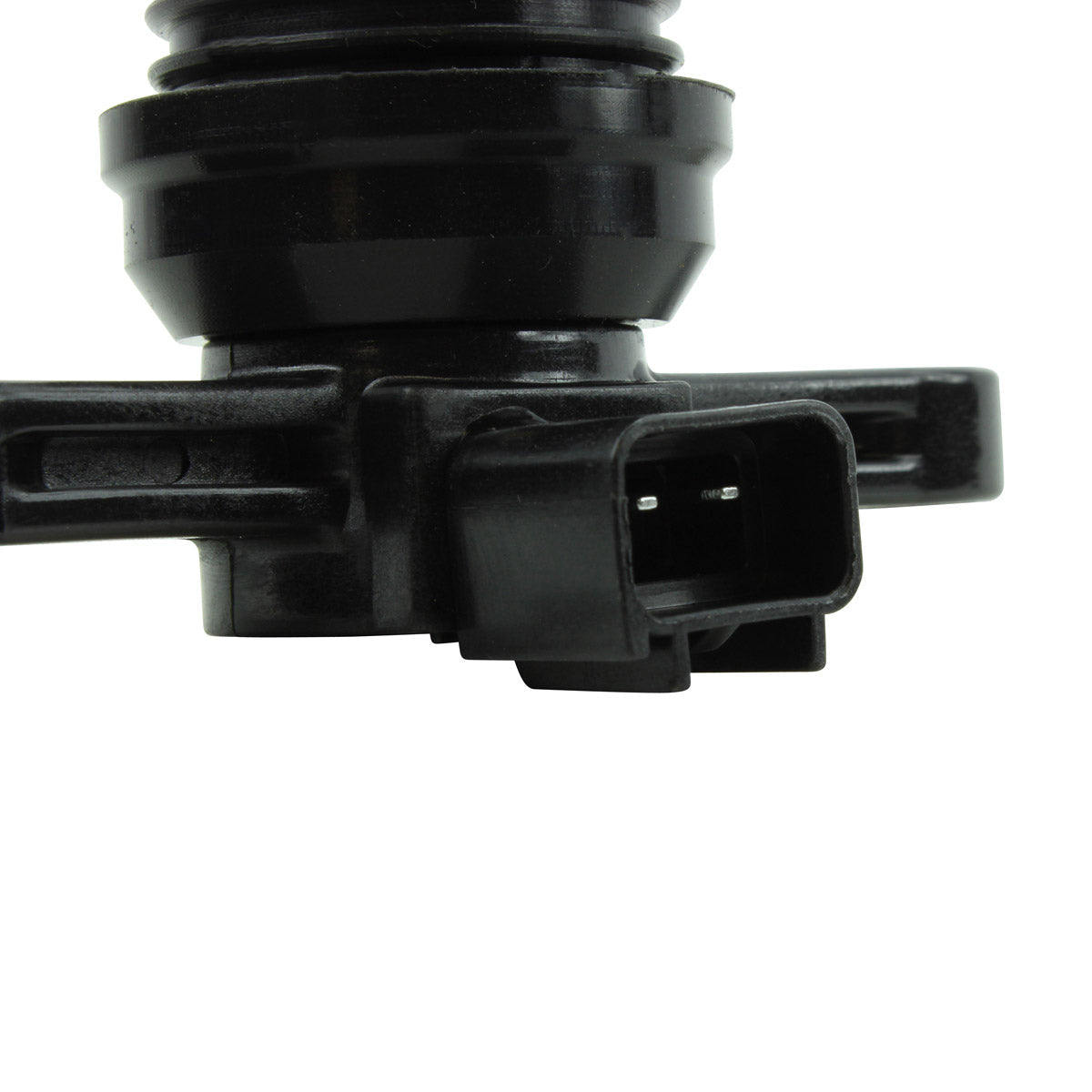

- Two terminals, single plug connection
Technical Specs
| Specification |
Detail |
| Part number |
RMS260-106070 |
| Component |
Ignition stick coil |
| Length |
128 mm |
| Height |
23 mm |
| Internal tube diameter |
10 mm |
| Internal length |
37 mm |

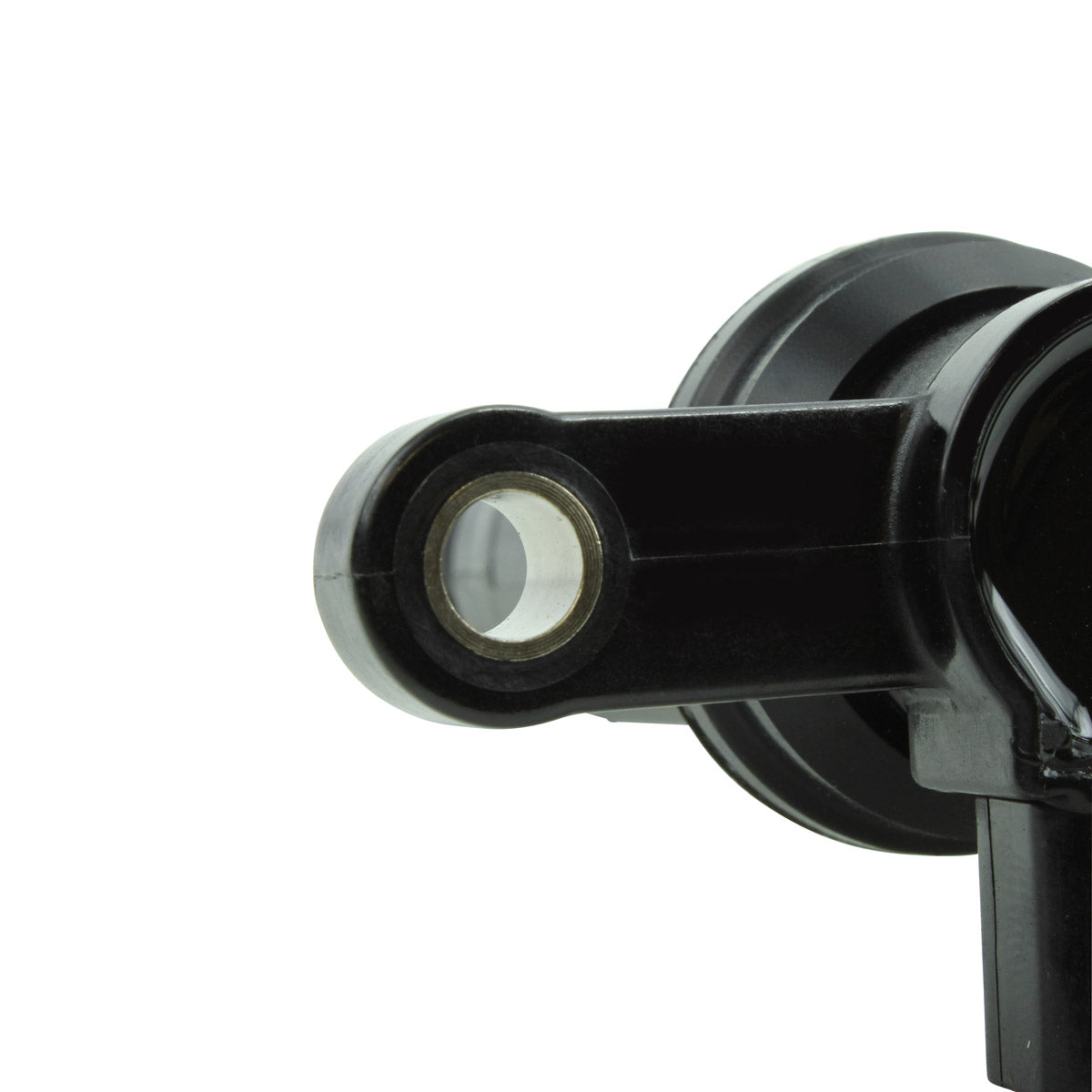

| Distance between fixation holes |
65 mm |
| Seal length |
21 mm |
| Seal diameter |
35 mm |
| Number of plugs |
1 |
| Number of terminals |
2 |
| Resistance |
1.8 ohms |
| Meter scale |
200 ohms |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Wildcat XX 1000 |
2016-2025 |
| Yamaha YXZ 1000 R EPS |
2016-2025 |
| Yamaha YXZ 1000 R SS |
2016-2025 |
| Yamaha YXZ 1000 R SE |
2016-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 2HC-82310-00-00 |
Yamaha |
| 3021-930 |
Arctic Cat |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement for the original unit, with the same 128 mm length, 65 mm fixing hole spacing and single plug connection. Compare the OEM number on your original coil against 2HC-82310-00-00 or 3021-930 before ordering.
What is included?
One ignition stick coil with one cap coil included.
How do I know the old coil has failed?
A misfire confined to one cylinder is the classic sign, along with a rough idle, hesitation and loss of power under load, hard starting when hot, and a stored misfire fault. A quick electrical check is to measure across the coil terminals - this unit is specified at 1.8 ohms, measured on a 200 ohm meter scale. A reading that is open circuit or a long way from that figure points to a failed coil.
Do I need one coil or three?
This listing is for a single stick coil. The YXZ 1000 R and Wildcat XX use one coil per cylinder, so order the quantity you need - many owners replace only the failed cylinder, while others replace the full set to keep the ignition system matched.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
