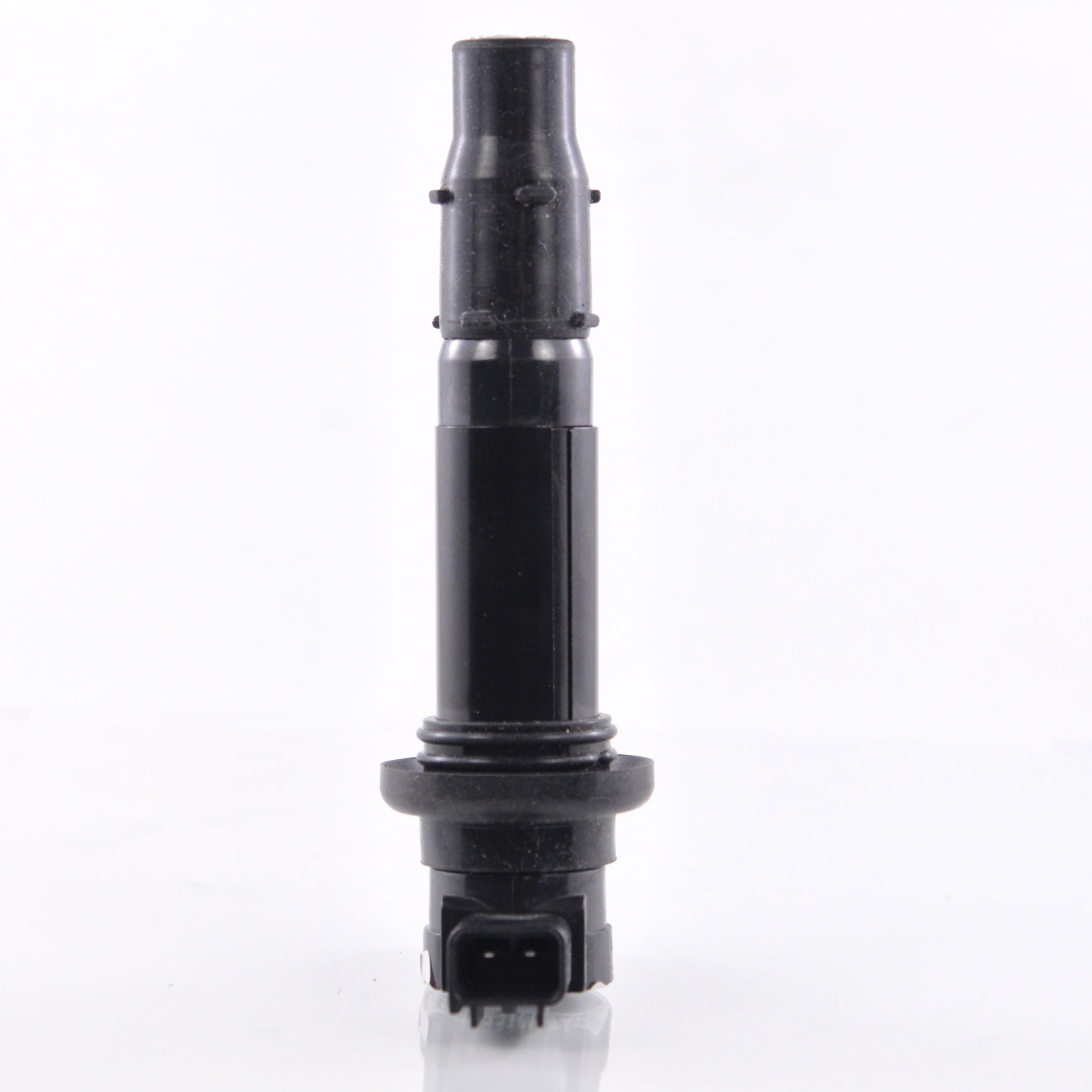

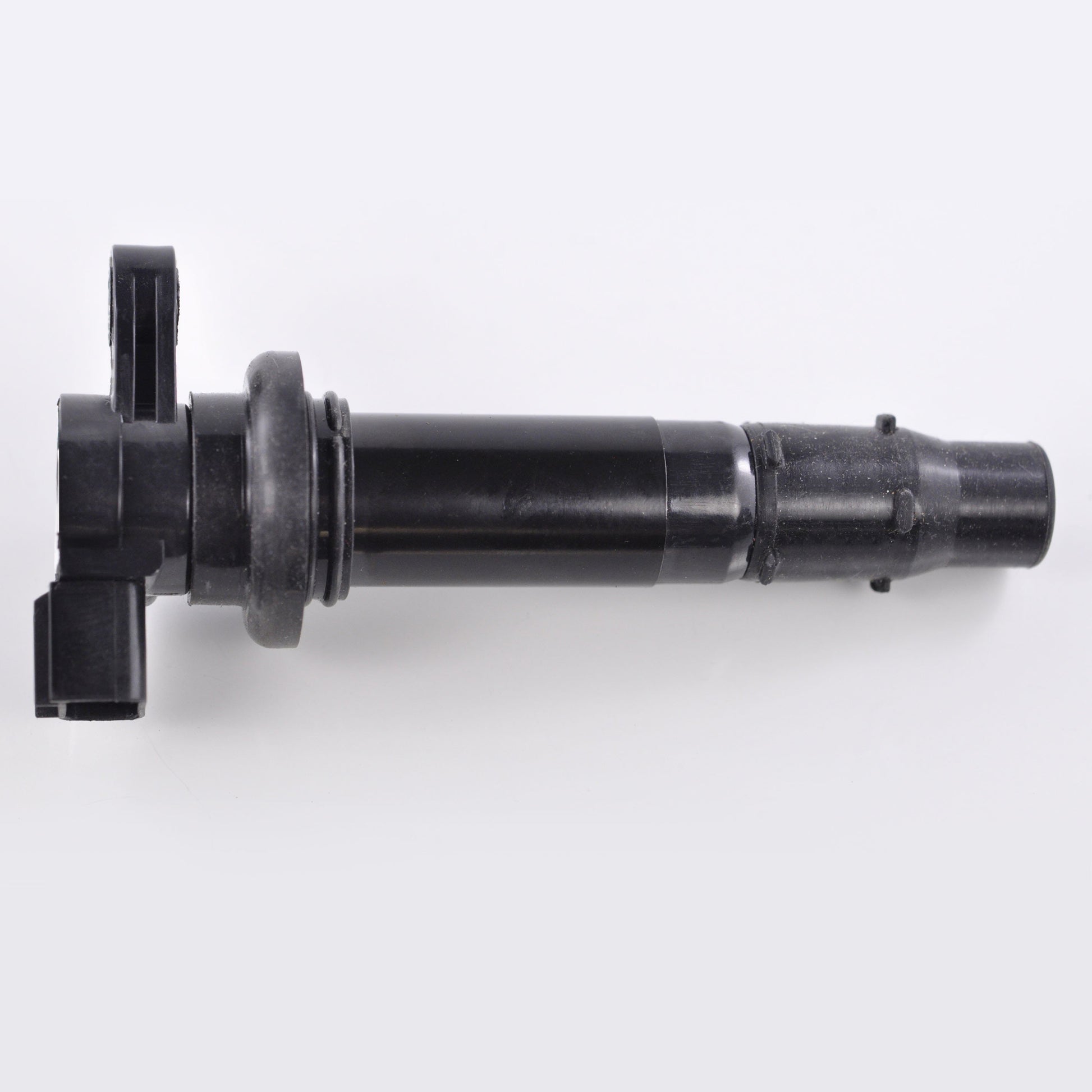

Ignition Coil for Yamaha Super Tenere XTZ 1200 2012-2018 - Replaces 23P-82310-00-00
Ignition Coil for Yamaha Super Tenere XTZ 1200 2012-2018 - Replaces 23P-82310-00-00
SKU:RM06199
Free shipping over £150. Terms apply
Couldn't load pickup availability
Ignition Coil for Yamaha Super Tenere XTZ 1200
Yamaha Super Tenere XTZ 1200, 2012-2018
This ignition coil is a direct replacement for the original unit fitted to the Yamaha Super Tenere XTZ 1200 (2012-2018), built to OEM specifications for correct fit, function and spark output.
It is a coil-on-plug design that fits directly over the spark plug well, using the factory two-terminal connector for a straightforward swap without any re-wiring. This layout removes the separate HT lead used on older designs, which is a common source of arcing and misfires as it ages.
Key Features
- Direct OEM fit for the Yamaha Super Tenere XTZ 1200 (2012-2018)
- Coil-on-plug design, fits directly over the spark plug

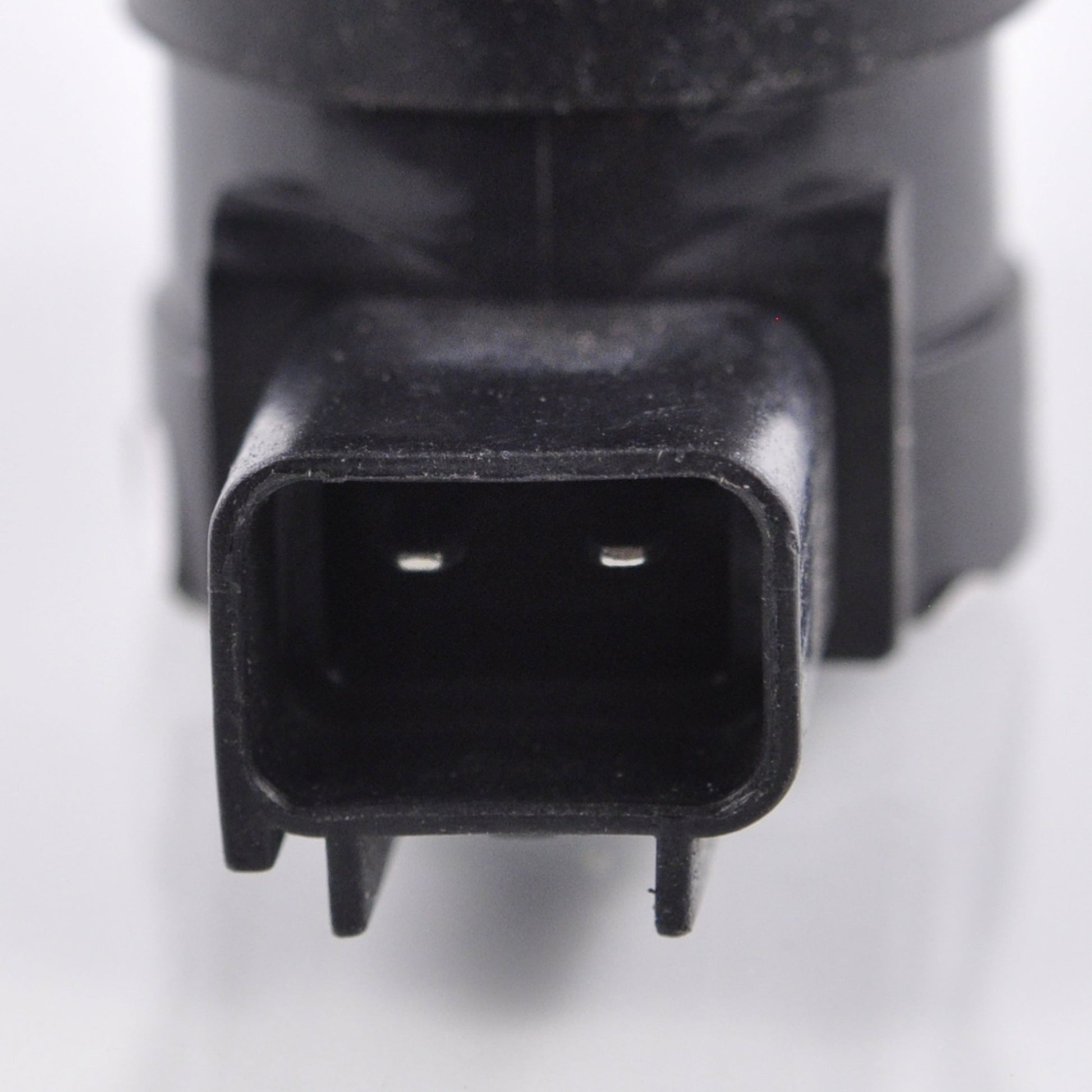

- 2-terminal factory connector
- 1.7 ohm coil resistance
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Spark Plug Hole External Diameter (Bottom) | 16.6 mm |
| Spark Plug Hole Internal Diameter (Bottom) | 9 mm |
| Length | 131 mm |
| Seal Diameter | 37 mm |
| Seal Length | 19.5 mm |
| Terminals | 2 |
| Resistance | 1.7 ohms |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha Super Tenere XTZ 1200 | 2012-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 23P-82310-00-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes, this coil-on-plug unit fits directly over the spark plug using the factory connector, so no cutting or splicing is required.
What's included?
One ignition coil, ready to fit in place of the original unit.
How can I tell my old coil has failed?
Common symptoms include a weak or no spark, misfiring, rough idling, or the engine cutting out under load.
Do I need any special tools to fit this?
No special tools are needed - unplug the coil connector, pull the coil out of the spark plug well, and press the new one into place in the reverse order.
Does this replace OEM part 23P-82310-00-00?
Yes, this coil is a direct replacement for Yamaha OEM part number 23P-82310-00-00.
