Ignition Coil for Yamaha YZF R6 600 2006-2007 - Replaces T1290037
Ignition Coil for Yamaha YZF R6 600 2006-2007 - Replaces T1290037
SKU:RM06191
Free shipping over £150. Terms apply
Couldn't load pickup availability

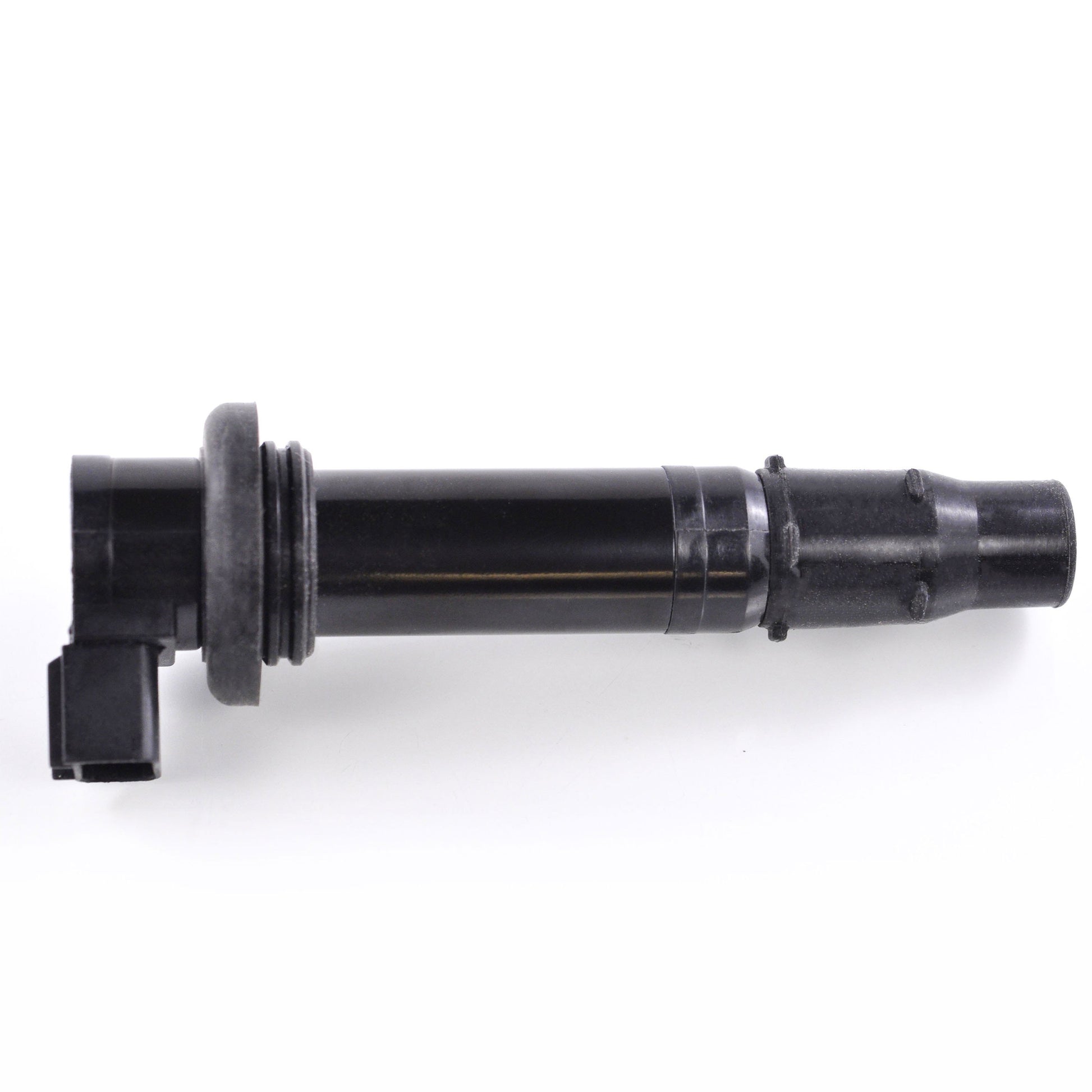

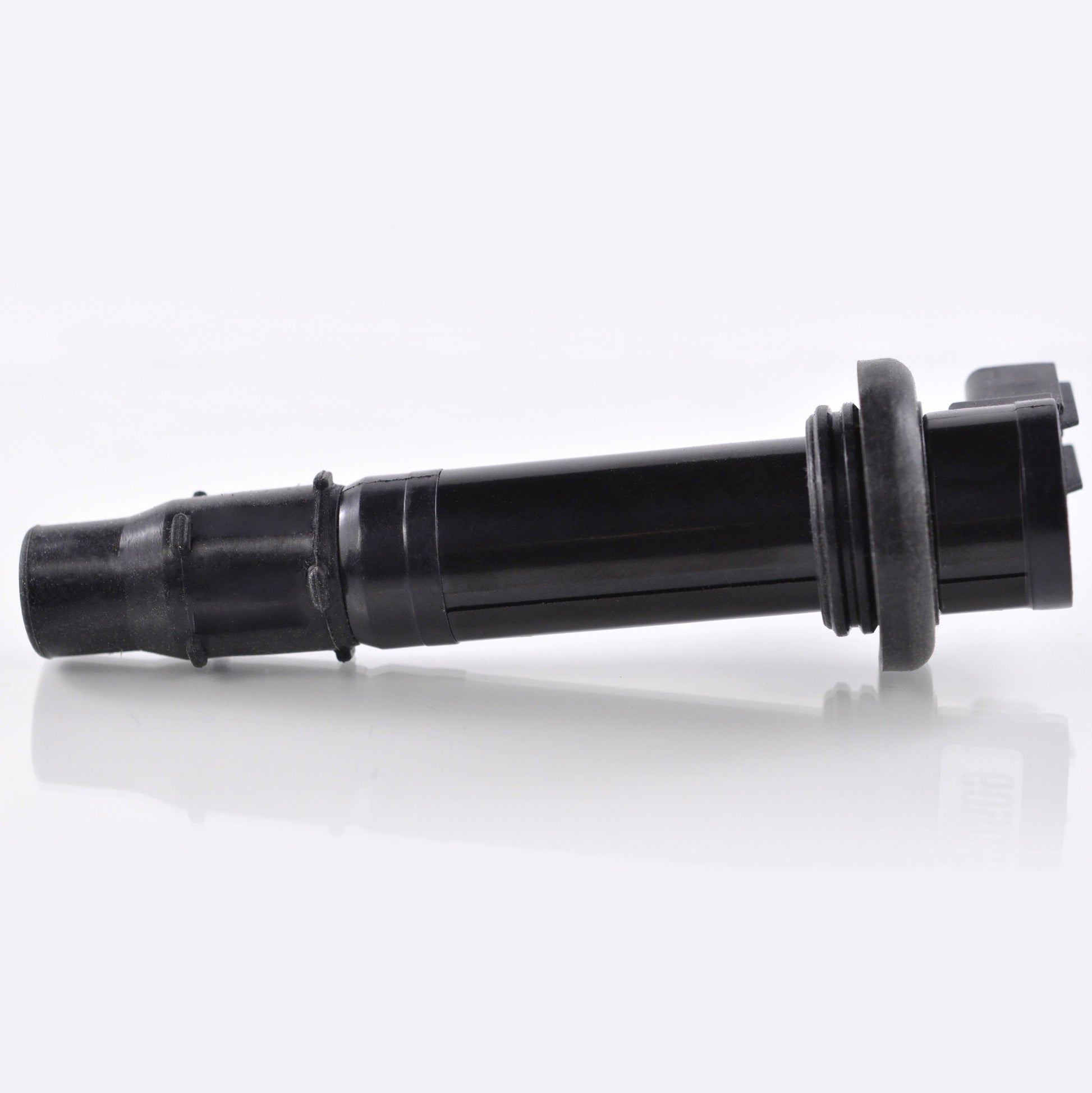

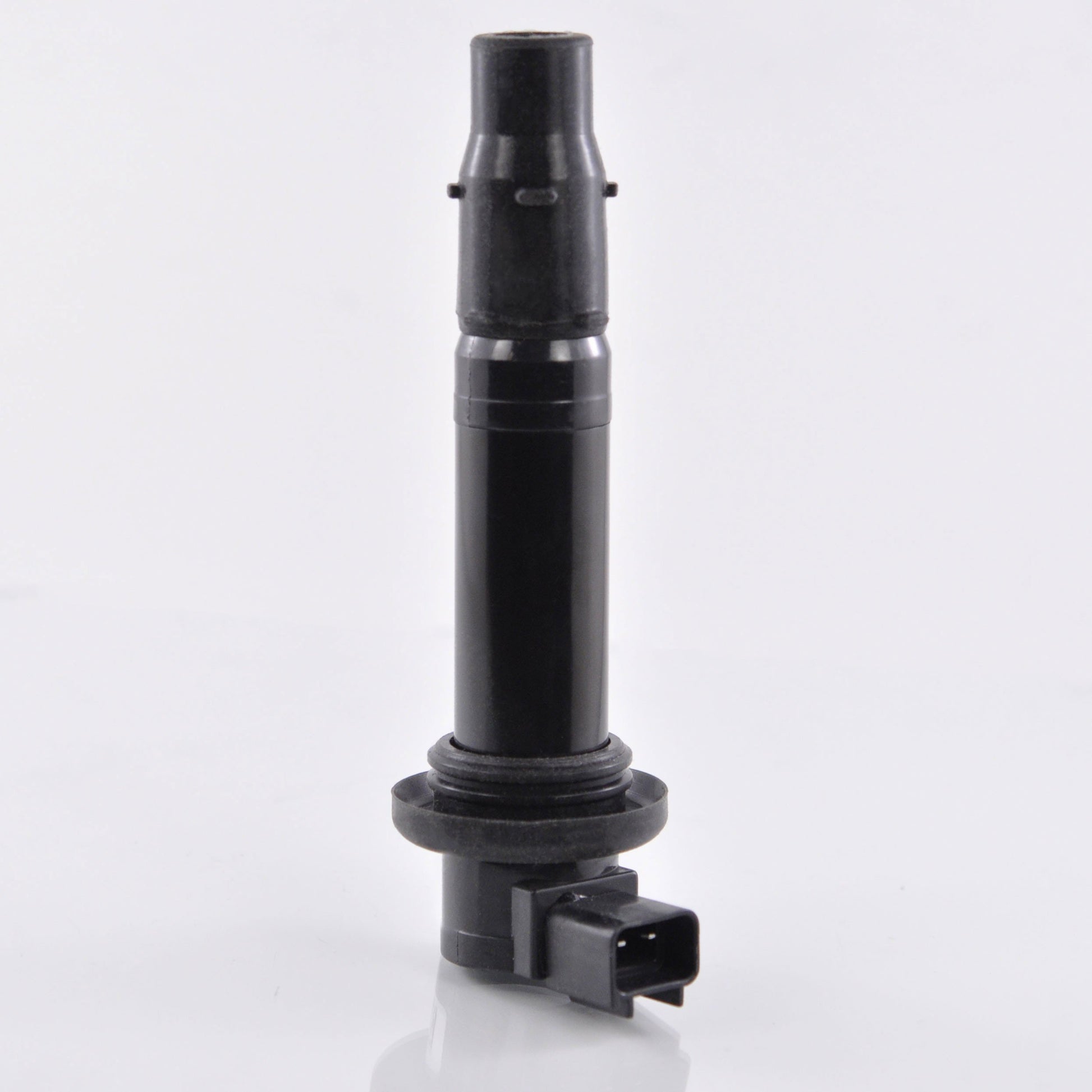

Ignition Coil for Yamaha YZF R6 600
Yamaha YZF R6 600, 2006-2007
This ignition coil is a direct replacement for the original unit fitted to the Yamaha YZF R6 600 (2006-2007), built to OEM specifications for correct fit, function and spark output.
It is a coil-on-plug design that fits directly over the spark plug well, using the factory two-terminal connector for a straightforward swap without any re-wiring. This layout removes the separate HT lead used on older designs, which is a common source of arcing and misfires as it ages.
Key Features
- Direct OEM fit for the Yamaha YZF R6 600 (2006-2007)
- Coil-on-plug design, fits directly over the spark plug

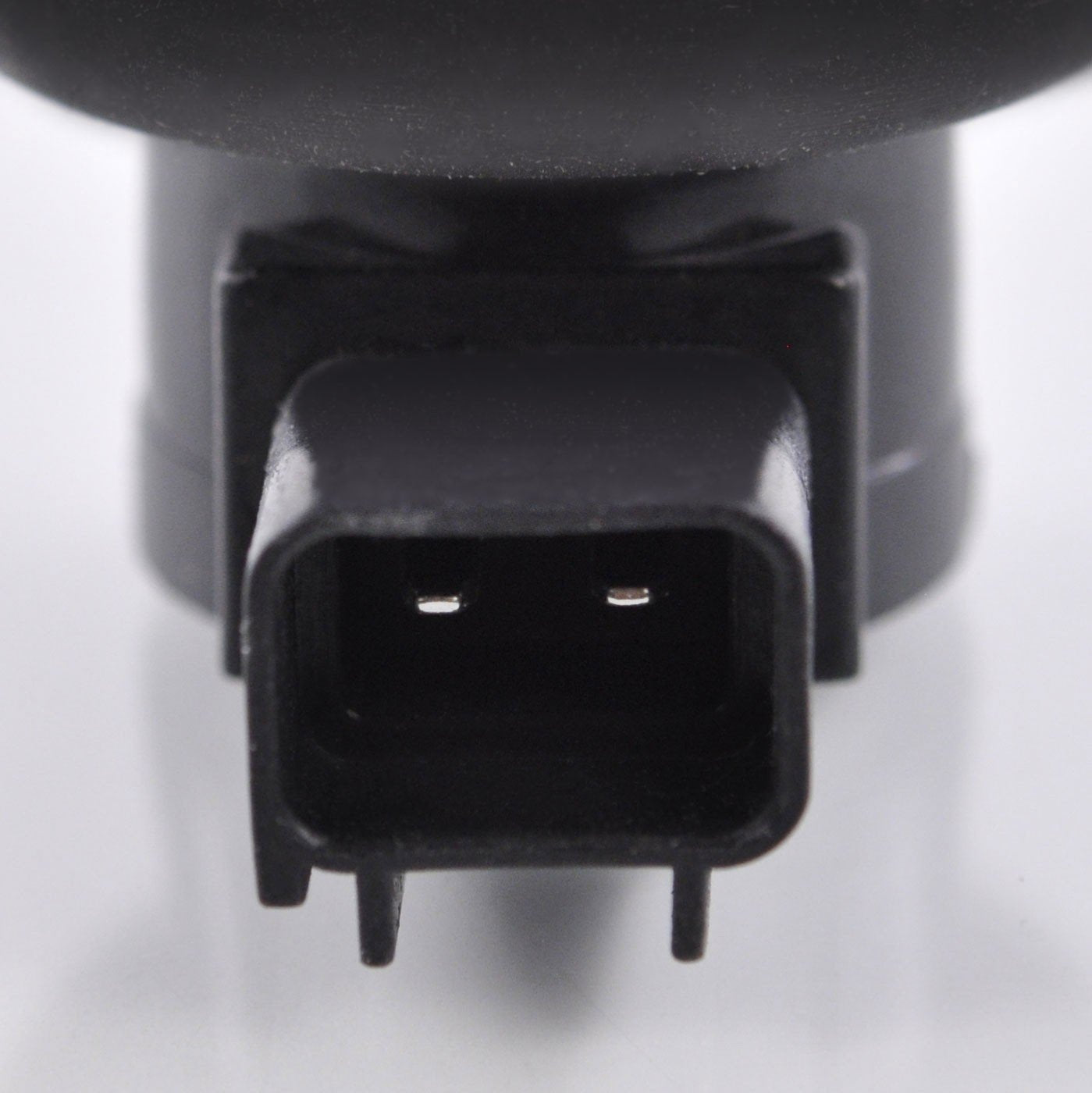

- 2-terminal factory connector
- 1.6 ohm coil resistance
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Spark Plug Hole External Diameter (Bottom) | 16.6 mm |
| Spark Plug Hole Internal Diameter (Bottom) | 9 mm |
| Length | 131.5 mm |
| Seal Diameter | 37.5 mm |
| Seal Length | 13.5 mm |
| Terminals | 2 |
| Resistance | 1.6 ohms |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YZF R6 600 | 2006-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| T1290037 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes, this coil-on-plug unit fits directly over the spark plug using the factory connector, so no cutting or splicing is required.
What's included?
One ignition coil, ready to fit in place of the original unit.
How can I tell my old coil has failed?
Common symptoms include a weak or no spark, misfiring, rough idling, or the engine cutting out under load.
Do I need any special tools to fit this?
No special tools are needed - unplug the coil connector, pull the coil out of the spark plug well, and press the new one into place in the reverse order.
Does this replace OEM part T1290037?
Yes, this coil is a direct replacement for Yamaha OEM part number T1290037.
