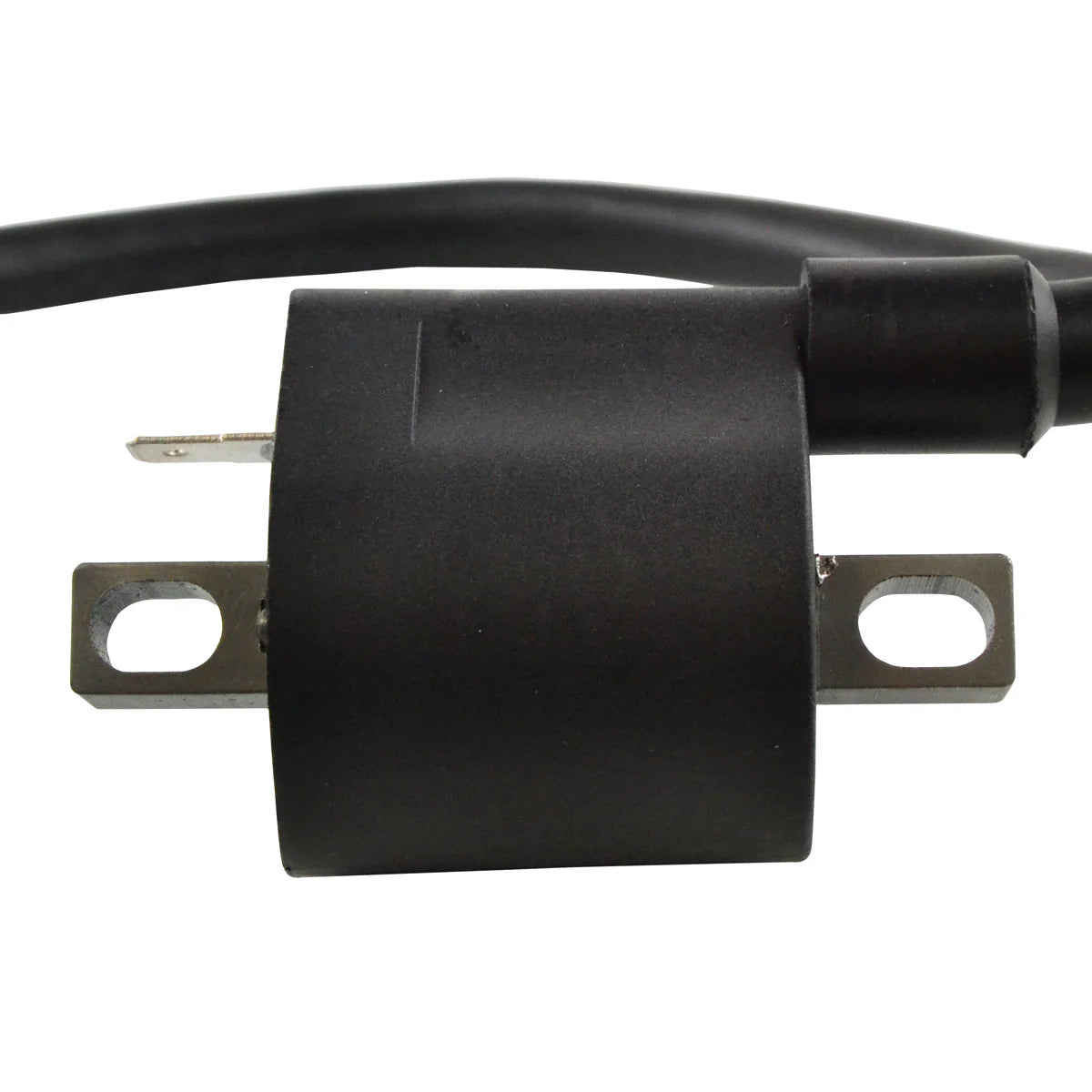

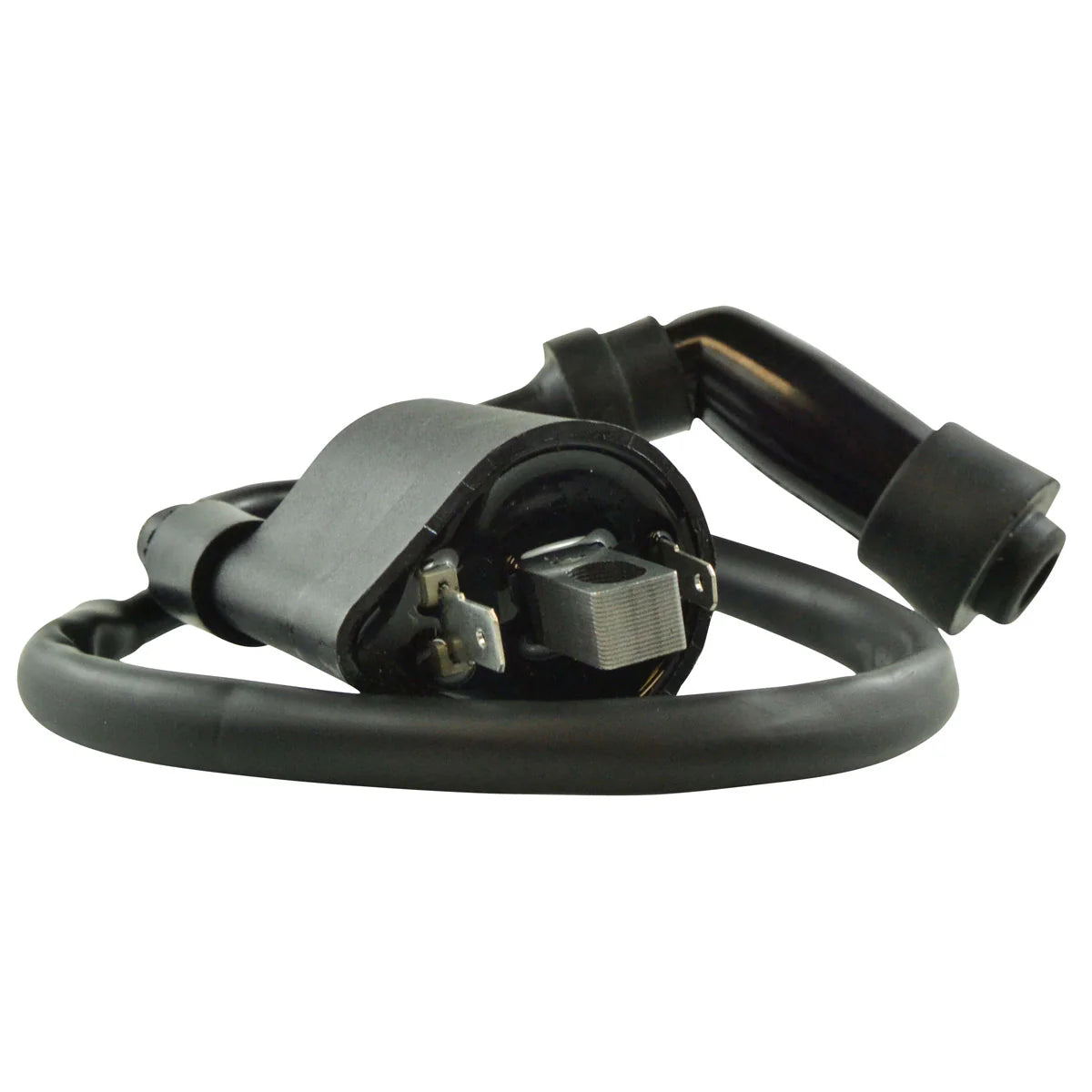

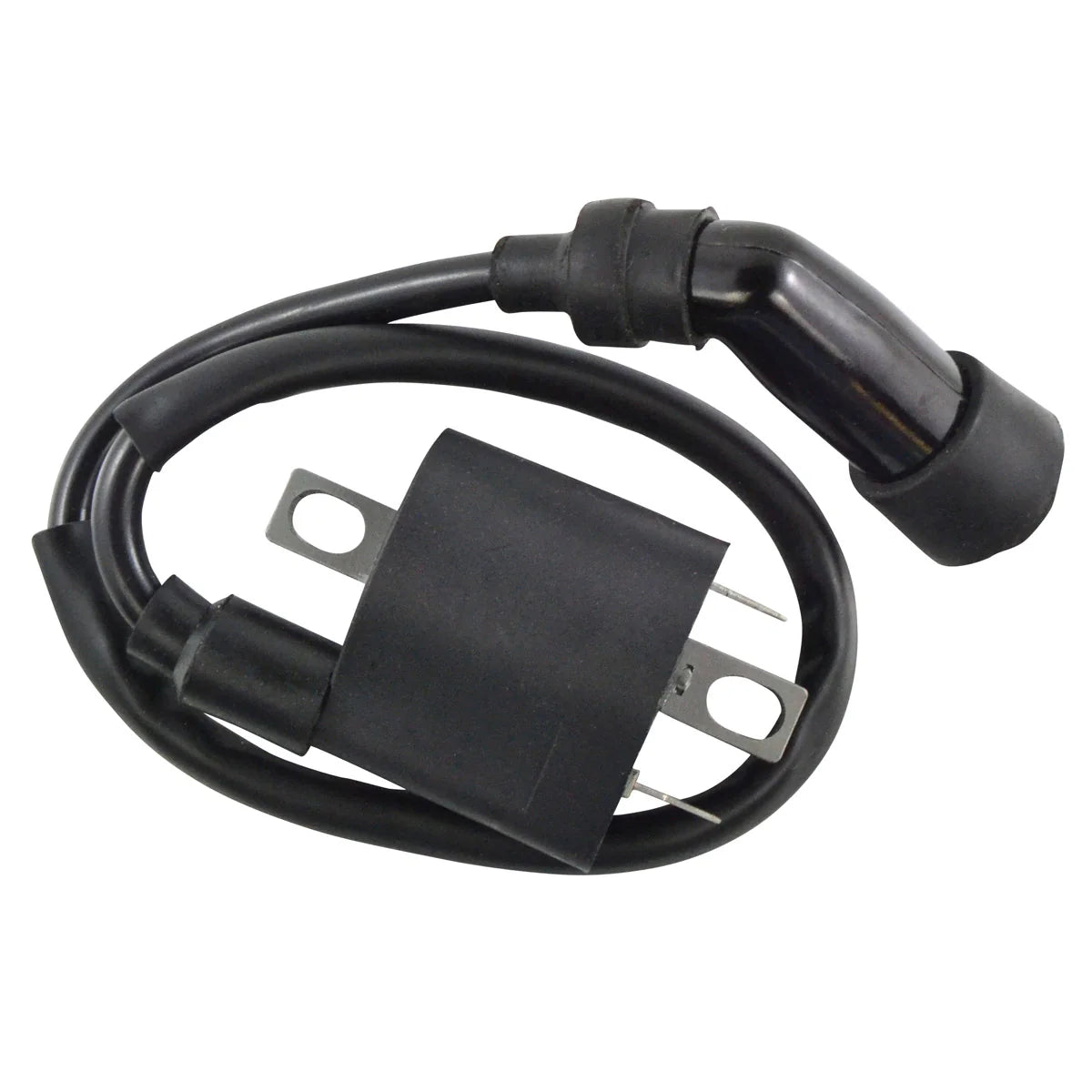

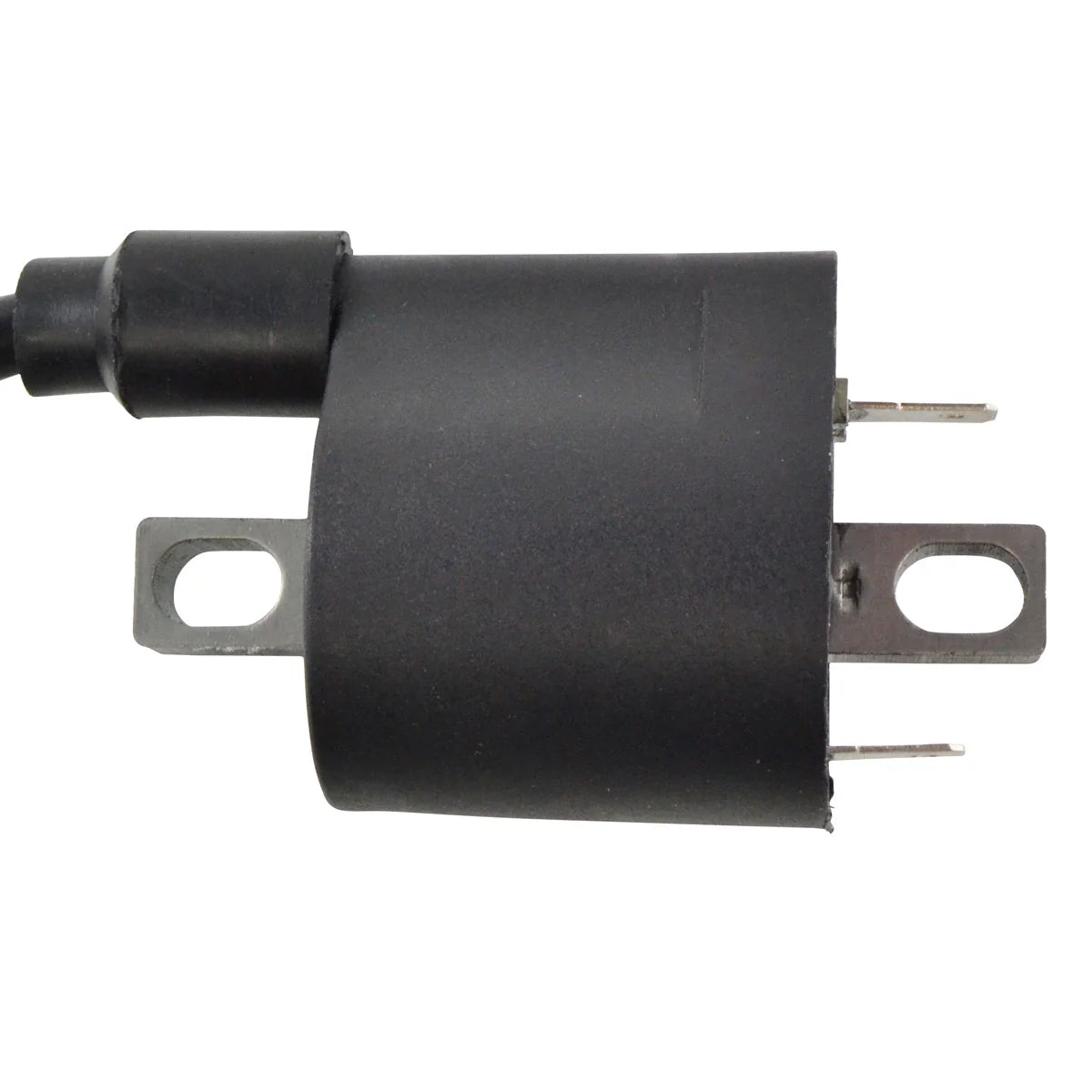

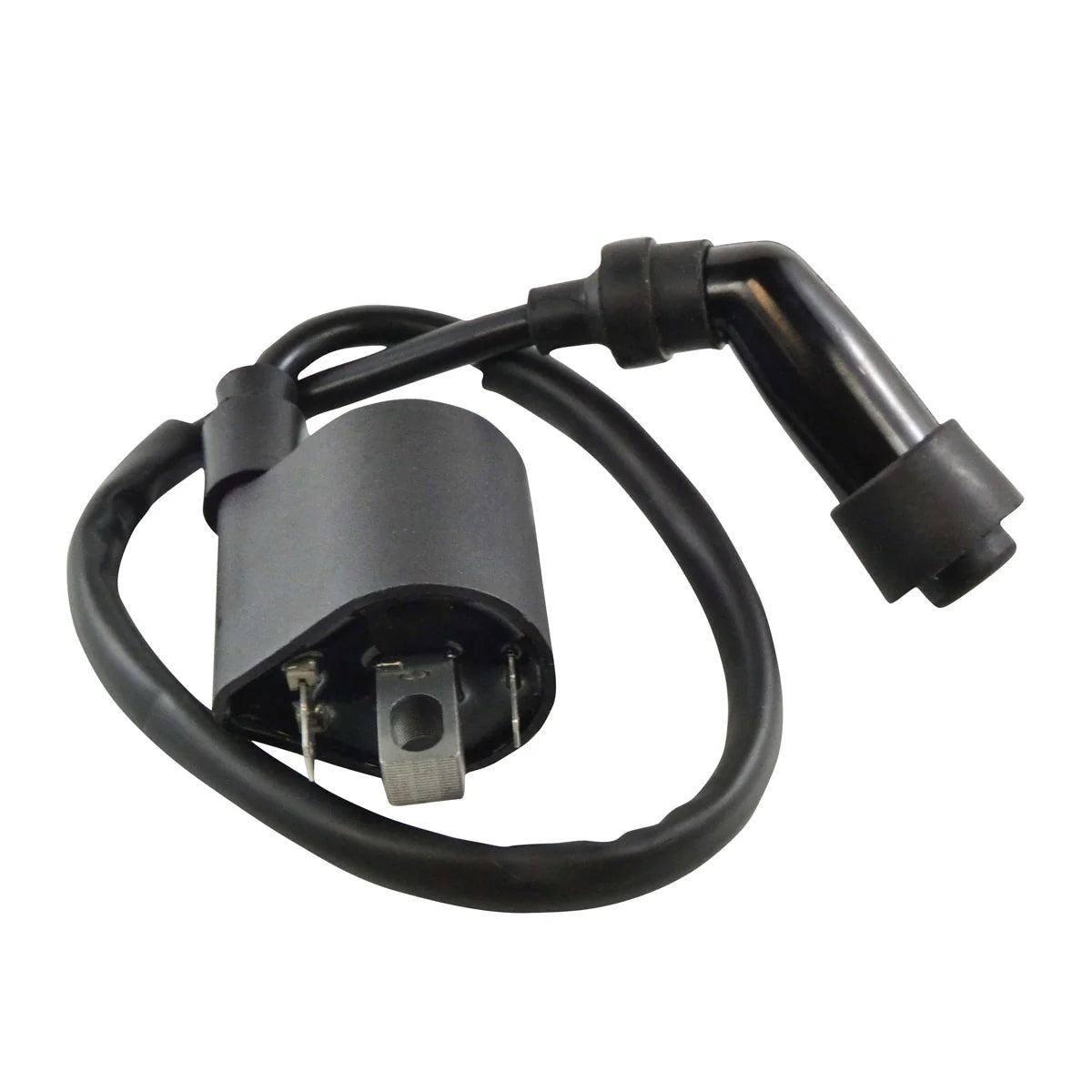

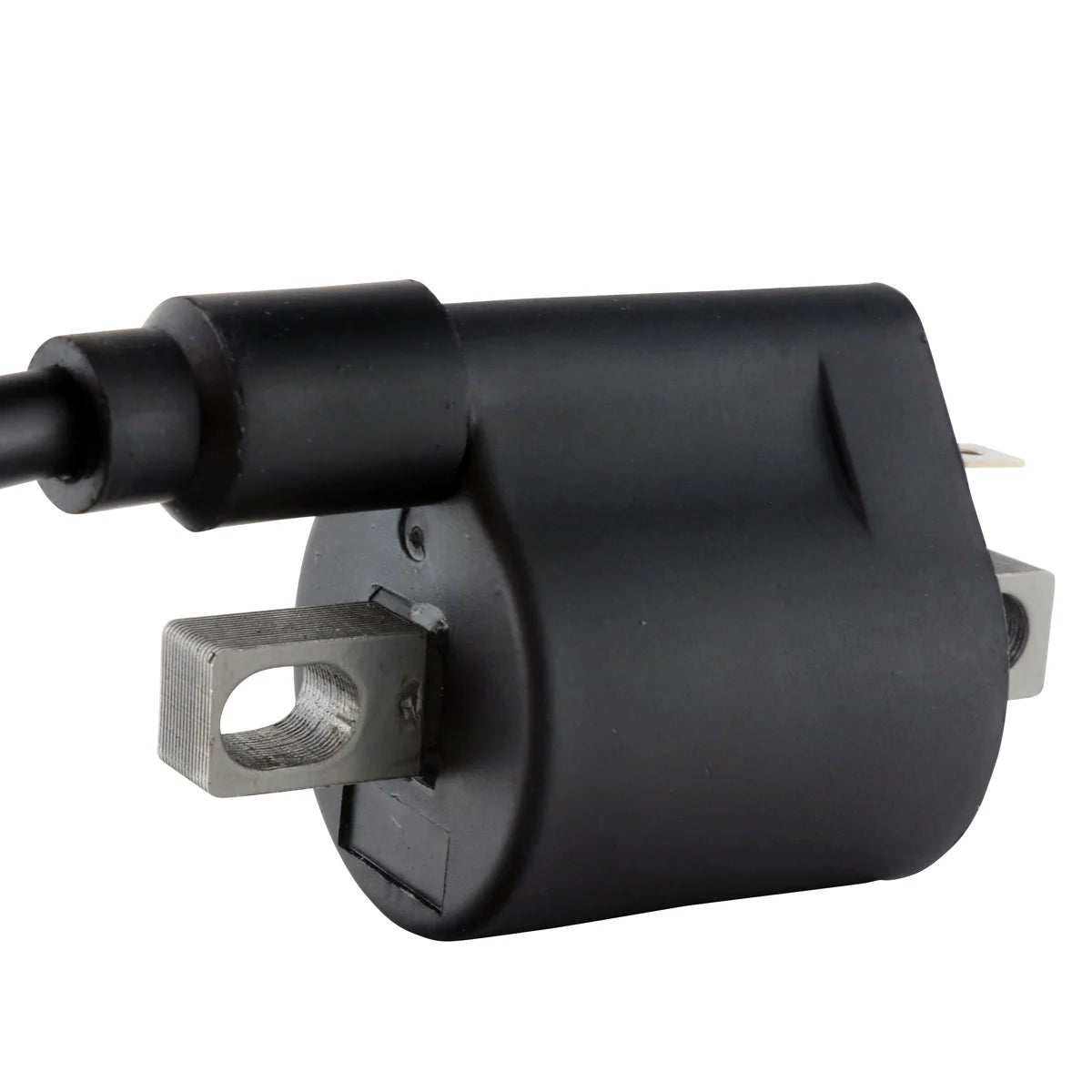

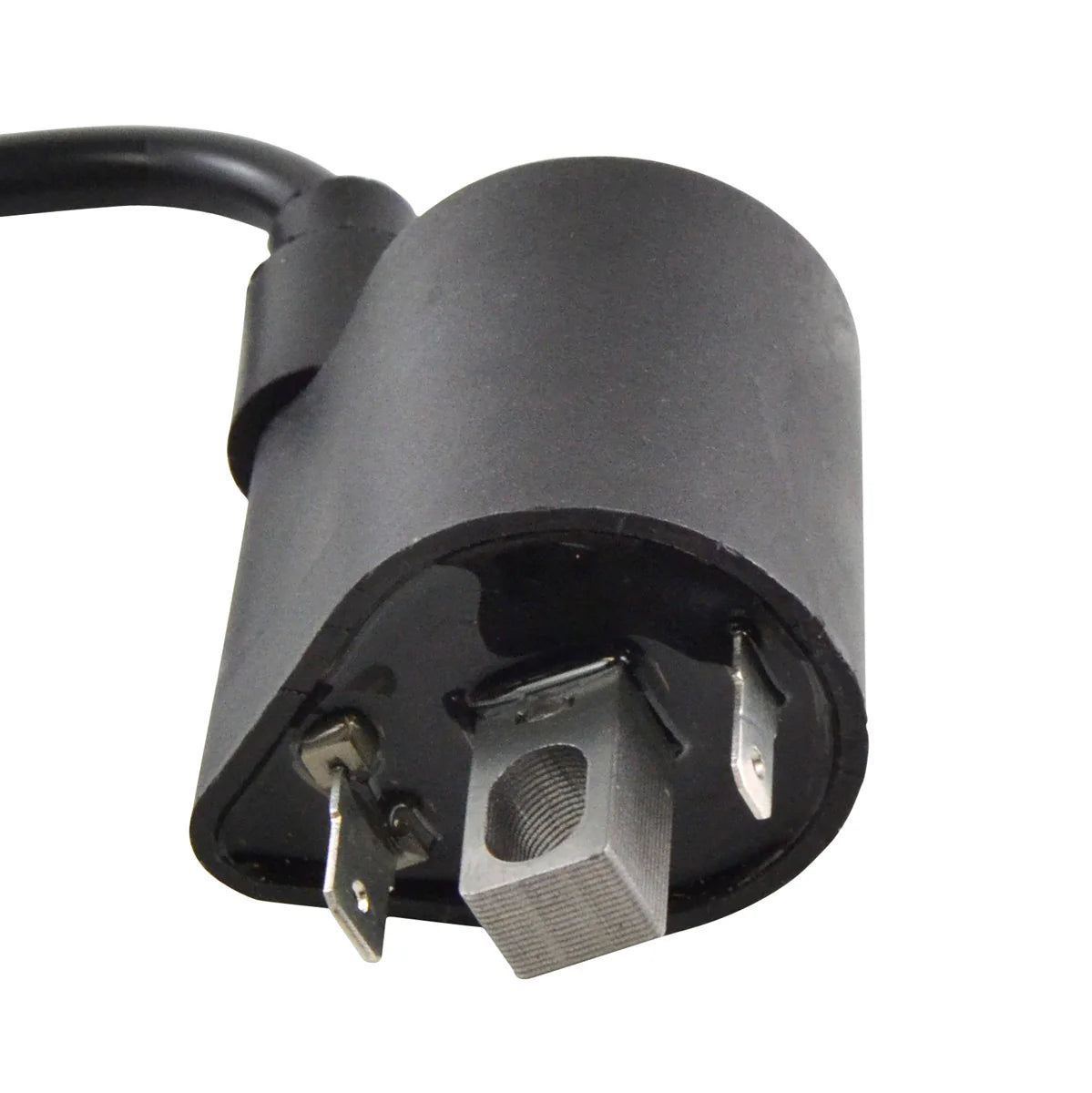

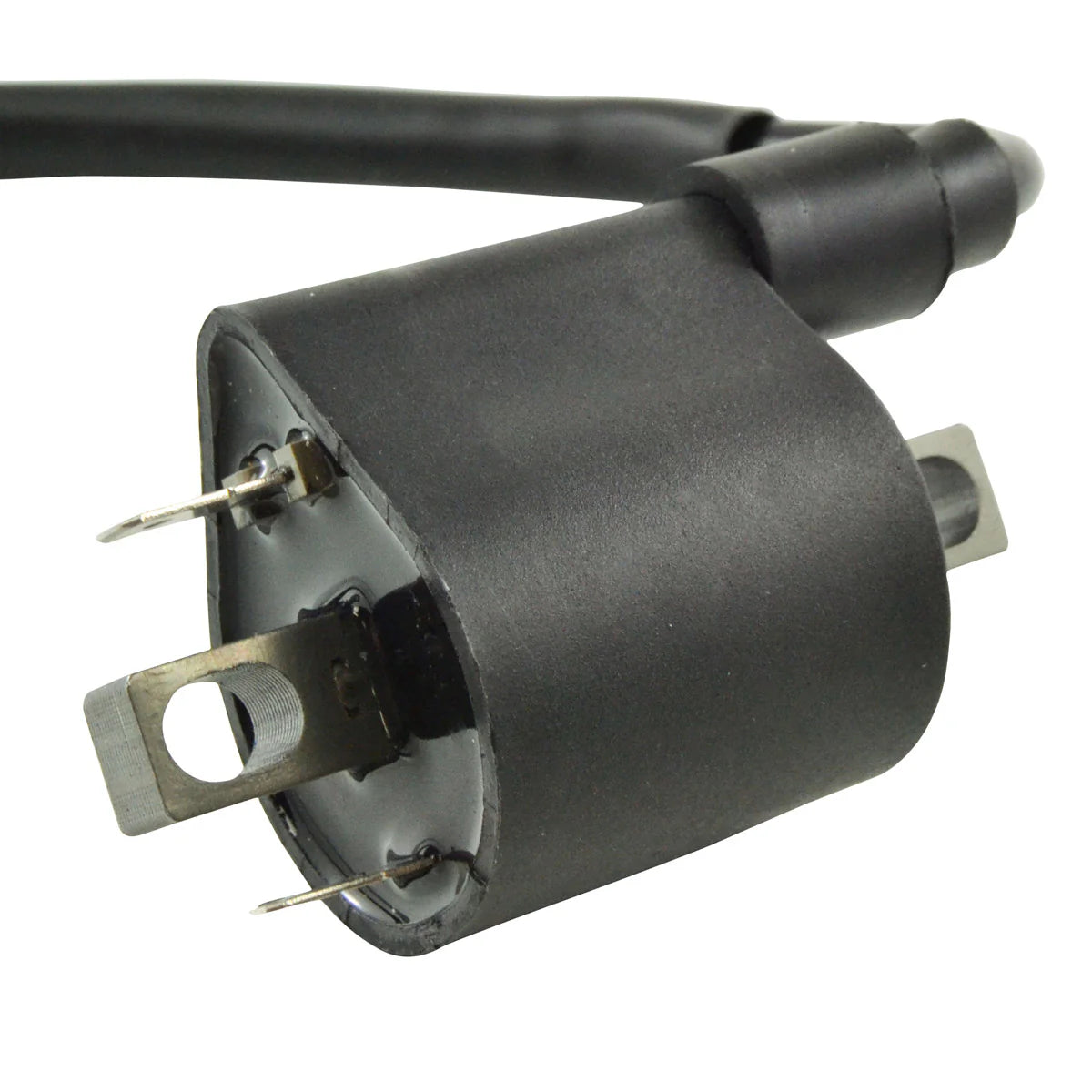

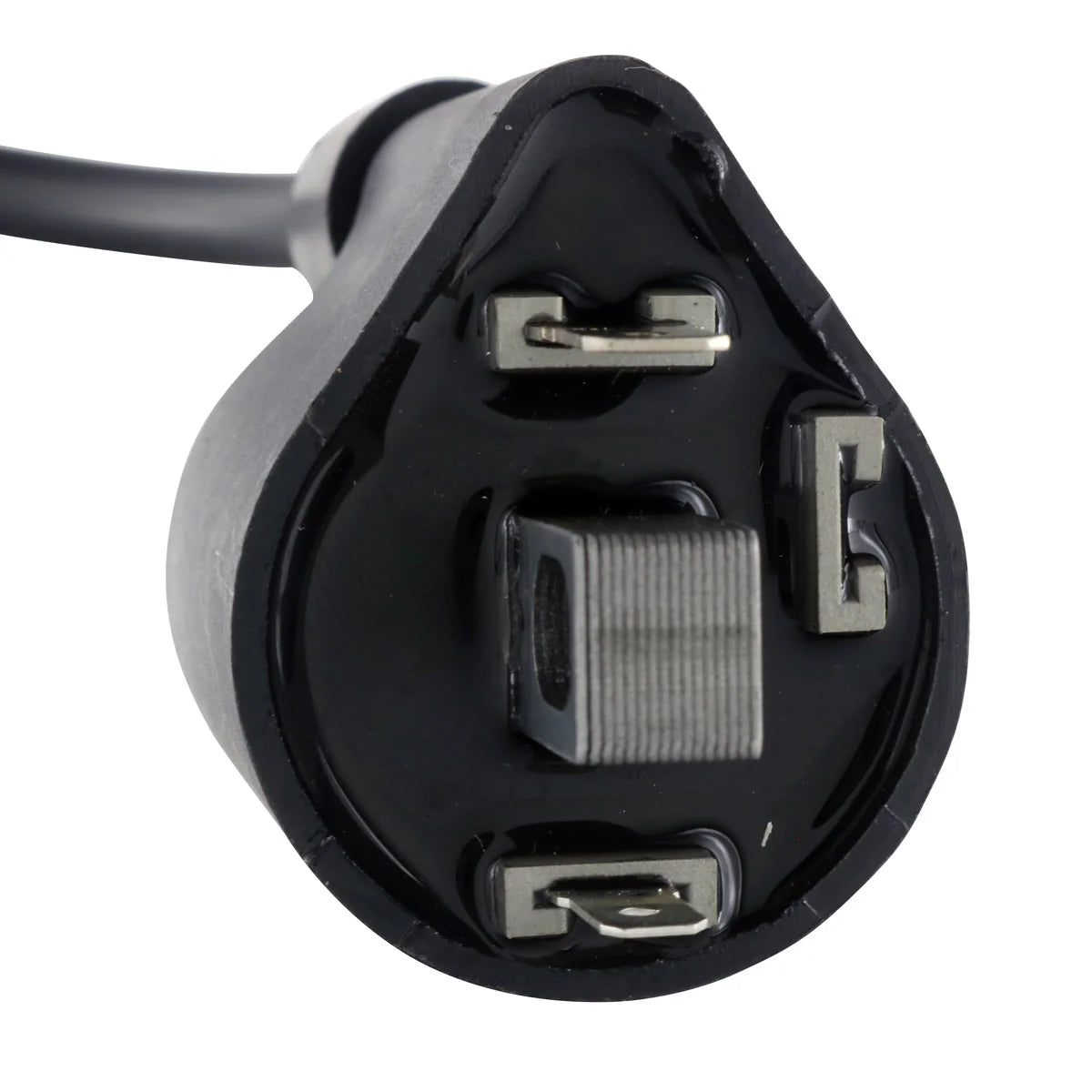

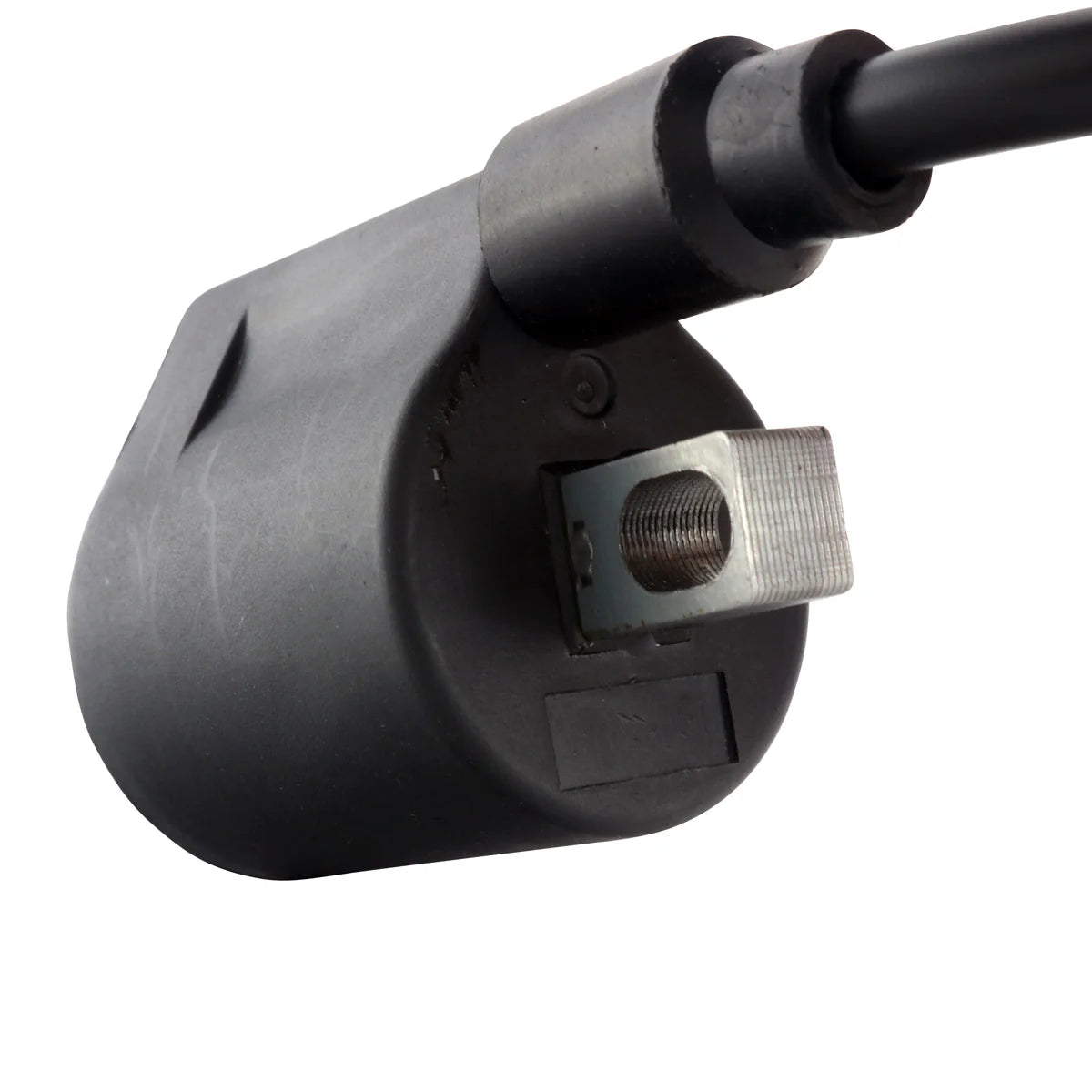

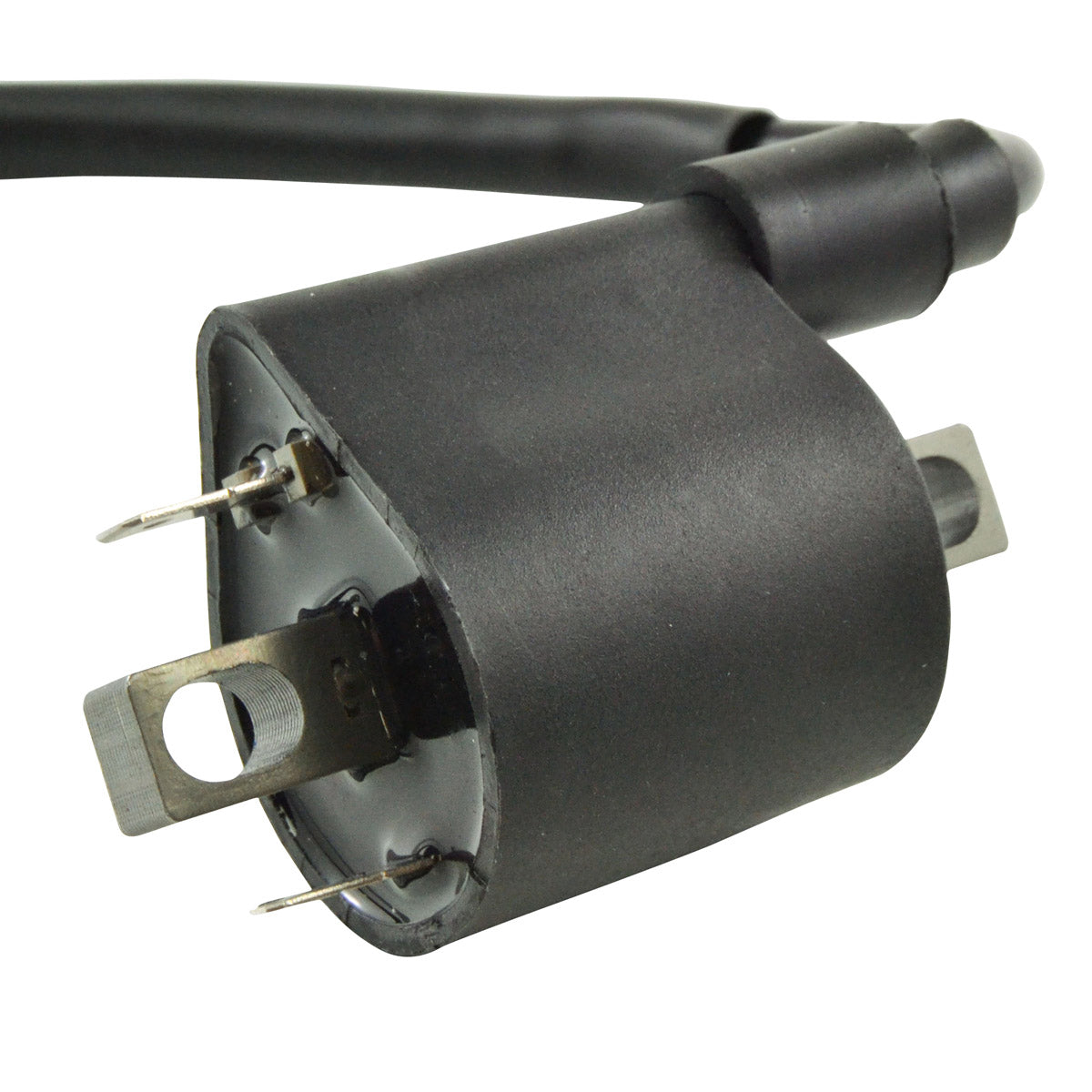

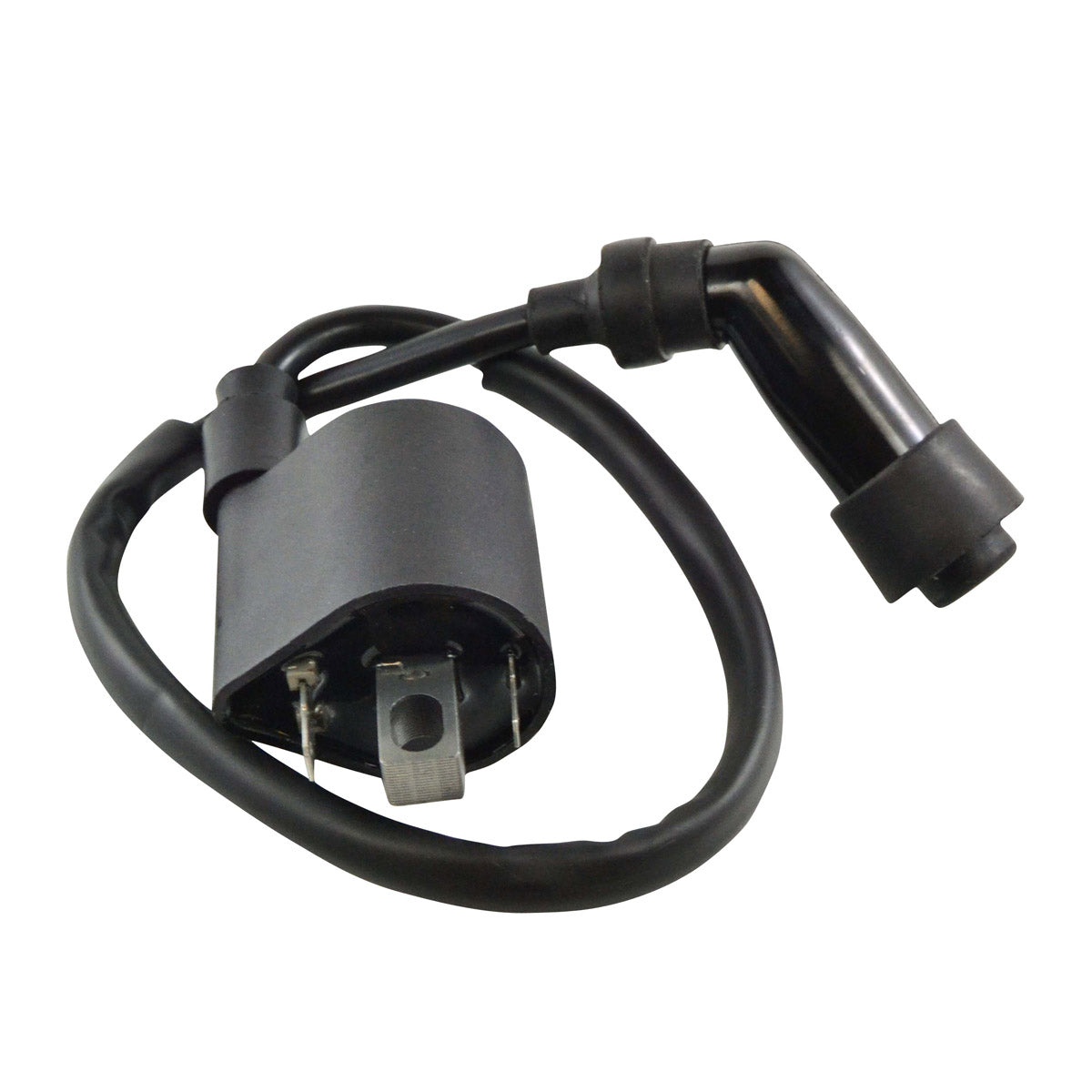

External Ignition Coil with Spark Plug Cap
Yamaha YXR 700 Rhino and YXM 700, Suzuki LTA 400, LTF 400 and V-Strom 1000 - 2008-2025 - Part No. RM06049
This is a brand new aftermarket external ignition coil, supplied as a direct replacement for the original unit and complete with the spark plug cap already fitted to its lead. It is built using the highest grade of lamination materials, which is what keeps the magnetic core efficient and the secondary output consistent as the coil heats up in service. Every unit is tested before it is shipped.
Electrically the coil reads 0.6 ohms on the primary winding and 5.6 k ohms on the secondary, with the cap itself measuring 0.8 ohms - useful figures to have when you are checking your existing coil before ordering. The mounting holes are 55 mm apart, matching the original bracket, and the lead from the coil to the cap is 450 mm long. Installation is plug-and-play with no modification to the loom or the mounting. It cross-references to Suzuki numbers 33410-26G01, 33410-26G00, 33410-06G00 and 33410-06G01.
Key Features
- Brand new aftermarket external ignition coil
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Spark plug cap included on the lead
- 55 mm fixing centres, matching the original bracket
- Every unit tested before shipping
Technical Specs
| Specification |
Detail |
| Primary resistance |
0.6 ohms |
| Secondary resistance |
5.6 k ohms |
| Cap resistance |
0.8 ohms |
| Distance between fixation holes |
55 mm |
| Wire length from coil to cap |
450 mm |
| Part number |
RM06049 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YXR 700 Rhino |
2008-2025 |
| Yamaha YXM 700 |
2008-2025 |
| Suzuki LTA 400 |
2008-2025 |
| Suzuki LTF 400 |
2008-2025 |
| Suzuki V-Strom 1000 |
2008-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 33410-26G01 |
Suzuki |
| 33410-26G00 |
Suzuki |
| 33410-06G00 |
Suzuki |
| 33410-06G01 |
Suzuki |
| RM06049-R00 |
RMSTATOR |
Frequently Asked Questions
Does it fit without modification?
Yes. The fixing holes are 55 mm apart to match the original bracket and the coil connects to the existing harness, so it is a plug-and-play, direct fit with no drilling or rewiring.
Is the spark plug cap included?

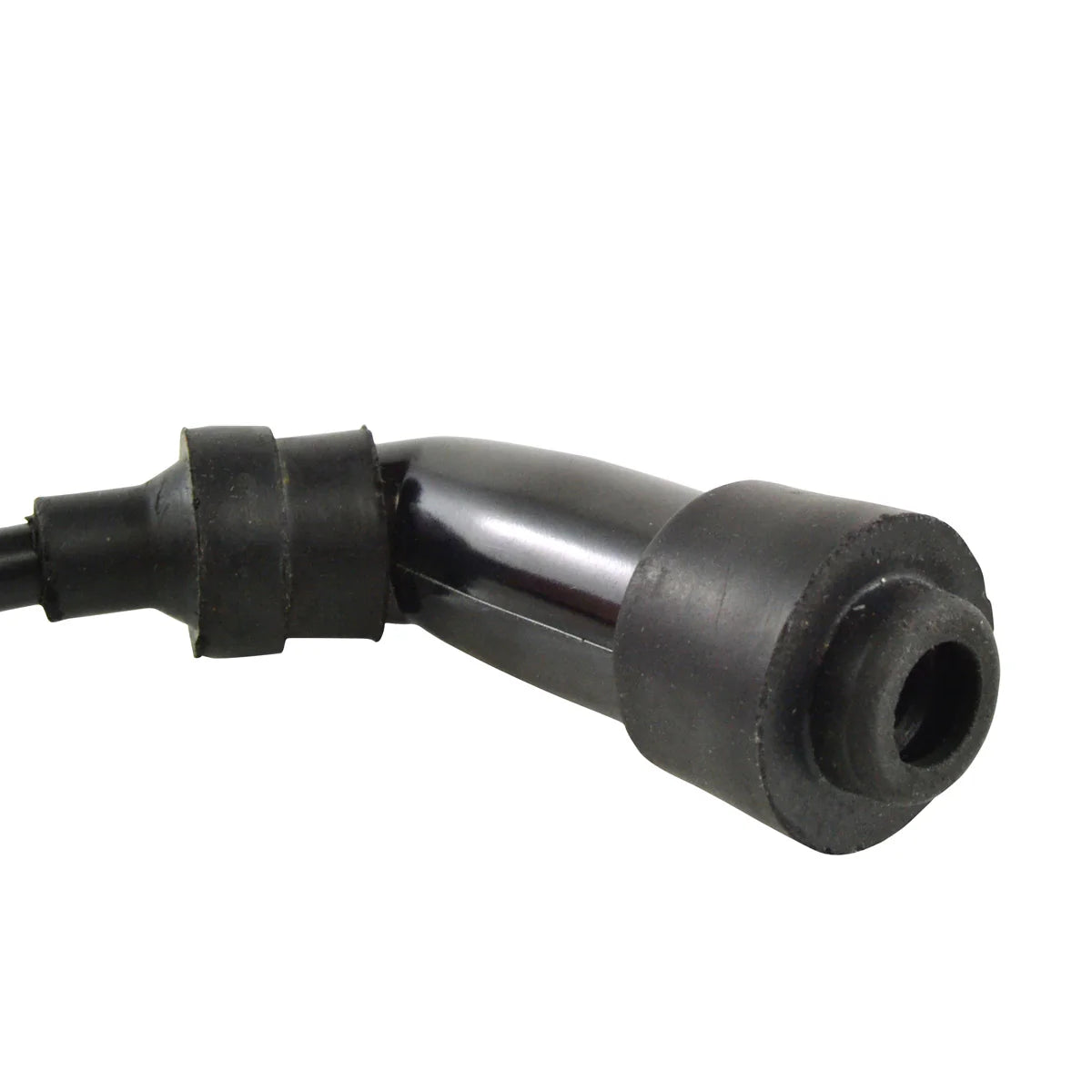

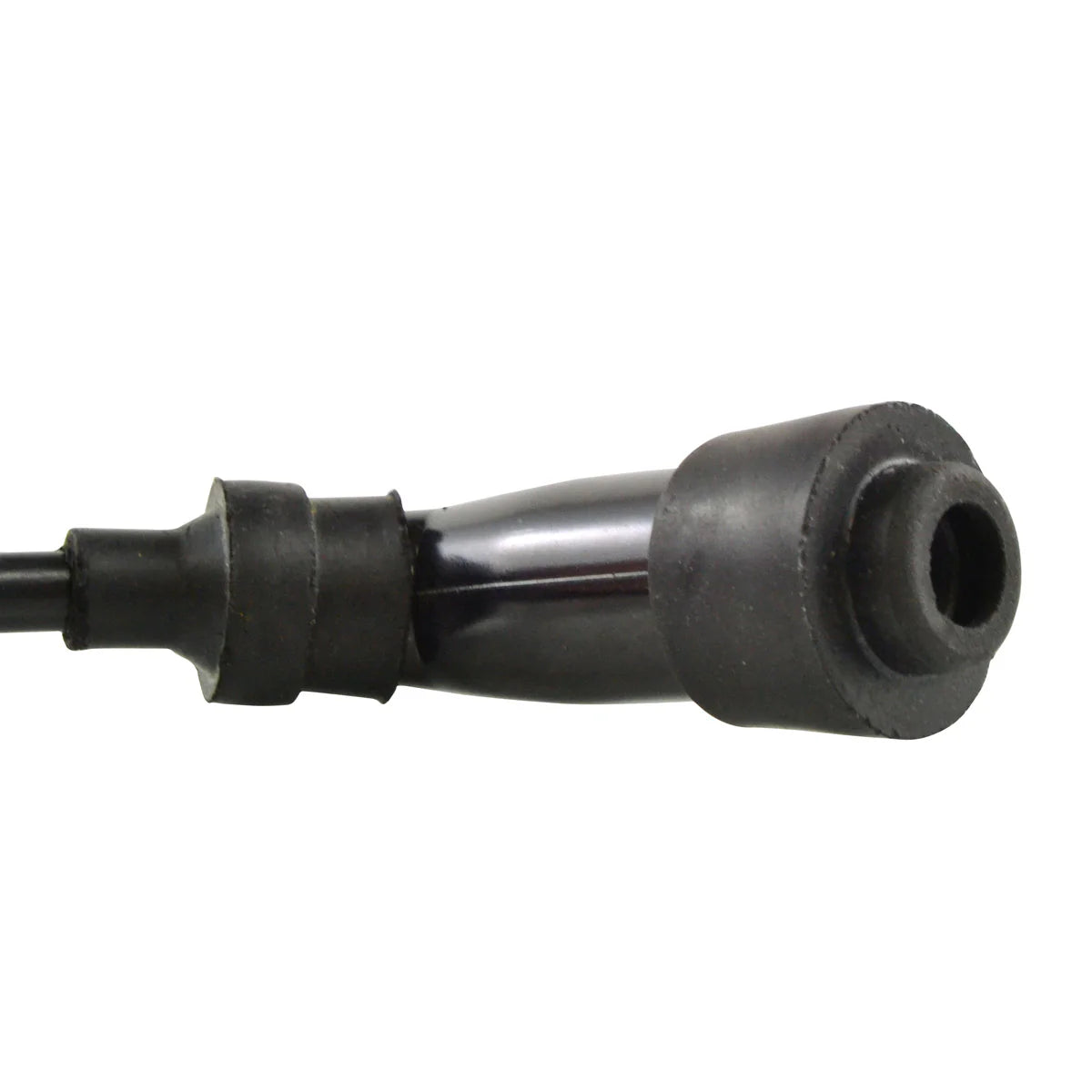

Yes. The coil is supplied with the spark plug cap already fitted to its 450 mm lead, so you do not need to transfer the old cap across.
How do I know my original coil has failed?
Typical signs are a weak or intermittent spark, hard starting, misfiring and hesitation that gets worse when the engine is hot, or a machine that cuts out and then restarts once it cools. Measure the primary and secondary windings with a multimeter - the replacement reads 0.6 ohms primary and 5.6 k ohms secondary, with 0.8 ohms at the cap, so a reading far outside those figures on your existing coil points to a failure.
Should I test the cap separately?
It is worth doing. The cap contains its own resistance, quoted here at 0.8 ohms, and a cracked or corroded cap can cause a misfire while the coil itself is still healthy. Since this part is supplied as a coil and cap together, both are renewed in one go.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
