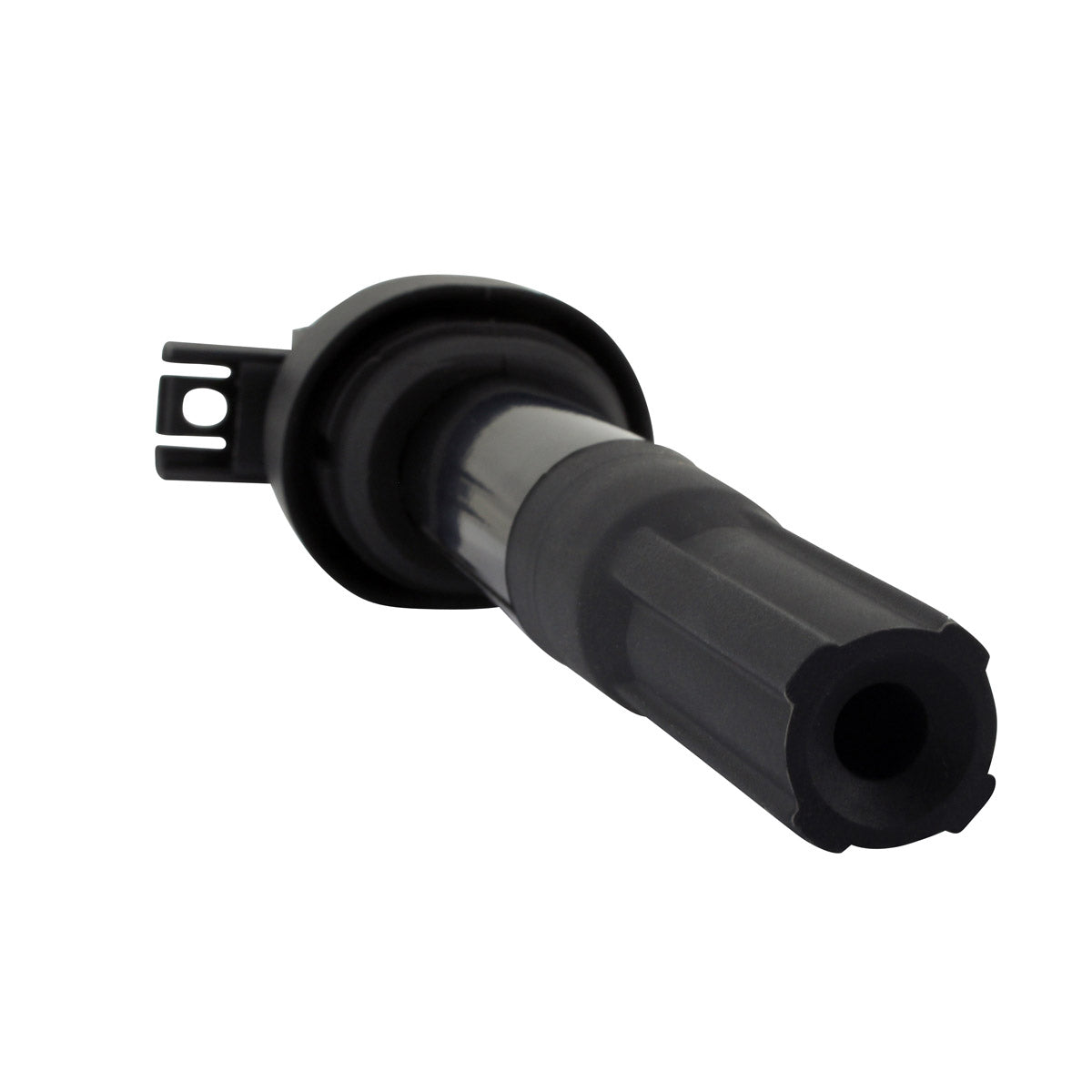

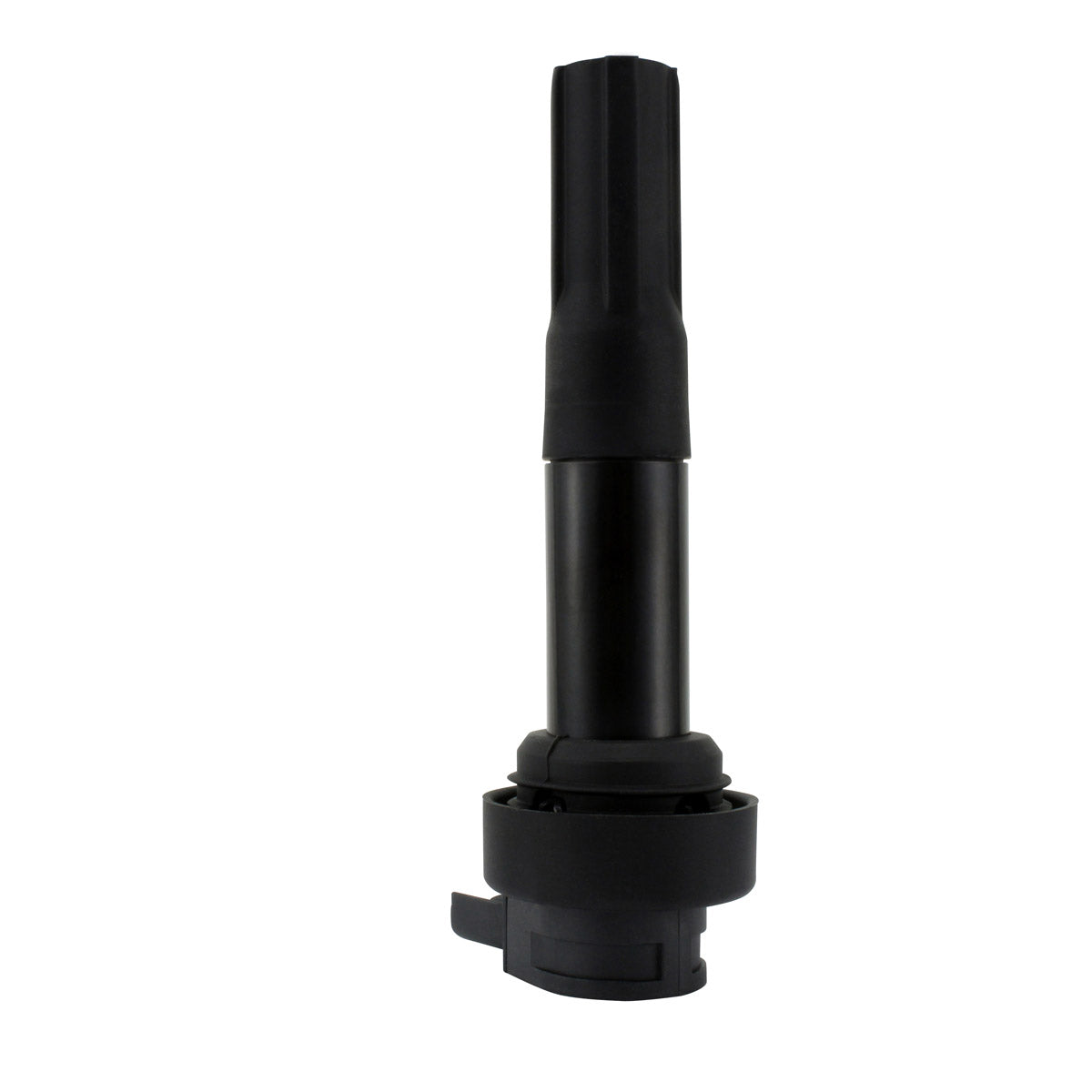

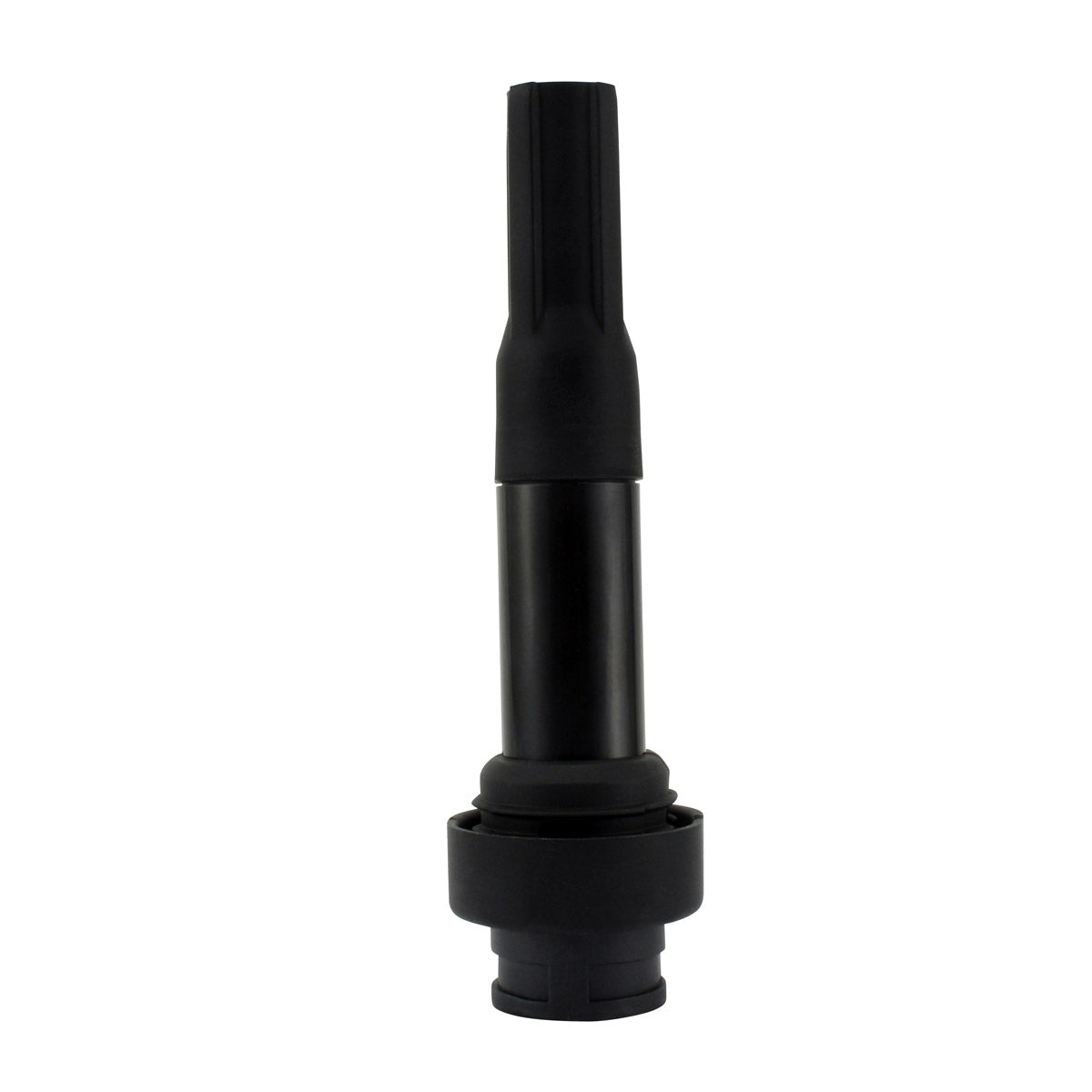

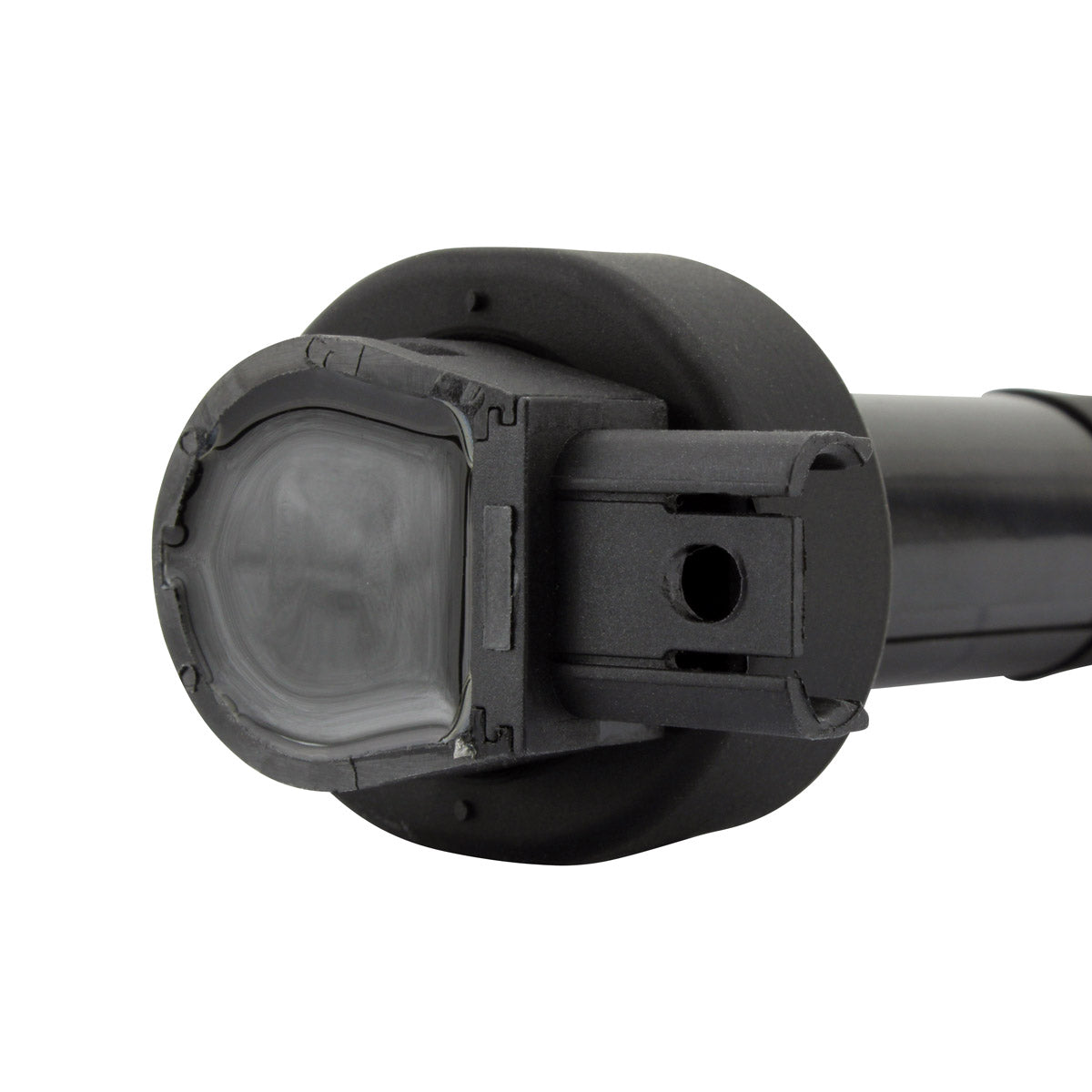

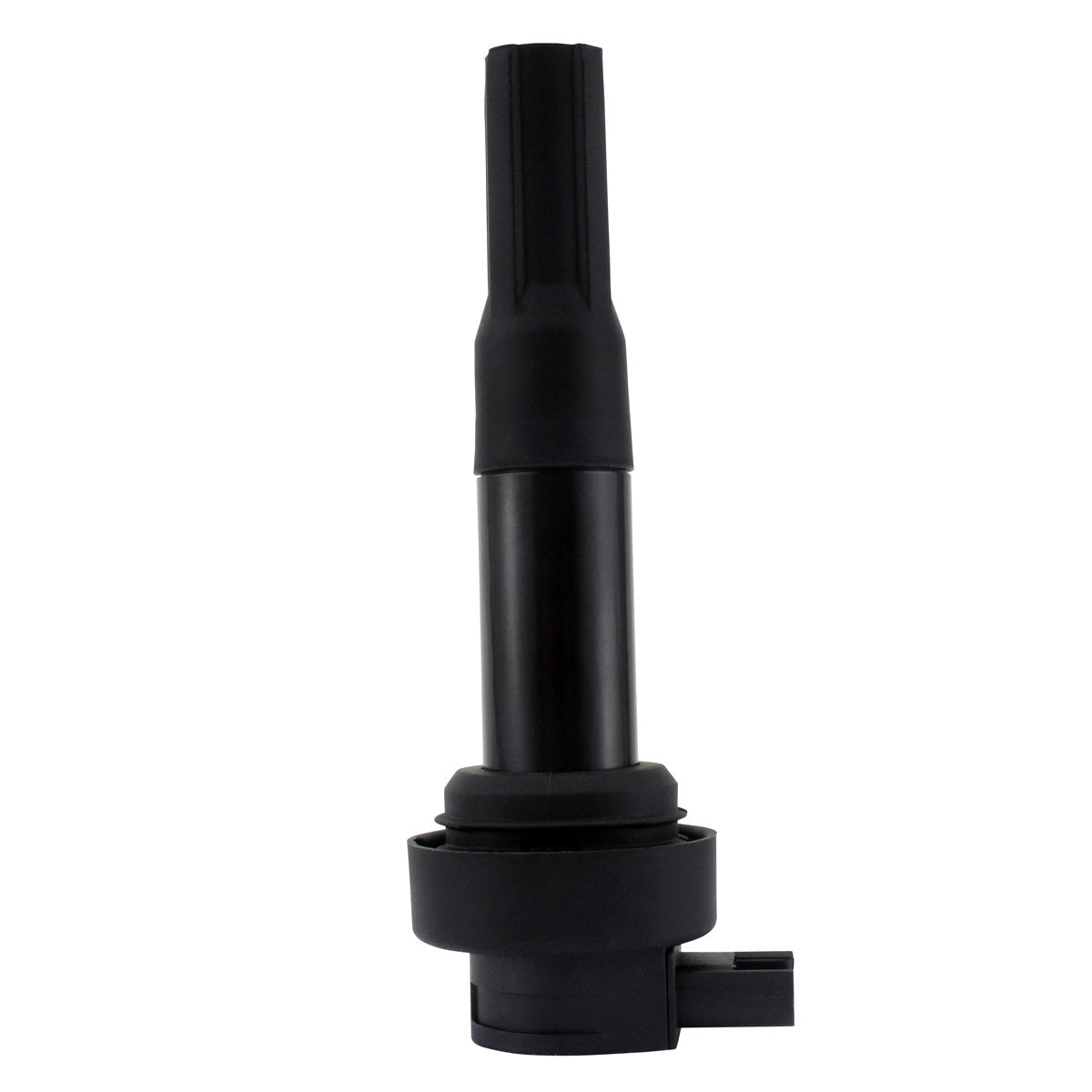

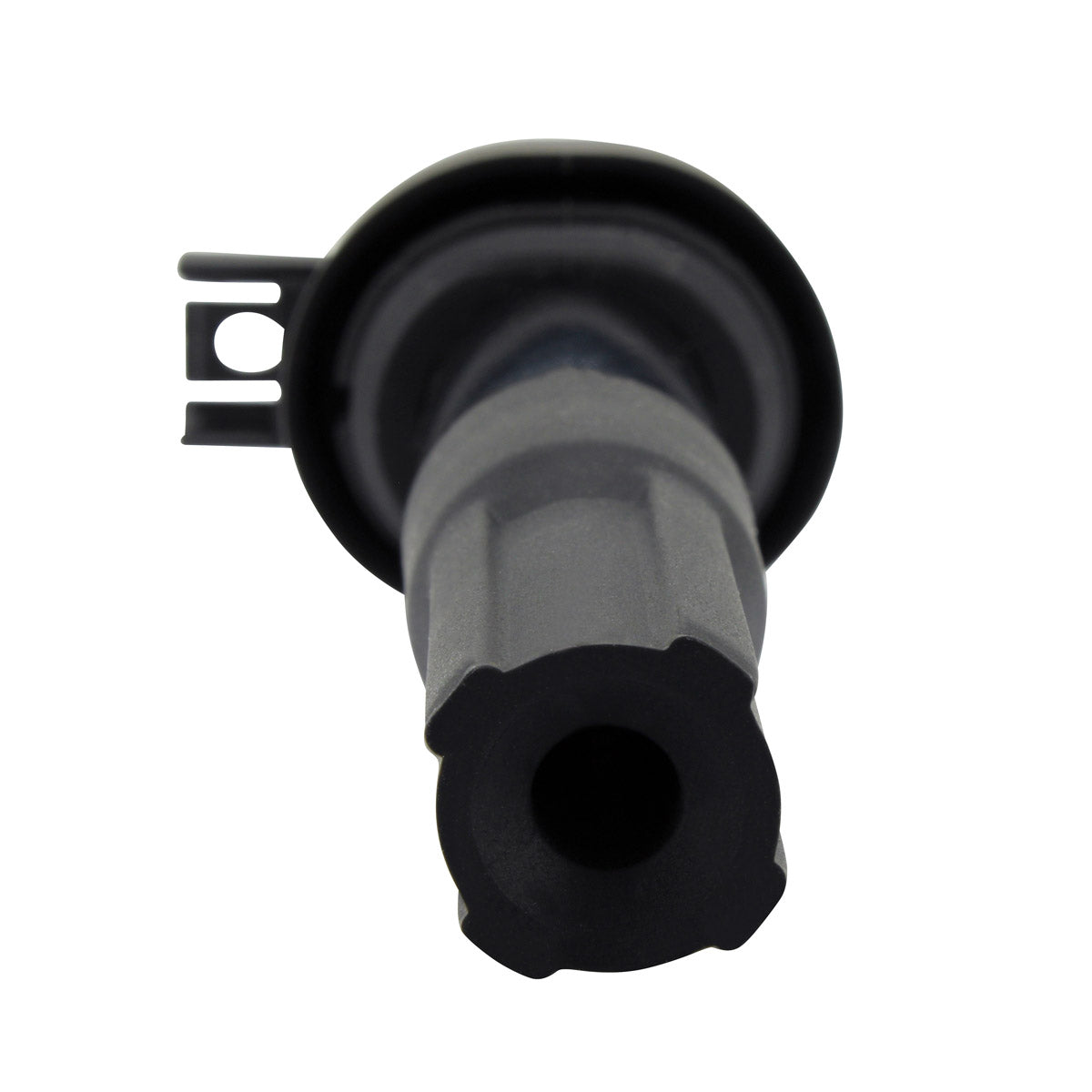

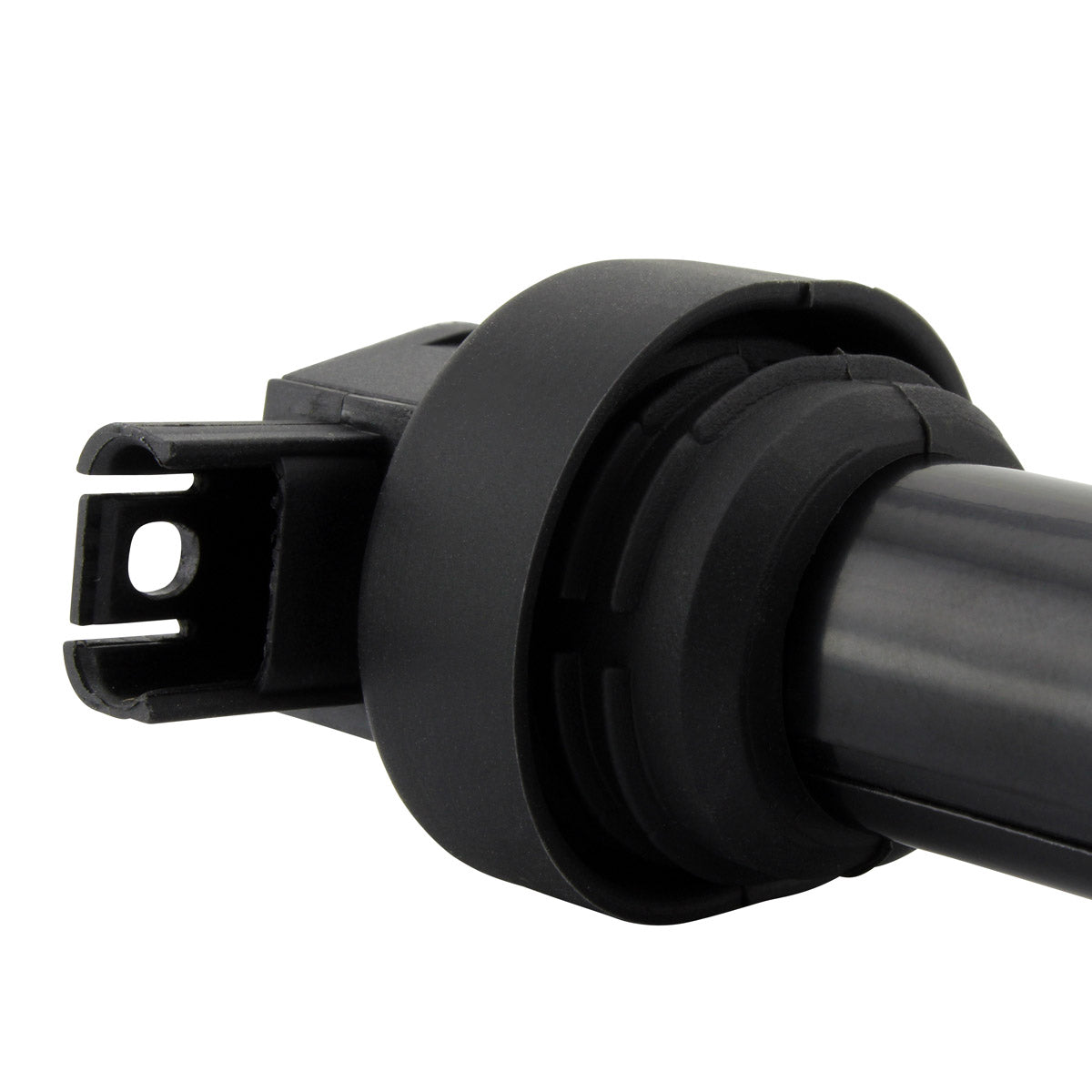

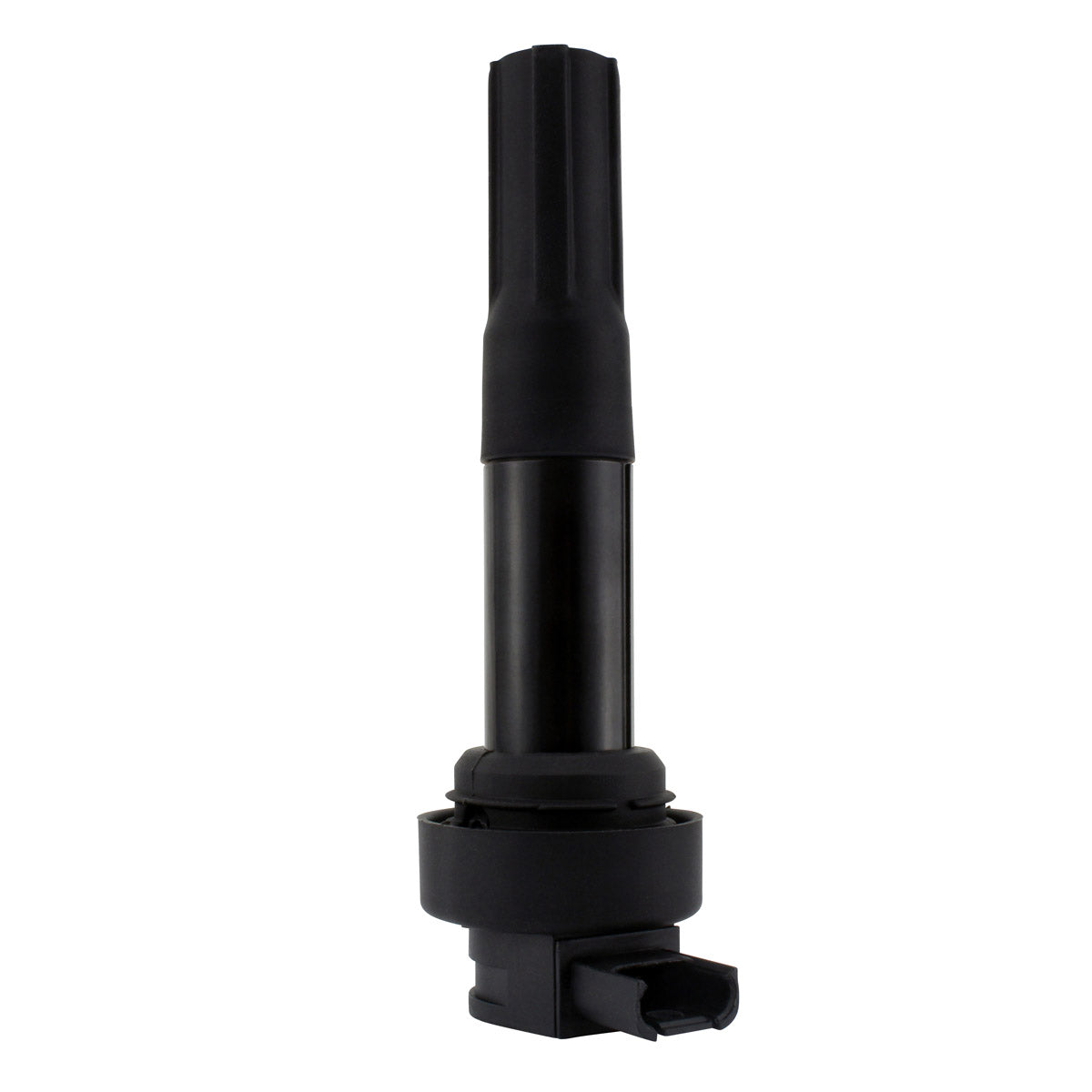

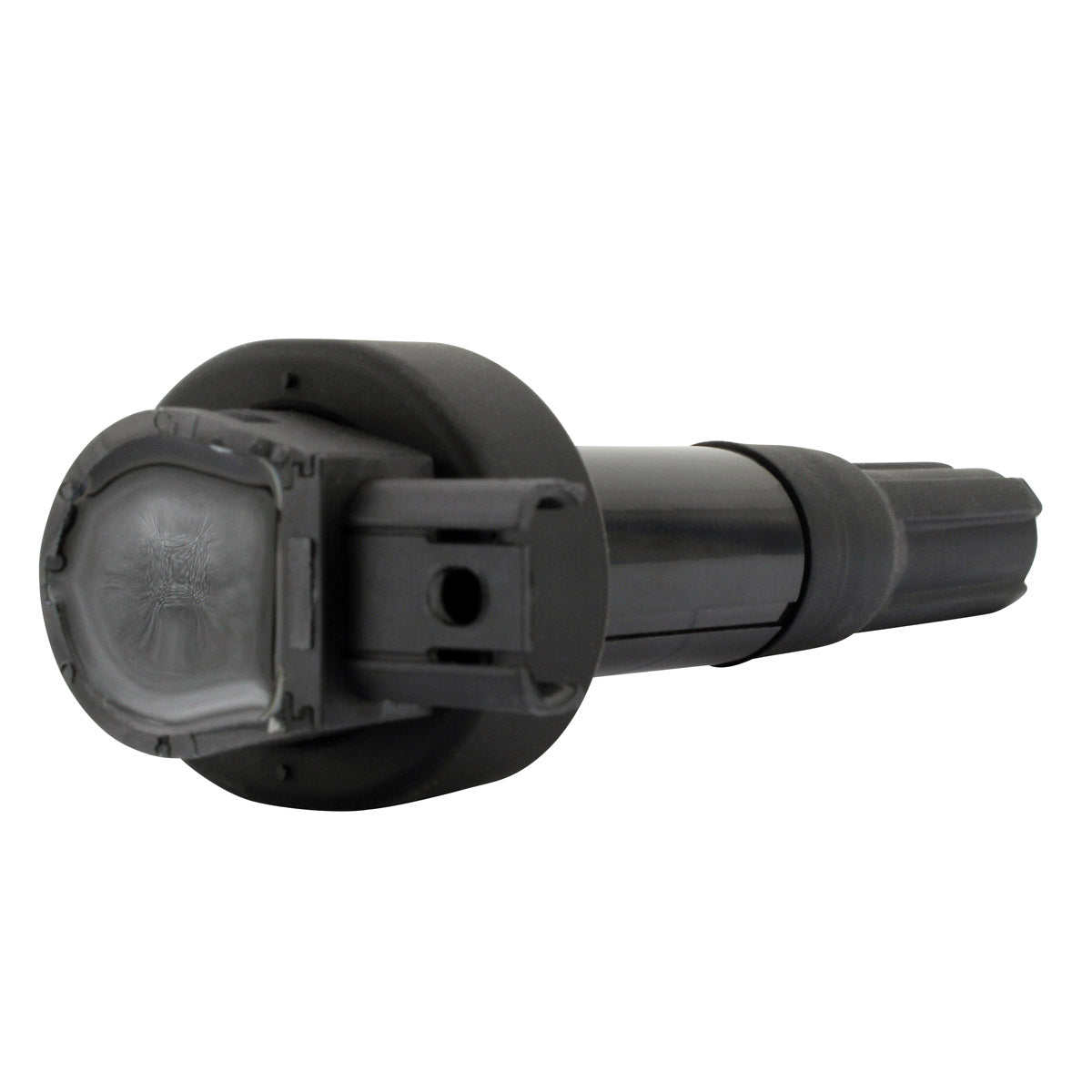

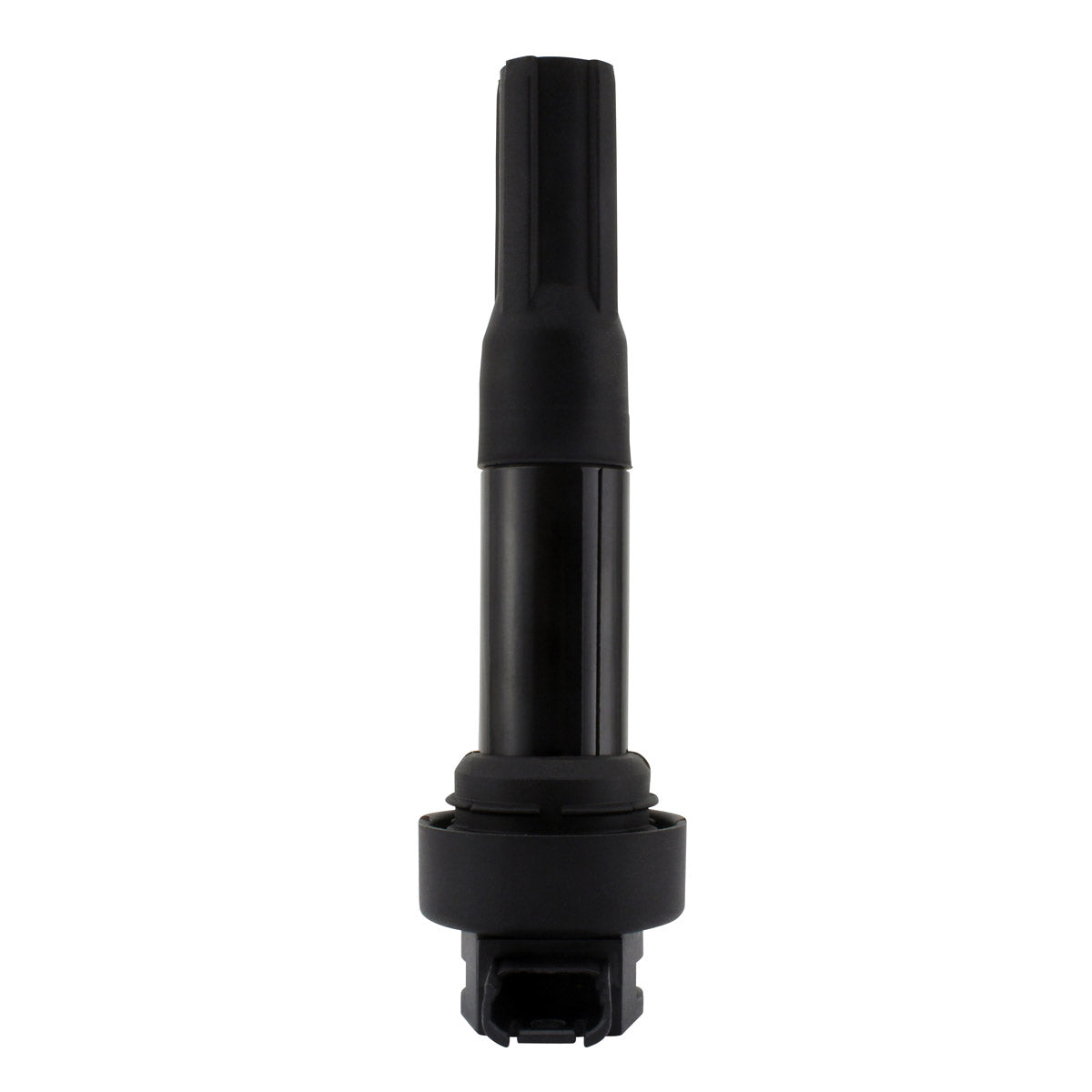

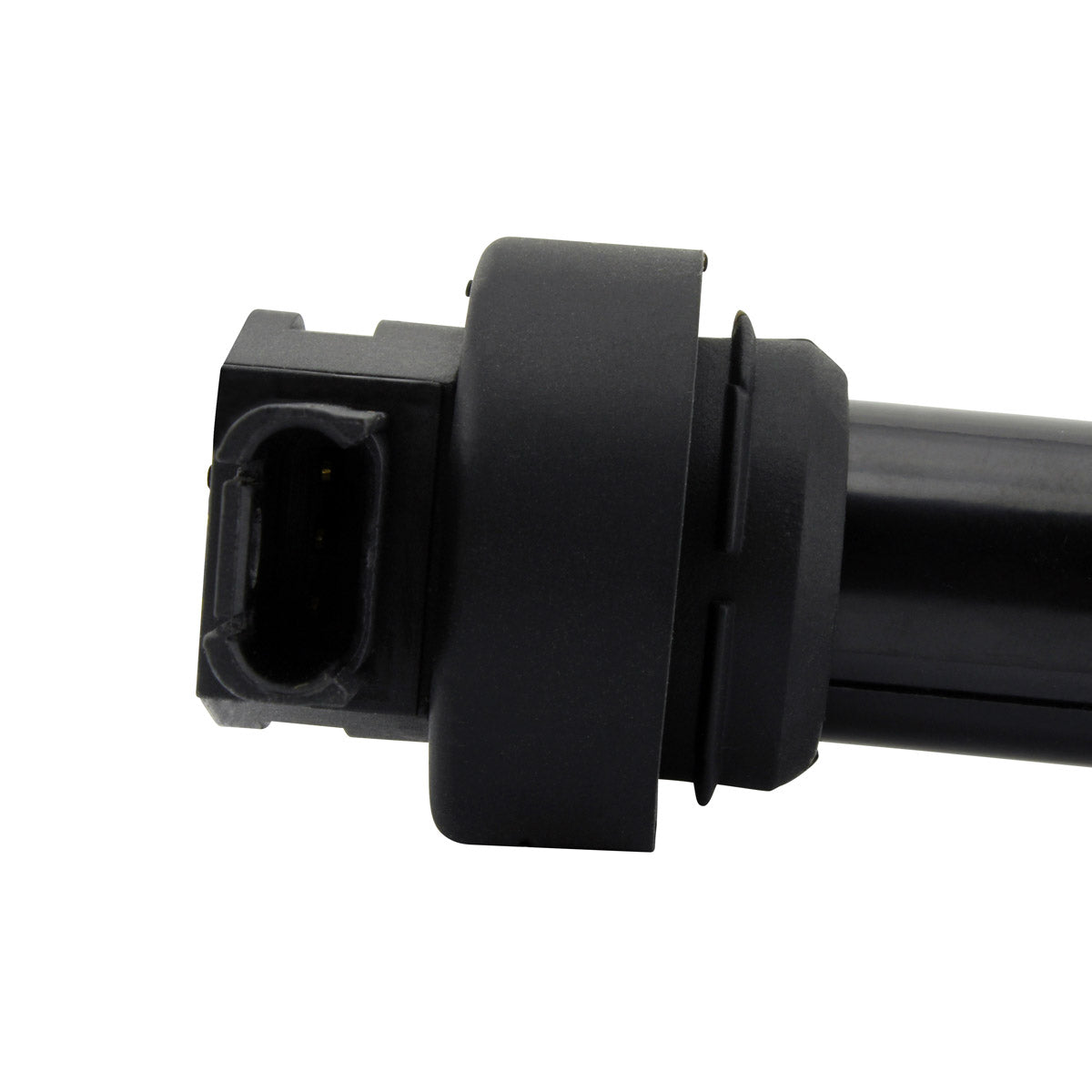

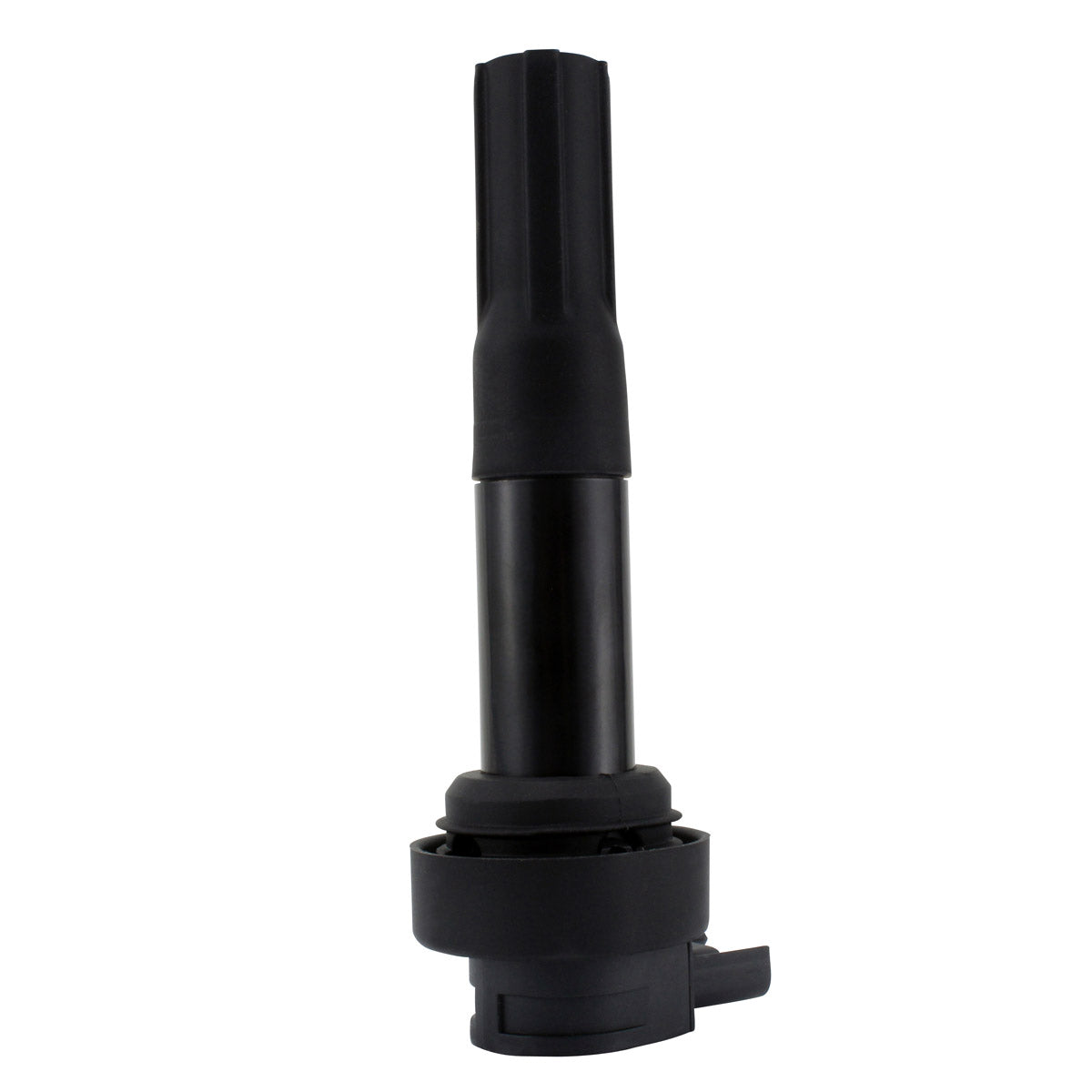

This is a brand new ignition stick coil supplied as a direct replacement for the original unit fitted to the BMW S 1000 RR, S 1000 R, S 1000 XR and HP4 EFI. On these BMW engines the spark plug cap and the ignition coil are combined into a single stick coil that sits directly on top of the spark plug. That layout removes the HT lead altogether and improves ignition efficiency, but it also means the cap and the coil are one sealed assembly - when the spark plug cap wears, cracks or begins to track, the complete stick coil has to be replaced rather than repaired.
The unit is built to a standard that meets or exceeds the original equipment specification. It measures 138 mm overall with a 17 mm external diameter and a 7 mm internal diameter, and carries a measured resistance of 546 ohm across terminals 2-3. Every coil is tested before it leaves the warehouse. Fitting is straightforward: the old coil lifts off the spark plug, the new one pushes on and the connector clips back into place, with no modification to the wiring loom or the cylinder head. One cap coil is supplied per order, so order the quantity that matches the number of cylinders you intend to replace.
Key Features
- Direct replacement for the original BMW stick coil - no modification required
- Combined spark plug cap and ignition coil in one sealed assembly
- Quality exceeding the original equipment specification
- Measured resistance of 546 ohm across terminals 2-3
- Cross references BMW part number 12138523972
- Every unit tested before dispatch
- Supplied as one cap coil per order
Technical Specs
| Specification |
Detail |
| Part Number |
RMS260-106958 |
| Component |
Ignition stick coil (combined coil and plug cap) |
| Internal Diameter |
7 mm |
| External Diameter |
17 mm |
| Overall Length |
138 mm |
| Seal Length |
21 mm |
| Seal Diameter |
31 mm |
| Resistance (2-3) |
546 ohm |
| Quantity Supplied |
1 cap coil |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| BMW S 1000 RR |
2013-2021 |
| BMW S 1000 R |
2013-2021 |
| BMW S 1000 XR |
2013-2021 |
| BMW HP4 EFI |
2013-2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 12138523972 |
BMW |
Frequently Asked Questions
Will this stick coil fit without modification?
Yes. It is a direct replacement for the original BMW unit on the models and years listed above. The coil pushes onto the spark plug and the factory connector plugs straight in, so no cutting, splicing or bracket changes are needed. If you are unsure, check the number on your original coil against the cross reference table.
What is included?
One cap coil per order. Spark plugs, connectors and any other hardware are not supplied. If you plan to change every cylinder on the engine, order the matching quantity.
How do I tell whether my old stick coil has failed?
Typical symptoms are a misfire under load, a rough or uneven idle, one cylinder dropping out once the engine is hot, hard starting and poor throttle response. The rubber boot is also worth inspecting - cracking or tracking marks on the outside of the cap are a clear sign the unit is breaking down. A resistance reading well away from the 546 ohm figure across terminals 2-3 points to a failed coil.
Why is the coil combined with the spark plug cap on this engine?
BMW builds the coil and the plug cap into a single stick so the high tension energy is delivered straight to the spark plug with no HT lead in between. That improves efficiency and reduces losses, but it also means the cap cannot be renewed on its own - the whole stick coil is replaced as one assembly.
