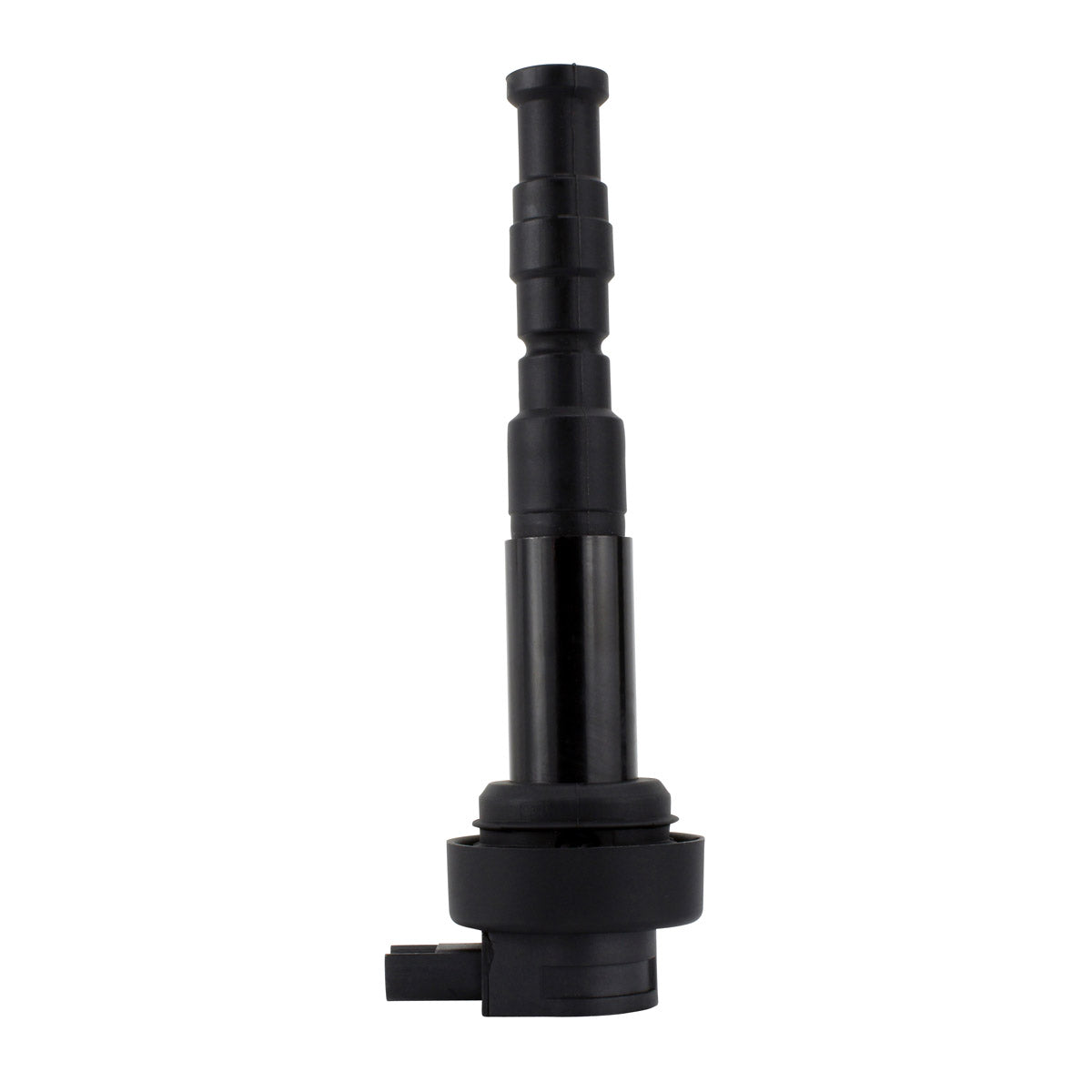

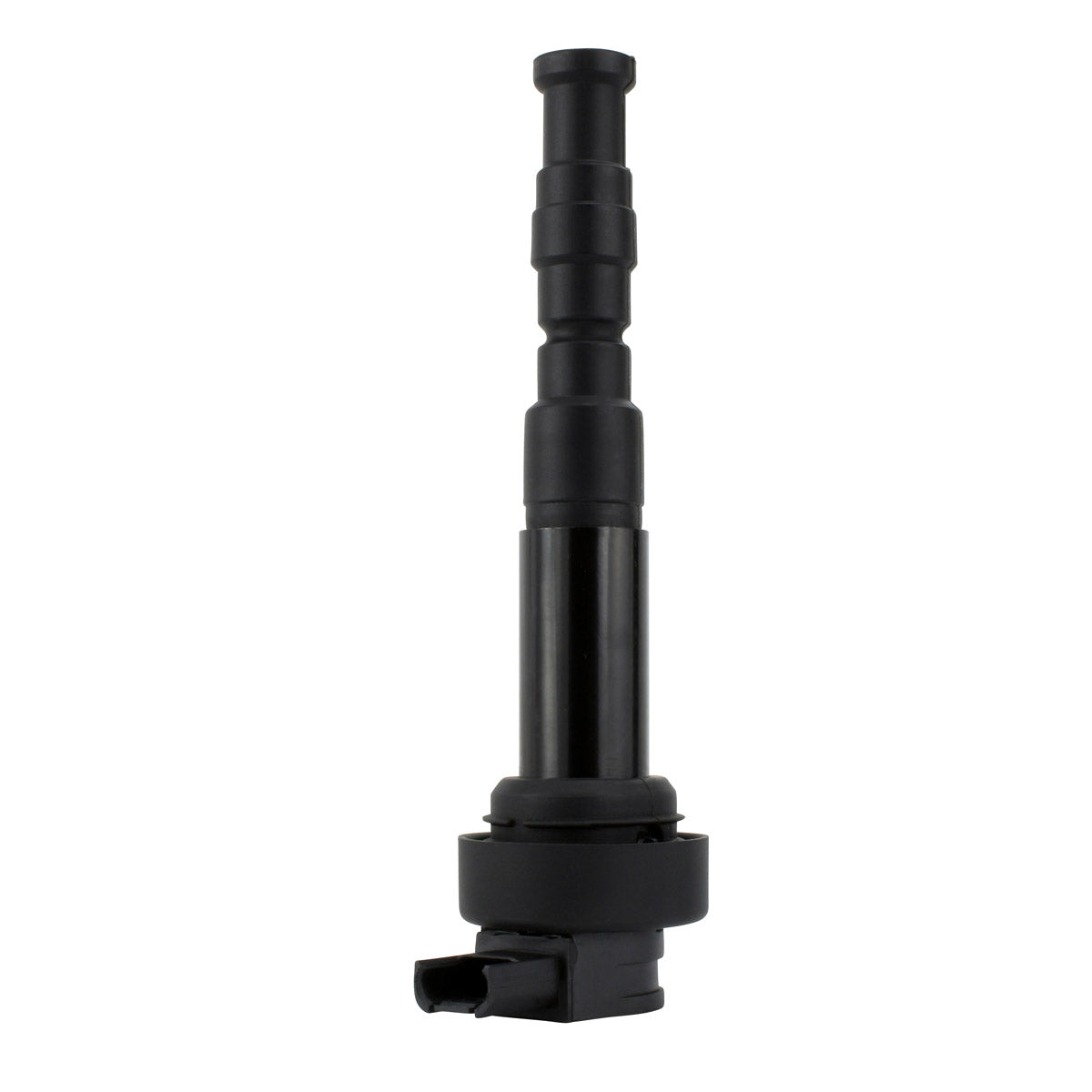

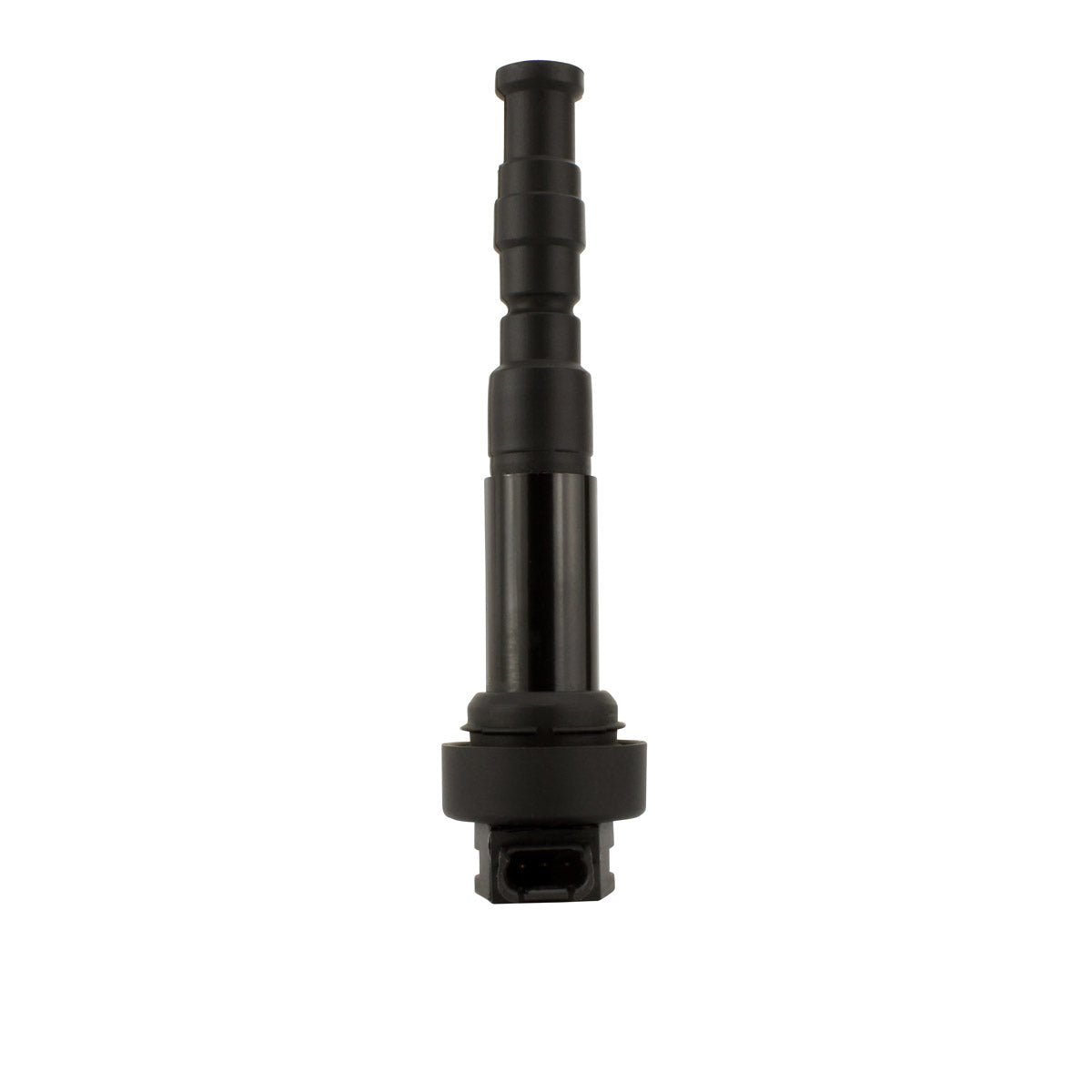

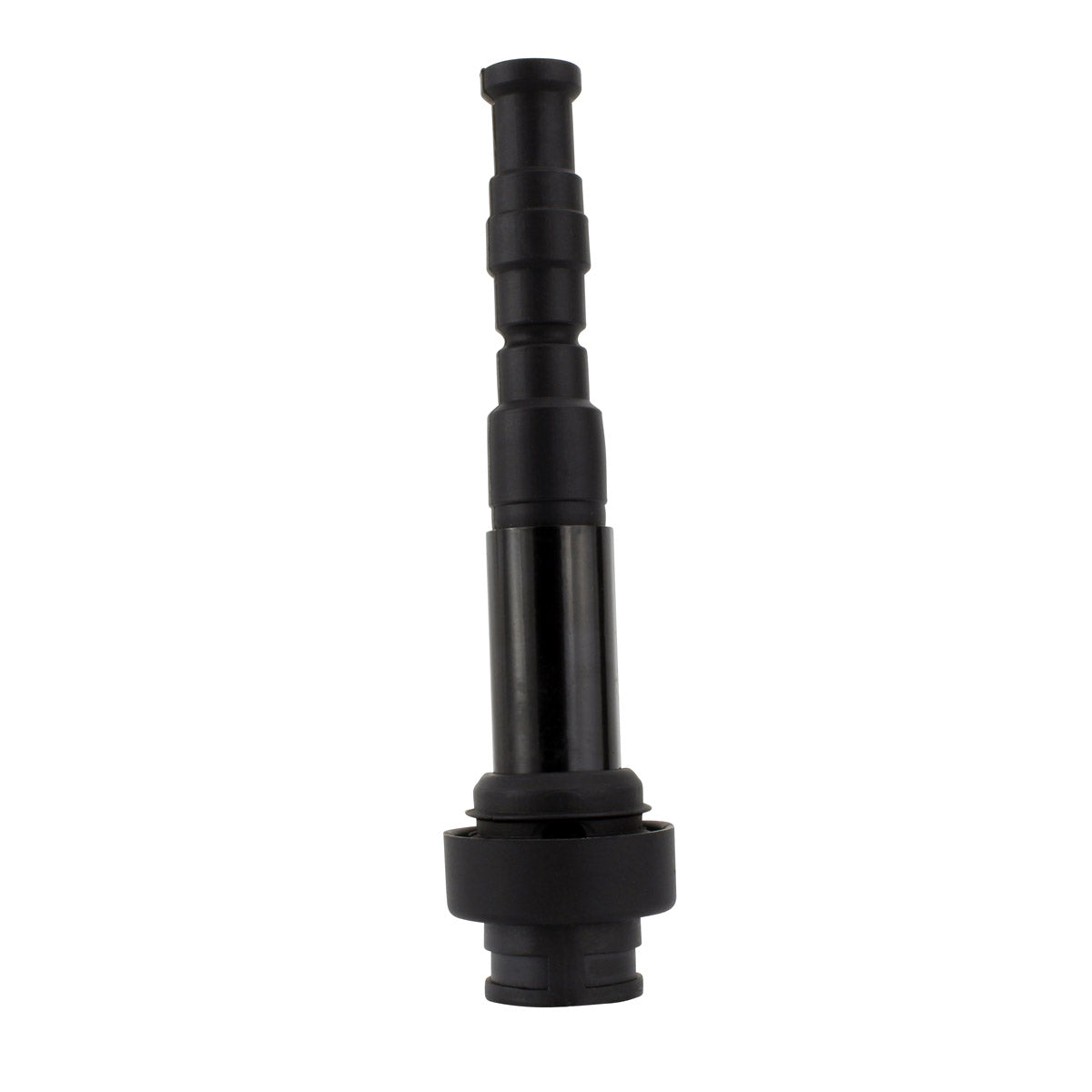

Ignition Stick Coil for BMW F and K Series - RMS260-106964
BMW F 650 GS, F 700 GS, F 800 S, F 800 ST, K 1200 GT / R / S, K 1300 GT / R / S - 2005-2016
This is a brand new aftermarket ignition stick coil, supplied as a direct replacement for the original unit fitted to a wide range of BMW motorcycles built between 2005 and 2016. On these models BMW combines the spark plug cap and the ignition coil into a single assembly in order to reduce the number of parts used and improve efficiency. The trade-off is that once the coil deteriorates the complete cap and coil unit has to be renewed rather than just a lead or a cap. This replacement restores that function at a fraction of the dealer cost, and the manufacturer states the quality exceeds the OEM equipment.

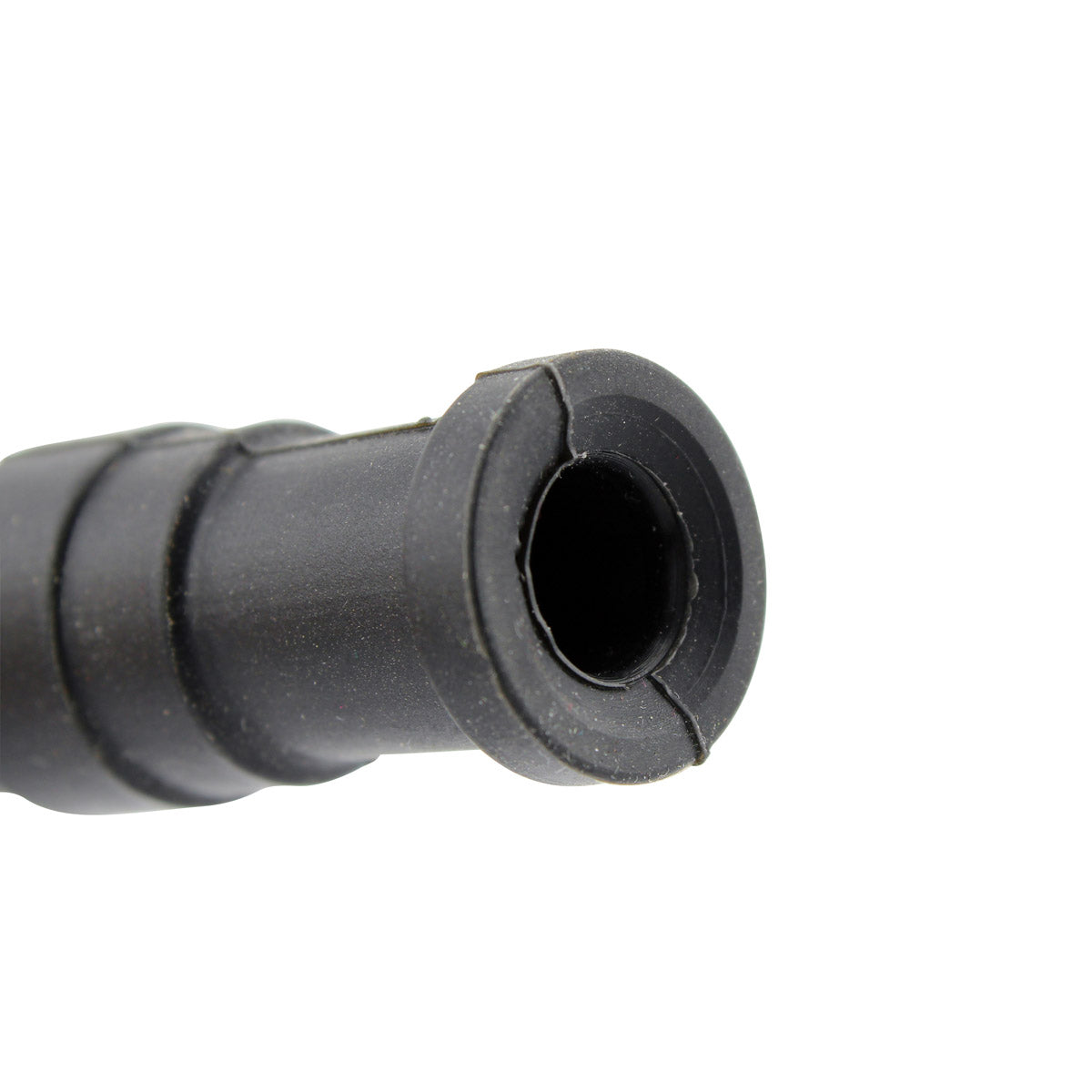

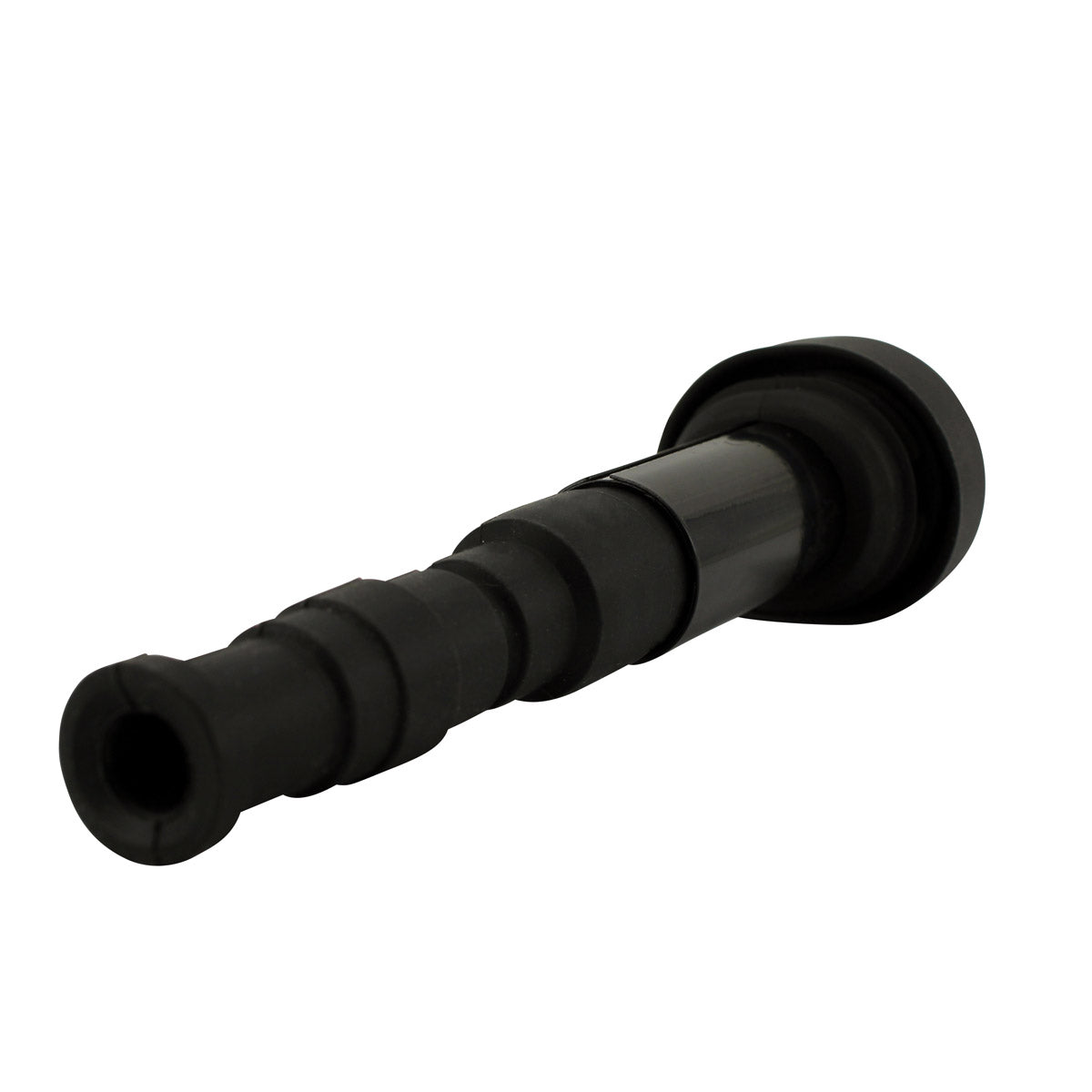

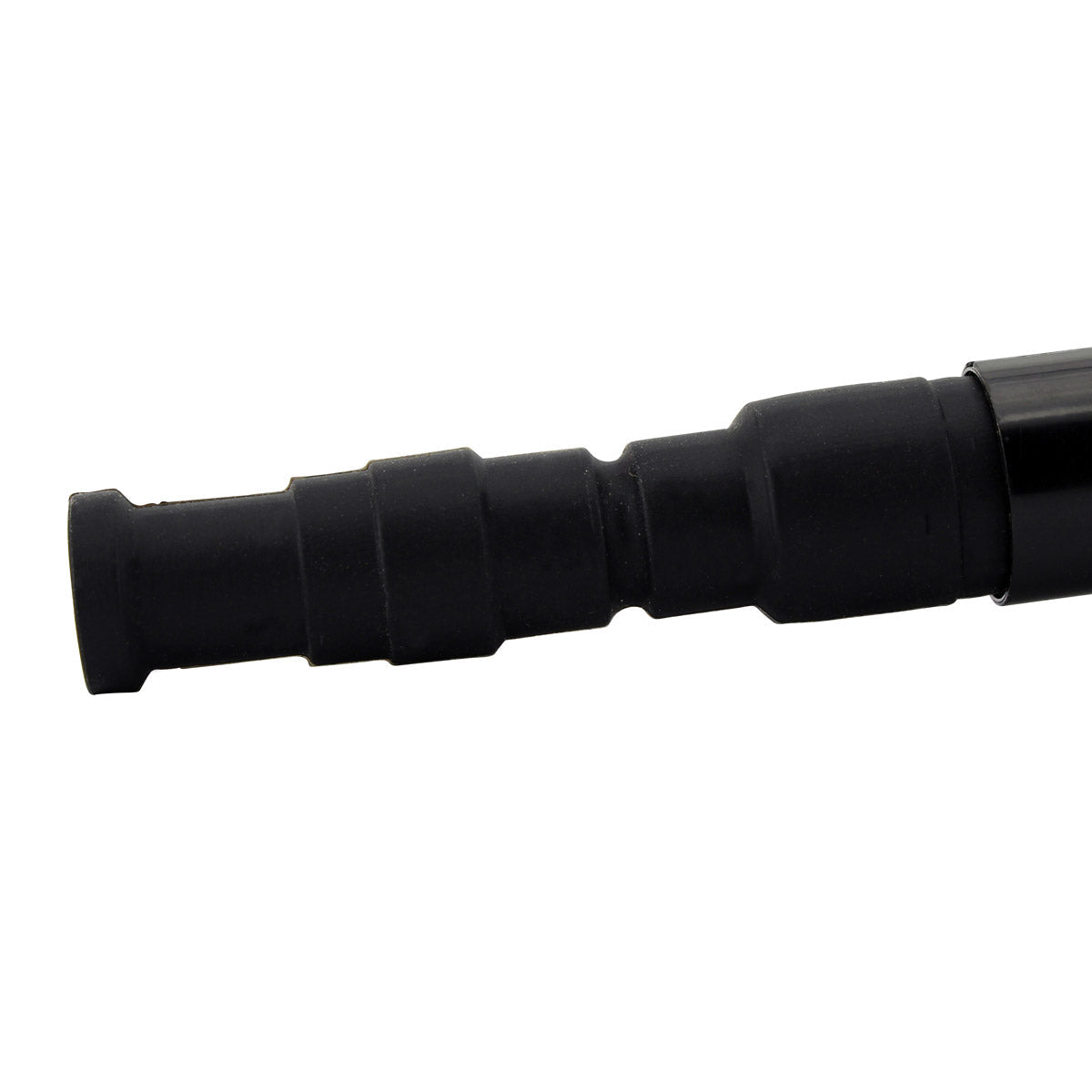

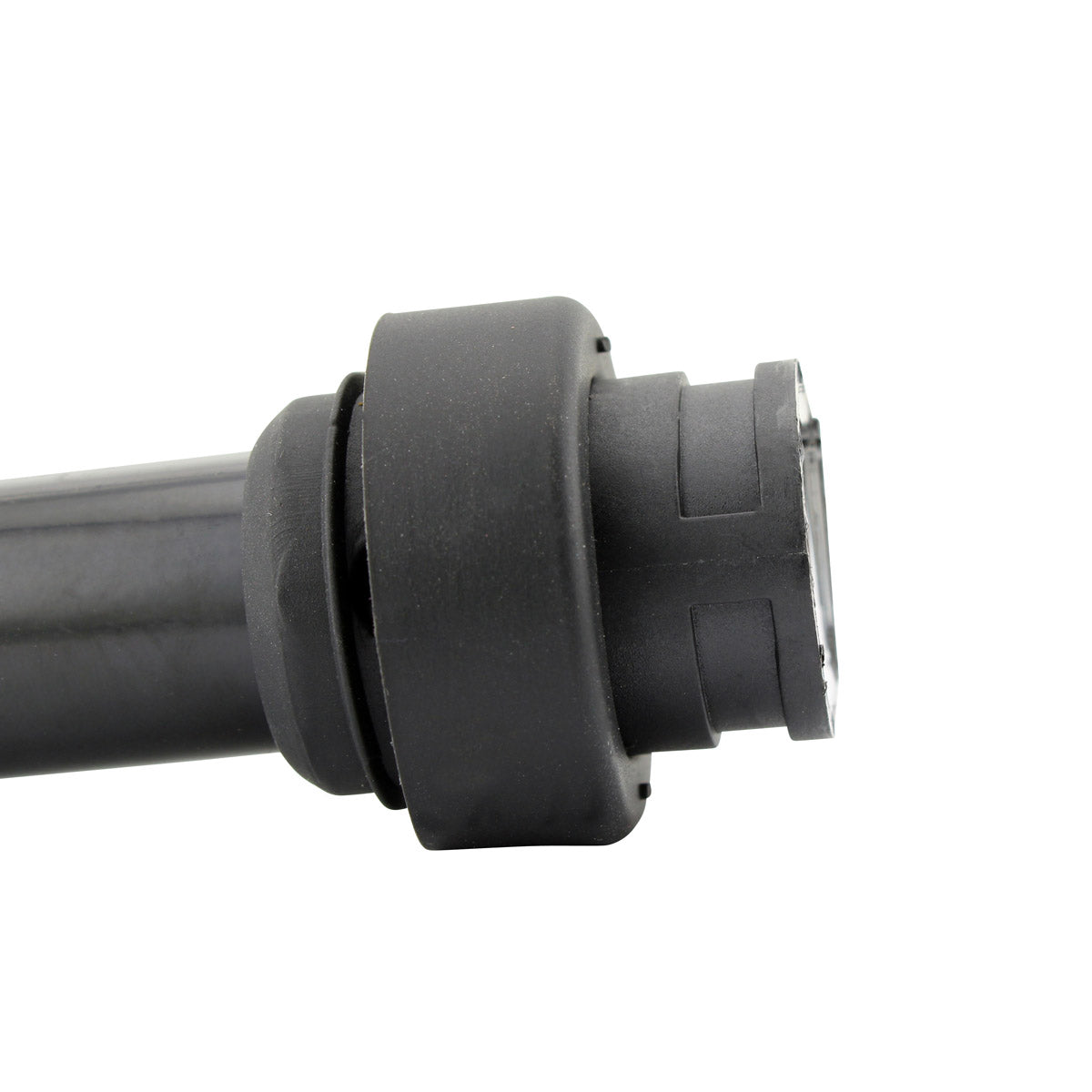

Fitting is straightforward and requires no modification to the loom or the cylinder head. The old cap coil is withdrawn from the plug well and the new one drops straight into place, sealing on its 38 mm seal. The tube measures 9 mm internally and the body is 155 mm long, so it reaches the plug in the deep recesses used on the F and K series heads. One cap coil is included per unit, so order one for each cylinder you intend to replace. Every unit is tested before it is shipped. Risk of electric shock - disconnect the battery before servicing and have the work carried out by a qualified technician to avoid malfunction.
Key Features
- Direct replacement for the original BMW cap coil - no modification required
- Spark plug cap and ignition coil combined in one assembly, as fitted by BMW
- Quality stated to exceed the OEM equipment
- Simple, easy to install and affordable, and improves engine performance
- 1 cap coil included with each unit
- All products are tested before shipping
Technical Specs
| Specification |
Detail |
| Internal tube diameter |
9 mm |
| Length |
155 mm |
| Seal |
38 mm |
| Number of plugs |
1 |
| Number of terminals |

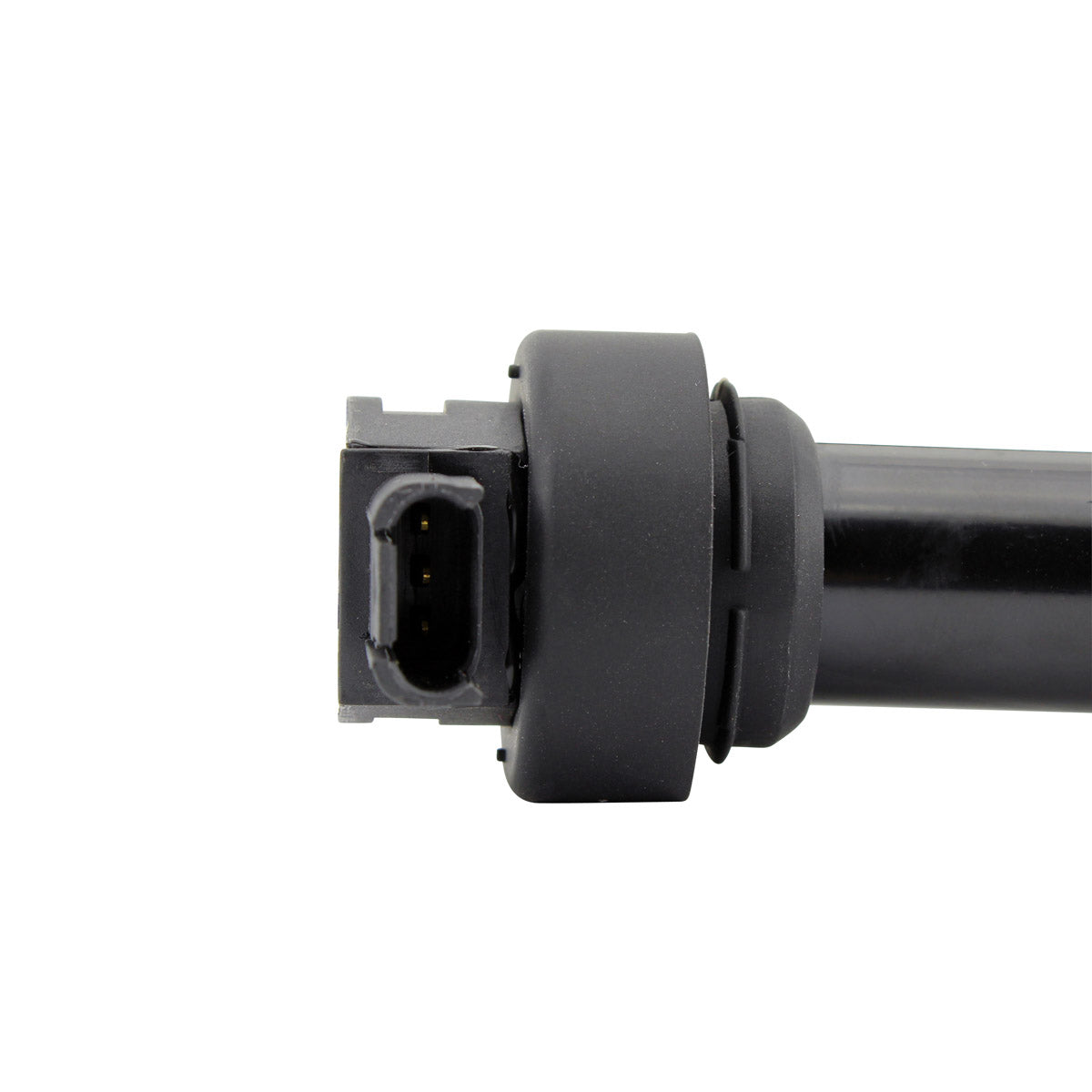

2 |
| Part number |
RMS260-106964 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| BMW F 650 GS |
2005-2016 |
| BMW F 700 GS |
2005-2016 |
| BMW F 800 S |
2005-2016 |
| BMW F 800 ST |
2005-2016 |
| BMW K 1200 GT |
2005-2016 |
| BMW K 1200 R |
2005-2016 |
| BMW K 1200 S |
2005-2016 |
| BMW K 1300 GT |
2005-2016 |
| BMW K 1300 R |
2005-2016 |
| BMW K 1300 S |
2005-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 12-13-7-709-080 |
BMW |
| 12-13-7-715-846 |
BMW |
| 12-13-8-523-968 |
BMW |
| 12-13-7-670-815 |
BMW |
| 12134645117 |
Cross reference |
| 771584602 |
Cross reference |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original unit on the listed BMW models, so no cutting, splicing or adapters are needed. Check the OEM number stamped on your existing cap coil against the cross reference table above before ordering.
What is included?
One cap coil, which combines the spark plug cap and the ignition coil in a single assembly. If you plan to renew the coils on more than one cylinder, order one unit per cylinder.
How can I tell the old stick coil has failed?
Typical symptoms are a misfire on one cylinder, rough running, hesitation under load and hard starting, often worse when the engine is hot or in damp weather. Because each cylinder has its own cap coil, swapping the suspect unit to another cylinder and seeing whether the misfire follows it is a common way to confirm the fault.
Why does the whole cap have to be replaced?
On these BMW models the spark plug cap and the coil are built as one part to cut down on components and improve efficiency. That means there is no separate cap or HT lead to renew - when the coil is worn the complete assembly is replaced, which is exactly what this unit provides.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
