Ignition Stick Coil
Can-Am Outlander 500 and 700, Ski-Doo Expedition 900, Lynx 49 and 69 Ranger - 2022-2025 - Part No. RMS060-108473

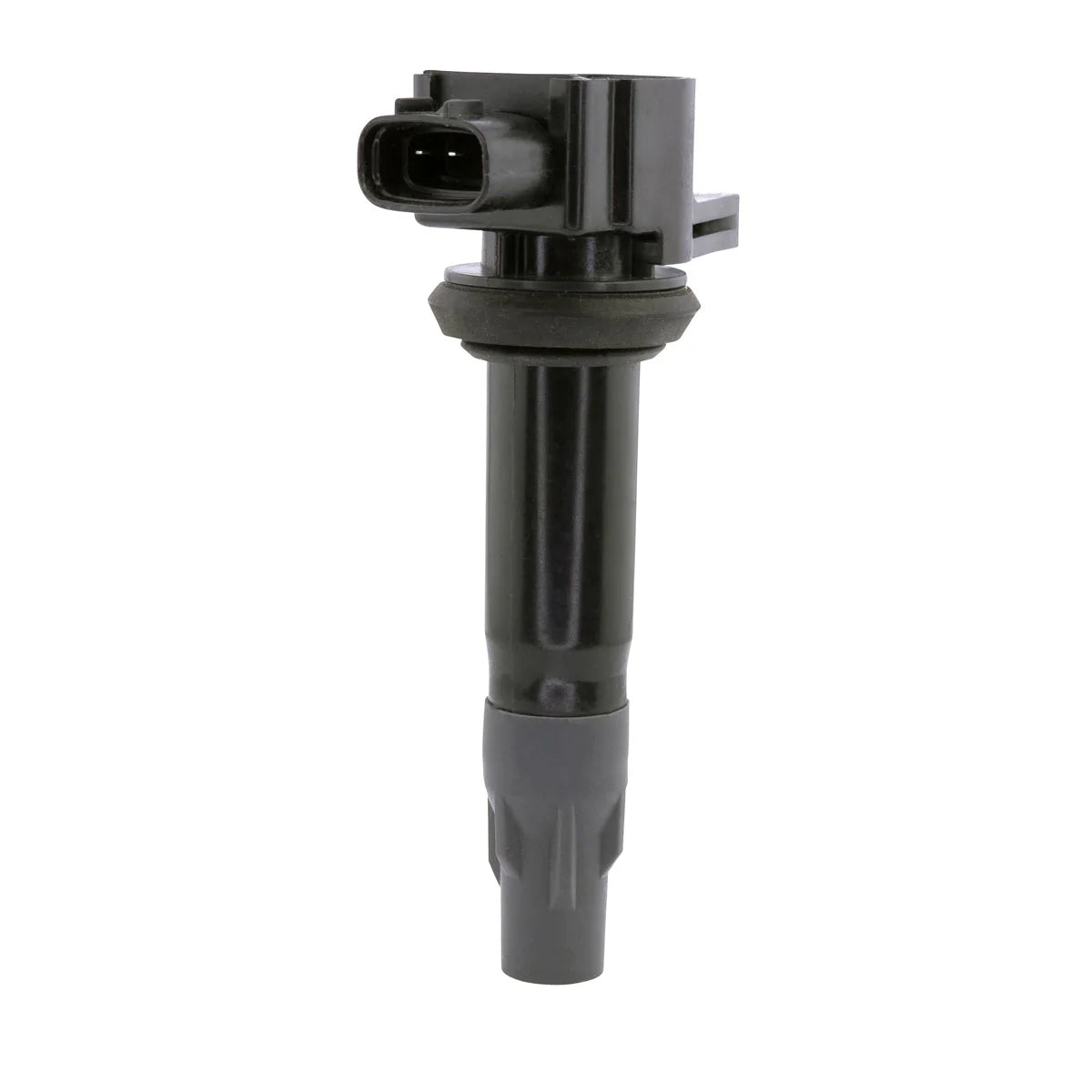

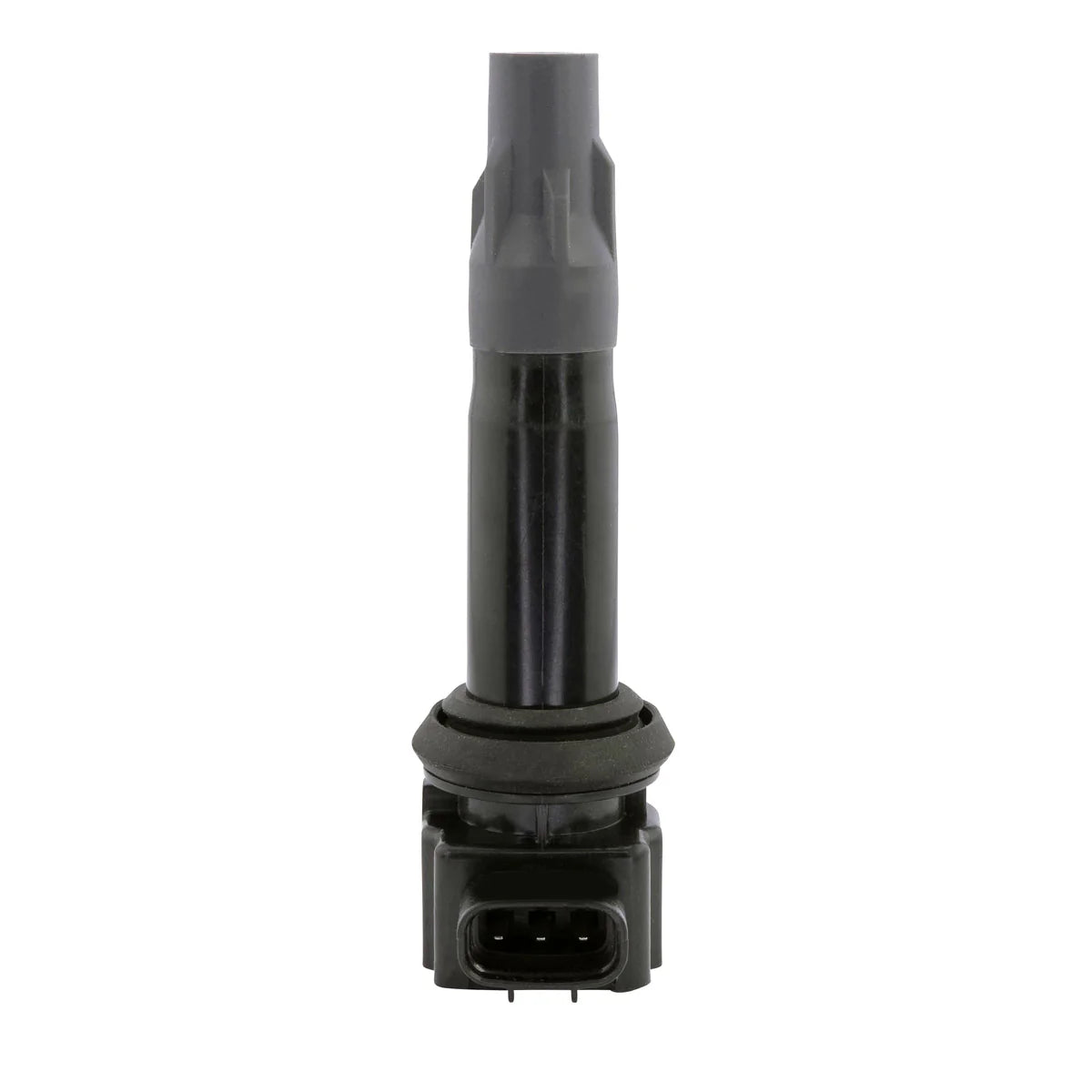

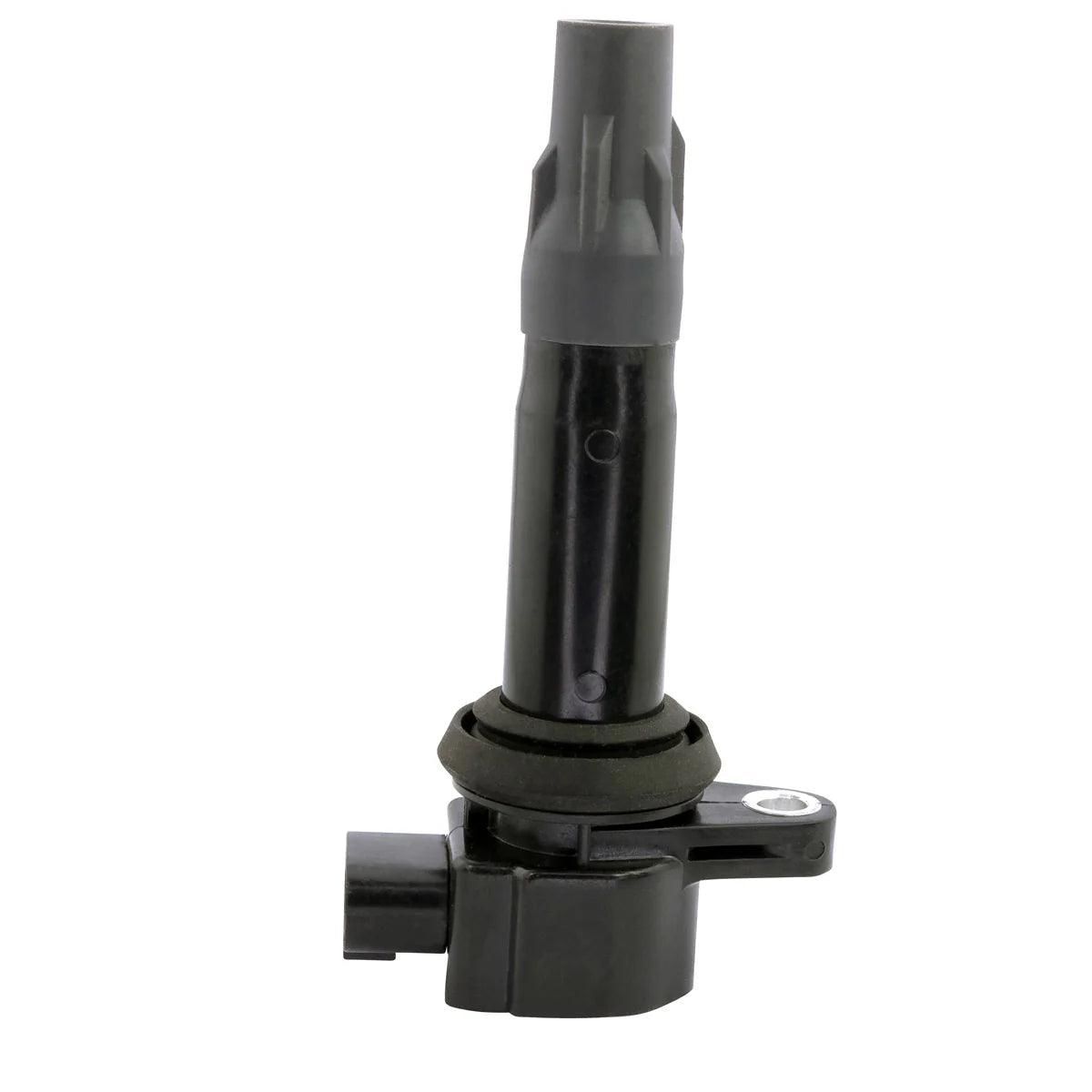

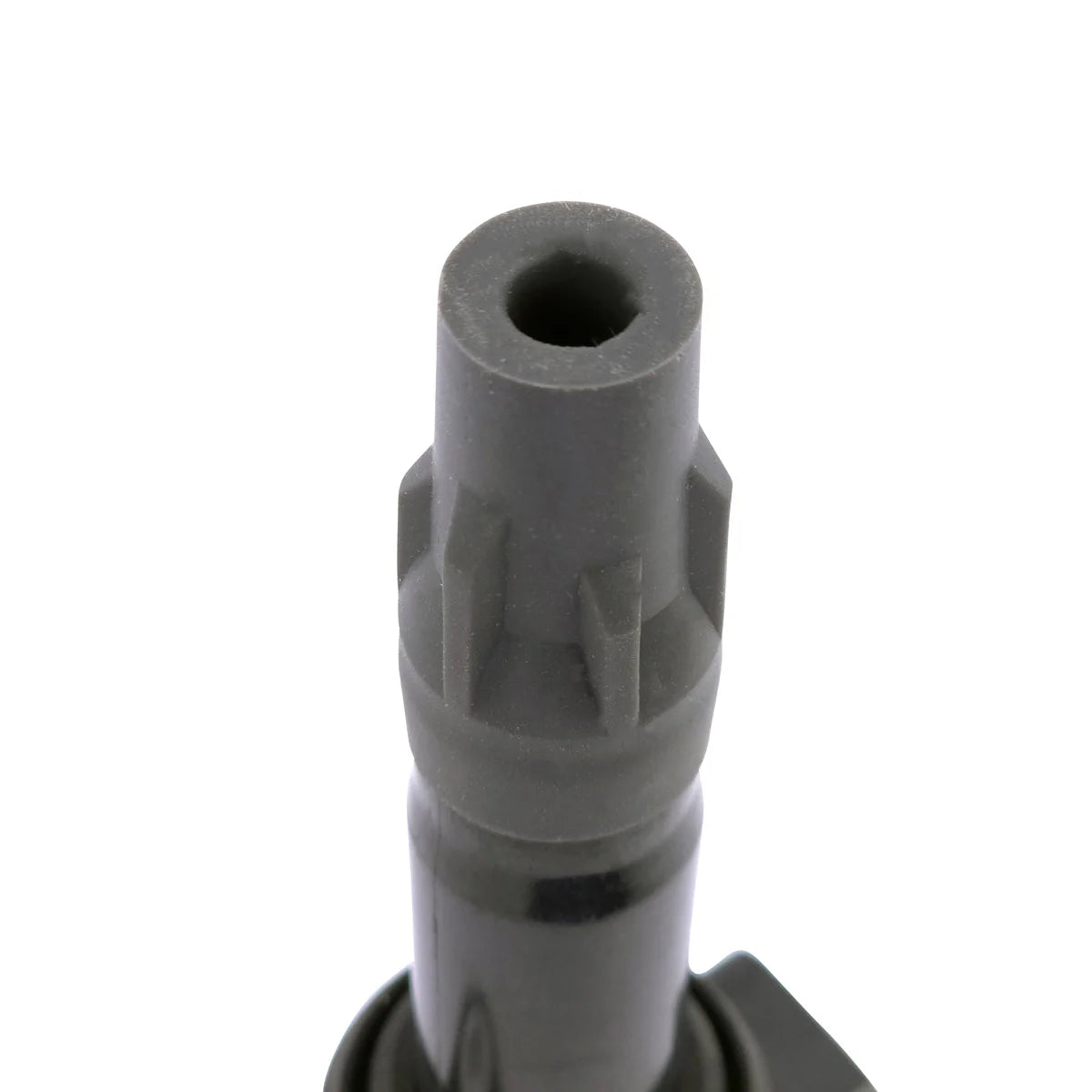

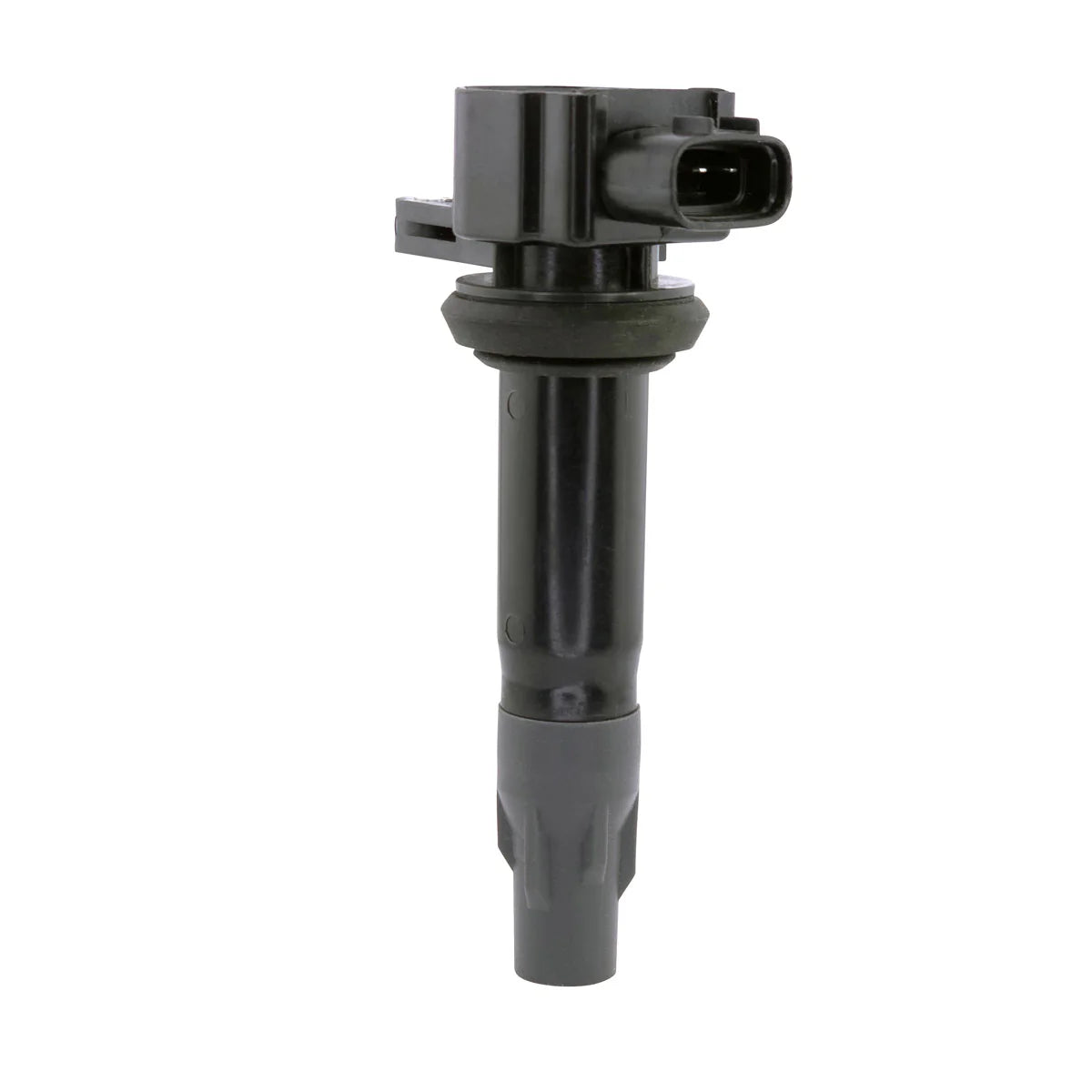

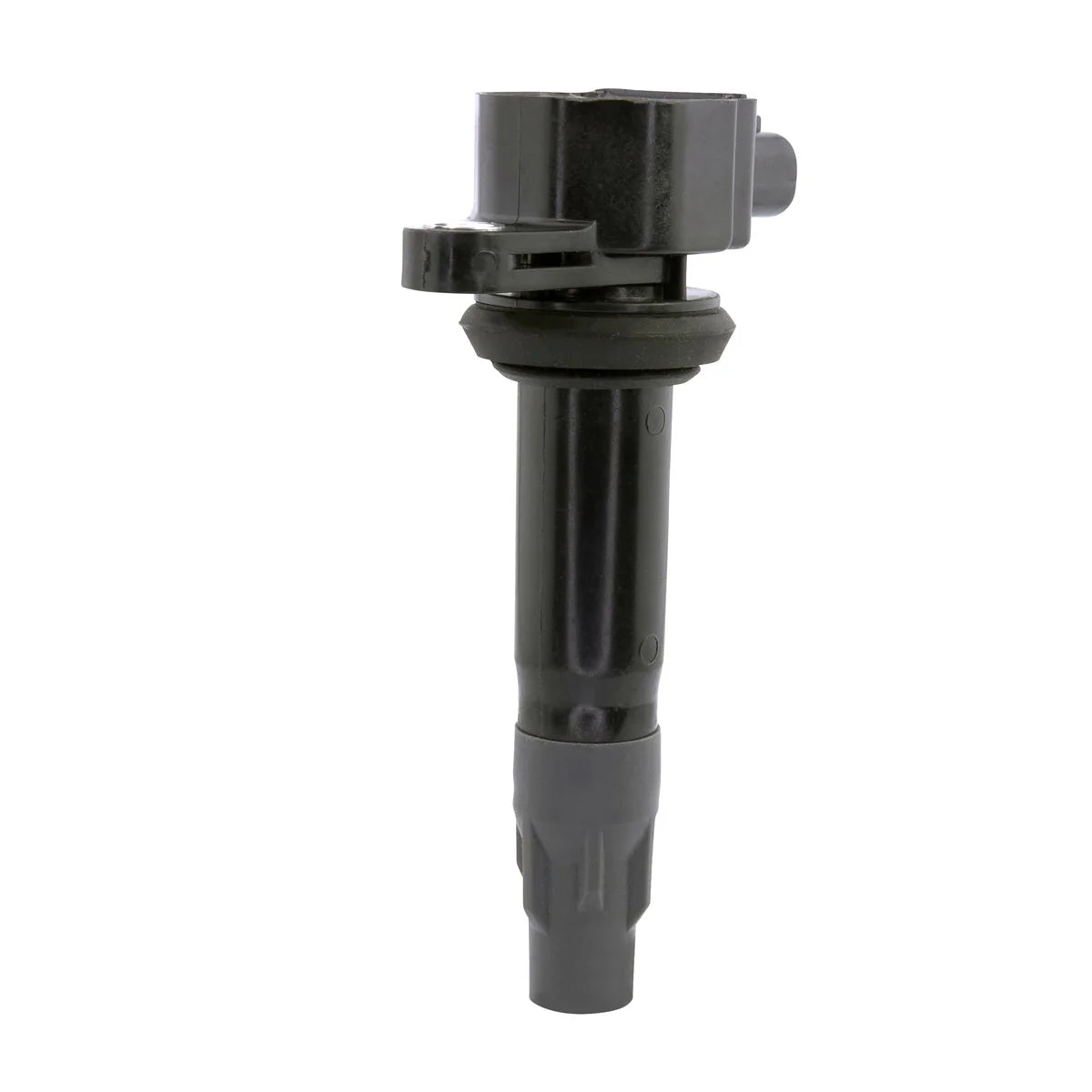

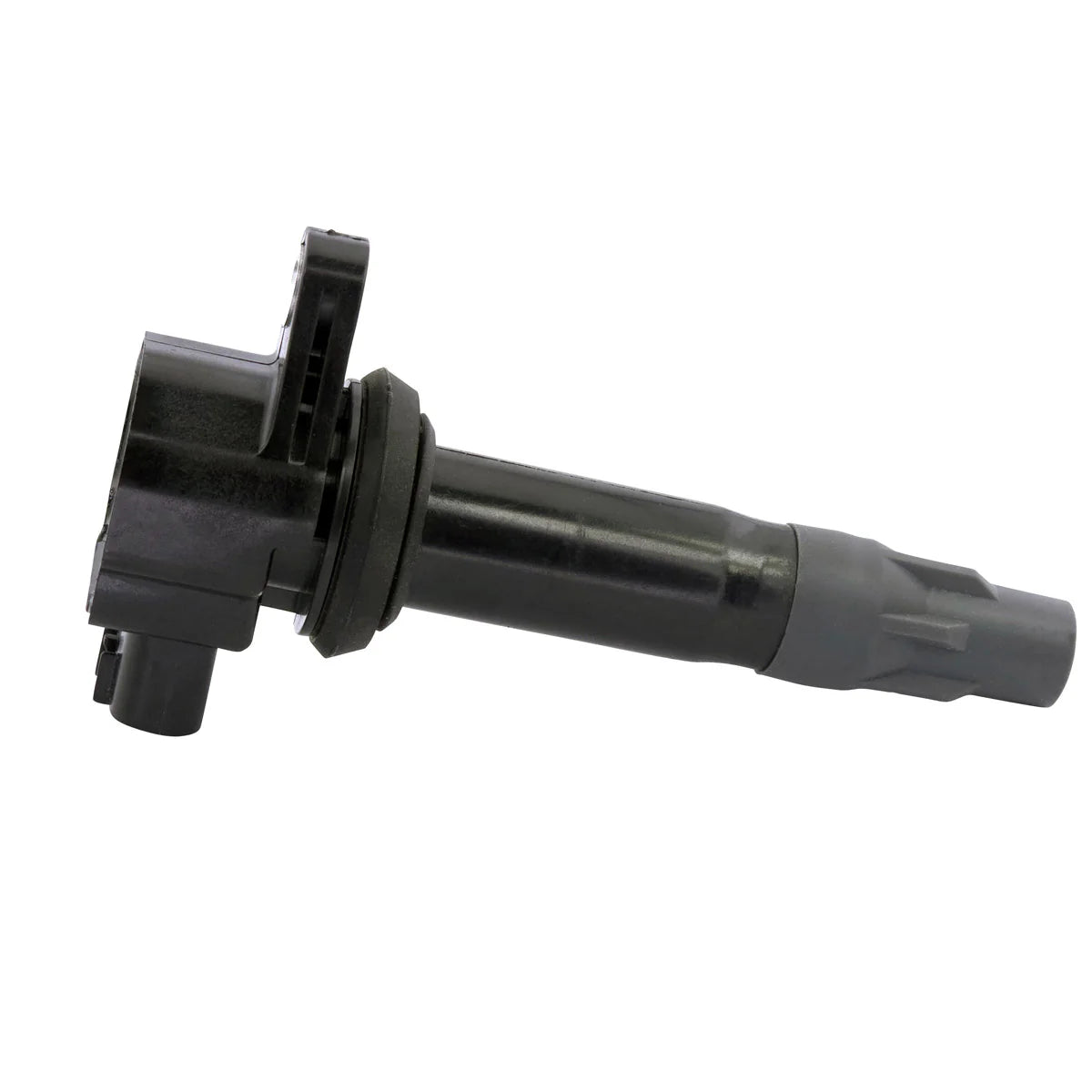

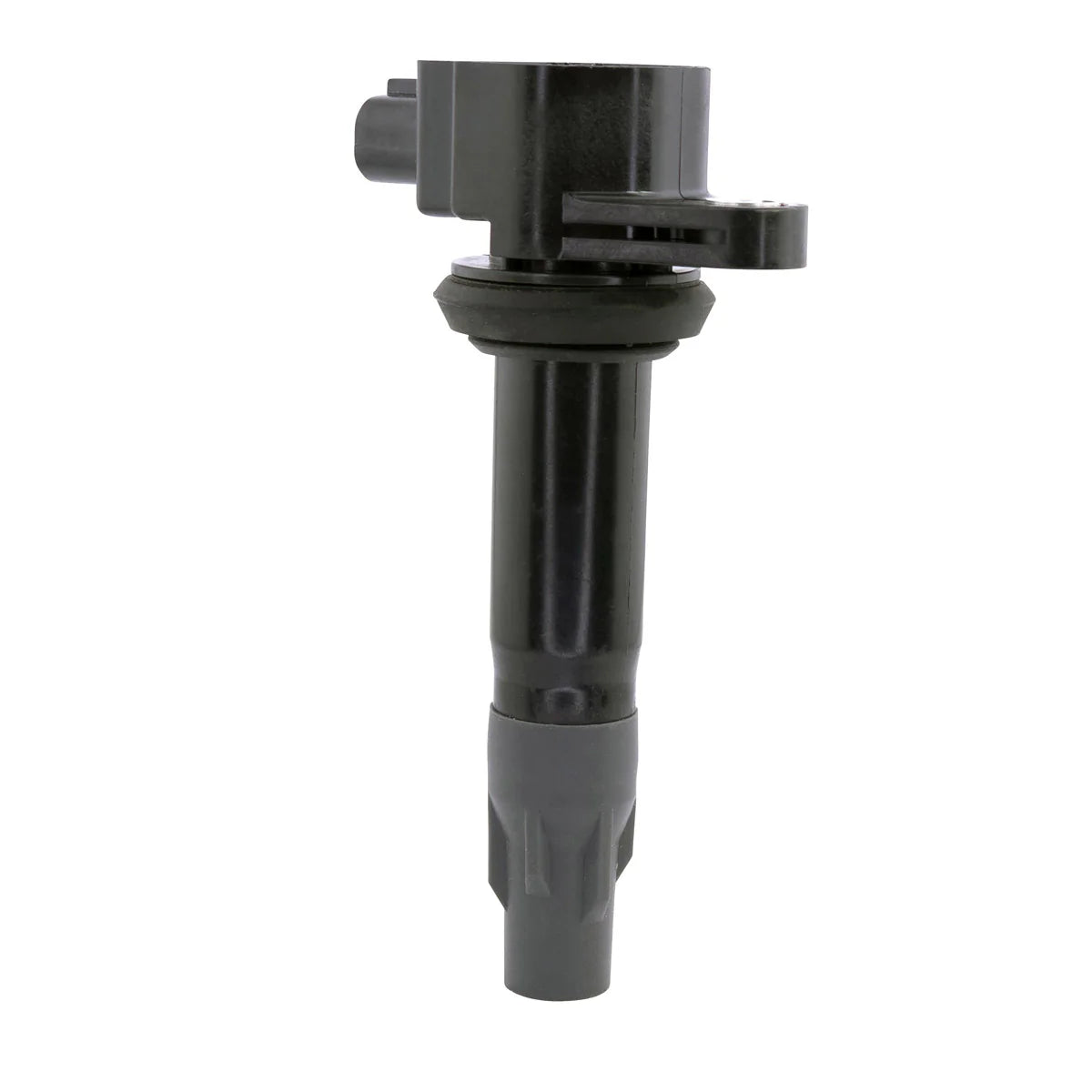

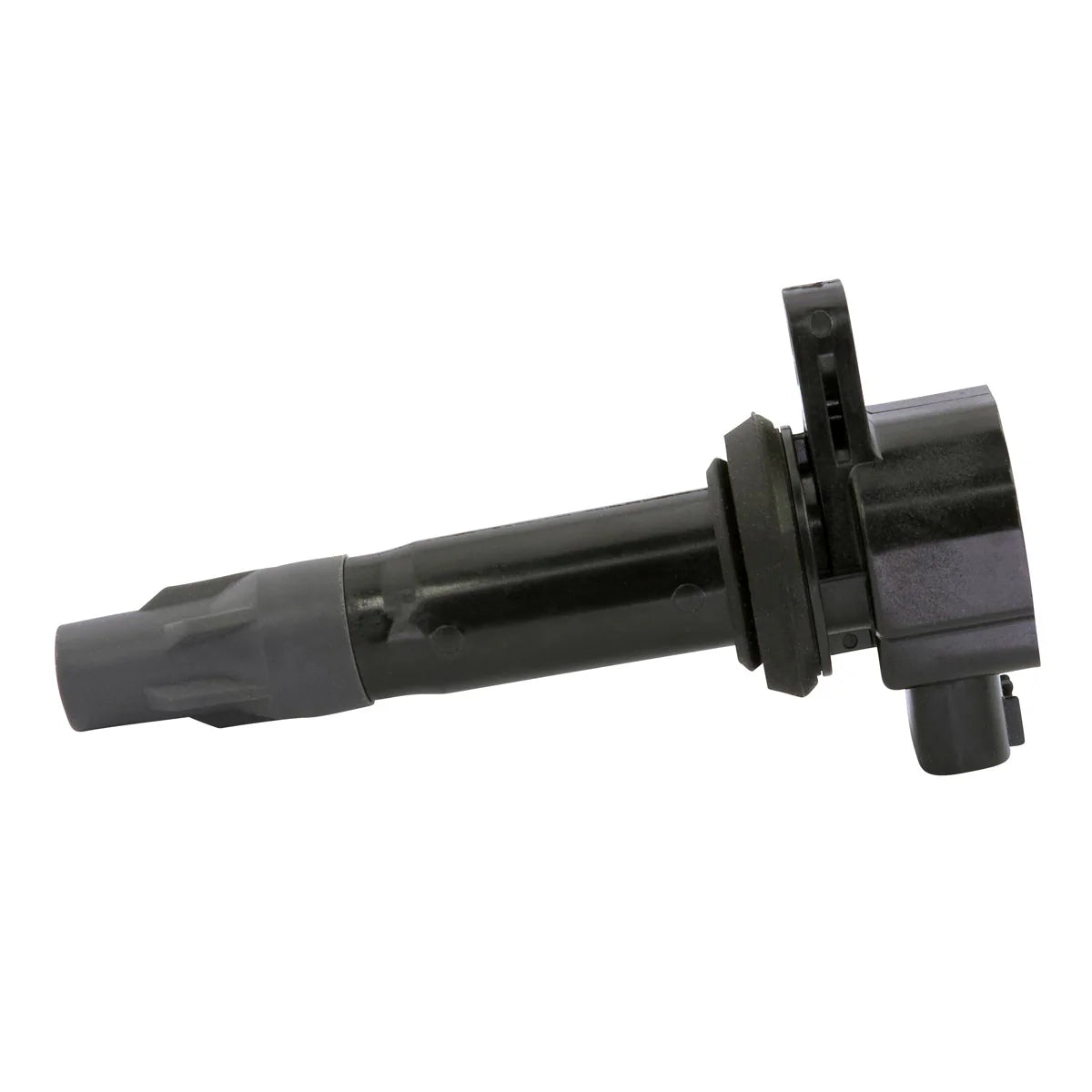

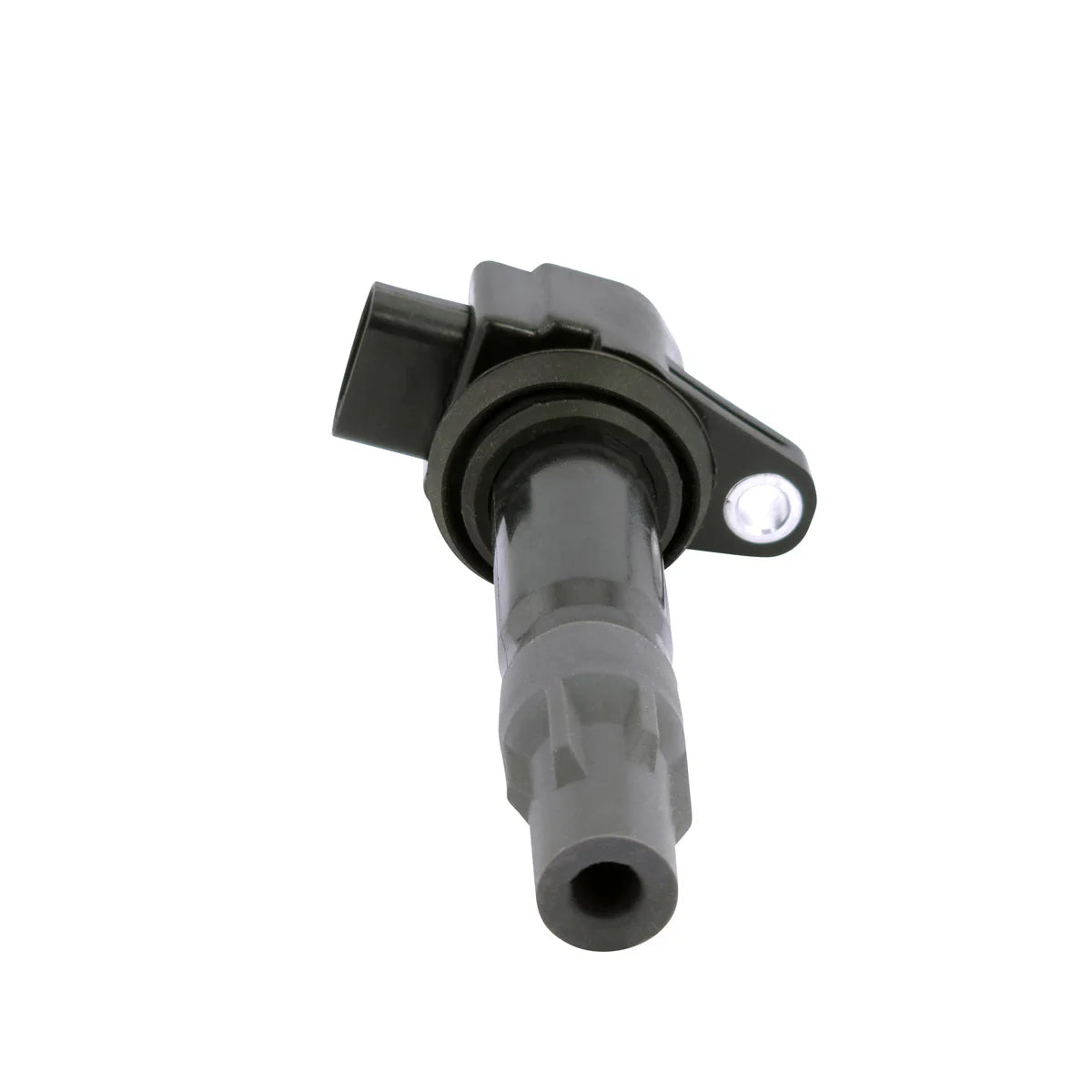

This is a brand new ignition stick coil supplied as a direct replacement for the original unit fitted to the current Can-Am, Ski-Doo and Lynx machines listed below. A stick coil sits directly on top of the spark plug, combining the coil and the plug cap in a single sealed body, which keeps the high-tension path short and removes the separate HT lead as a failure point. The manufacturer states the quality exceeds the OEM equipment, and every coil is tested before it ships.
The coil is 132 mm long with a 15 mm external tube diameter and an 8 mm internal tube, giving 40 mm of inside depth over the plug. A 38 mm seal, 10 mm high, closes off the plug well against water and debris. Electrical connection is through a single plug with three terminals, matching the original connector on the machine's harness, so no rewiring is required. It cross-references to BRP part number 420666148.
Key Features
- Brand new ignition stick coil
- Direct replacement for the original unit
- Quality exceeds the OEM equipment
- One stick coil included

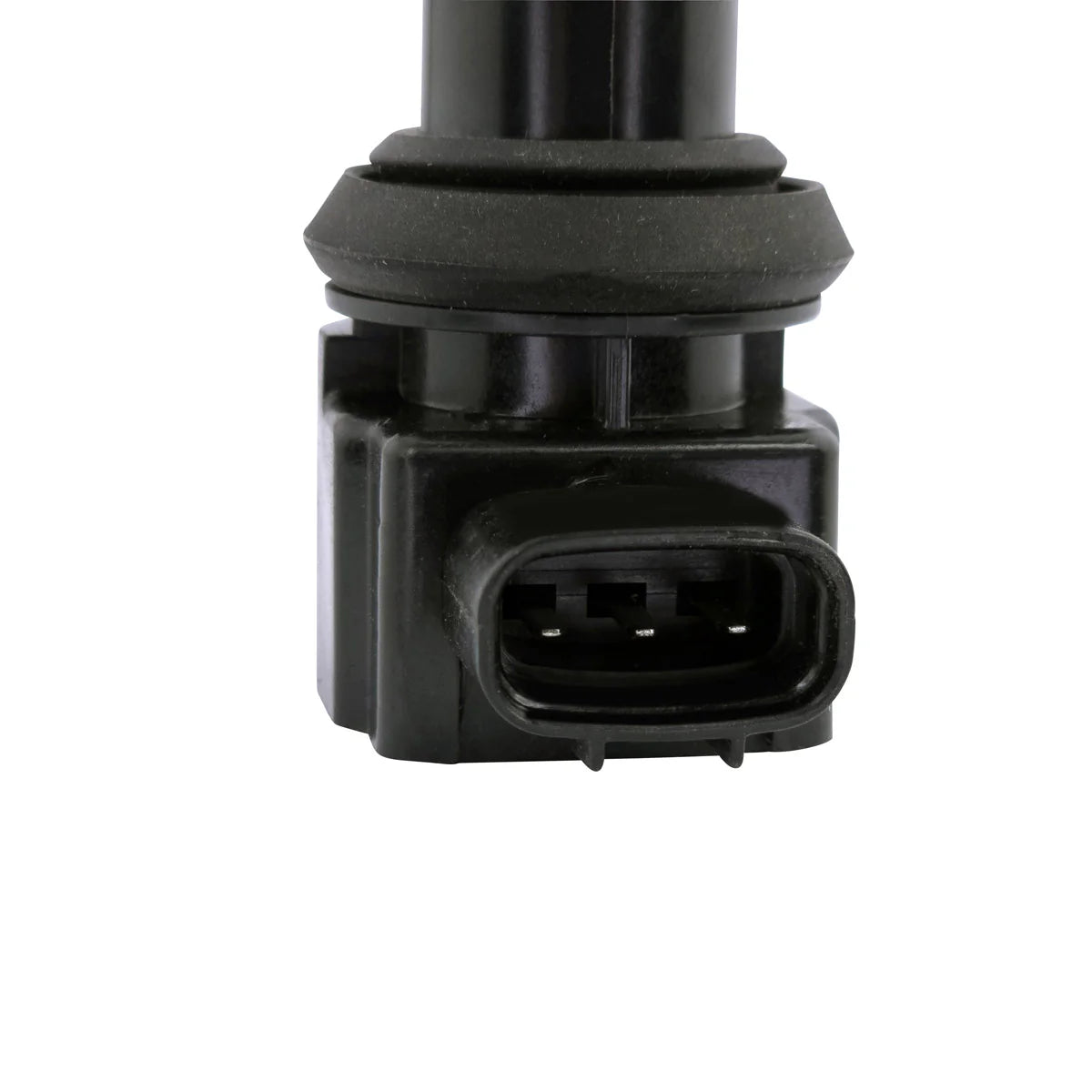

- Single plug with three terminals
- 38 mm seal to keep water out of the plug well
- Every coil tested before shipping
Technical Specs
| Specification |
Detail |
| Internal tube diameter |
8 mm |
| External tube diameter |
15 mm |
| Length |
132 mm |
| Inside depth |
40 mm |
| Seal diameter |
38 mm |
| Seal height |
10 mm |
| Number of plugs |
1 |
| Number of terminals |
3 |
| Part number |
RMS060-108473 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am Outlander 500 |
2022-2025 |
| Can-Am Outlander 700 |
2022-2025 |
| Ski-Doo Expedition 900 |
2022-2025 |
| Lynx 49 Ranger |
2022-2025 |
| Lynx 69 Ranger |
2022-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420666148 |
BRP (Can-Am / Ski-Doo / Lynx) |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original stick coil, with the same single three-terminal plug, so it drops into the plug well and connects to the existing harness with no cutting or splicing.
What is included?
One ignition stick coil with its integral seal, tested before shipping. On a multi-cylinder engine you will need one coil per cylinder.
How do I know the old stick coil has failed?
Look for a misfire isolated to one cylinder, a rough or uneven idle, hesitation and lost power under load, hard starting, or running that deteriorates as the engine warms up. Check the spark plug and the coil connector first, and inspect the seal - water sitting in the plug well causes the same symptoms as a failed coil.
Why does the seal matter on a snowmobile or quad?

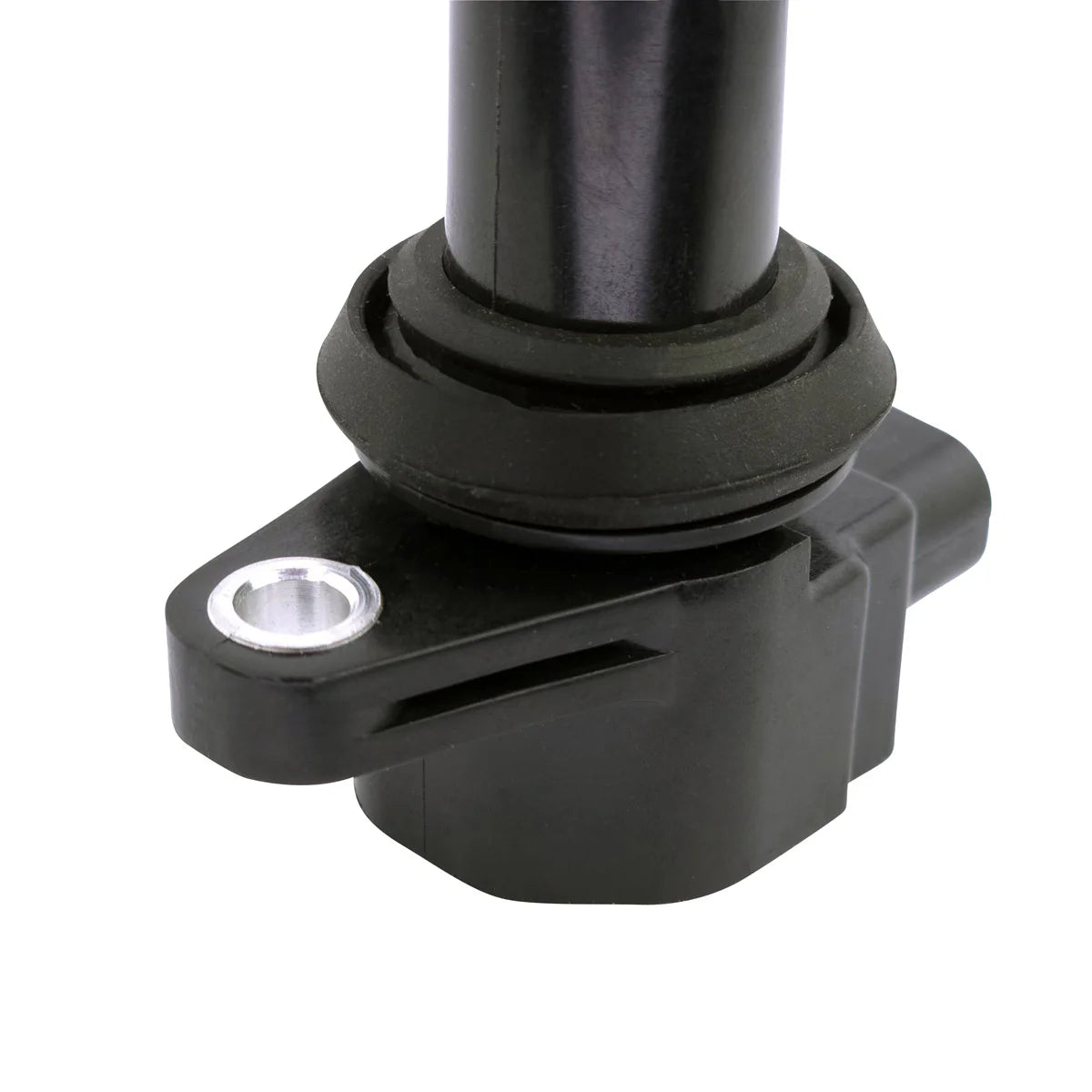

These machines work in snow, water crossings and mud, and the plug well is one of the places moisture collects. The 38 mm, 10 mm high seal closes the top of the well so the high-tension end of the coil stays dry. Make sure the seal seats cleanly on the head when you fit the coil.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
