Ignition Stick Coil
Triumph Speed Triple 900 and 955, Sprint ST and RS 955, Tiger 885i and 955 - 1993-2020 - Part No. RMS260-108531

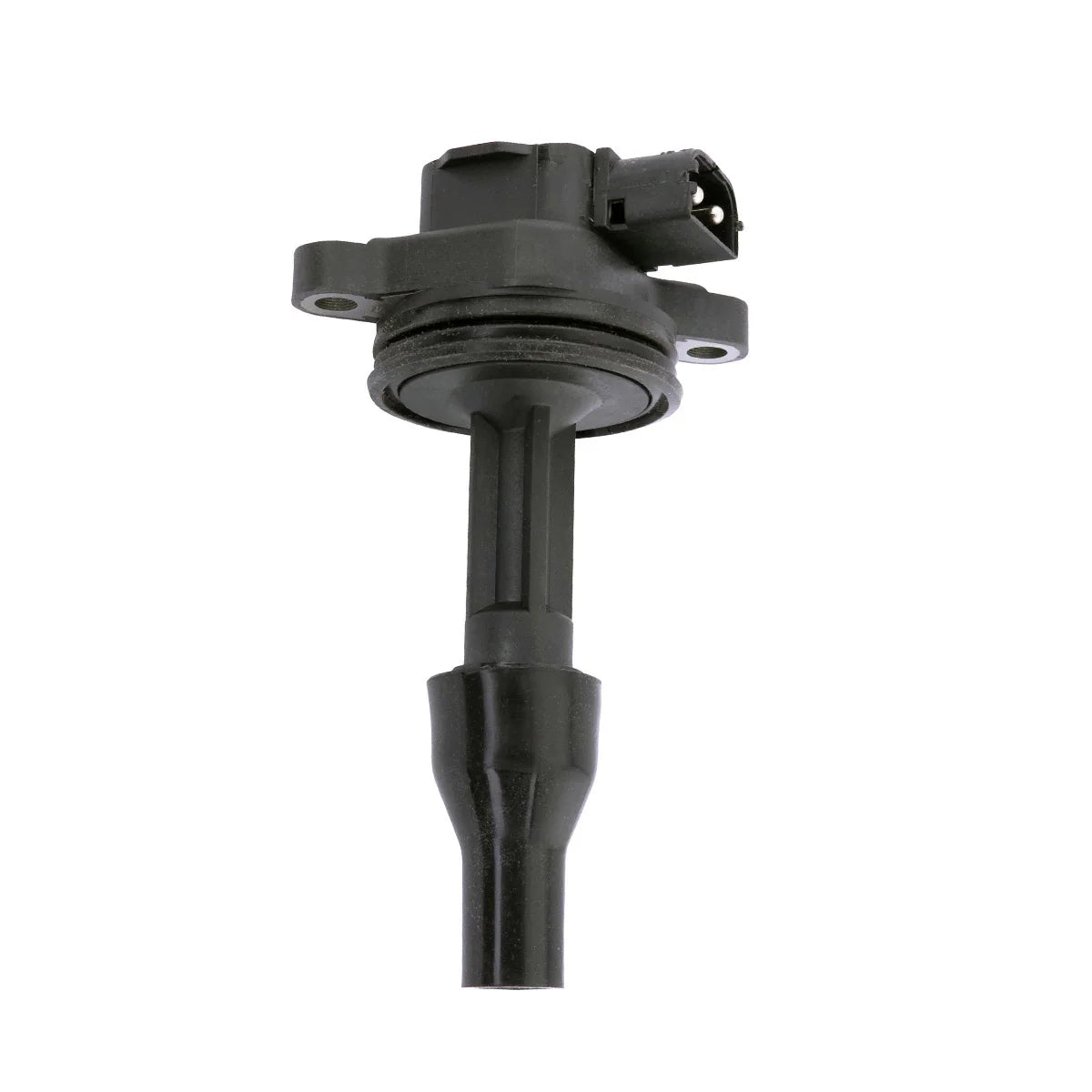

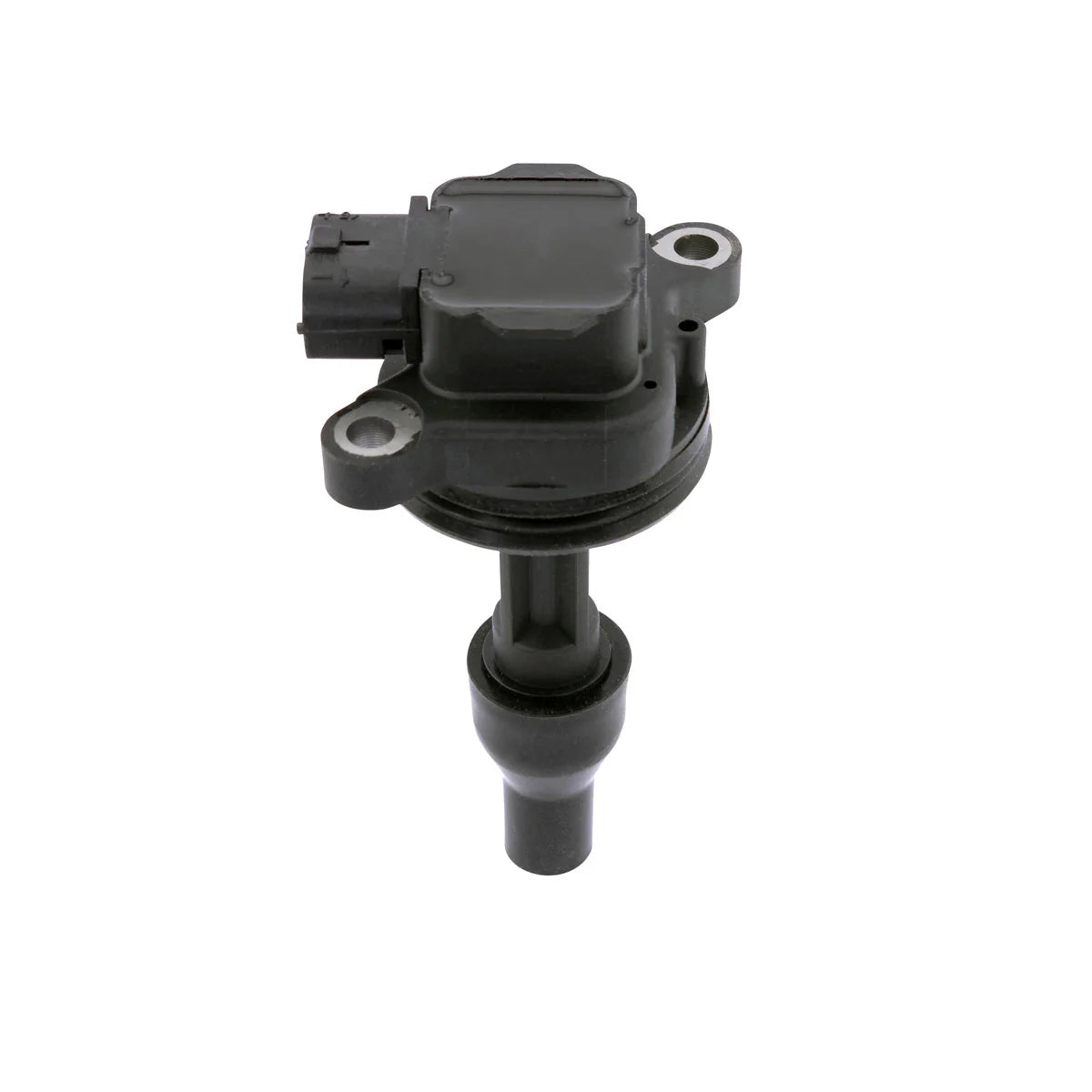

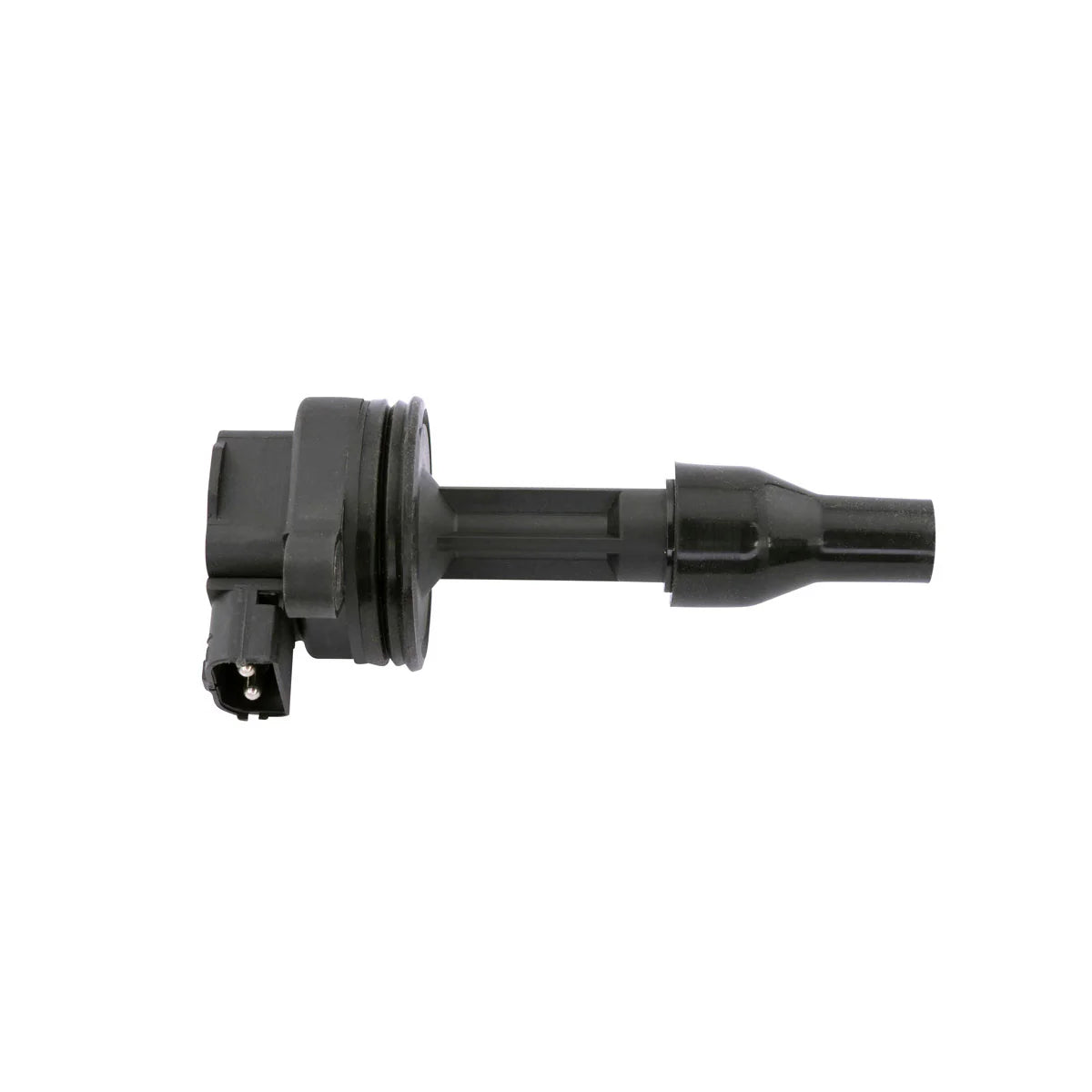

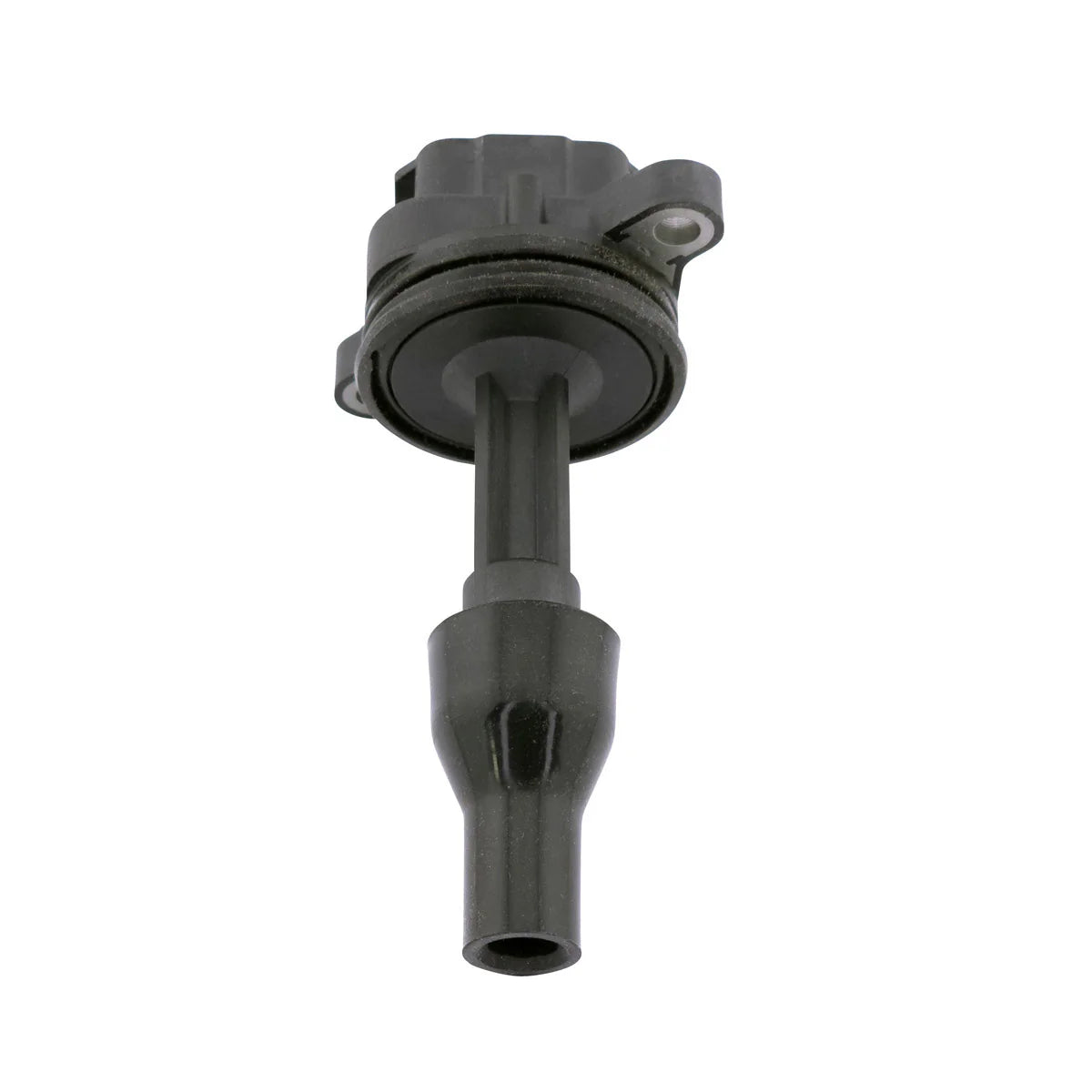

This is a brand new single ignition stick coil for the Triumph three-cylinder engine, supplied as a direct replacement for the original unit. It sits directly over the spark plug and carries the coil and the plug cap in one body, so a failed coil can be swapped for a new one without disturbing the rest of the ignition system. Order one for a single failed cylinder, or three if you are refreshing the whole engine.

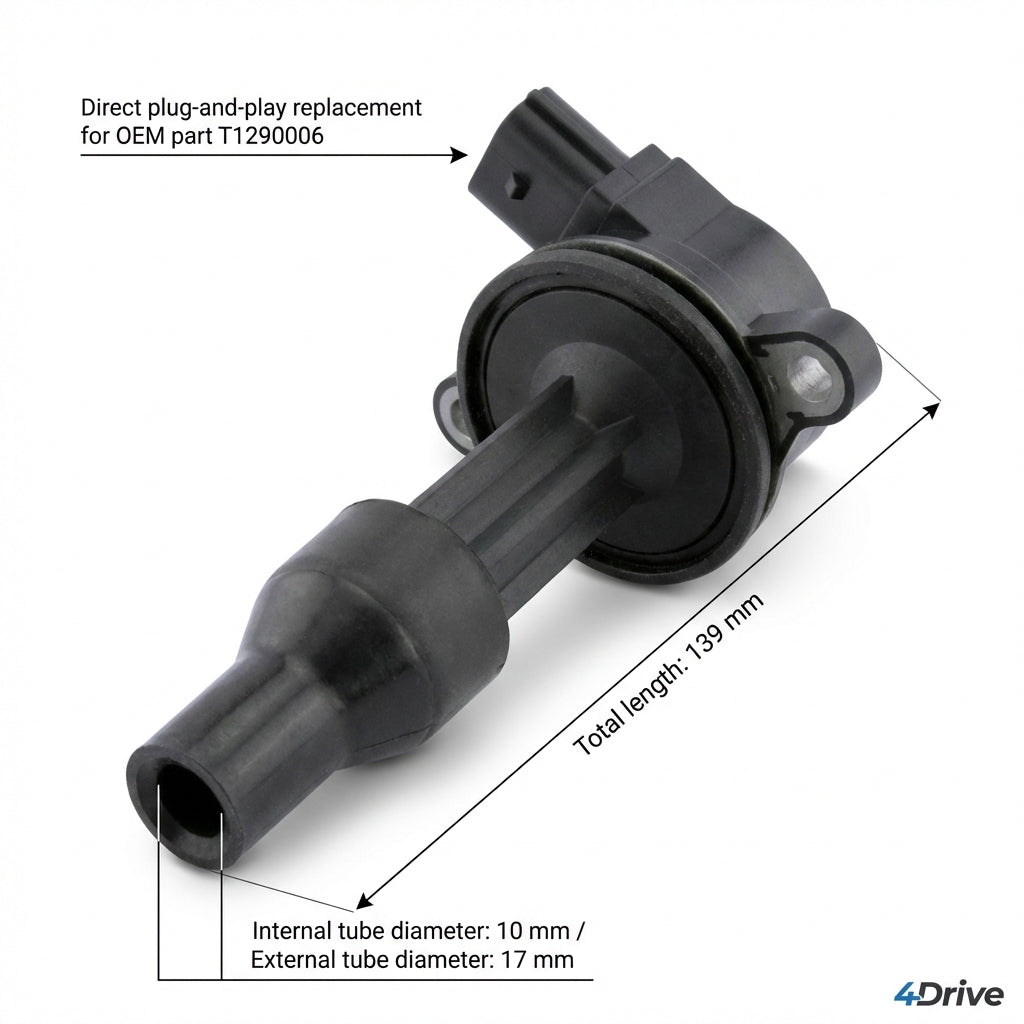

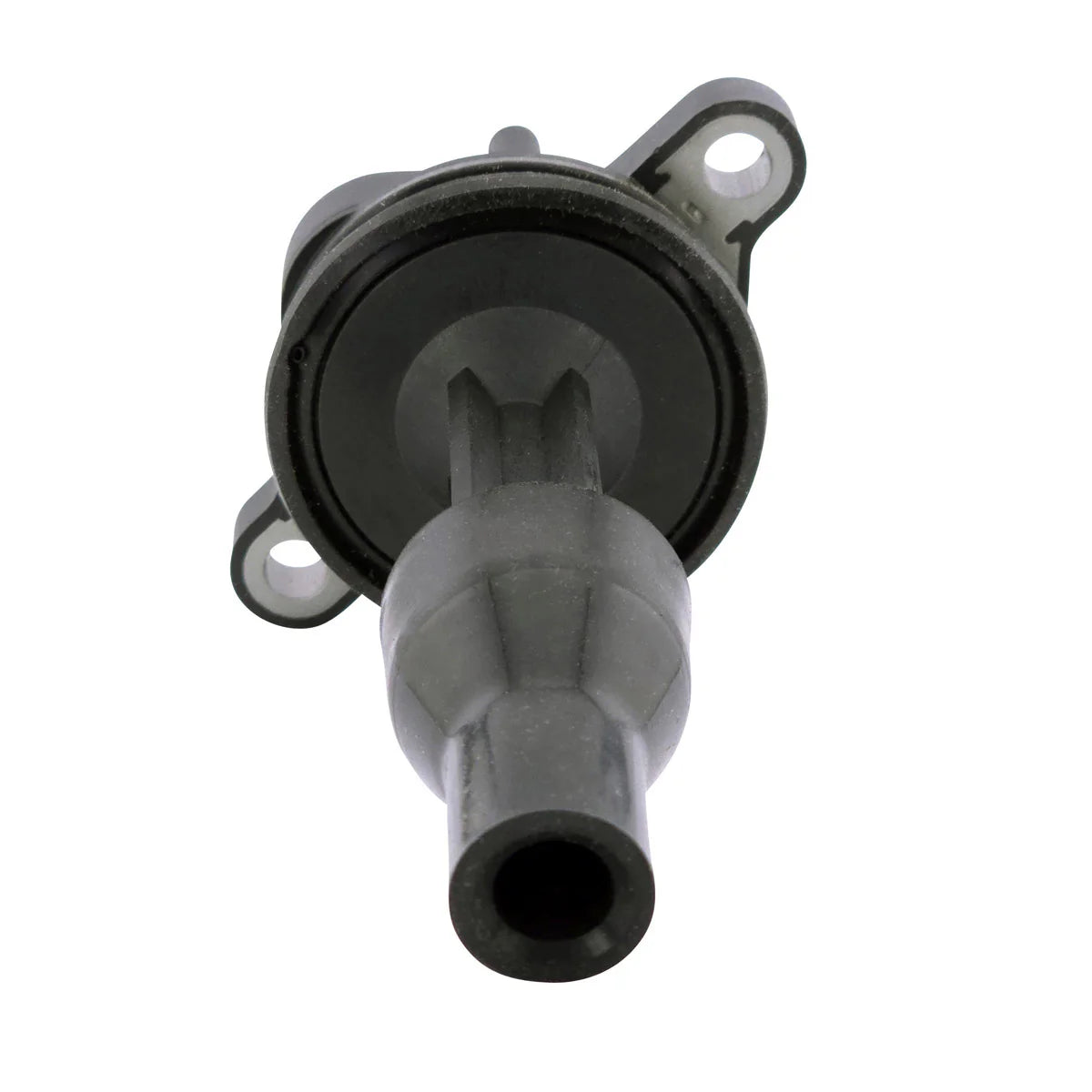

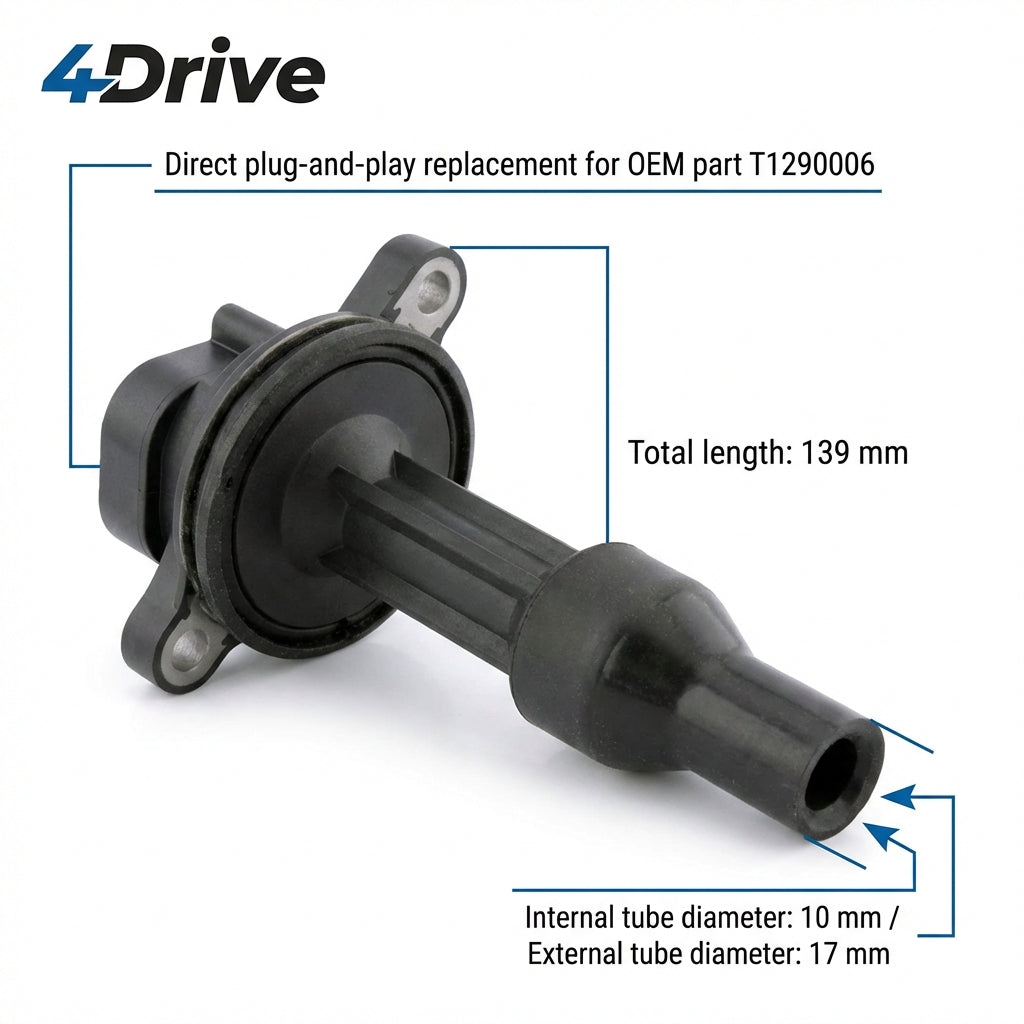

The coil measures 139 mm long with a 17 mm external tube diameter and a 10 mm internal tube, giving 46 mm of inside depth over the plug. Two seal sizes are provided, 49 mm and 52 mm, each 12 mm high, and the coil carries a single plug with two terminals so it mates with the original Triumph connector. The manufacturer states the quality exceeds the original equipment and every coil is tested before shipping. It cross-references to Triumph OEM number T1290006.
Key Features
- Brand new ignition stick coil
- Direct replacement for the original Triumph unit
- Quality exceeds the OEM equipment
- One stick coil included

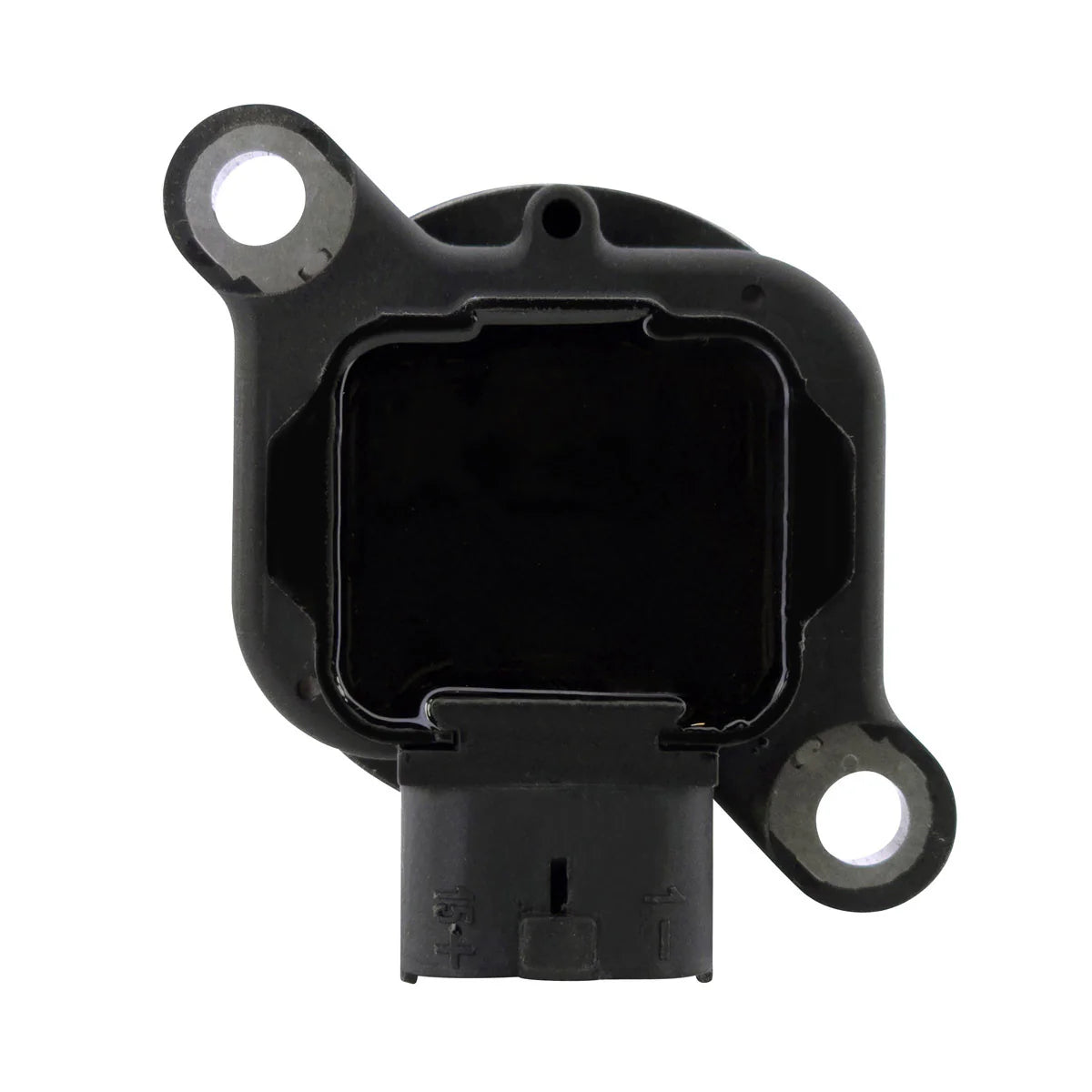

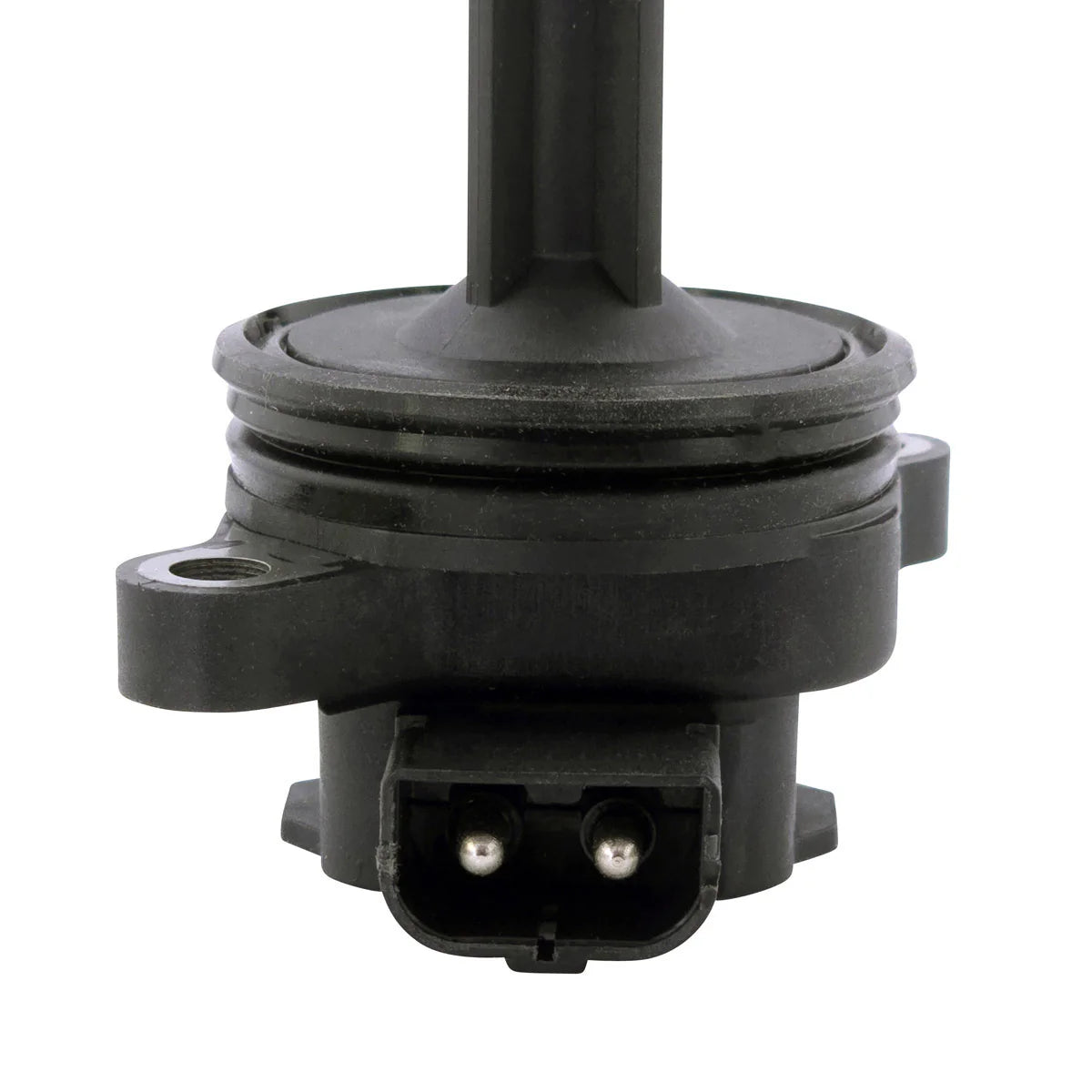

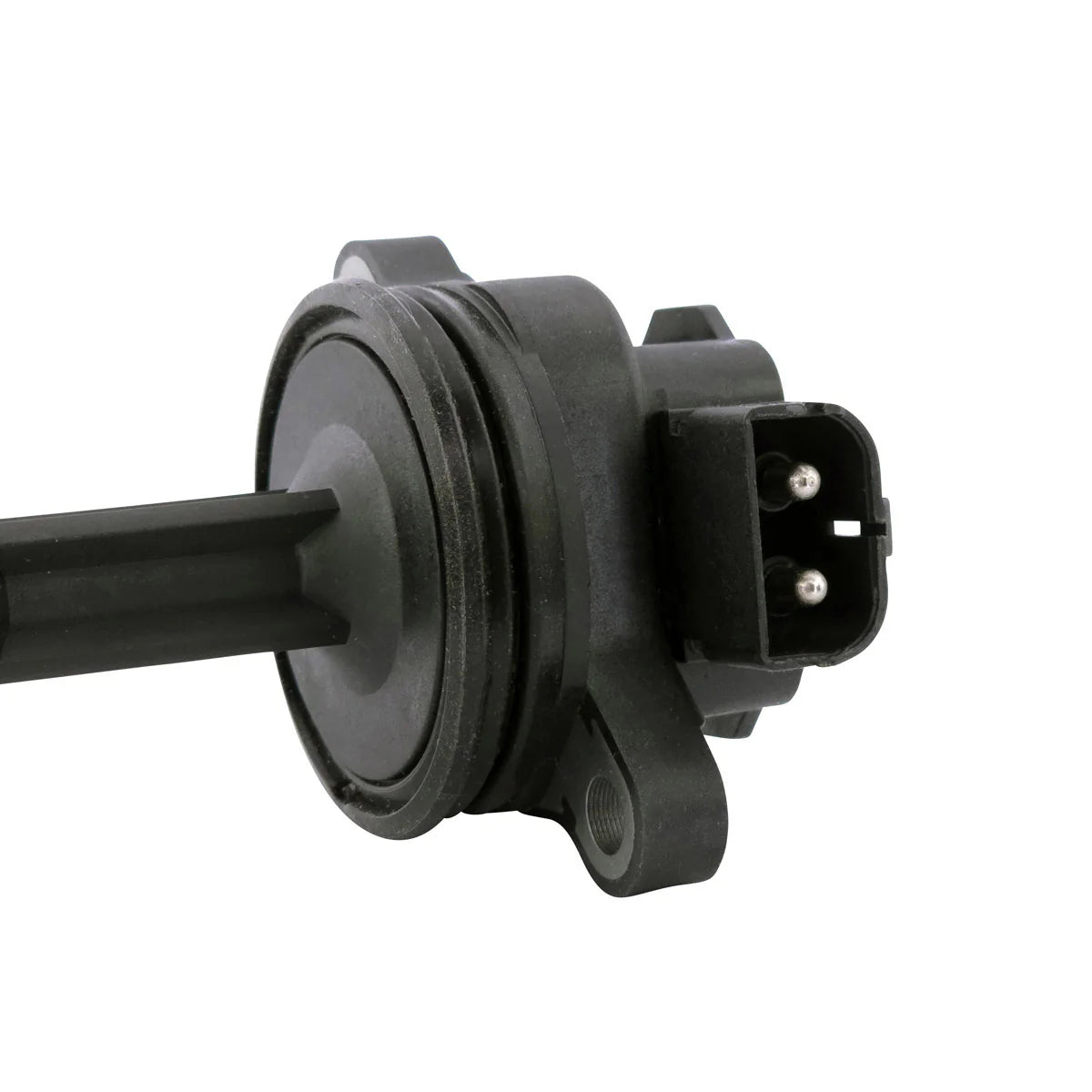

- Single plug with two terminals
- Twin seal sizes at 49 mm and 52 mm
- Tested before shipping
- Considerably cheaper than the OEM part
Technical Specs
| Specification |
Detail |
| Internal tube diameter |
10 mm |
| External tube diameter |
17 mm |
| Length |
139 mm |
| Inside depth |
46 mm |
| Seal sizes |
49 mm and 52 mm |
| Seal height |
12 mm |
| Number of plugs |
1 |
| Number of terminals |
2 |
| Coils supplied |
1 |
| Part number |
RMS260-108531 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Triumph Speed Triple 900 |
1993-2020 |
| Triumph Speed Triple 955 |
1993-2020 |
| Triumph Sprint ST 955 |
1993-2020 |
| Triumph Sprint RS 955 |
1993-2020 |
| Triumph Tiger 885i |
1993-2020 |
| Triumph Tiger 955 |
1993-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| T1290006 |
Triumph |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original Triumph stick coil, with the same single plug and two terminals, so it drops into the plug well and connects to the existing harness with no changes to the loom.
What is included?
One ignition stick coil, tested before shipping. If you intend to change all three cylinders on a Triumph triple, order three or look at the 3-pack version of this part.
How do I know the old stick coil has failed?
The usual signs are a misfire confined to one cylinder, a rough idle, hesitation under load, a cylinder that stays noticeably cooler than the others, or running that becomes erratic once the engine is hot. Check the spark plug and the coil connector first, as a fouled plug or a corroded pin gives the same symptoms.
Why are two seal sizes supplied?

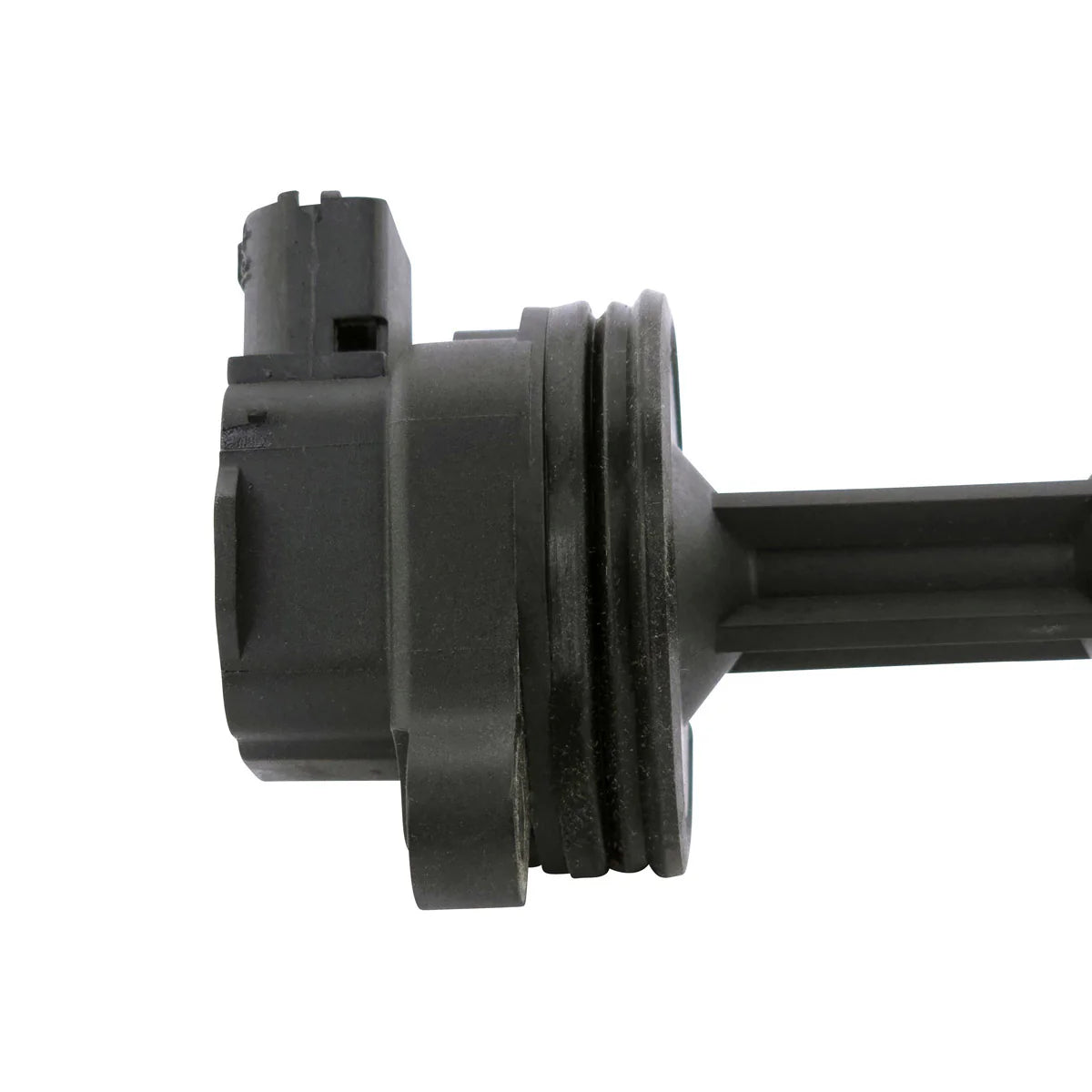

The 49 mm and 52 mm seals, both 12 mm high, let the same coil seal correctly in the different plug wells used across the Speed Triple, Sprint and Tiger engines. Fit the seal that matches your cylinder head so water cannot sit around the plug.
