Ignition Timing Sensor for Arctic Cat Snowmobiles
M 8000, XF 8000, ZR 8000, CFR, CF 800, Crossfire, XF 800, M8, F8 and Firecat F1000 - 2007-2017

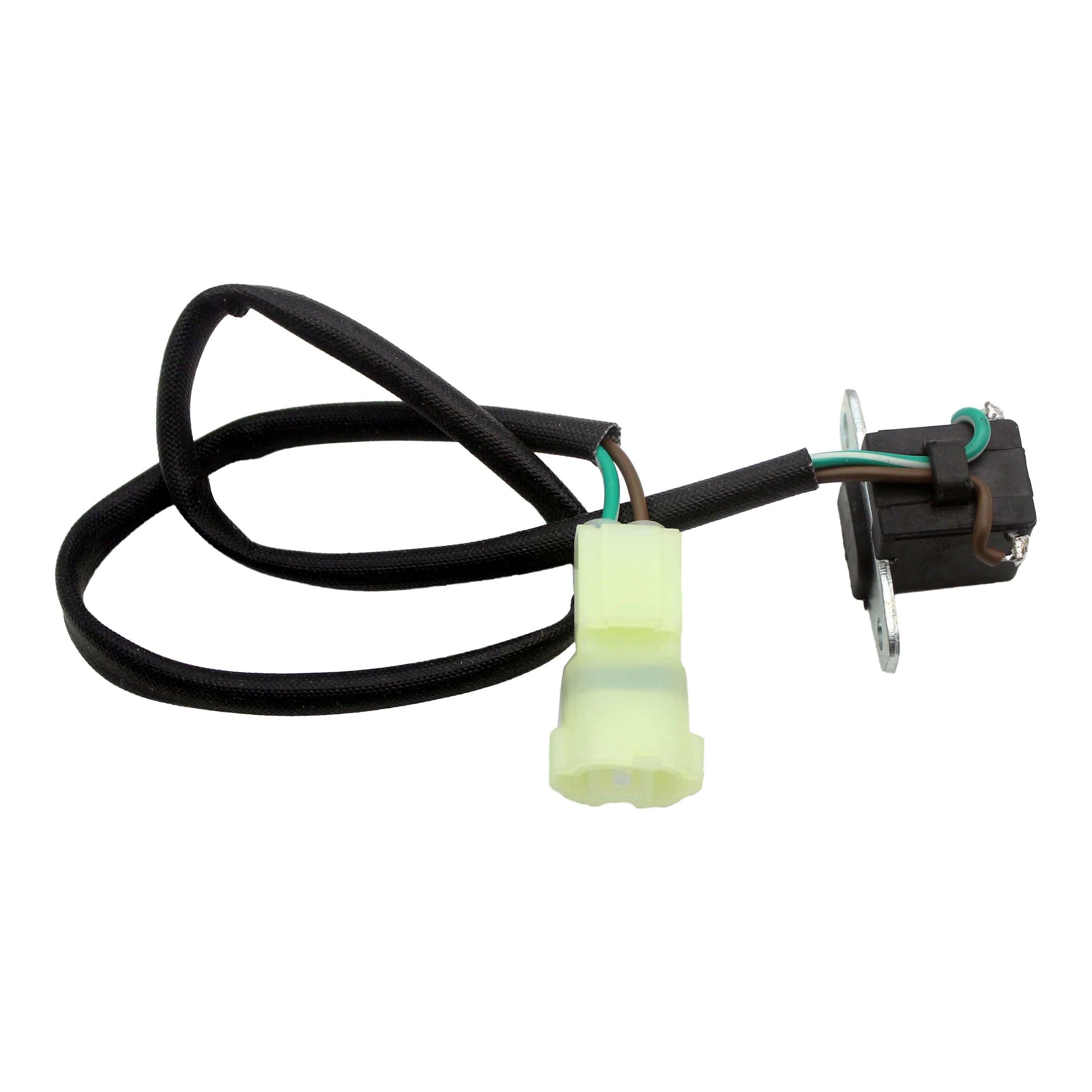

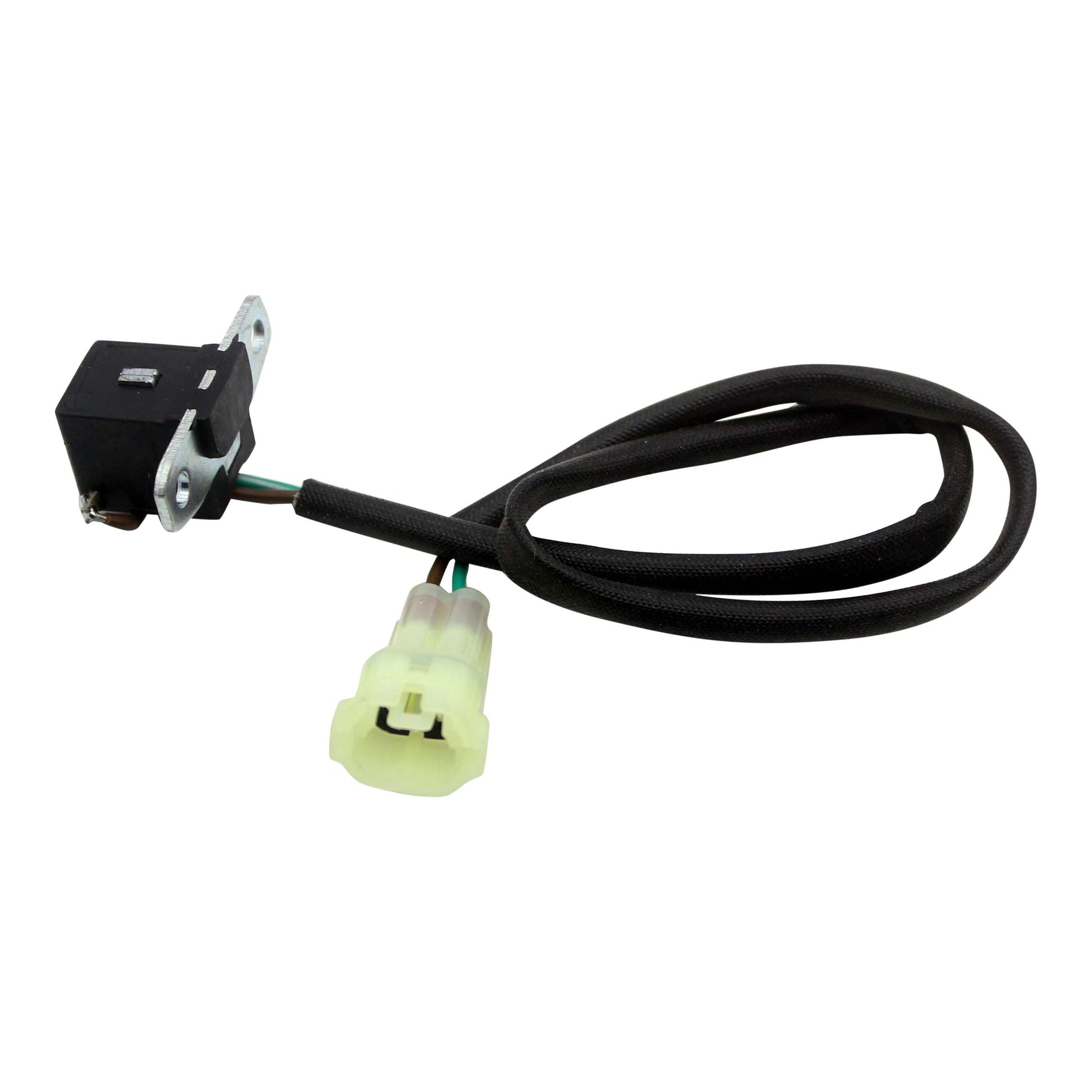

This is a brand new ignition timing sensor, also known as a pickup or pulsar coil, for 2007-2017 Arctic Cat M 8000, XF 8000, ZR 8000, CFR, CF 800, Crossfire, XF 800, M8, F8 and Firecat F1000 snowmobiles. It is supplied for you to repair your existing stator rather than replace the whole assembly, which is often the more economical route on these machines - and this coil is frequently unavailable from the OEM manufacturer as a separate part. Part number RM00166 replaces Arctic Cat OEM 3007-318.

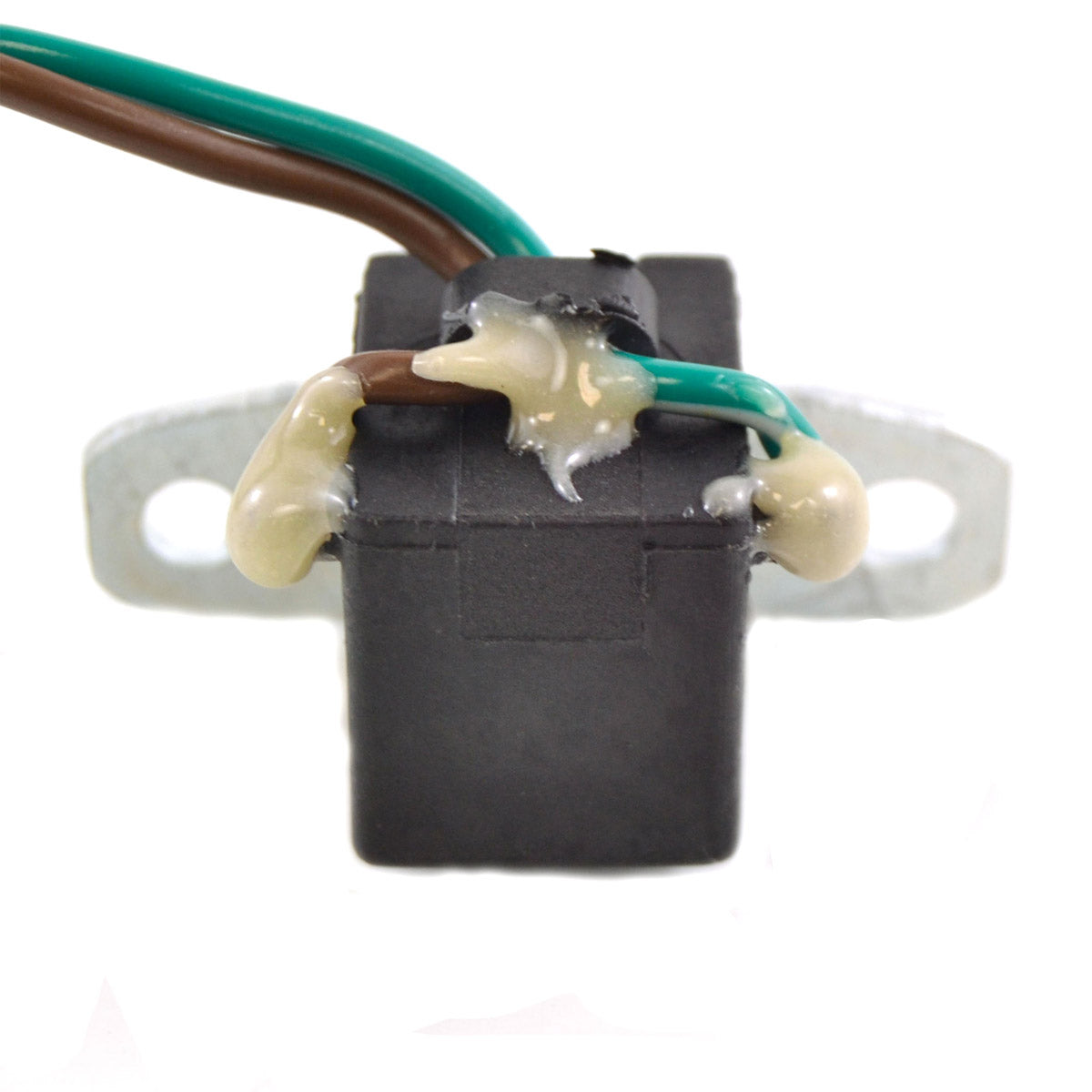

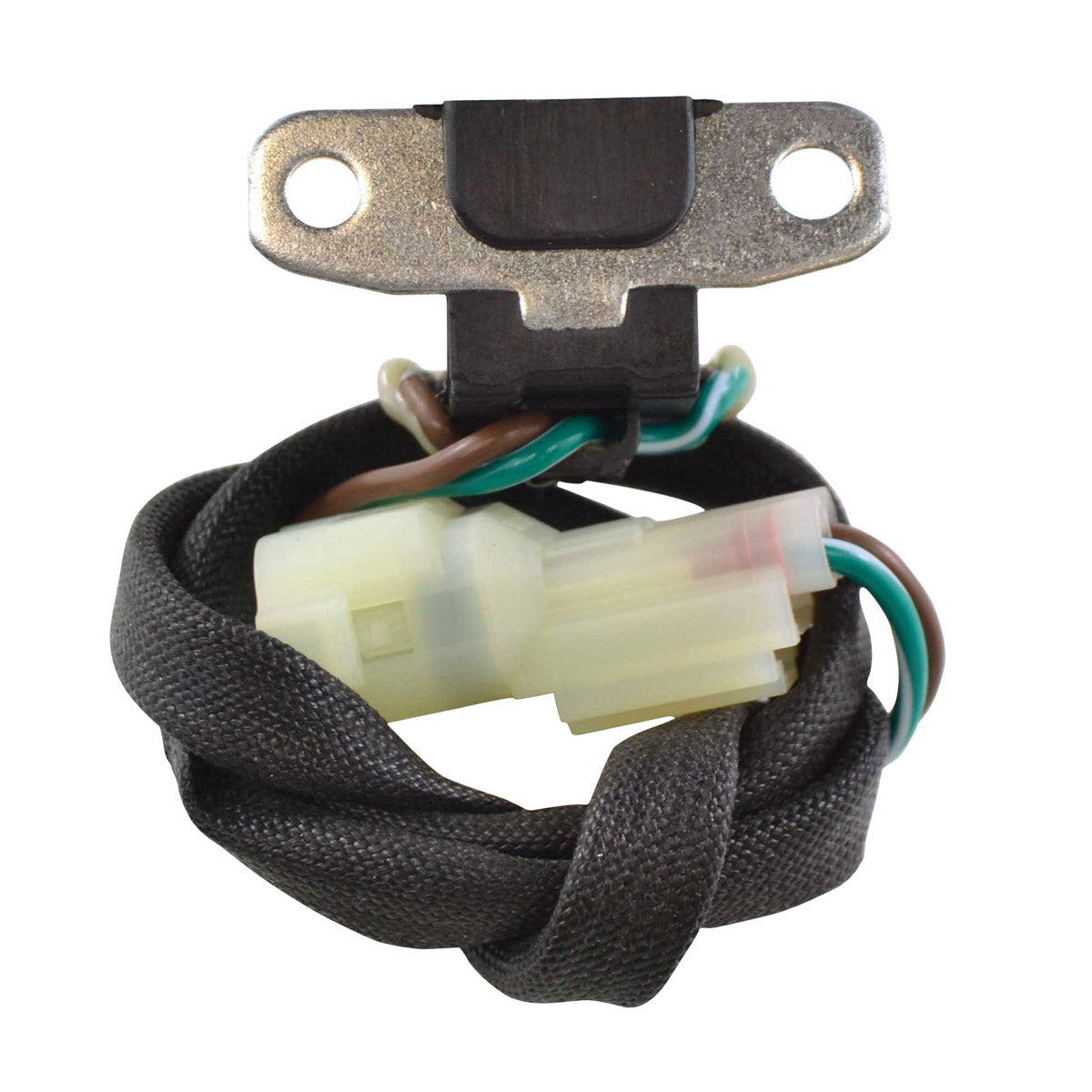

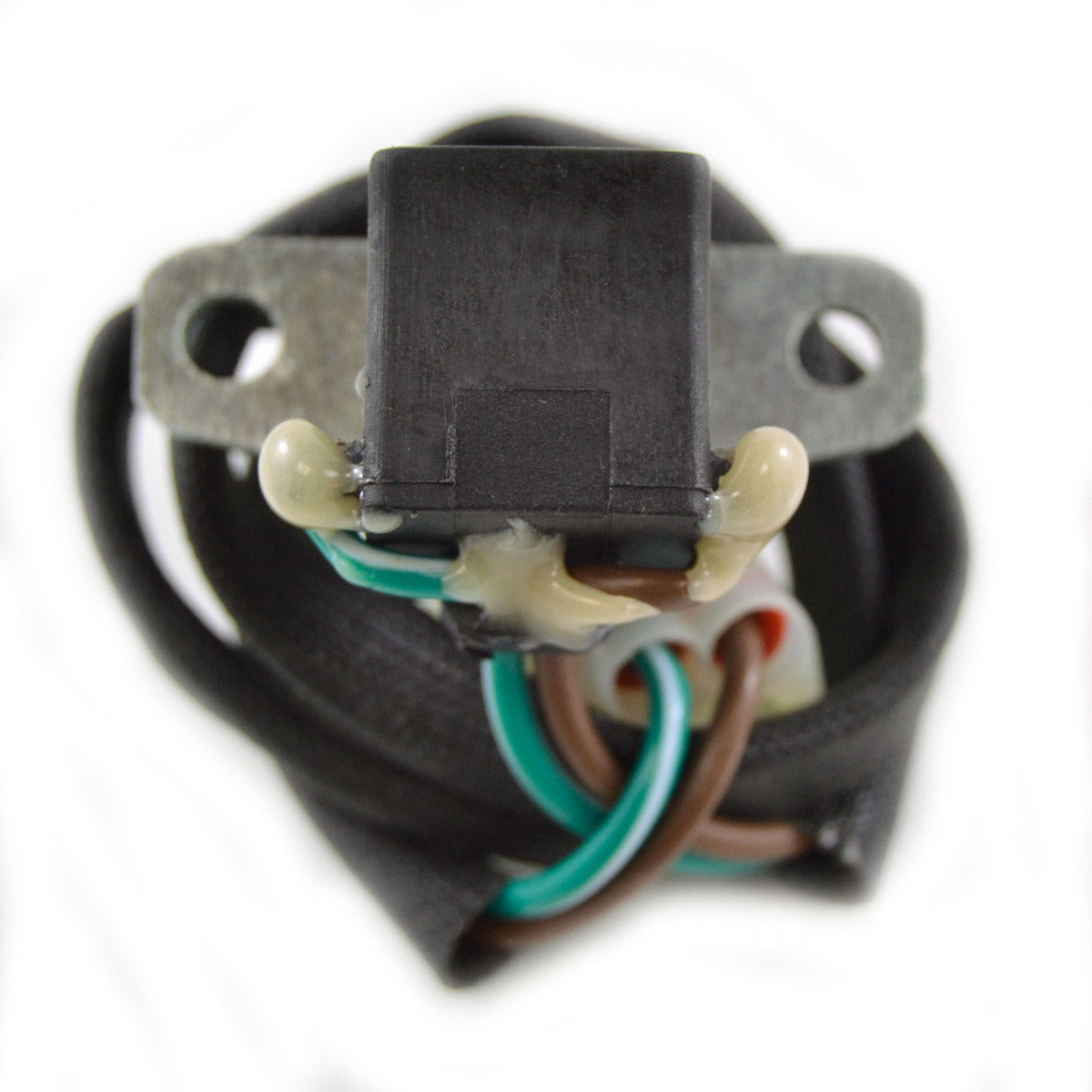

The pickup coil is the small sensor mounted next to the flywheel that tells the ignition system exactly where the crankshaft is. Each time the trigger on the flywheel passes it, the coil generates a pulse that the CDI or ECU uses to set ignition timing. When the coil breaks down the sled will typically refuse to start, cut out unpredictably, or run with erratic timing. This unit measures 24 mm long by 19 mm wide by 18 mm high, its bracket holes are 35 mm centre to centre, and it carries 400 mm of wire. Its brown/green to green/white wire-to-wire resistance is 200 ohms +/-20 percent, which is the figure to check your original against. All products are tested before shipping.
Key Features
- Brand new pickup / pulsar coil for stator repair
- Often unavailable from the OEM manufacturer
- Repairs the stator instead of replacing it
- 400 mm wire length, 35 mm bracket hole centres
- Wire-to-wire resistance 200 ohms +/-20 percent
- All products tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM00166 |
| Height | 18 mm |
| Length | 24 mm |
| Width | 19 mm |
| Bracket Centre to Centre | 35 mm |
| Wire Length | 400 mm |
| Wire to Wire Resistance | Brown/Green to Green/White = 200 ohms +/-20 percent |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat M 8000 | 2007-2017 |
| Arctic Cat XF 8000 | 2007-2017 |
| Arctic Cat ZR 8000 | 2007-2017 |
| Arctic Cat CFR | 2007-2017 |
| Arctic Cat CF 800 | 2007-2017 |
| Arctic Cat Crossfire | 2007-2017 |
| Arctic Cat XF 800 | 2007-2017 |
| Arctic Cat M8 | 2007-2017 |
| Arctic Cat F8 | 2007-2017 |
| Arctic Cat Firecat F1000 | 2007-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3007-318 | Arctic Cat |
Frequently Asked Questions
Will it fit without modification?
Yes, provided your machine is on the fitment list. The bracket holes are 35 mm centre to centre and the coil body is 24 mm by 19 mm by 18 mm, matching the original, and 400 mm of wire is supplied so it reaches the original connector position. Confirm OEM number 3007-318 before ordering.
What is included?
One brand new ignition timing sensor, part number RM00166, with 400 mm of wire attached. It is supplied as a stator repair part, so you keep your existing stator plate and fit this coil to it - useful because Arctic Cat frequently does not sell the coil separately.
How do I test whether my old coil has failed?
Measure the resistance between the brown/green and green/white wires with a multimeter. A good coil reads 200 ohms plus or minus 20 percent. An open circuit, a short, or a reading well outside that band means the coil has failed. A sled that will not start with a good battery and good spark plugs, or that cuts out at random, is the typical symptom.
Do I need to replace the whole stator?
Not if only the pickup coil has failed. This part exists precisely so that the stator plate can be repaired rather than scrapped. Test the charging windings separately - if they are within spec, fitting this coil restores the machine at a fraction of the cost of a complete stator.
