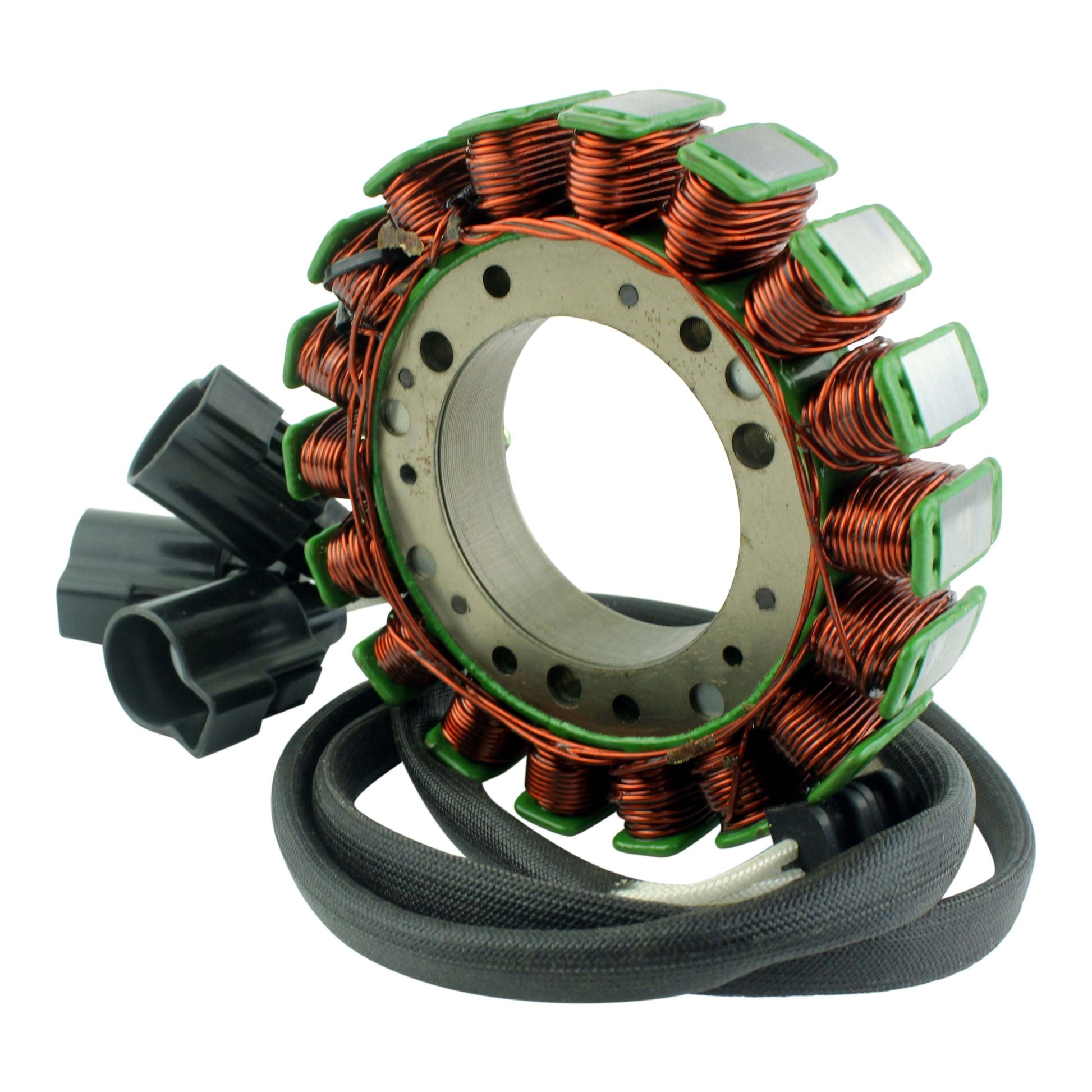

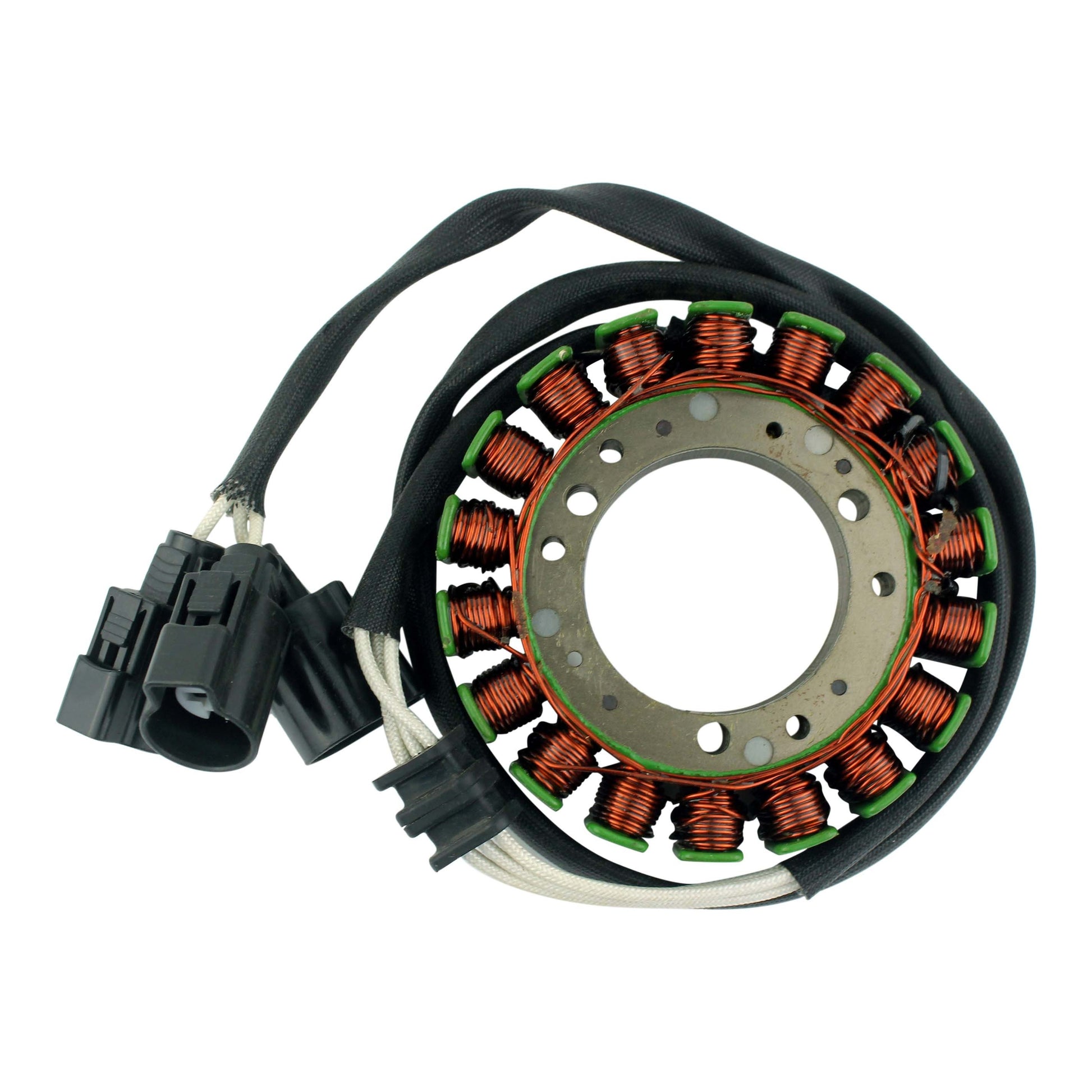

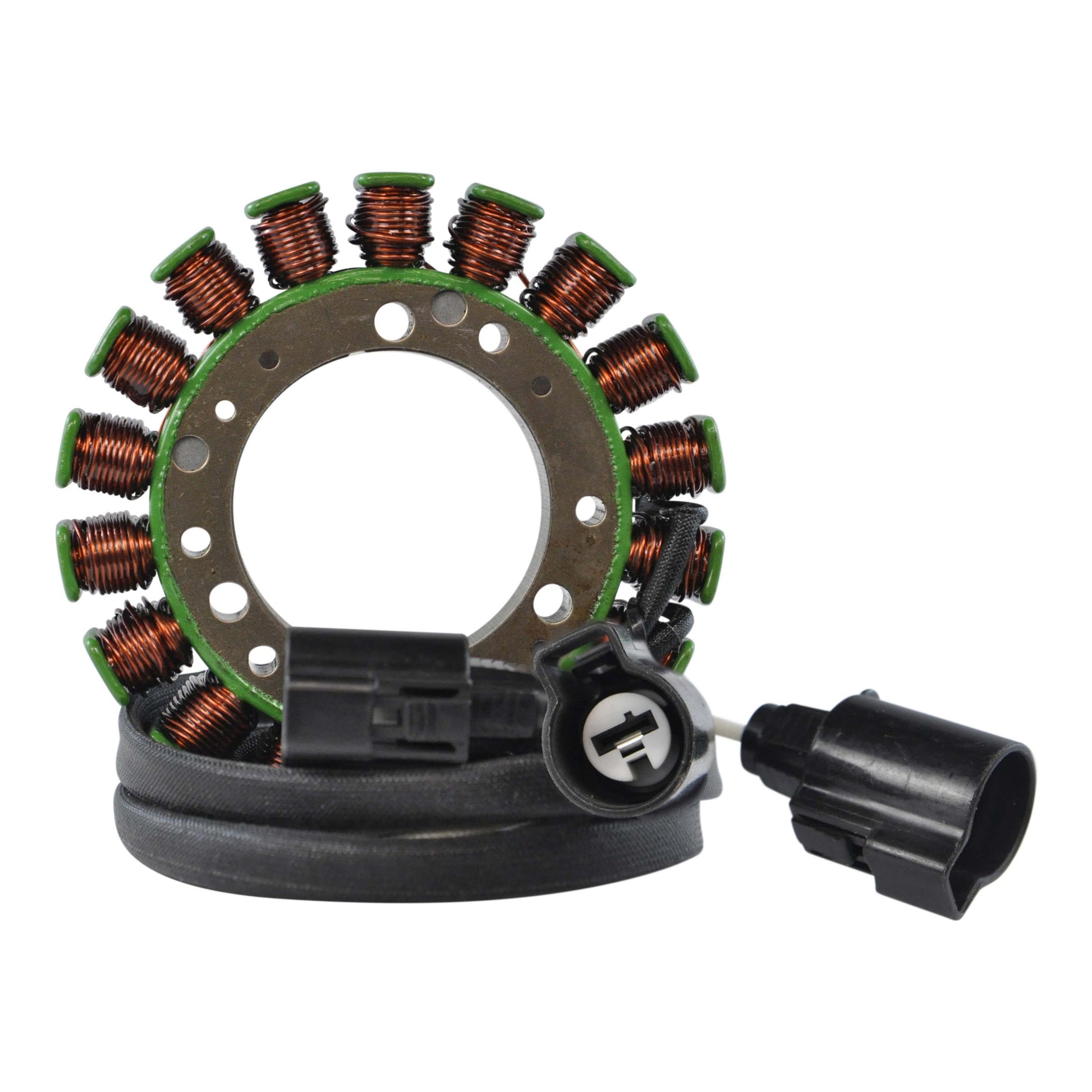

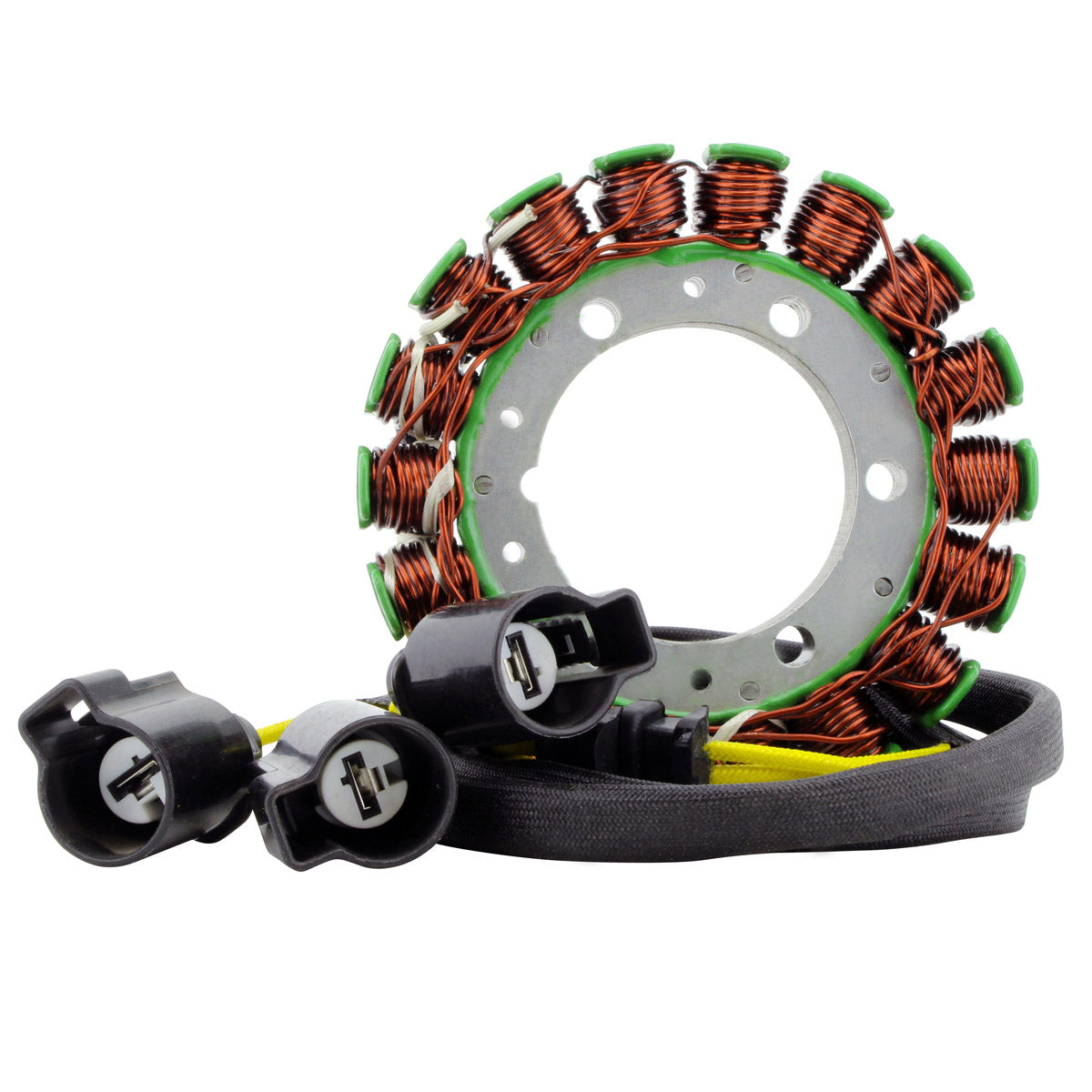

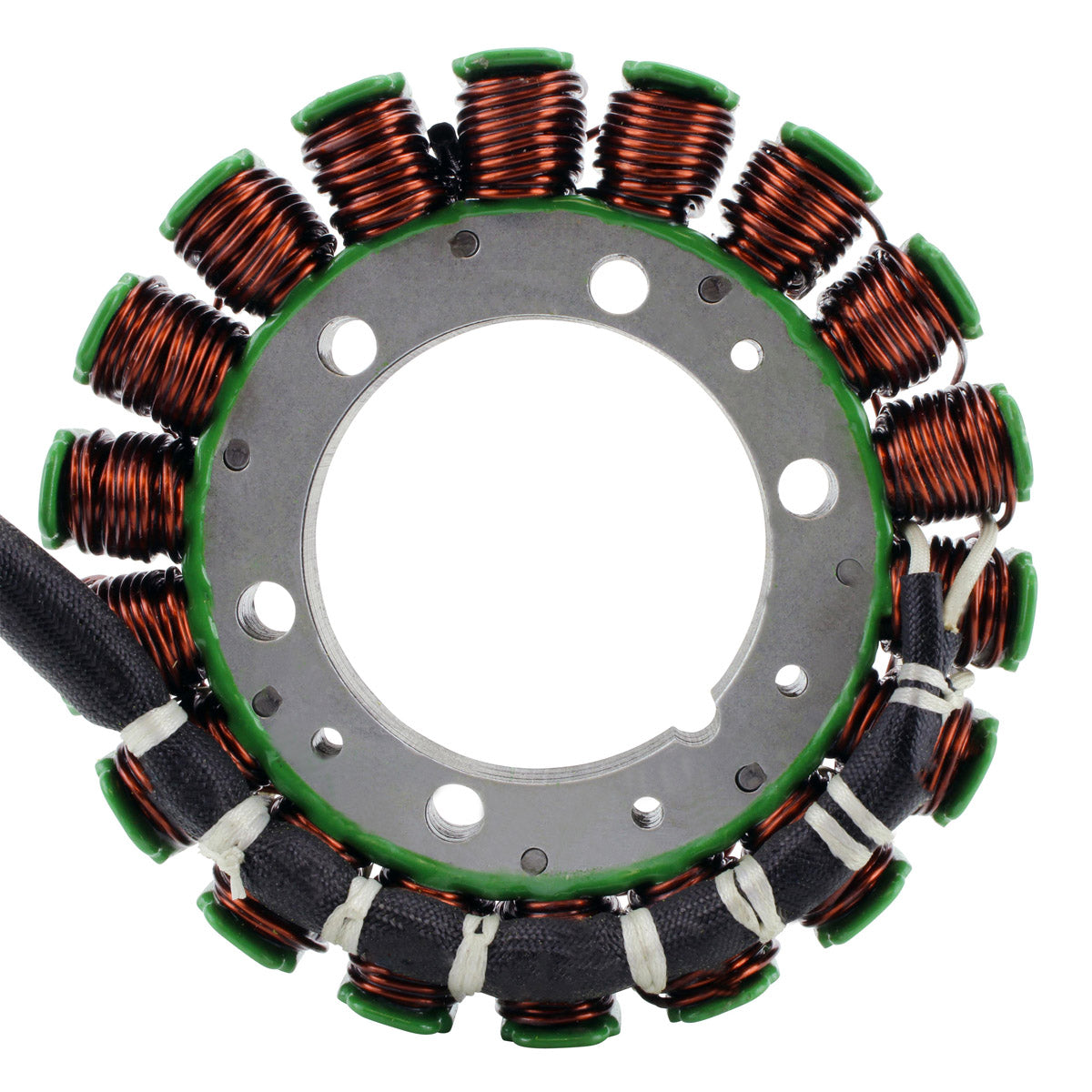

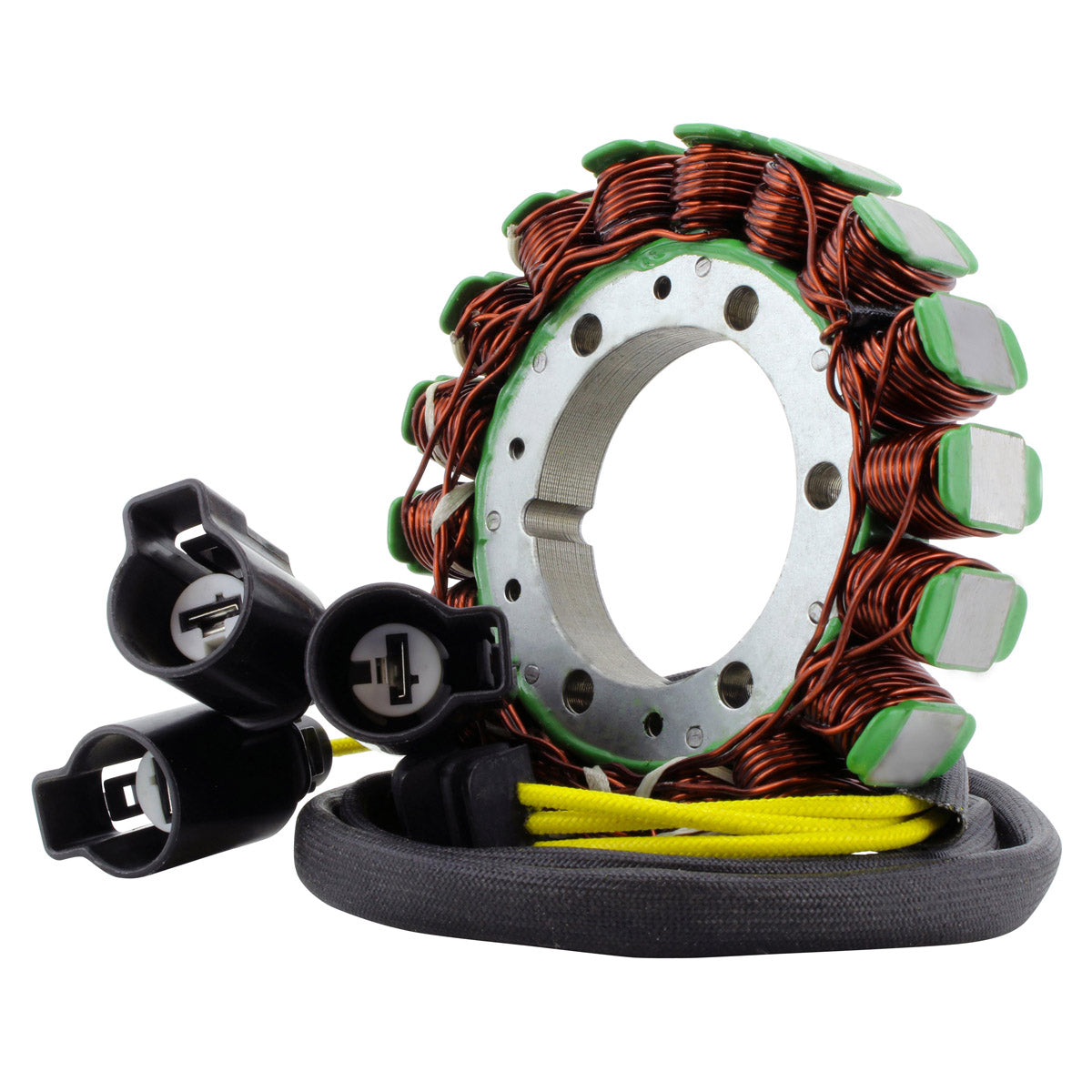

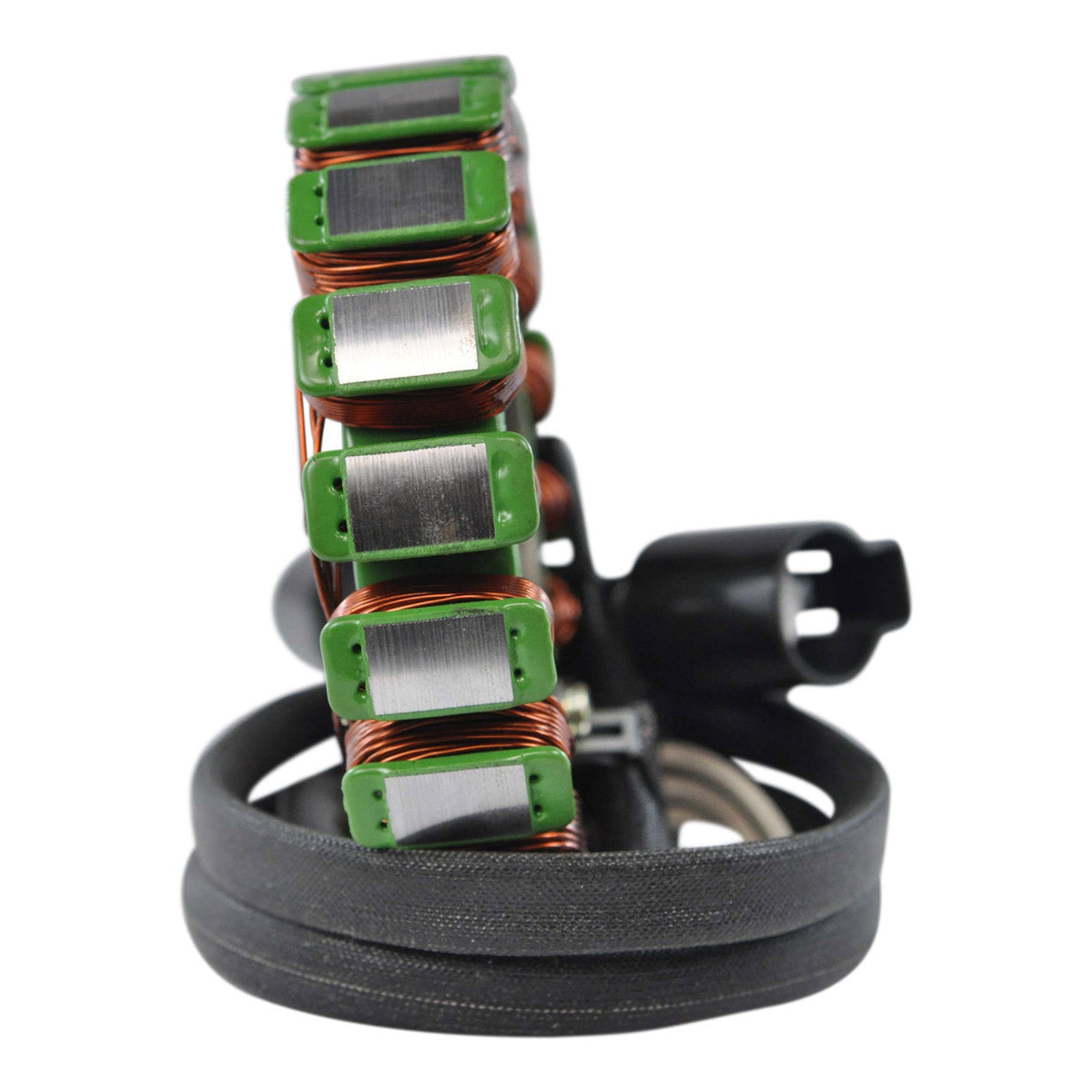

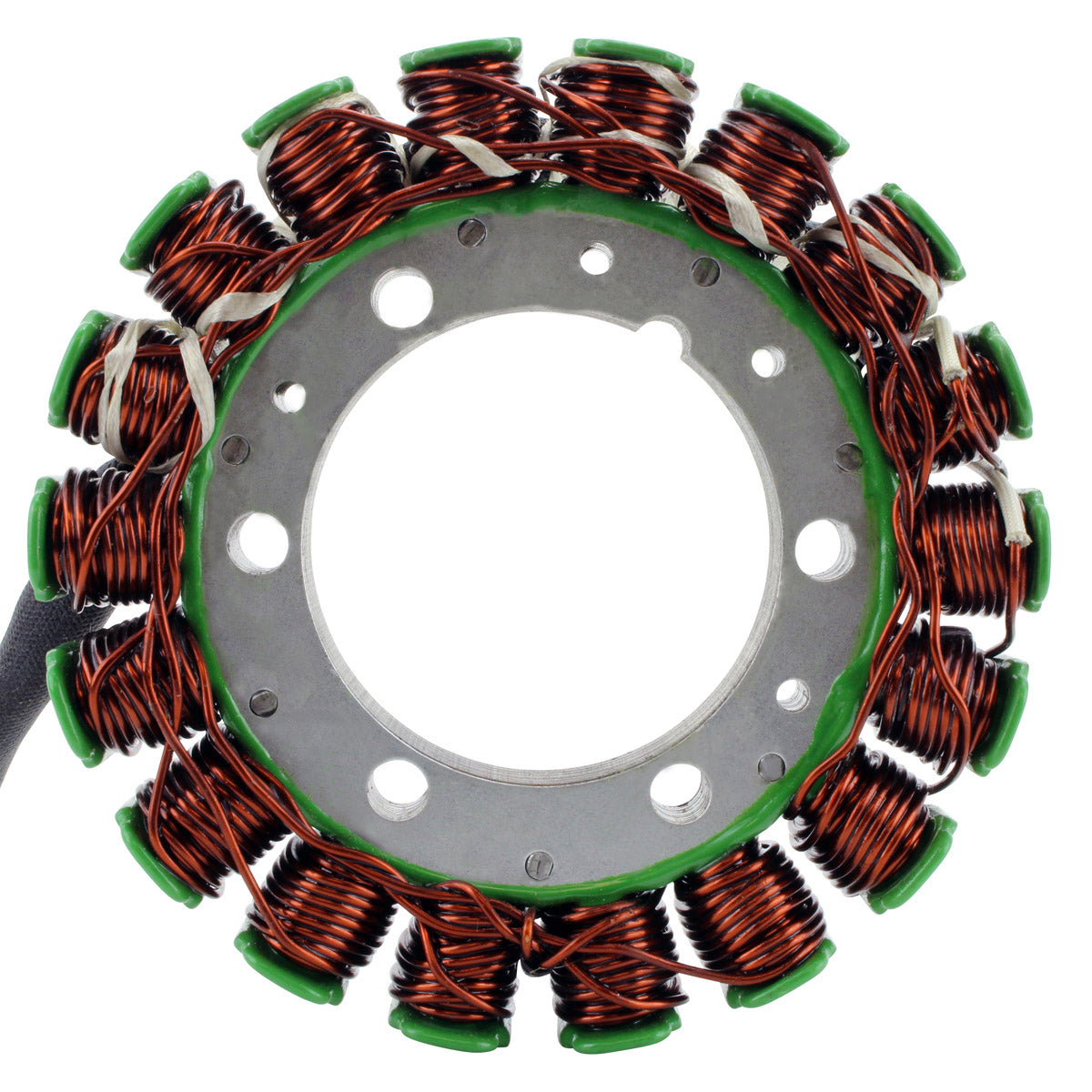

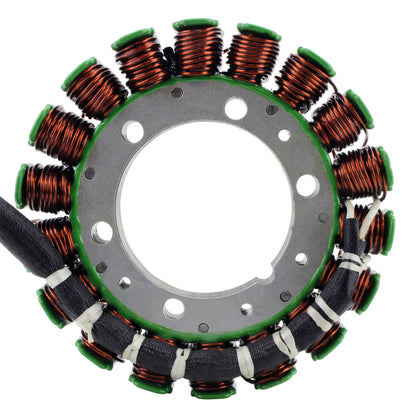

RM01231 is a brand new generator stator supplied as a direct replacement for the original unit fitted to the Kawasaki KRF 750 Teryx side-by-side and the KVF 750 Brute Force ATV from 2008 to 2012. It is a plug-and-play, direct-fit part that mounts in the standard position and connects through the supplied connector, so the machine's loom does not need cutting, splicing or any other alteration to complete the job.

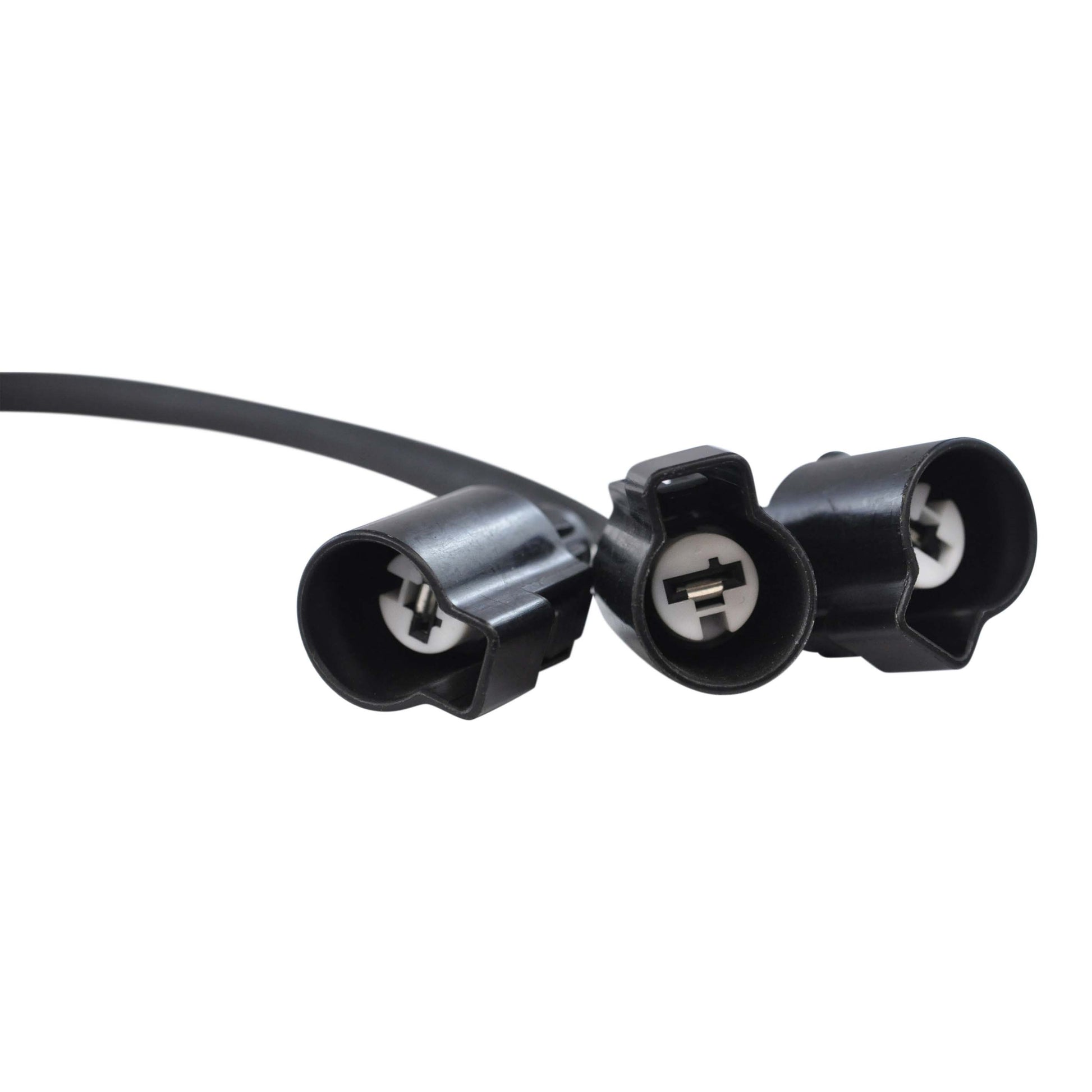

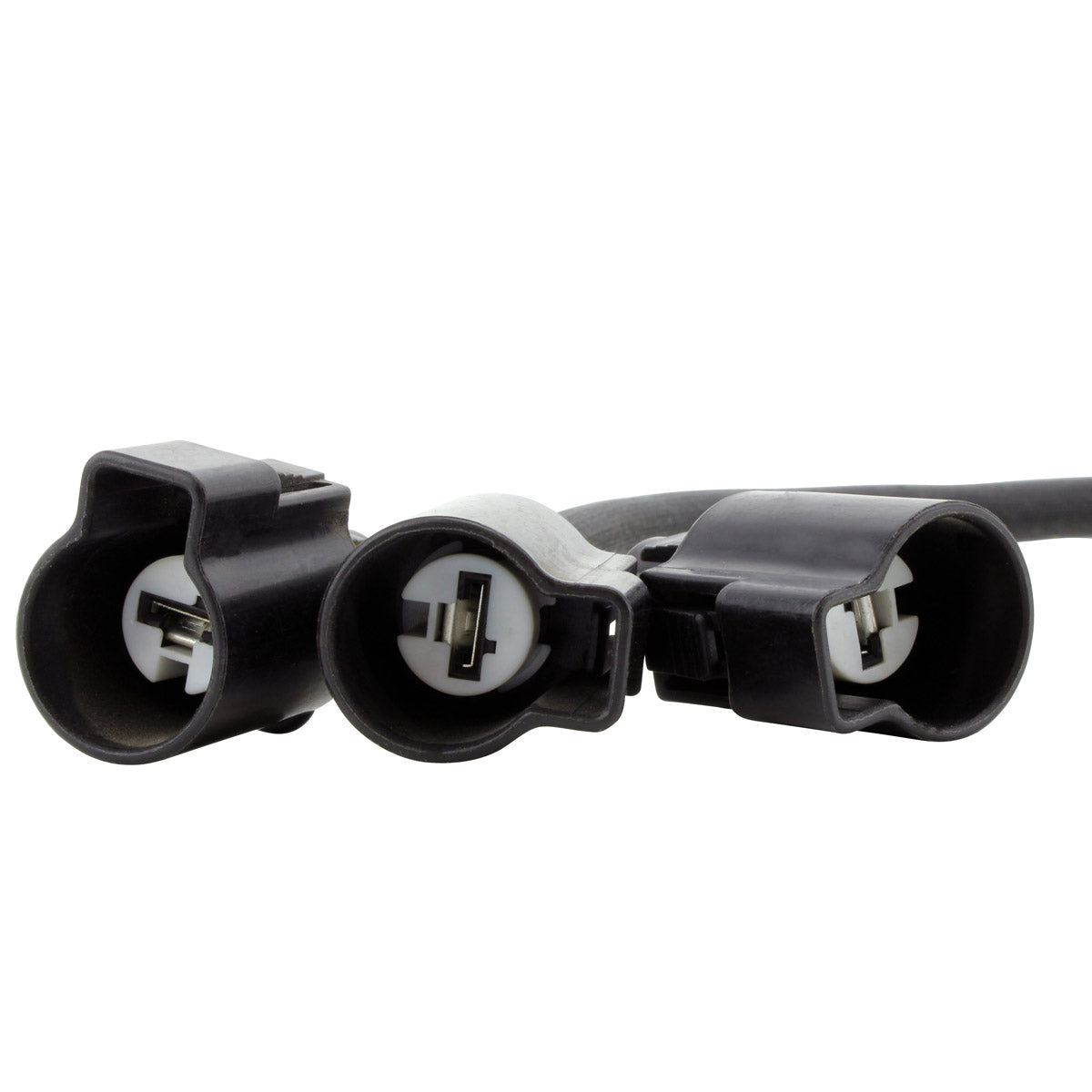

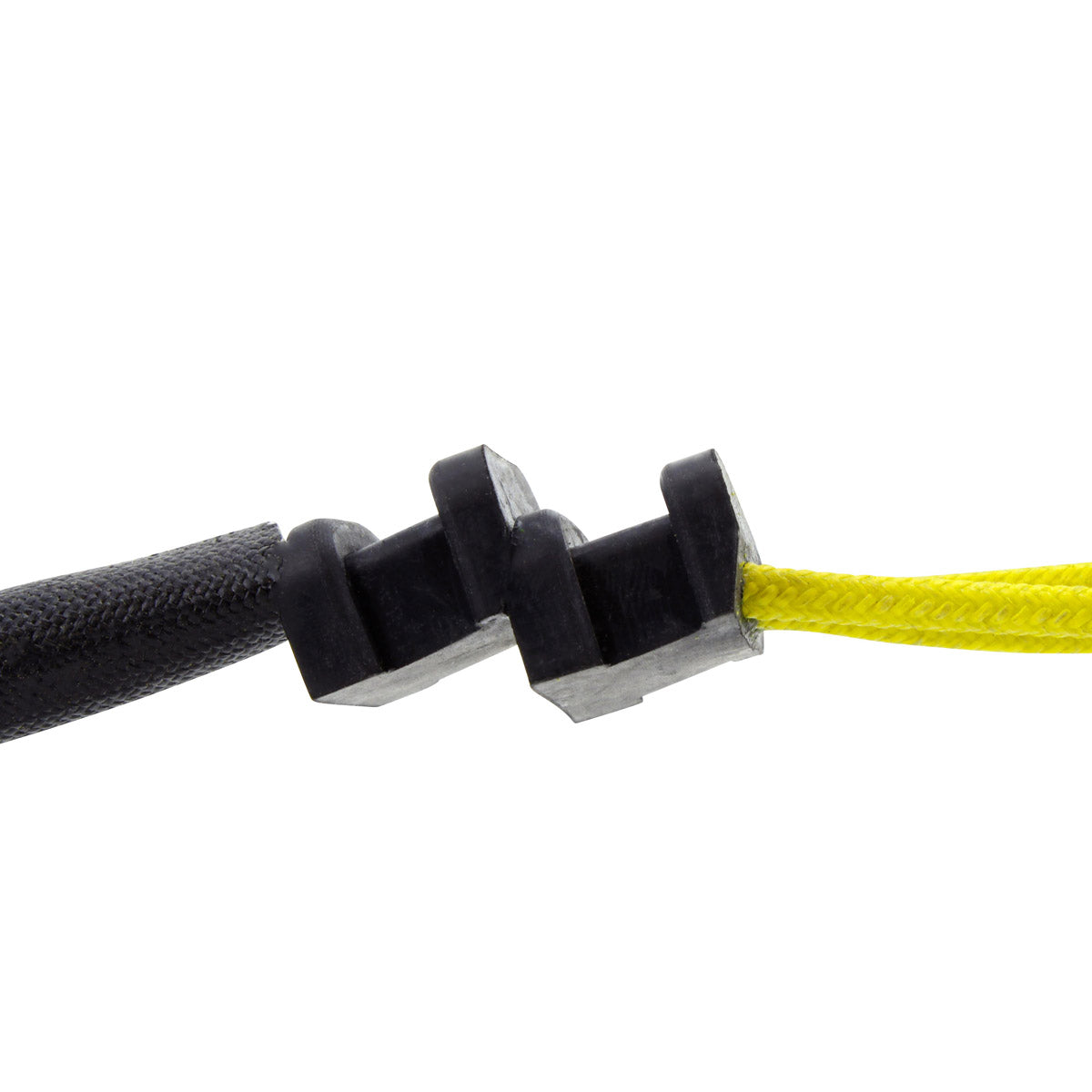

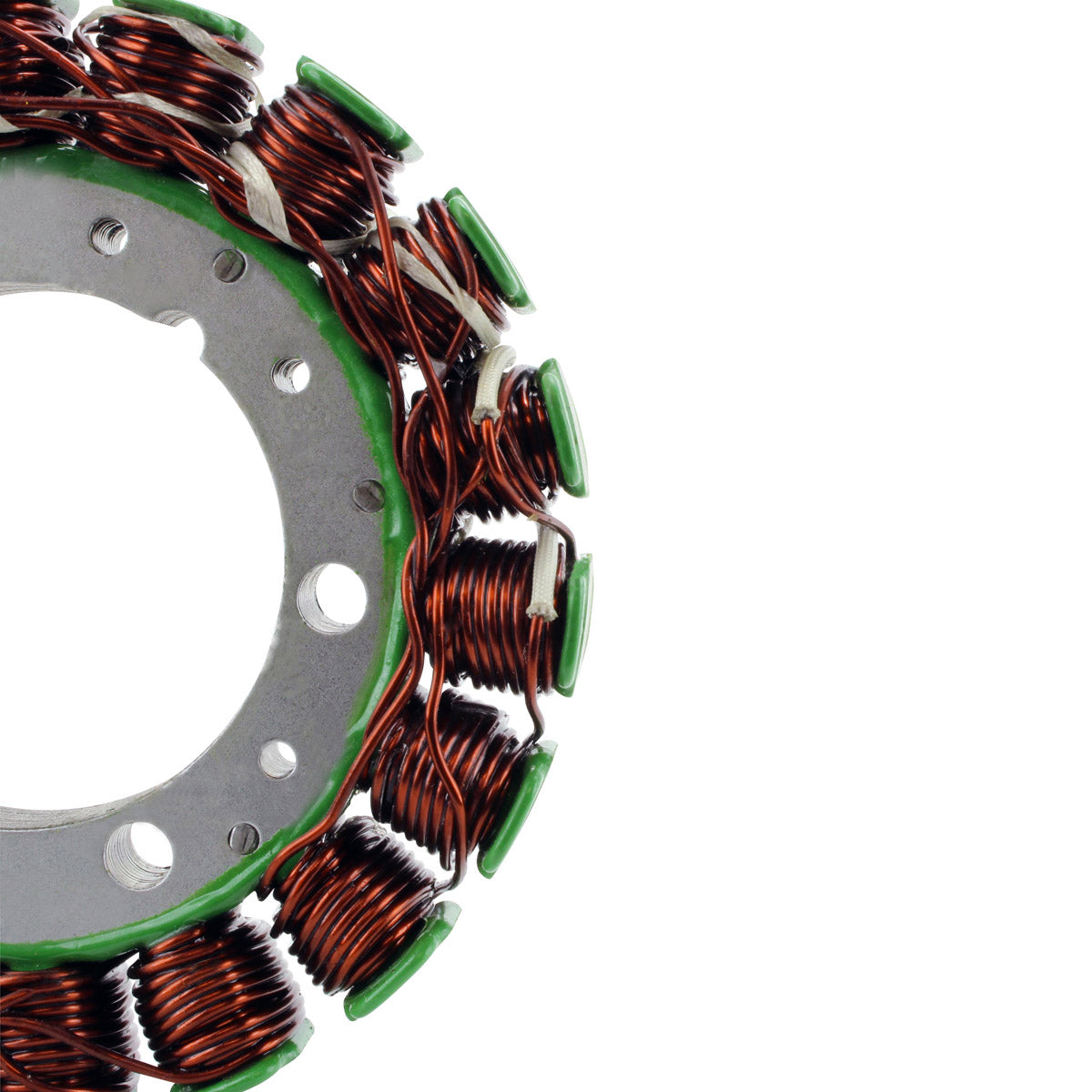

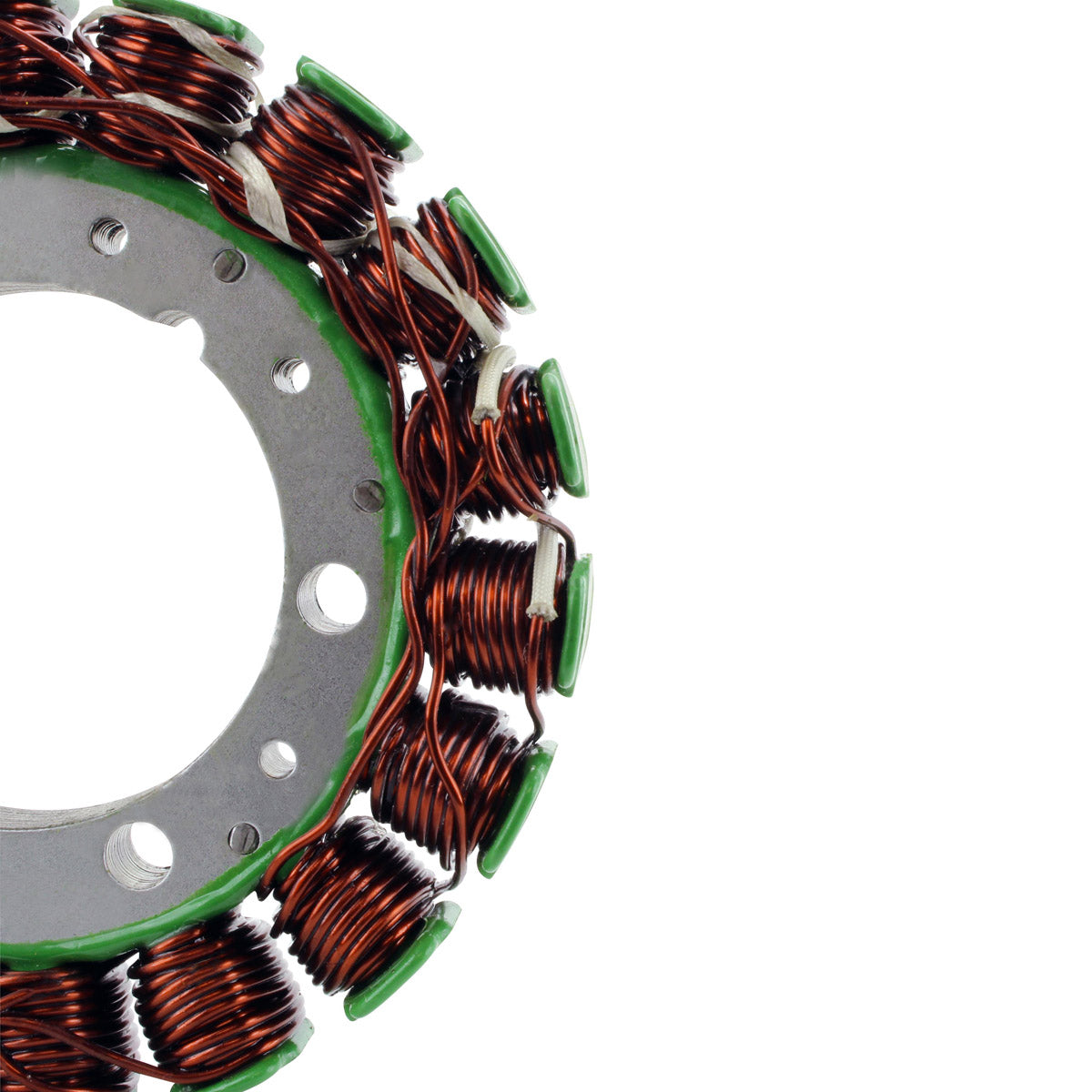

This is a three-phase design: three heavy output wires, three plugs and three pins, with a long 740 mm run of harness from the grommet to the plug so the loom can be routed exactly as the factory intended. Construction uses the highest grade lamination materials and highest grade copper windings resistant to 200 degrees Celsius. Heat is what kills these units in service - a Teryx or Brute Force worked hard with a winch, a plough or accessory lighting spends long periods with the alternator at full output, and the original winding insulation eventually breaks down and shorts a phase. The connector and rubber grommet are included, and every unit is tested before it is shipped.
Key Features
- Brand new generator stator, direct replacement for the original unit
- Plug-and-play, direct fit installation
- Three-phase output - three wires, three plugs, three pins
- 740 mm harness run from grommet to plug
- Highest grade lamination materials
- Highest grade copper windings rated to 200 degrees Celsius
- Connector and rubber grommet included
- All shipped products are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
55 mm |
| Exterior diameter |
115 mm |
| Thickness |
18 mm |
| Wire length, stator to grommet |
155 mm |
| Wire length, grommet to plug |
740 mm |
| Number of wires |
3 |
| Number of plugs |
3 |
| Number of pins |
3 |
| Alternator wire-to-wire resistance |
0.4 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki KRF 750 Teryx |
2008 - 2012 |
| Kawasaki KVF 750 Brute Force |
2008 - 2012 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0071 |
Kawasaki |
| 21003-0077 |
Kawasaki |
| 21003-0099 |
Kawasaki |
| RM01231 |
RMSTATOR (this part) |
Frequently Asked Questions
Does fitting it require any modification?
No. It is a plug-and-play, direct-fit replacement for the original unit. It mounts in the factory position and the supplied connector joins the existing harness, so no cutting or splicing is involved.
What is included?
The stator, the connector and the rubber grommet that seals the harness where it exits the engine case.
How do I tell that the original stator has failed?
Disconnect the plugs and test cold with a multimeter. Each pair of output wires should read about 0.4 ohms, within 20 per cent, and no output wire should show continuity to the stator core or to ground. An unbalanced set of readings between the three phases, or one phase reading open circuit, confirms a failed winding.
Does the same stator suit both the Teryx and the Brute Force?
Yes. The KRF 750 Teryx and the KVF 750 Brute Force share this stator across the 2008 to 2012 model years, and the unit cross-references to Kawasaki numbers 21003-0071, 21003-0077 and 21003-0099.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
