Starter Motor - Kawasaki Mule 3000 / 3010 / 4010 Petrol
Cross-references: Kawasaki | Denso | Arrowhead | Lester | Suzuki | WAI | Cargo | EMS

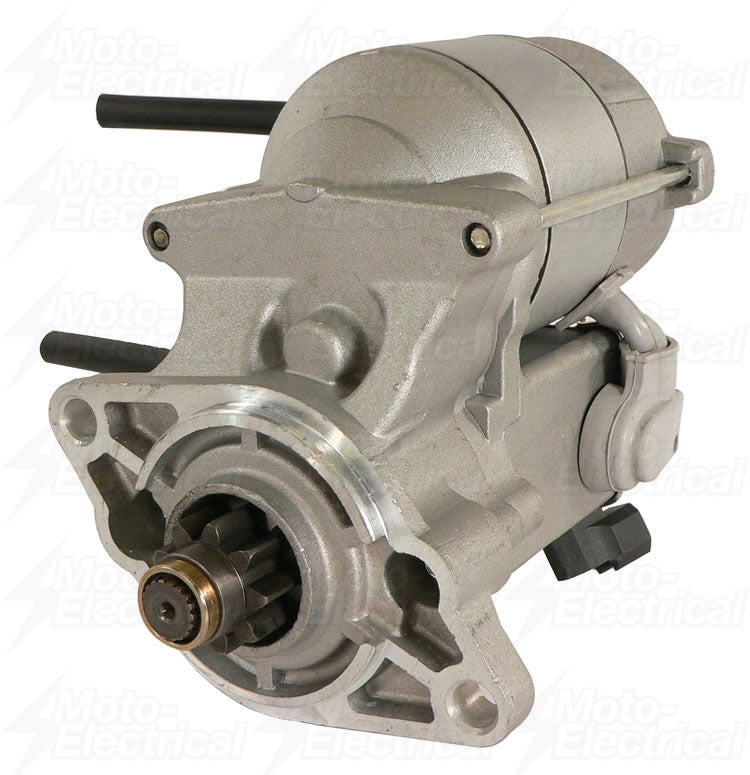

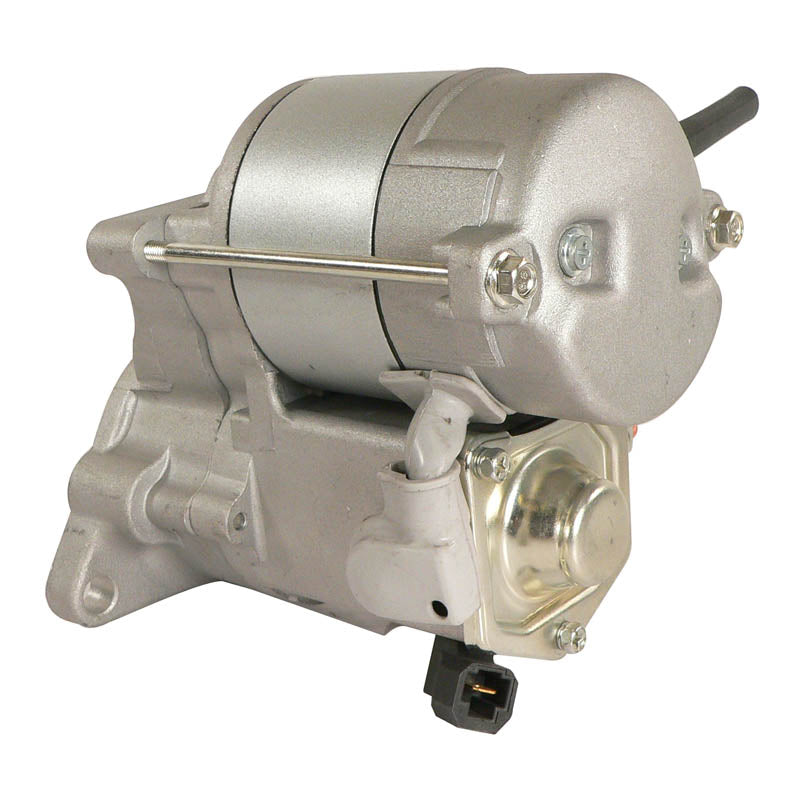

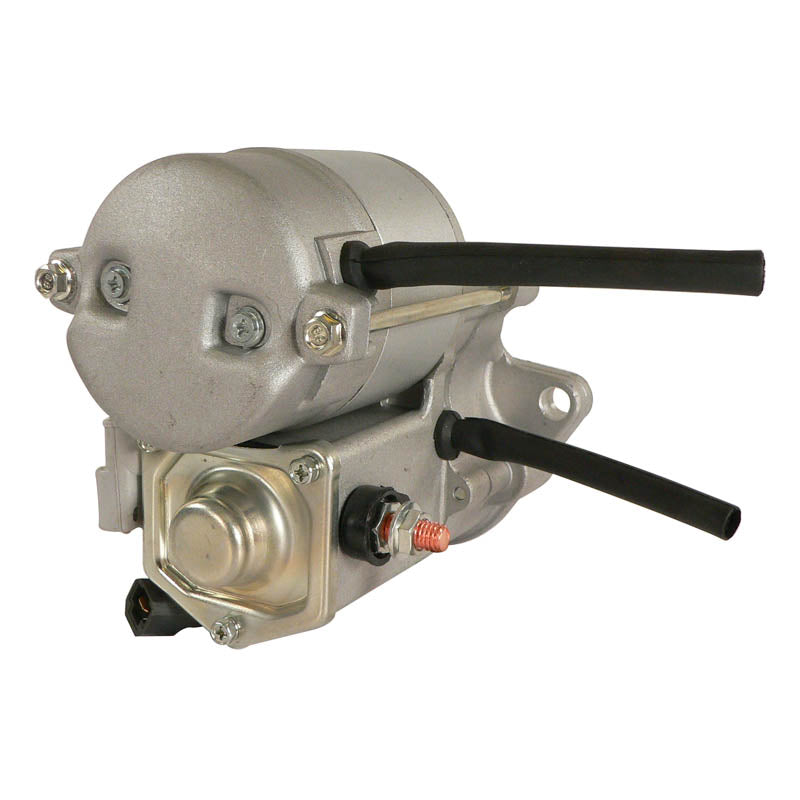

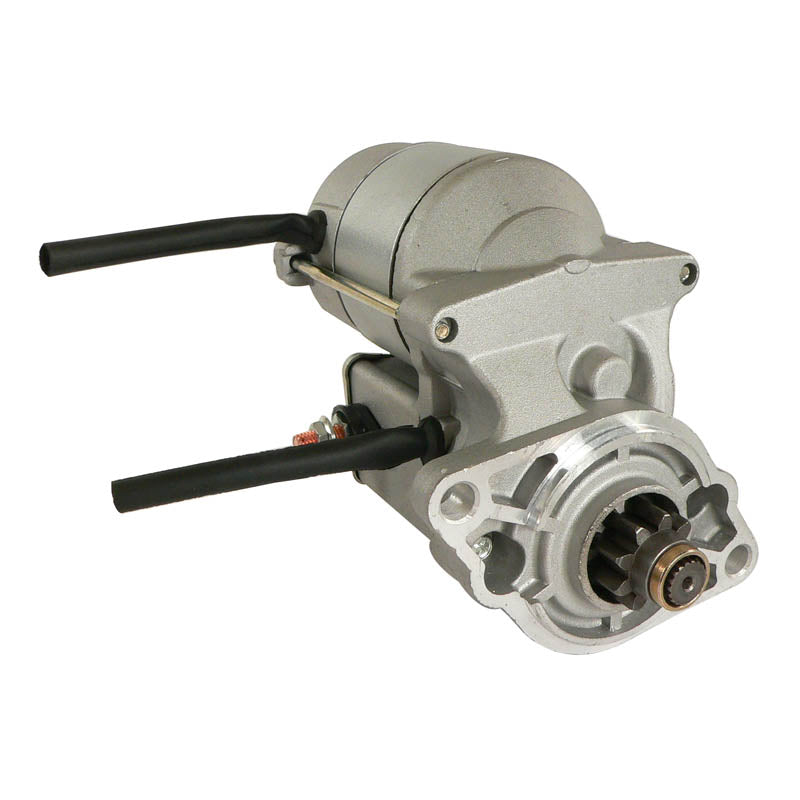

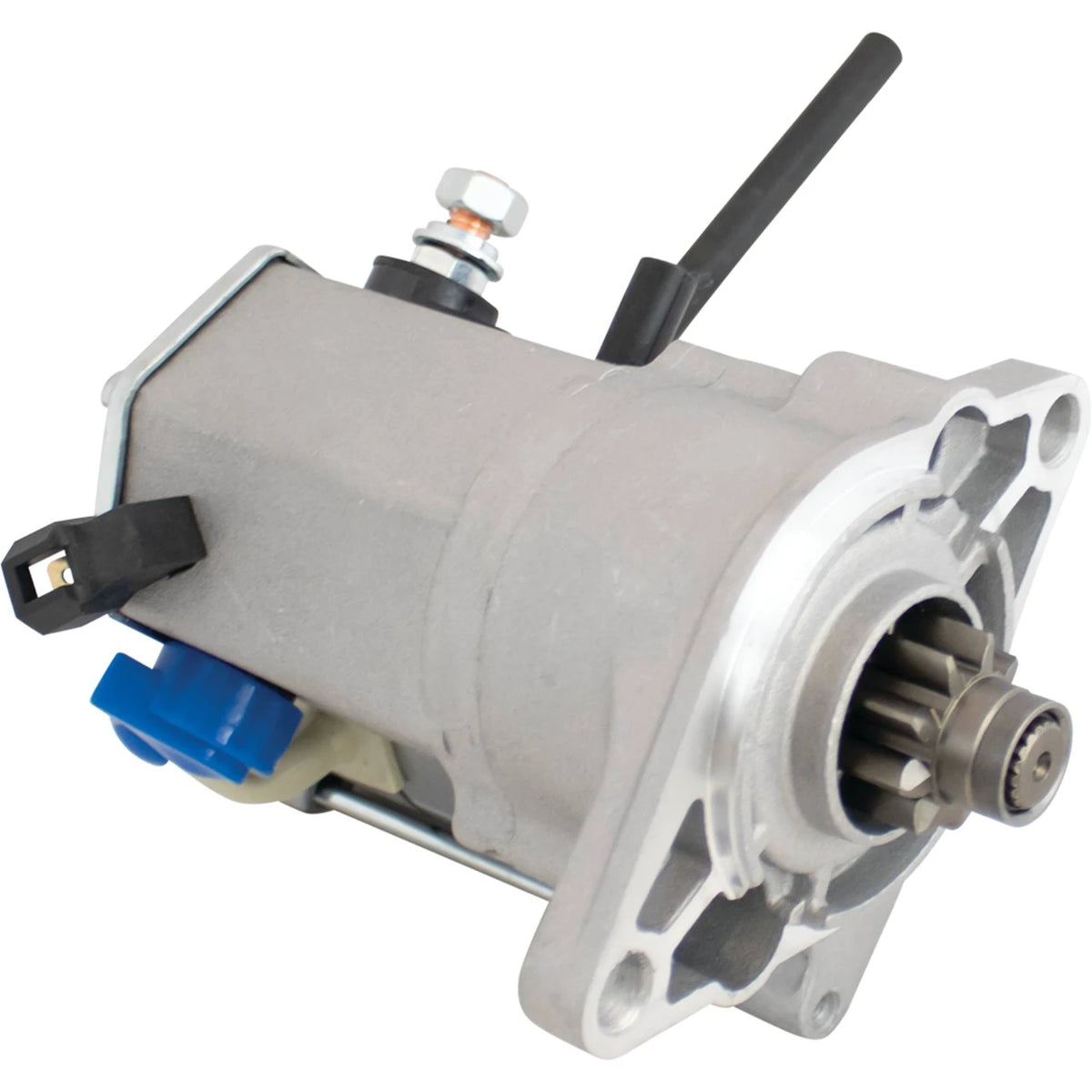

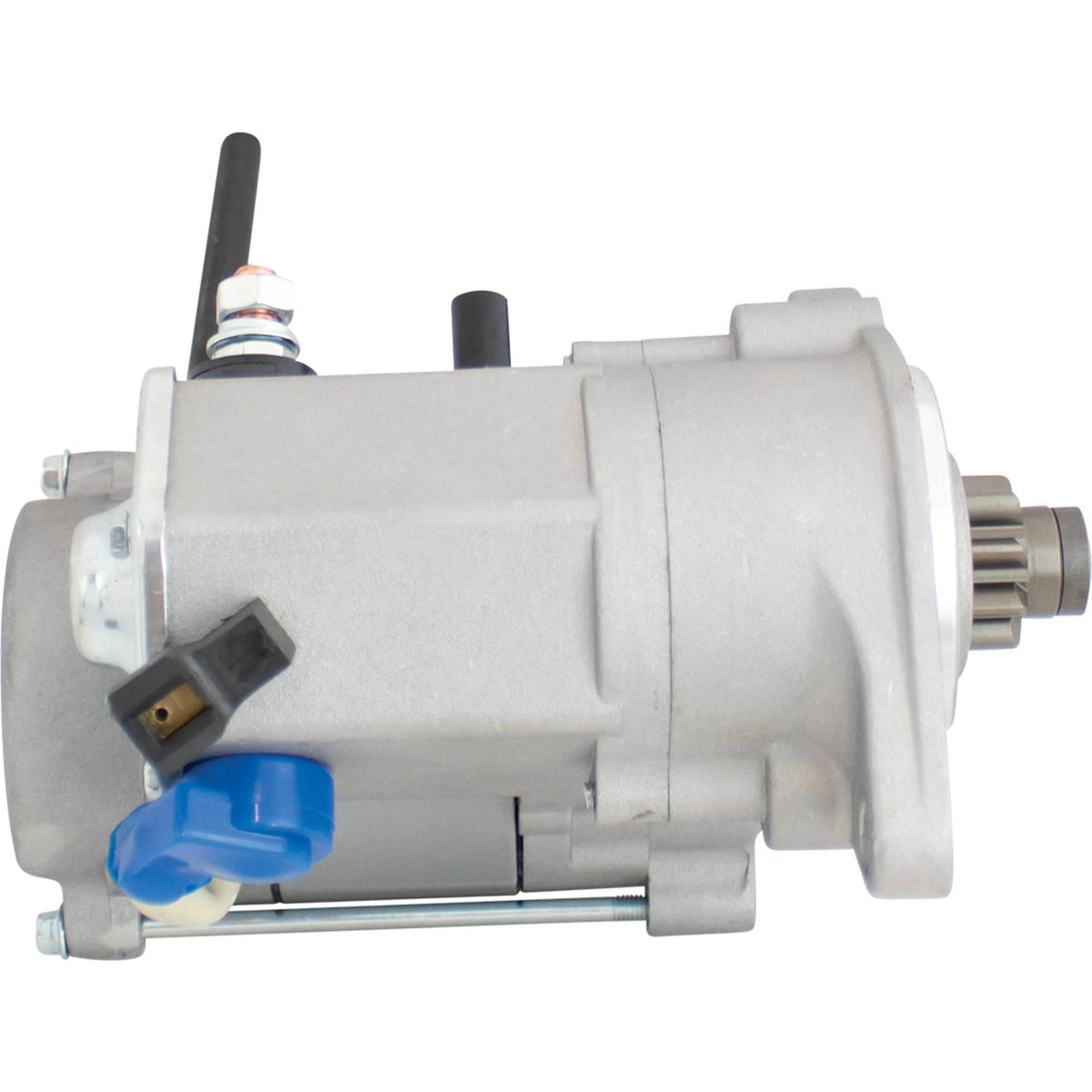

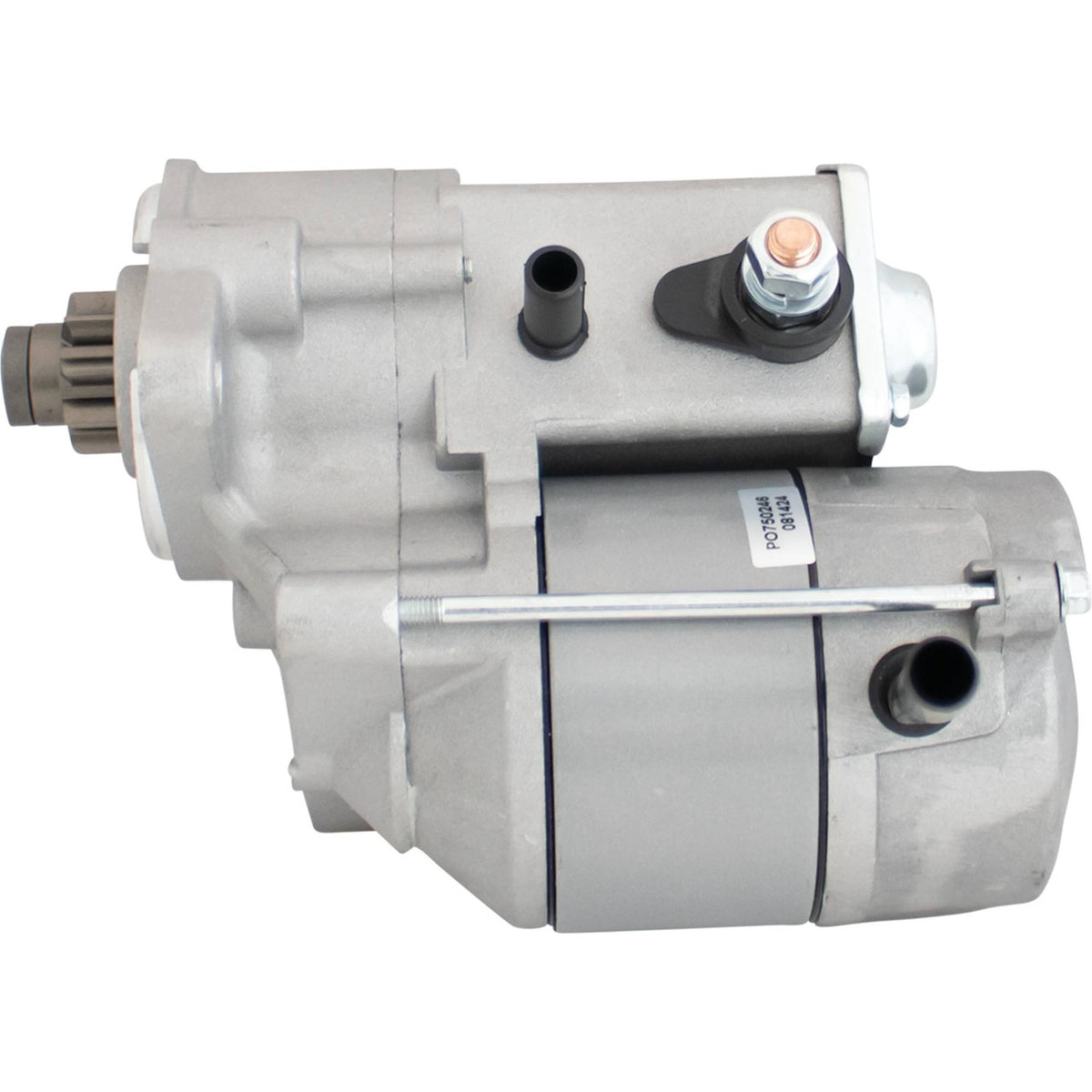

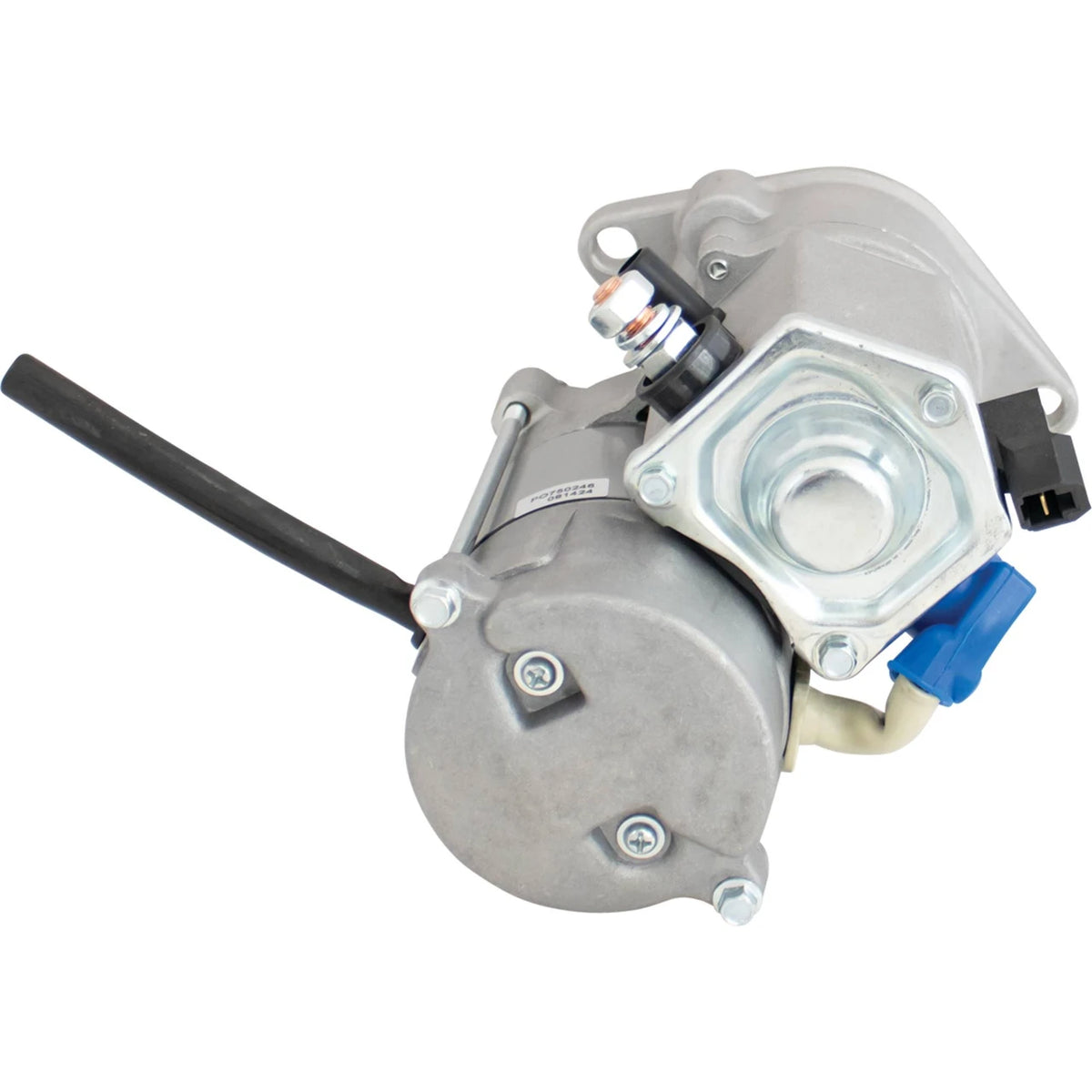

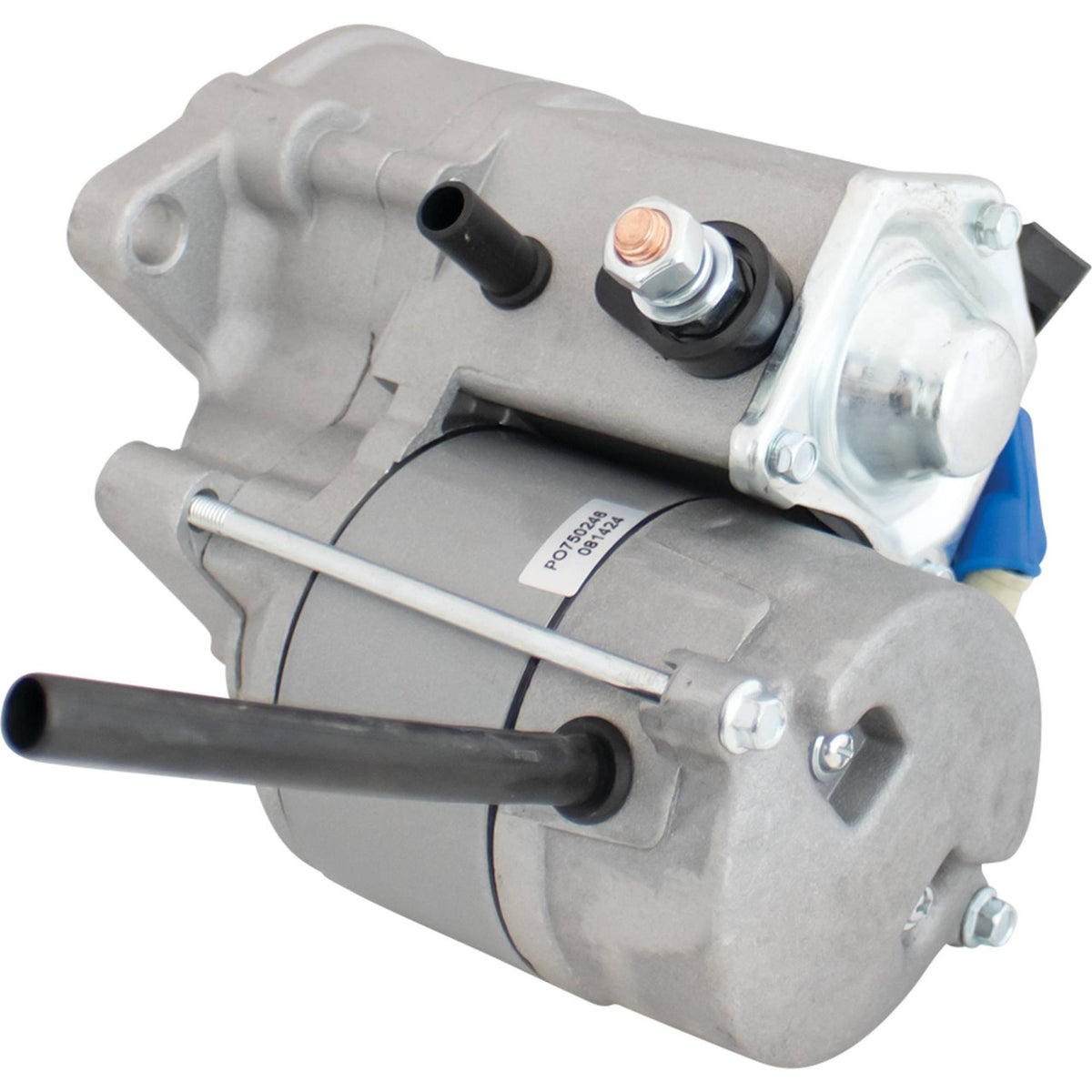

A new aftermarket 12V starter motor for the Kawasaki Mule 3000, 3010 and 3020 fitted with the 617cc KAF620 petrol engine, supplied ready to fit as a direct replacement for 21163-2124.
A worn starter on these machines usually announces itself before it fails outright: a slow, laboured crank on a healthy battery, a single loud click with no rotation, or an intermittent no-start that clears if you rock the machine and try again. A dragging armature also pulls heavy current, which can leave you with a flat battery and a starter that gets hot to the touch.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Offset gear reduction (OSGR) design, as fitted originally
- Direct-fit replacement, no modification required on the listed applications
- Cross-referenced to Kawasaki, Denso, Arrowhead and Lester part numbers
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 410-52117 |
| Component | Starter Motor |
| Voltage | 12V |
| Power | 1.2 kW |
| Teeth | 9 |
| Rotation | Counter-clockwise (CCW) |
| Starter Type | OSGR (offset gear reduction) |
| Engine | 617cc KAF620 petrol |
| Weight | 4.1 kg (9.0 lbs) |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
Fits the Kawasaki Mule 3000, 3010 and 3020 with the 617cc petrol engine. Confirmed model and year coverage:
| Make | Type | Model | Year |
|---|---|---|---|
| Kawasaki | UTV | KAF 620 Mule 3010 4x4 | 2001-2008 |
| Kawasaki | UTV | KAF 620 Mule 4010 4x4 | 2009-2011 |
| Kawasaki | UTV | KAF 620 Mule 4010 Trans 4x4 | 2009-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only and remain the property of their respective manufacturers.
| Part Number | Manufacturer / Brand |
|---|---|
| 21163-2124 | Kawasaki |
| 21163-6010 | Kawasaki |
| 228000-8841 | Denso |
| SND0459 | Arrowhead |
| 18629 | Lester |
| 18629N | EMS |
| 610-18629 | Barsanco |
| 71-29-18629 | Wilson Small Engine |
| K2116-32124 | Suzuki |
| 2-2746-ND | WAI |
| 113828 | Cargo |
| 3200-2124 | Atlantic Quality Parts |
| 57-1747 | Minnpar |
| 190-6112 | PIC |
| 49-5266 | Tucker Rocky |
| 410-52117 | J&N Electrical Products |
Frequently Asked Questions
How do I know the starter is at fault and not the battery?
Check the battery first - it should hold around 12.6V at rest and stay above 9.6V while cranking. If the battery is healthy, the terminals are clean and tight, and you still get a slow crank or a single click, the starter is the usual cause.
Does this fit the diesel Mule?
No. This unit is for the 617cc KAF620 petrol engine only. The diesel models use a different starter.
Is it a direct fit?
Yes - it uses the original mounting and electrical connections on the models listed. No modification or rewiring is needed.
How do I check I have the right one before ordering?

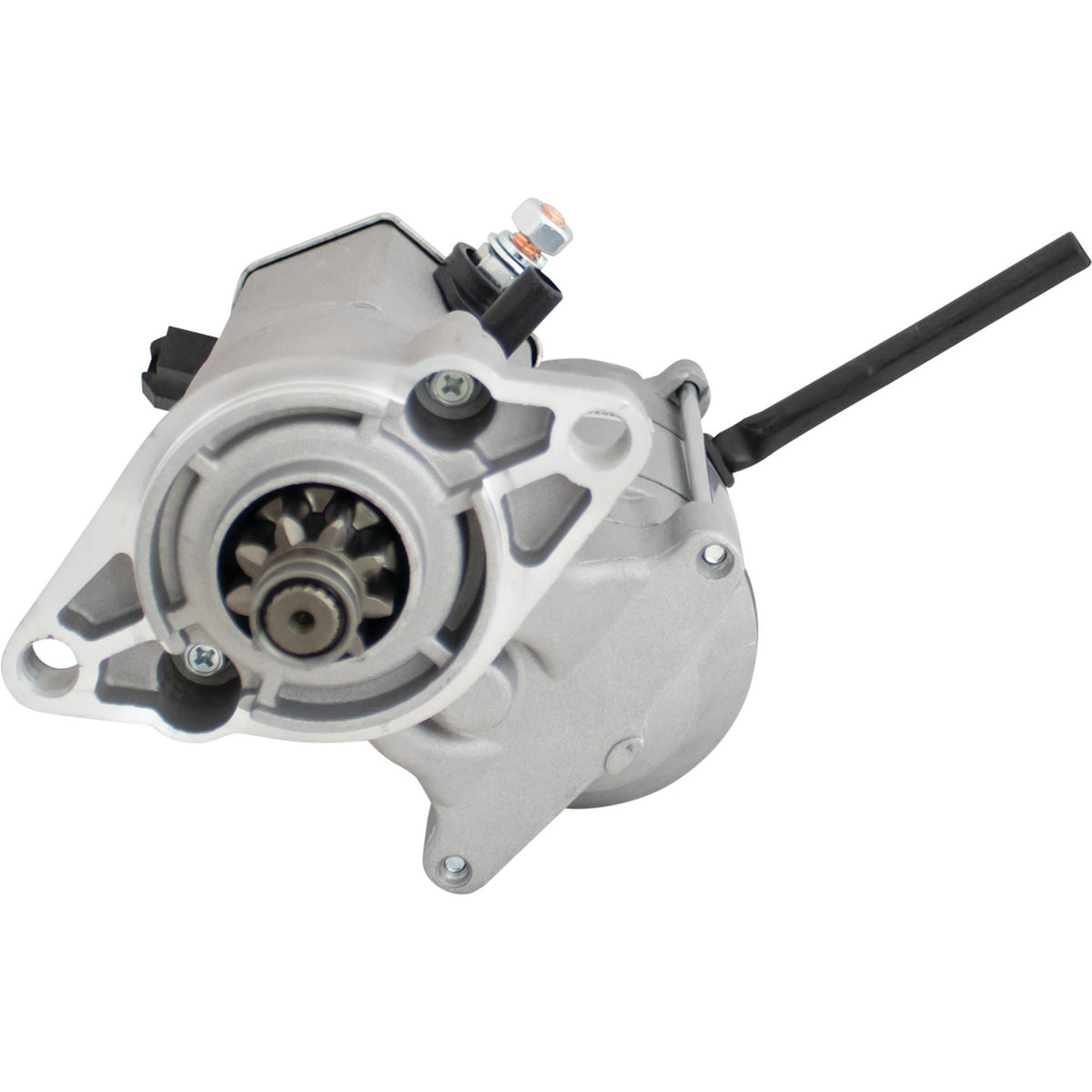

Match the number stamped on your existing starter against the cross-reference table above, and check the drive end has 9 teeth. The unit is counter-clockwise rotation, viewed from the pinion.
What shortens the life of a replacement?
Long cranking bursts without a pause, a weak or ageing battery, and corroded earth straps. Let the starter rest between attempts and fix any charging fault first, or the new unit can fail the same way.
