A brand new kit pairing a digital multimeter with a voltage peak reading DVA adapter. The multimeter is a portable 3 1/2 digit instrument that measures DC and AC voltage, DC current, resistance, diodes and transistors, and includes an audible continuity test. It is made with high quality materials and offers very high accuracy, which makes it suitable for general workshop electrical work as well as for the ignition testing the adapter is designed for.

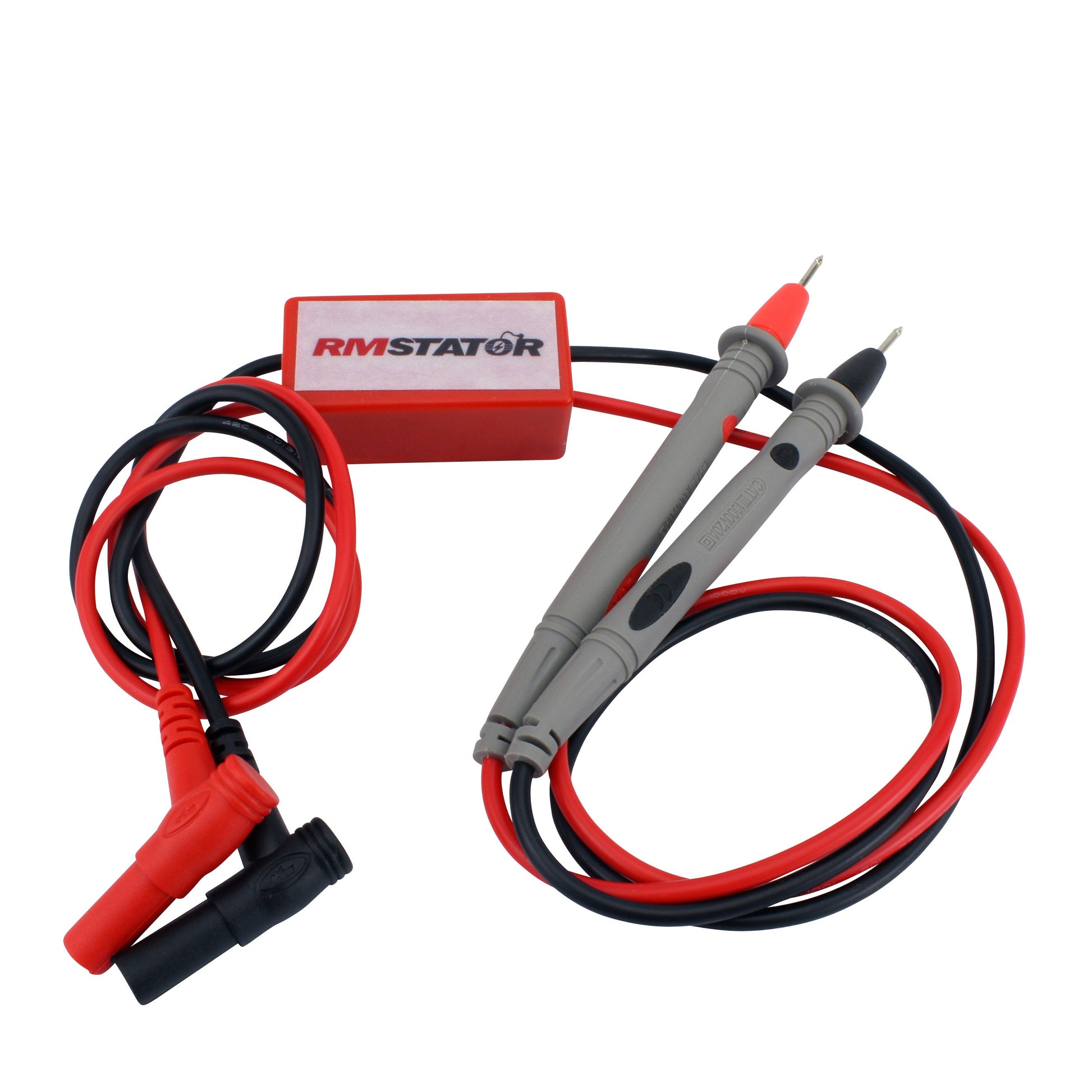

A DVA adaptor is also known as a peak reading adaptor. Small engine ignition systems use permanent magnets to make electricity, and that electricity travels down the wires very quickly and in spikes. What a DVA does is capture those spikes and allow a standard digital multimeter to read those voltages. Without a DVA adaptor a multimeter will either record a low voltage or no voltage at all, because multimeters read average voltages rather than peak. Powersport ignition systems work on peak voltages, which is exactly why a DVA is known as a peak reading adaptor and why it is the tool needed to test a stator, a pickup coil, a CDI box or an ignition coil properly. All shipped products are tested.
Key Features
- Brand new digital multimeter supplied with a brand new DVA peak reading adapter

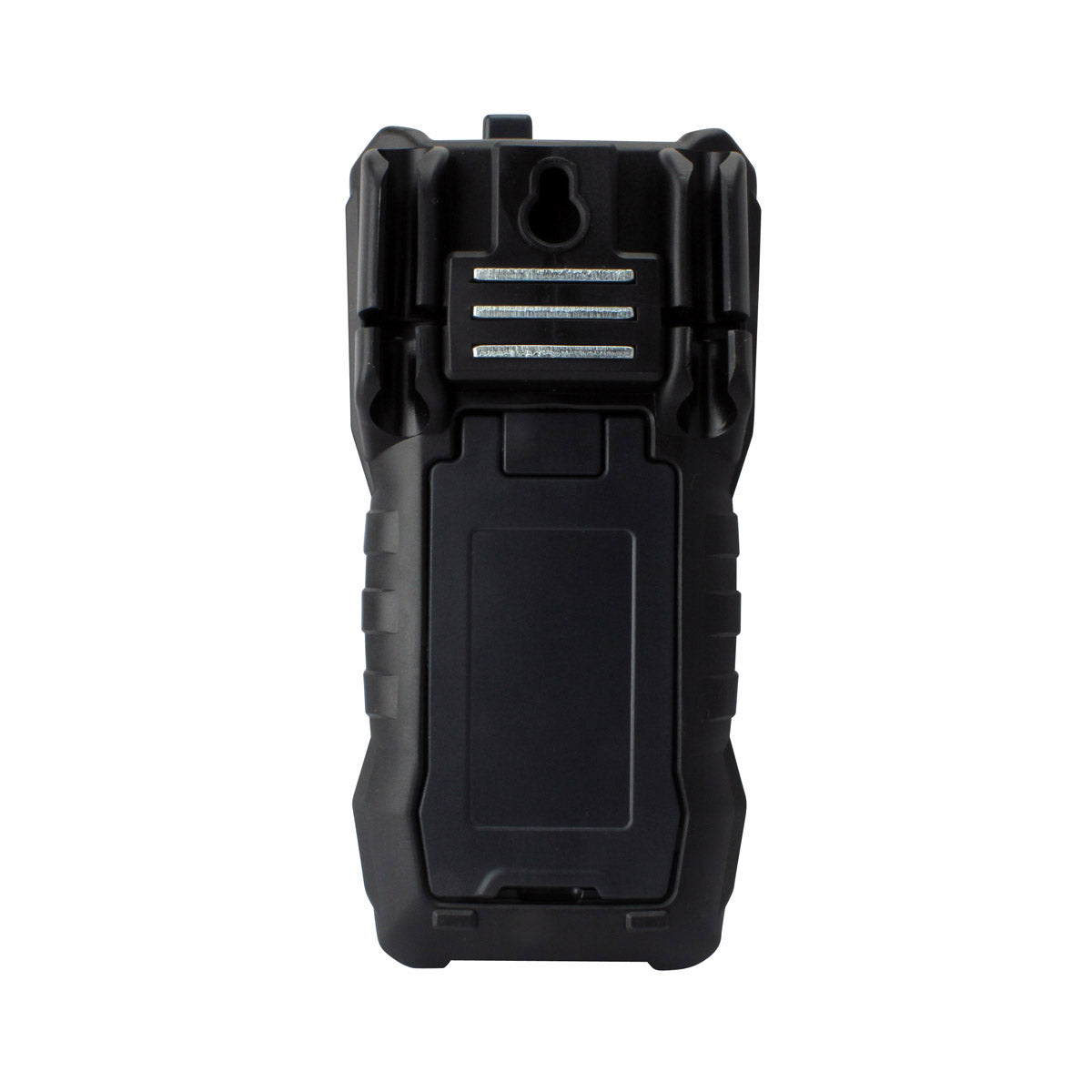

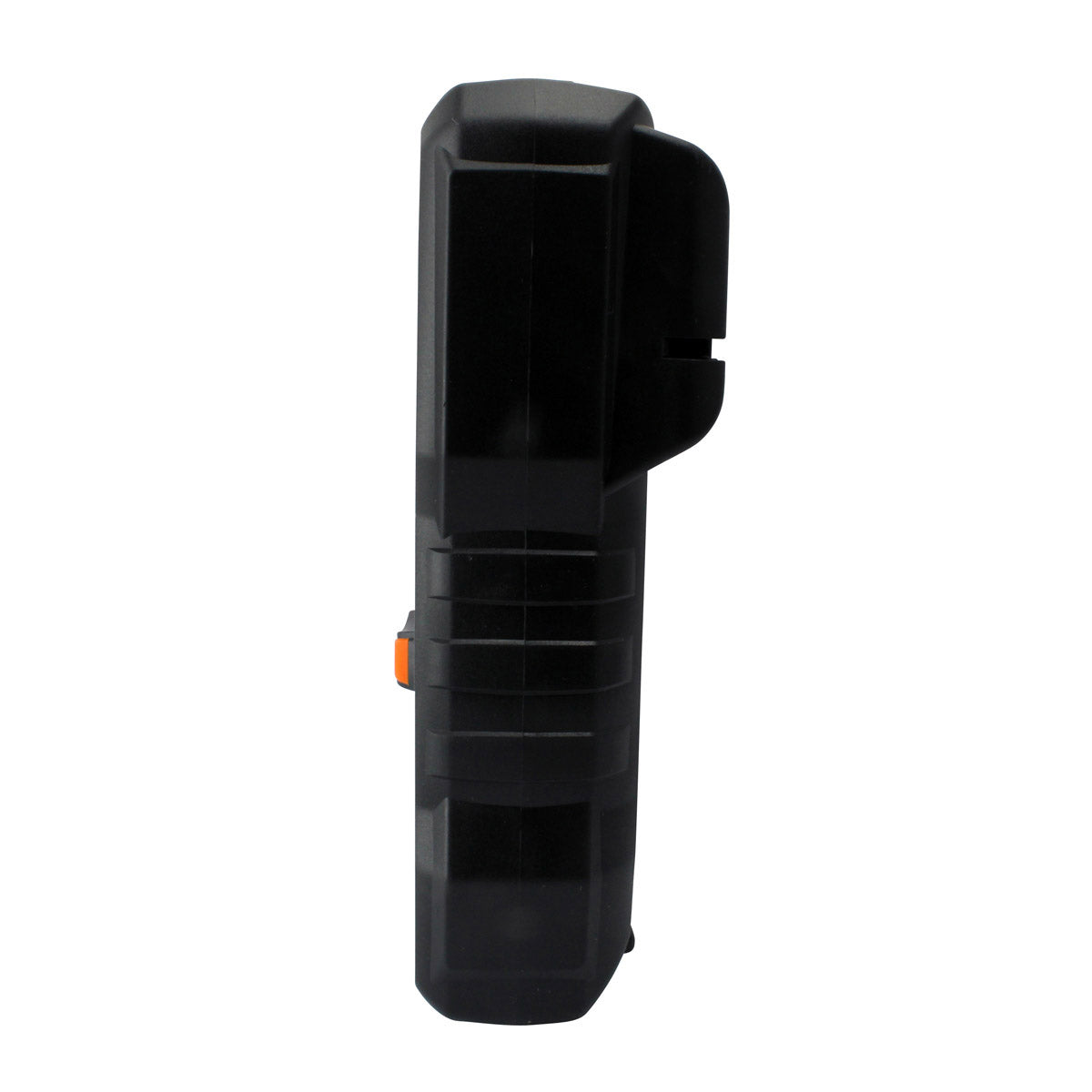

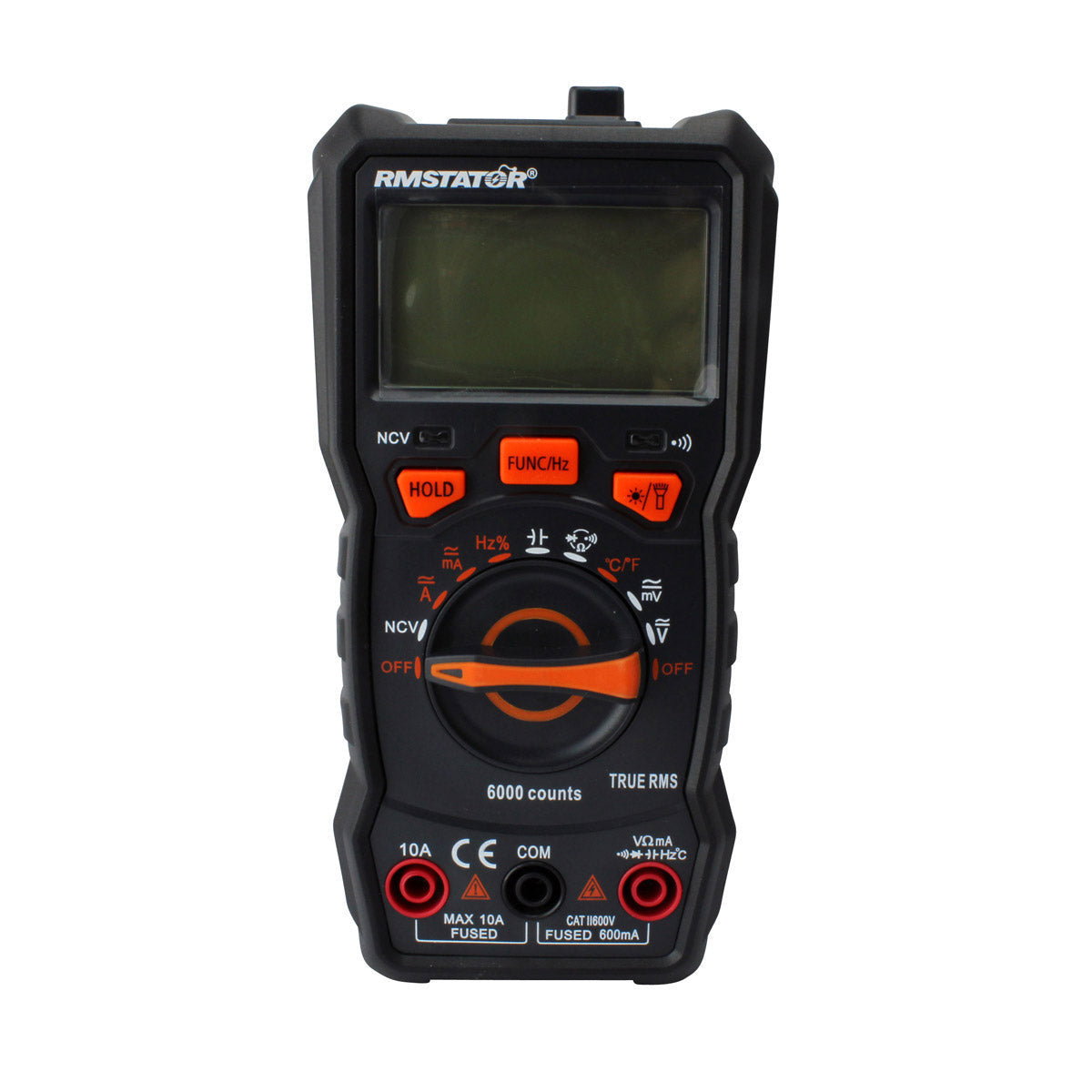

- Portable 3 1/2 digit multimeter
- Measures DC and AC voltage, DC current, resistance, diode and transistor
- Audible continuity test
- Made with high quality materials, very high accuracy
- DVA adapter captures ignition voltage spikes a standard meter cannot read
- Universal - not tied to a particular make or model
Technical Specs
| Specification |
Detail |
| Multimeter type |
Portable 3 1/2 digit digital multimeter |
| Measures |
DC voltage, AC voltage, DC current, resistance, diode, transistor, audible continuity |
| Maximum voltage (terminals to ground) |
600 V |

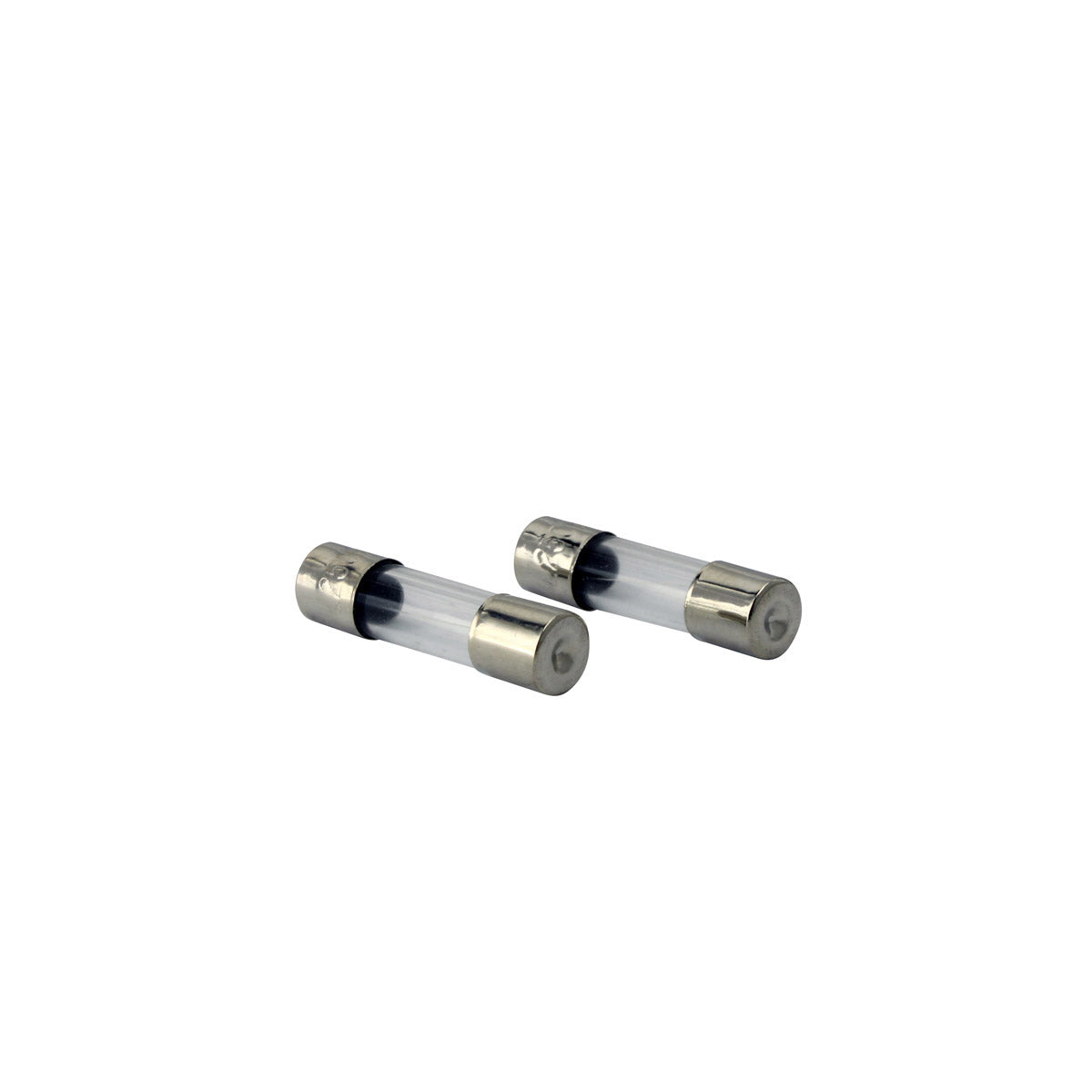

| Fuse protection |
200 mA / 250 V |

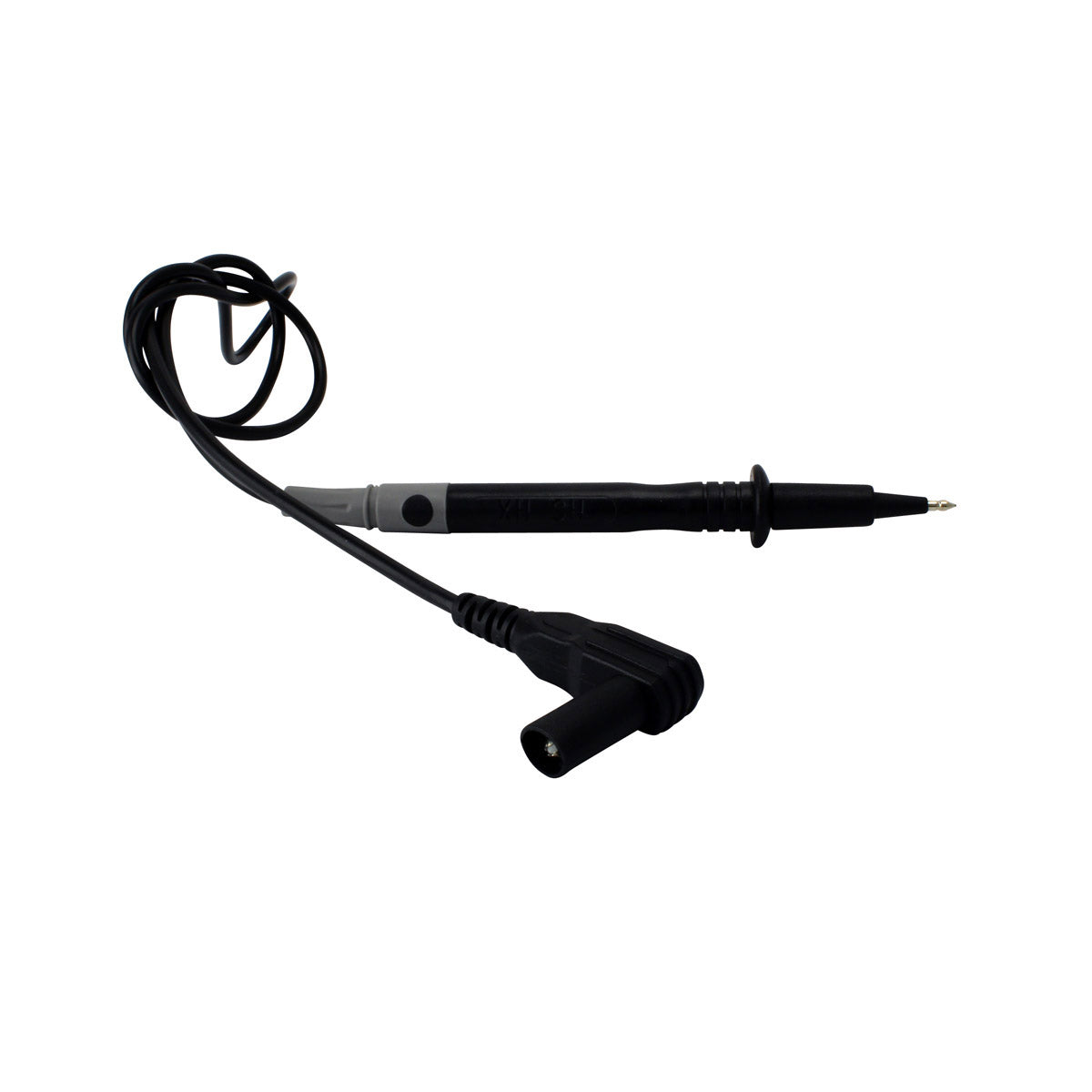

| Test lead length |
700 mm |
| Adapter type |
Voltage peak reading (DVA) adapter |
| Fitment type |
Universal |
| Our part number |
RM22980 |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
OEM Part Number Cross Reference
No OEM cross reference is published for this part.
Frequently Asked Questions
What is included in the kit?

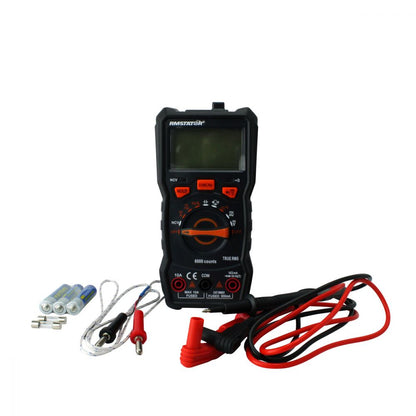

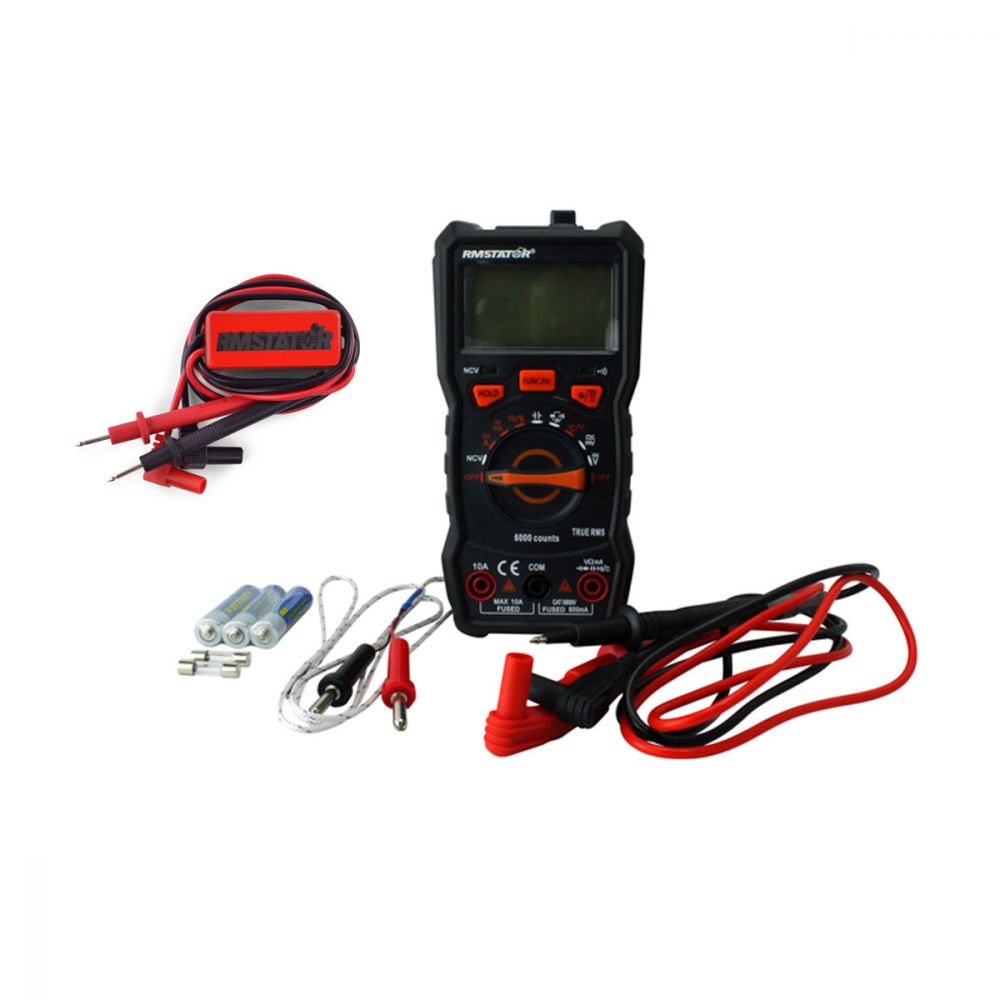

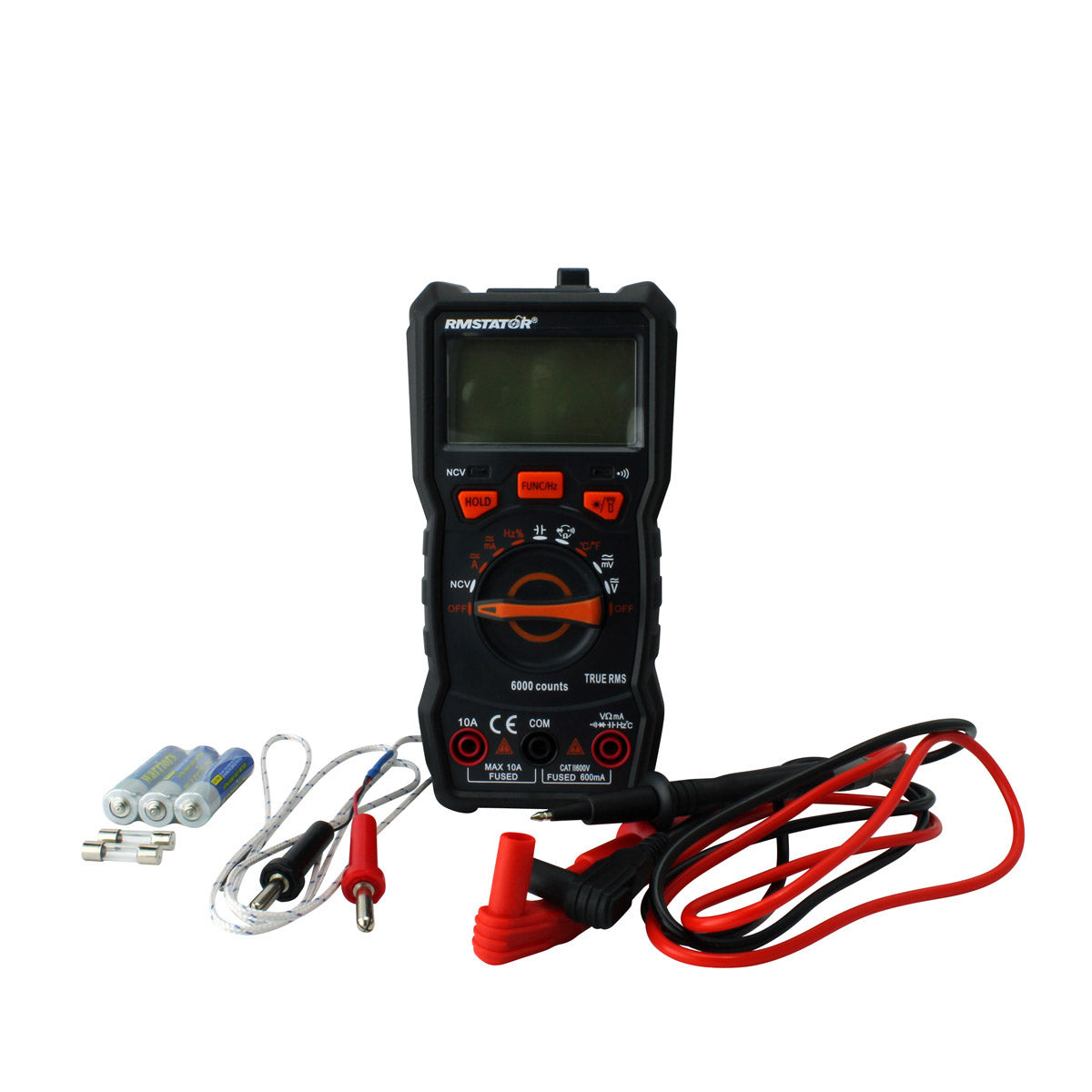

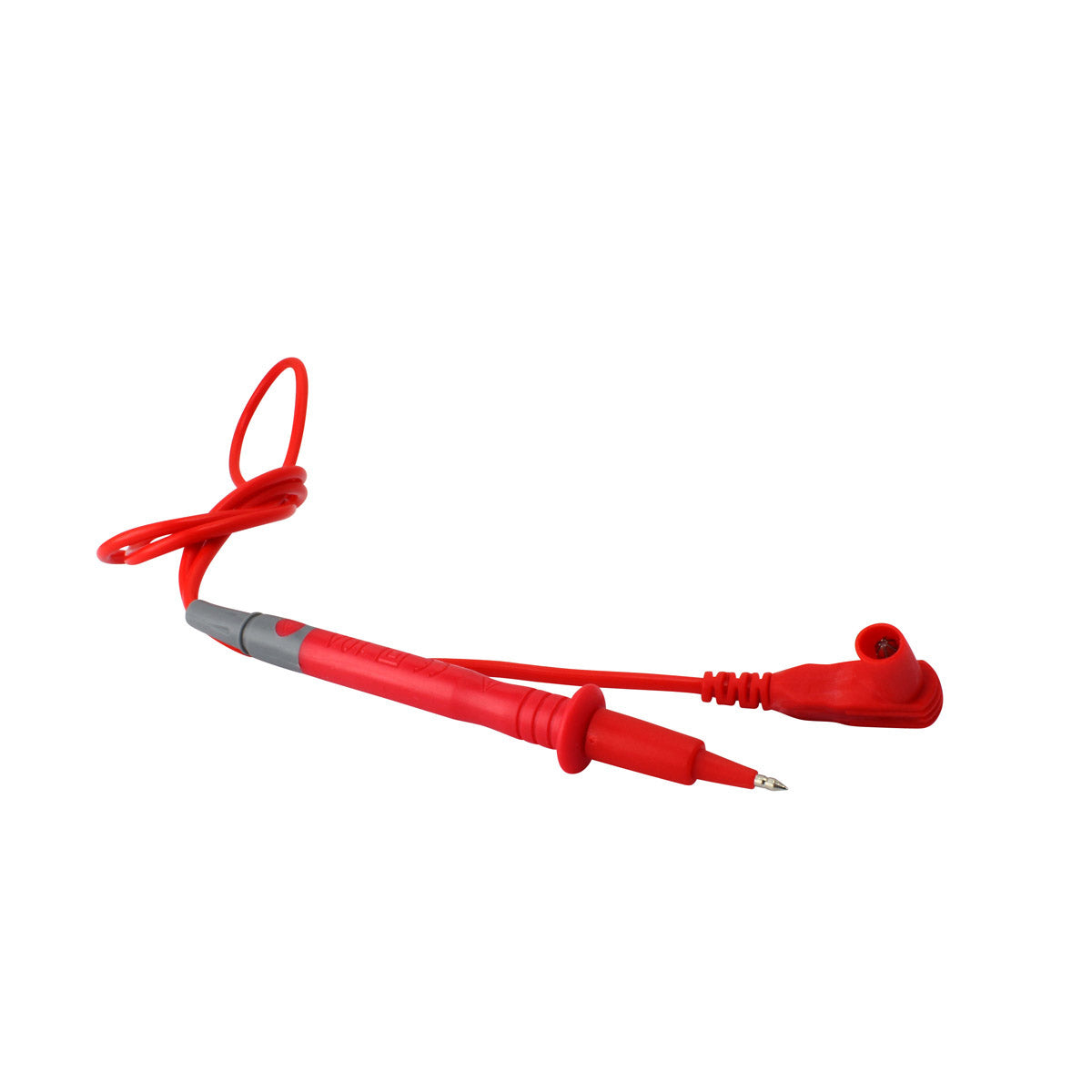

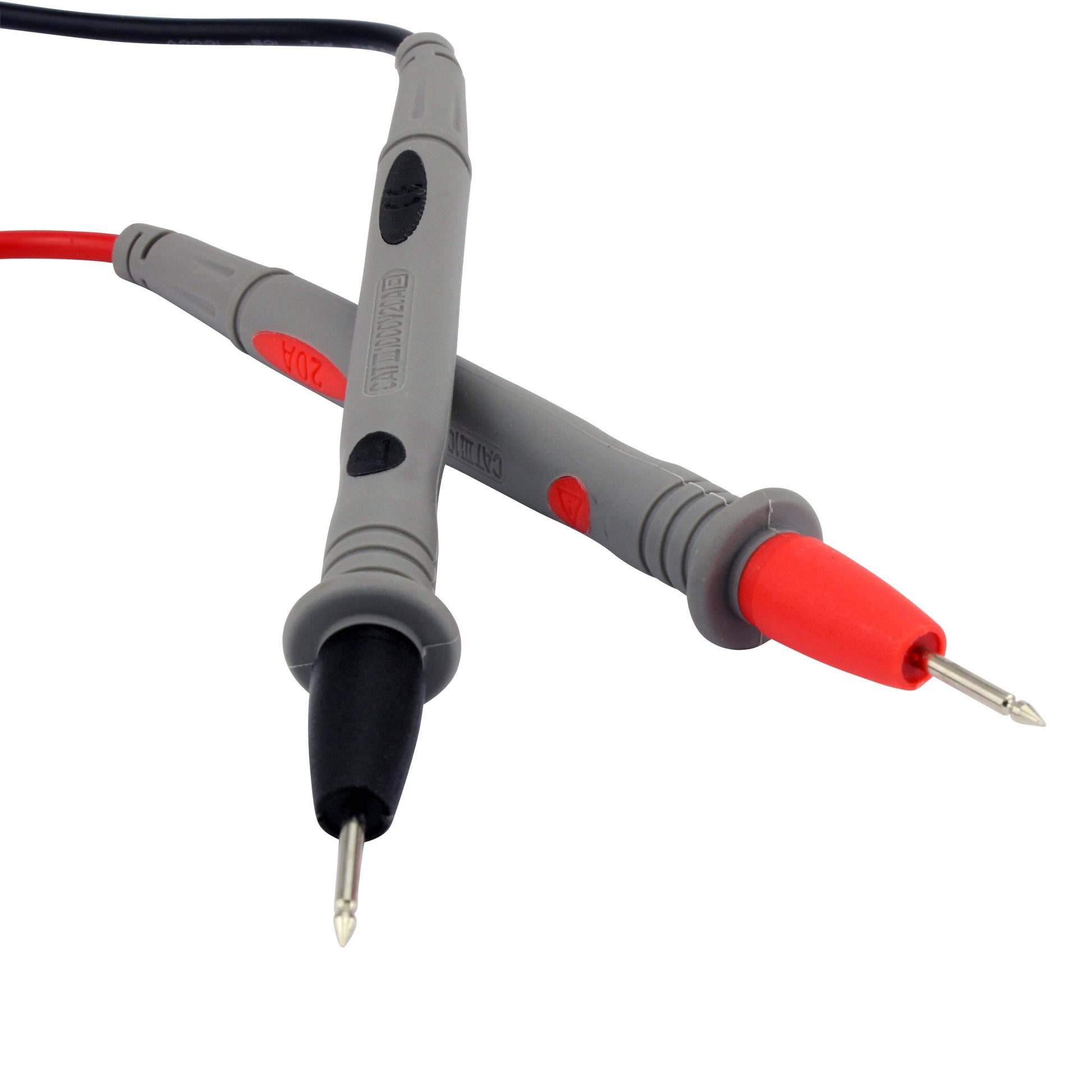

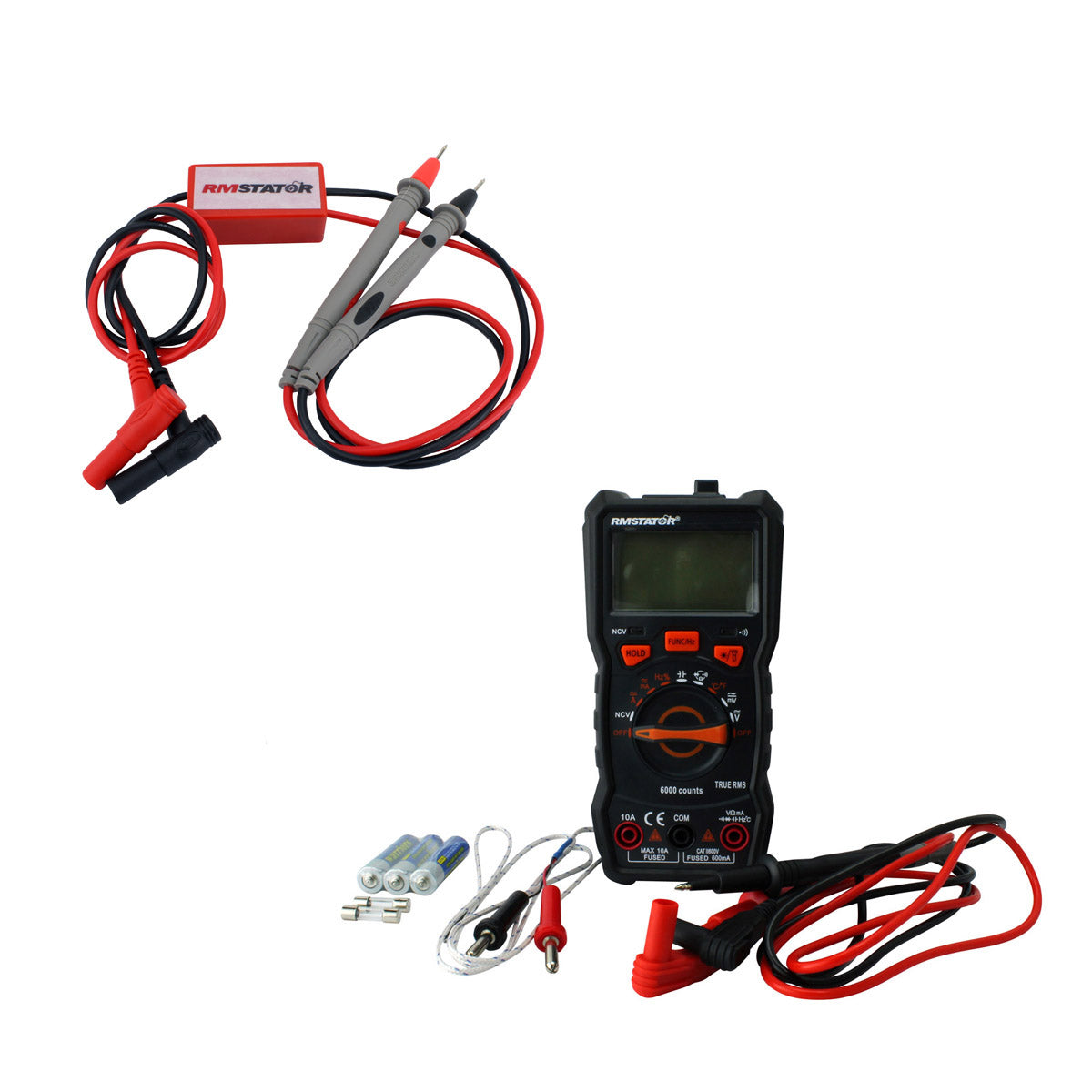

Two items: a brand new portable digital multimeter with its test leads, and a brand new voltage peak reading DVA adapter.
Why can I not just use an ordinary multimeter?
Because an ordinary multimeter reads average voltage, not peak. Ignition output arrives as very short, very fast spikes, so a standard meter will show a low reading or nothing at all even when the component is working. The DVA adapter captures those spikes so the meter can display them.
What can I test with it?
The peak reading adapter is intended for powersport ignition circuits that generate their electricity from permanent magnets - stators, pickup and pulsar coils, CDI boxes and ignition coils. The multimeter on its own covers ordinary workshop tasks such as battery voltage, charging voltage, continuity checks and resistance measurements.
Does it need a specific model of meter?
No. The adapter is designed to work with a standard digital multimeter, and the correct meter is supplied with it in this kit, so the pair are ready to use together.
