Heavy Duty Charging System Upgrade for Suzuki GSX-R

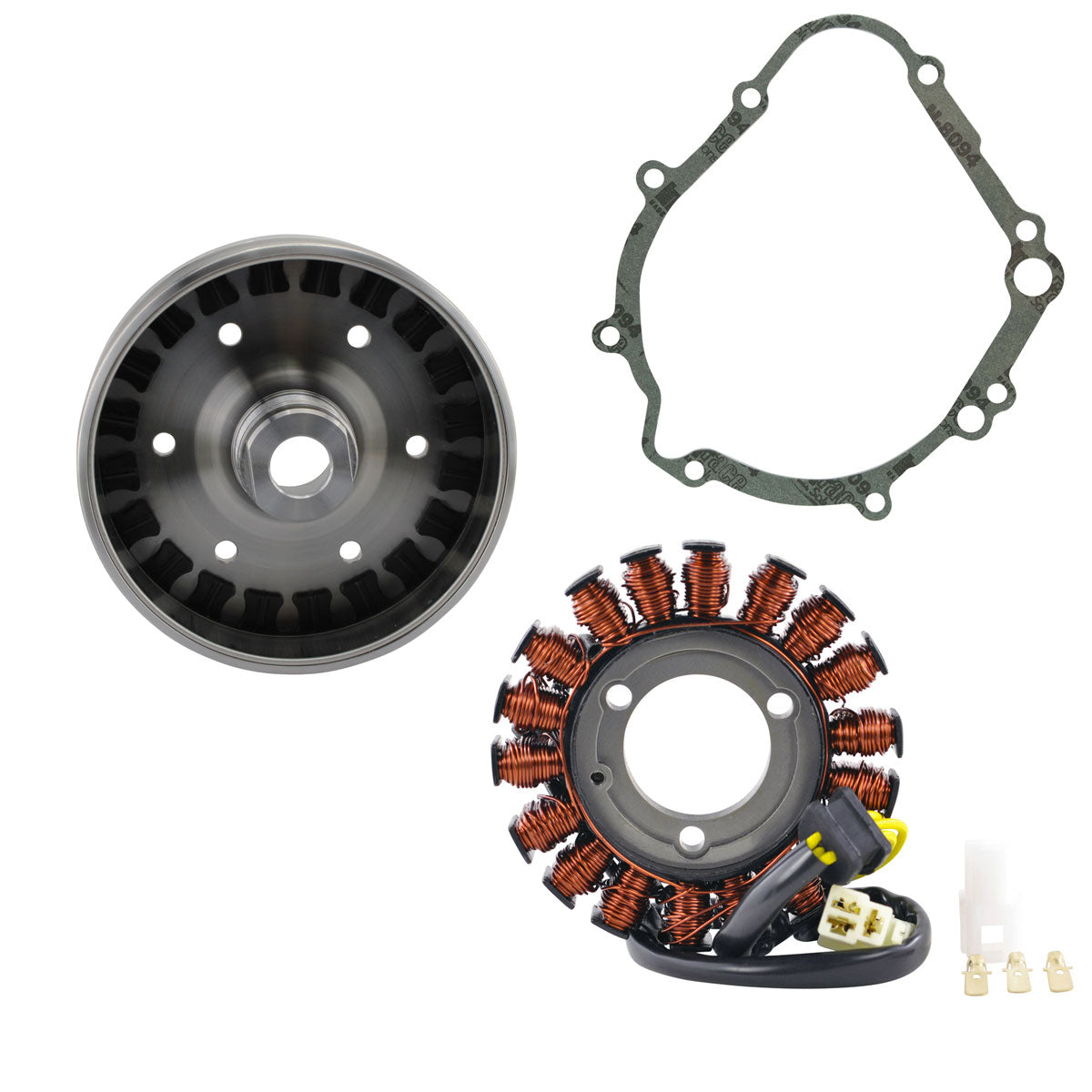

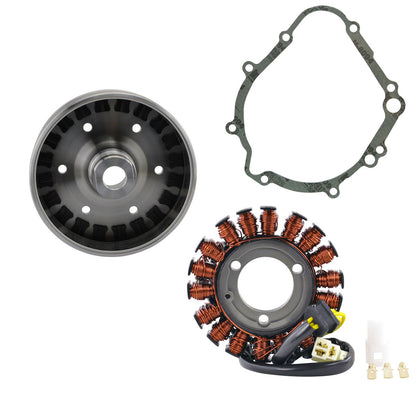

Upgrade your Suzuki's charging system with this professional-grade heavy-duty kit. This all-in-one solution includes a high-output stator, a reinforced flywheel, and a high-temperature crankcase gasket. Engineered to be a direct plug-and-play replacement, this kit addresses the notorious "magnet failure" issue found in original Suzuki equipment by utilizing a reinforced sleeve design that keeps magnets permanently secured.

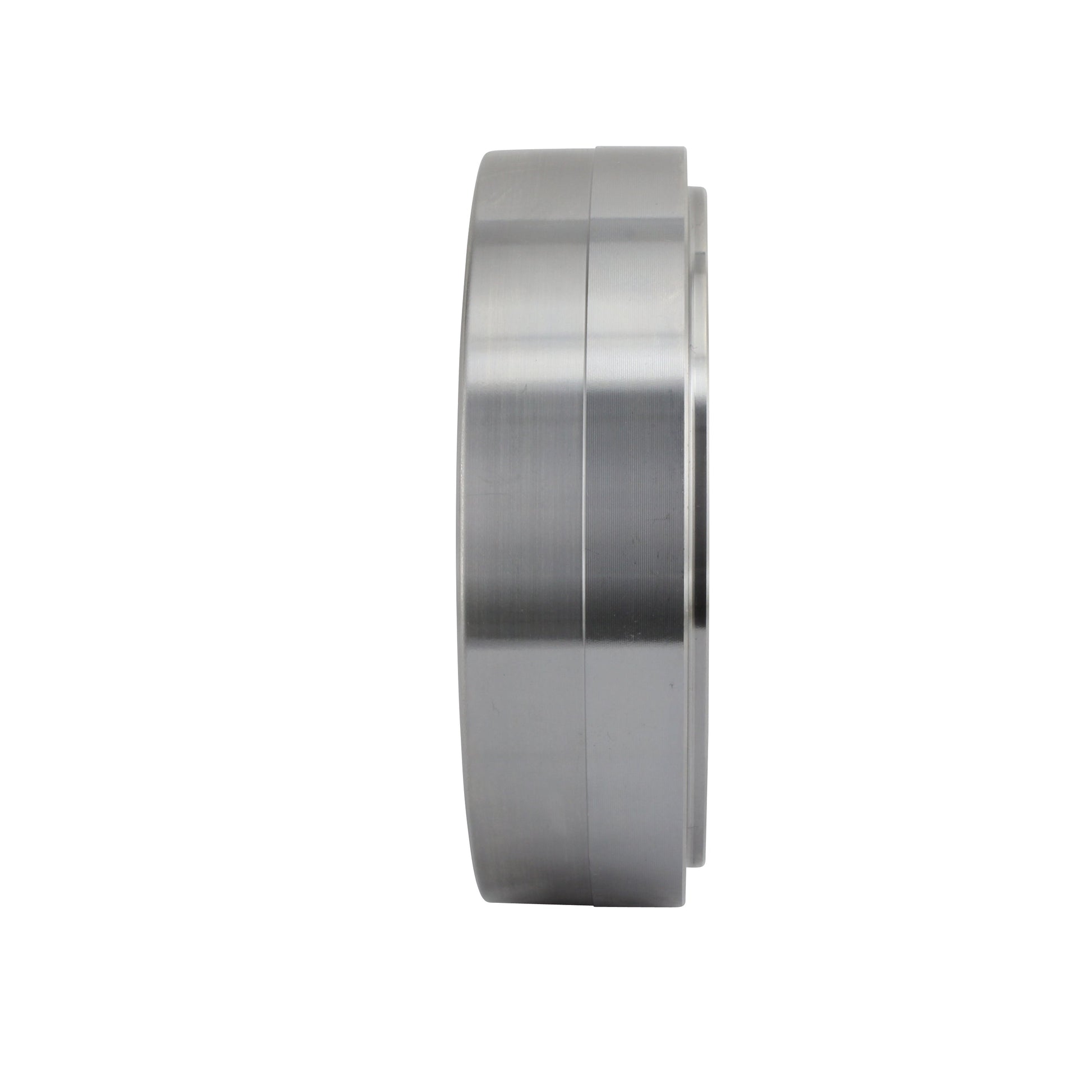

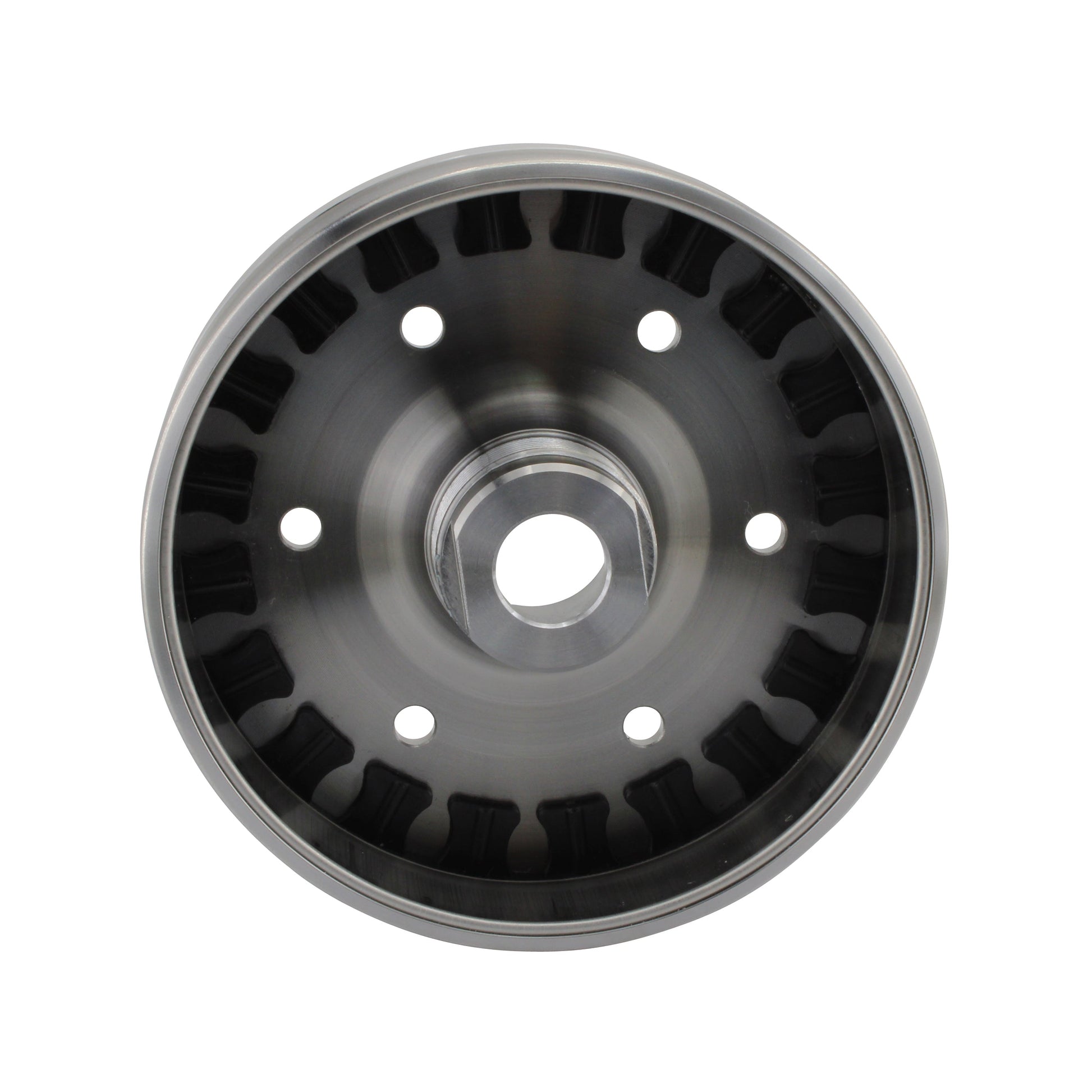

RELIABILITY: Features a redesigned flywheel with a protective sleeve to prevent magnet detachment and stator damage.

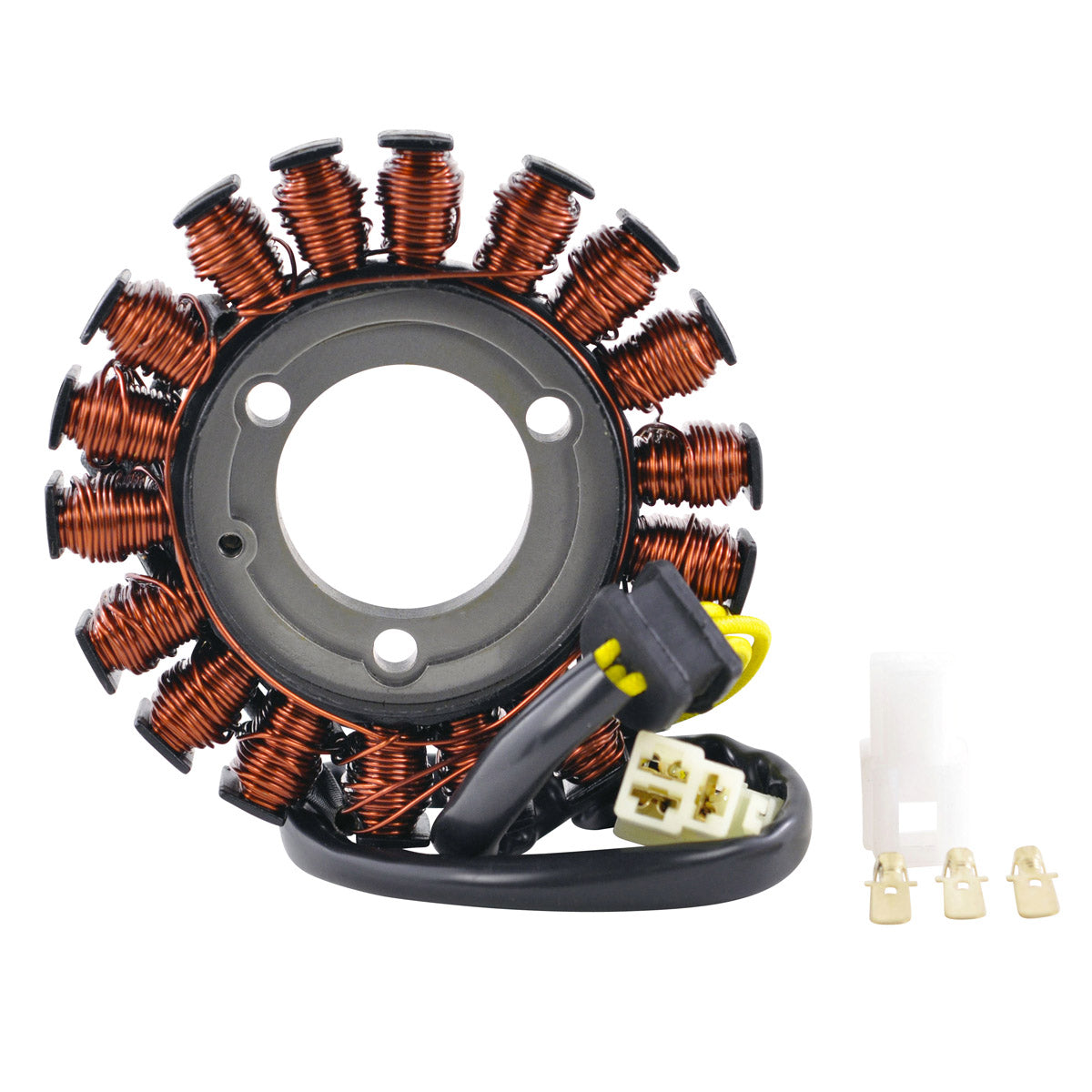

✔ Direct Fit: Plug-and-play installation with OEM connectors.

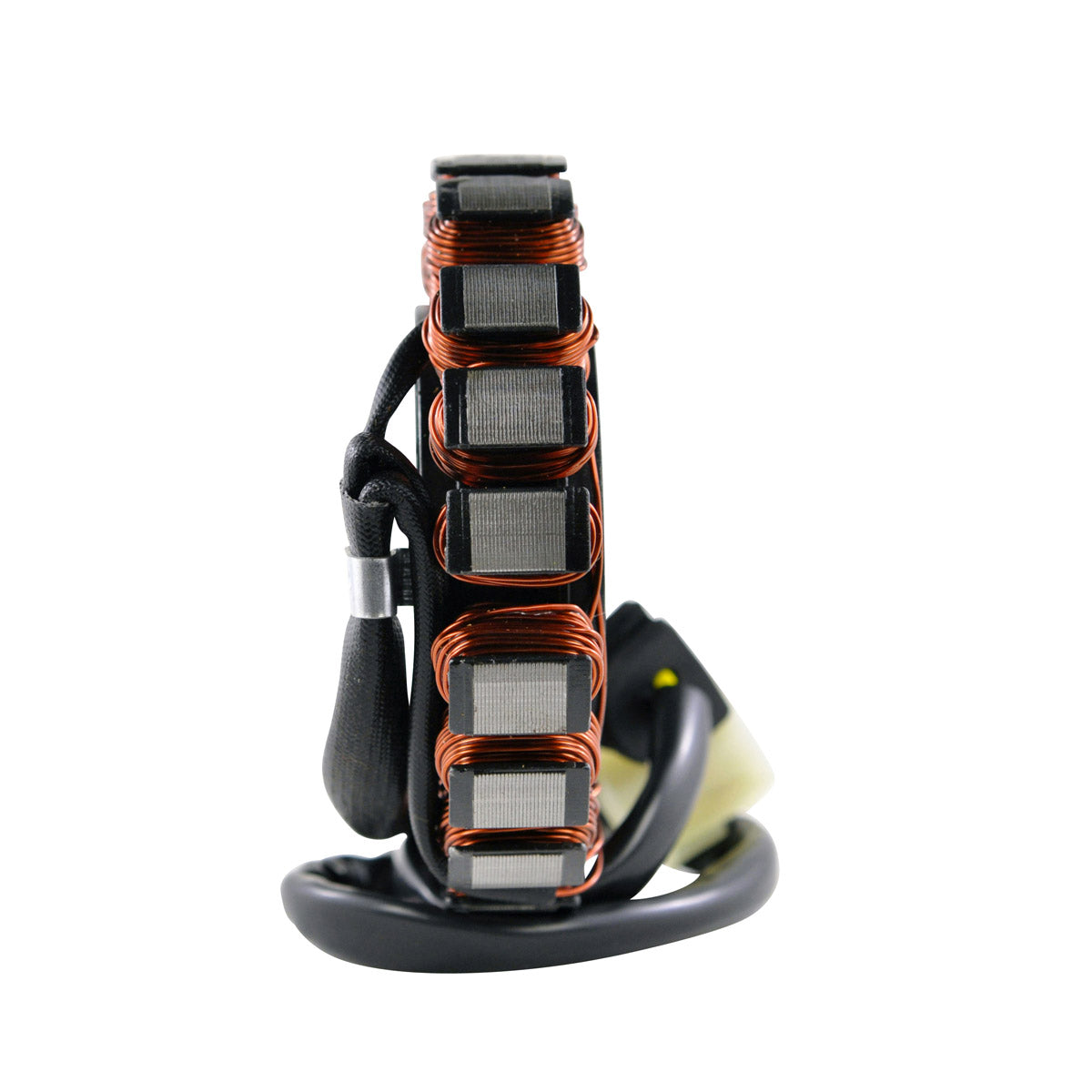

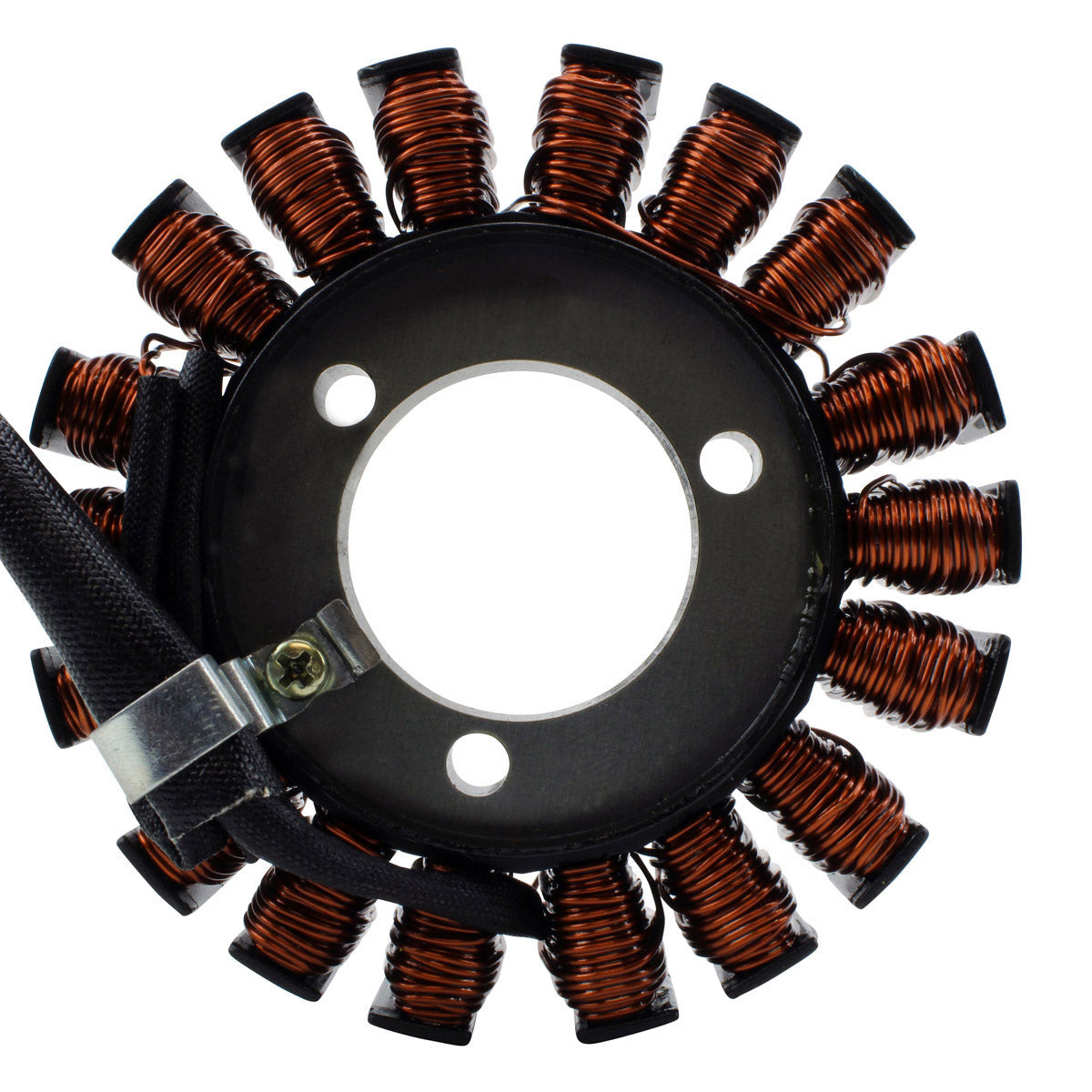

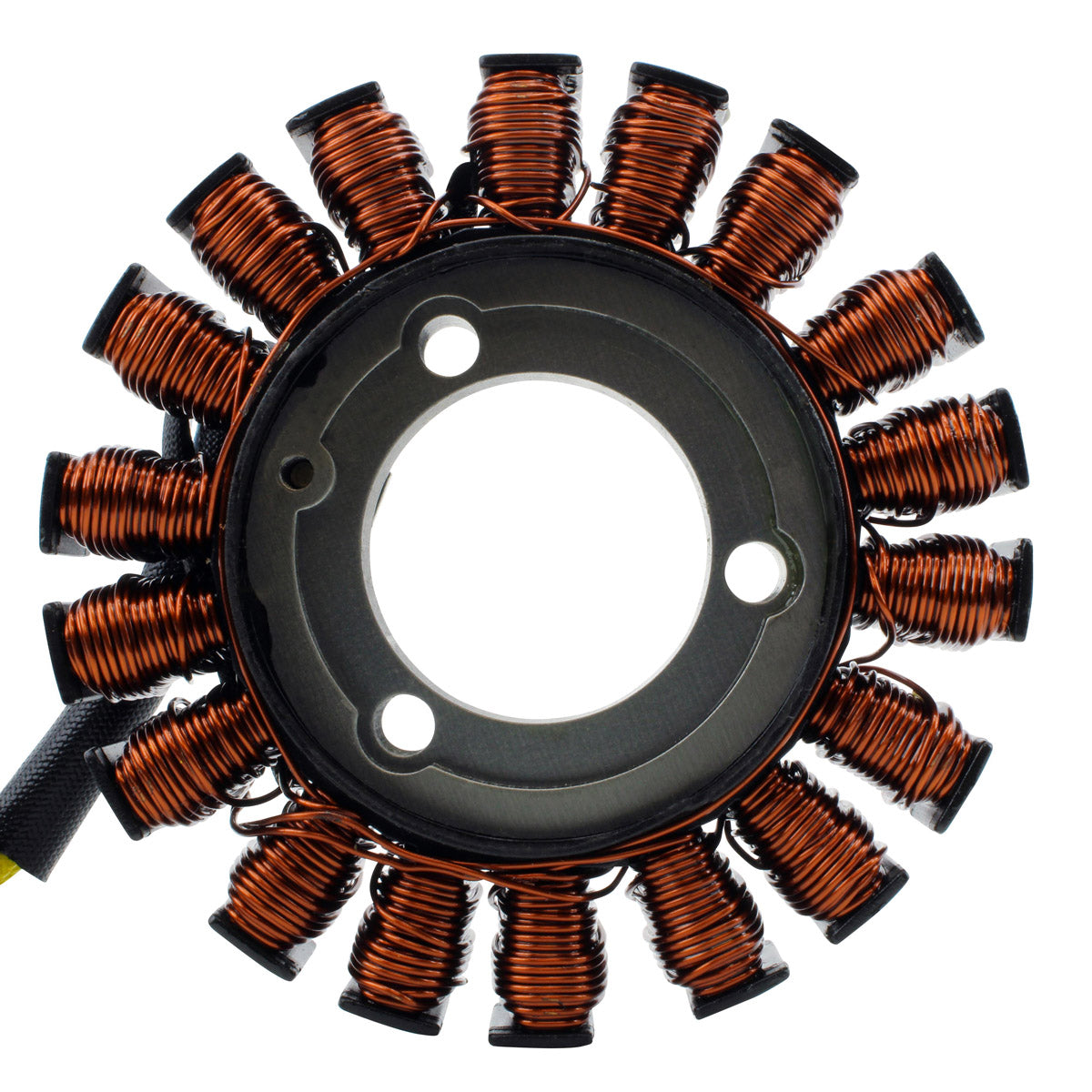

✔ High-Temp Windings: Stator rated up to 200°C.
✔ Complete Kit: Includes Stator, Rotor, and Gasket.
Technical Specs
Stator OD / ID:
107 mm / 38 mm
Flywheel OD / ID:
118 mm / 108 mm
Resistance:
0.5 ohms +/- 20%

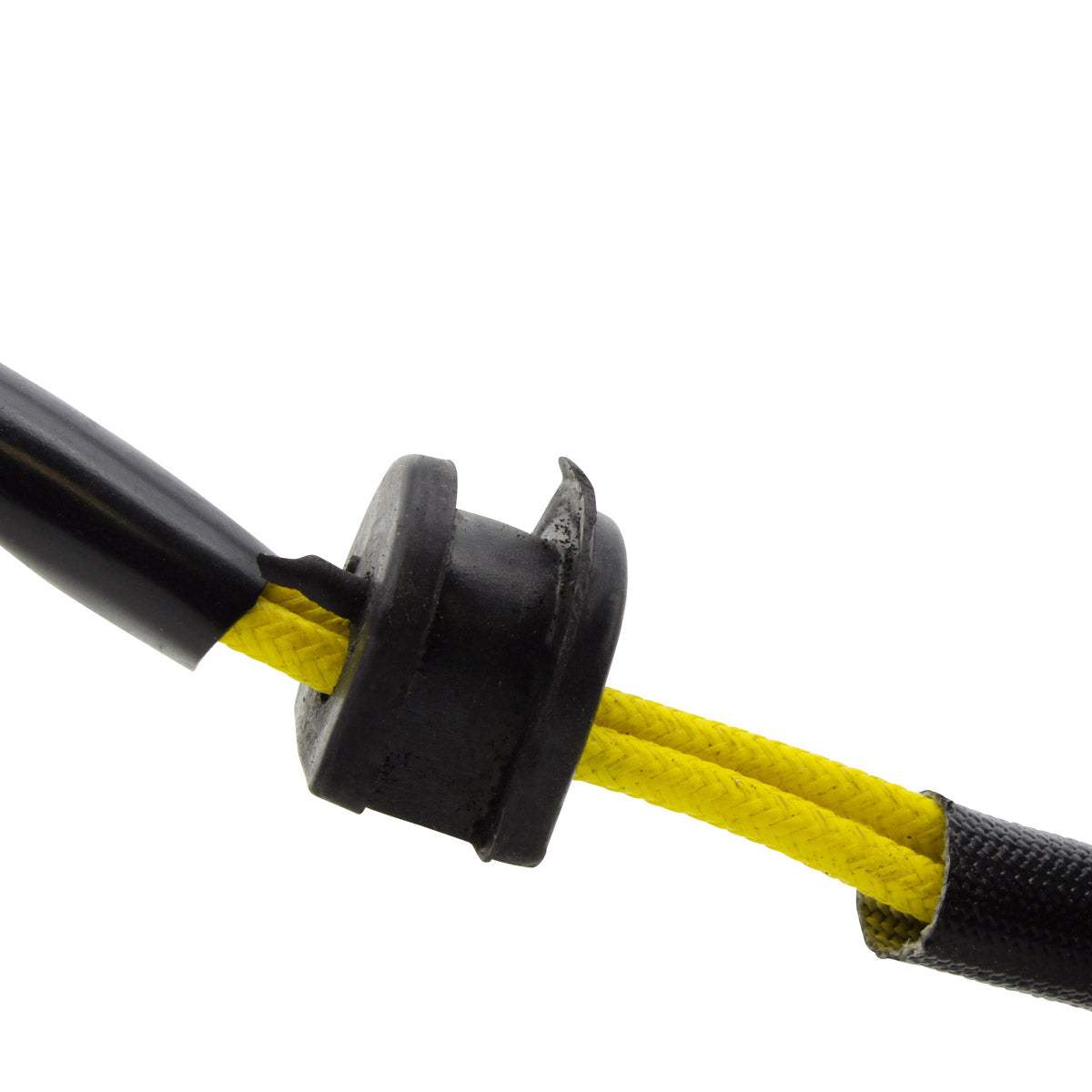

Number of Wires:
3 (Yellow)

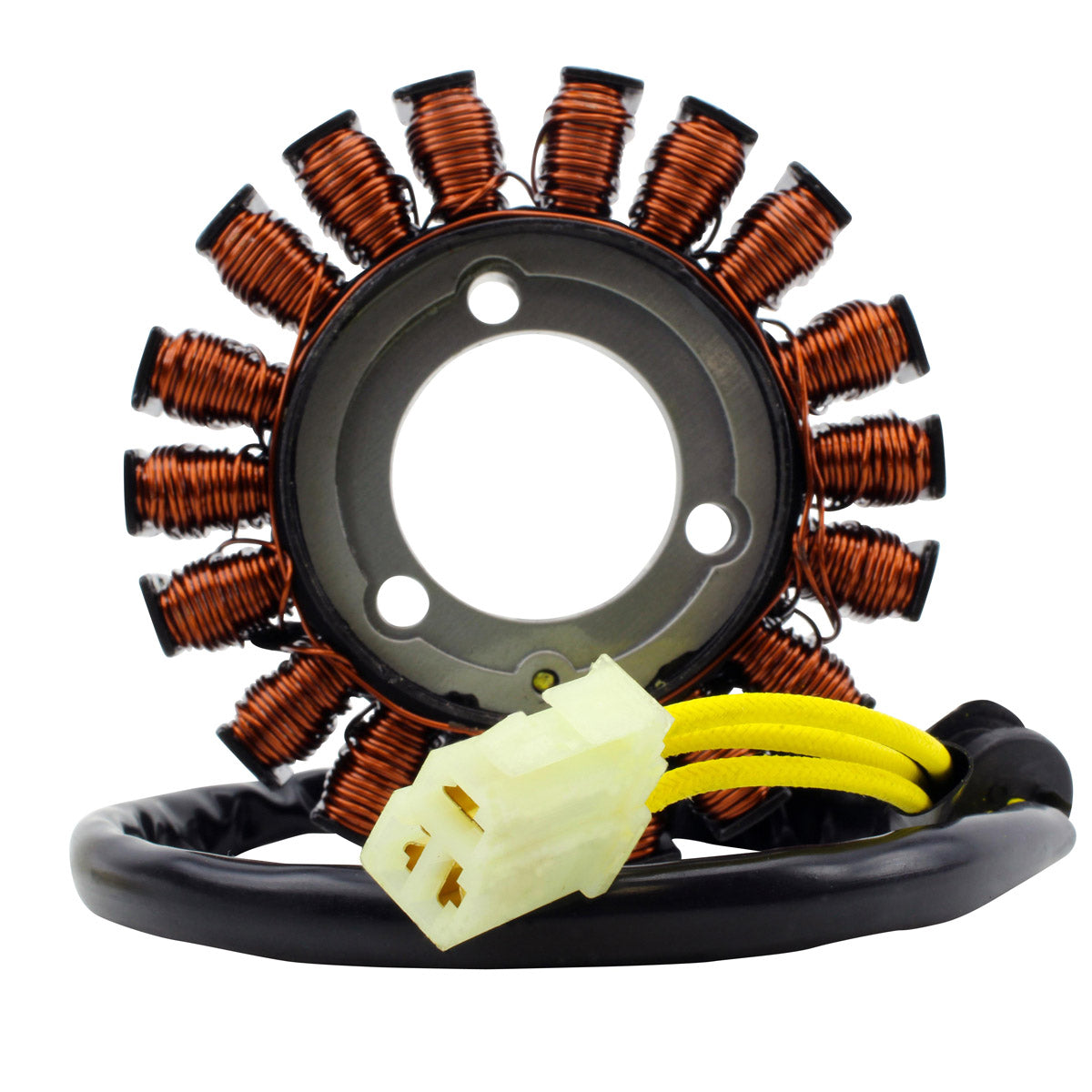

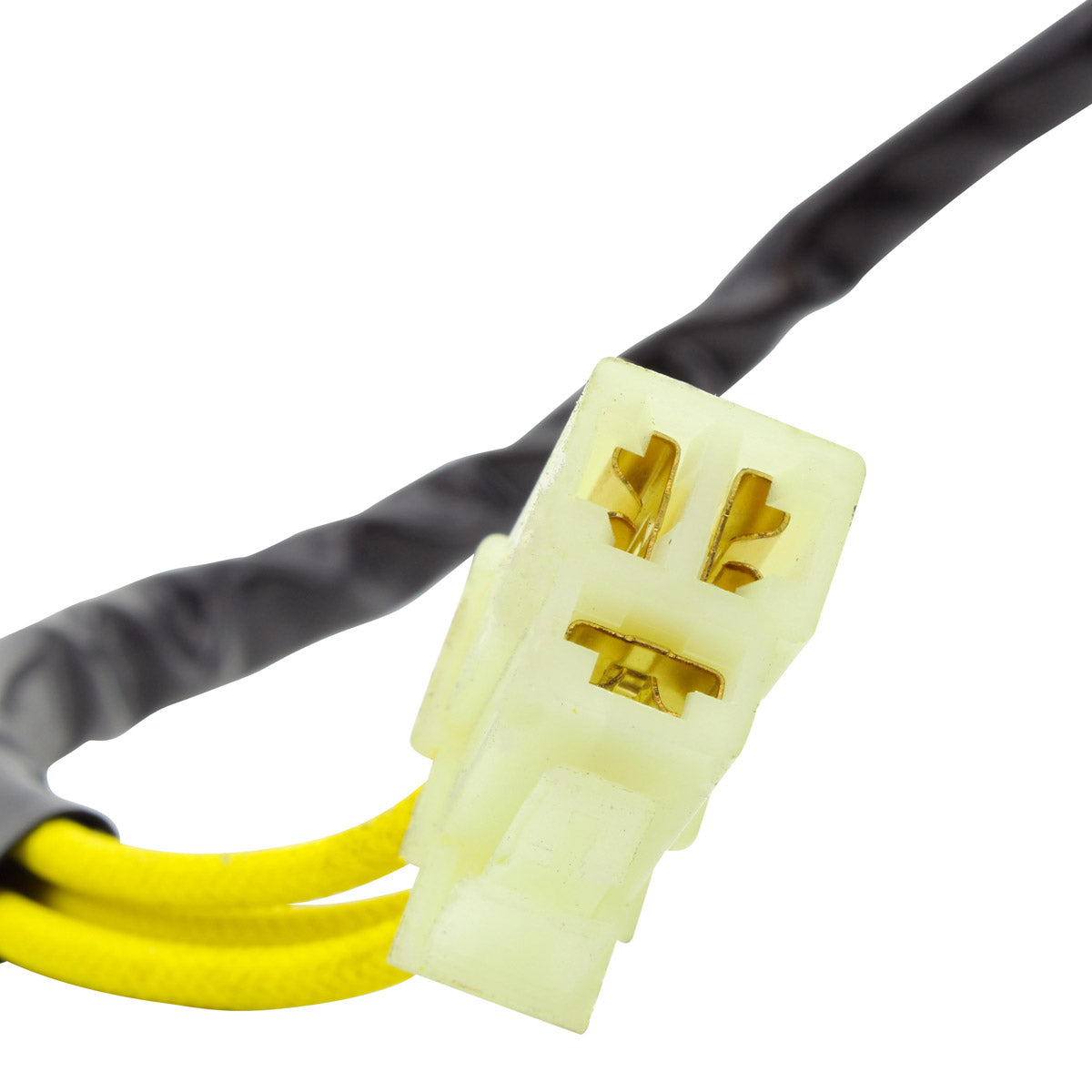

Connectors:
1 Plug / 3 Pins
Compatibility / Fitment Guide
Make
Model
Years
Suzuki
GSX-R 600
2006-2024
Suzuki
GSX-R 750
2006-2024
OEM Cross Reference
Flywheel OEM
31402-01H20, 31402-01H21
Stator OEM
31401-01H20, 31401-01H11

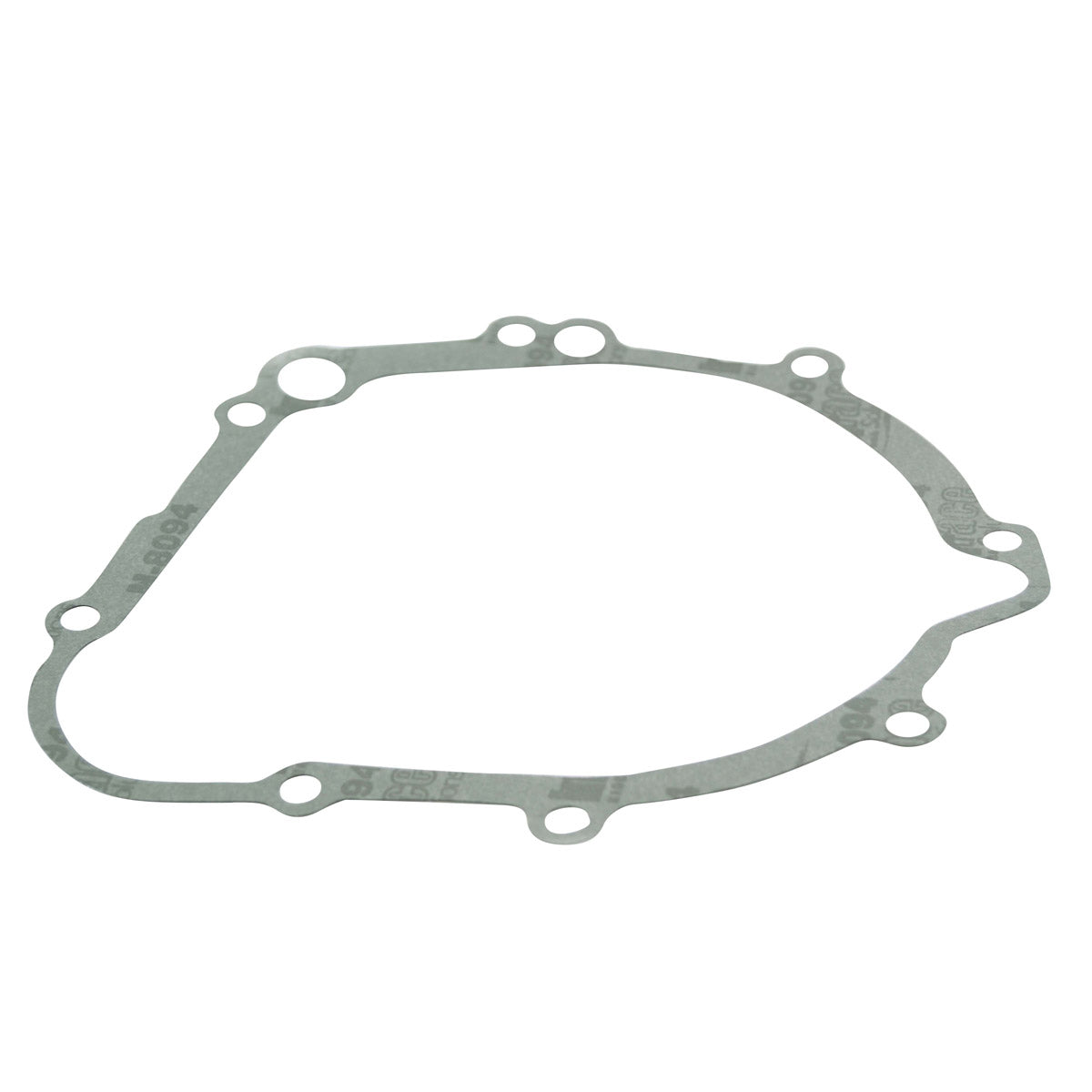

Gasket OEM
11483-01H00
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement kit from 4Drive, specifically improved to exceed original equipment standards in durability and thermal resistance.
How do I know if it is compatible?
We recommend checking your vehicle year and model against the guide above. This kit is a confirmed fit for Suzuki GSX-R 600 and 750 models from 2006 through 2024.
What makes this flywheel better than the OEM version?

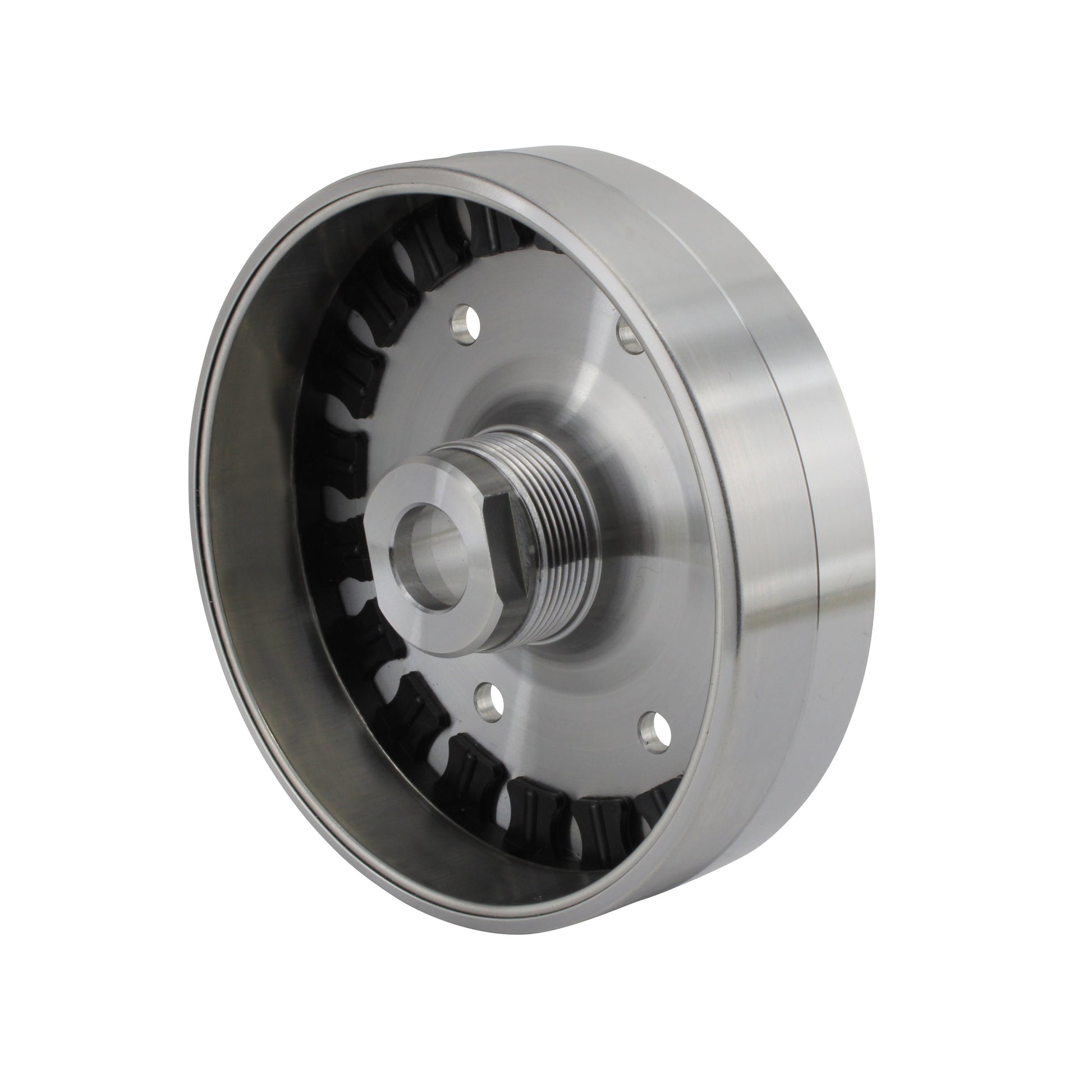

The OEM Suzuki flywheel is known for magnets coming loose over time, which can destroy the stator. This heavy-duty version features a reinforced metal sleeve that encapsulates the magnets, ensuring they stay in place even under high RPM and extreme heat.
Note: Please verify your original part number or engine code against the references above before purchasing. Professional installation is recommended. Visit 4drive.co.uk for more technical guides.
