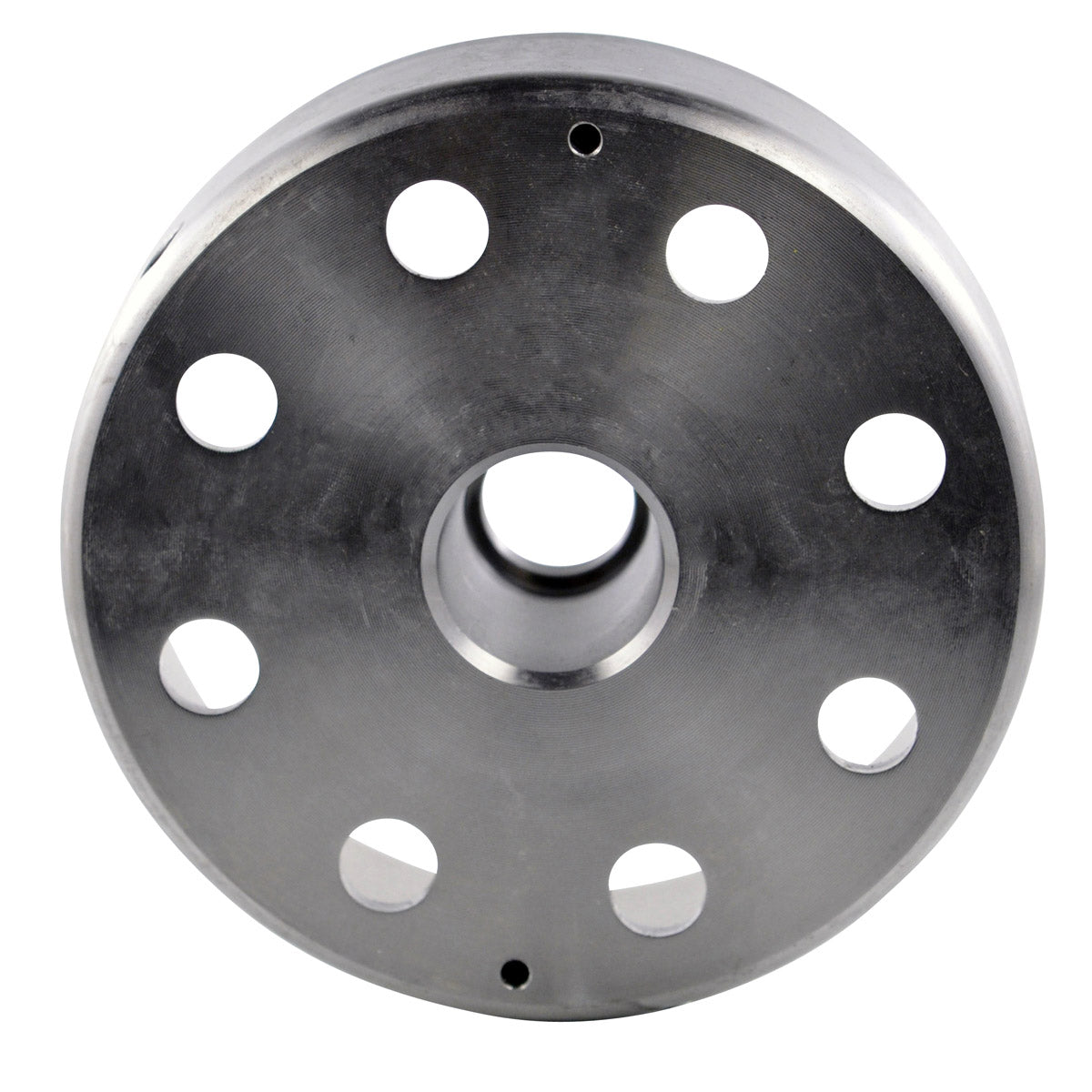

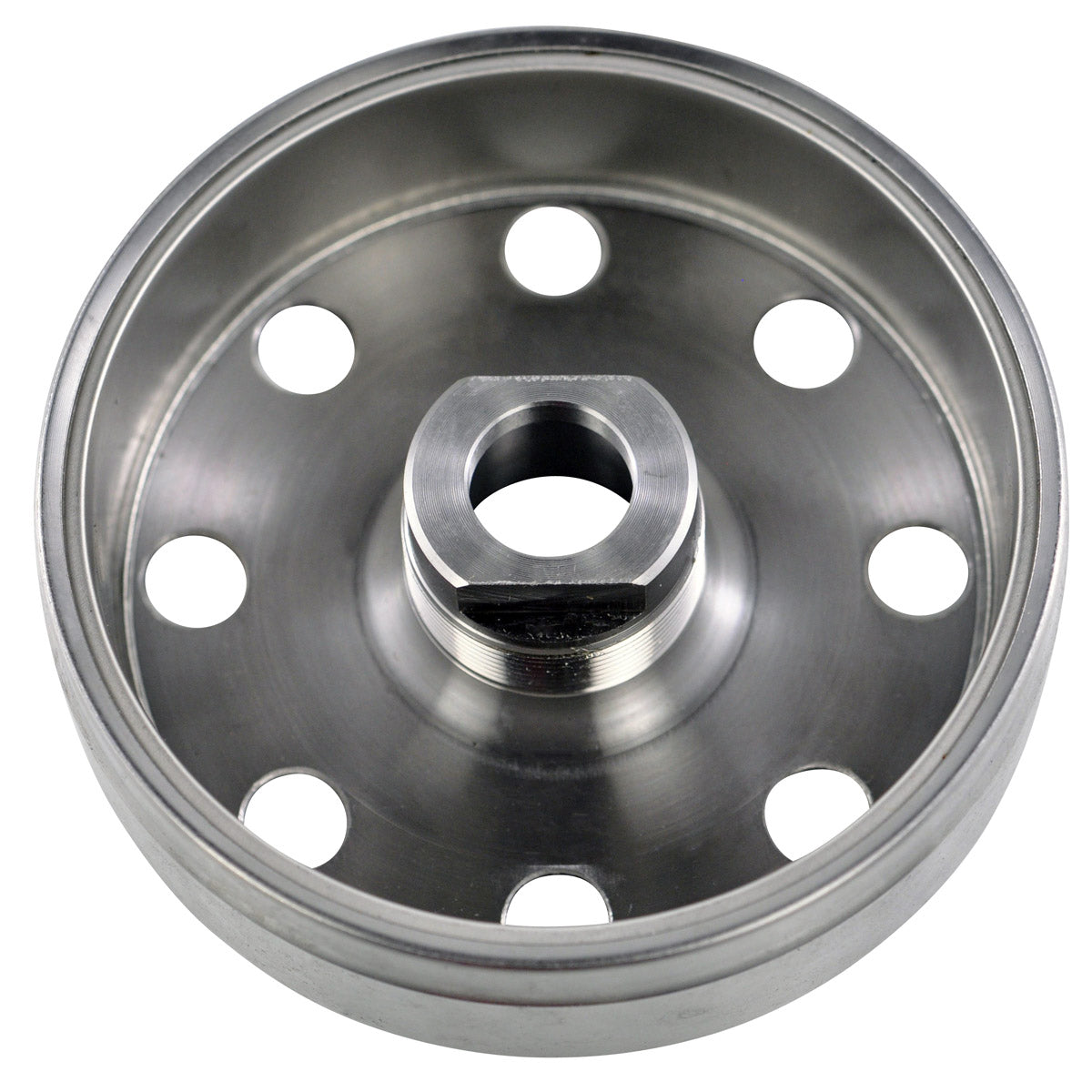

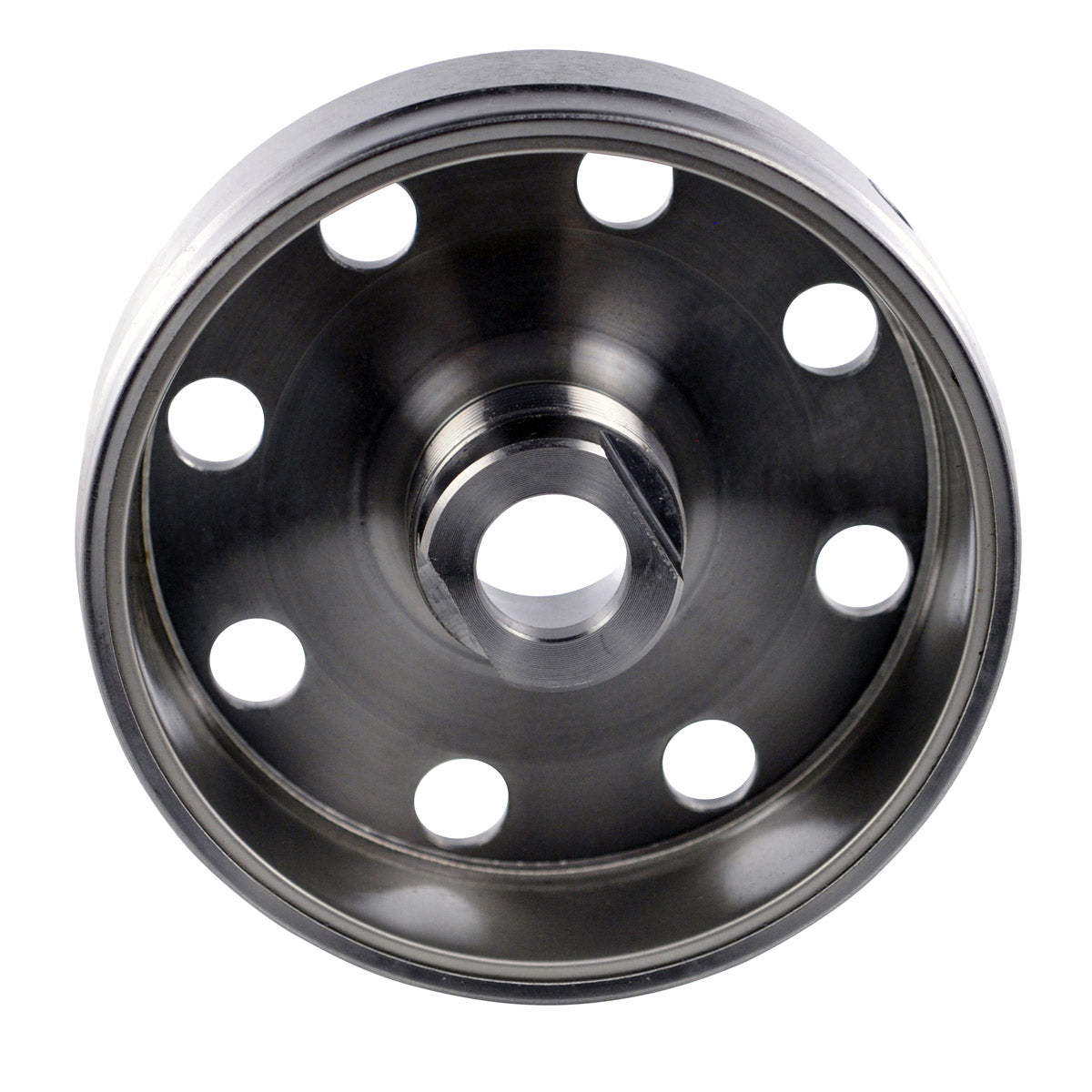

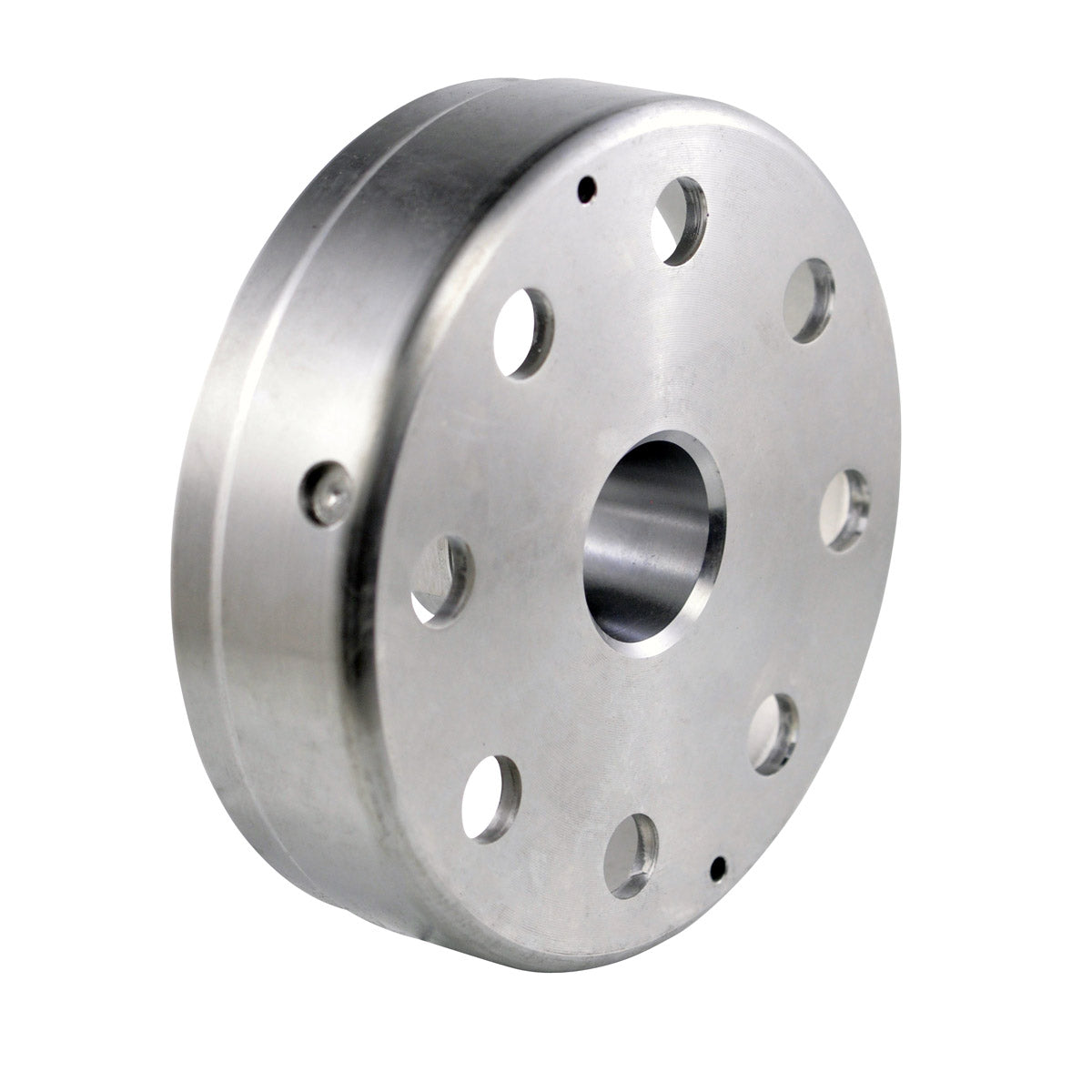

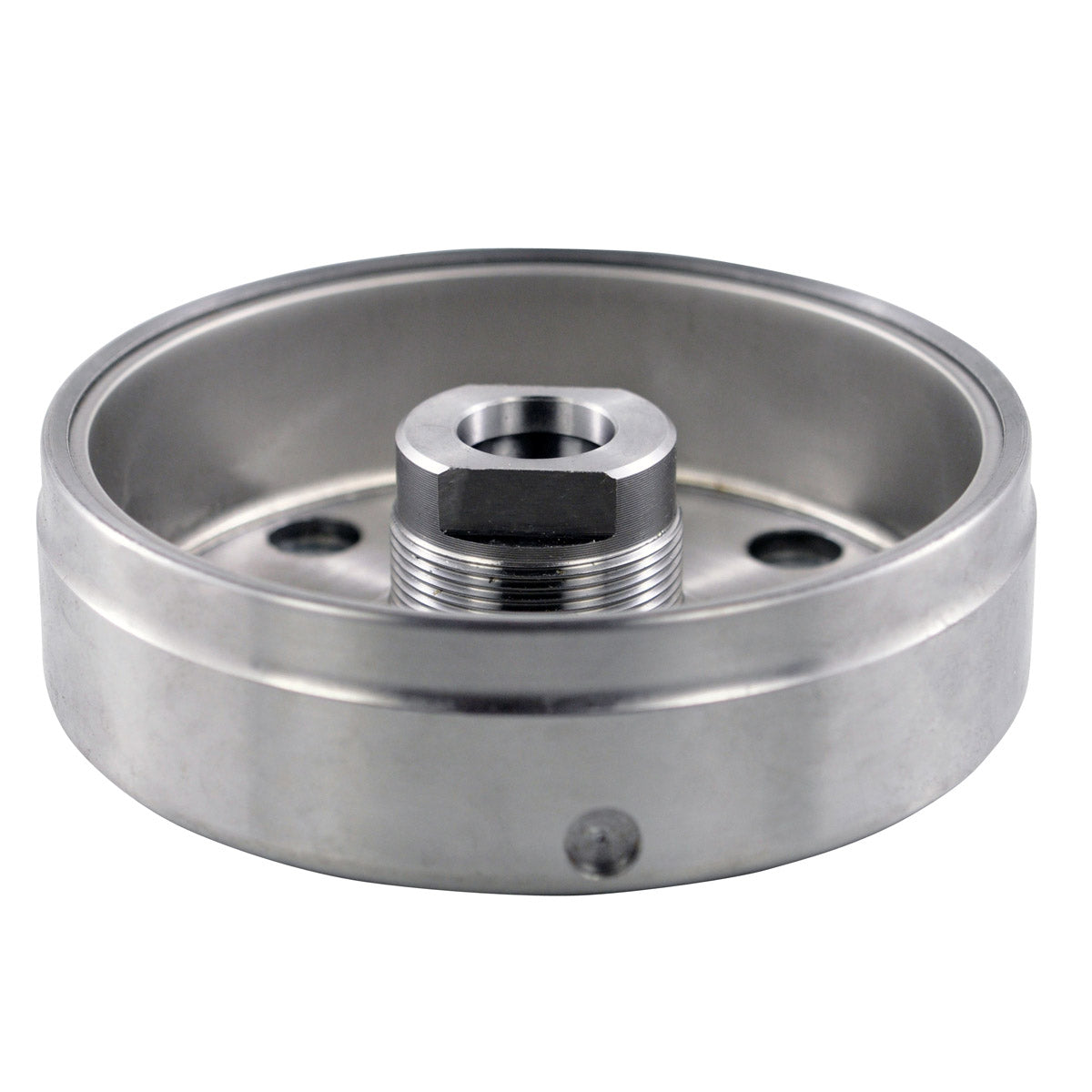

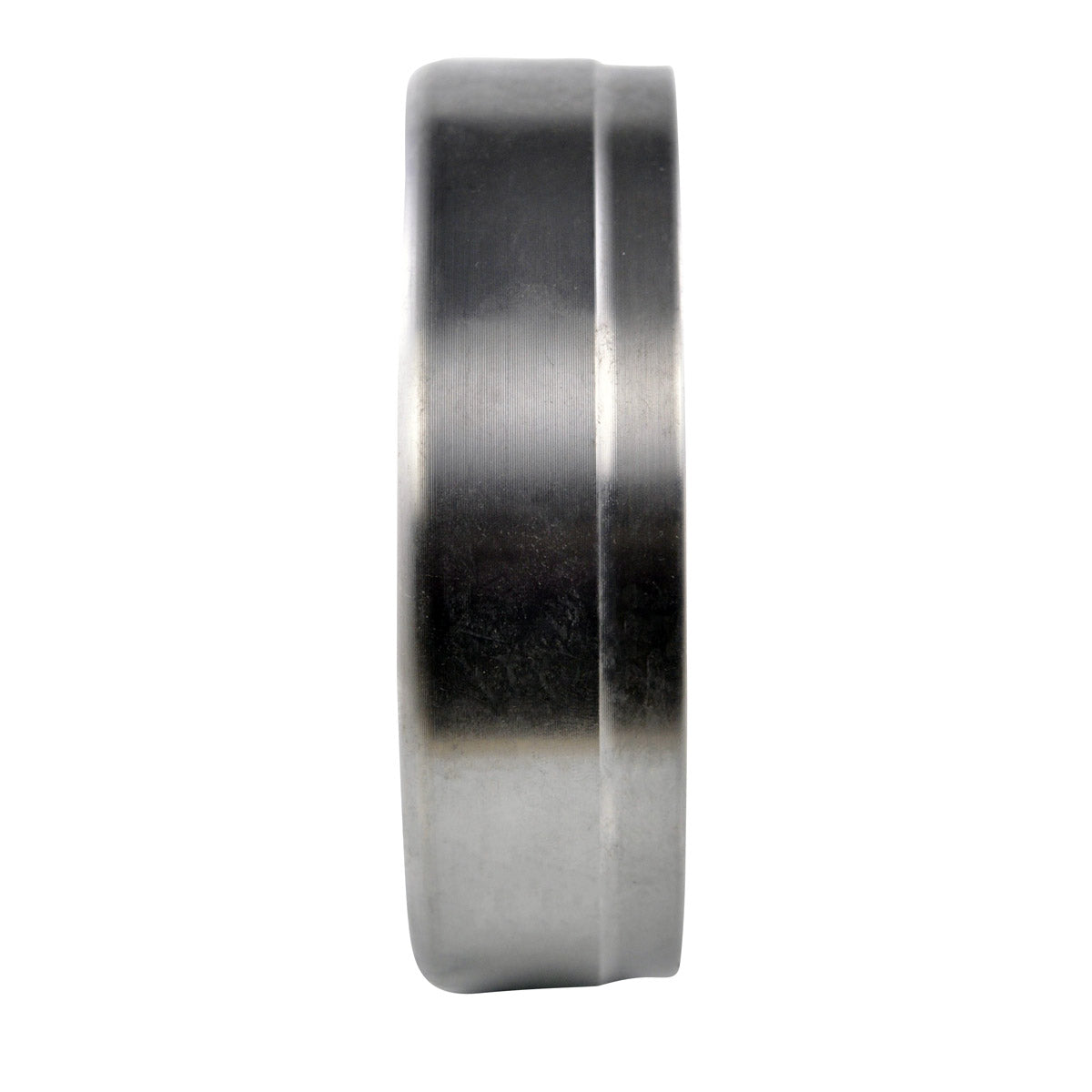

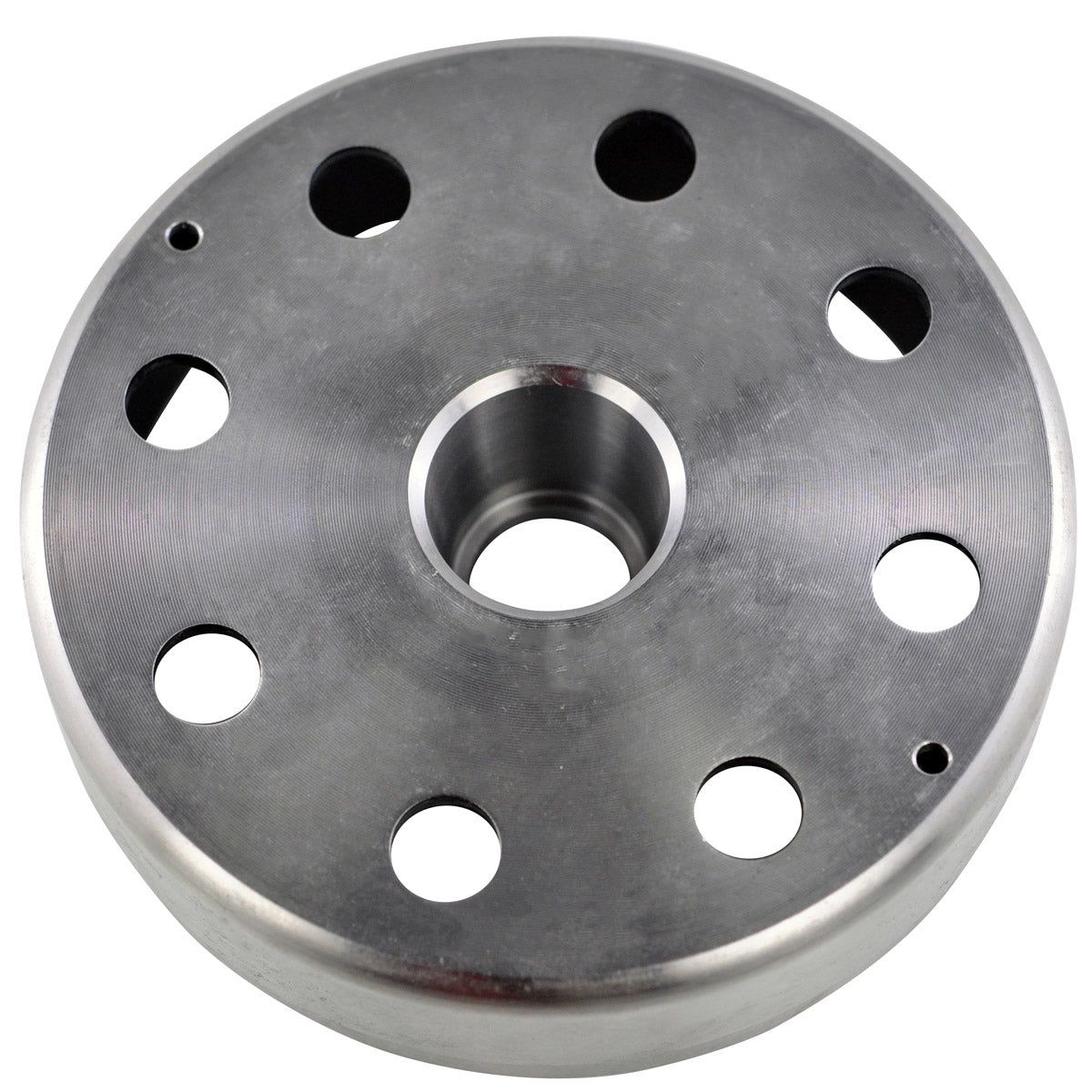

Kokusan Improved Flywheel for Aprilia
RSV4 1000 Factory / R / RF / RR and Tuono V4 1000 / 1100, 2011-2020 - part RMS120-103587
Flywheel failure is a well known problem on these Aprilia models, and the cause is the low quality epoxy used to hold the magnets in the original unit. Once that epoxy begins to break down the magnets shift or shed material inside the cover, and the damage rarely stops at the flywheel itself.
This Kokusan improved flywheel is a direct replacement built to fix the underlying design issue rather than repeat it. It uses lower strength magnets, which deliberately reduces stator output and, with it, the heat the charging system generates. The result is a charging output matched to what the motorcycle's electronics actually need, and a stator that is no longer being cooked by surplus current. If your original stator has already been damaged, fit a new stator at the same time - replacing one without the other is the most common reason a repair does not last.
Key Features
- Kokusan improved replacement flywheel
- Direct replacement for the original Aprilia unit
- Lower strength magnets reduce stator output
- Reduced heat generation across the charging system
- Charging output matched to the bike's electronic needs
- Addresses the epoxy failure seen on original flywheels
- Built for long term reliability
Technical Specs
| Specification | Detail |
|---|---|
| Exterior diameter | 121 mm |
| Exterior diameter (second measurement) | 119 mm |
| Interior diameter | 107 mm |
| Interior diameter, centre housing | 19.2 mm |
| Exterior diameter, centre housing | 34 mm |
| Thickness (exterior) | 34.8 mm |
| Thickness (interior) | 30 mm |
| Magnet strength | Lower than original, to reduce output and heat |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Aprilia RSV4 1000 Factory | 2011-2020 |
| Aprilia RSV4 R 1000 | 2011-2020 |
| Aprilia RSV4 RF 1000 | 2011-2020 |
| Aprilia RSV4 RR 1000 | 2011-2020 |
| Aprilia Tuono V4 1000 | 2011-2020 |
| Aprilia Tuono V4 1100 | 2011-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1A010574 | Aprilia |
| 2D000049 | Aprilia |
Frequently Asked Questions
Does this flywheel fit without modification?
Yes. It is dimensioned as a direct replacement for the original Aprilia flywheel on the listed models, so no machining or modification is needed. Check the OEM number on your original unit against 1A010574 or 2D000049 before ordering.
What is included?
One Kokusan improved flywheel. A crankcase cover gasket, stator, regulator and flywheel puller are not supplied with this item and should be ordered separately if required.
How do I know my original flywheel has failed?
The usual sign is epoxy breaking down around the magnets - flaking, cracking or debris inside the crankcase cover. A magnet that has moved out of position will often leave witness marks on the stator. Charging faults that return shortly after a new stator has been fitted also point to the flywheel rather than the stator.
Will weaker magnets leave the bike undercharged?
No. The original magnets were stronger than the motorcycle required, and the excess output was simply turned into heat. The lower strength magnets used here bring the charging output to a level matched to the bike's electronic needs while keeping the stator cooler.
