100-200W SEM Lighting Stator for KTM LC4 and Husaberg
KTM 500, 600 and 620 LC4 and Husaberg FE 350, FC 400 / 501 and FX 600 1987-2000 - RMSTATOR part RM01192 - replaces OEM 58031002050

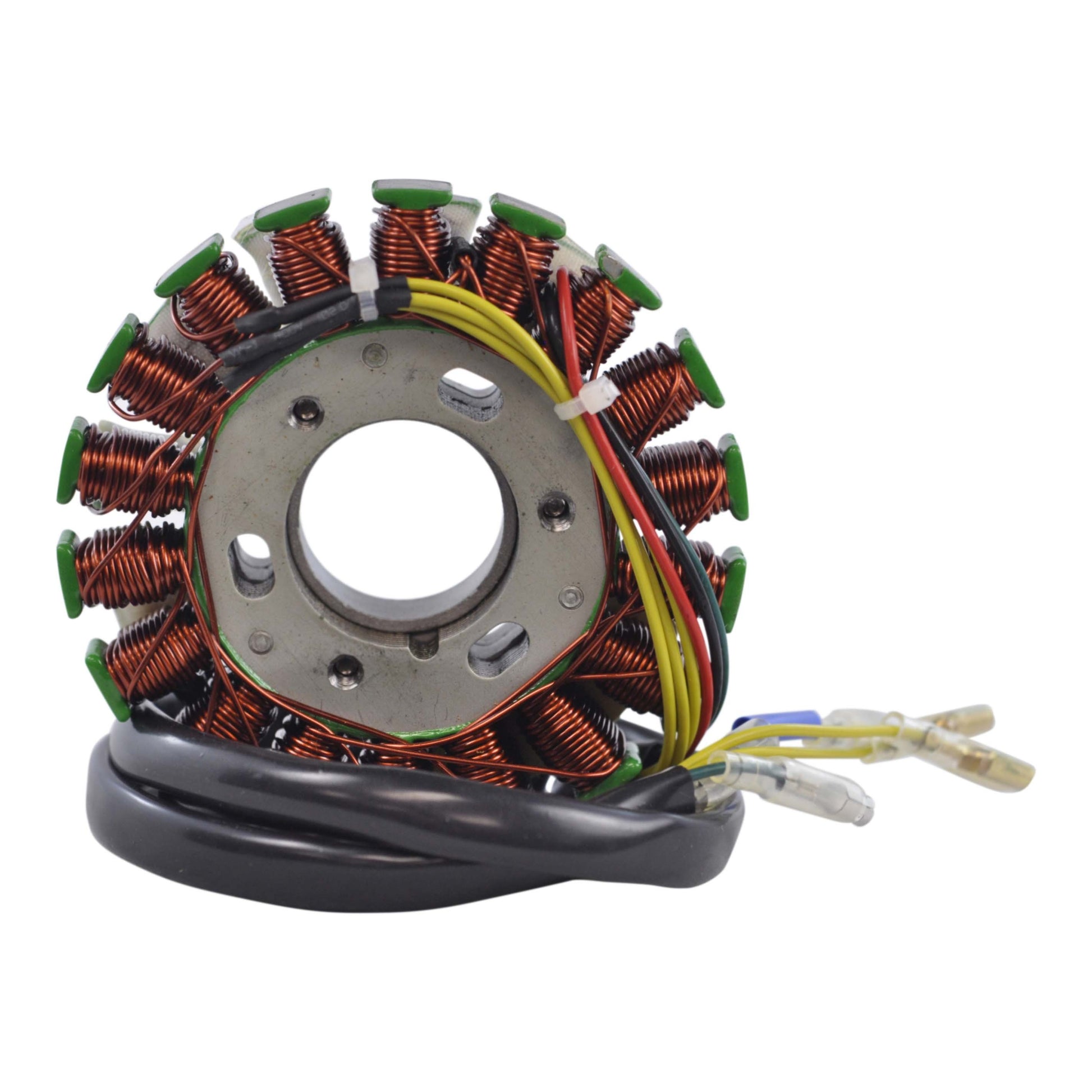

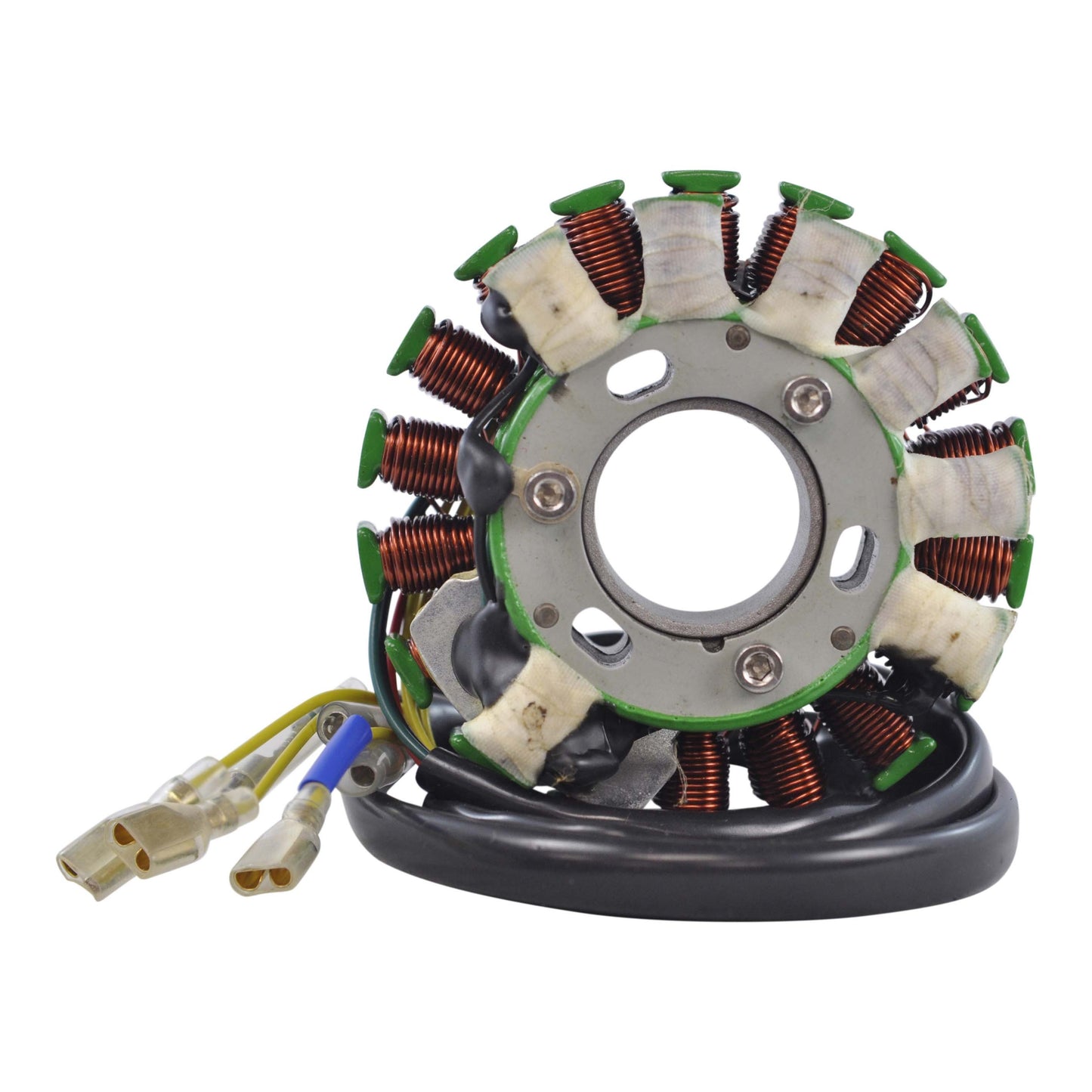

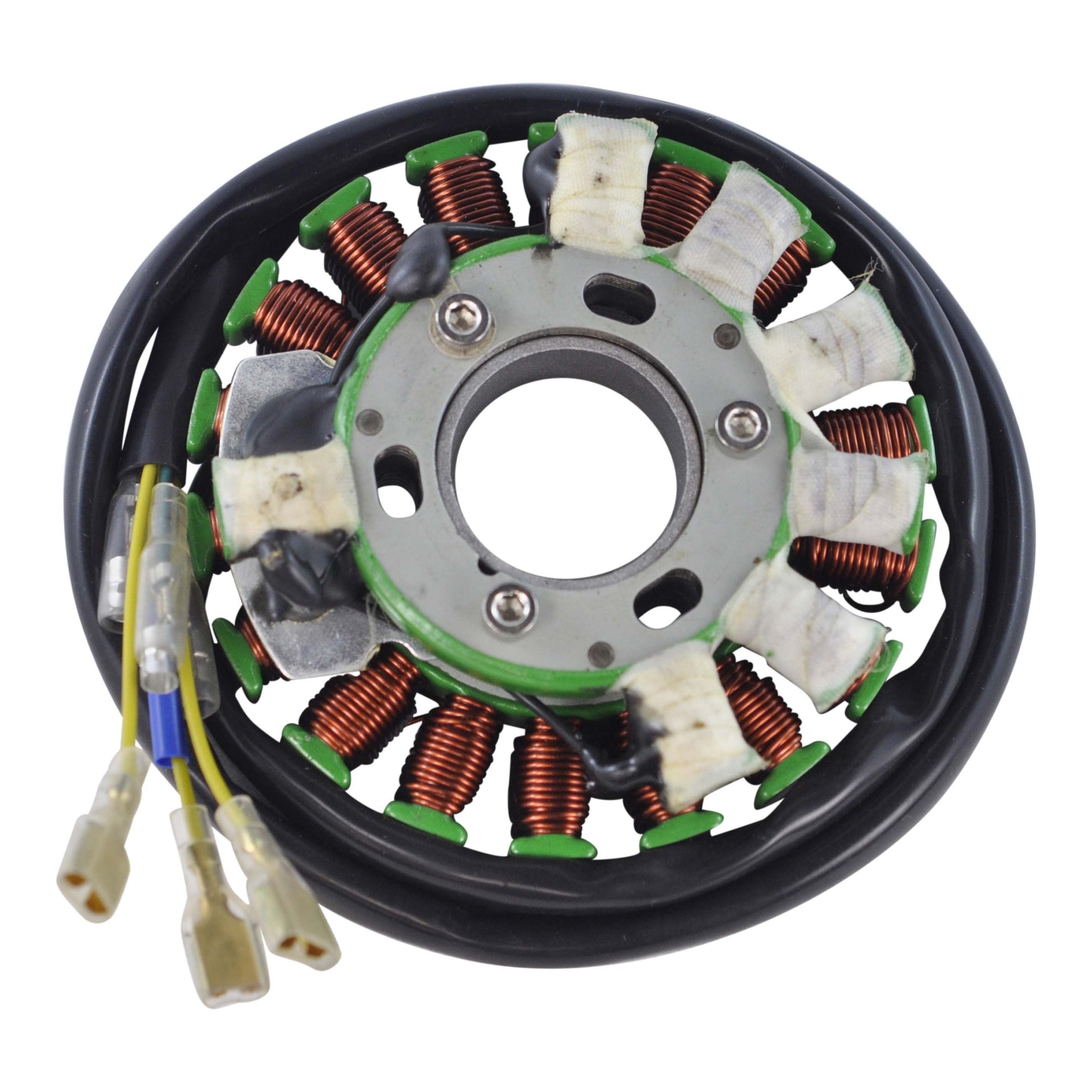

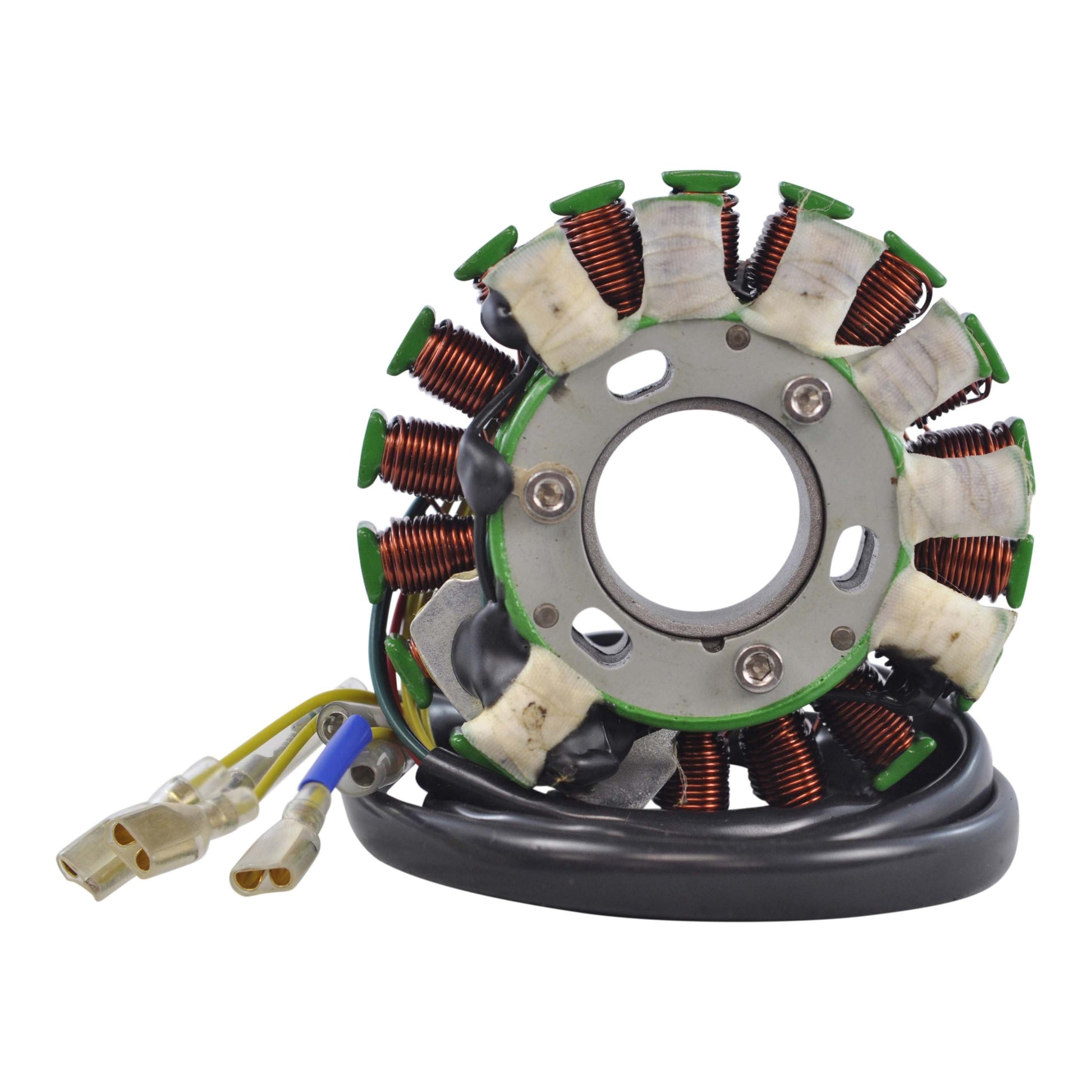

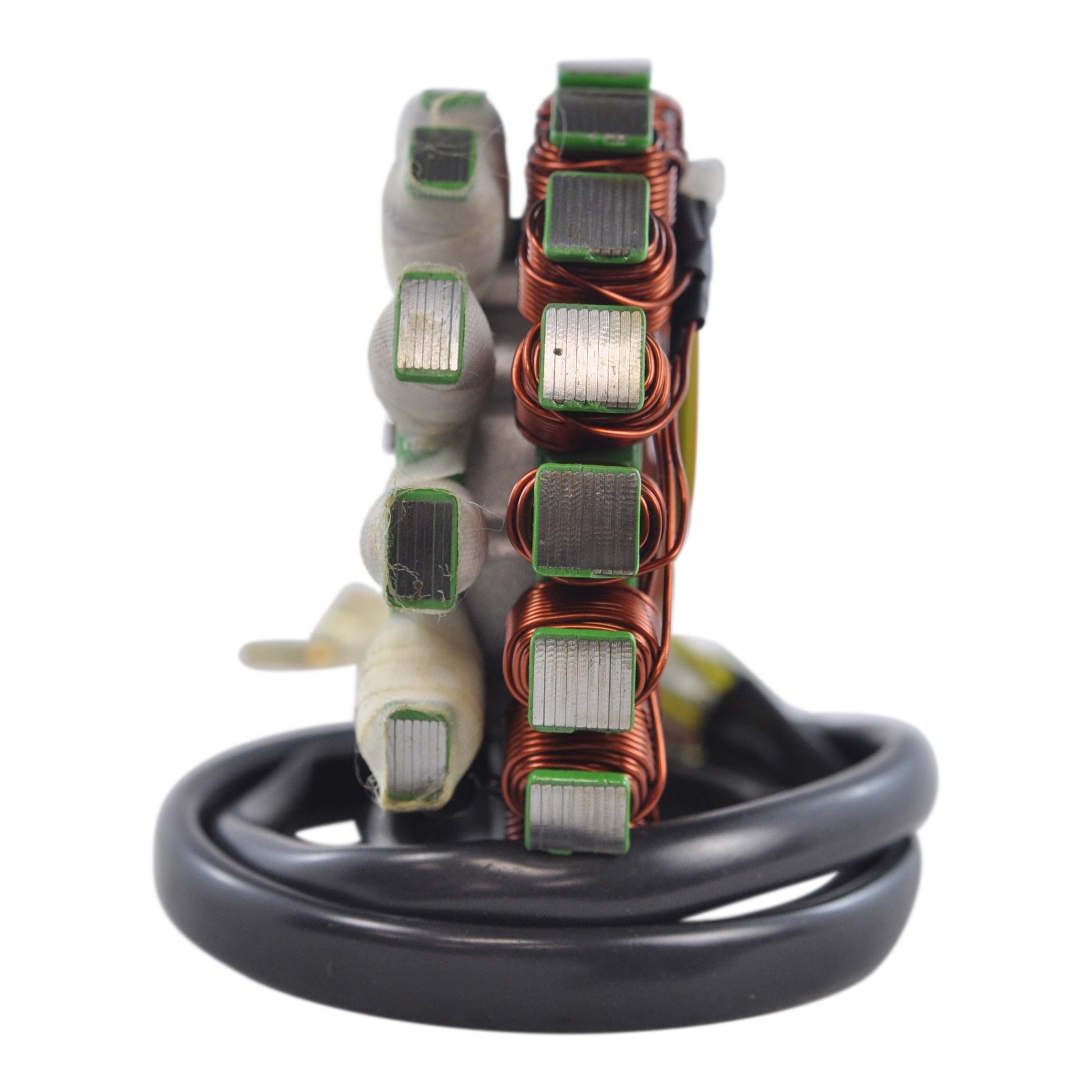

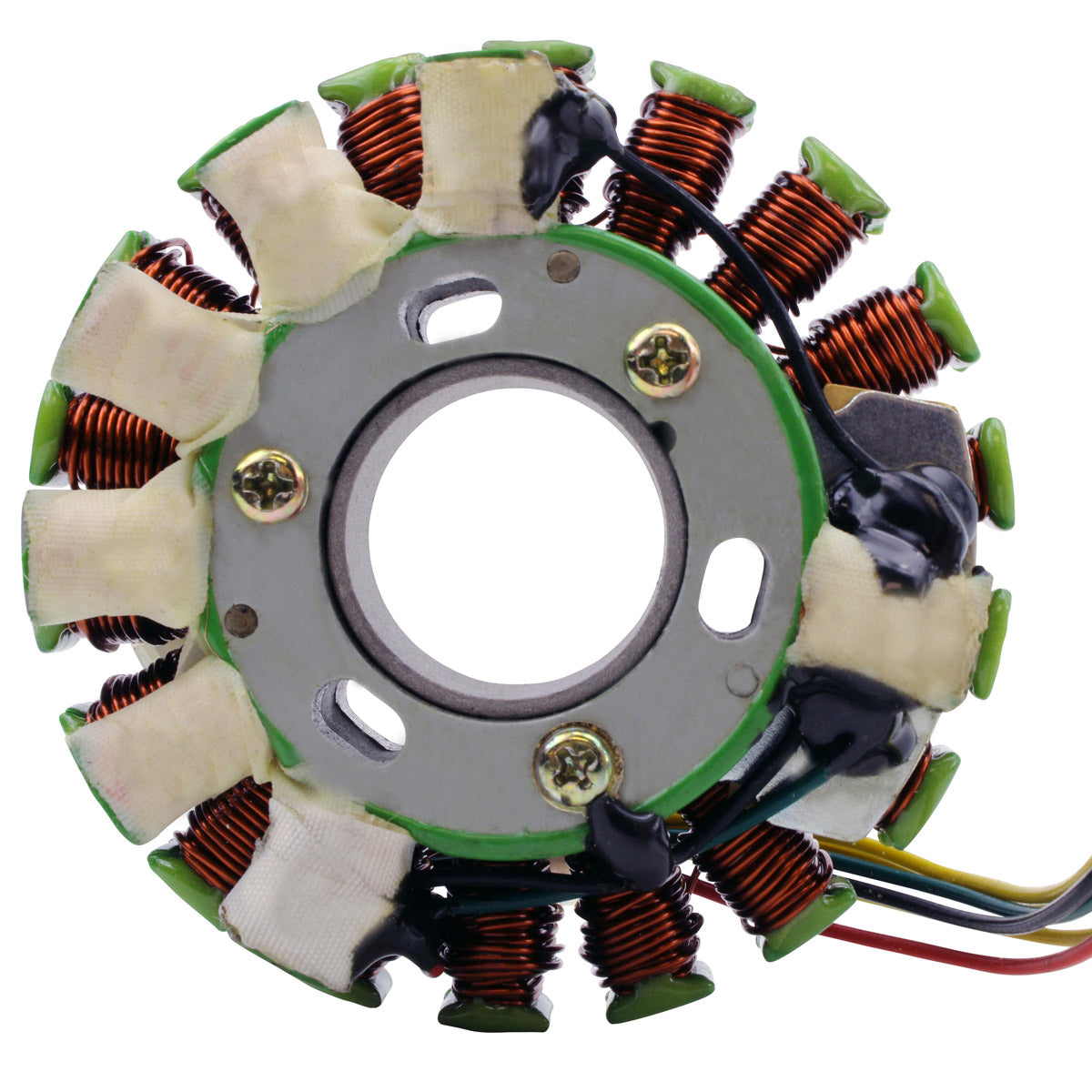

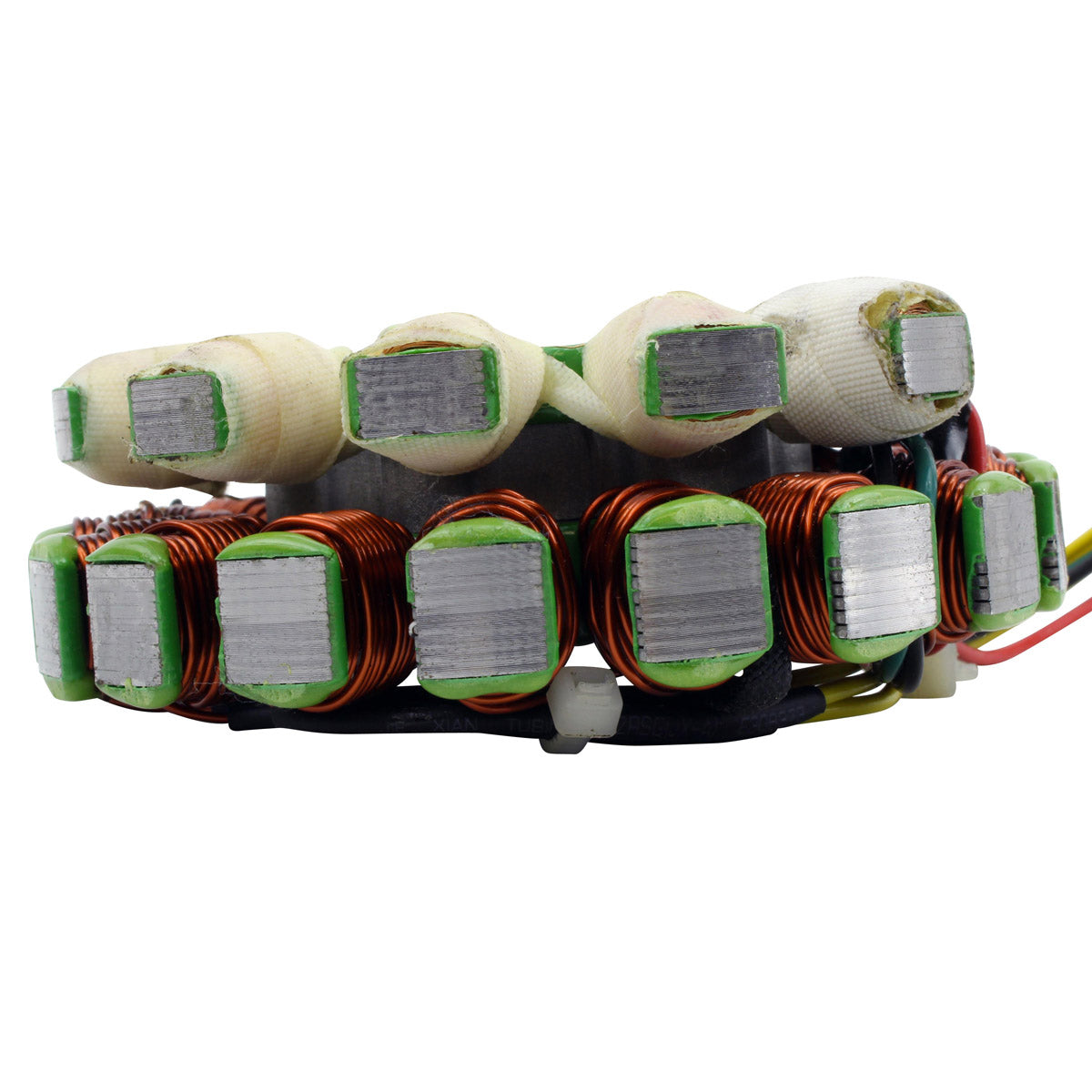

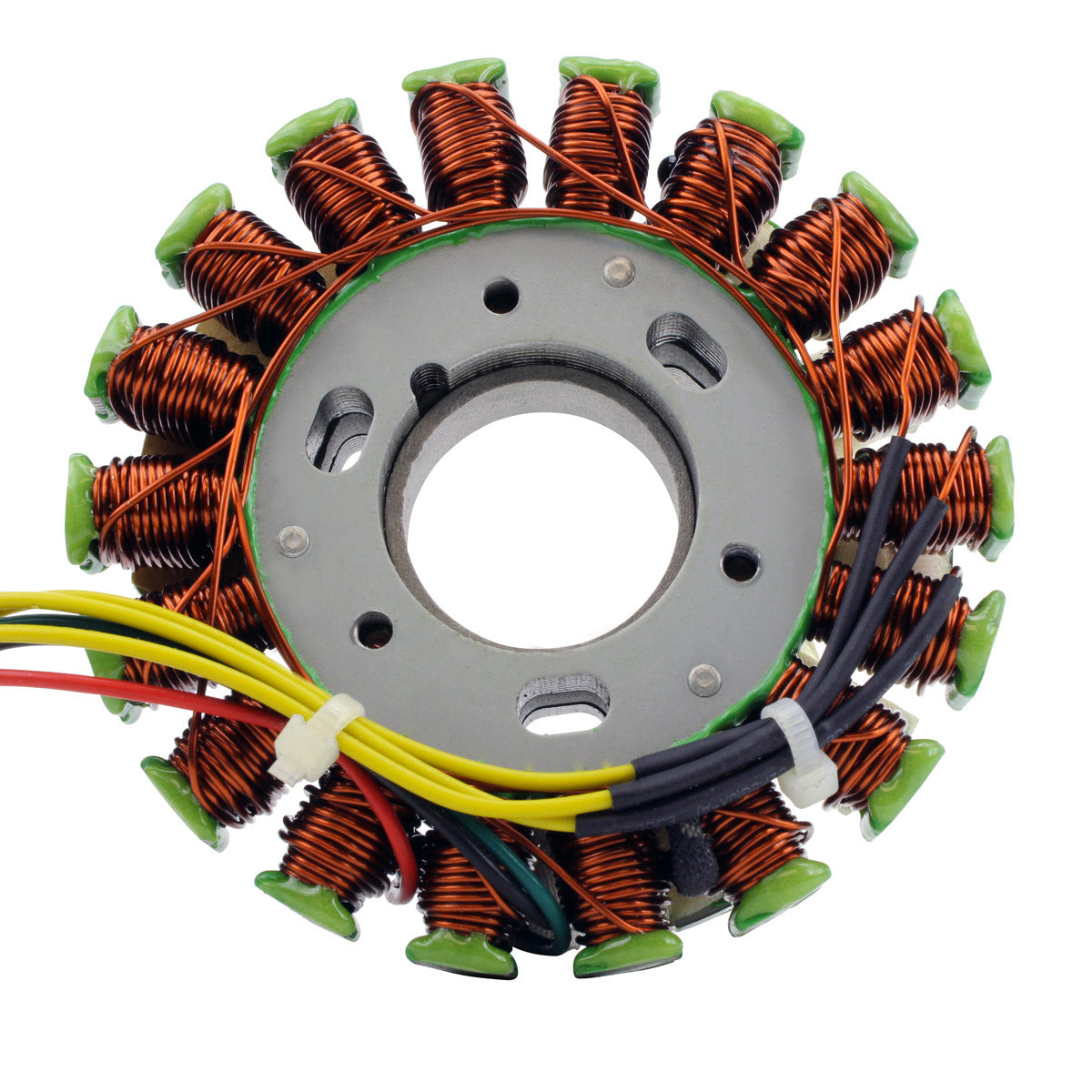

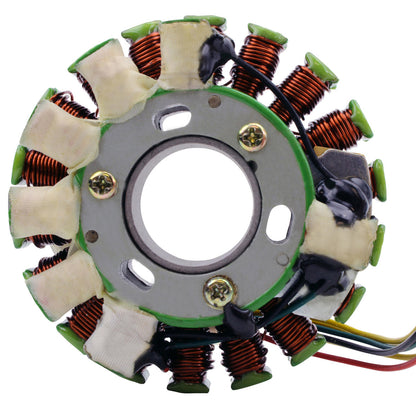

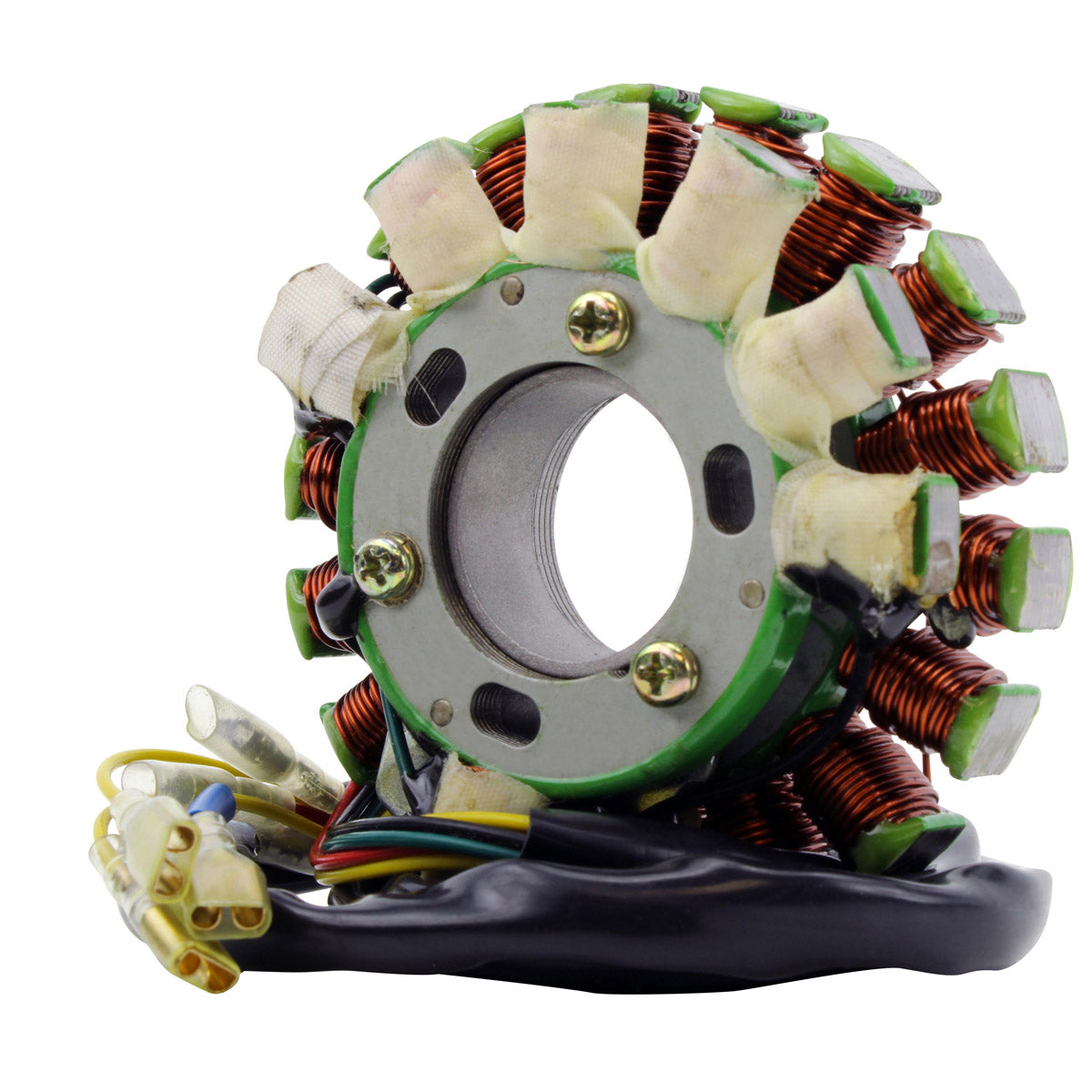

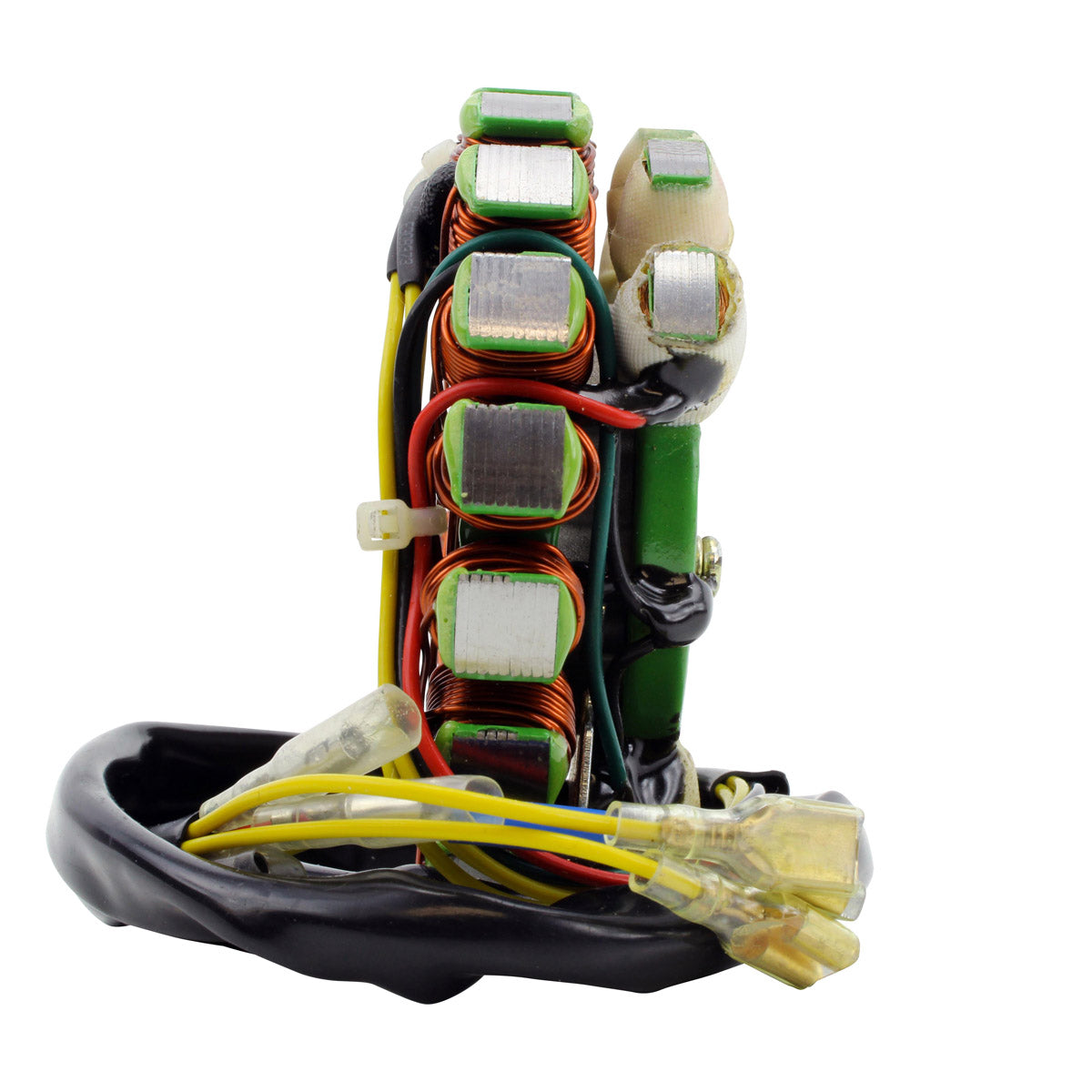

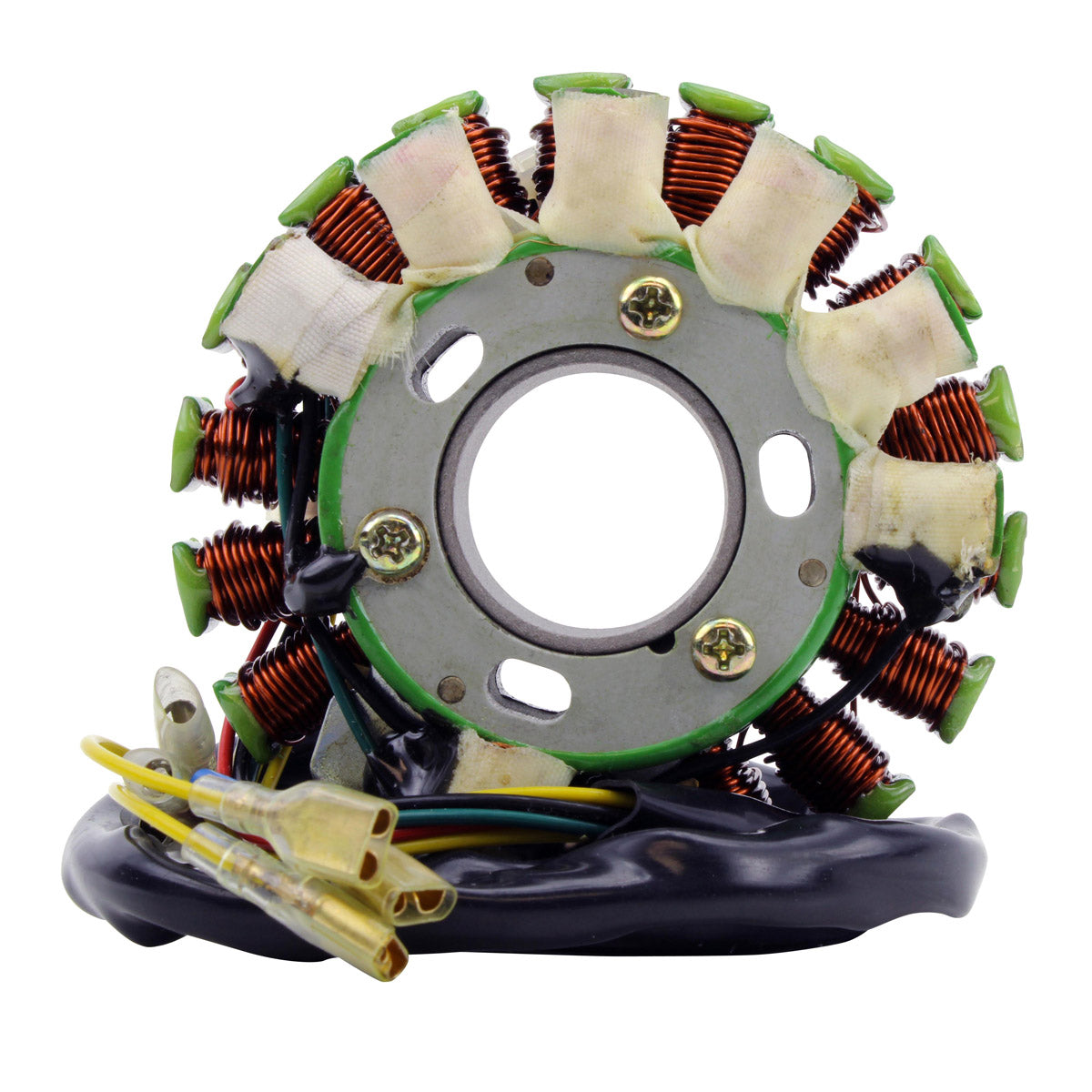

This is a brand new 100-200W lighting stator for the SEM ignition system used on KTM LC4 and Husaberg four-stroke models. It may look different to the part you take off, but it is still a direct replacement for your original unit - plug-and-play, direct fit and easy installation, using the original mounting position and the original wiring route. This stator has a different design than the original but it is a direct fit. The pick up coil is included on the assembly.
The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. On an air-cooled LC4 or Husaberg single that heat rating is the difference between a stator that keeps its output and one that cooks. All product shipped are tested and all item pictures are accurate. This part is supplied under RMSTATOR part number RM01192 and replaces OEM part number 58031002050.
Key Features
- Brand new 100-200W lighting stator
- Direct replacement for your original unit, although the design differs
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up coil included
- All product shipped are tested
Technical Specs
| Specification |
Detail |
| Power output |
100-200W |
| Interior diameter |
28 mm |
| Exterior diameter |
91 mm |
| Thickness |
23 mm |
| Length of wires, stator to terminal |
677 mm |
| Number of wires |
6 |
| Number of plugs |
N/A |
| Number of pins |
6 |
| Alternator resistance, between each yellow |
0.4 ohms +/-20% |
| Pickup resistance, black to green |
30 ohms +/-20% |
| Source resistance, black to red |
1300 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| KTM 500 LC4 |
1987-2000 |
| KTM 600 LC4 |
1987-2000 |
| KTM 620 LC4 |
1987-2000 |
| Husaberg FE 350 |
1987-2000 |
| Husaberg FC 400 |
1987-2000 |
| Husaberg FC 501 |
1987-2000 |
| Husaberg FX 600 |
1987-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 58031002050 |
KTM |
| RM01192-R00 |
RMSTATOR |
| RM01192 |
RMSTATOR |
Frequently Asked Questions
The photos do not look like my original stator - is it still correct?
Yes. This stator has a different design than the original but it is a direct fit. It uses the original mounting position and the original wiring route, so no modification is needed.
What is included?

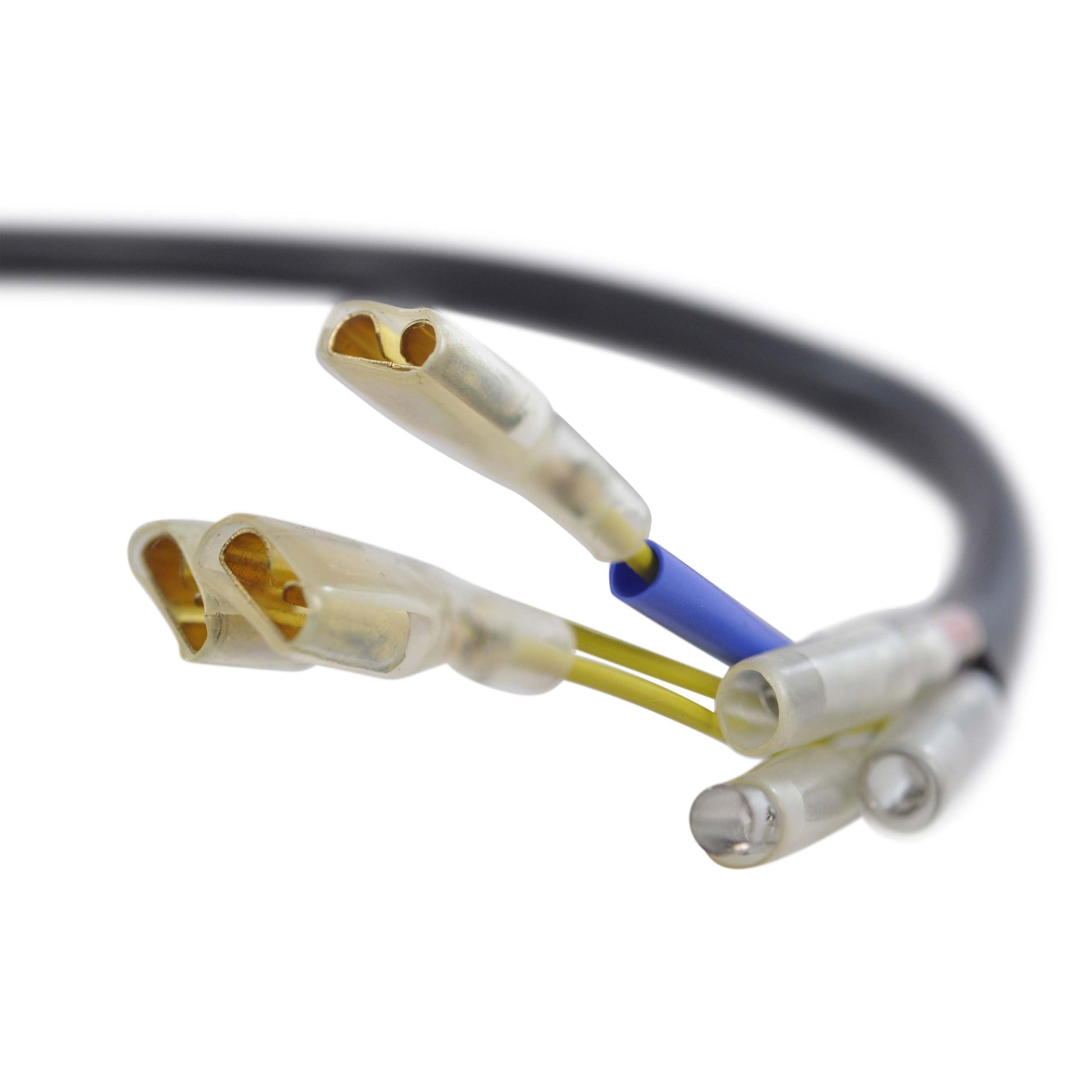

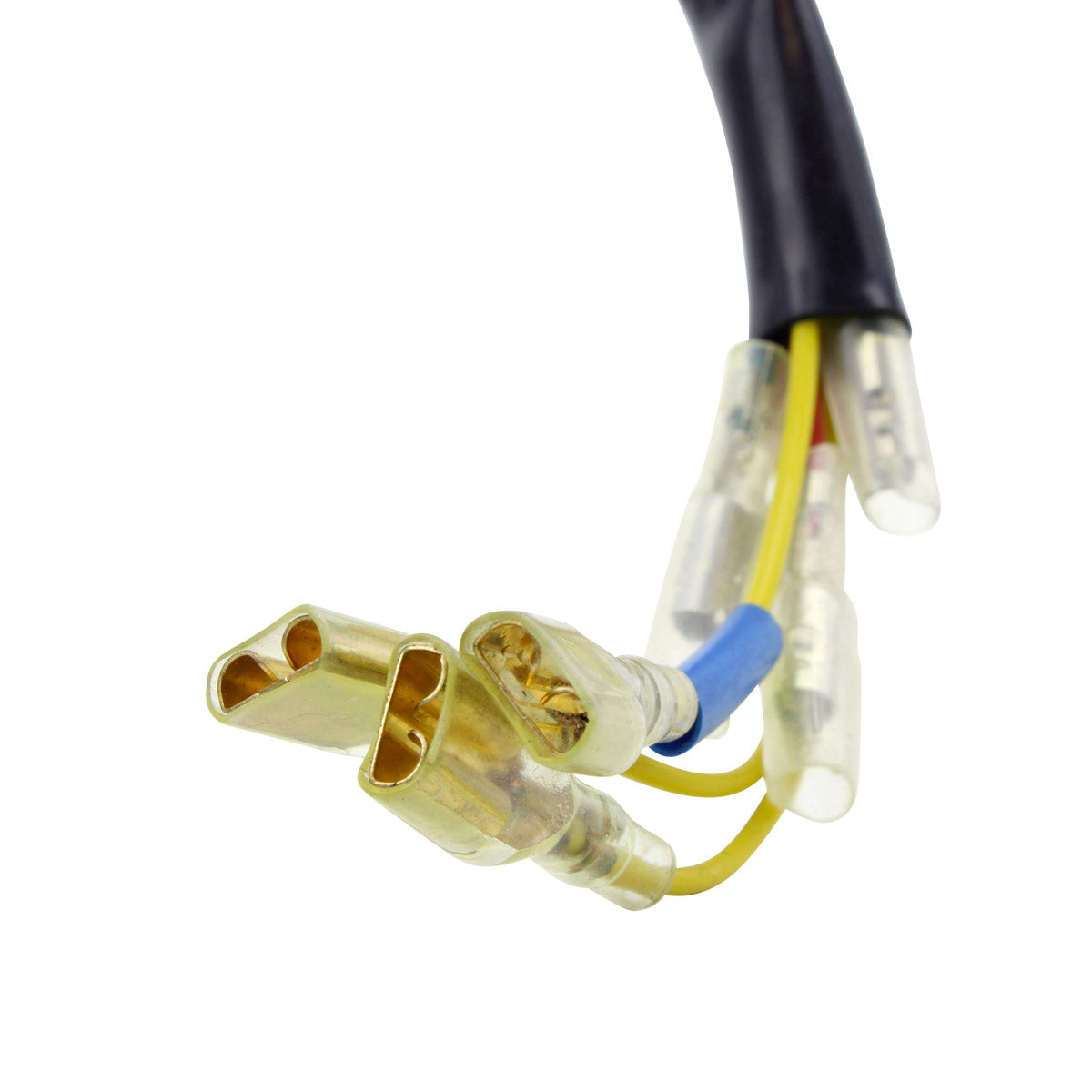

The lighting stator with the pick up coil included. There is no plug on this unit - the six wires run 677 mm from the stator to the terminal. All product shipped are tested.
How do I tell whether my old stator has failed?
Measure the windings with a multimeter against the figures in the Technical Specs table. The alternator windings should read 0.4 ohms +/-20% between each yellow wire, the pickup should read 30 ohms +/-20% from black to green, and the source coil should read 1300 ohms +/-20% from black to red. An open circuit, a badly out of range reading, or continuity from a winding to the stator core all indicate a failed unit.
How much lighting output does this give?
It is rated at 100-200W, which is the standard output range for this SEM lighting stator application.
