LED Flasher Relay for Suzuki GSXR 600/750/1000/1300, Boulevard C50 & DRZ 400 1998-2024
LED Flasher Relay for Suzuki GSXR 600/750/1000/1300, Boulevard C50 & DRZ 400 1998-2024
SKU:RM11307
Free shipping over £150. Terms apply
Couldn't load pickup availability
LED Flasher Relay for Suzuki - RM11307
Suzuki GSXR 600, 750, 1000 and 1300, Boulevard C50 and M109, DRZ 400 - 1998-2024
This is a brand new LED flasher relay for Suzuki motorcycles, covering the GSXR 600, 750, 1000 and 1300, the Boulevard C50 and M109 and the DRZ 400 across a 1998 to 2024 span. It replaces the original relay in the same location using the existing 7-terminal connection, so fitting is a straightforward swap with no rewiring.
A flasher relay controls the on-off timing of the indicators. Standard relays are built around the current draw of filament bulbs, which is why fitting LED indicators to a bike that still has its original relay commonly causes hyper-flashing or indicators that do not flash at all - the LEDs simply do not pull enough current for the relay to time correctly. An LED-compatible relay such as this one is designed to work with that lower load. The quality exceeds the OEM equipment and all products shipped are tested.
Key Features
- Brand new LED flasher relay
- Direct replacement for the original Suzuki relay

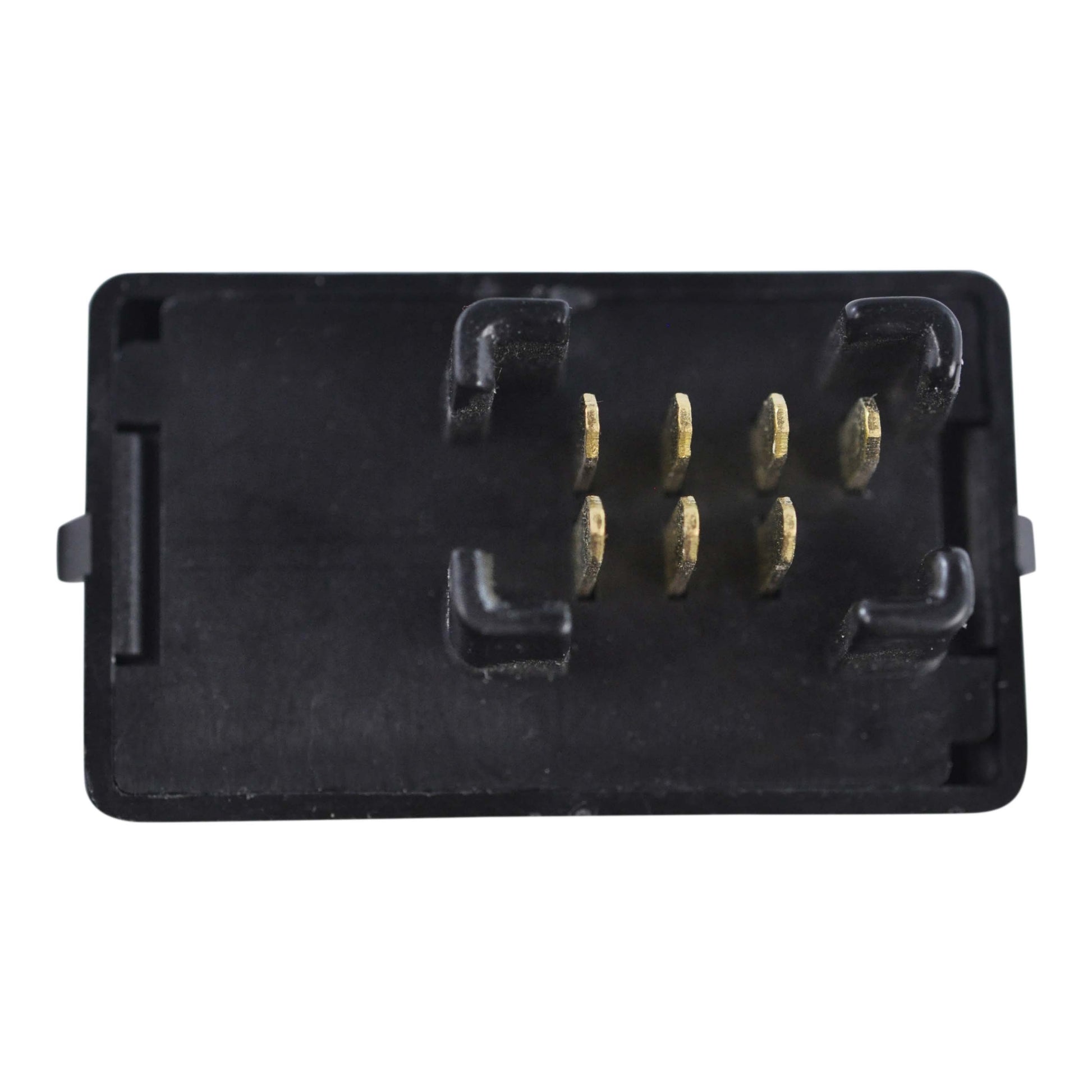

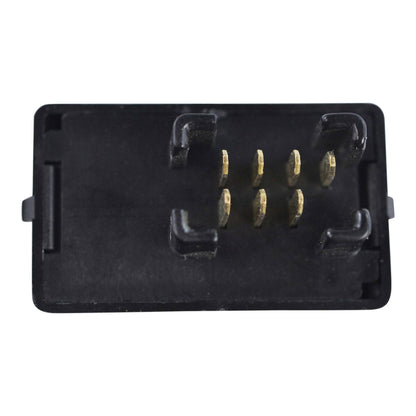

- 7-terminal connection, matching the original
- Compact - 40 mm long, 32 mm high and 24 mm wide
- The quality exceeds the OEM equipment
- Cross references three Suzuki OEM part numbers
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM11307 |
| Height | 32 mm |
| Length | 40 mm |
| Width | 24 mm |
| Number of terminals | 7 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki GSXR 600 | 1998-2024 |
| Suzuki GSXR 750 | 1998-2024 |
| Suzuki GSXR 1000 | 1998-2024 |
| Suzuki GSXR 1300 | 1998-2024 |
| Suzuki Boulevard C50 | 1998-2024 |
| Suzuki Boulevard M109 | 1998-2024 |
| Suzuki DRZ 400 | 1998-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 38610-03F01 | Suzuki |
| 38610-03F00 | Suzuki |
| 38610-10G00 | Suzuki |
Frequently Asked Questions
Does this need any modification to fit?
No. It uses the same 7-terminal connection as the original relay and measures 40 mm long, 32 mm high and 24 mm wide, so it sits in the original location without cutting or splicing the loom.
What is included?
You receive one brand new LED flasher relay, tested before dispatch. Indicators, bulbs, brackets and wiring adapters are not included.
How do I know my old relay has failed?
Common signs are indicators that stay on solid instead of flashing, indicators that do not light at all on one or both sides while the bulbs themselves are good, an audible click with no flash, or an erratic flash rate that changes with engine speed. Hyper-flashing after fitting LED indicators points to a relay that is not LED compatible rather than a fault.
Why do I need an LED-specific relay?
LED indicators draw much less current than filament bulbs. A relay timed for filament loads reads that low draw as a blown bulb, which is what produces hyper-flashing or no flash at all. An LED flasher relay is built to operate correctly at that lower current.
