Stator for Suzuki RM 125 1986-1988 & RM 250 1989-1995
Stator for Suzuki RM 125 1986-1988 & RM 250 1989-1995
SKU:RM01452
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Suzuki RM 125 and RM 250 - OEM 32101-00B30, 32101-28C00 and Cross References
Suzuki RM 125 1986-1988 and RM 250 1989-1995 - part number RM01452

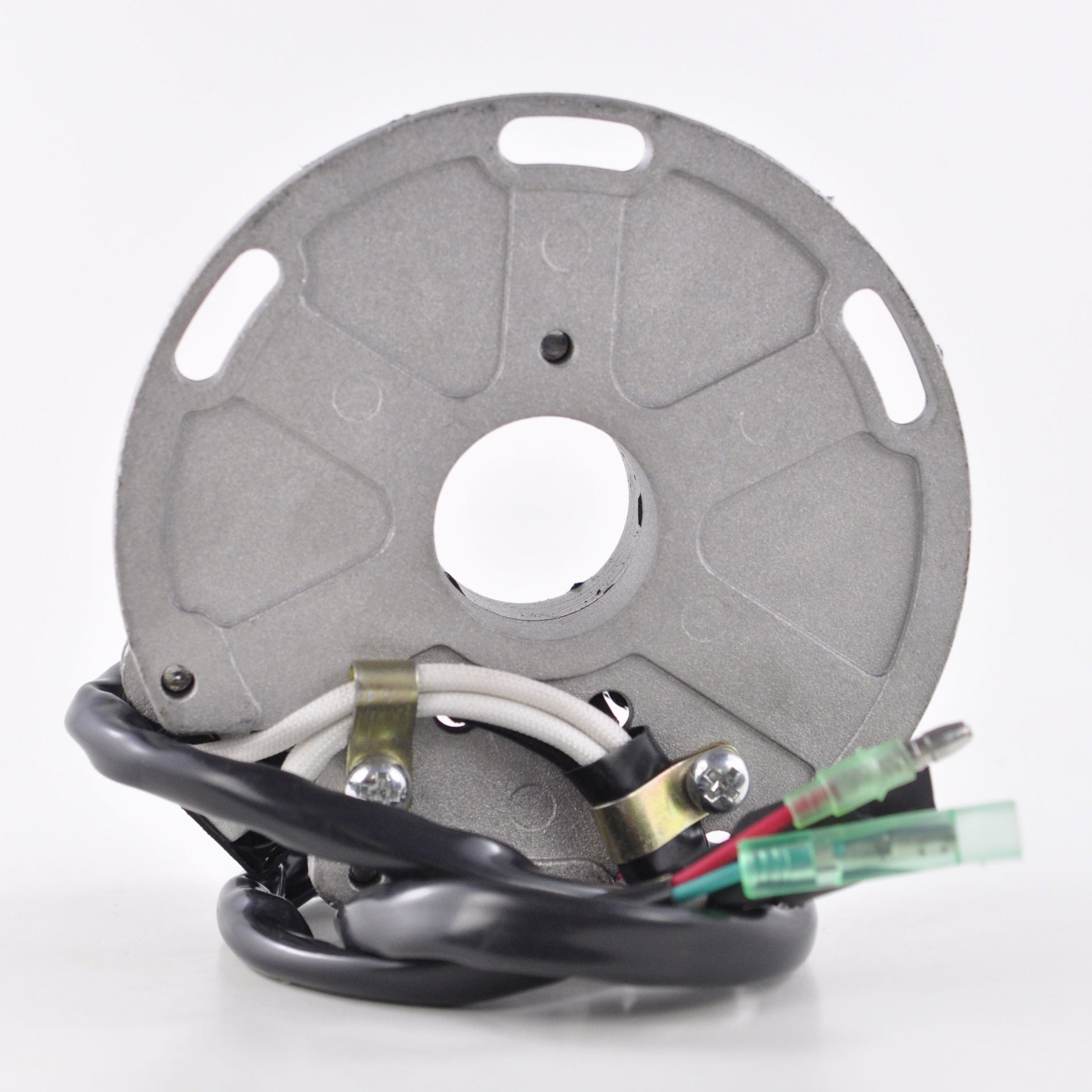

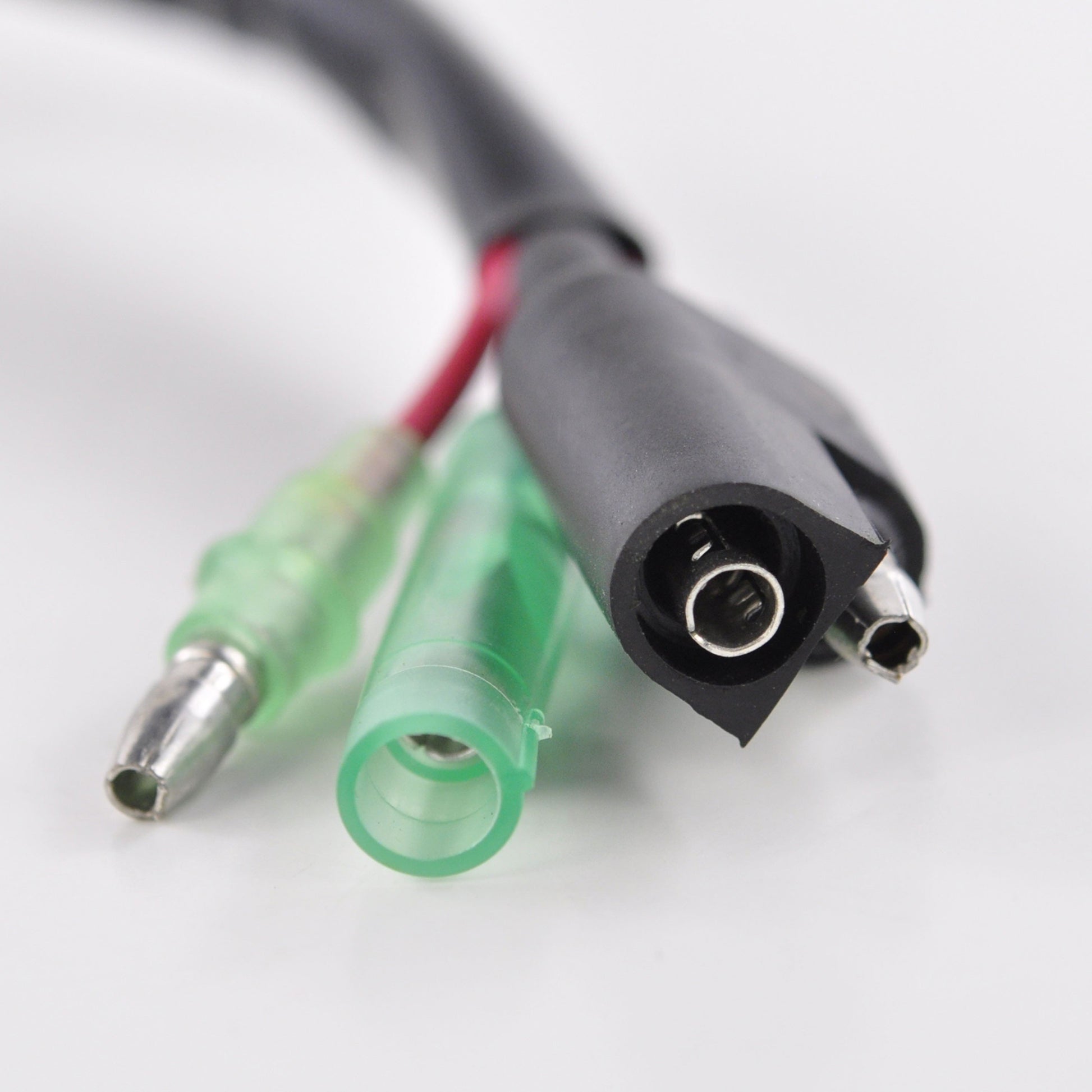

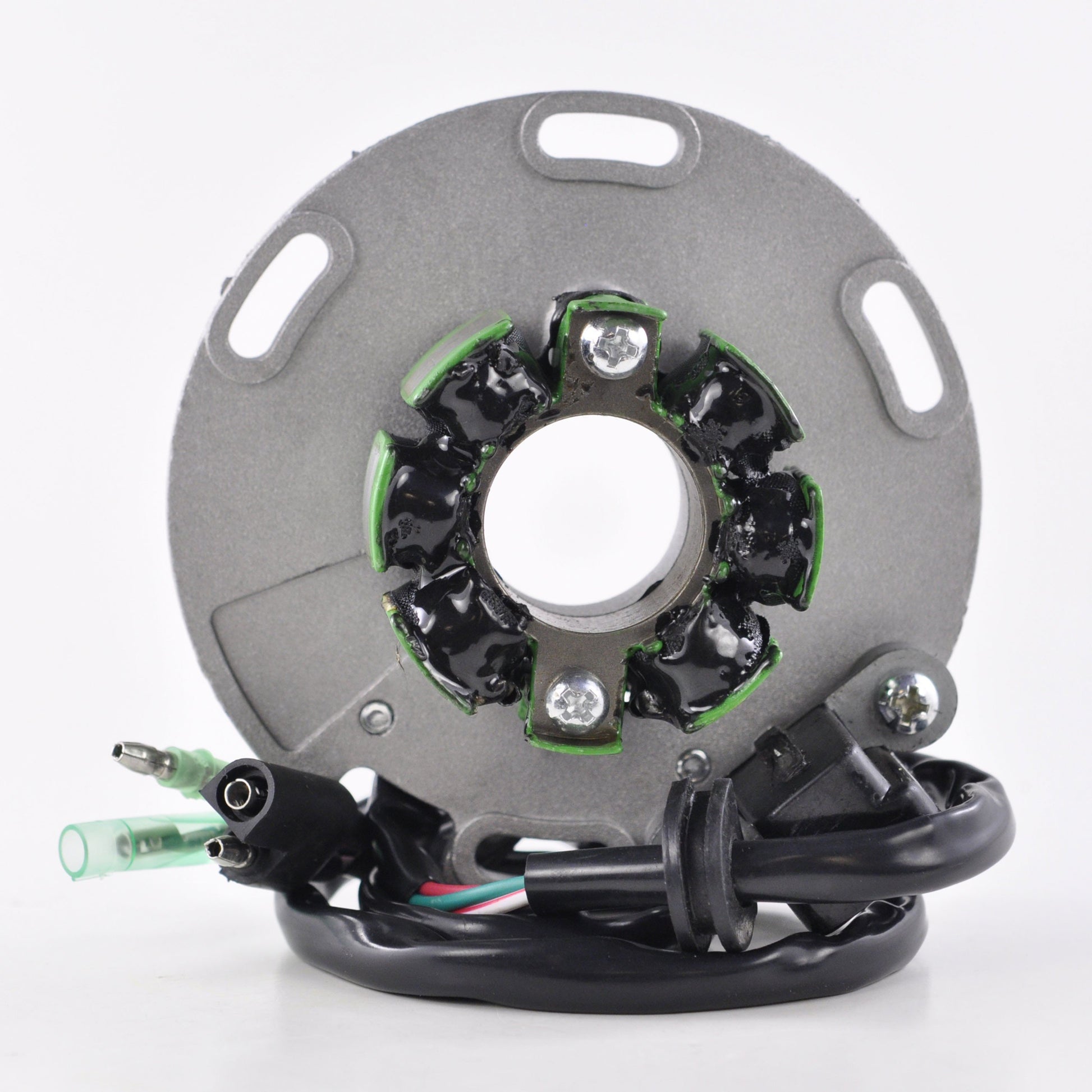

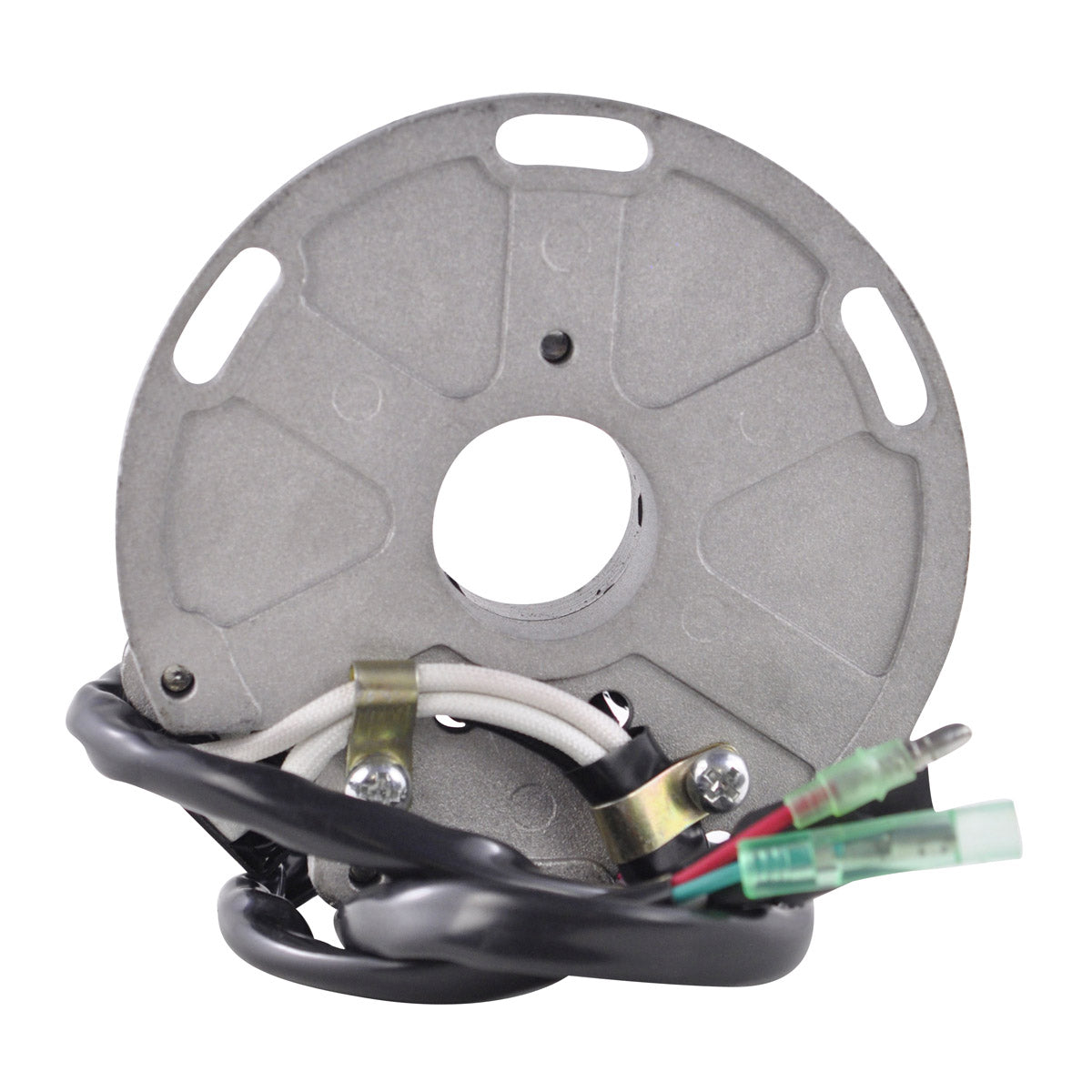

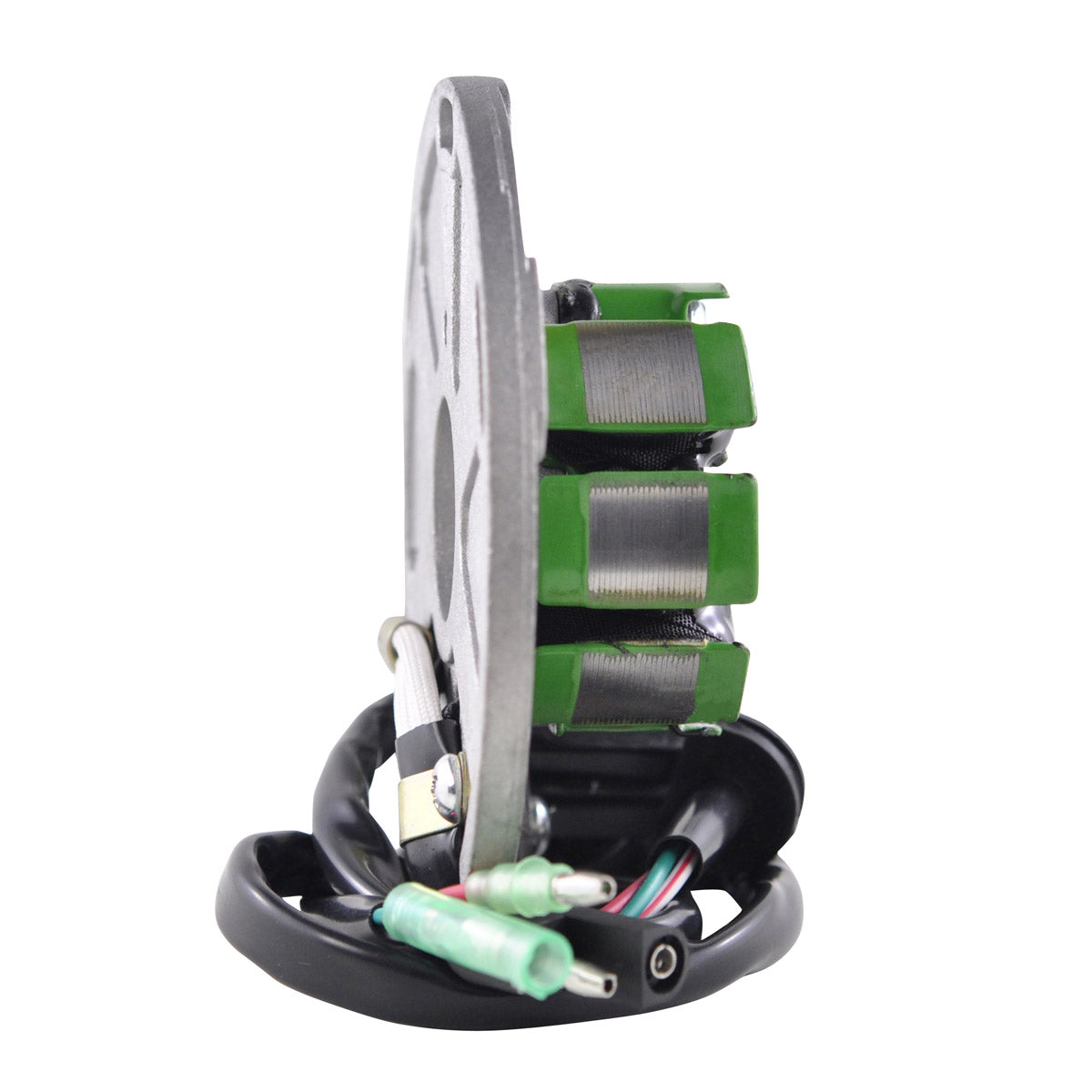

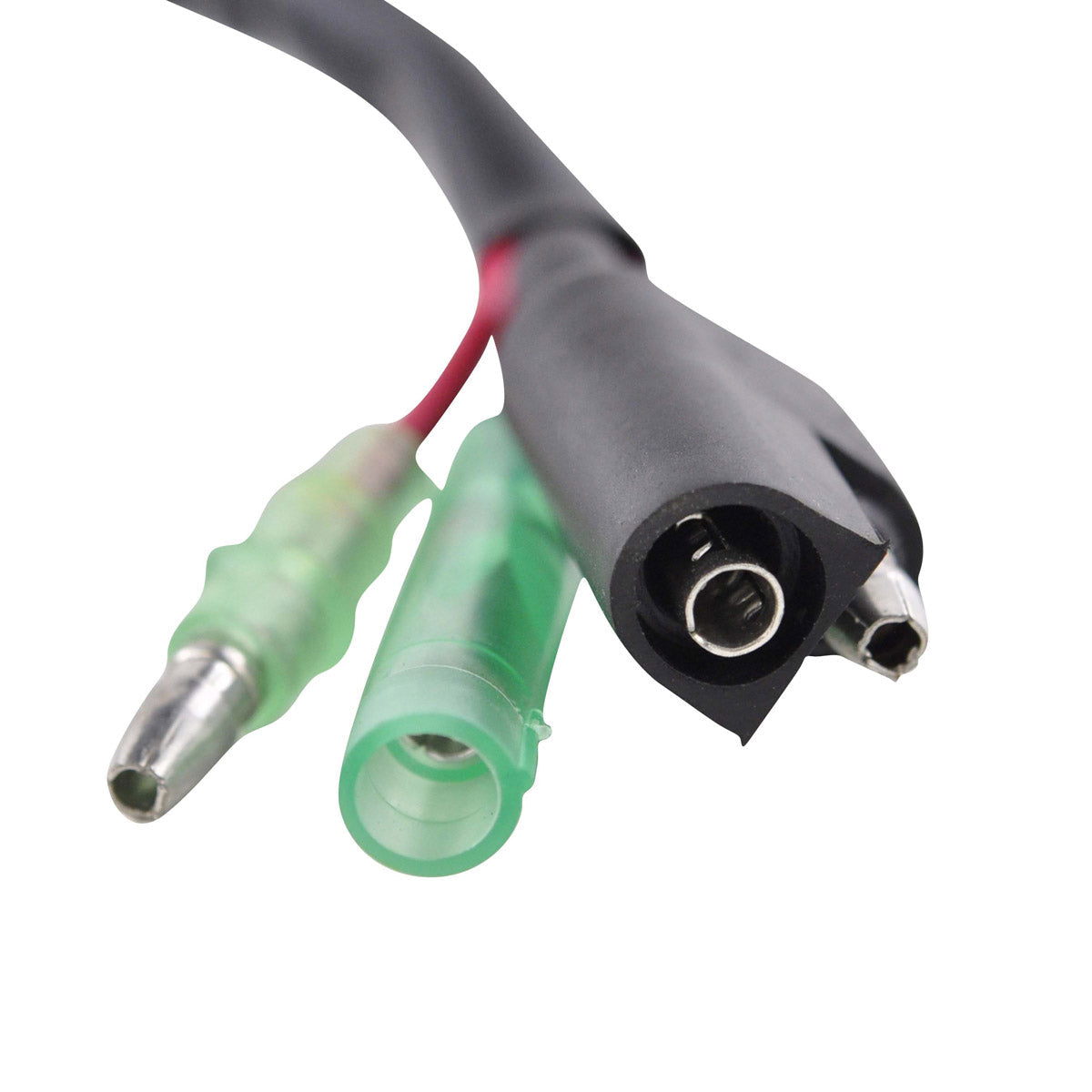

A brand new aftermarket stator for the Suzuki RM 125 of 1986 to 1988 and the RM 250 of 1989 to 1995, supplied as a direct replacement for the original unit. It is plug-and-play and a direct fit, mounting on the standard fixings behind the flywheel, so nothing on the bike needs cutting, drilling or rewiring.
This is a complete plate assembly rather than a bare winding. The pick up pulsar coil and the back plate are both included, so the ignition trigger and the source coil are renewed together in a single job - which matters on machines of this age, where a weak spark is usually the combined result of both parts having done thirty years of service. Construction uses the highest grade of lamination materials and the highest grade of copper windings, resistant to 200 degrees Celsius. Every unit is tested before it is shipped, and a rubber grommet is supplied with it. One part number covers nine Suzuki OEM references across the two models.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Back plate included
- Rubber grommet included
- Covers nine Suzuki OEM part numbers
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01452 |
| Interior diameter | 28 mm |
| Exterior diameter | 58 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 45 mm |
| Wire length, grommet to plug | 500 mm |
| Pickup coil wire to grommet | 60 mm |
| Number of wires | 4 |
| Number of plugs | 3 |
| Number of pins | 4 |
| Pickup resistance, Green to Blue | 102 ohms +/-20% |
| Source resistance, Black/Red to Red/White | 168 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki RM 125 | 1986-1988 |
| Suzuki RM 250 | 1989-1995 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-00B30 | Suzuki |
| 32101-00B31 | Suzuki |
| 32101-01B30 | Suzuki |
| 32101-01B31 | Suzuki |
| 32101-01B32 | Suzuki |
| 32101-28C00 | Suzuki |
| 32101-28C01 | Suzuki |
| 32101-28C02 | Suzuki |
| 32101-28C03 | Suzuki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement for the original unit and fits plug-and-play on the standard mounting points. With nine OEM references covered by this one part, the safest check before ordering is to match the number stamped on your existing stator against the cross reference table above.
What is included in the box?
The stator, the pick up pulsar coil, the back plate and the rubber grommet. All products shipped are tested.
How do I tell whether the old stator has failed?
Test both circuits with a meter. The pickup, taken Green to Blue, should read about 102 ohms, plus or minus 20 per cent. The source coil, taken Black/Red to Red/White, should read about 168 ohms, plus or minus 20 per cent. An open circuit, a reading well outside those figures, or continuity from a winding to the stator body all confirm a failure.
Does the same part suit both the RM 125 and the RM 250?
Yes, but the year ranges differ between the two models: the RM 125 is covered from 1986 to 1988 and the RM 250 from 1989 to 1995. Check your model year against the fitment table as well as the OEM number on the unit you are replacing.
