Lombardini Starter Motor 12V 9-Tooth for Diesel Engines - Replaces 563R0540
Lombardini Starter Motor 12V 9-Tooth for Diesel Engines - Replaces 563R0540
SKU:410-24209
Free shipping over £150. Terms apply
Couldn't load pickup availability

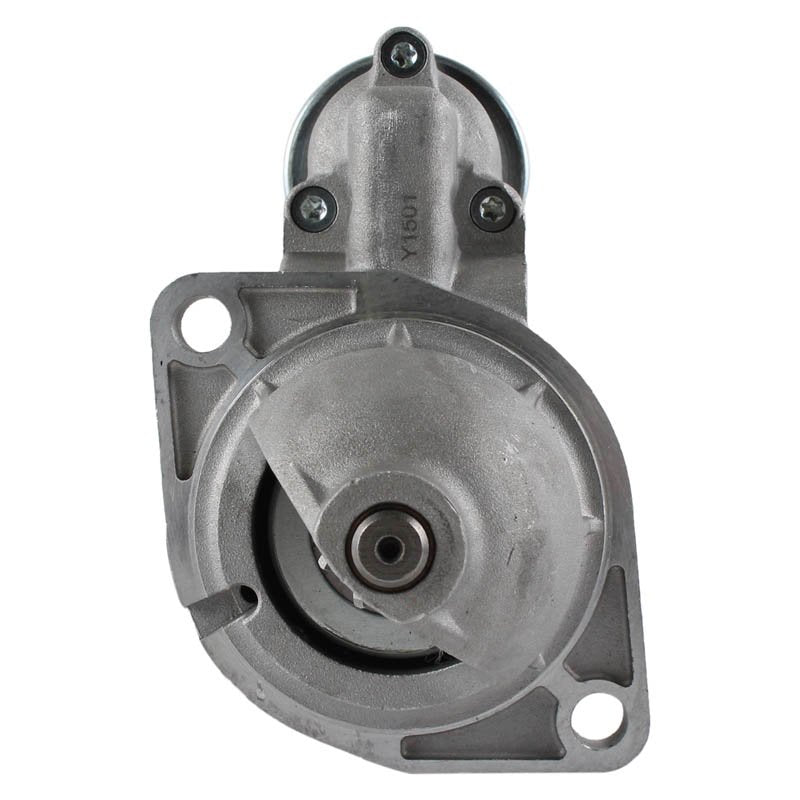

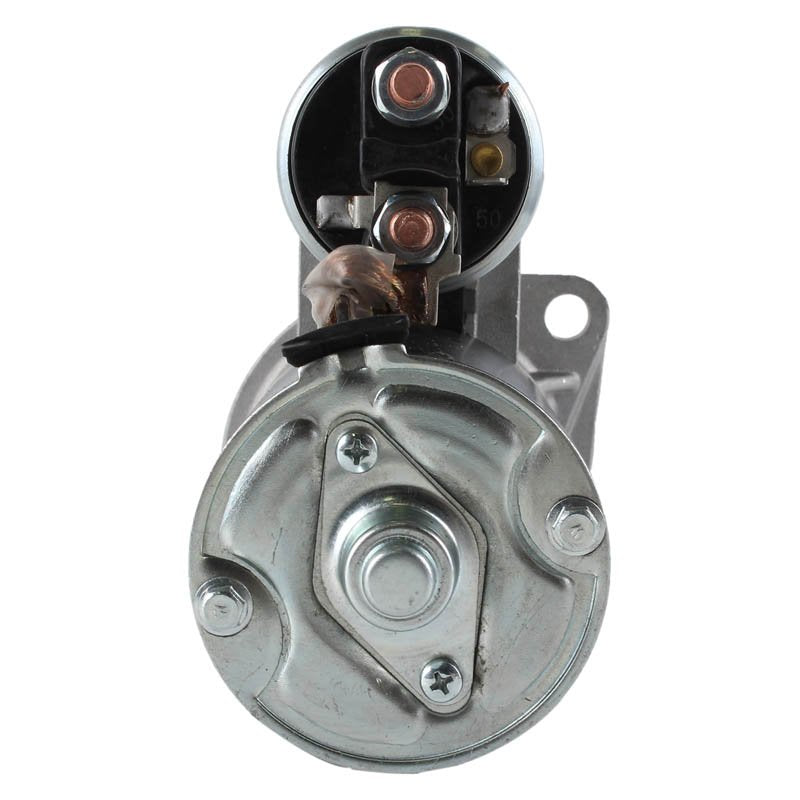

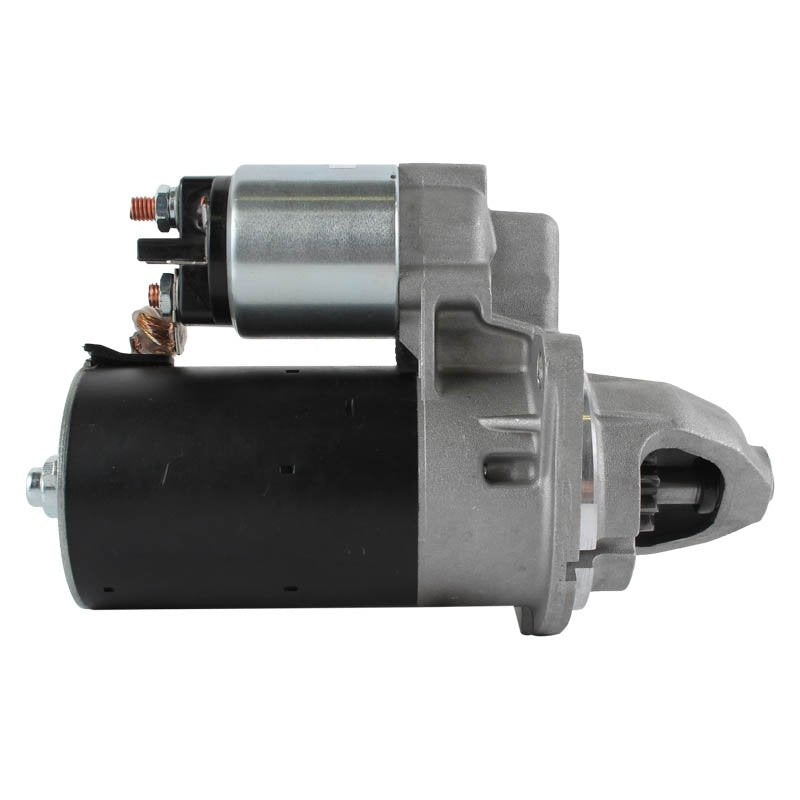

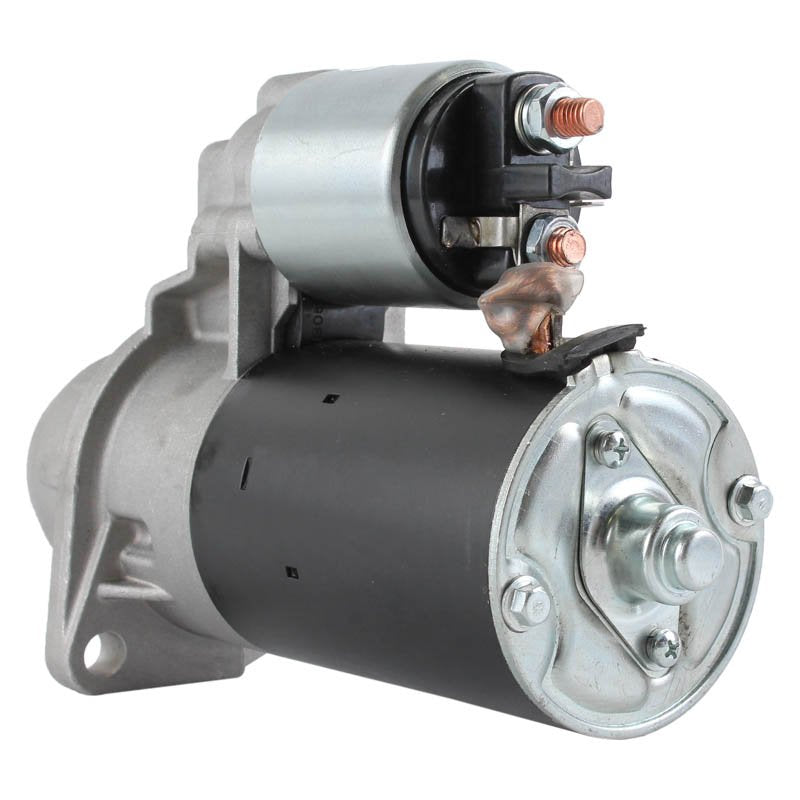

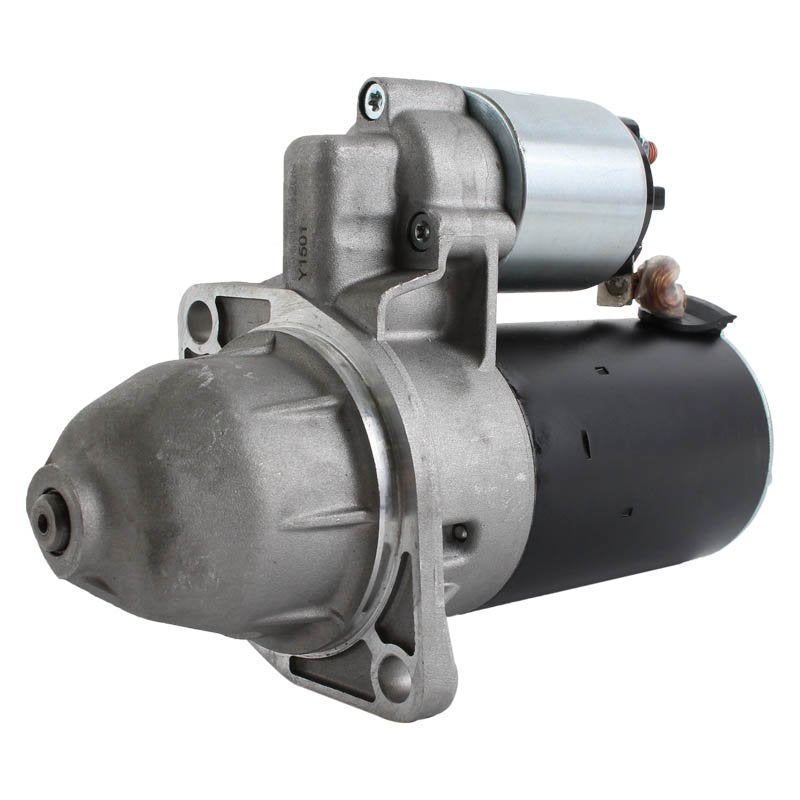

Lombardini Starter Motor 12V 9-Tooth
Direct replacement for Lombardini 563R0540 on small industrial and agricultural diesels
A new 12-volt, 9-tooth starter motor for Lombardini diesel engines, built as a direct replacement for the original 563R0540 unit.
Lombardini engines power generators, compactors, compact tractors and light plant, where the starter sees frequent short duty cycles in dusty conditions. This unit matches the original mounting flange, rotation and pinion count so it bolts straight on.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- 12-volt with 9-tooth pinion, matched to the Lombardini original
- Direct replacement for OE 563R0540 - no modification needed
- Built for the short, frequent start cycles of small industrial diesels
- Solenoid supplied fitted as a complete assembly
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 410-24209 |
| Component | Starter Motor |
| Voltage | 12 Volts |
| Tooth Count | 9 Teeth |
| Condition | New aftermarket |
| Warranty | 12 months |
Application / Fitment Guide
| Engine Make | Application |
|---|---|
| Lombardini | Diesel engines using the 9-tooth 12V starter - OE ref 563R0540 |
| Typical machinery | Generator sets, compactors, compact tractors and light plant |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 563R0540 | Lombardini (OE) |
| 410-24209 | 4Drive / Moto-Electrical |
Frequently Asked Questions
Will this replace my original Lombardini starter?
Yes, where the original carries part number 563R0540 and has a 9-tooth pinion on a 12-volt system. Mounting and connections are identical to the original.
How do I check the tooth count?
Count the teeth on the small gear (pinion) at the nose of the starter. It must match the ring gear on your flywheel - a mismatch will not engage correctly and will damage both parts.
Is the solenoid included?
Yes - it is supplied as a complete assembly with the solenoid already fitted.
My engine turns slowly then stops - is the starter or the battery at fault?
Test the battery under load first. If it holds voltage and the cables and earth strap are clean and tight, slow cranking that improves briefly after resting usually points to worn brushes or a failing solenoid inside the starter.
