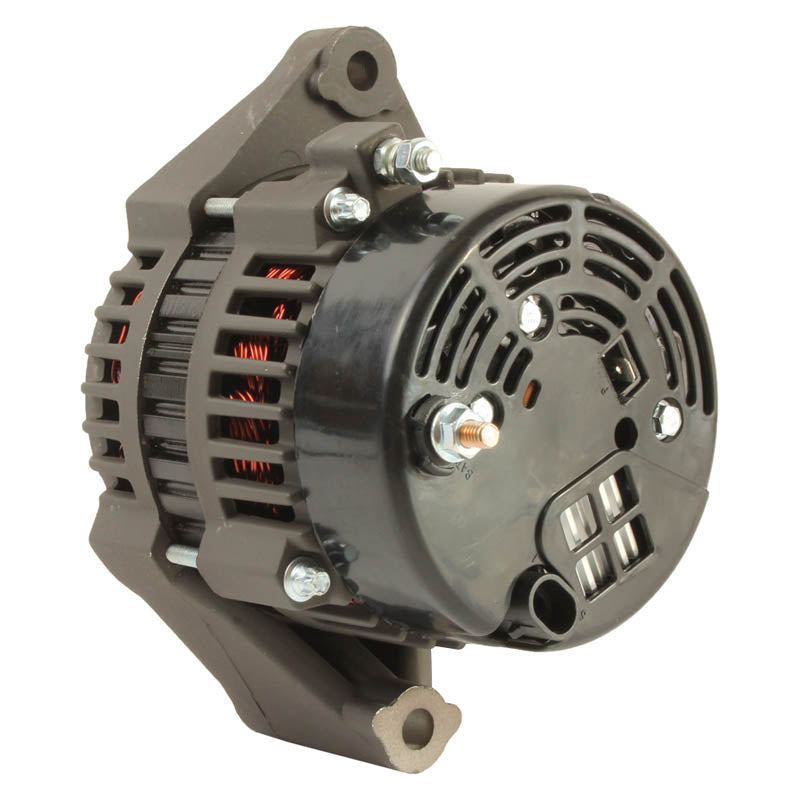

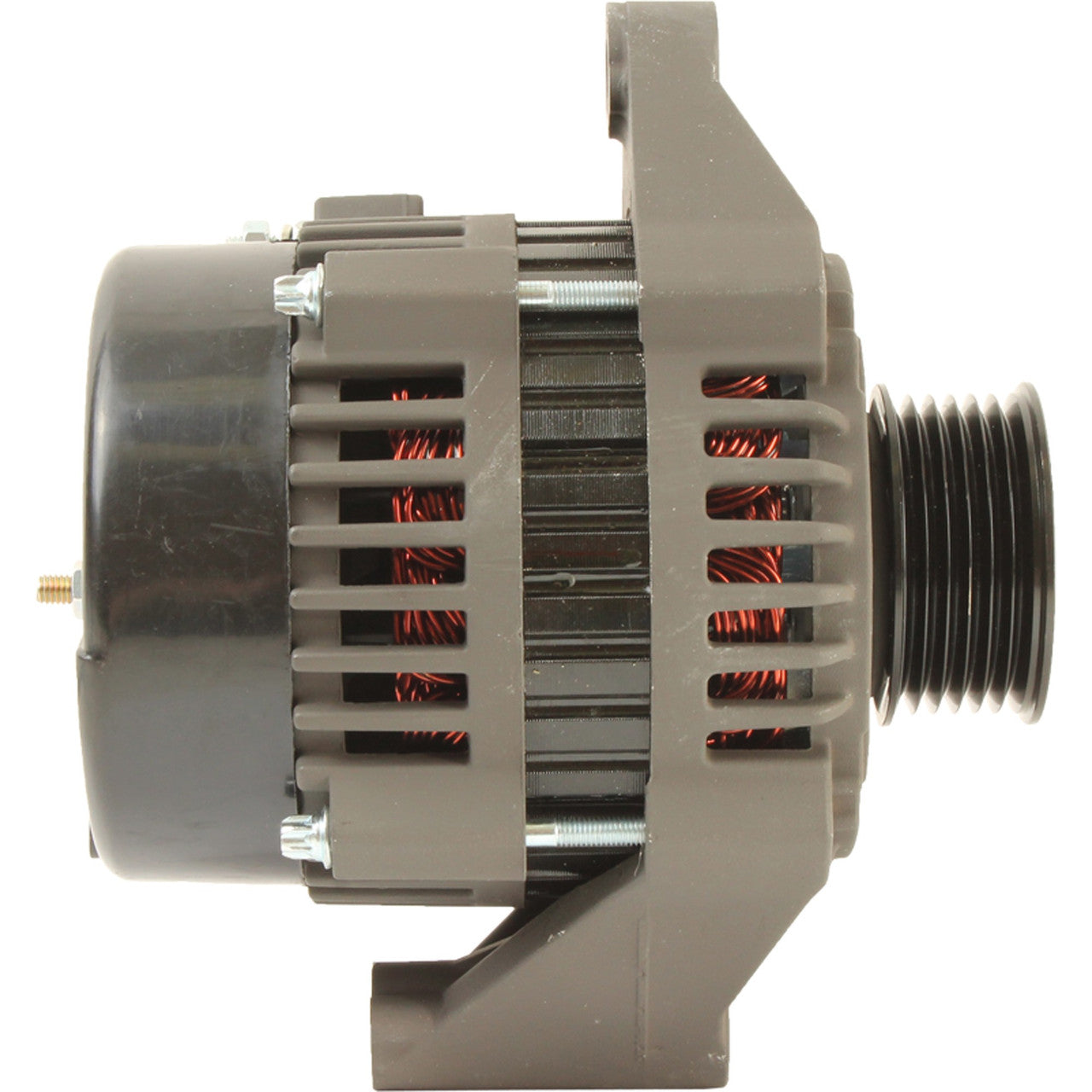

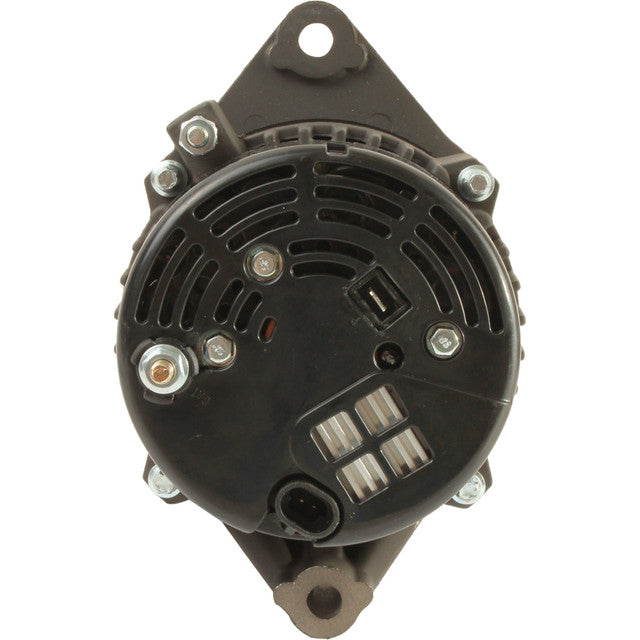

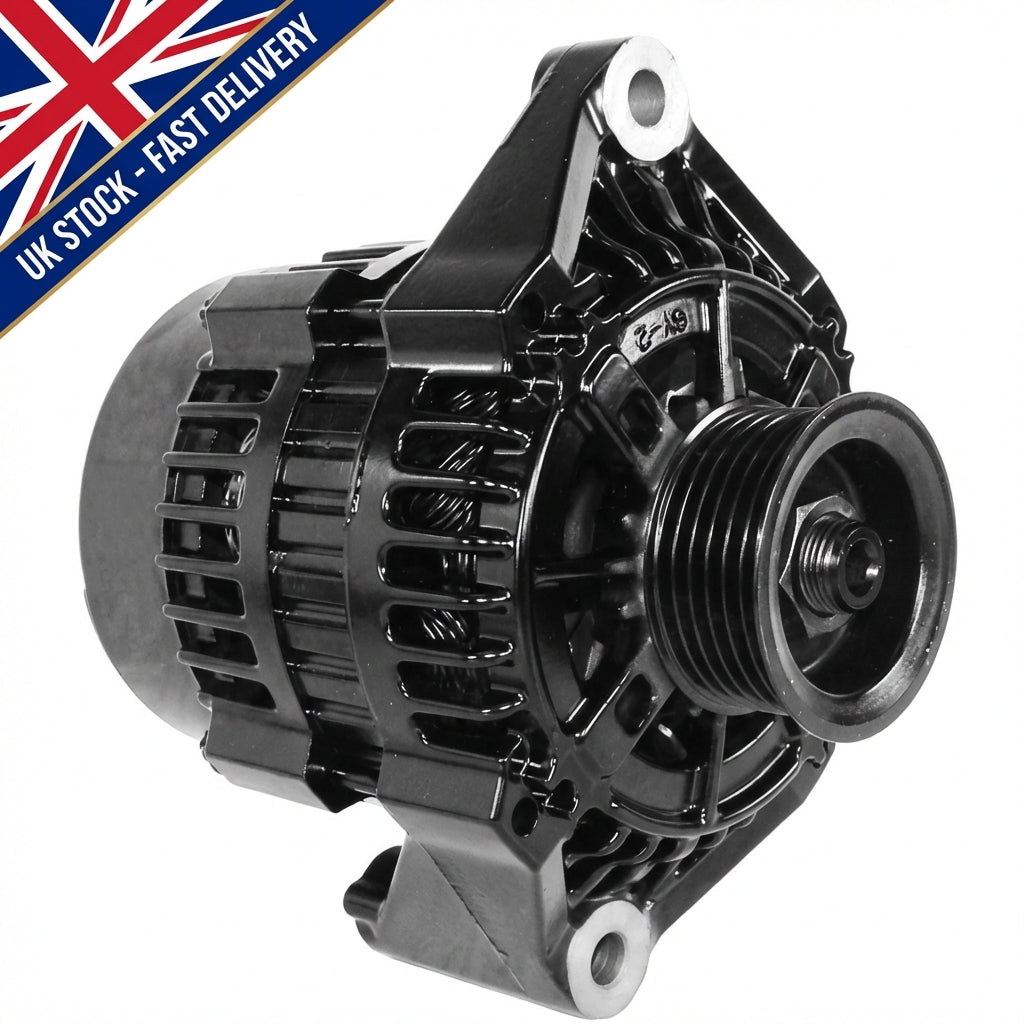

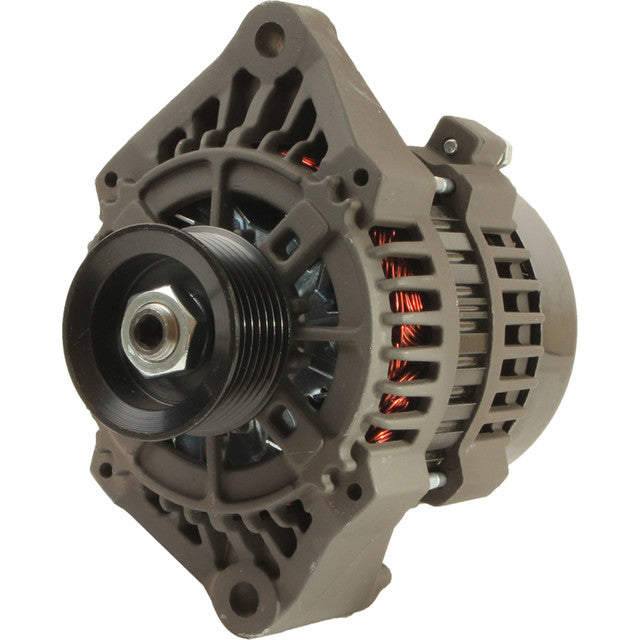

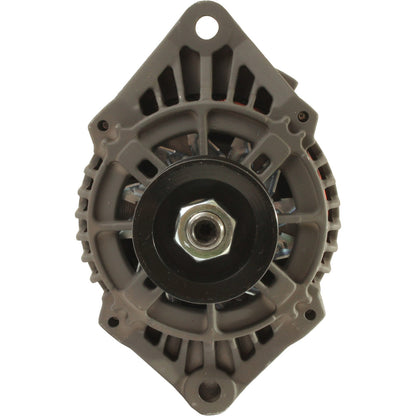

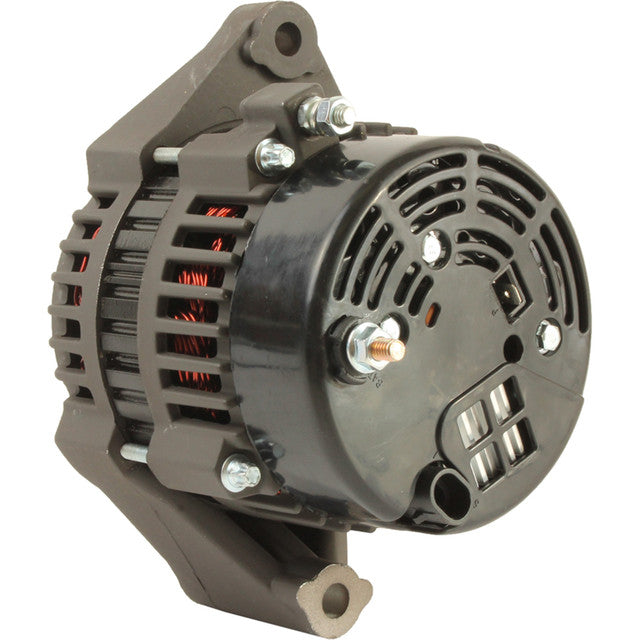

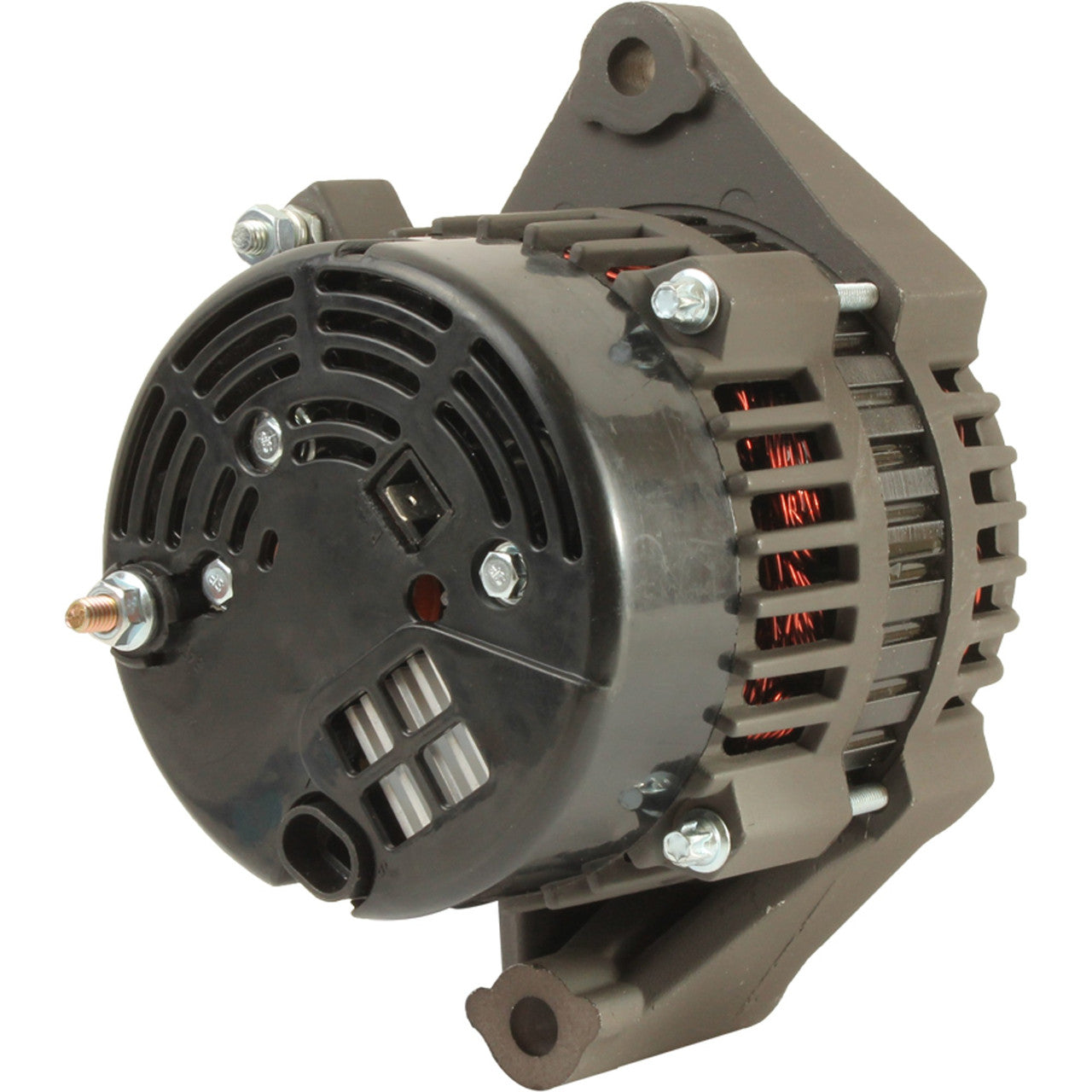

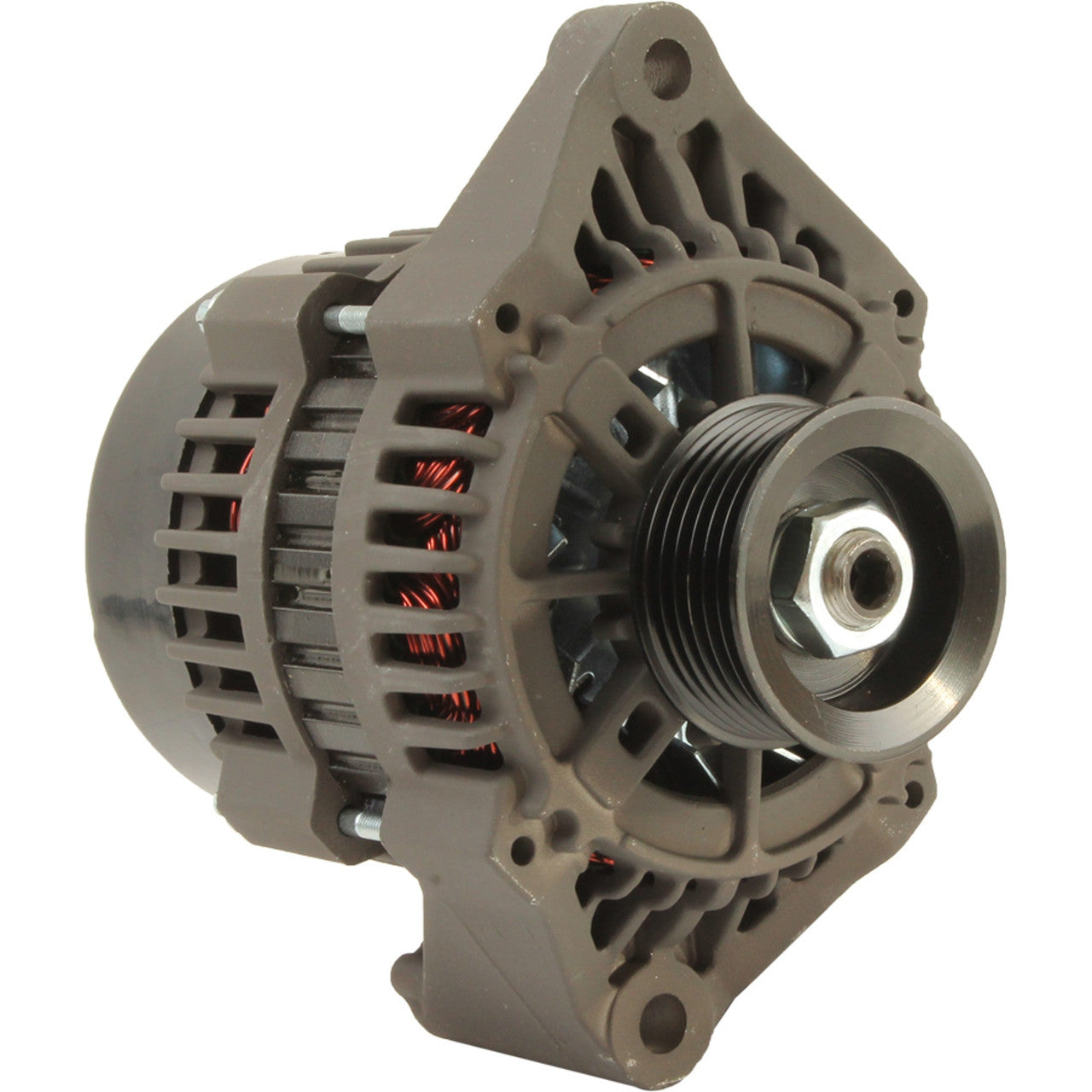

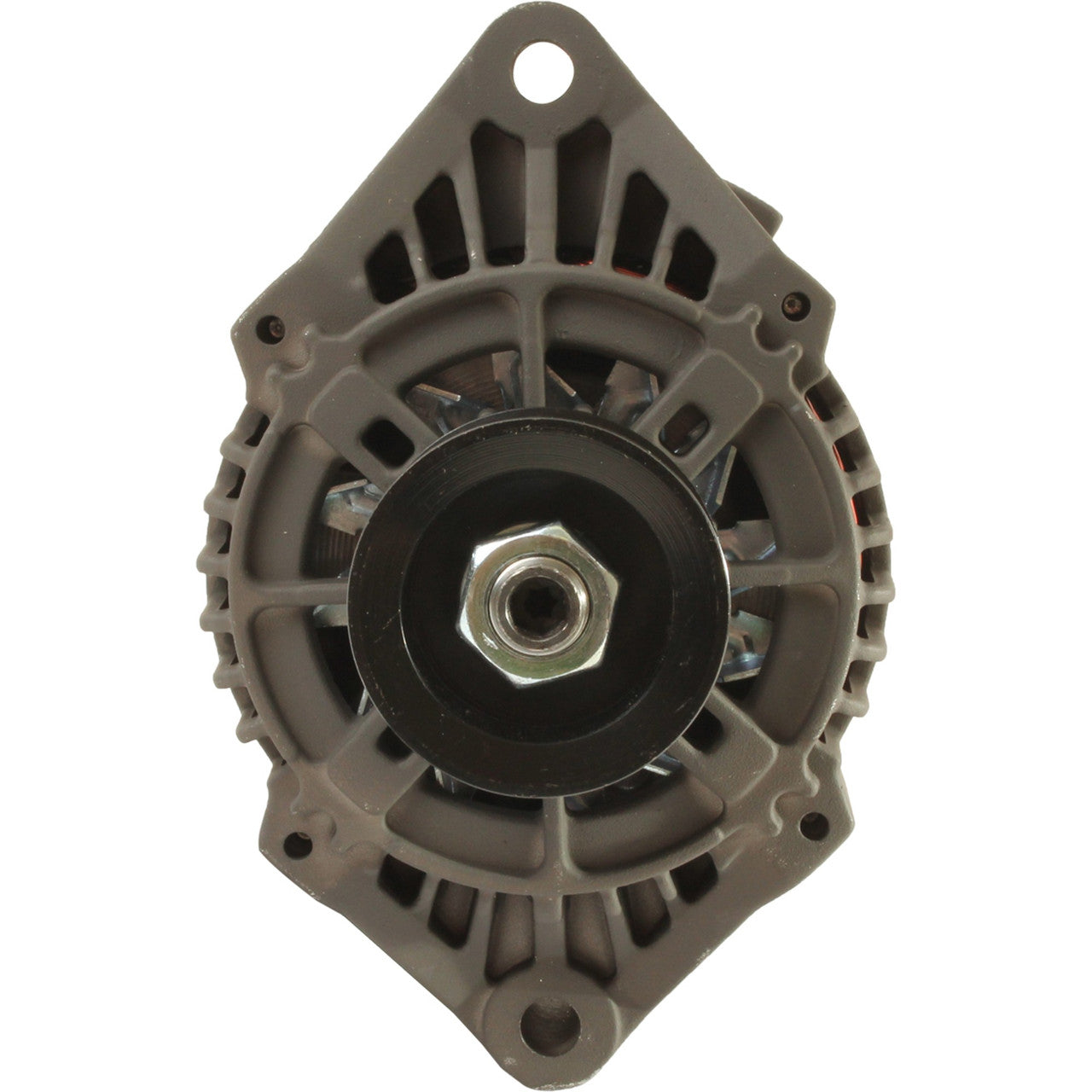

12V 70A Mercury Outboard Verado Alternator 135-300HP 892940T01 19020618
12V 70A Mercury Outboard Verado Alternator 135-300HP 892940T01 19020618
SKU:400-12307
Free shipping over £150. Terms apply
Couldn't load pickup availability
Mercury Marine Alternator
Fits 135CXL, 135L, 135XL, 150CXL & More (70 Amp)
Keep your Mercury Marine running with this 70 Amp 12V replacement alternator. Designed as a direct-fit replacement for the engine, engine - marine outboard listed below, it delivers reliable charging for standard and accessory electrical loads.
This unit features an internal fan (IF) and an internal regulator (IR), and is supplied with a S6 pulley already fitted.
Key Features
- ✔High Capacity: 70 Amps of charging output.
- ✔Direct Replacement: Replaces Arrowhead ADR0294.
- ✔Pulley Fitted: S6 pulley installed and ready to fit.
- ✔Robust Design: IF fan. IR regulator.
- ✔Quality Assured: New aftermarket unit, 12 month warranty.
Technical Specs
| Voltage: | 12 Volts |
| Amperage: | 70 Amps |
| Pulley: | S6 |
| Regulator: | Internal (IR) |
| Fan Type: | Internal (IF) |
| Clock: | 6 |
| SKU Reference: | 400-12307 |
Vehicle Fitment Guide
| Make | Equipment Type | Models | Years |
|---|---|---|---|
| Mercury Marine | Engine | 135CXL, 135L, 135XL, 150CXL, 150L, 150XL, 175L, 175XL, 200CXL, 200L, 200XL, 225CXL, 225CXXL, 225L, 225XL, 225XXL, 250CXL, 250CXXL, 250L, 250XL, 250XXL, 275CXL, 275CXXL, 275L, 275XL, 275XXL, 300CL, 300CXL, 300CXXL, 300L, 300XL, 300XXL | 2005–2011 |
| Mercury Marine | Engine - Marine Outboard | 135CXL Verado, 135L Verado, 135XL Verado, 150CXL Verado, 150L 4-Stroke, 150L Verado, 150XL Verado, 175CXL Verado, 175L Verado, 175XL Verado, 200CXL I-4 Verado, 200CXL I-6 Verado, 200CXL Verado, 200L I-4 Verado, 200L I-6 Verado, 200L Verado, 200XL I-4 Verado, 200XL I-6 Verado, 200XL Verado, 225CXL Verado, 225CXXL Verado, 225L Verado, 225XL Verado, 225XXL Verado, 250CXL Verado, 250CXXL Verado, 250L Verado, 250L Verado Pro, 250XL Verado, 250XL Verado Pro, 250XXL Verado, 275CXL Verado, 275CXXL Verado, 275L Verado, 275XL Verado, 275XXL Verado, 300CL Verado, 300CL Verado HD, 300CXL Verado, 300CXL Verado HD, 300CXXL Verado, 300CXXL Verado HD, 300L Verado, 300L Verado HD, 300L Verado Pro, 300XL Verado, 300XL Verado HD, 300XL Verado Pro, 300XXL Verado, 300XXL Verado HD, 350CL DTS Verado Racing, 350CXL DTS Verado Racing, 350CXXL DTS Verado Racing, 350L DTS Verado Racing, 350XL DTS Verado Racing, 350XXL DTS Verado Racing | 2005–2014 |
| Mercury Marine | Engines - Marine Outboard | 300L Verado HD, 300L Verado Pro, 300XL Verado, 300XL Verado HD, 300XL Verado Pro, 300XXL Verado, 300XXL Verado HD, 350CL DTS Verado Racing, 350CXL DTS Verado Racing, 350CXXL DTS Verado Racing, 350L DTS Verado Racing, 350XL DTS Verado Racing, 350XXL DTS Verado Racing | 2008–2014 |
OEM Part Number Cross Reference
| Arrowhead | ADR0294, 400-12307 |
| API Marine | 20115 |
| Arco Marine | 20860 |
| Delco | 19020618 |
| EMP Parts | 4-5929 |
| Family | 7SI |
| J&N Electrical Products | 400-12307 |
| Lester | 8464 |
| Mallory | 9-19202 |
| Mercury Marine | 892940T, 892940T01, 892940T02 |
| MP Parts | 4-5929 |
| PIC | 240-6316 |
| Sierra Marine | 18-5929 |
| Wilson | 90-01-4446 |
Frequently Asked Questions
Will this fit my Mercury Marine 135CXL?
Yes — the 135CXL appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.
Is this a 70 Amp alternator?
Yes, this is a 70 Amp 12V unit with an IR regulator.
Is the pulley included?
Yes, a S6 pulley is pre-installed.
Is this new or remanufactured?
This is a brand new aftermarket unit — not a remanufactured core.
Note: Please verify your machine's serial number or existing part number to ensure compatibility.
