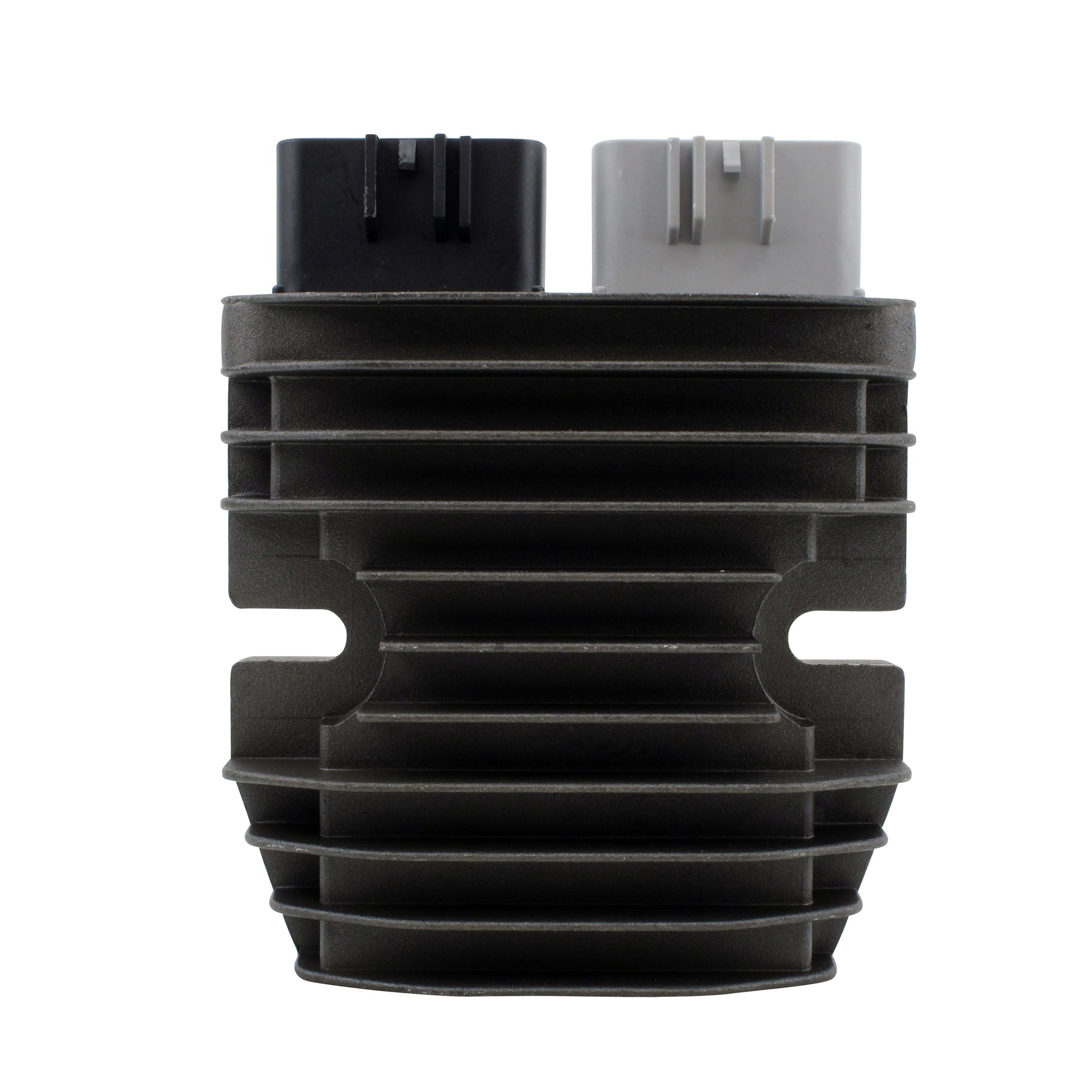

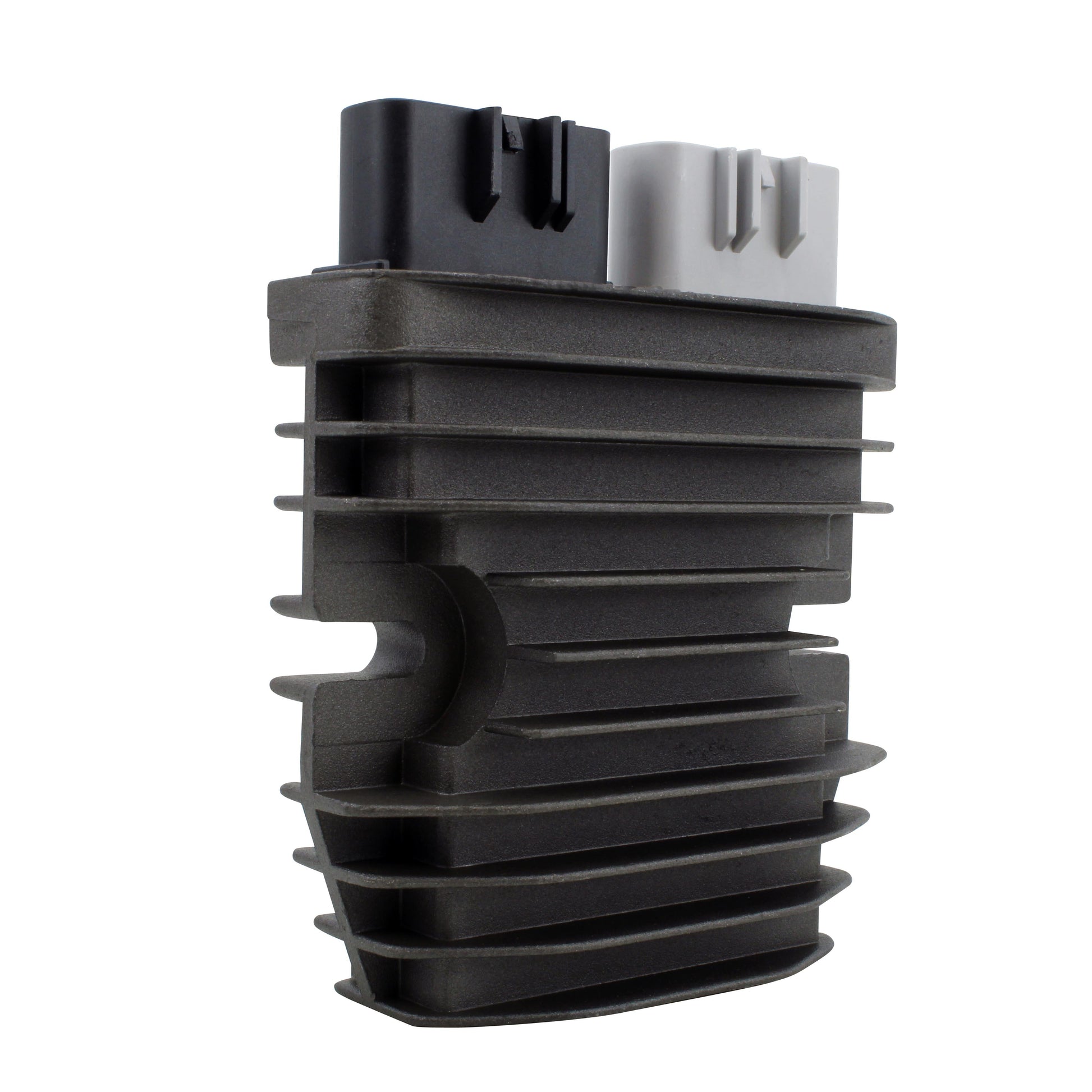

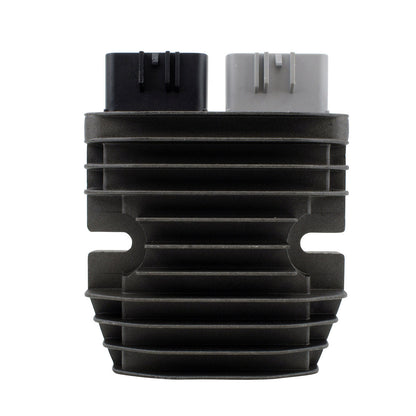

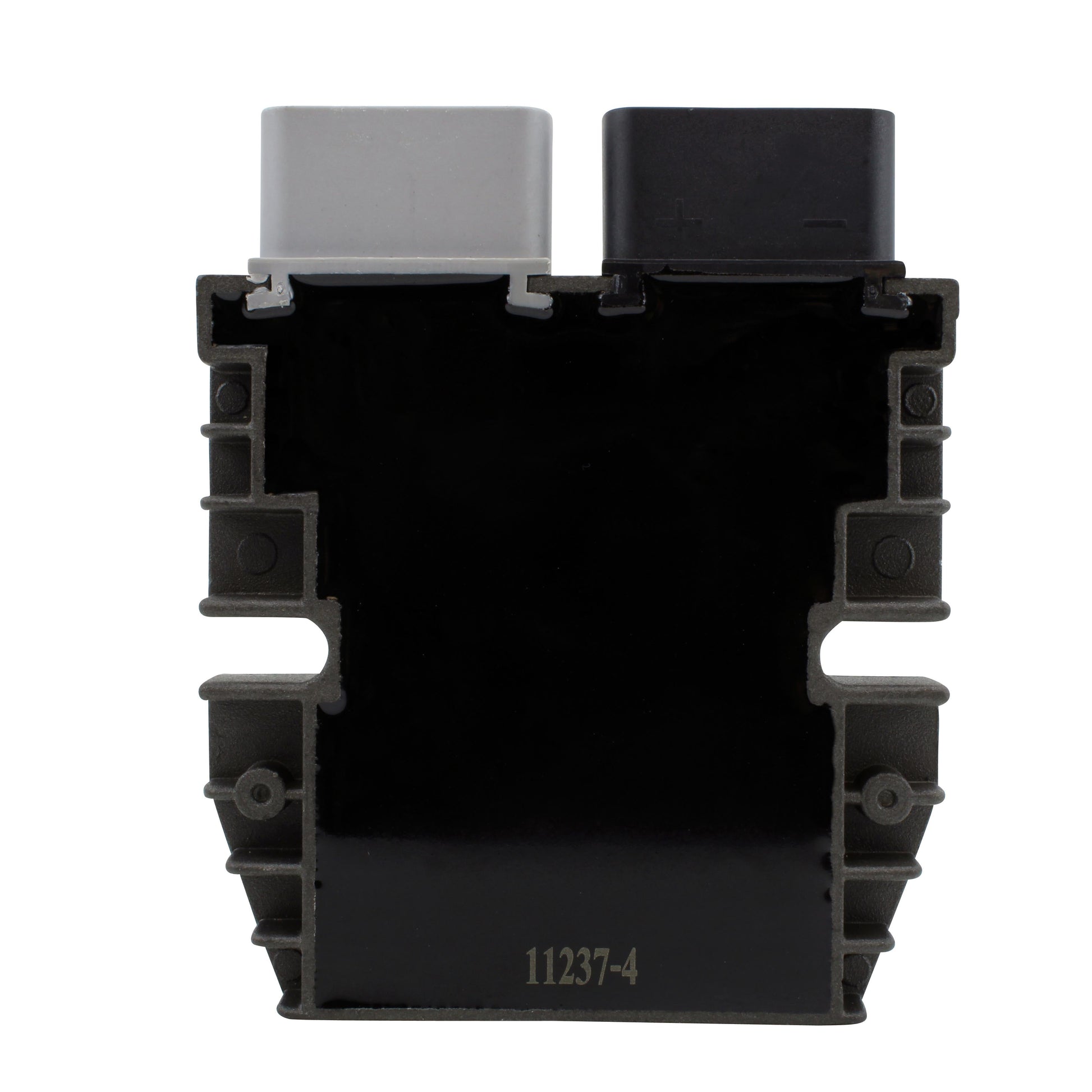

RM30506H MOSFET Regulator Rectifier
BMW, Arctic Cat, Polaris, Triumph, Yamaha, Kawasaki, Honda, Ducati and Suzuki - 1994-2026
The RM30506H is a brand new three phase MOSFET voltage regulator rectifier. Stop burning your regulator rectifier - it is time to replace the original diode style unit with the advanced MOSFET type, which runs cooler than any OEM diode regulator. This unit also has overheat protection: rather than burning up under extreme load it simply turns off for a while and cools down.

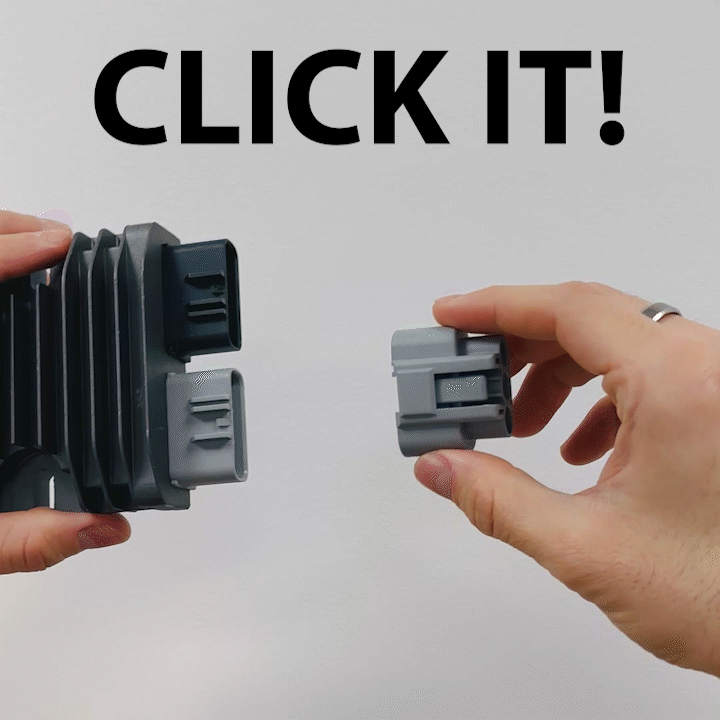

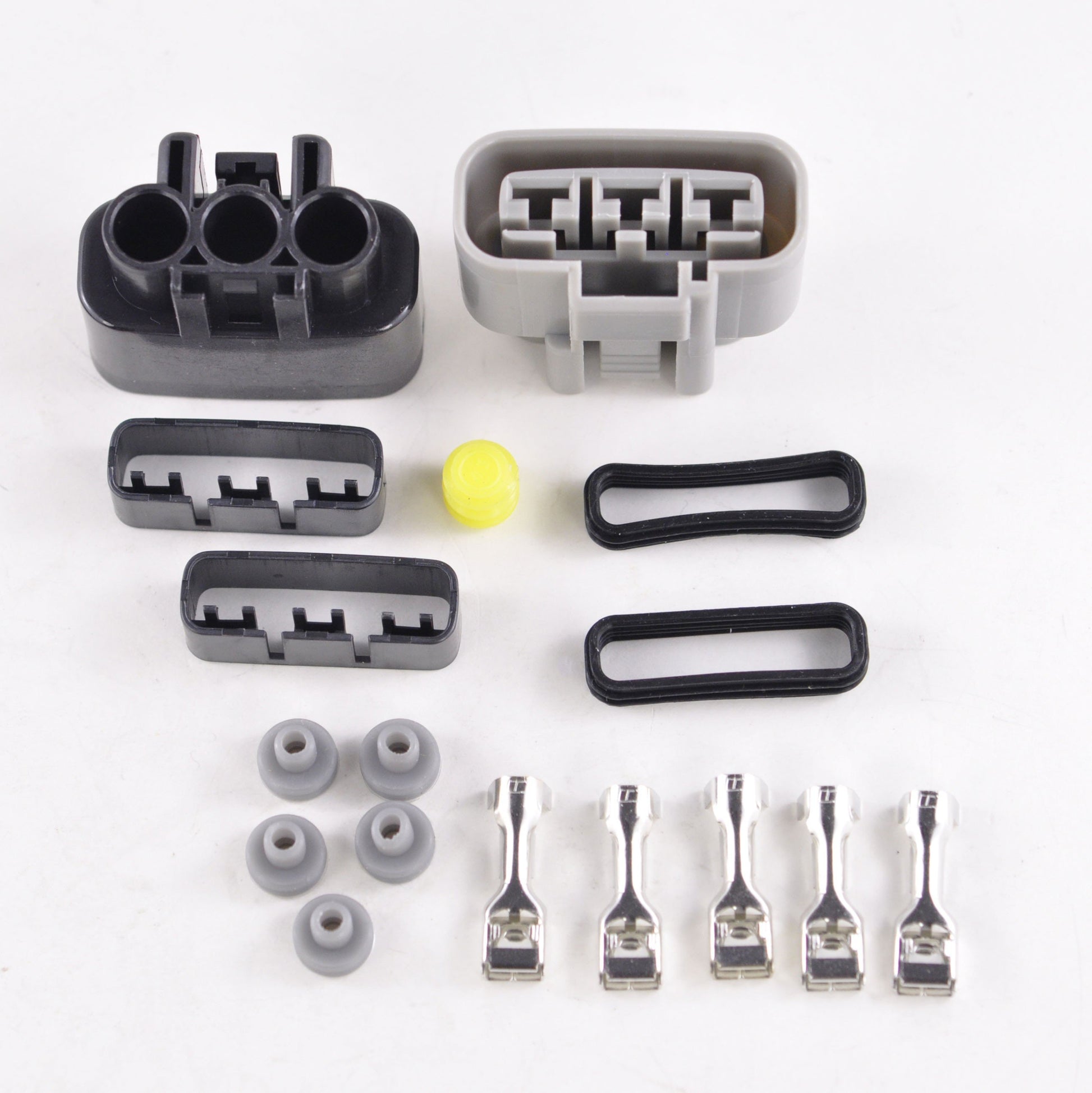

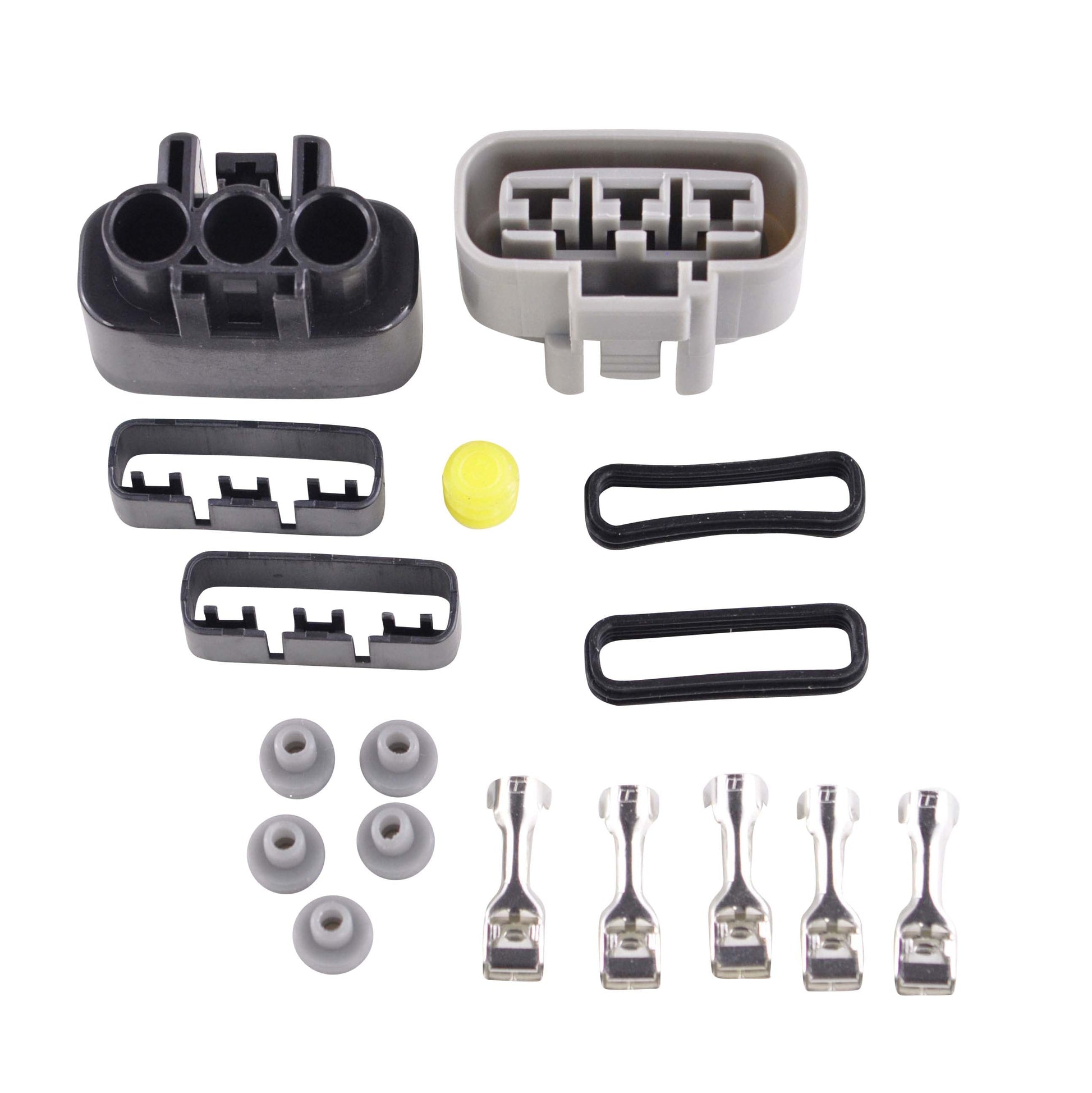

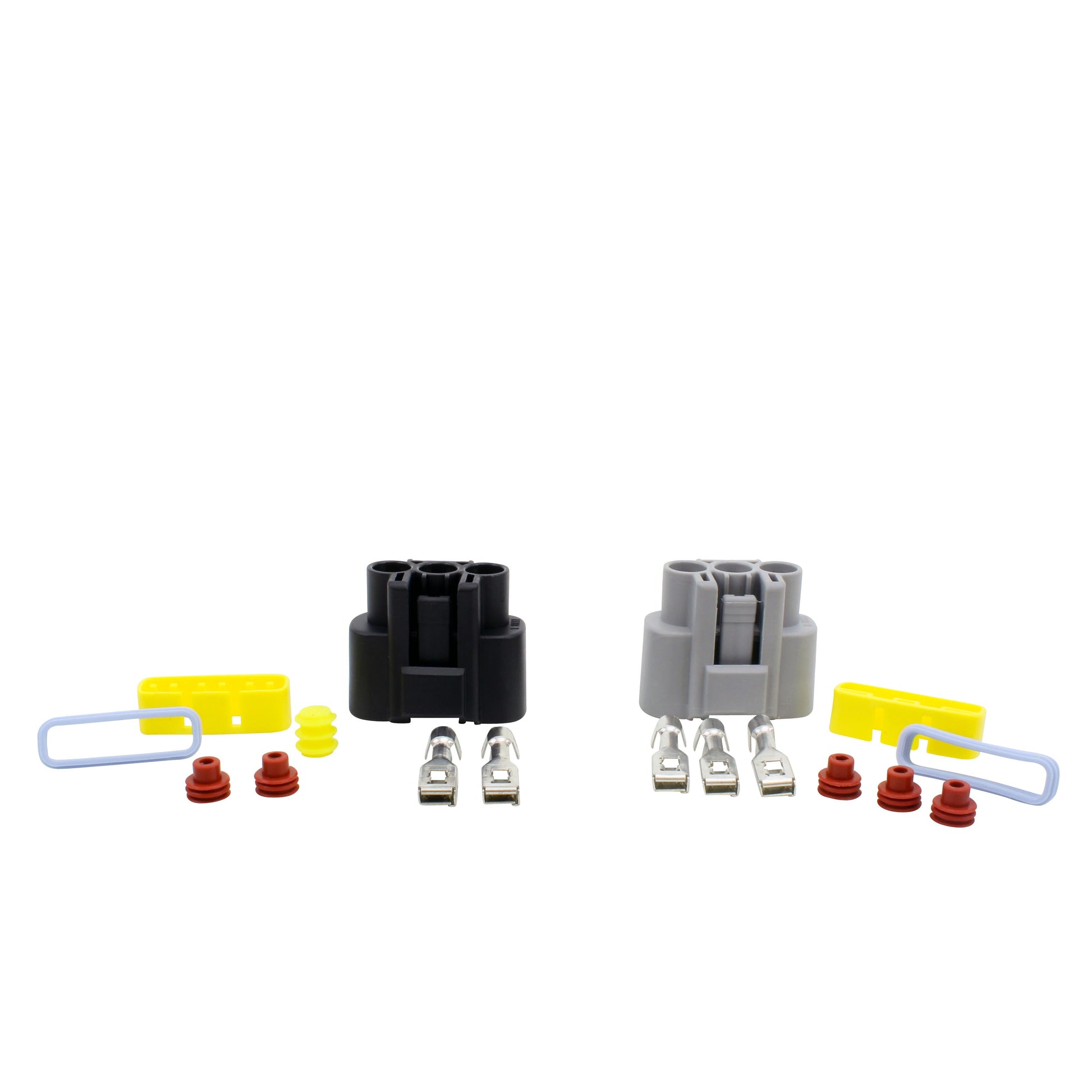

It is a direct replacement for your original unit, plug-and-play, direct fit and easy to install. Higher grade electrical components and an improved heat sink give better charging capability, quality exceeds the OEM equipment, and all shipped products are tested. The opposite connector for the main harness side is included, as these are often melted, corroded or defective and a major cause of repeat electrical faults.
Key Features
- Three phase MOSFET regulator rectifier
- Runs cooler than all OEM diode style regulators
- Overheat protection - shuts down instead of burning up
- Direct replacement, plug-and-play, direct fit

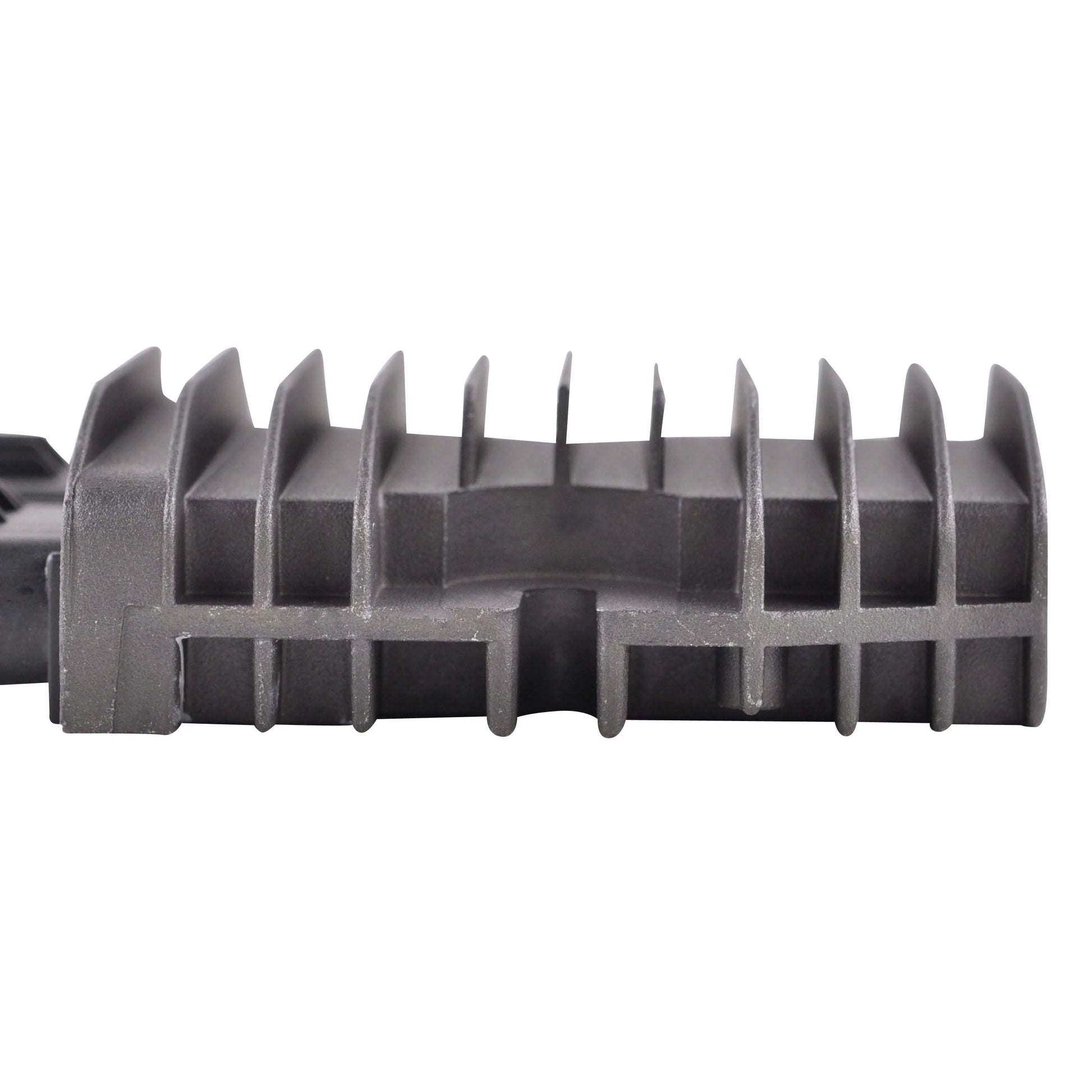

- Improved heat sink and charging capability
- Higher grade of electrical components
- Main harness side connector included
- All shipped products are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM30506H |
| Type |
MOSFET, 3 phases |
| Width |
95 mm |
| Length |
110 mm |
| Height |
30 mm |
| Fixation holes, centre to centre |
78 mm |

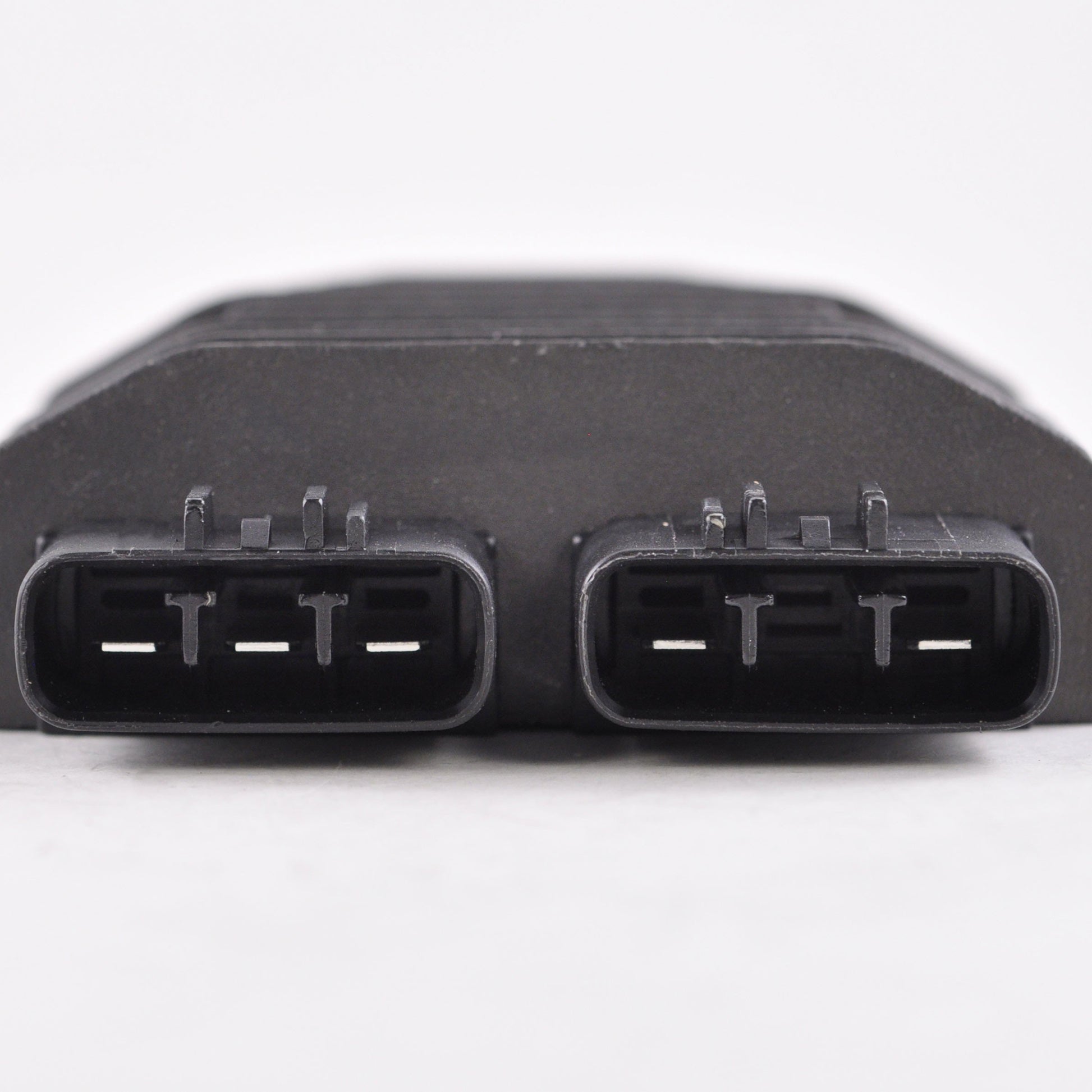

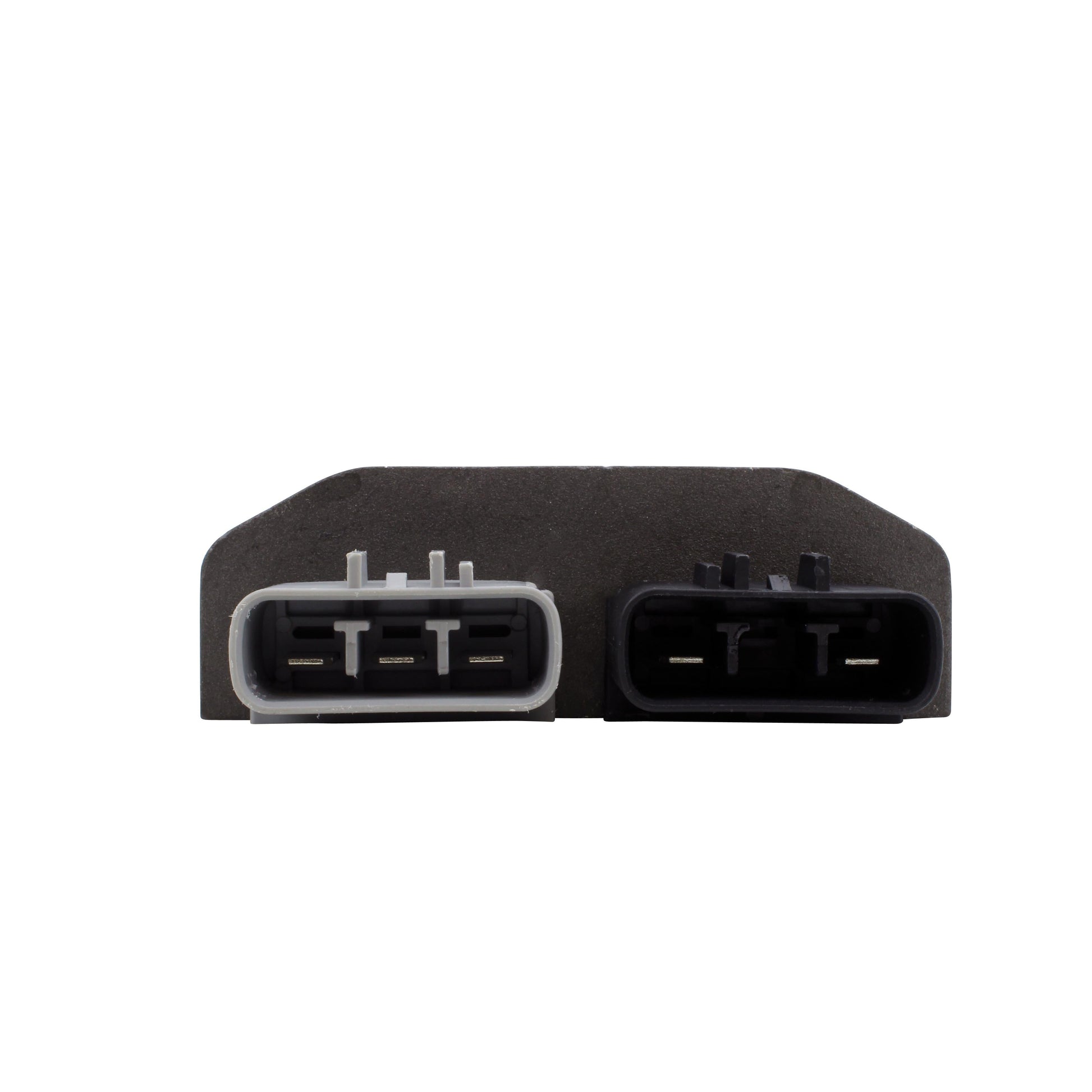

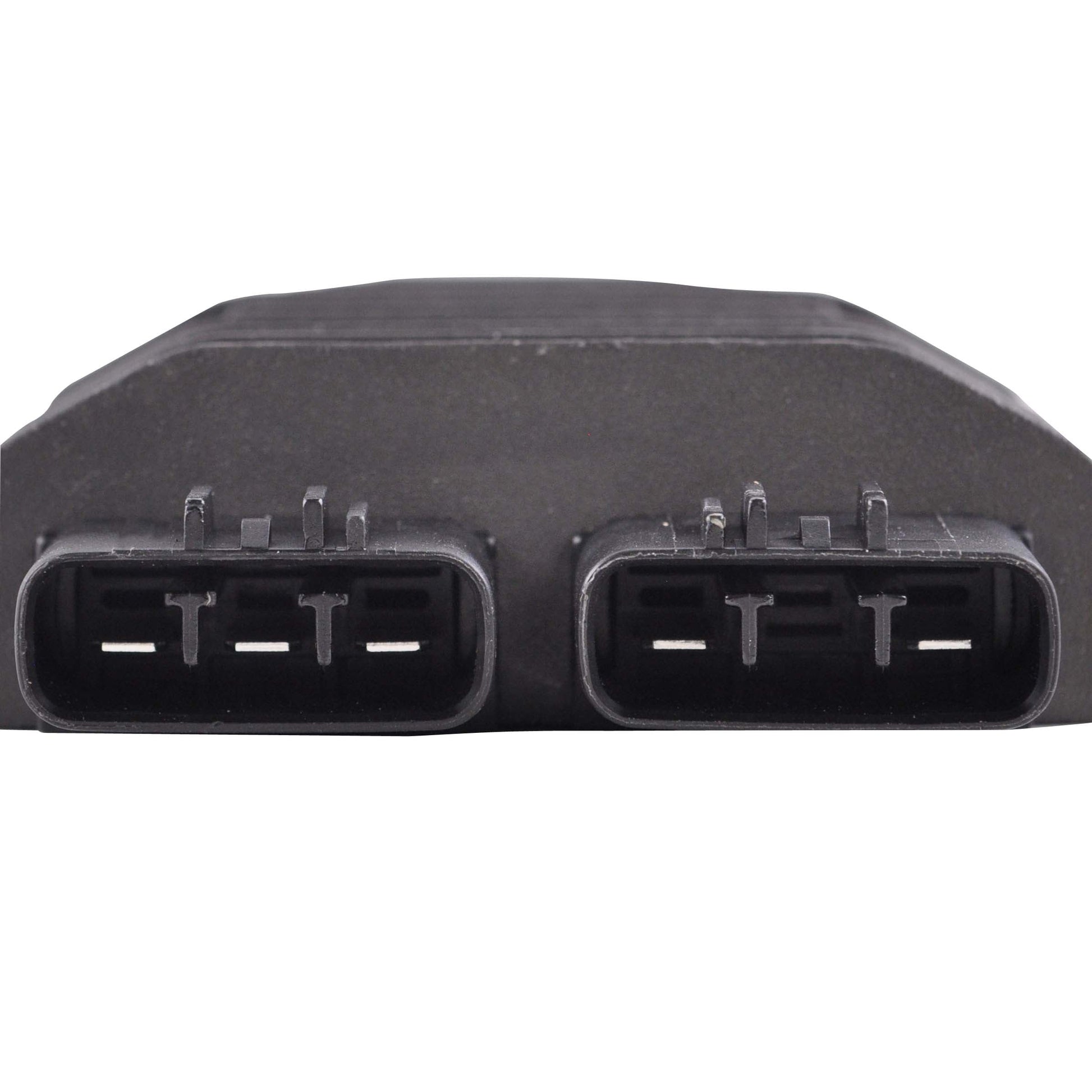

| Number of plugs |
2 |
| Number of pins |
5 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Under 15 V |
| Operating temperature |
-20 C to 85 C |
Vehicle Fitment Guide
| Make & Model |
Years |
| BMW |
1994-2026 |
| Arctic Cat |
1994-2026 |
| Polaris |
1994-2026 |
| Triumph |
1994-2026 |
| Yamaha |
1994-2026 |
| Kawasaki |
1994-2026 |
| Honda |
1994-2026 |
| Ducati |
1994-2026 |
| Suzuki |
1994-2026 |
This is a ride specific part. Please confirm your model against the OEM references below before ordering. Note: 2006 and 2007 Can-Am Outlander 400 fitment requires special installation.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 1D7-81960-00-00 |
Yamaha |
| 1D7-81960-01-00 |
Yamaha |
| 5JW-81960-00-00 |
Yamaha |
| 27D-81960-00-00 |
Yamaha |
| 8JP-H1960-00-00 |
Yamaha |
| 21066-0008 |
Kawasaki |
| 21066-0022 |
Kawasaki |
| 21066-0714 |
Kawasaki |
| 21066-0744 |
Kawasaki |
| 21066-0771 |
Kawasaki |
| 31600-HN8-000 |
Honda |
| 31600-HN8-003 |
Honda |
| 31600-HP0-A01 |
Honda |
| 31600-HR0-F01 |
Honda |
| 31600-MGZ-J01 |
Honda |
| 31600-MJF-A01 |
Honda |
| 32800-26J00 |
Suzuki |
| 32800-26J01 |
Suzuki |
| 0824-072 |
Arctic Cat |
| 0824-078 |
Arctic Cat |
| T1300470 |
Triumph |
| T1300675 |
Triumph |
| 54040301B |
Ducati |
| 12 31 7 718 422 |
BMW |
| 278002021 |
BRP (Can-Am / Sea-Doo) |
| 515177325 |
BRP (Can-Am / Sea-Doo) |
| 703500717 |
BRP (Can-Am / Sea-Doo) |
| 710000261 |
BRP (Can-Am / Sea-Doo) |
| 710000870 |
BRP (Can-Am / Sea-Doo) |
| 710000907 |
BRP (Can-Am / Sea-Doo) |
| 710001103 |
BRP (Can-Am / Sea-Doo) |
| 01AA-177000 |
Cross reference |
| 6NQV-177000-2800 |
Cross reference |
| 6NTV-151000-3000 |
Cross reference |
Frequently Asked Questions
Does it fit without modification?
On the listed applications it is a direct replacement, plug-and-play and direct fit. The one documented exception is the 2006 and 2007 Can-Am Outlander 400, which requires special installation.
What is included?

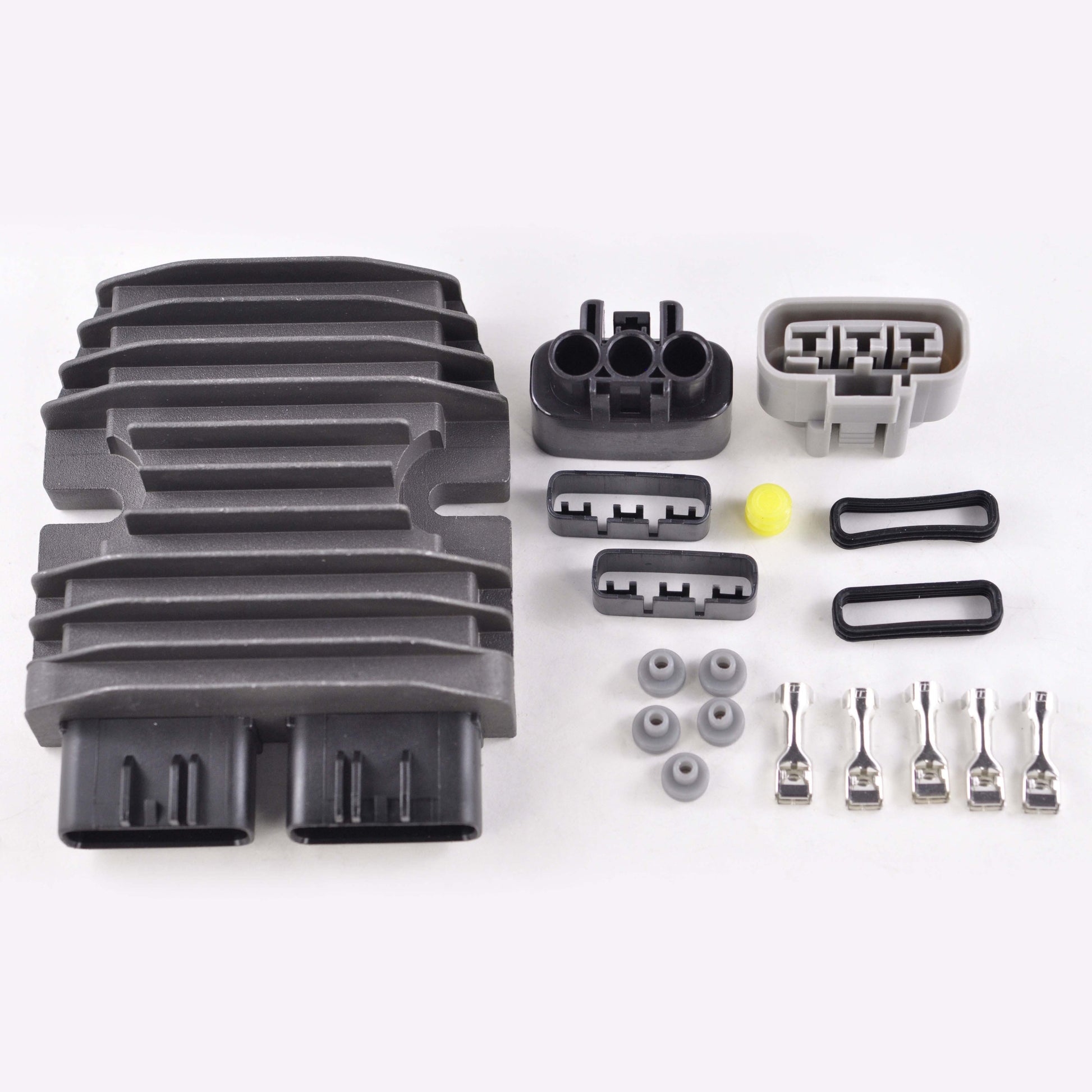

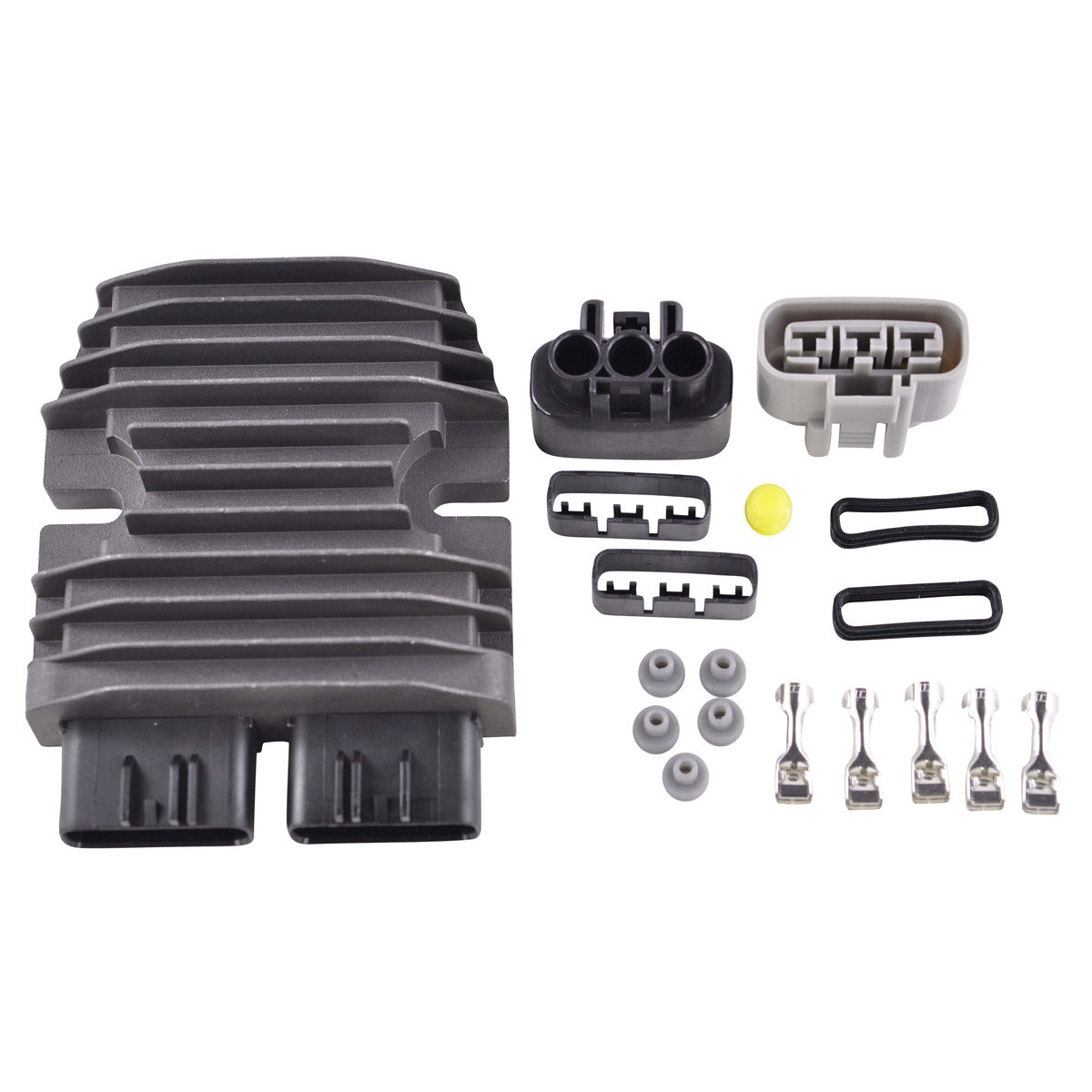

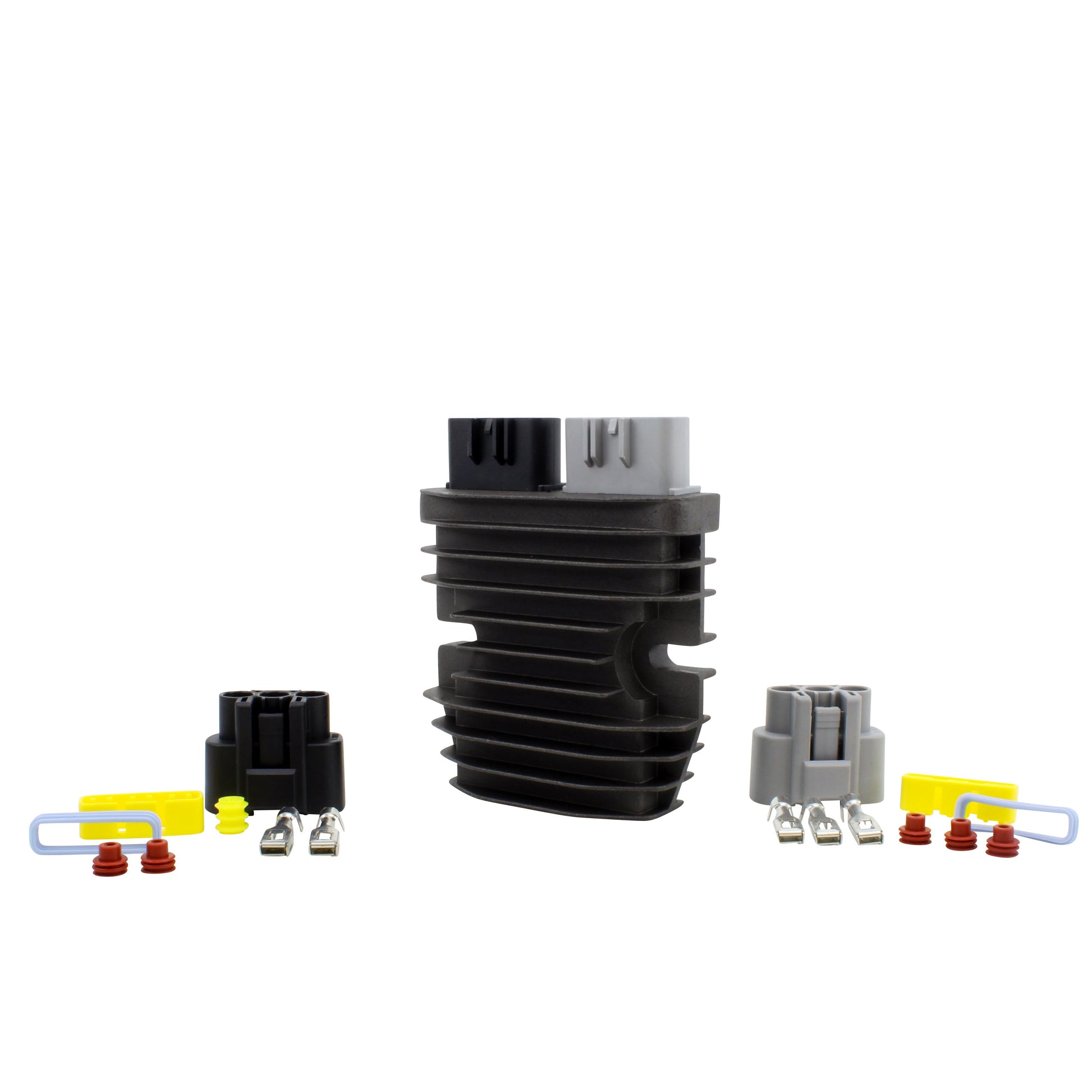

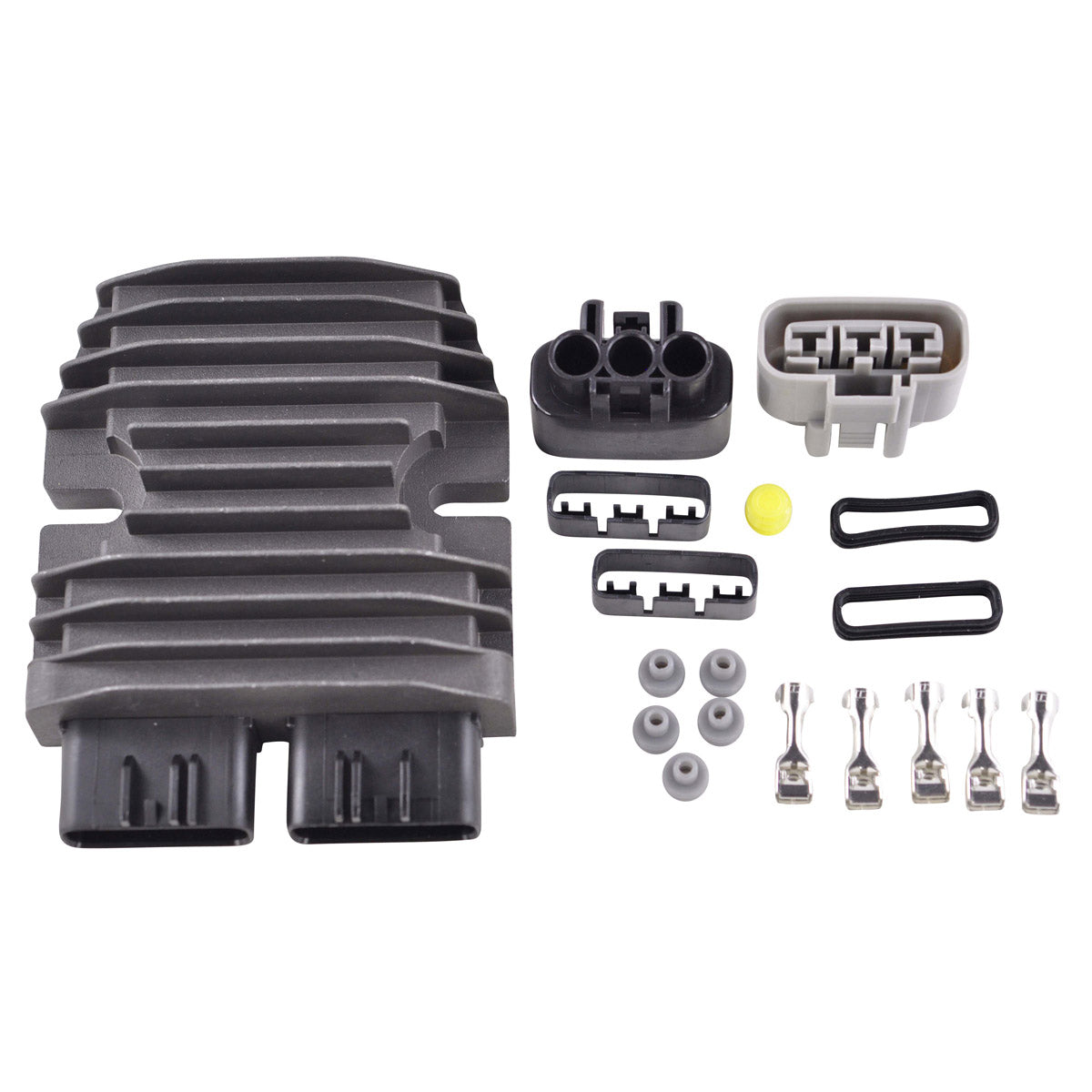

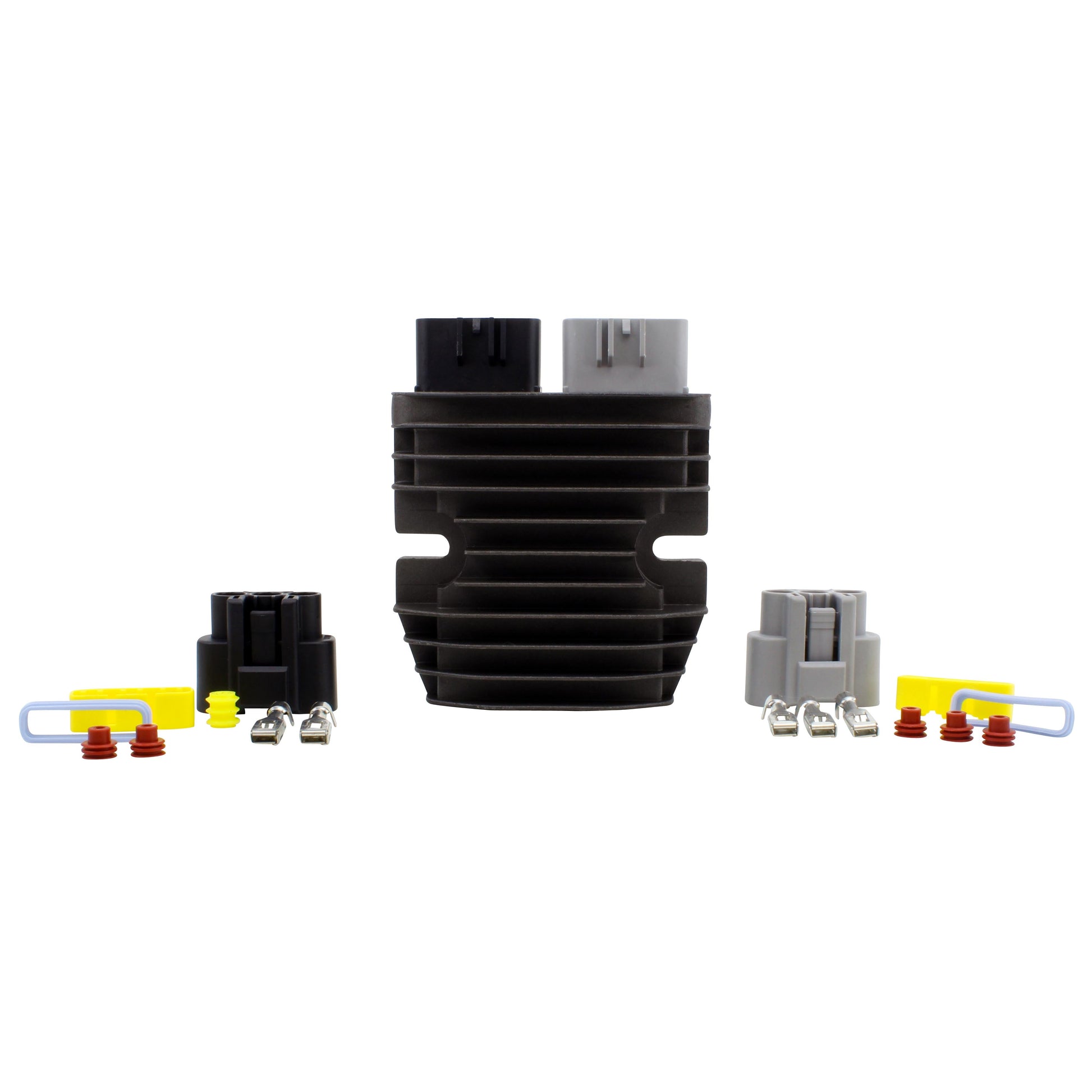

One RM30506H MOSFET regulator rectifier with two plugs and five pins, plus the opposite connector for the main harness side so a burnt or corroded loom plug can be renewed at the same time.
How do I tell the old regulator has failed?
A battery that will not hold charge, charging voltage that never settles near 14.5 V, an over-charged battery that boils, lights that dim or flicker with revs, and a regulator body that is too hot to touch are the usual signs. Melted connector pins are a further clue.
Why choose MOSFET over the original diode unit?
MOSFET switching wastes far less energy as heat, so the unit runs cooler than every OEM diode style regulator and lasts longer. Overheat protection means that under extreme load it turns off and cools rather than destroying itself.
