MOSFET Regulator Rectifier for Arctic Cat, Kawasaki and Yamaha
Arctic Cat Prowler, TBX and TVR - Kawasaki KAF, KVF, KRF and Vulcan - Yamaha V Star - 1999-2024 - RMSTATOR part RM30801H

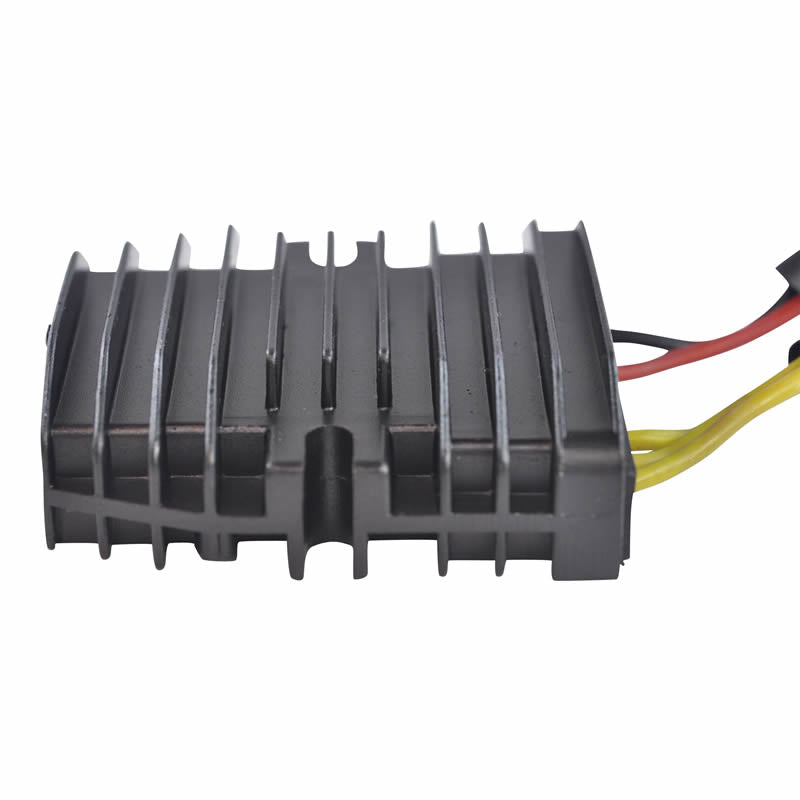

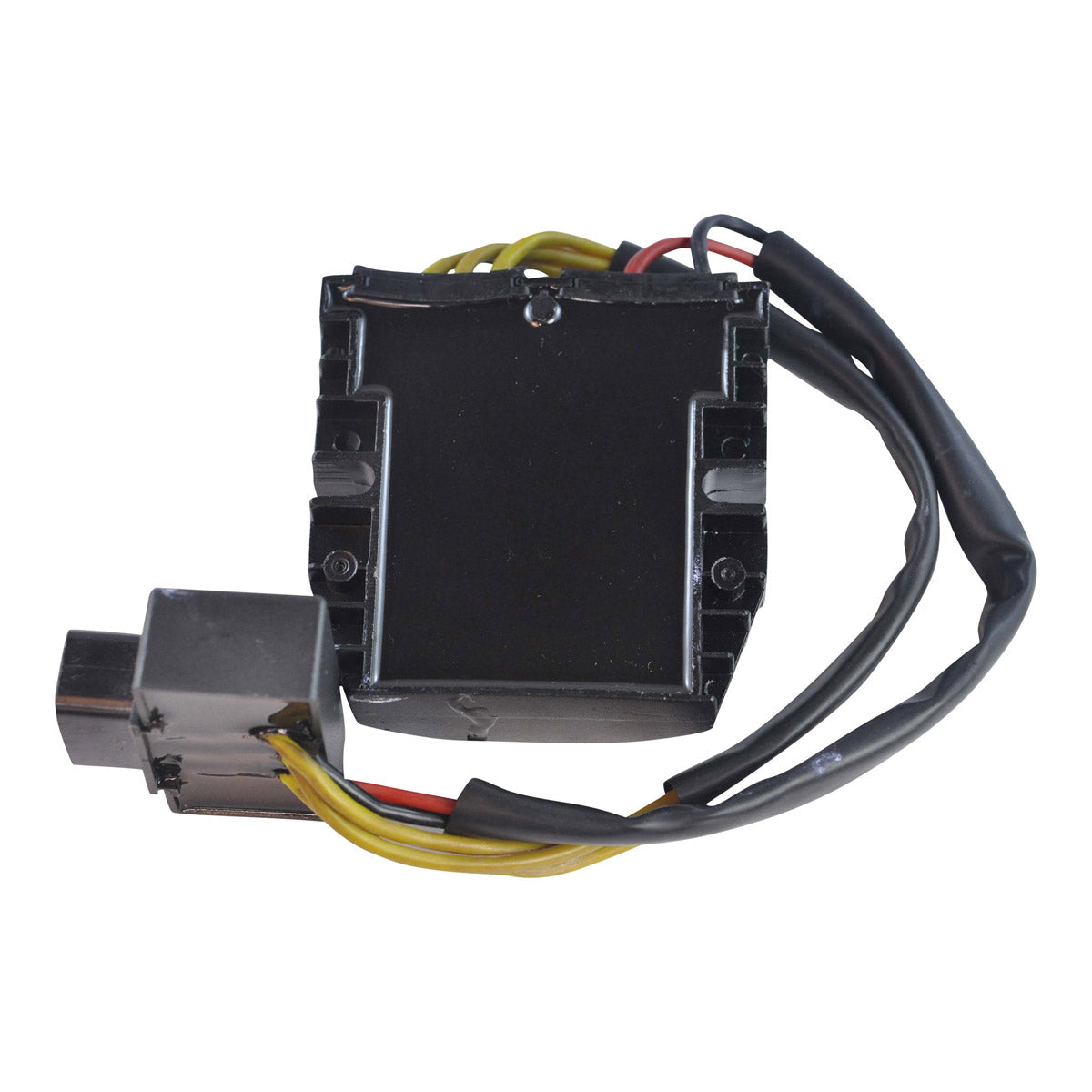

This is a MOSFET voltage regulator rectifier, supplied as an upgrade over the traditional diode-style regulator fitted as standard. A MOSFET design drops less voltage internally, so it runs at a noticeably cooler temperature under the same load. It also carries overheat protection, which means that if it is pushed beyond its limits it shuts down rather than burning out and taking the charging circuit with it.

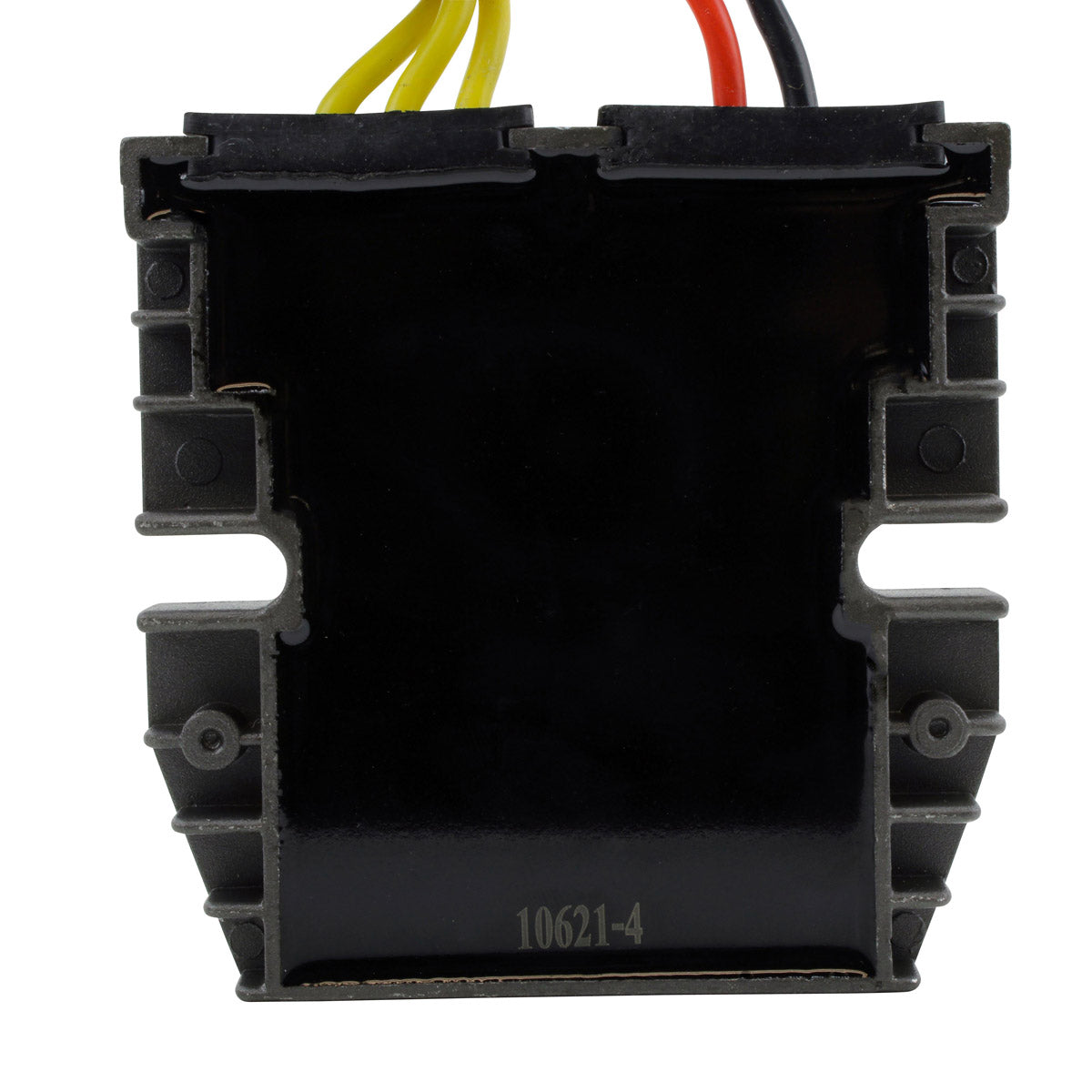

Rated at 50 A, or 500 W, it is a direct replacement for the original unit - plug-and-play installation, with an improved heat sink design and a higher grade of electrical components than the original equipment. The manufacturer states that all shipped products are tested. The opposite connector for the main harness side is included, so a melted or corroded harness plug can be renewed at the same time as the regulator.
Key Features
- MOSFET design - runs cooler than a traditional diode-style regulator
- Overheat protection shuts the unit down instead of letting it burn out
- High output rating of 50 A / 500 W

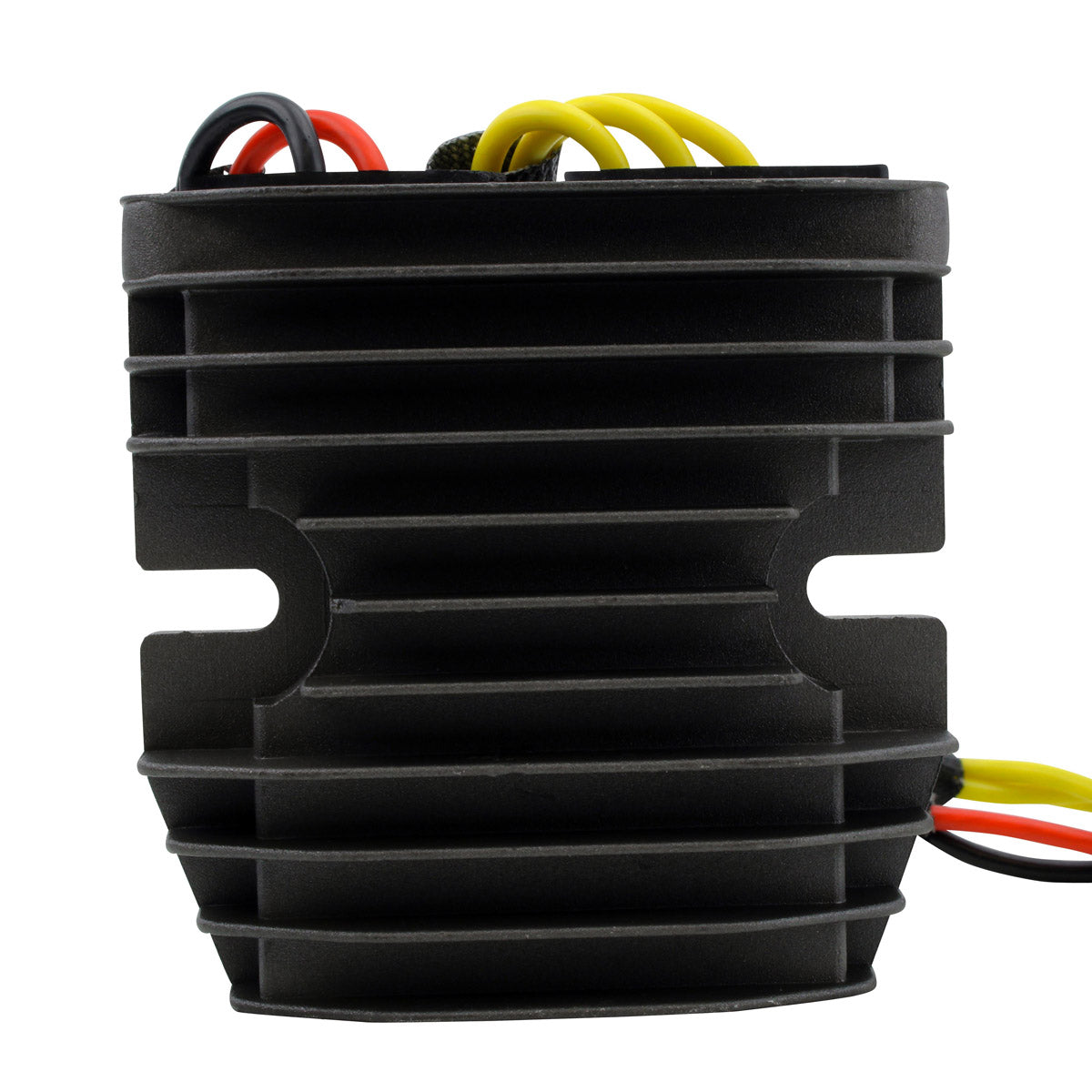

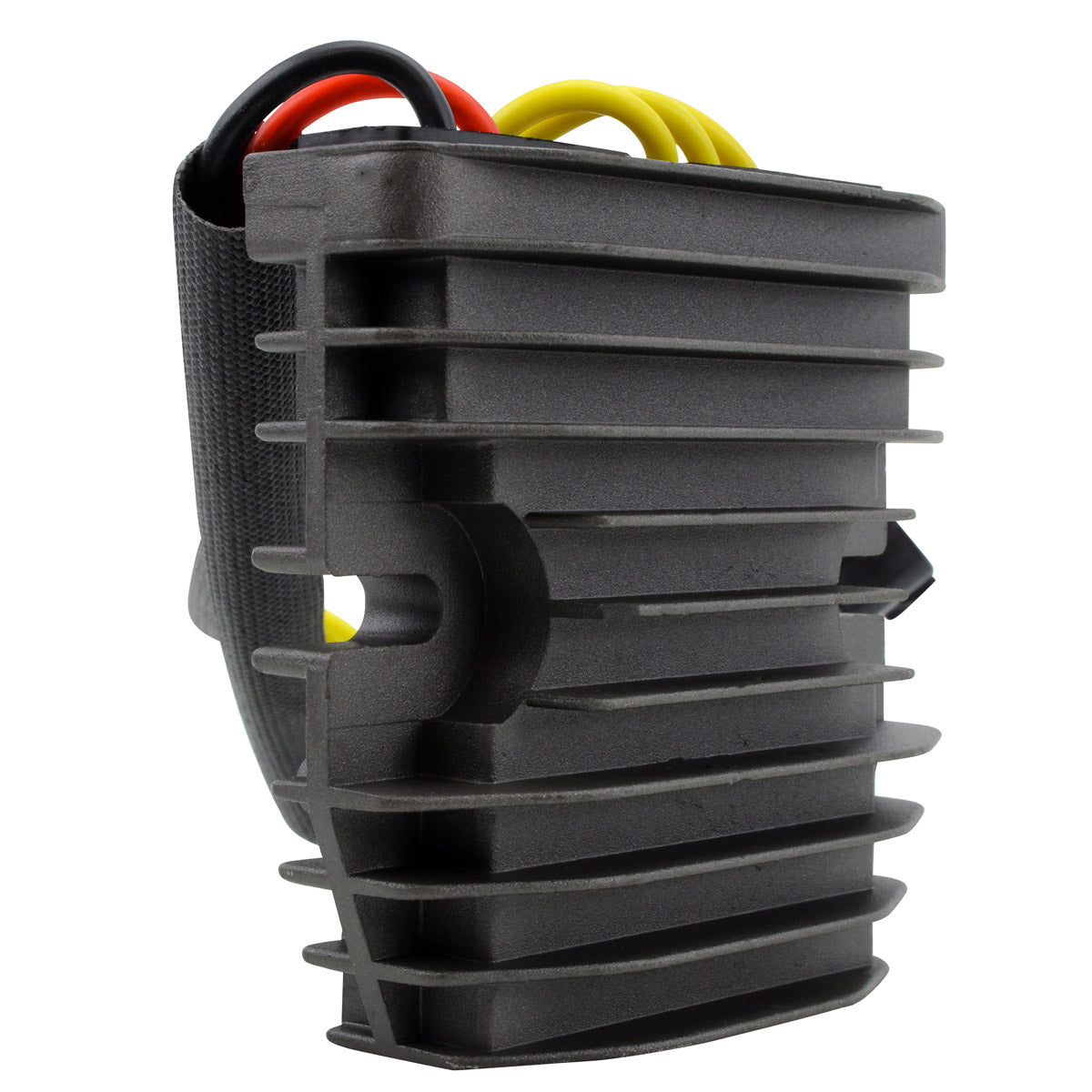

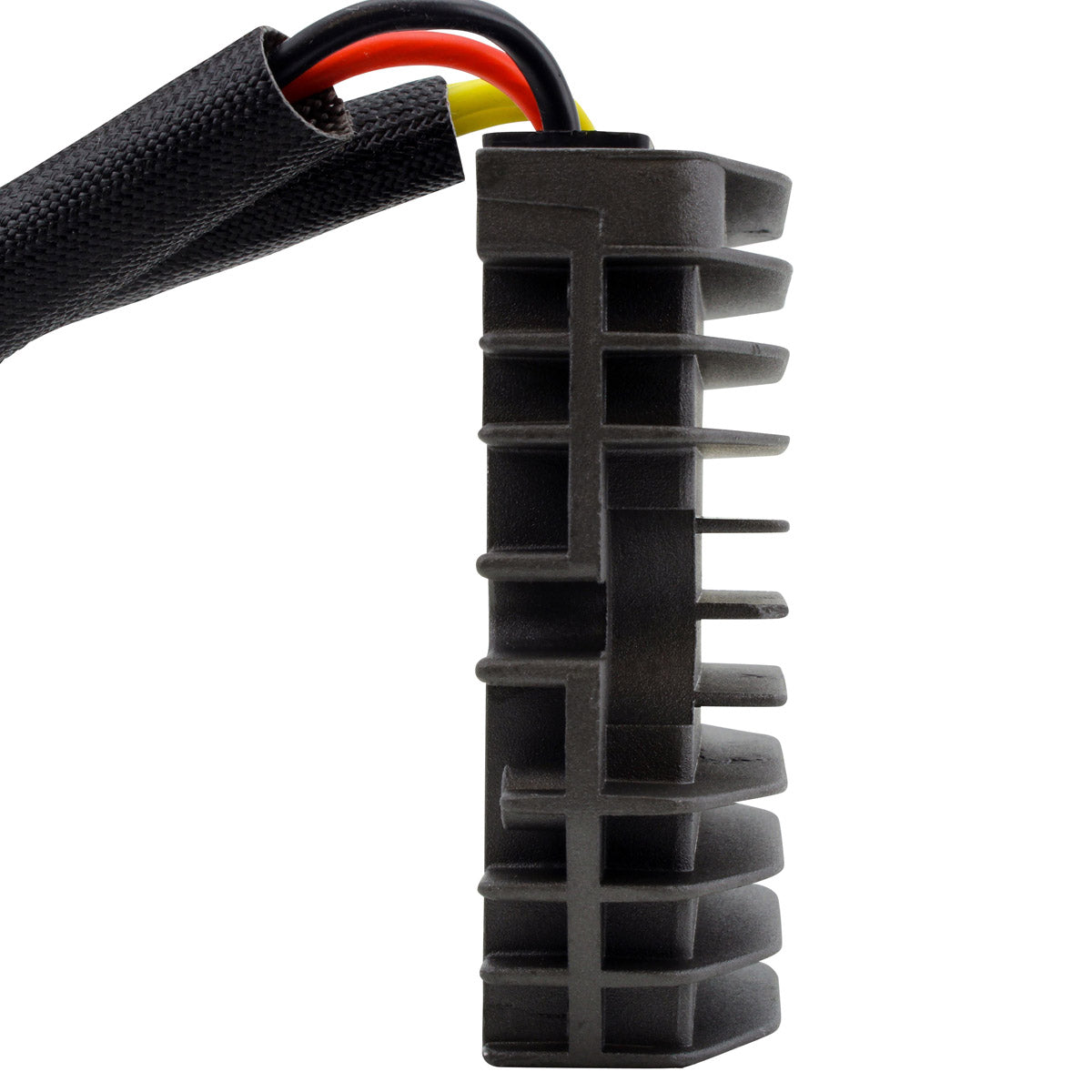

- Plug-and-play installation, improved heat sink design
- Higher grade of electrical components than the original equipment

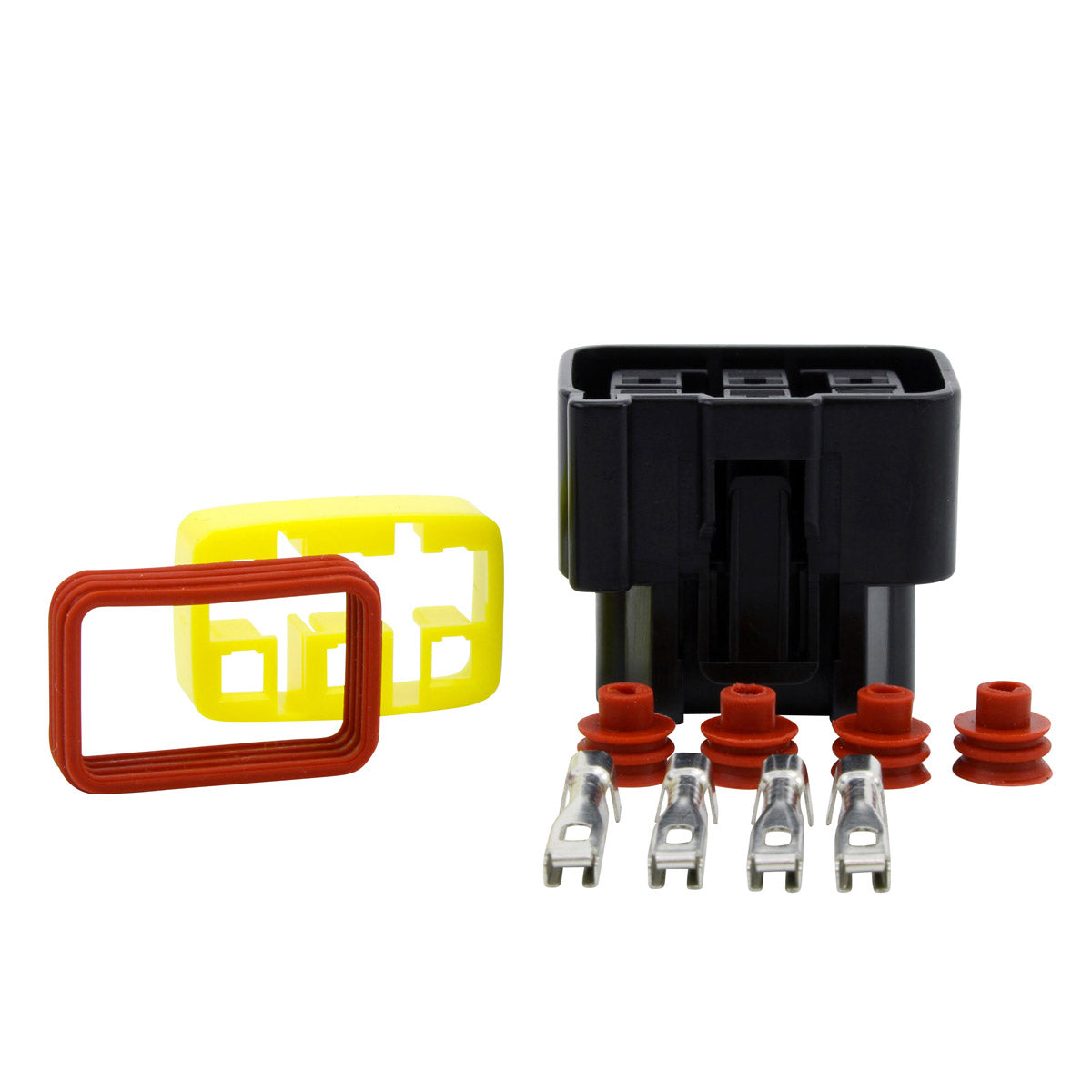

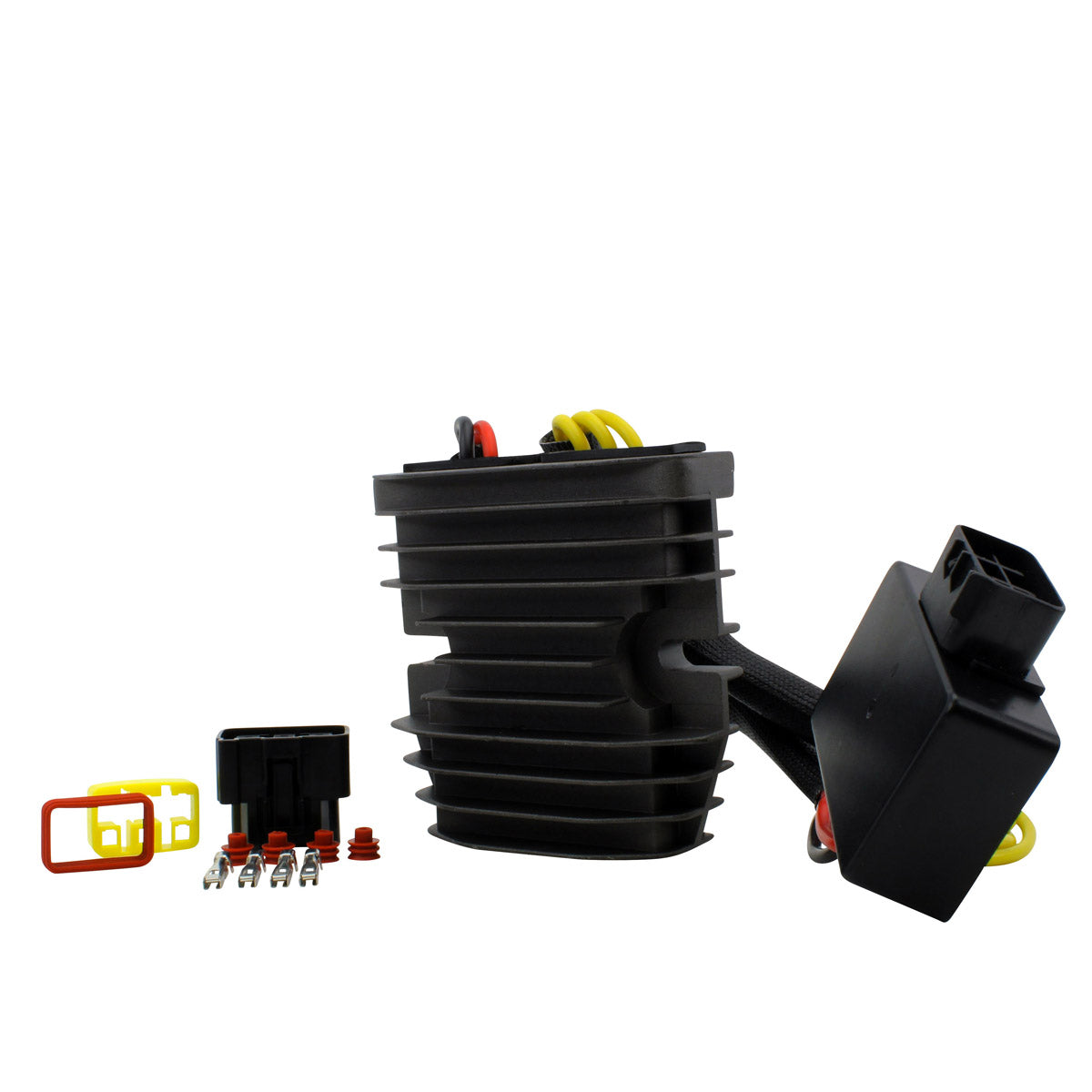

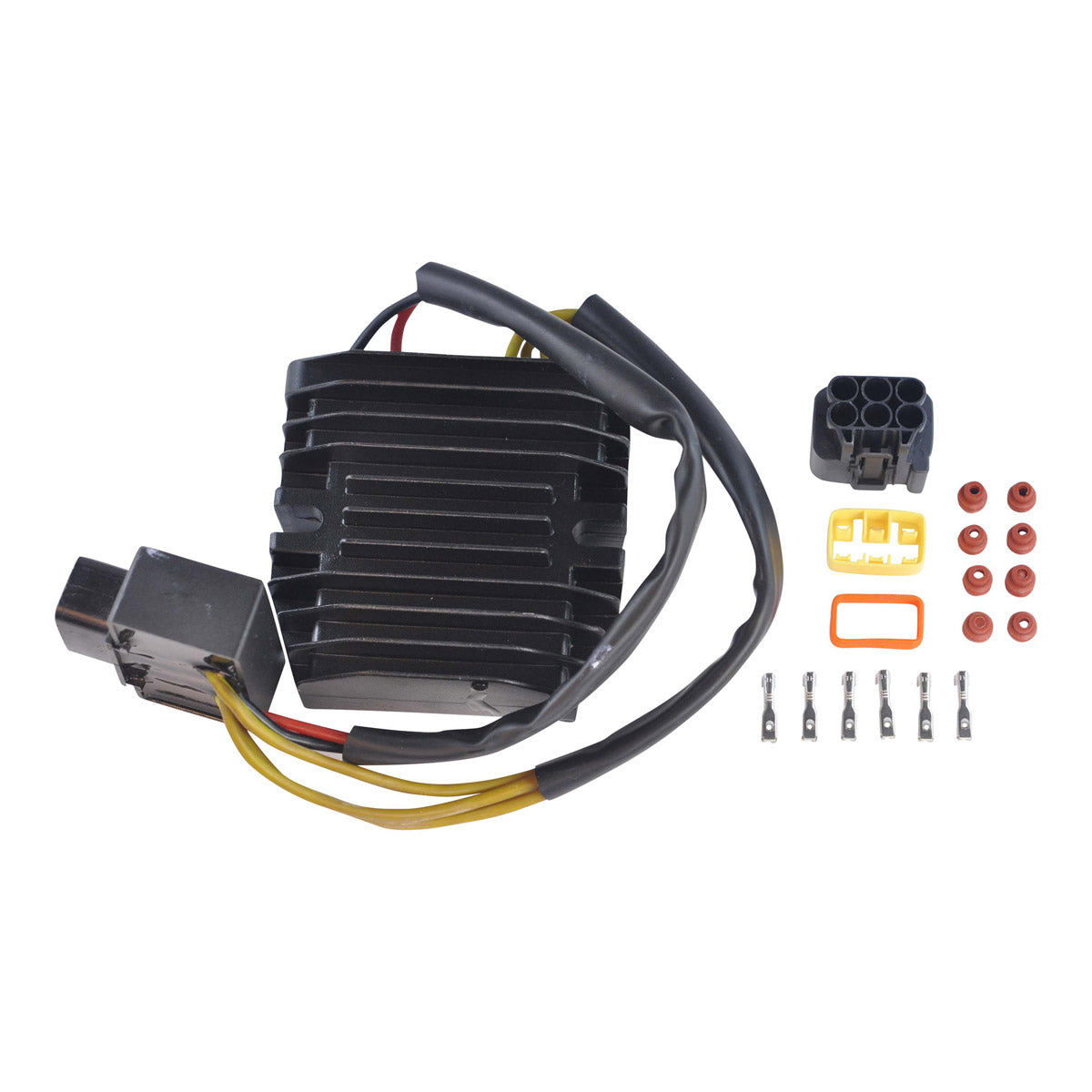

- Opposite connector for the main harness side included

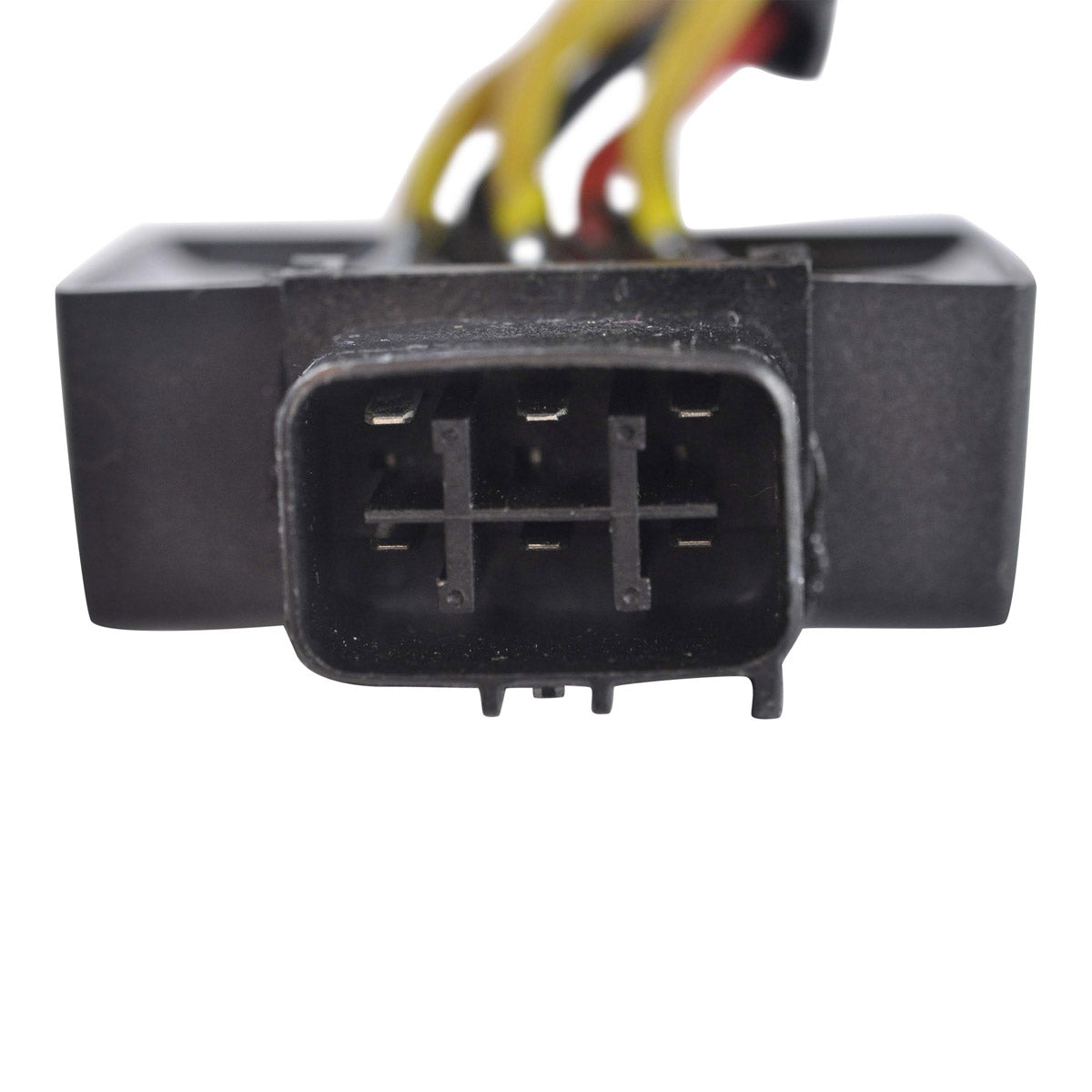

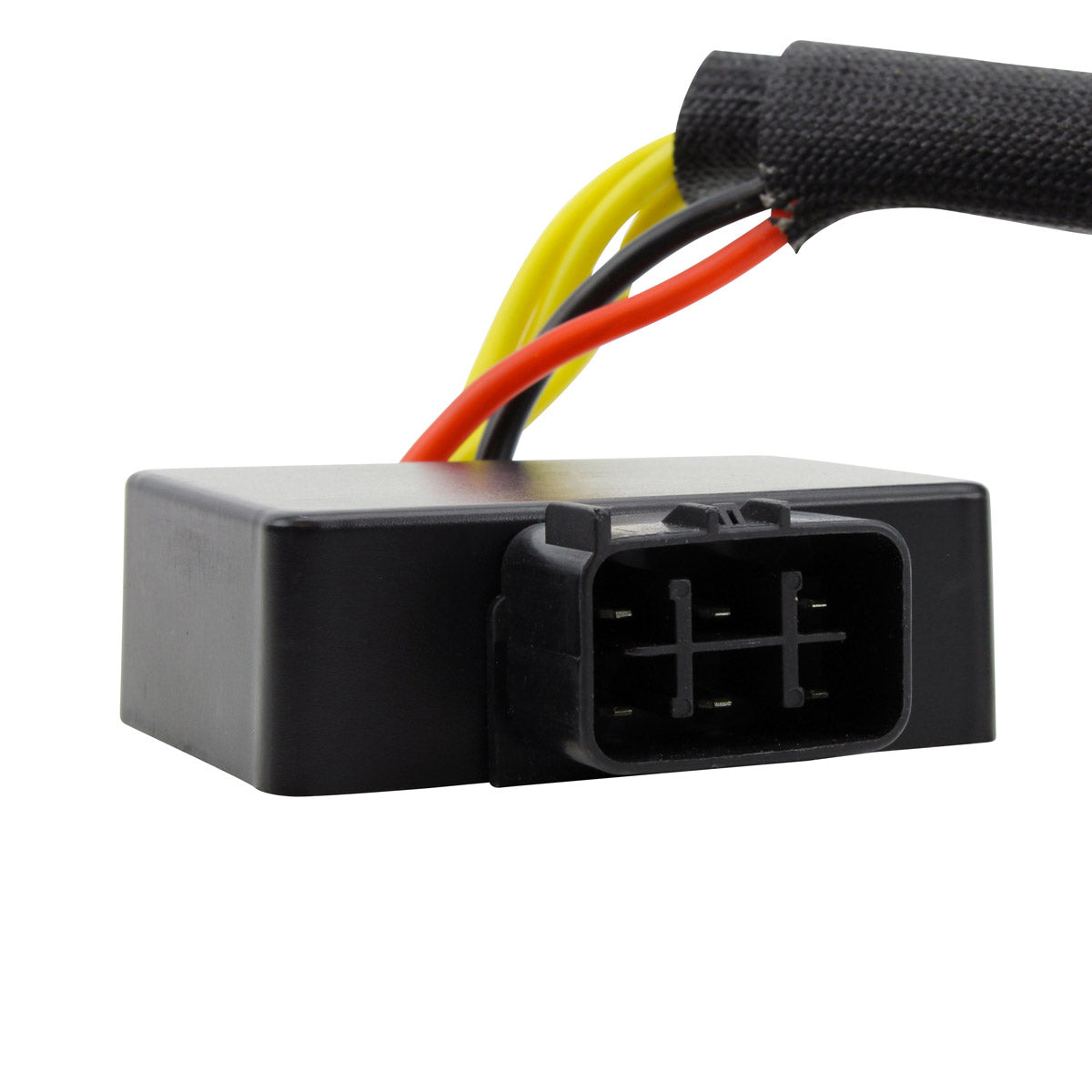

- Six-pin plug with five wires on a 230 mm lead
- All shipped products are tested
Technical Specs
| Specification | Detail |
|---|---|
| Manufacturer Part Number | RM30801H |
| Type | MOSFET regulator rectifier |
| Width | 93 mm |
| Length | 92 mm |
| Height | 30 mm |
| Wire Length | 230 mm |
| Fixation Holes Centre to Centre | 78 mm |
| Number of Plugs | 1 |
| Number of Pins | 6 |
| Number of Wires | 5 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 50 A / 500 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature Range | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Prowler | 1999-2024 |
| Arctic Cat TBX | 1999-2024 |
| Arctic Cat TVR | 1999-2024 |
| Kawasaki KAF | 1999-2024 |
| Kawasaki KVF | 1999-2024 |
| Kawasaki KRF | 1999-2024 |
| Kawasaki Vulcan | 1999-2024 |
| Kawasaki Jet Ski | 1999-2024 |
| Yamaha V Star | 1999-2024 |
| LT-A and LT-F models | 1999-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0824-020 | Arctic Cat |
| 0824-037 | Arctic Cat |
| 21066-0030 | Kawasaki |
| 21066-0033 | Kawasaki |
| 21066-0705 | Kawasaki |
| 21066-0712 | Kawasaki |
| 21066-0717 | Kawasaki |
| 21066-0732 | Kawasaki |
| 21066-1127 | Kawasaki |
| 21066-3717 | Kawasaki |
| 21066-3718 | Kawasaki |
| 4XY-81960-00-00 | Yamaha |
| 31600-HN2-003 | Honda |
| 31600-HN2-013 | Honda |
| 32800-38F10 | Suzuki |
| 32800-42F00 | Suzuki |
Frequently Asked Questions
Is any modification needed to fit it?
No. It is a plug-and-play replacement for the original unit on the listed models, with a single six-pin plug and mounting holes 78 mm apart centre to centre.
What is included?

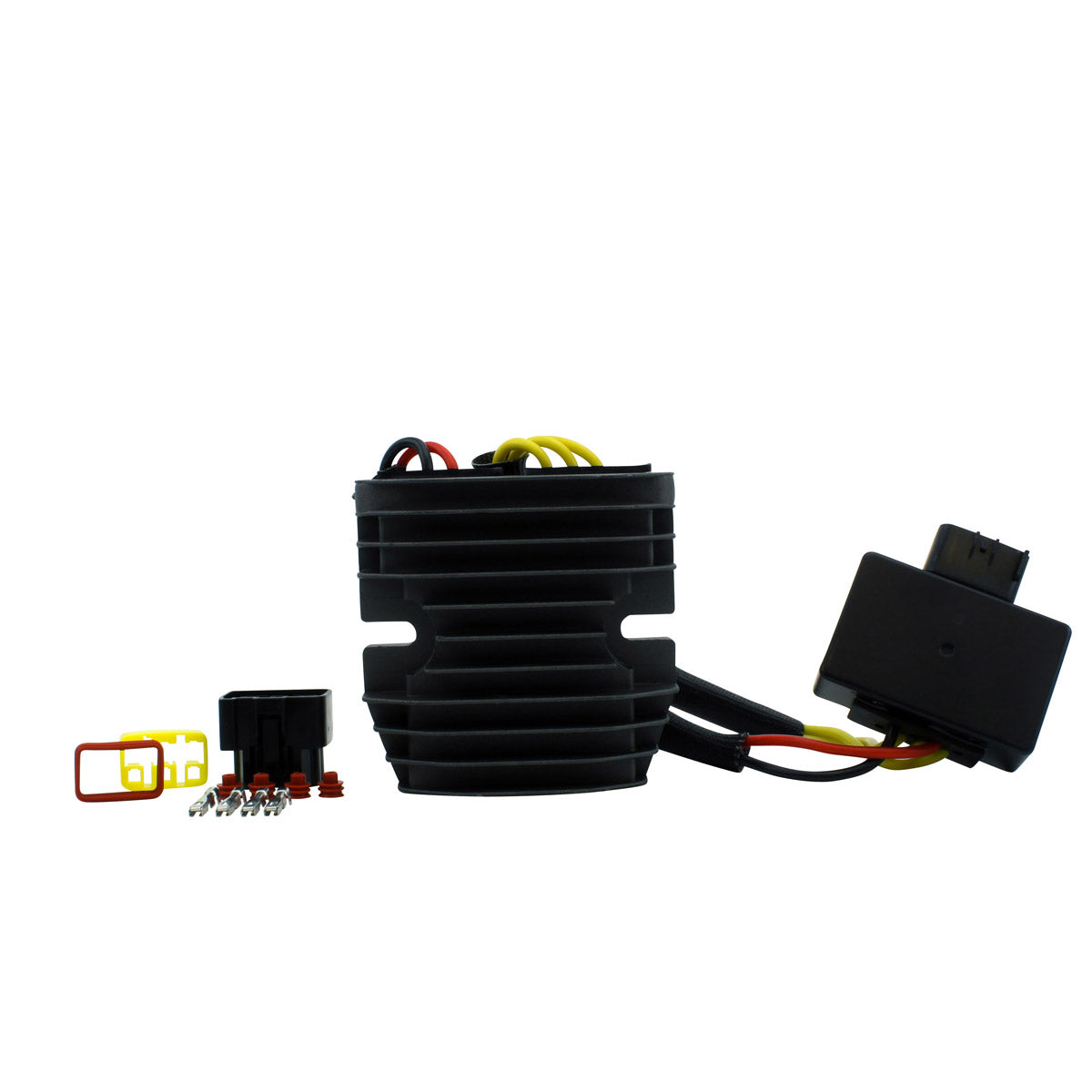

The MOSFET regulator rectifier with its five wires and six-pin plug on a 230 mm lead, plus the opposite connector for the main harness side. All shipped products are tested.
What is the advantage of a MOSFET unit over the original?
A MOSFET regulator wastes less energy as heat than the traditional diode-style unit it replaces, so it runs cooler in the same location. It also has overheat protection, which shuts the unit down under extreme conditions instead of allowing it to burn out.
How do I know my old regulator rectifier has failed?
Measure the voltage across the battery with the engine running. A healthy system on this part sits at about 14.5 V. A reading no higher than resting battery voltage means it is not charging, and a reading above 15 V means it is not regulating. Discoloured or melted harness connectors are another strong sign.
