Mosfet Regulator Rectifier for Harley Davidson - RM30919
Harley Davidson Dyna Glide 1450 - 2002 and 2003

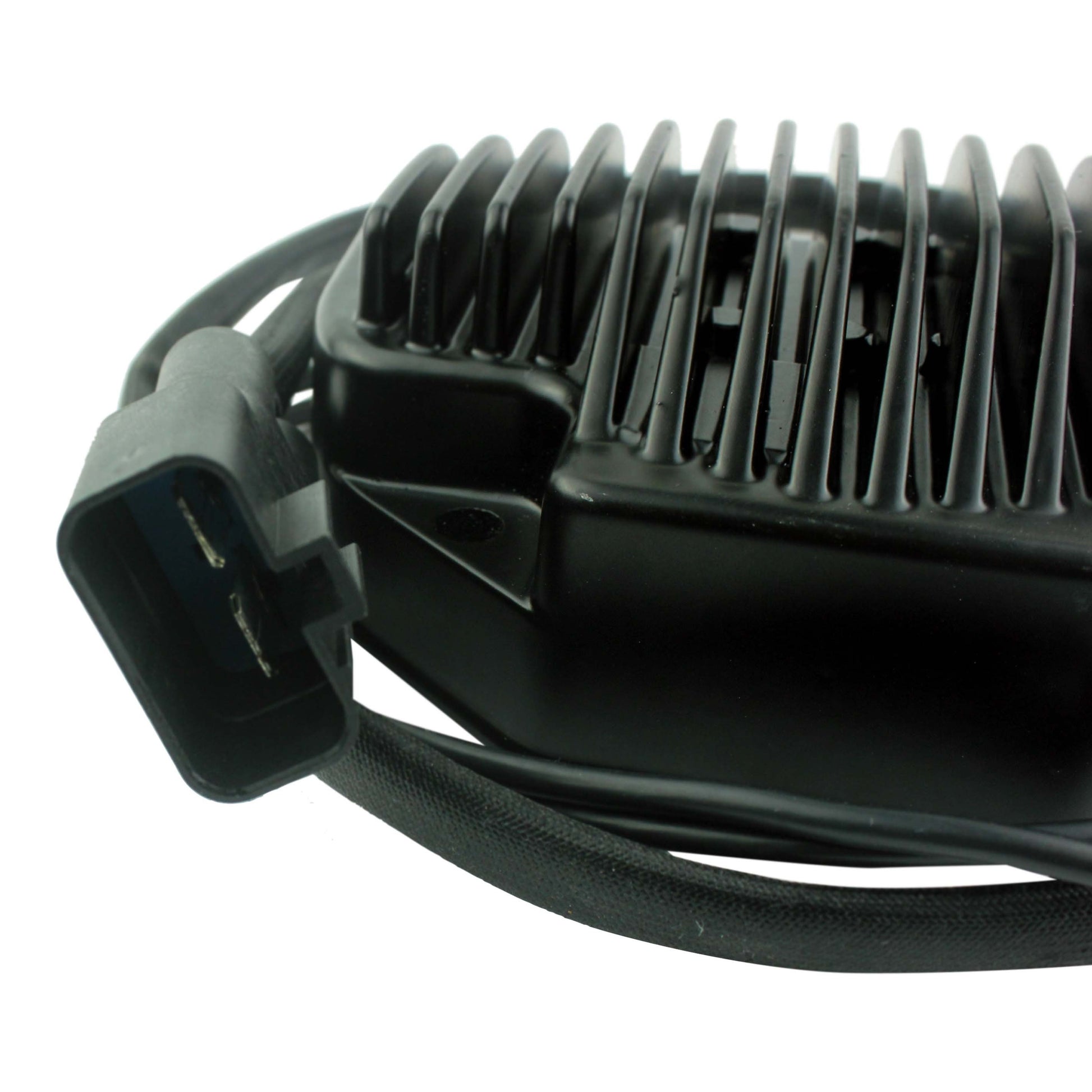

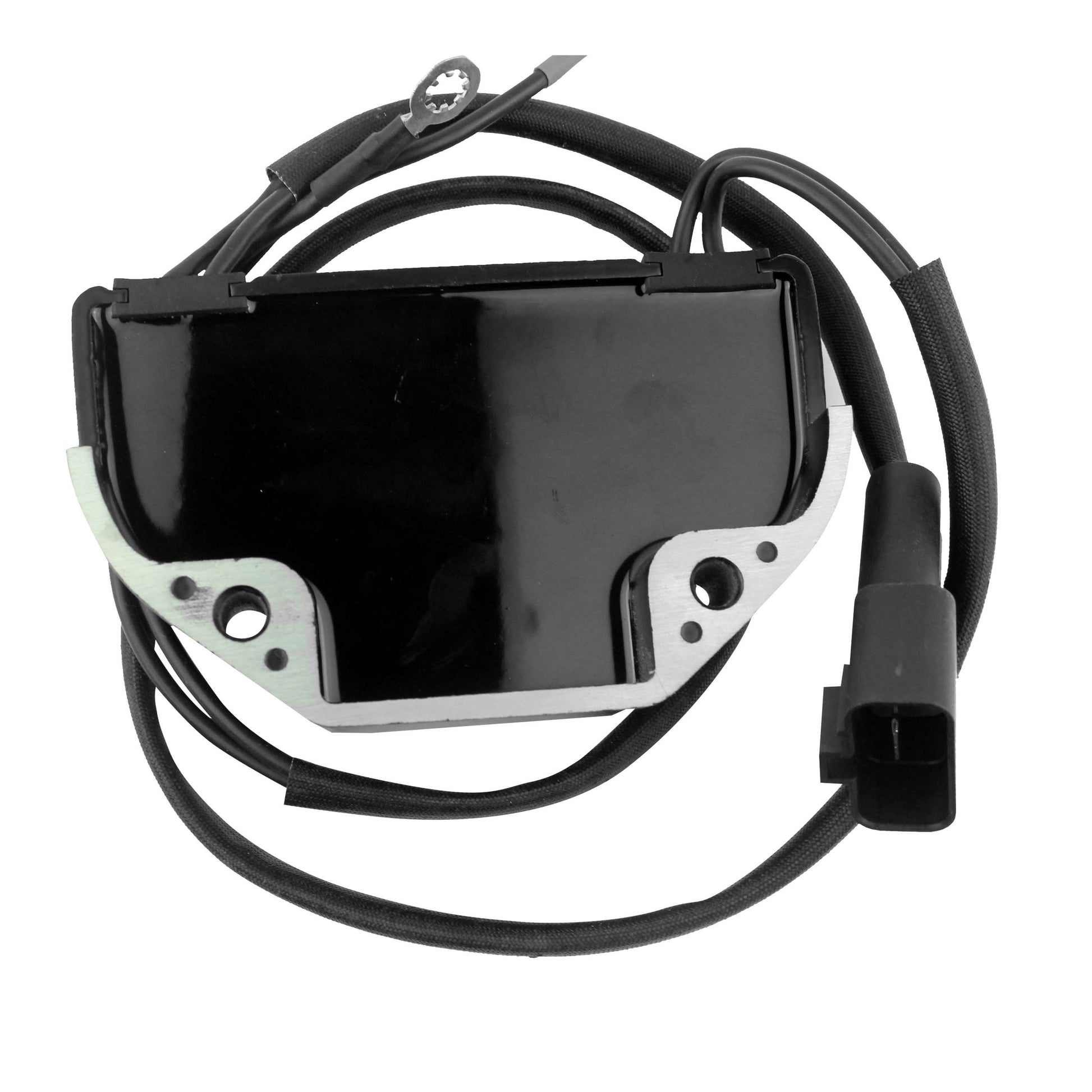

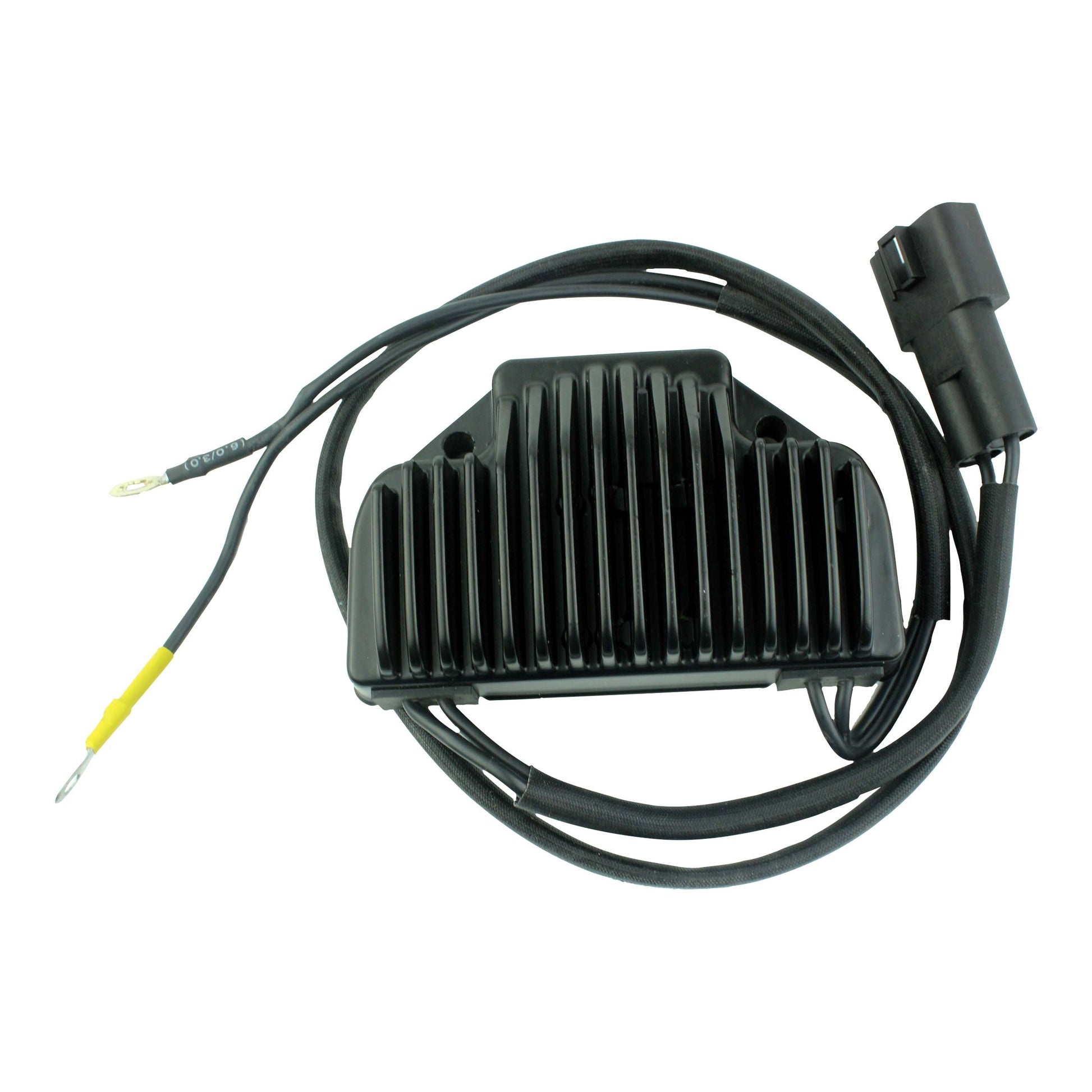

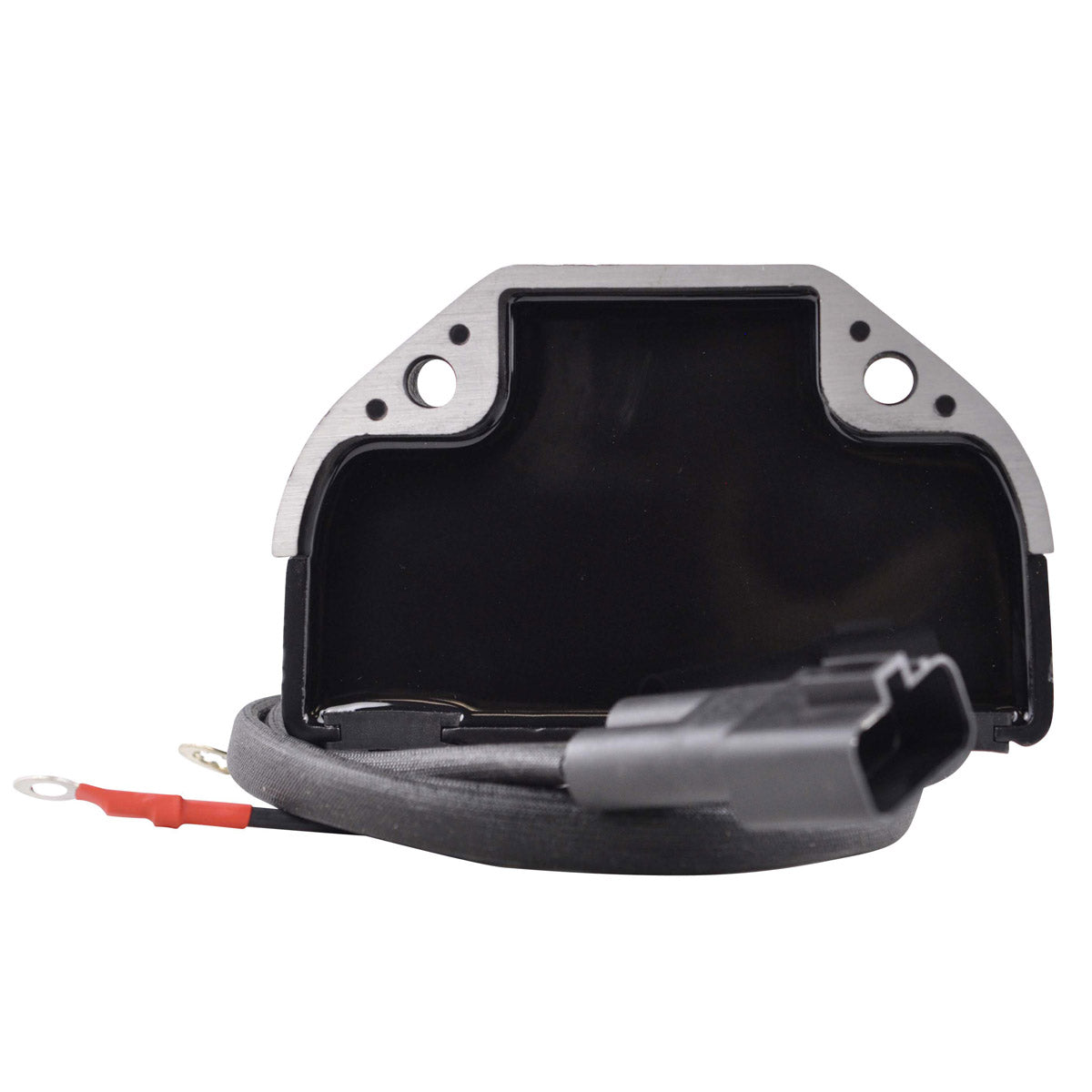

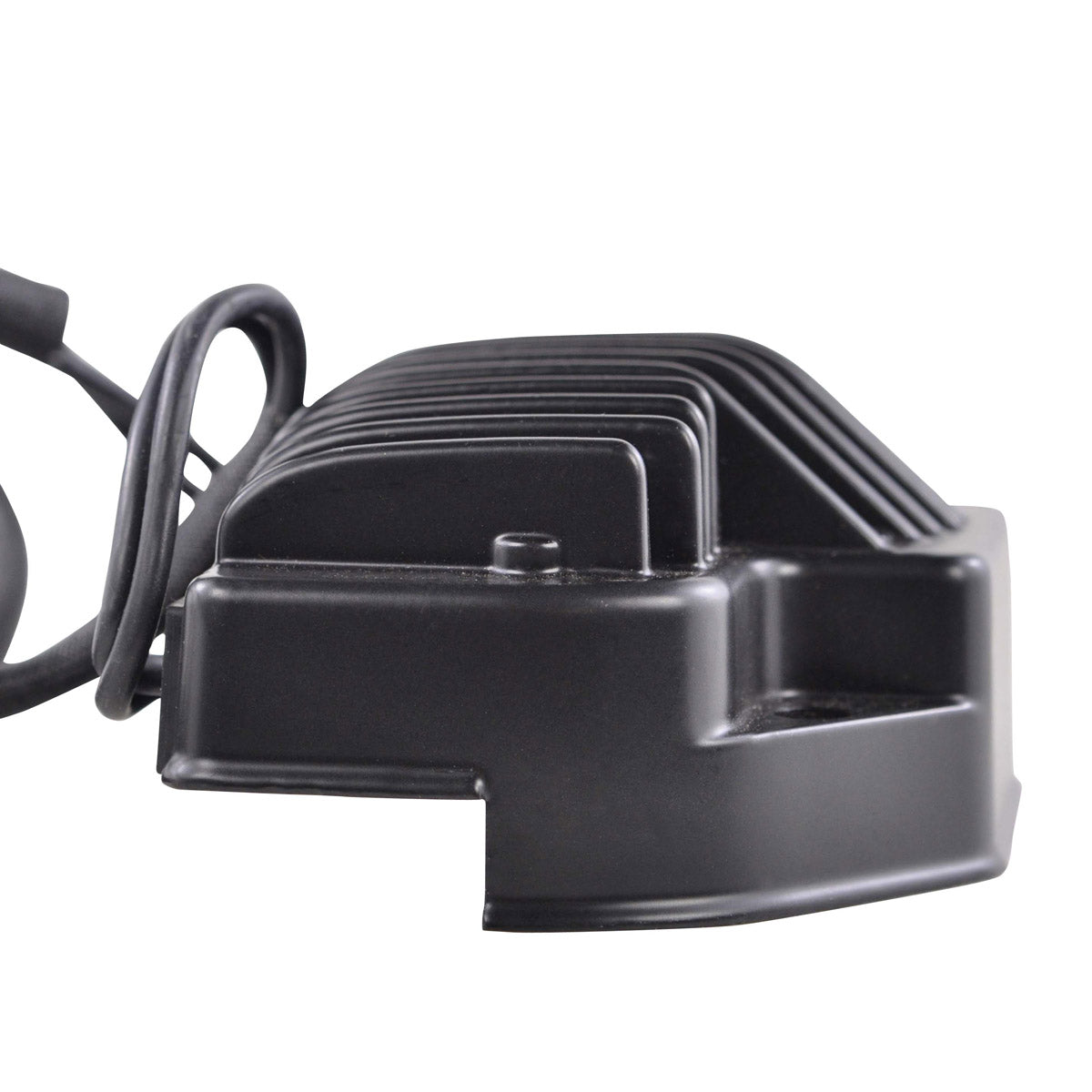

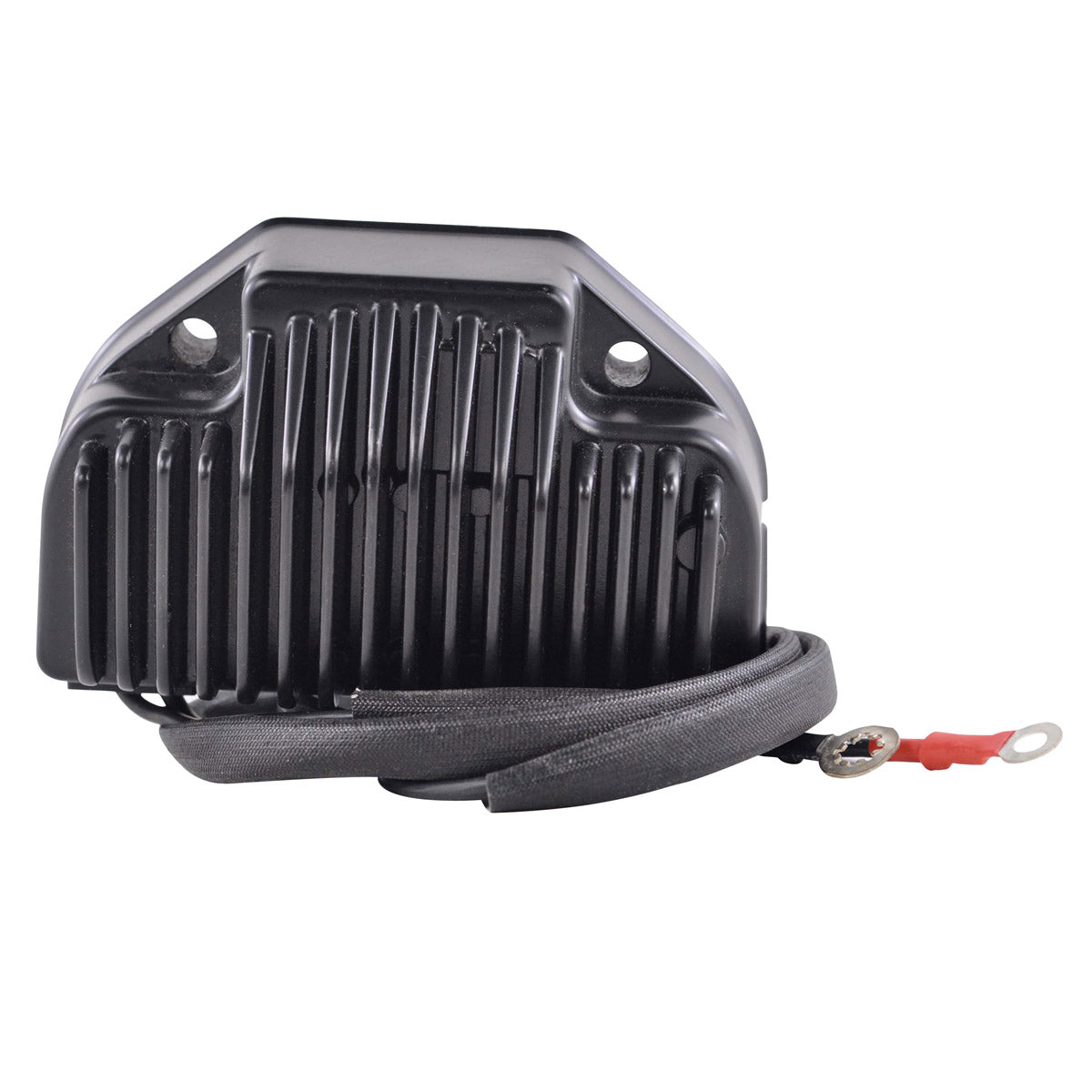

This is a brand new Mosfet voltage rectifier regulator for the Harley Davidson Dyna Glide 1450, supplied as a direct replacement for the original unit. It is a plug-and-play installation using the original mounting, with 4 wires, 4 pins and a single plug, and no assembly is required before fitting.
Mosfet technology is what makes this an advanced replacement rather than a like-for-like one. Compared with the OEM diode-style regulator it offers superior cooling, and that matters because heat is the reason most original regulators fail. This unit also carries overheat protection: rather than burning out under extreme load, it shuts itself down temporarily and resumes once it has cooled. The heat sink design is improved and higher grade electrical components are used throughout, supporting a minimum charging voltage of 14.5 V +/- 0.5 V and a maximum charging current of 50 A / 500 W.
Key Features
- Brand new Mosfet voltage rectifier regulator
- Direct replacement for the original unit
- Superior cooling compared with OEM diode regulators
- Overheat protection shuts the unit down temporarily instead of burning out
- Improved heat sink design
- Higher grade electrical components
- Plug-and-play installation
- Rated to 50 A / 500 W maximum charging current
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30919 |
| Width | 85 mm |
| Length | 140 mm |
| Height | 55 mm |
| Wire lengths | 220 mm, 800 mm and 875 mm |
| Fixation holes centre to centre | 75 mm |
| Number of plugs | 1 |
| Number of pins | 4 |
| Number of wires | 4 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Harley Davidson Dyna Glide 1450 | 2002 and 2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 74594-02 | Harley Davidson |
Frequently Asked Questions
Does this need any modification to fit?

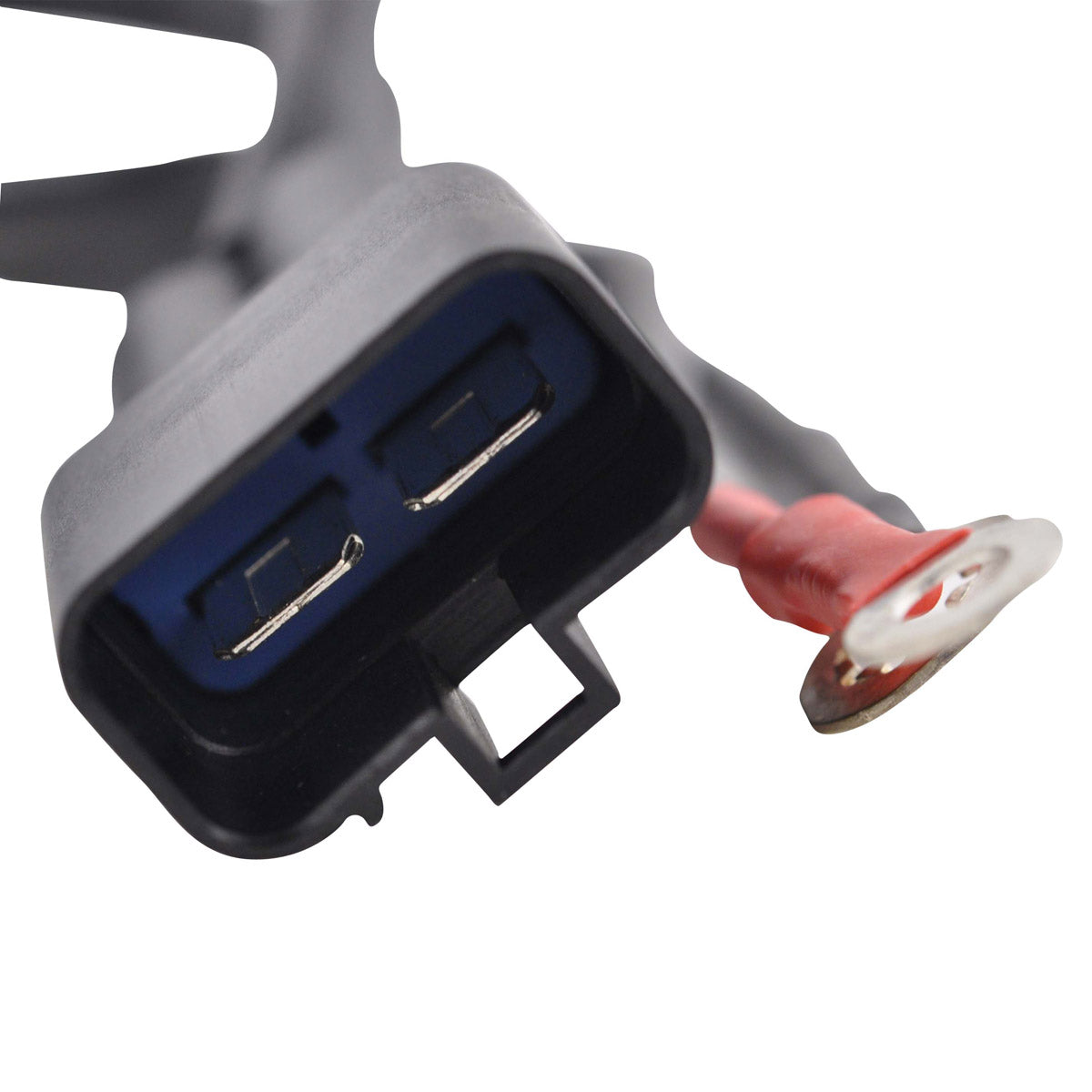

No. It is a plug-and-play direct replacement using a single 4-pin plug and 4 wires, with fixation holes 75 mm centre to centre so it mounts in the original position. No cutting or splicing of the loom is required.
What is included?
You receive one brand new Mosfet regulator rectifier with wiring in three lengths - 220 mm, 800 mm and 875 mm. Mounting bolts are not included, so re-use the fixings from the original regulator.
How do I know the original regulator has failed?
With the engine running, charging voltage at the battery should be around 14.5 V +/- 0.5 V. A flat reading at battery voltage means no charge is reaching the battery, and anything climbing past 15 V means regulation has failed and the battery is being overcharged. Scorching or heat discolouration on the regulator body is a further sign.
What does the overheat protection actually do?
If the regulator reaches its thermal limit it shuts down temporarily rather than burning out. Once it cools it resumes normal operation. That is a meaningful difference from an OEM diode regulator, which simply fails when it overheats.
