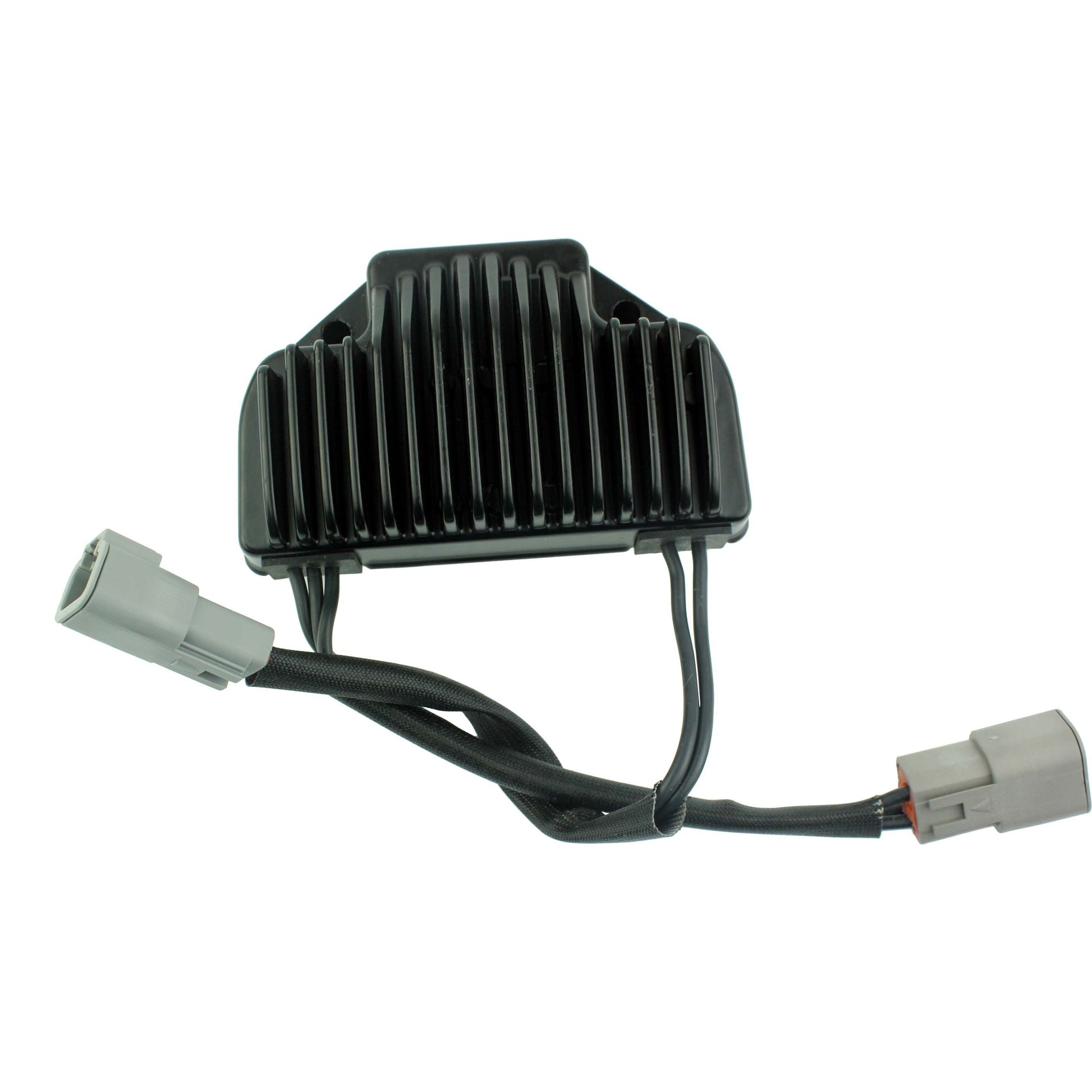

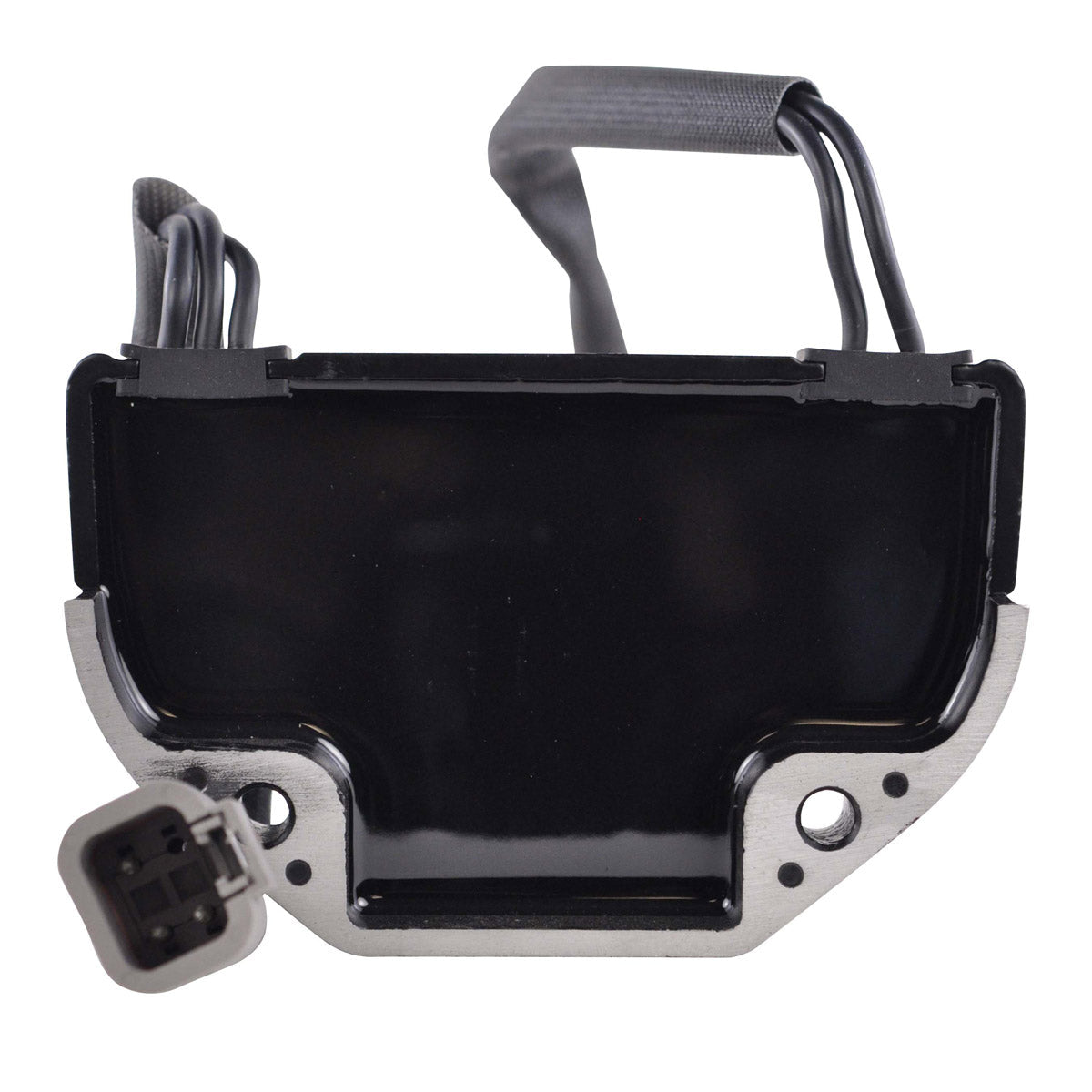

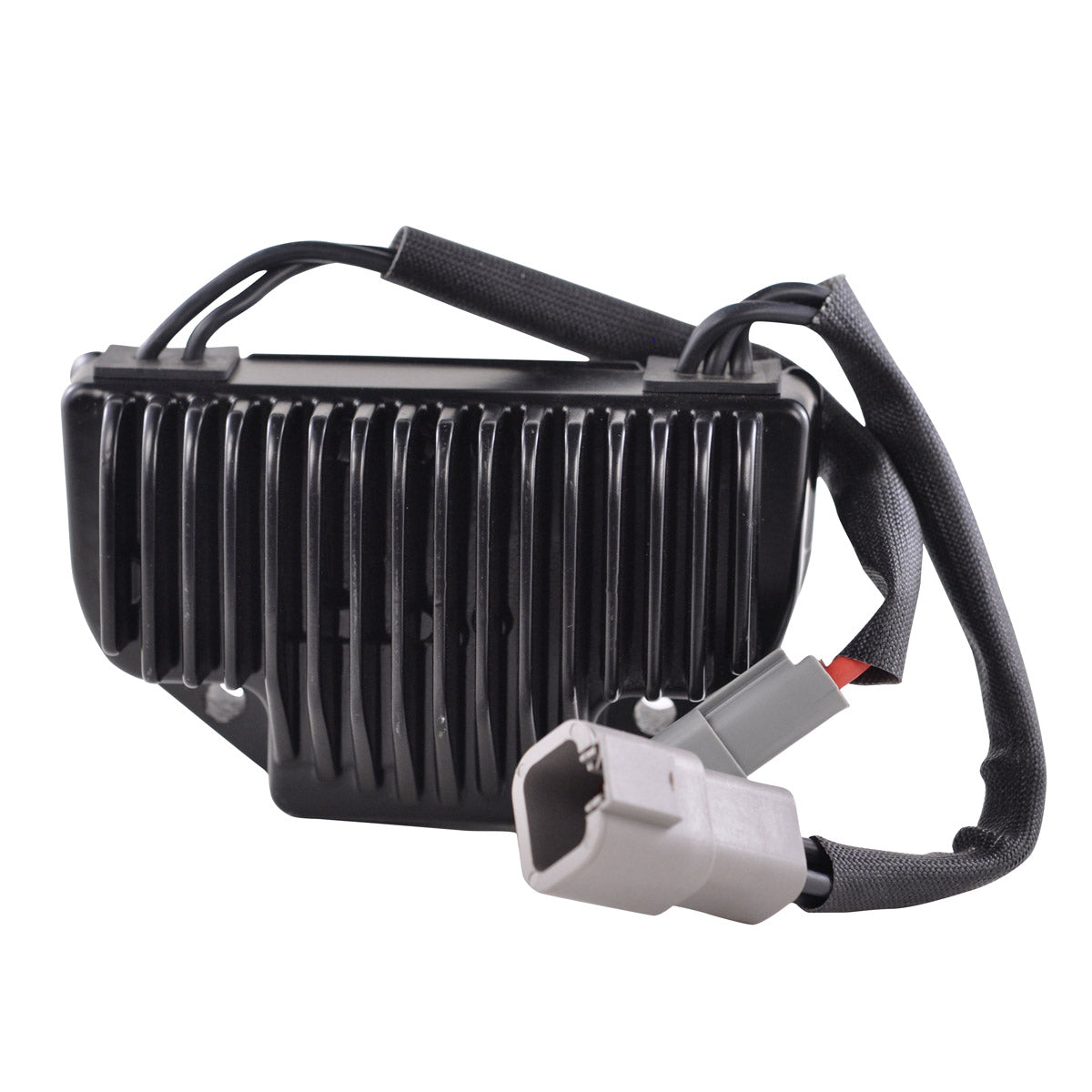

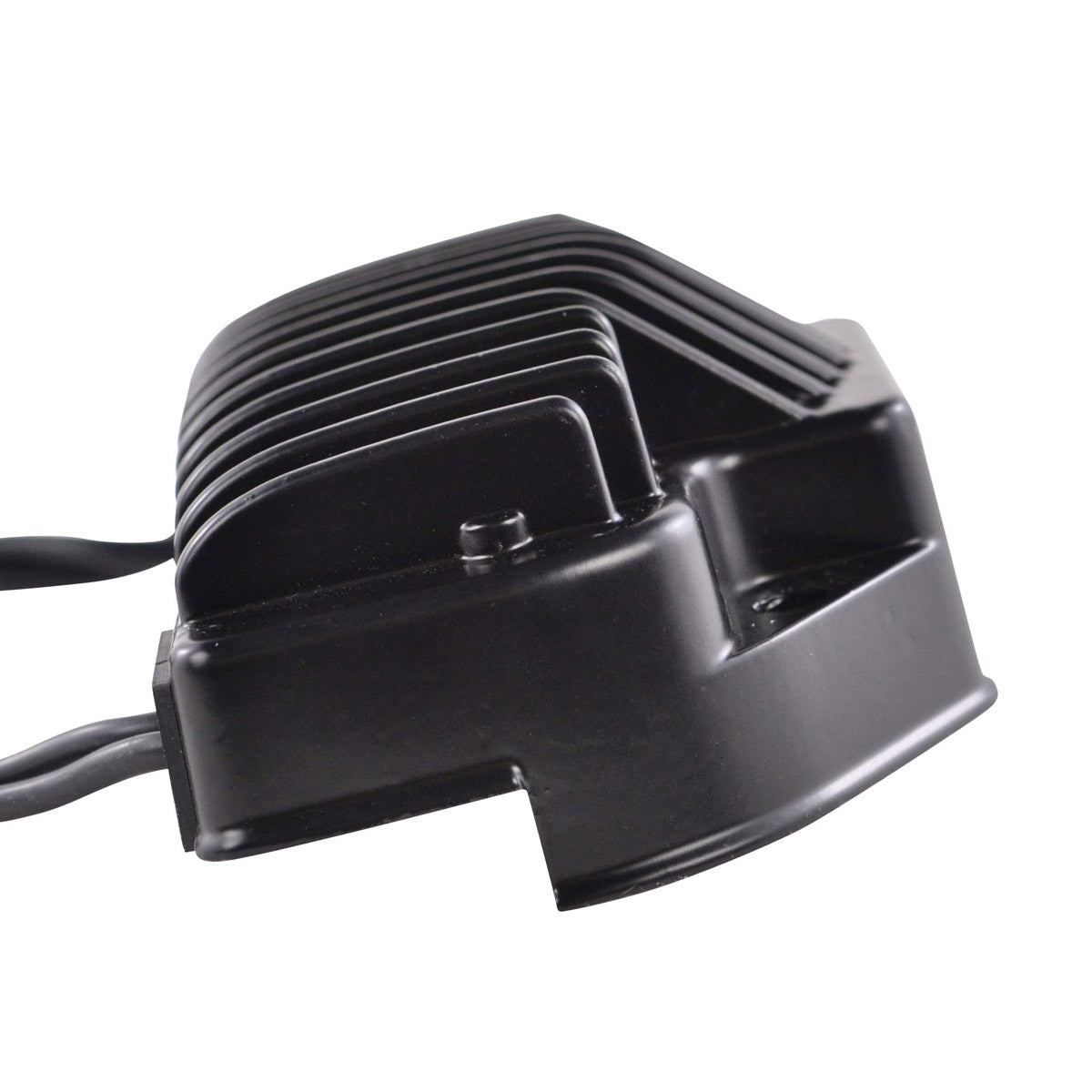

MOSFET Regulator Rectifier for Harley-Davidson Dyna Street Bob & Super Glide 2006-2007
MOSFET Regulator Rectifier for Harley-Davidson Dyna Street Bob & Super Glide 2006-2007
SKU:RM30930
Free shipping over £150. Terms apply
Couldn't load pickup availability
MOSFET Regulator Rectifier for Harley-Davidson Dyna Glide
Street Bob, Super Glide 1450 and Wide Glide - 2006-2007 - Part RM30930
This MOSFET voltage regulator rectifier is a direct replacement for the charging system regulator fitted to the 2006-2007 Harley-Davidson Dyna Glide family, covering the Street Bob, the Super Glide 1450 and the Wide Glide. It is supplied under RMSTATOR part number RM30930 and is built to plug straight into the original wiring, so no cutting, splicing or modification of the loom is required.
MOSFET regulators run considerably cooler than the diode style units fitted as original equipment, and heat is the single most common reason an OEM regulator fails. This unit also carries overheat protection: rather than burning out under sustained load it simply switches off, cools down and resumes work. Every unit is bench tested before it is shipped.
Key Features
- Brand new MOSFET voltage regulator rectifier, not a remanufactured unit
- Runs cooler than the OEM diode style regulator it replaces
- Overheat protection - the unit shuts down and cools rather than burning out
- Plug and play direct fit to the original connectors, no modification needed
- Improved heat sink and improved charging capability over the original
- Higher grade electrical components throughout
- Quality exceeds the original equipment specification
- Every unit is tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30930 |
| Regulator Type | MOSFET |
| Width | 85 mm |
| Length | 140 mm |
| Height | 60 mm |
| Wire Length | 180 mm |
| Fixing Holes, Centre to Centre | 80 mm |
| Number of Plugs | 2 |
| Number of Pins | 5 |
| Number of Wires | 5 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 50 A / 500 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Harley-Davidson Dyna Glide Street Bob | 2006-2007 |
| Harley-Davidson Dyna Super Glide 1450 | 2006-2007 |
| Harley-Davidson Dyna Wide Glide | 2006-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 74561-06 | Harley-Davidson |
| 74631-06 | Harley-Davidson |
Frequently Asked Questions
Will this fit without modification?
Yes. RM30930 is a direct replacement for the original regulator on the listed 2006-2007 Dyna Glide models. It uses the same two plugs, five pins and five wires as the original unit, and the fixing holes are 80 mm apart centre to centre to match the standard mounting. No cutting, splicing or re-pinning of the loom is required.
What is included?
One MOSFET voltage regulator rectifier, RMSTATOR part number RM30930. Mounting bolts are reused from your original unit; no other parts are supplied with it.
How do I know my old regulator has failed?
Typical symptoms are a battery that will not hold charge, a battery that boils or swells from overcharging, headlights that brighten and dim with engine speed, and a regulator body that is too hot to touch after a short ride. Measured at the battery terminals with the engine running, a charging voltage well below 14 V or above 15 V points at the regulator.
Why choose a MOSFET regulator over the original diode type?
The OEM diode regulators shed waste energy as heat, and heat is what eventually destroys them. A MOSFET unit switches far more efficiently, so it runs cooler and holds its output more steadily in traffic and at low road speeds. This unit holds charging voltage at 14.5 V plus or minus 0.5 V, with a maximum output of 50 A or 500 W, and shuts down to protect itself if it does overheat.
