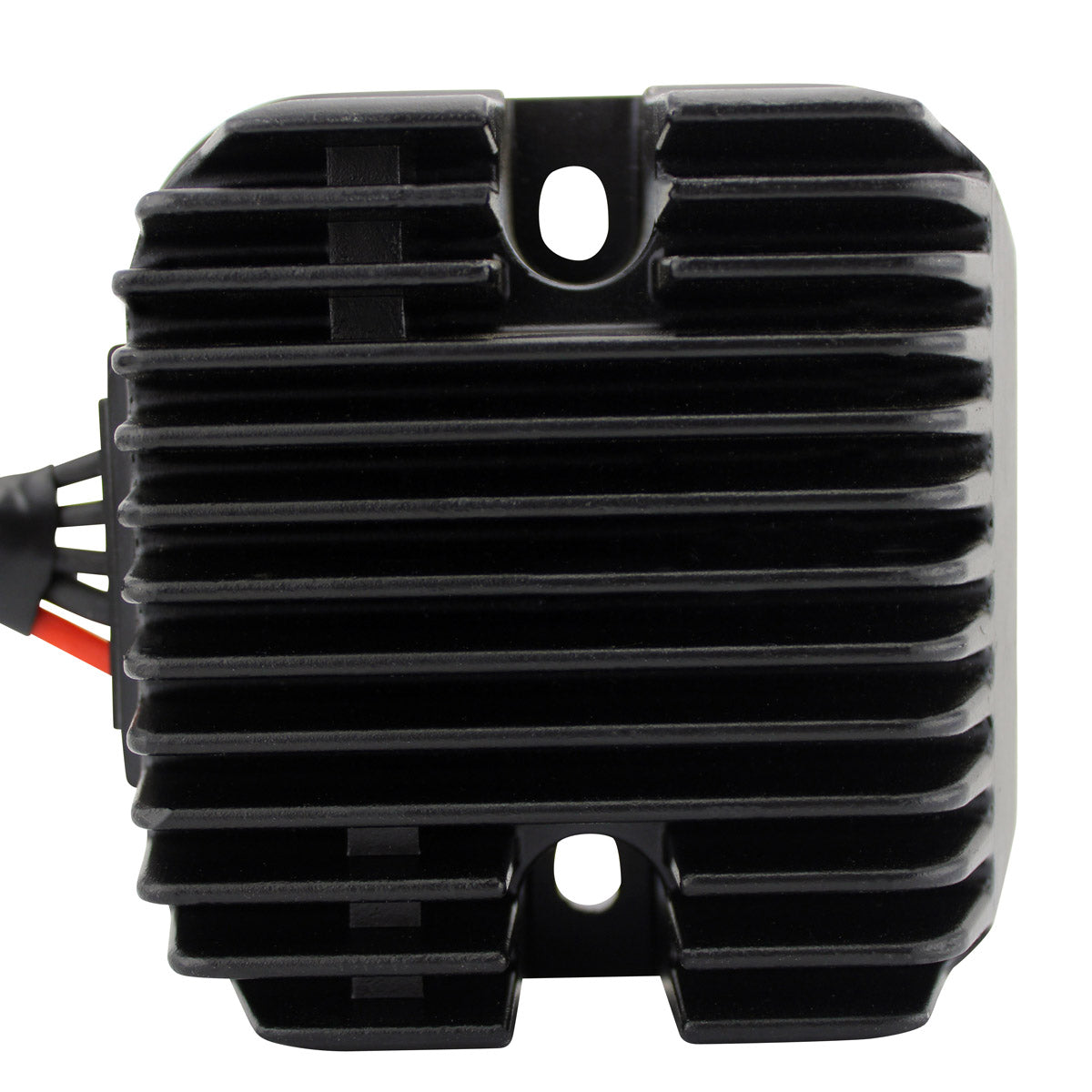

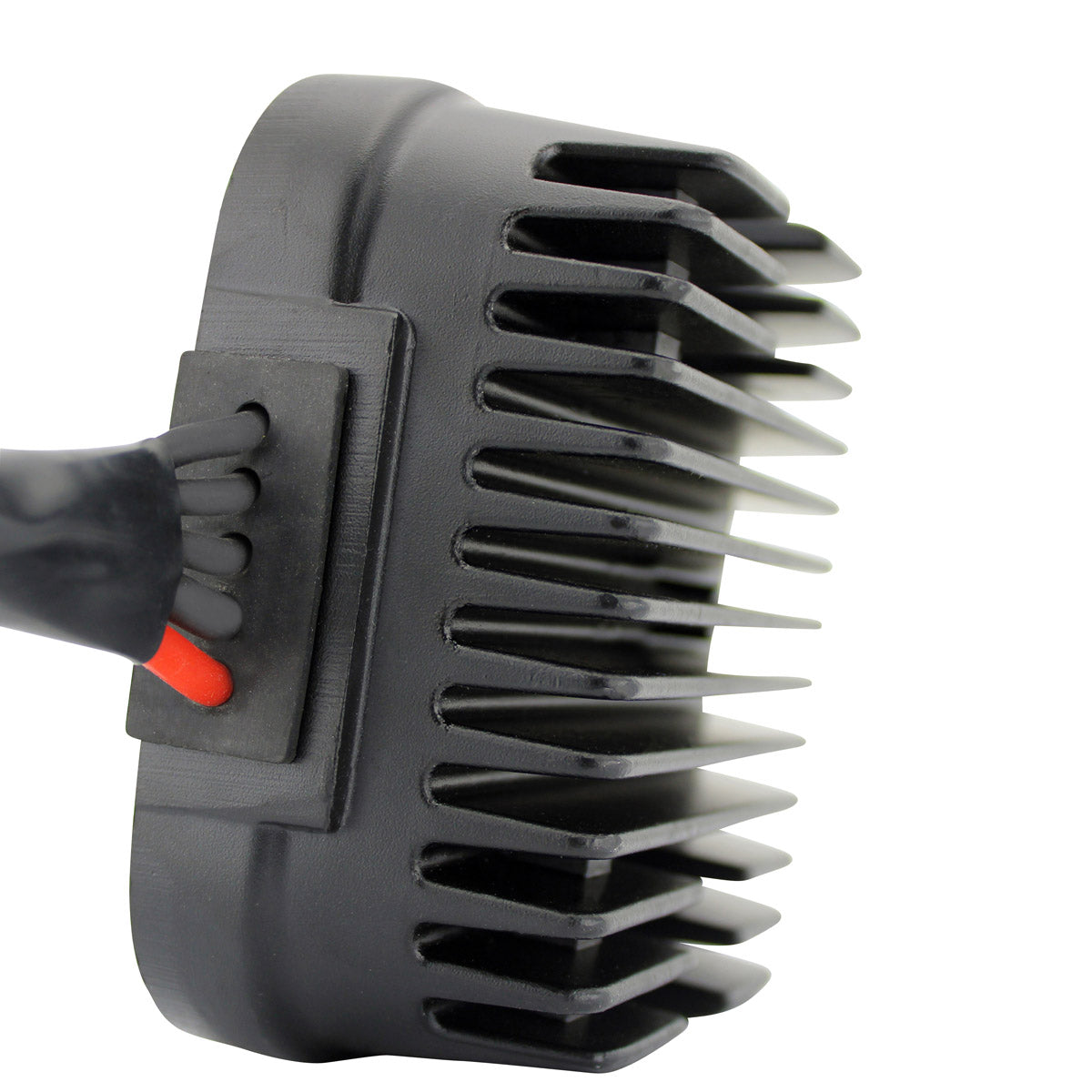

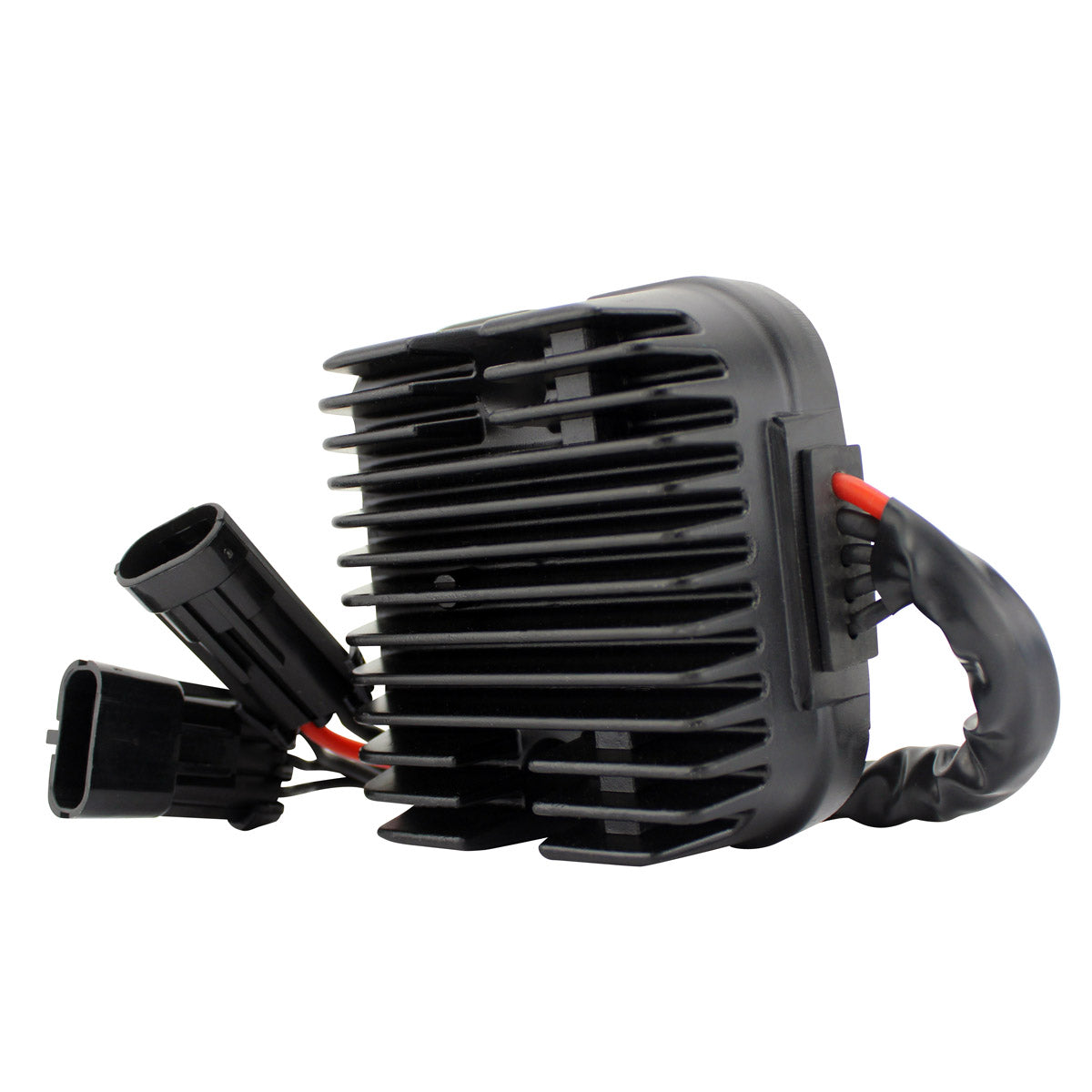

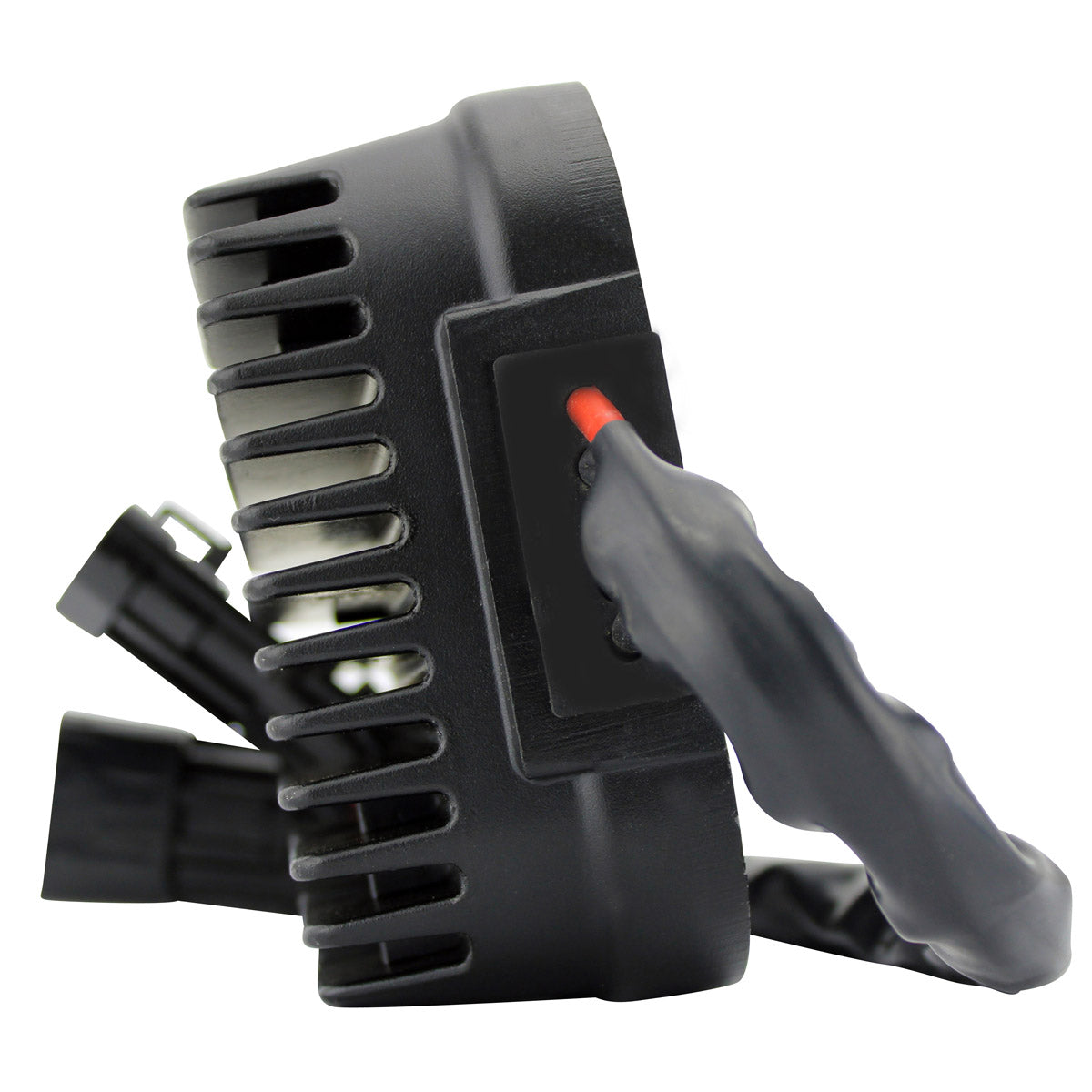

Mosfet Regulator RMS020-107307
Victory Cory Ness Jackpot, Hammer, Jackpot, Kingpin, Vegas and Vegas 8 Ball - 2005 to 2007

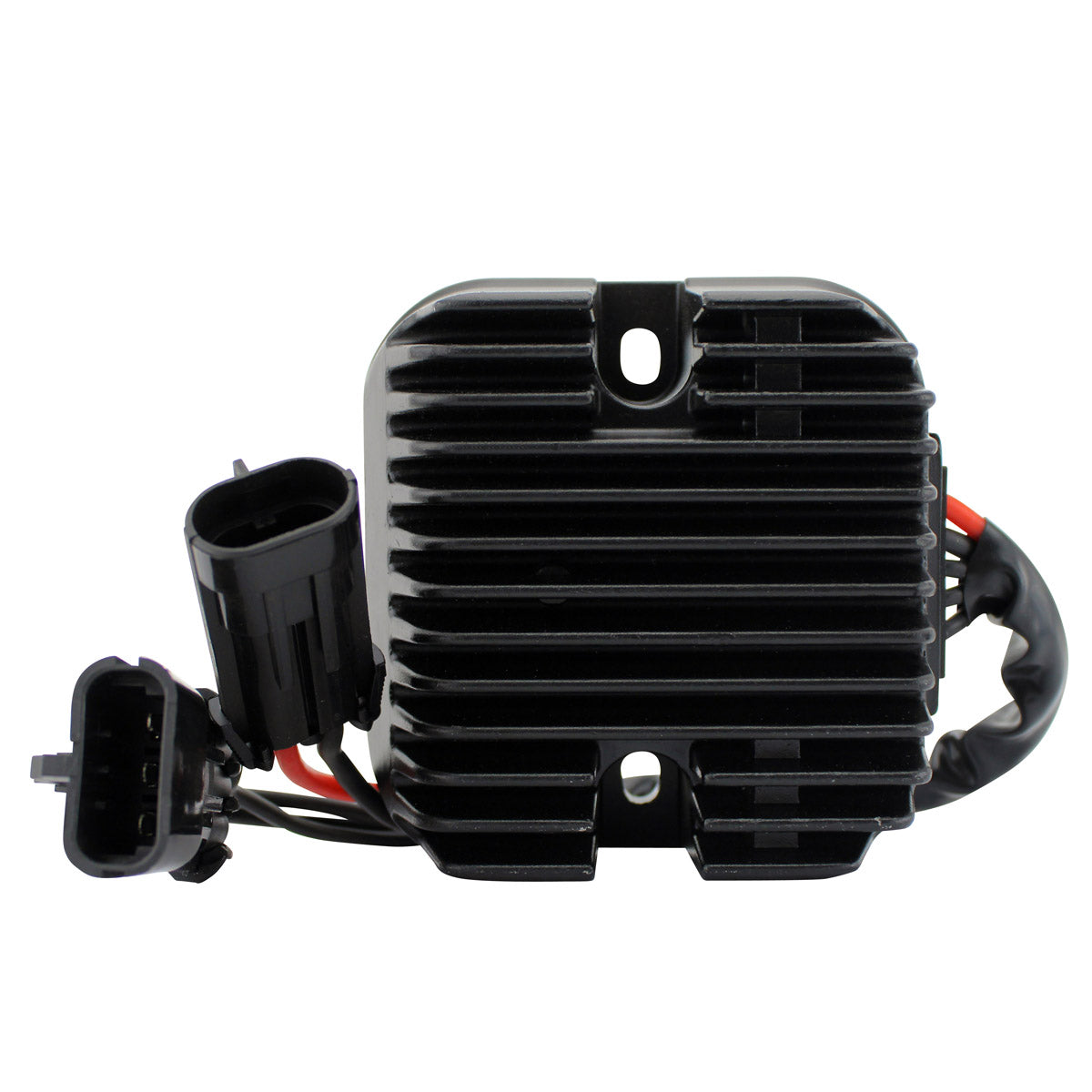

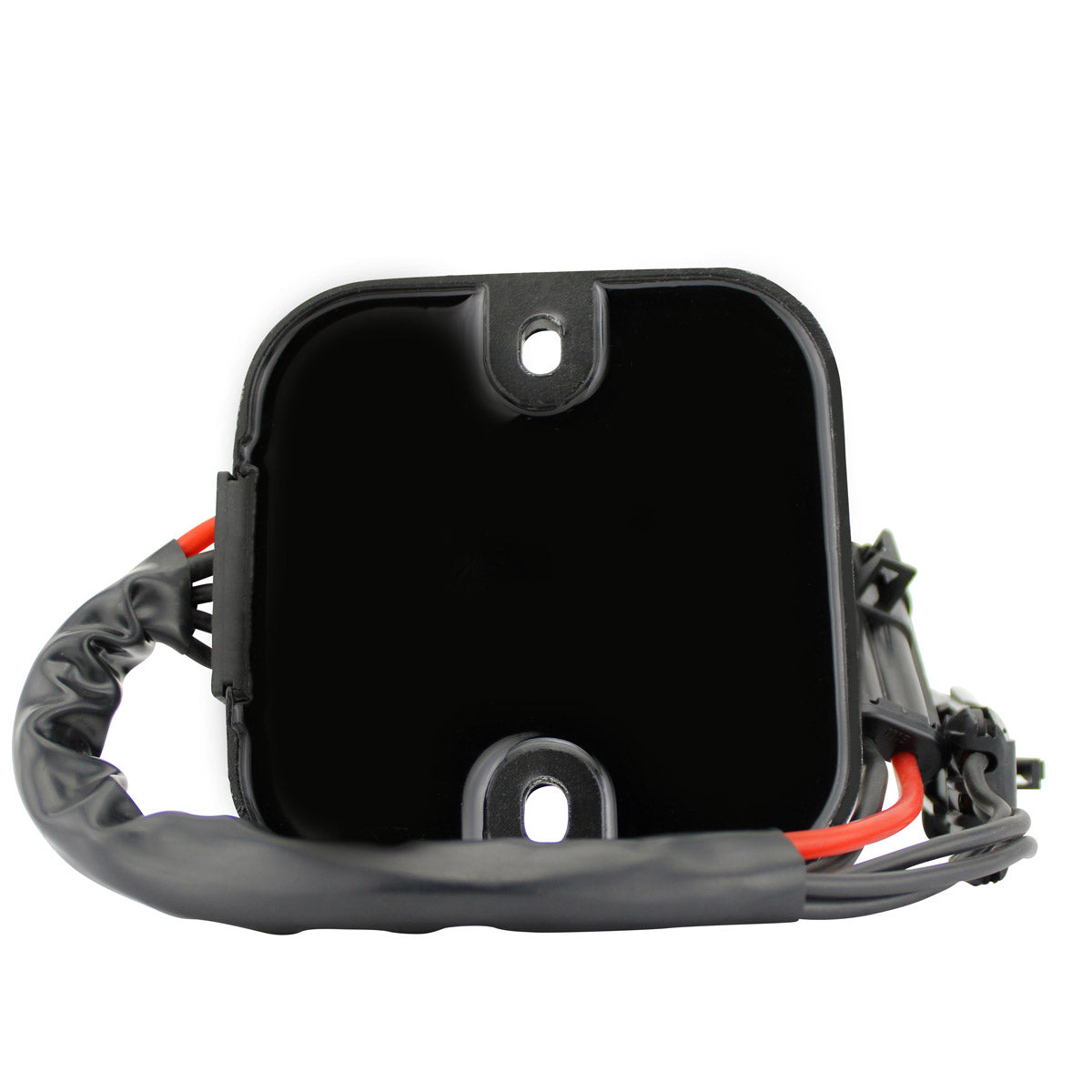

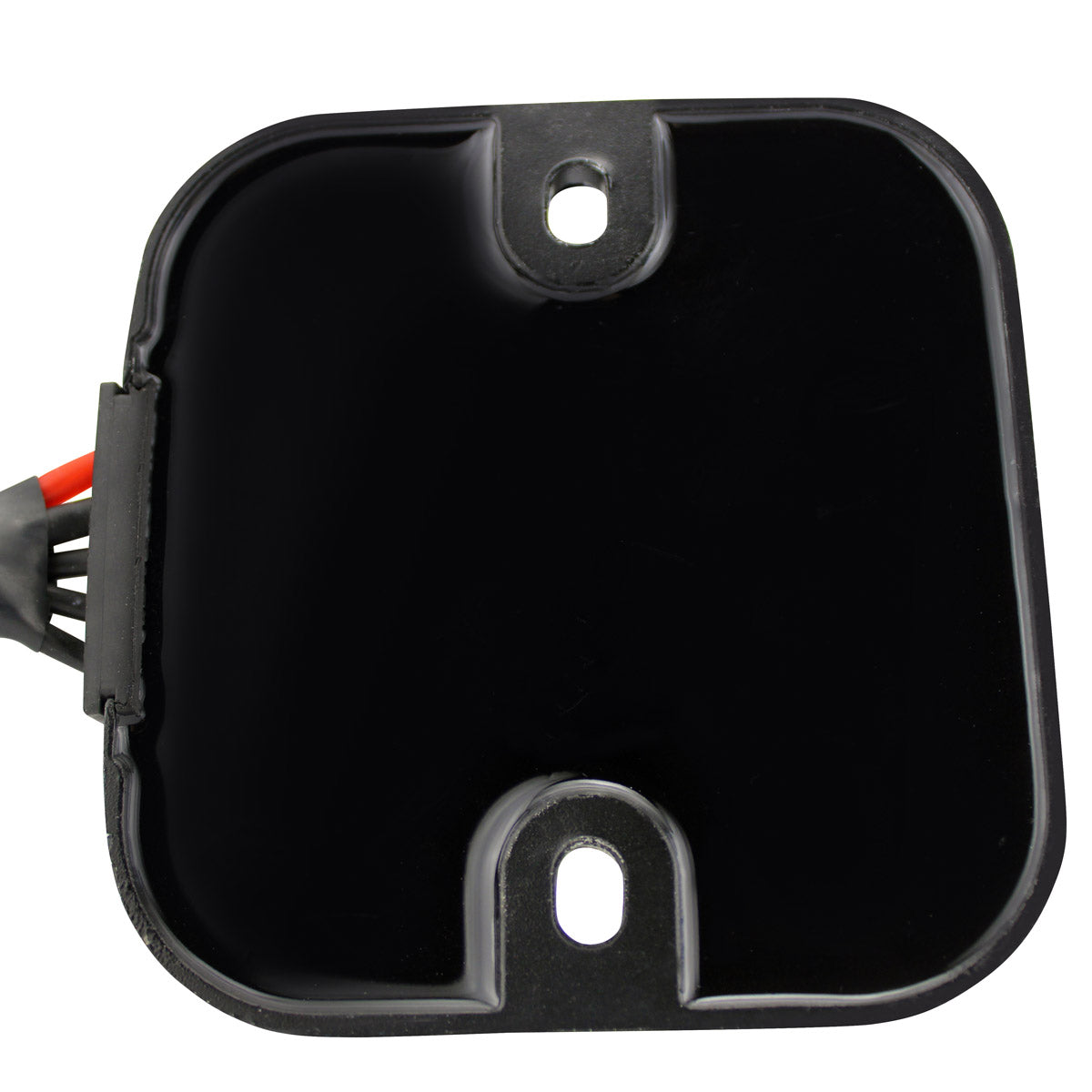

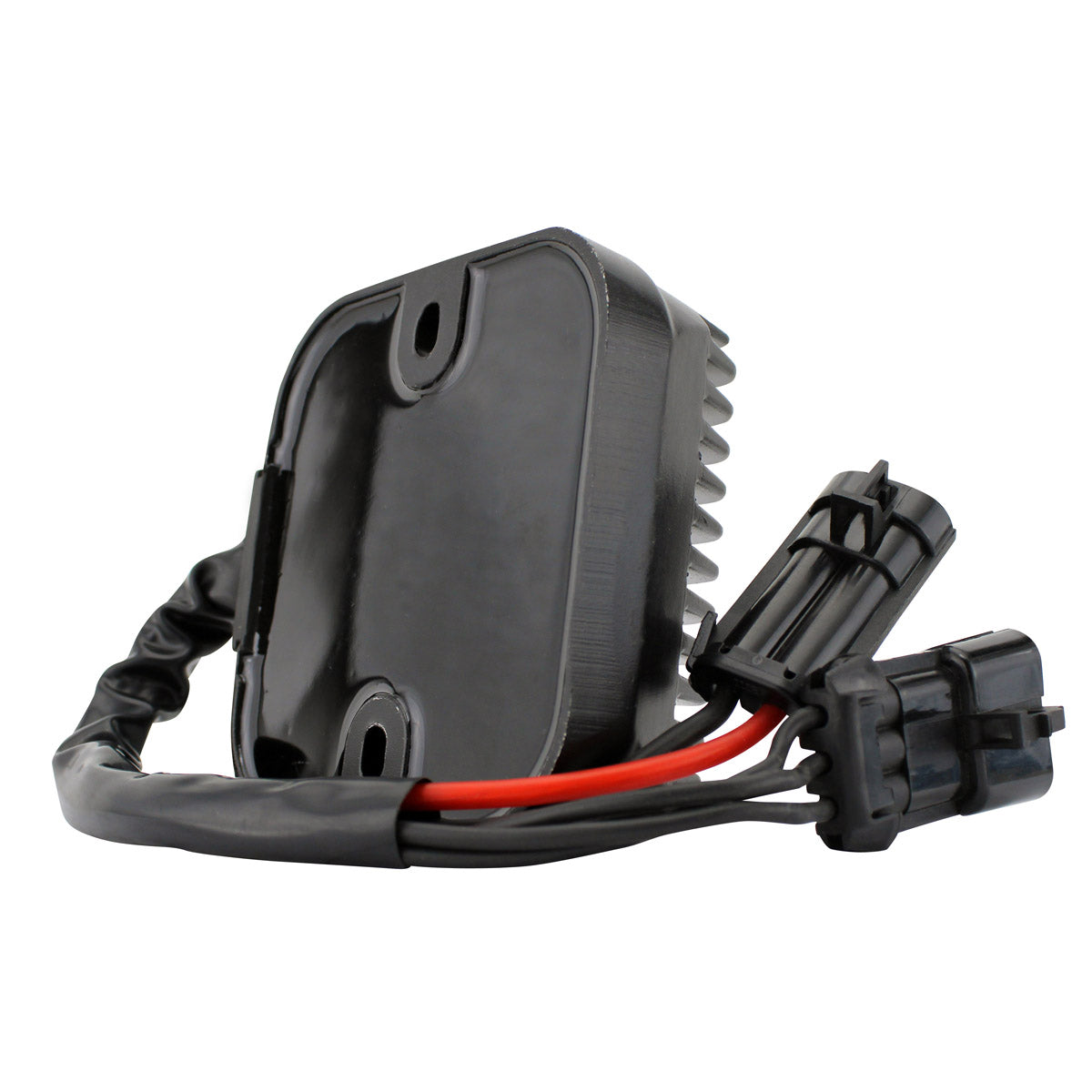

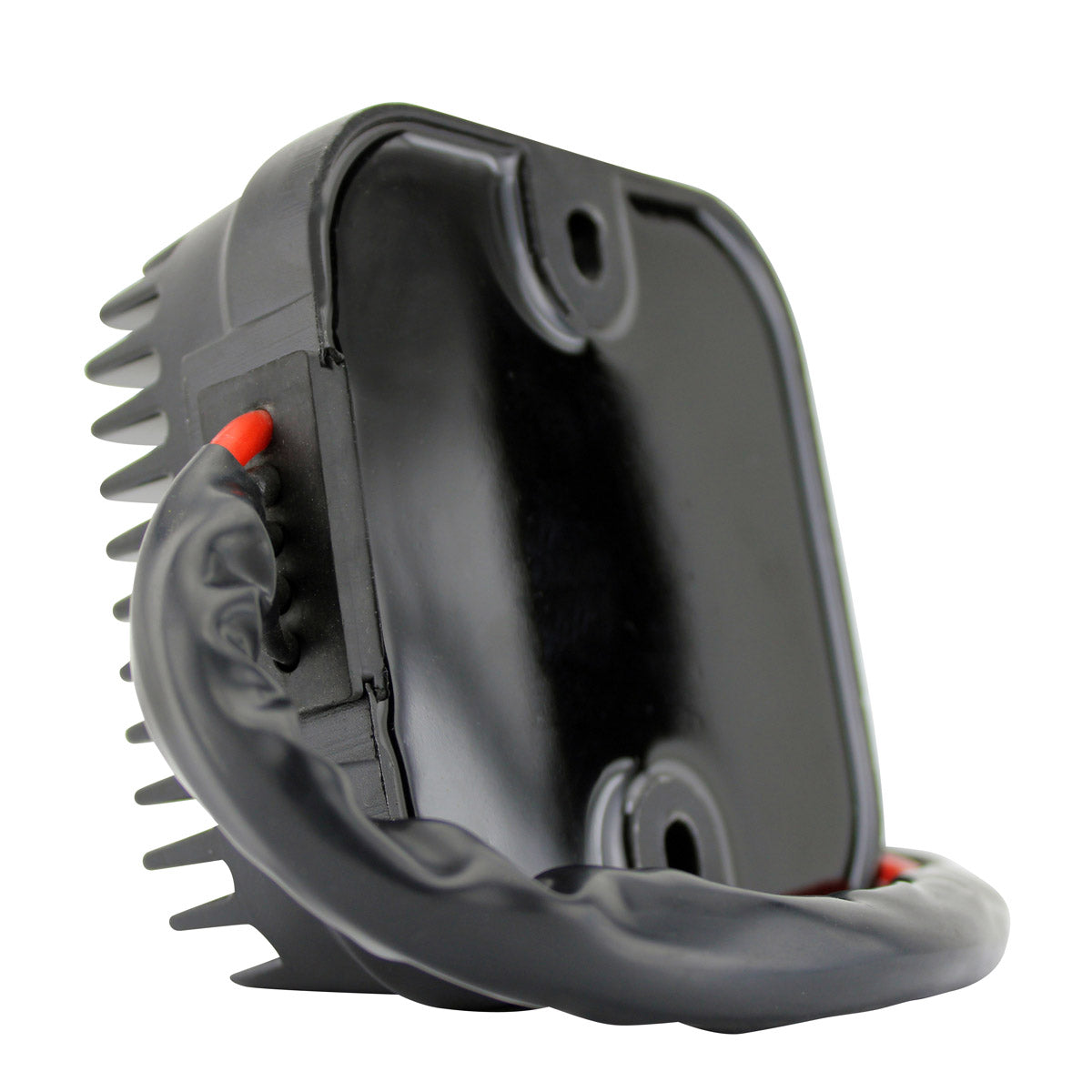

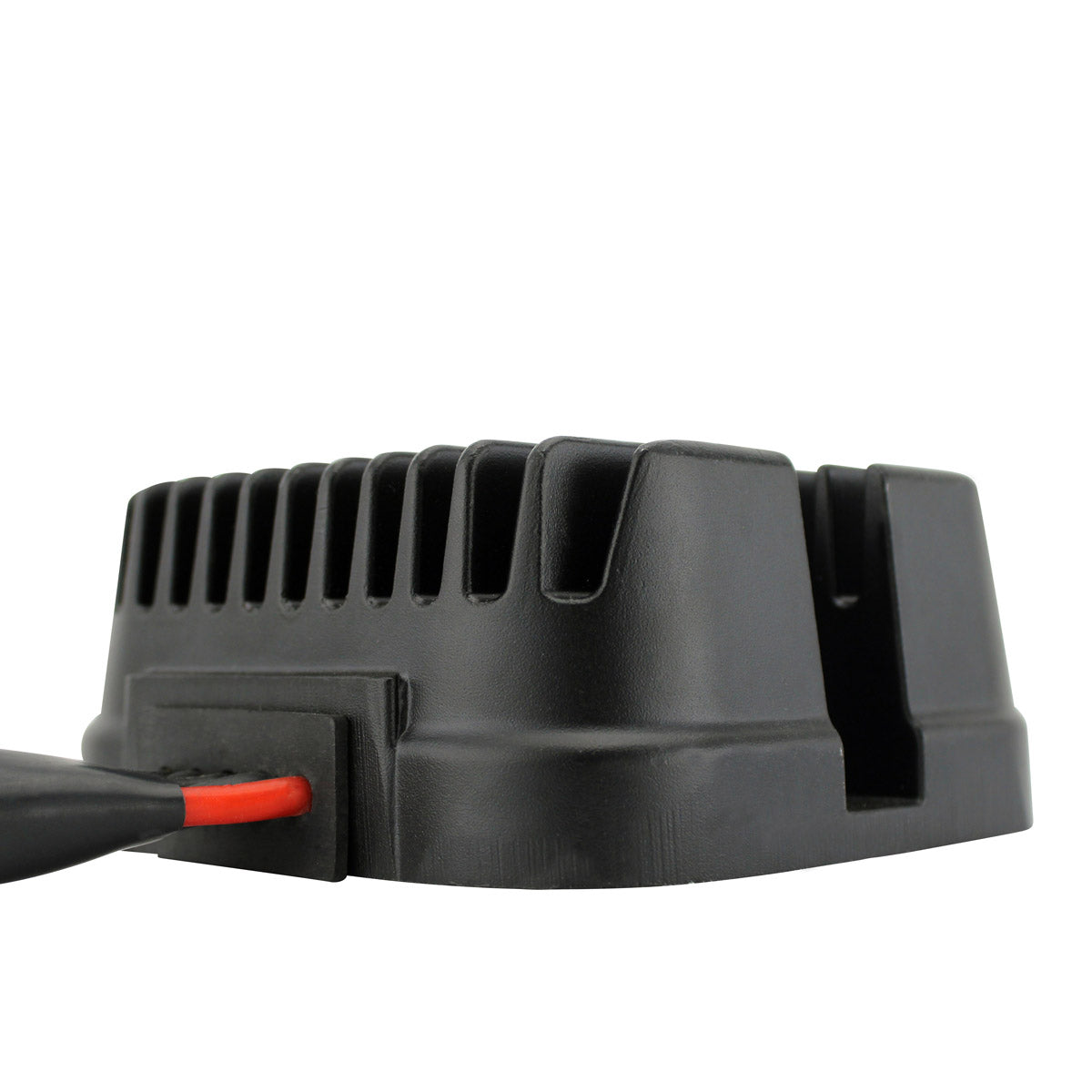

An advanced MOSFET voltage rectifier regulator designed as a direct replacement for the OEM unit fitted to the 2005 to 2007 Victory cruiser range. MOSFET switching is considerably more efficient than the diode-style regulation used in the original part, so the unit runs cooler in normal service. That matters on a big v-twin cruiser, where the regulator often lives in a tight, poorly ventilated spot and heat soak is the usual cause of premature failure.
Alongside the cooler running, this regulator has thermal shutdown built in. If it is pushed past its temperature limit it shuts down and recovers rather than failing outright, which is a far better outcome than a burnt-out unit at the roadside. Installation is plug-and-play and direct fit, with an improved heat sink over the original casting, improved charging capability, and higher grade electrical components throughout. All units are tested before shipping.
Key Features
- Runs cooler than the OEM diode-style regulator
- Overheat protection with automatic shutdown instead of burnout
- Direct replacement with plug-and-play installation
- Improved heat sink and improved charging capability
- Higher grade electrical components

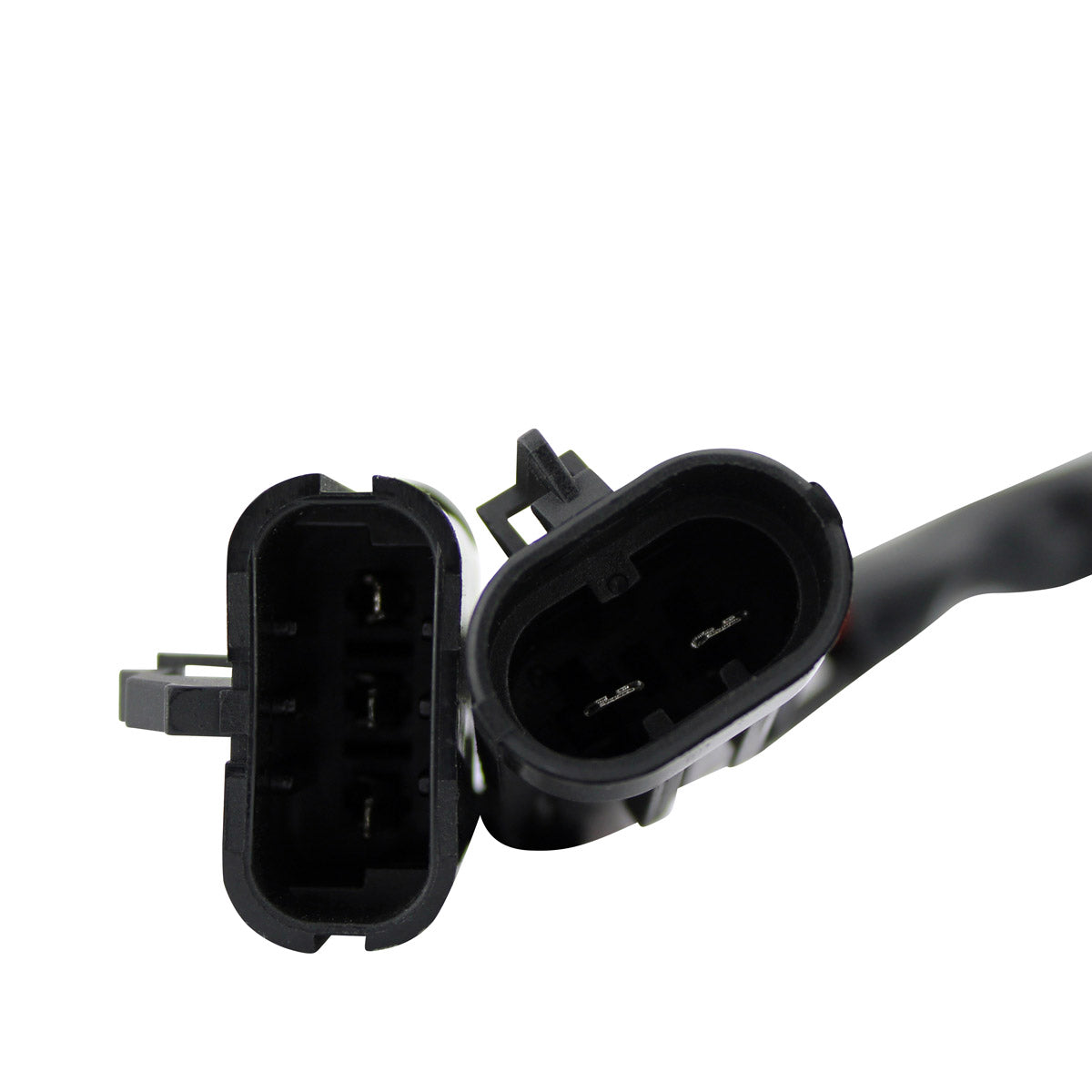

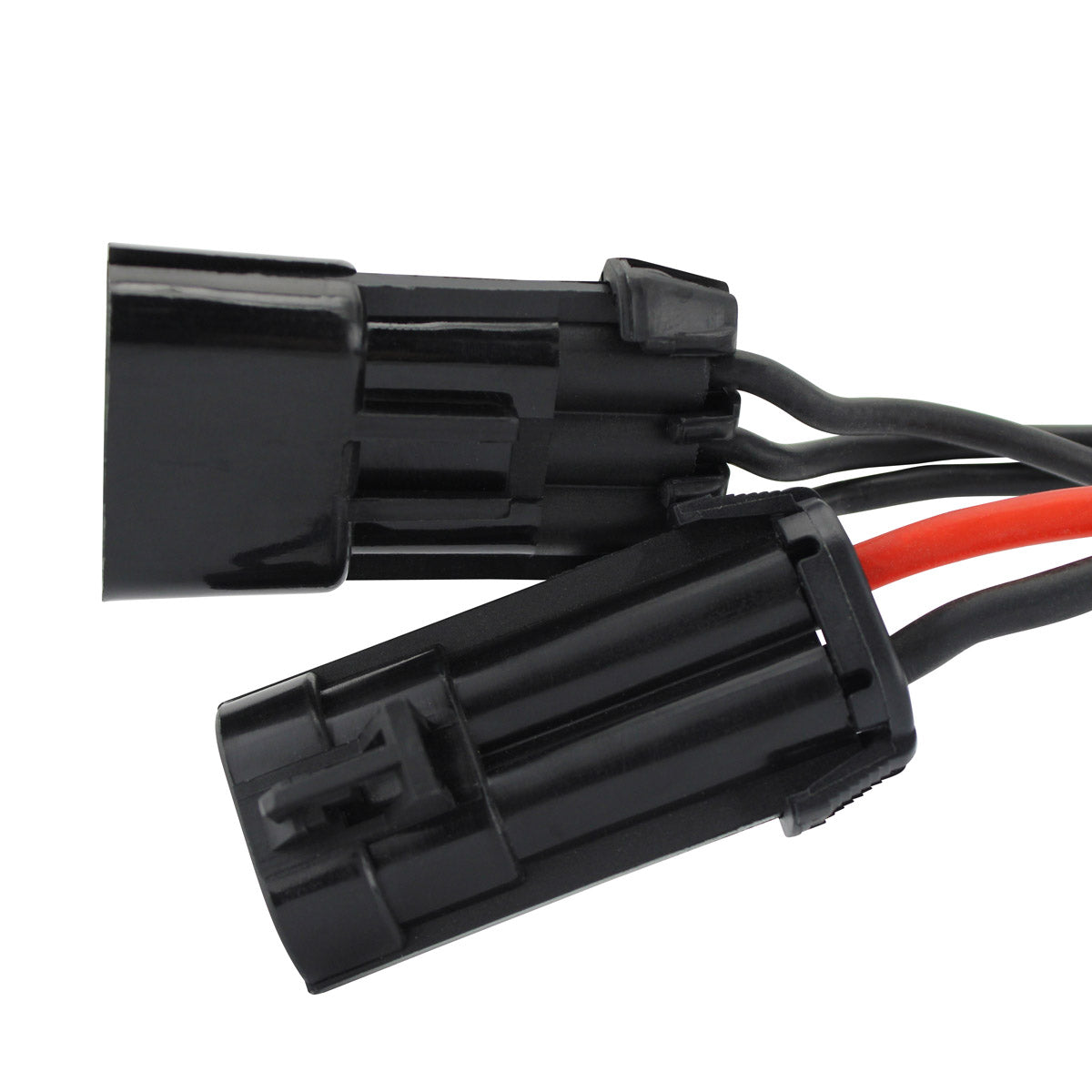

- 2 plugs, 5 pins and 5 wires as per the original fitment
- Separate 290 mm stator and 290 mm battery leads
- All units tested before shipping
Technical Specs
| Specification |
Detail |
| Width |
107 mm |
| Length |
112 mm |
| Height |
36 mm |
| Stator wire length |
290 mm |
| Battery wire length |
290 mm |
| Fixation holes, centre to centre |
83 mm |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of wires |
5 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Less than 15 V |
| Operating temperature |
-20 °C to 85 °C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Victory Cory Ness Jackpot |
2005-2007 |
| Victory Hammer |
2005-2007 |
| Victory Jackpot |
2005-2007 |
| Victory Kingpin |
2005-2007 |
| Victory Vegas |
2005-2007 |
| Victory Vegas 8 Ball |
2005-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4011063 |
Victory |
| 4011062 |
Victory |
| RMS020-107307 |
RMSTATOR reference |
Frequently Asked Questions
Does fitting this require any modification?
No. It is a direct replacement with plug-and-play installation. The fixation holes are 83 mm centre to centre and the unit uses 2 plugs with 5 pins, matching the original layout.
What is included?
The MOSFET regulator unit with its stator lead and battery lead already fitted, both 290 mm long. Every unit is tested before shipping.
How do I know the original regulator has failed?
Check the voltage across the battery with the engine running. It should sit at roughly 14.5 V. A reading stuck at resting battery voltage means the unit is not charging, and a reading above 15 V means it is overcharging and will boil the battery. A regulator that is scorched, smells burnt, or has melted connector pins has already failed.
Why choose a MOSFET regulator for these Victory models?
The original diode-style regulator generates more heat in operation. This MOSFET unit runs cooler, has an improved heat sink, and shuts down temporarily on overheat rather than destroying itself, which makes it a more durable long-term fit on machines where the regulator sits in a hot, enclosed position.
