Mosfet Voltage Regulator Rectifier - RM30334
Victory Cross Country, Cross Roads, Hard Ball, Vision and Magnum - 2008-2017

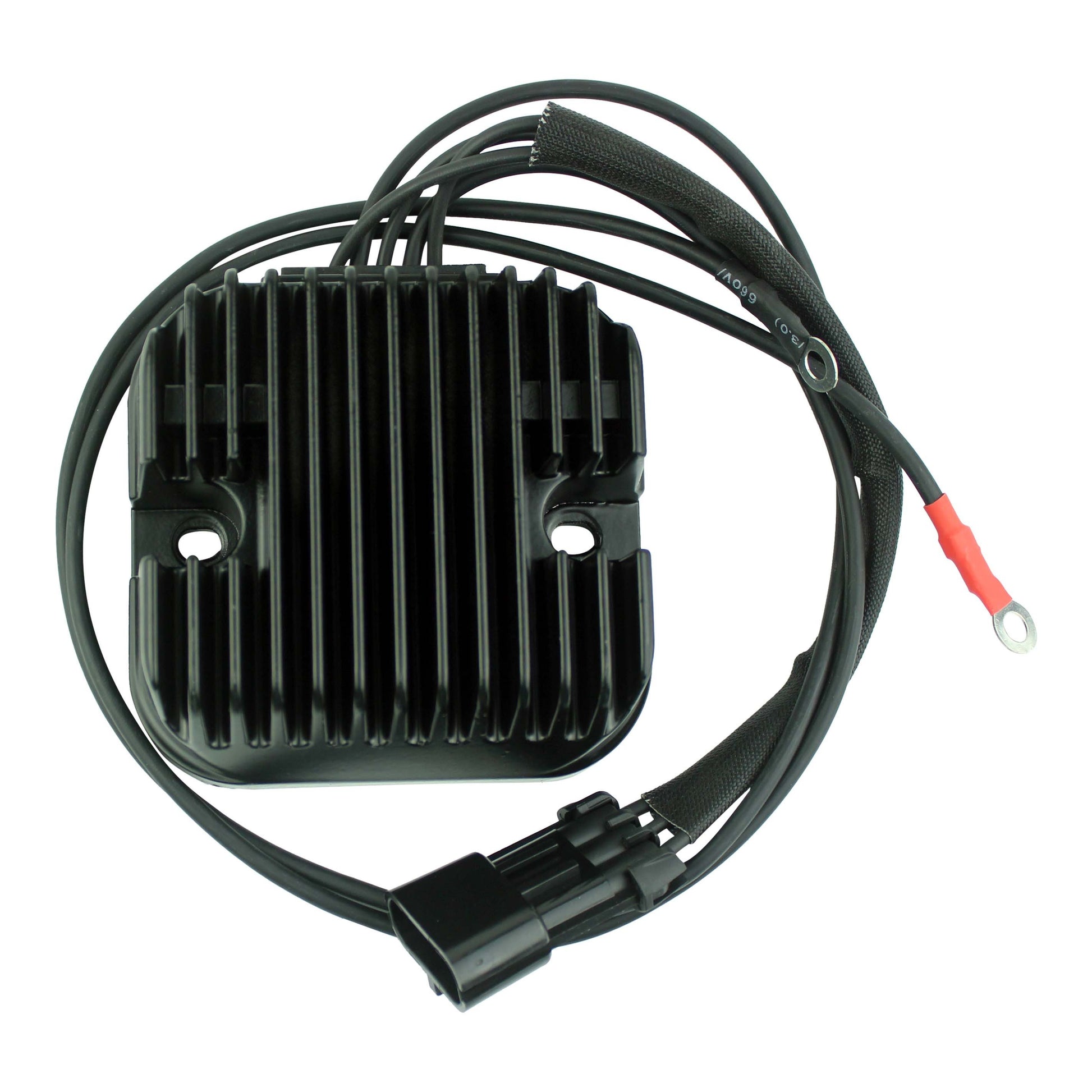

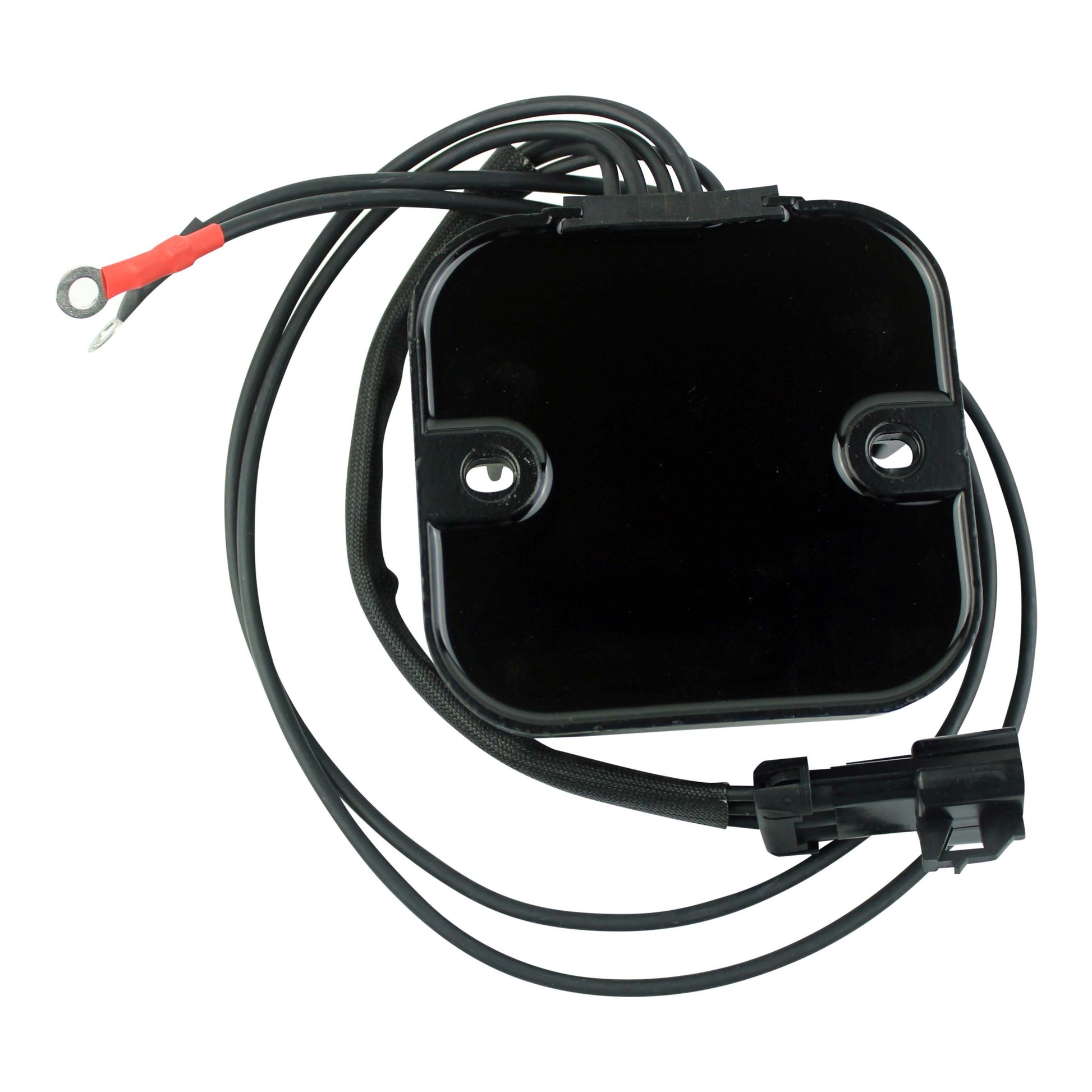

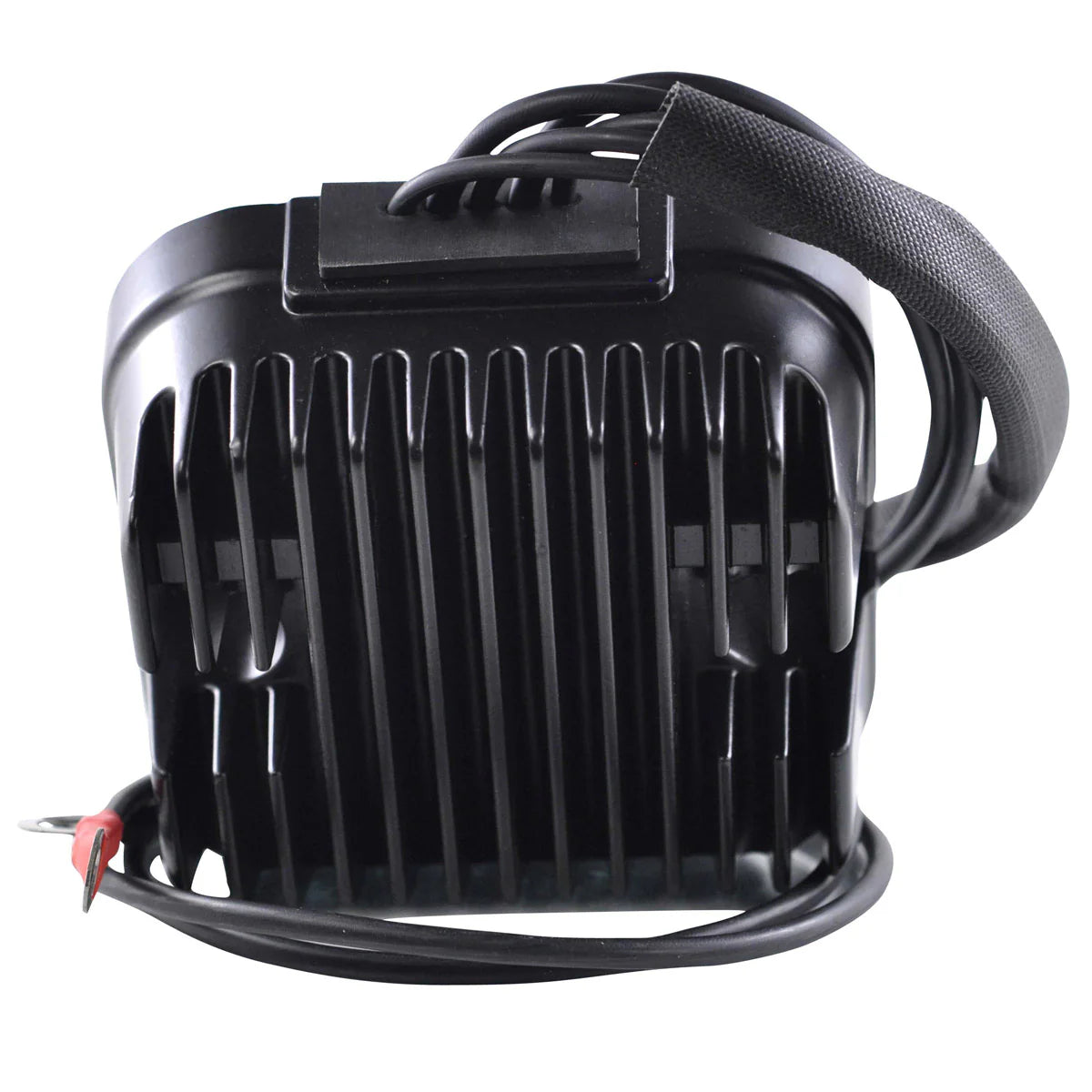

This is a brand new Mosfet voltage rectifier regulator built as a direct replacement for the original charging system regulator on the Victory Cross Country, Cross Roads, Hard Ball, Vision and Magnum built between 2008 and 2017. It is a plug-and-play unit that uses the original mounting points and the original wiring plugs, so no cutting, splicing or modification of the loom is needed to fit it.

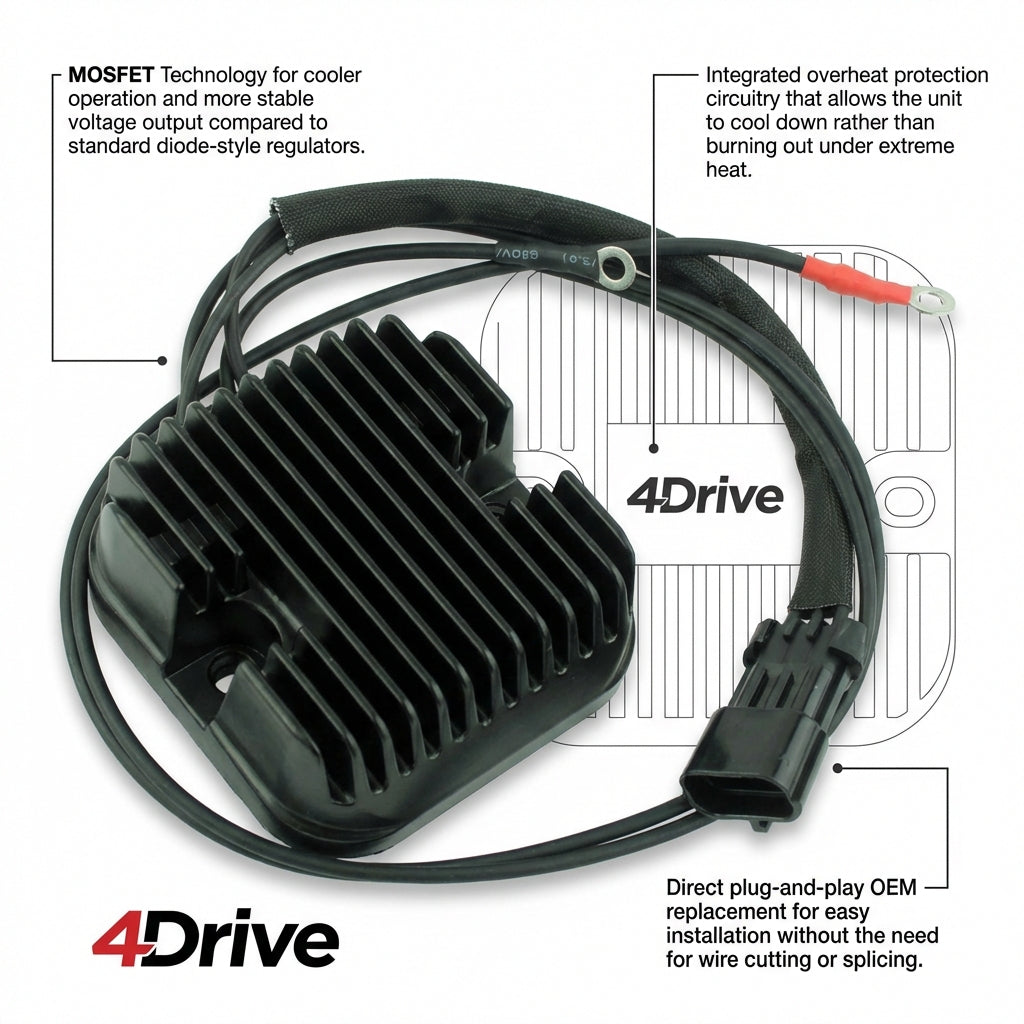

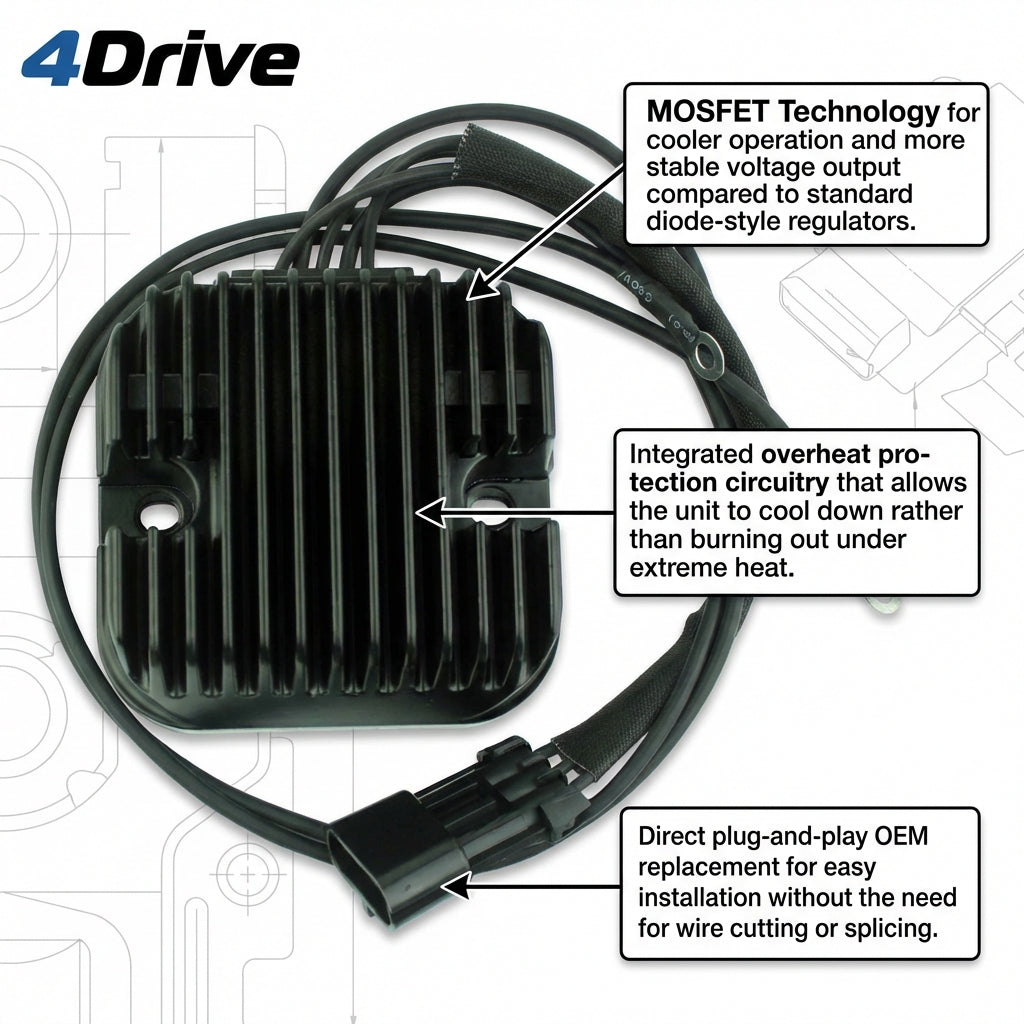

Stop burning your regulator rectifier. It is time to update or replace your voltage regulator with the advanced Mosfet type. A Mosfet regulator runs cooler than all OEM diode style regulators, and this unit adds overheat protection: rather than burning up, it simply switches off for a while and cools down. The heat sink and the charging capability have both been improved over the original design, and a higher grade of electrical component is used throughout. Every unit is tested before it is shipped.
Key Features
- Brand new Mosfet type voltage rectifier regulator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Runs cooler than OEM diode style regulators
- Overheat protection - it switches off and cools down rather than burning out

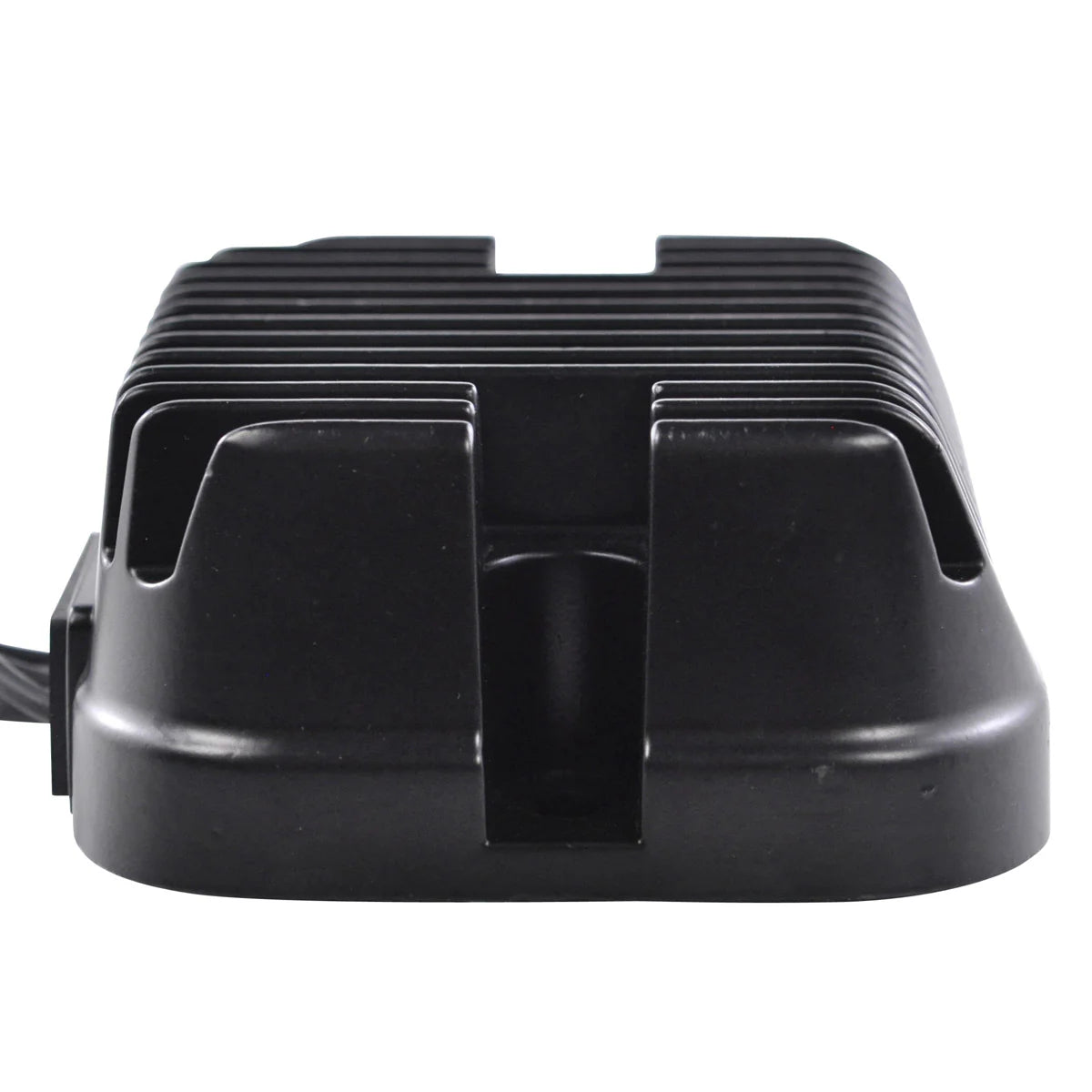

- Improved heat sink and charging capability
- Higher grade of electrical components
- Quality exceeds the OEM equipment
- All shipped products are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30334 |
| Width | 107 mm |
| Length | 112 mm |
| Height | 50 mm |

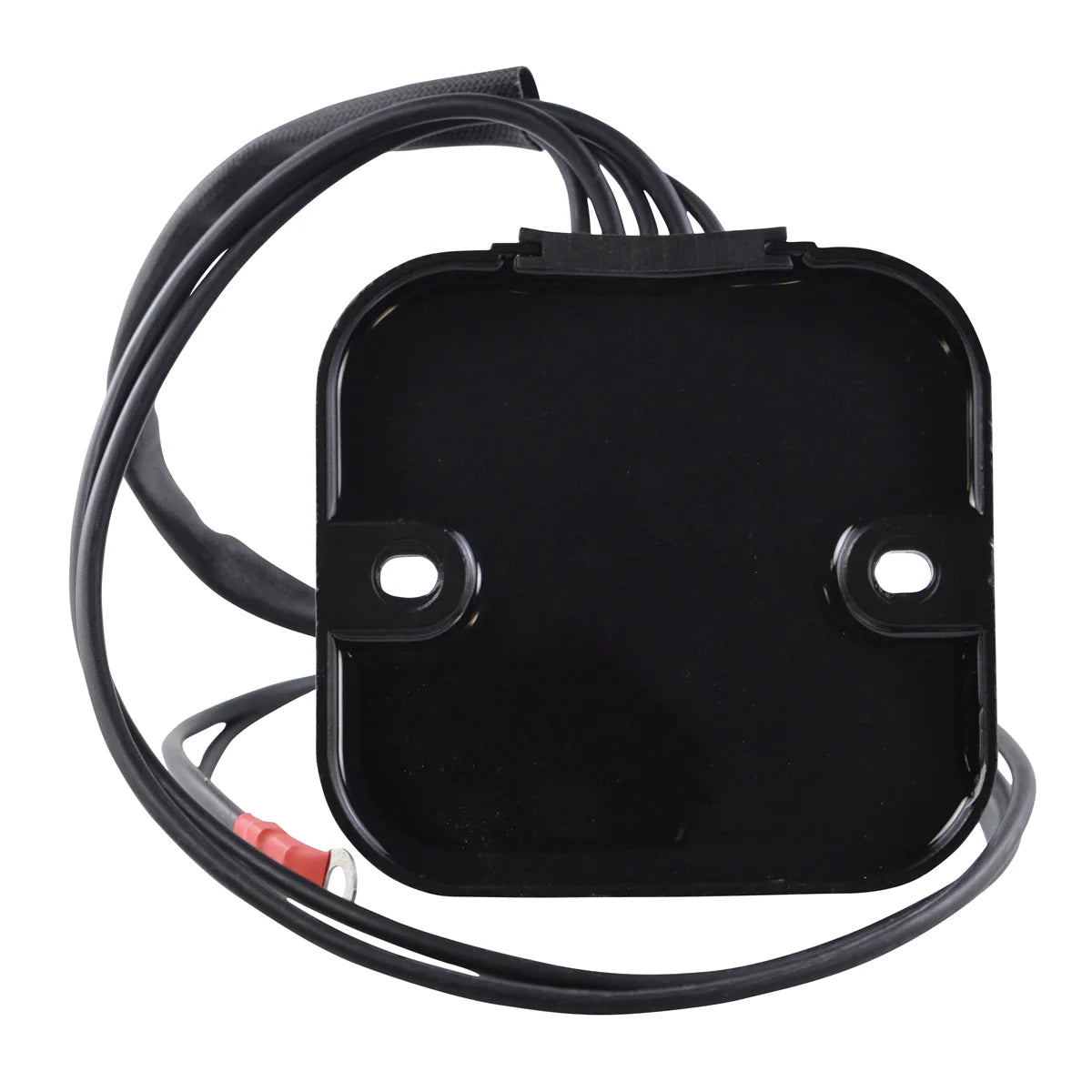

| Fixation holes, centre to centre | 80 mm |
| Wire length | 650 mm |
| Number of plugs | 3 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Under 15 V |
| Operating temperature | -20°C to 85°C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Victory Cross Country | 2008-2017 |
| Victory Cross Roads | 2008-2017 |
| Victory Hard Ball | 2008-2017 |
| Victory Vision | 2008-2017 |
| Victory Magnum | 2008-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4011959 | Victory |
| 4012238 | Victory |
| 4012717 | Victory |
Frequently Asked Questions
Will this fit without modification?

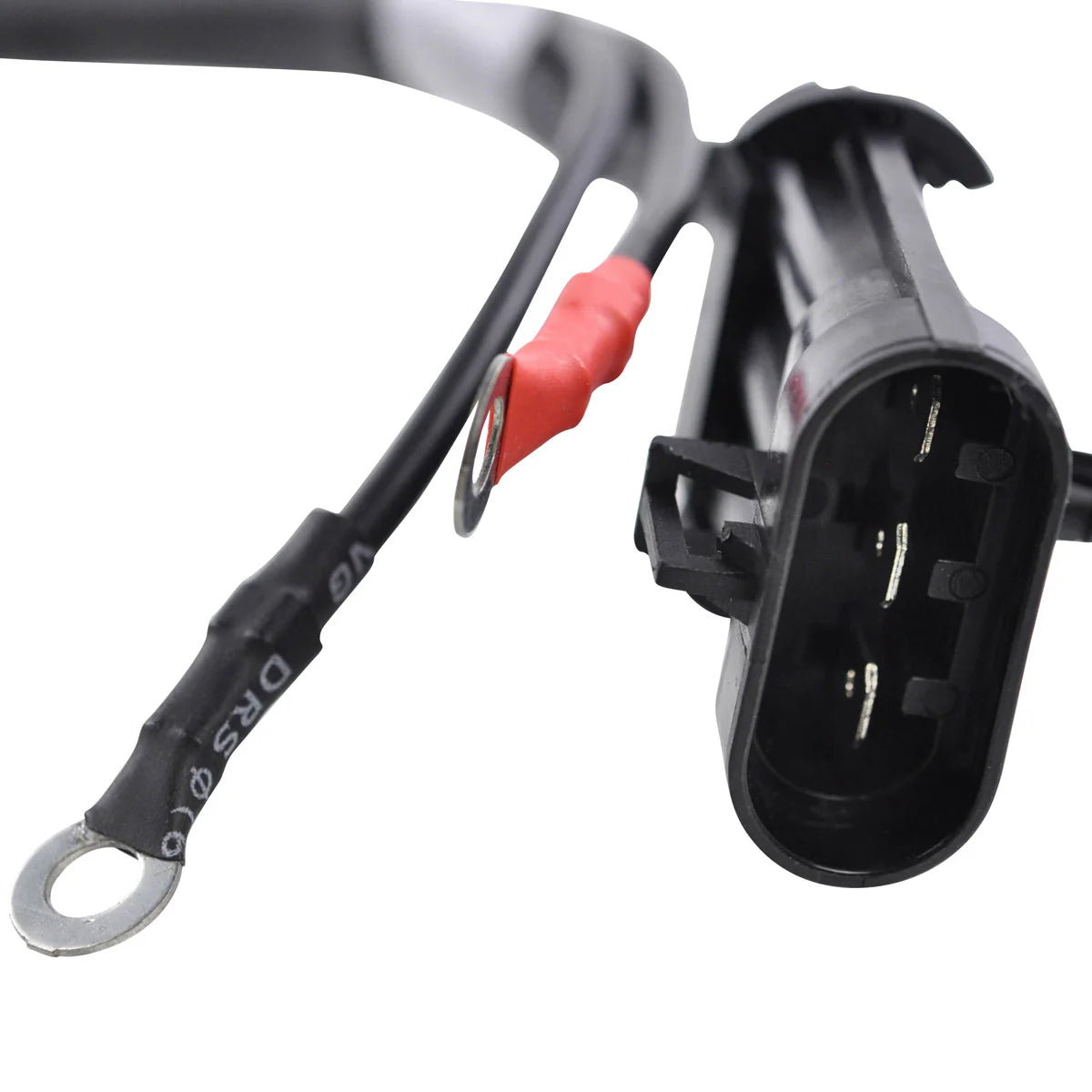

Yes. This is a direct, plug-and-play replacement for the original unit on the listed Victory models. It uses the same three plugs, five pins and five wires as the original, and the mounting holes are 80 mm apart centre to centre, matching the factory bracket. No cutting or splicing is required. Before ordering, compare the OEM number stamped or printed on your existing regulator against the cross reference table above.
What is included?
One brand new Mosfet voltage regulator rectifier, part number RM30334, with 650 mm wire leads and the three factory-pattern plugs already fitted. No assembly is required and every unit is tested before it leaves the warehouse.
How do I know my old regulator has failed?
A healthy charging system holds at least 14.5 V +/- 0.5 V at the battery once the engine is running. Readings that stay near battery voltage, or that climb well above 15 V, point at the regulator. Other common signs are a battery that will not hold charge, dimming or flickering lights as engine speed changes, and a regulator body that is discoloured, swollen or too hot to touch after a short ride.
What makes a Mosfet regulator better than the original diode type?
Mosfet switching produces far less waste heat than the diode arrangement used in the original equipment regulator, which is the usual reason those units fail. This unit also carries overheat protection, so if it is pushed beyond its limits it shuts down temporarily and cools off instead of burning out. It handles up to 50 A / 500 W and holds open circuit voltage below 15 V, with an operating range of -20°C to 85°C.
