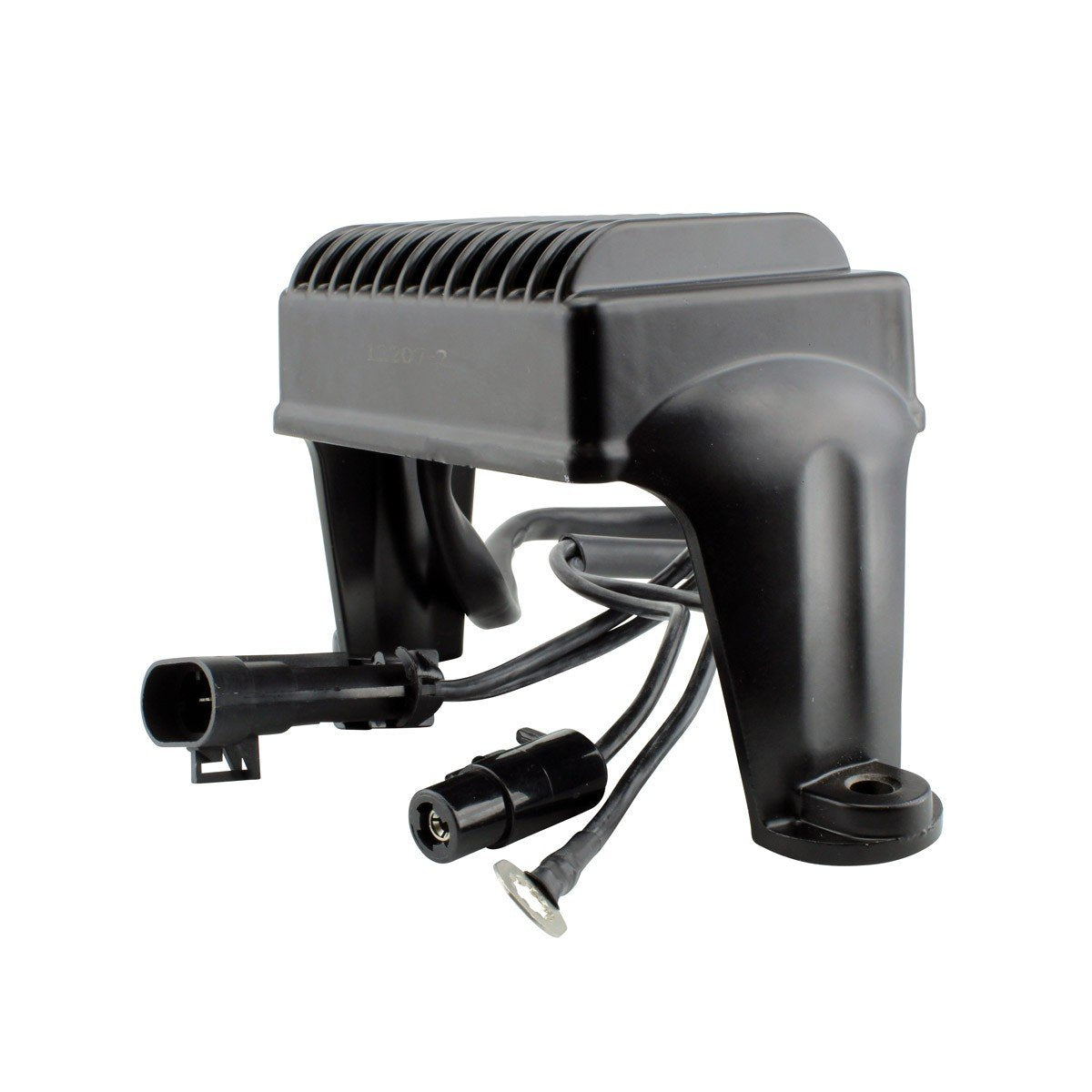

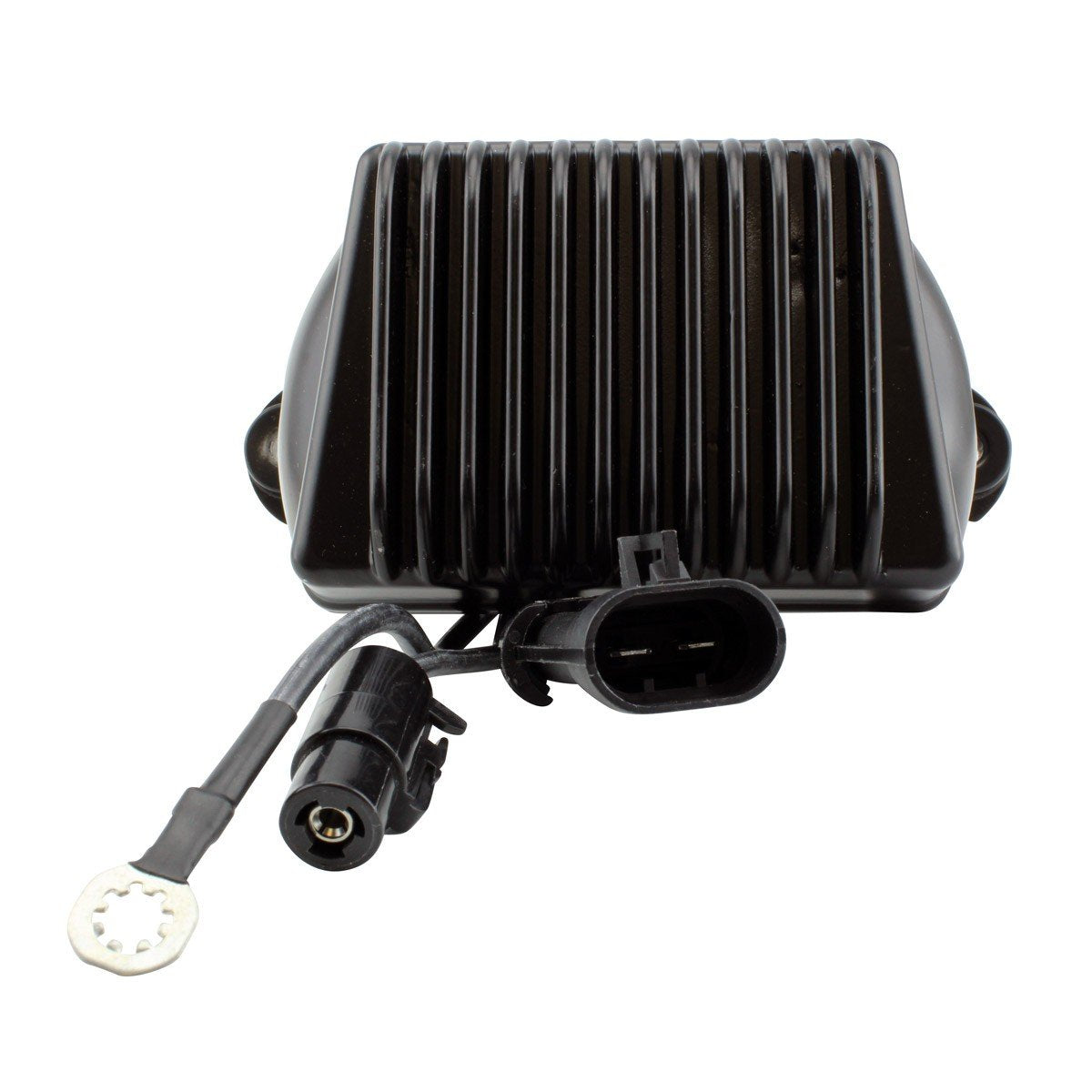

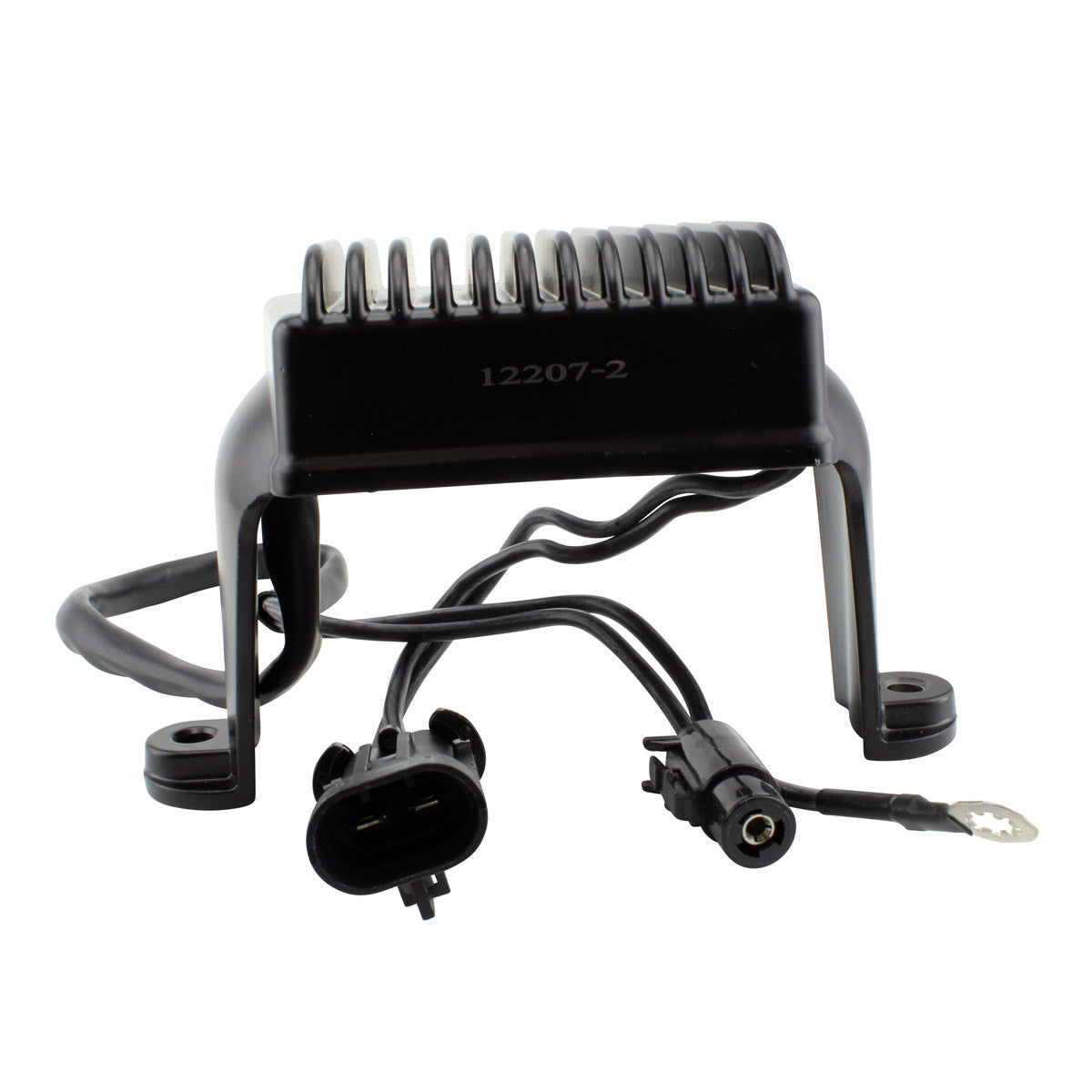

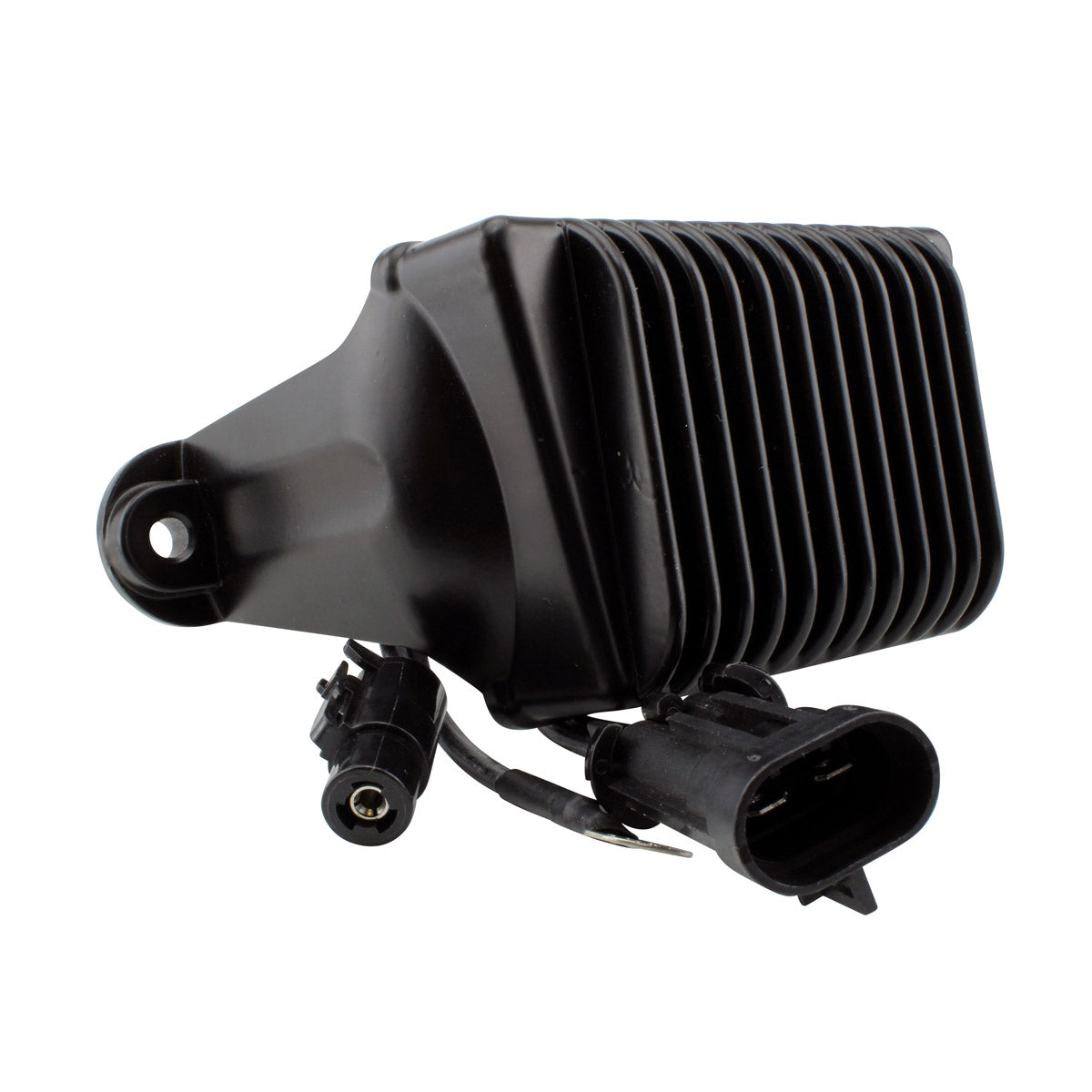

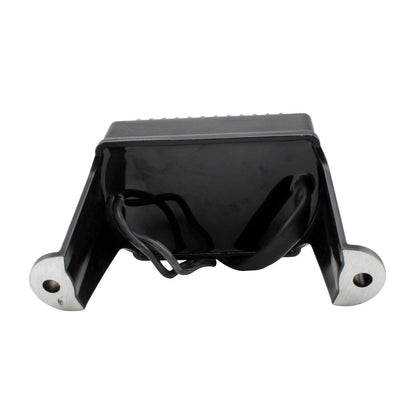

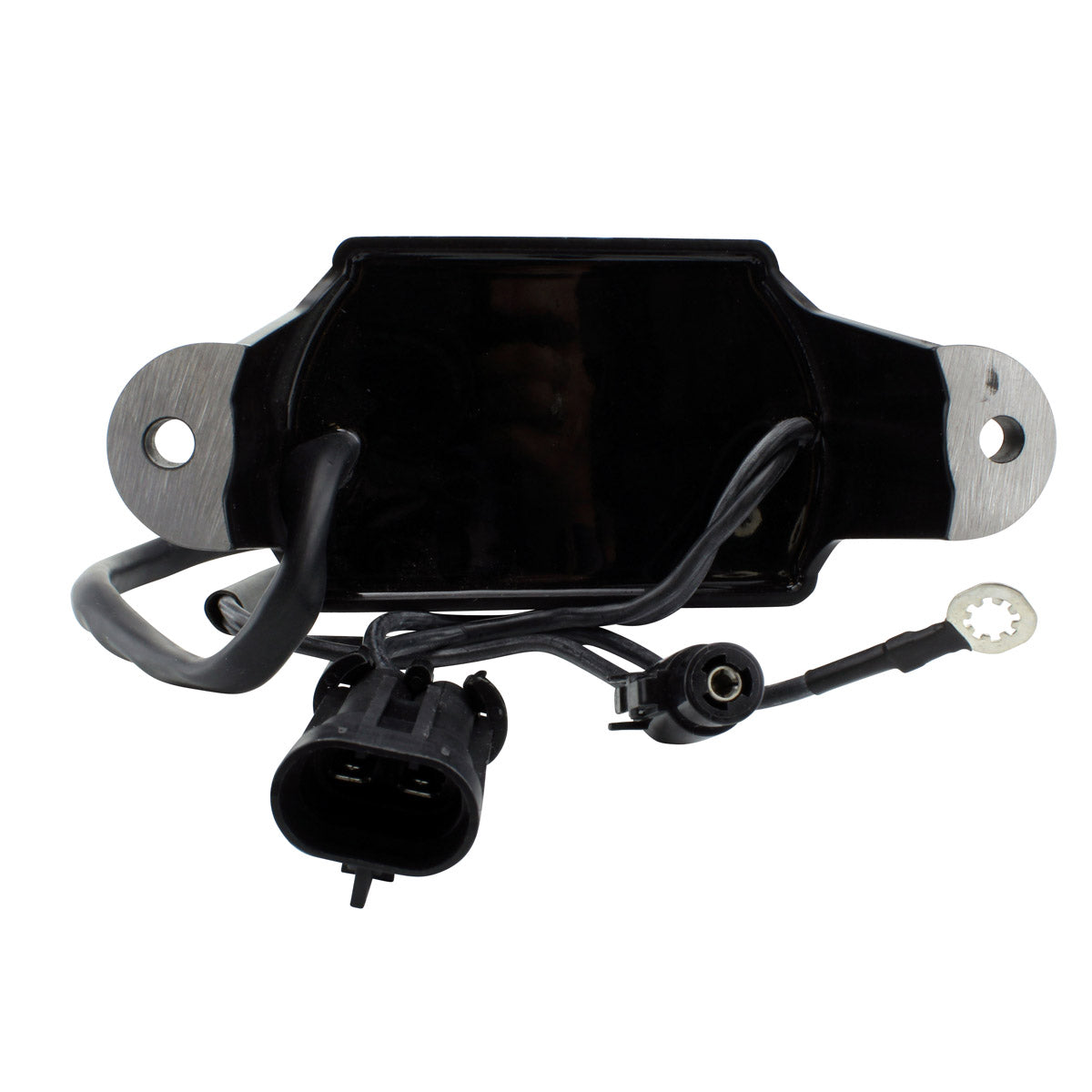

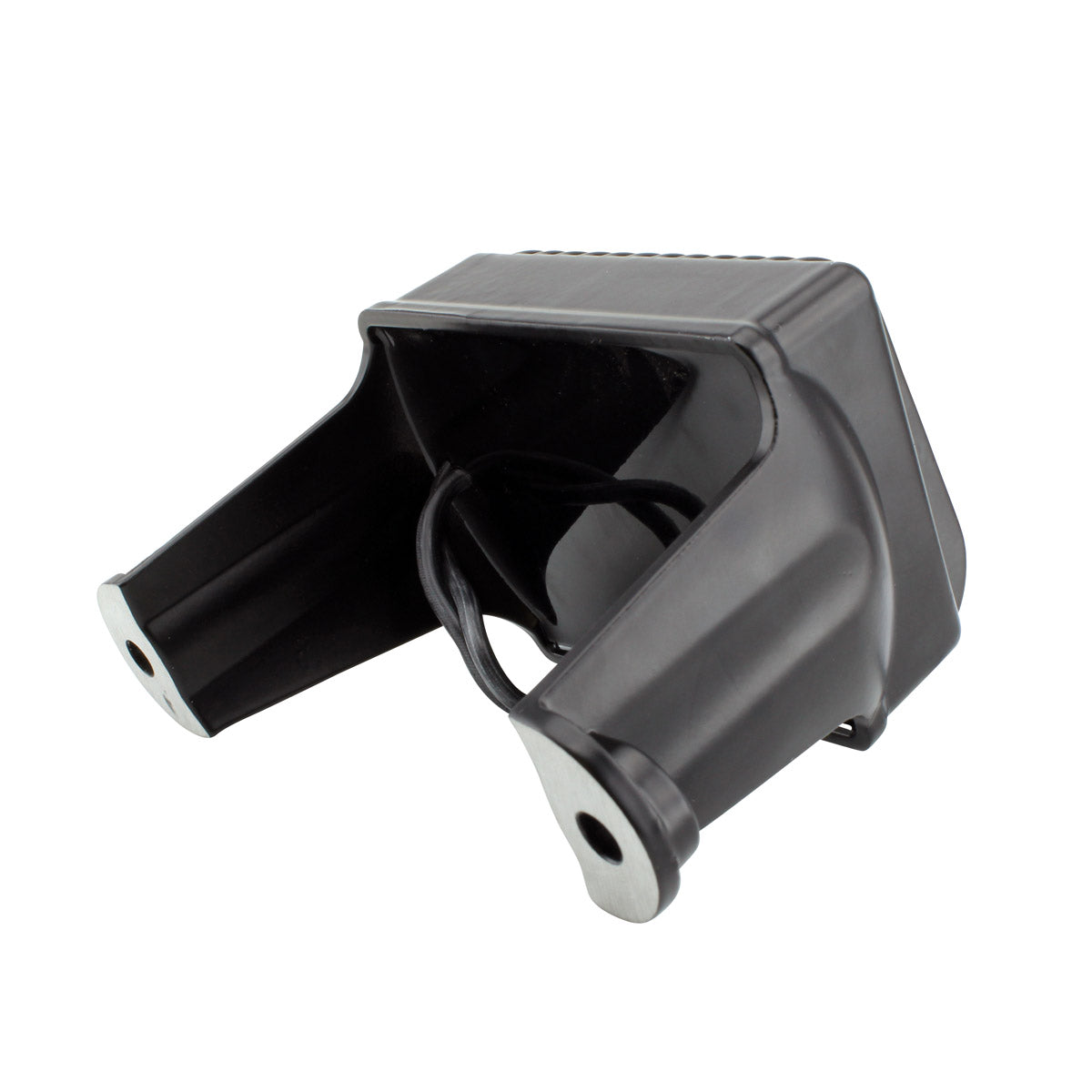

A brand new MOSFET voltage rectifier regulator built to replace the traditional OEM diode-style unit fitted to the 2004-2005 1450 touring models. RMSTATOR states that it runs cooler than all OEM diode style regulators. Since heat is the usual reason these units fail, that lower running temperature is the practical benefit rather than a specification on paper.

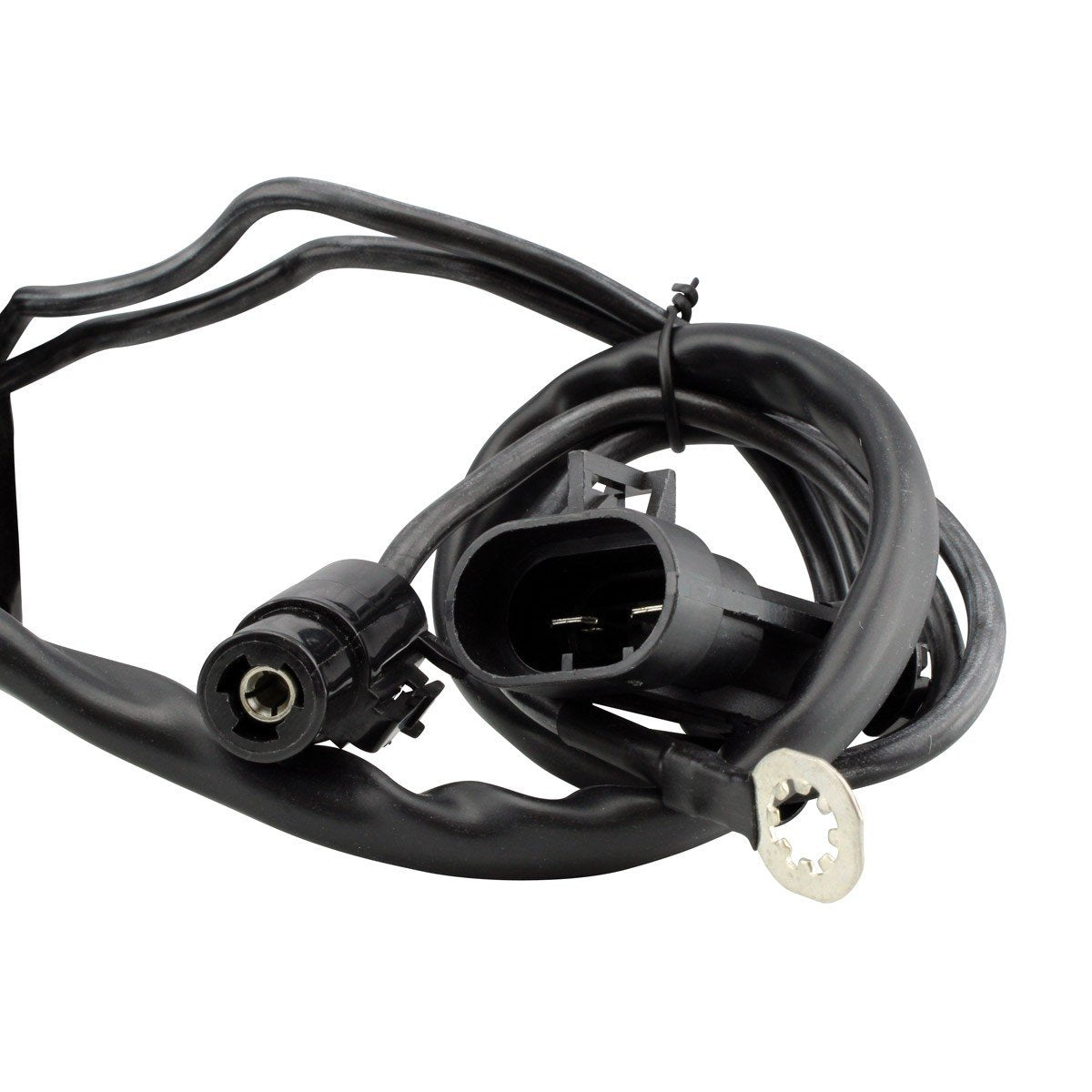

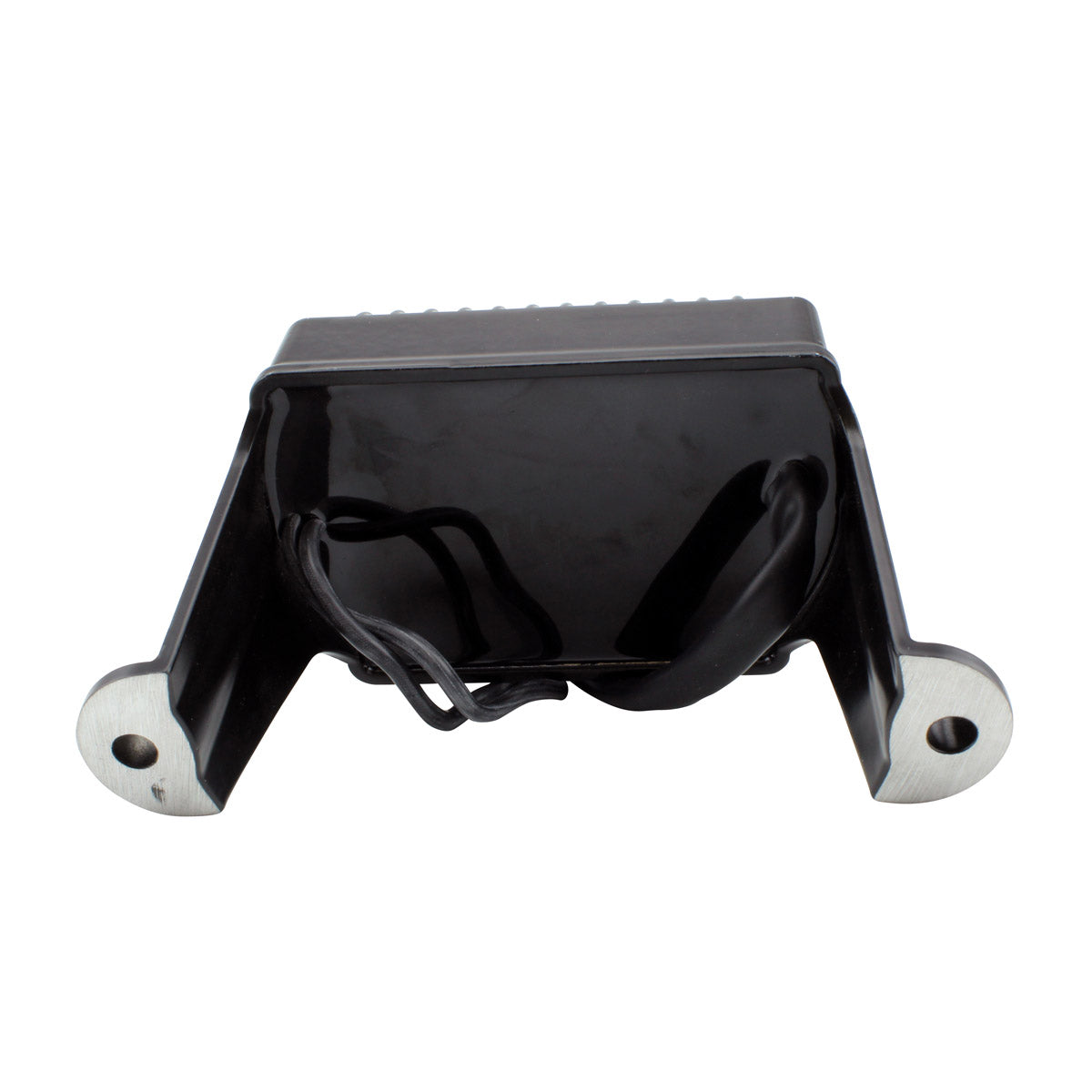

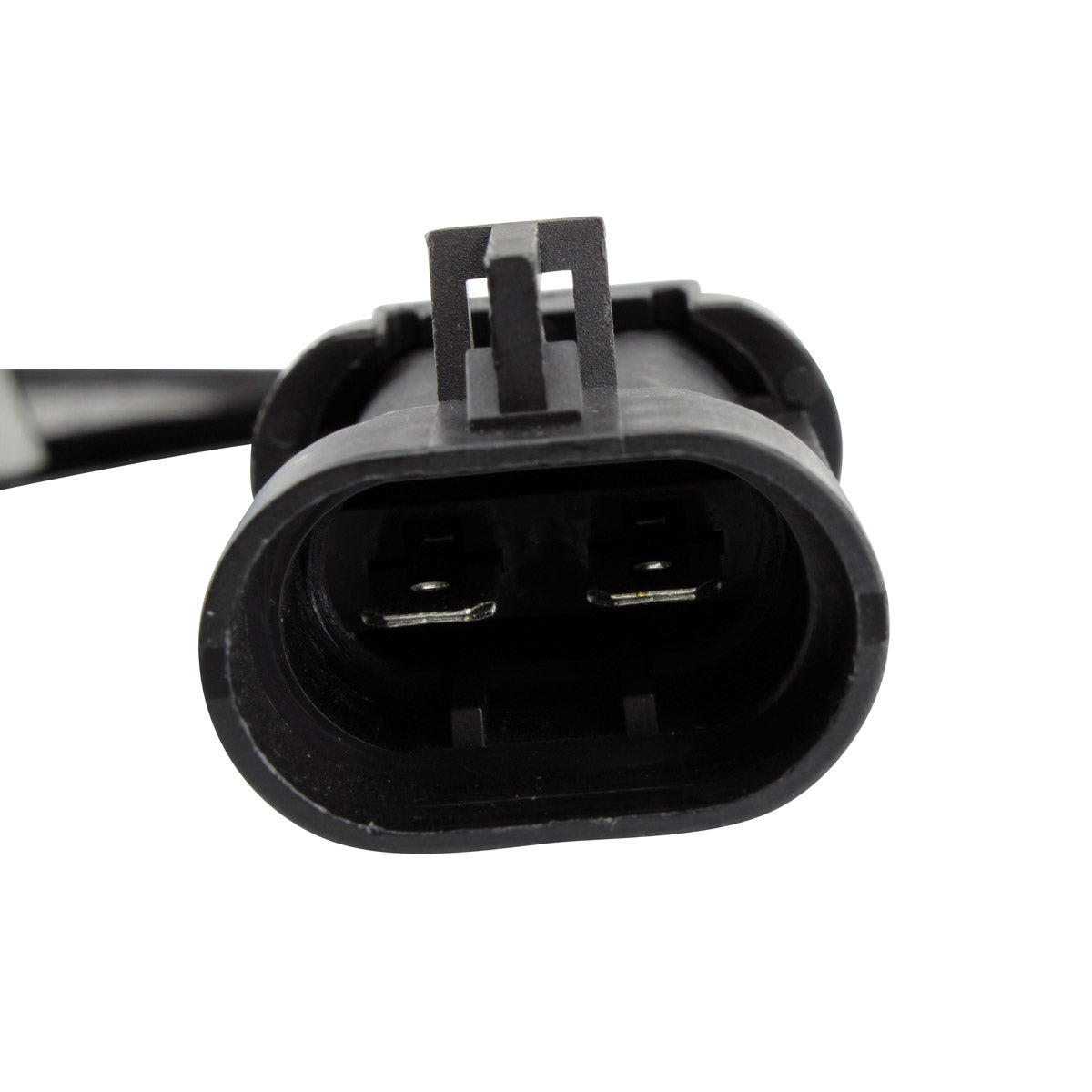

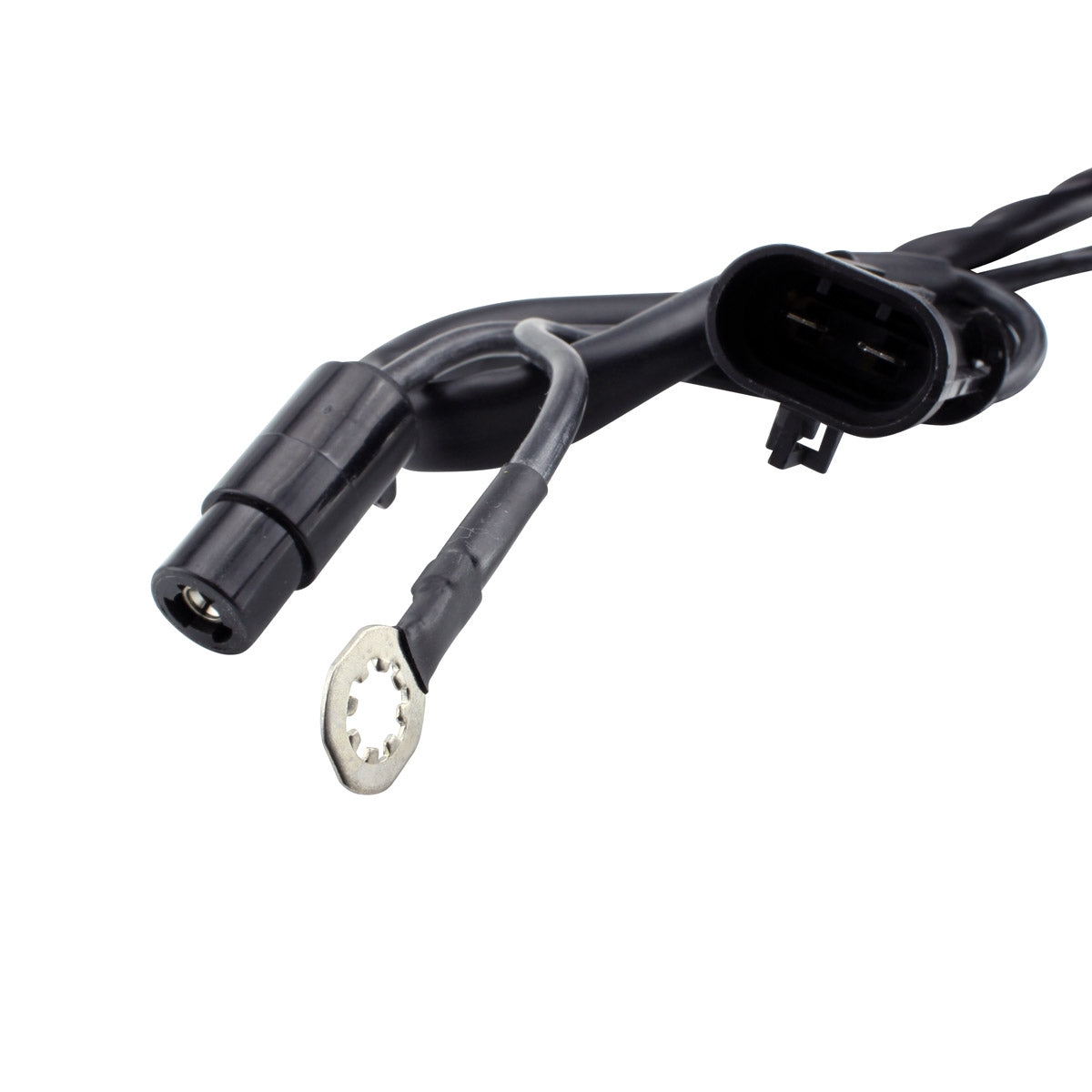

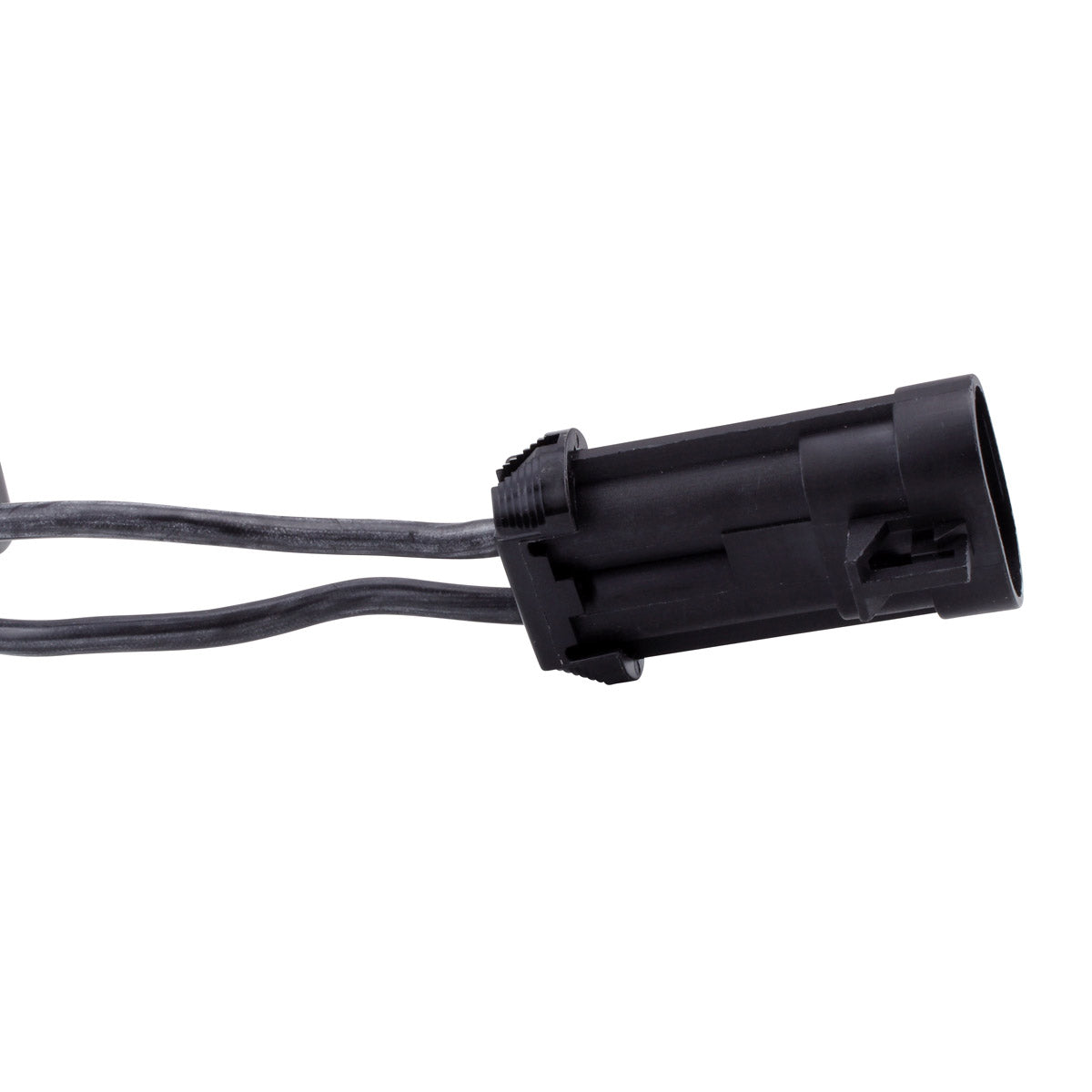

The regulator carries overheat protection, so if it is pushed too hard it shuts off temporarily rather than burning out. It is a plug-and-play fit using the original 155 mm centre-to-centre mounting, with a 240 mm wire length and three plugs carrying four wires. Higher grade electrical components are used throughout, the quality exceeds OEM equipment specification, and all products shipped are tested.
Key Features
- MOSFET design - runs cooler than all OEM diode style regulators
- Overheat protection shuts the device off temporarily instead of causing burnout

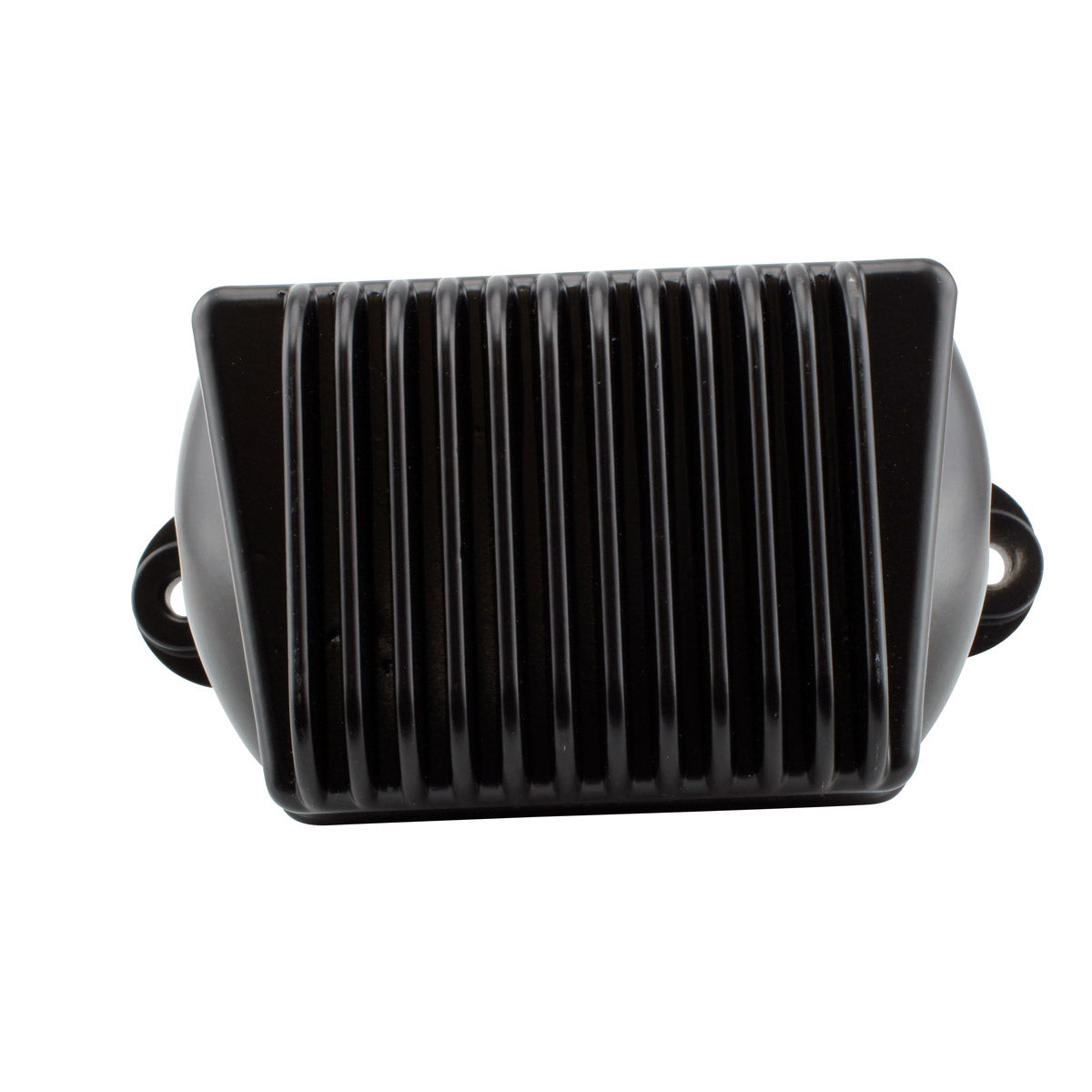

- Improved heat sink and charging capability over the original
- Higher grade electrical components, quality exceeding OEM equipment
- Rated to 50 A / 500 W maximum charging current
- Plug-and-play installation, every unit tested before shipping
Technical Specs
| Specification |
Detail |
| Width |
87 mm |
| Length |
179 mm |
| Height |
113 mm |
| Wire length |
240 mm |
| Fixation holes, centre to centre |
155 mm |
| Number of plugs |
3 |
| Number of pins |
4 |
| Number of wires |
4 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Under 15 V |
| Operating temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Harley-Davidson Electra Glide 1450 |
2004-2005 |
| Harley-Davidson Road Glide 1450 |
2004-2005 |
| Harley-Davidson Road King 1450 |
2004-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 74505-04 |
Harley-Davidson |
Frequently Asked Questions
Will this fit without modifying my bike?
Yes. It is a plug-and-play replacement for OEM part 74505-04 on the 2004-2005 1450 touring models, using the original 155 mm centre-to-centre mounting holes. No assembly is required.
How is this different from the 2002-2003 regulator?
It is a different part. This unit replaces OEM 74505-04 and measures 179 mm long by 87 mm wide by 113 mm high with a 240 mm wire length. Check the number on your original unit before ordering, as the two model years are not interchangeable.
How do I tell whether my old regulator has failed?
Run the engine and measure across the battery terminals. A working charging system should reach at least 14.5 V +/- 0.5 V. A reading stuck at battery resting voltage means no charge is being produced; a reading well above 15 V means the regulator is overcharging and will cook the battery. Melted or discoloured connector pins on the old unit confirm the diagnosis.
What happens if it gets too hot?
Overheat protection shuts the device off temporarily rather than allowing it to burn out, and it resumes once it has cooled. The rated operating temperature range is -20 C to 85 C.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
