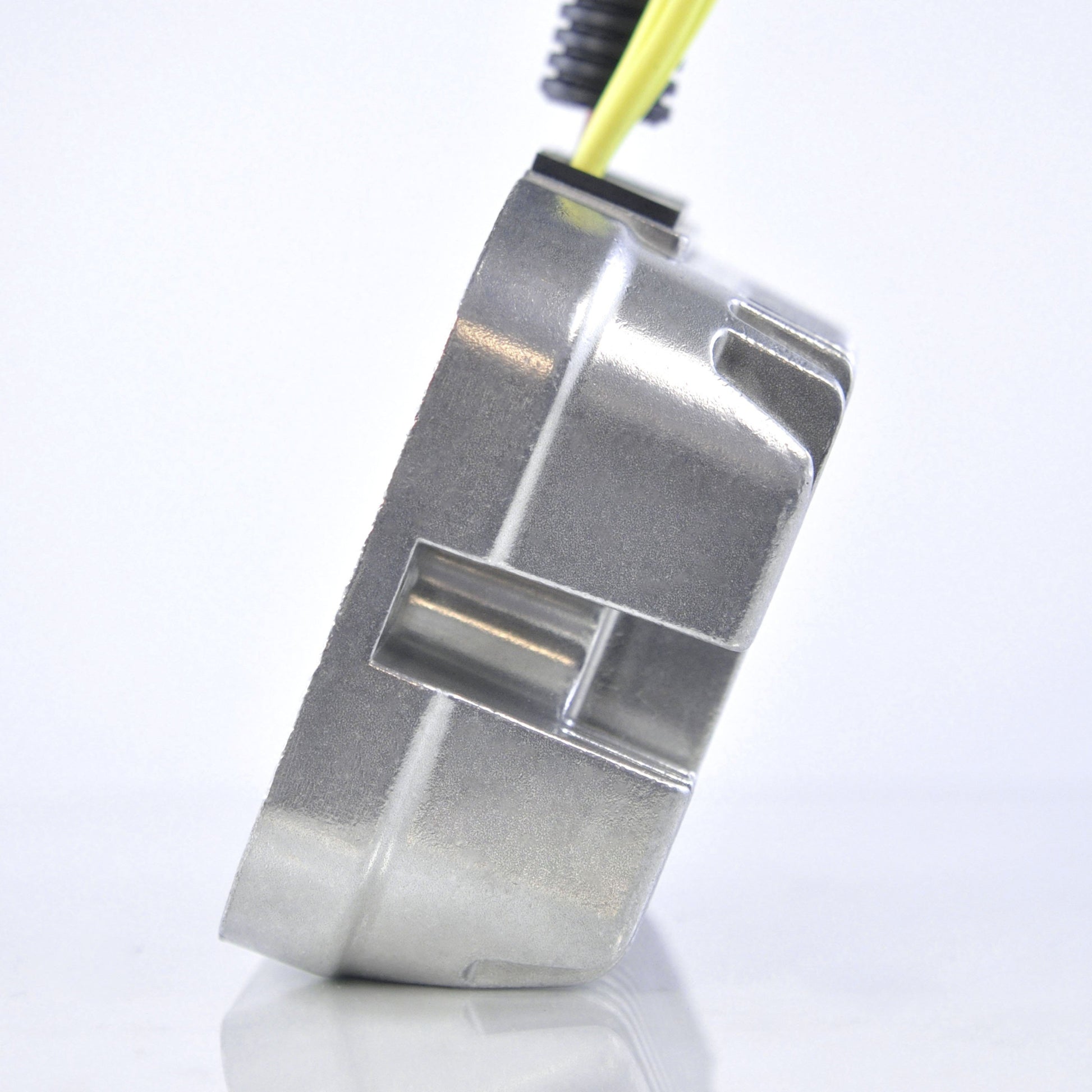

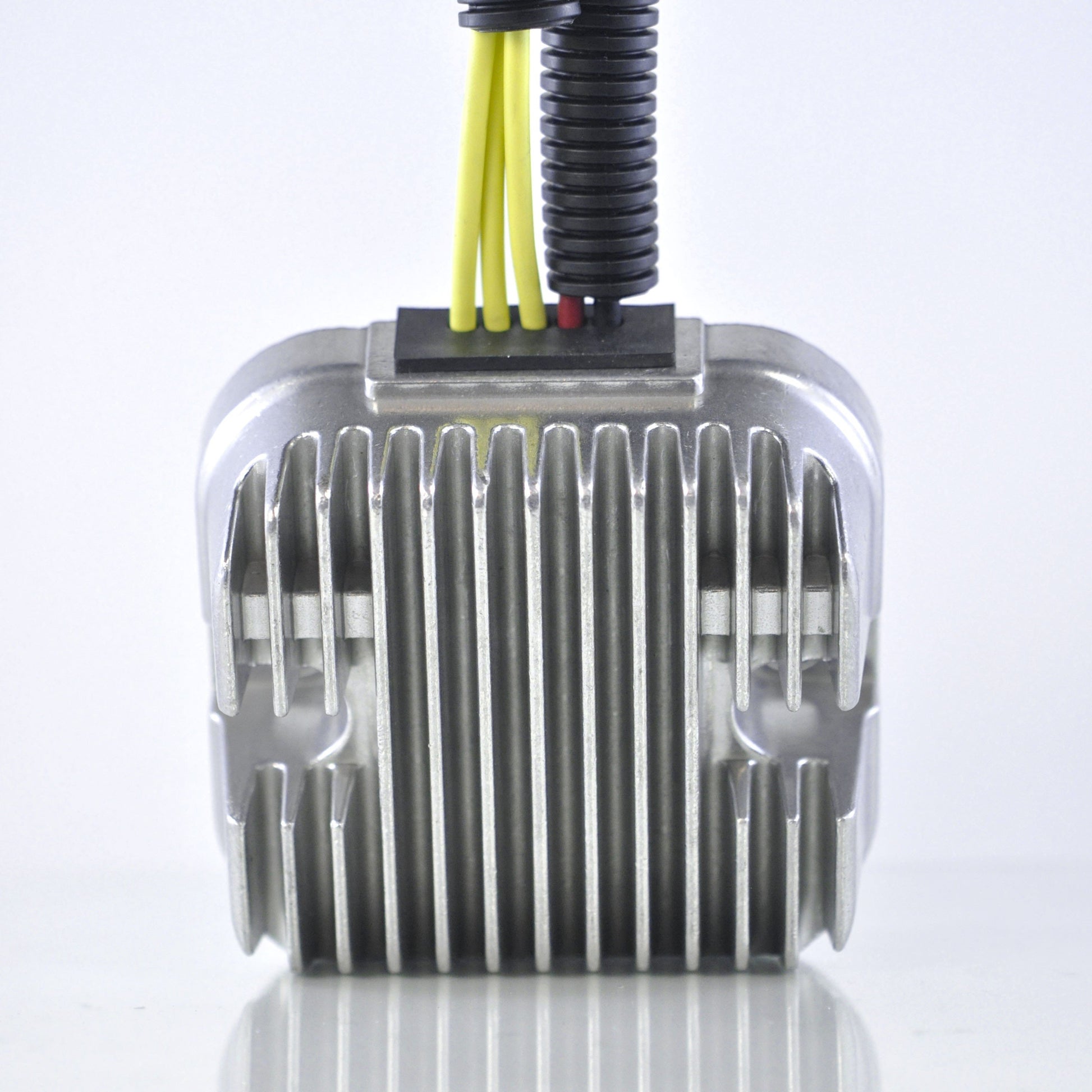

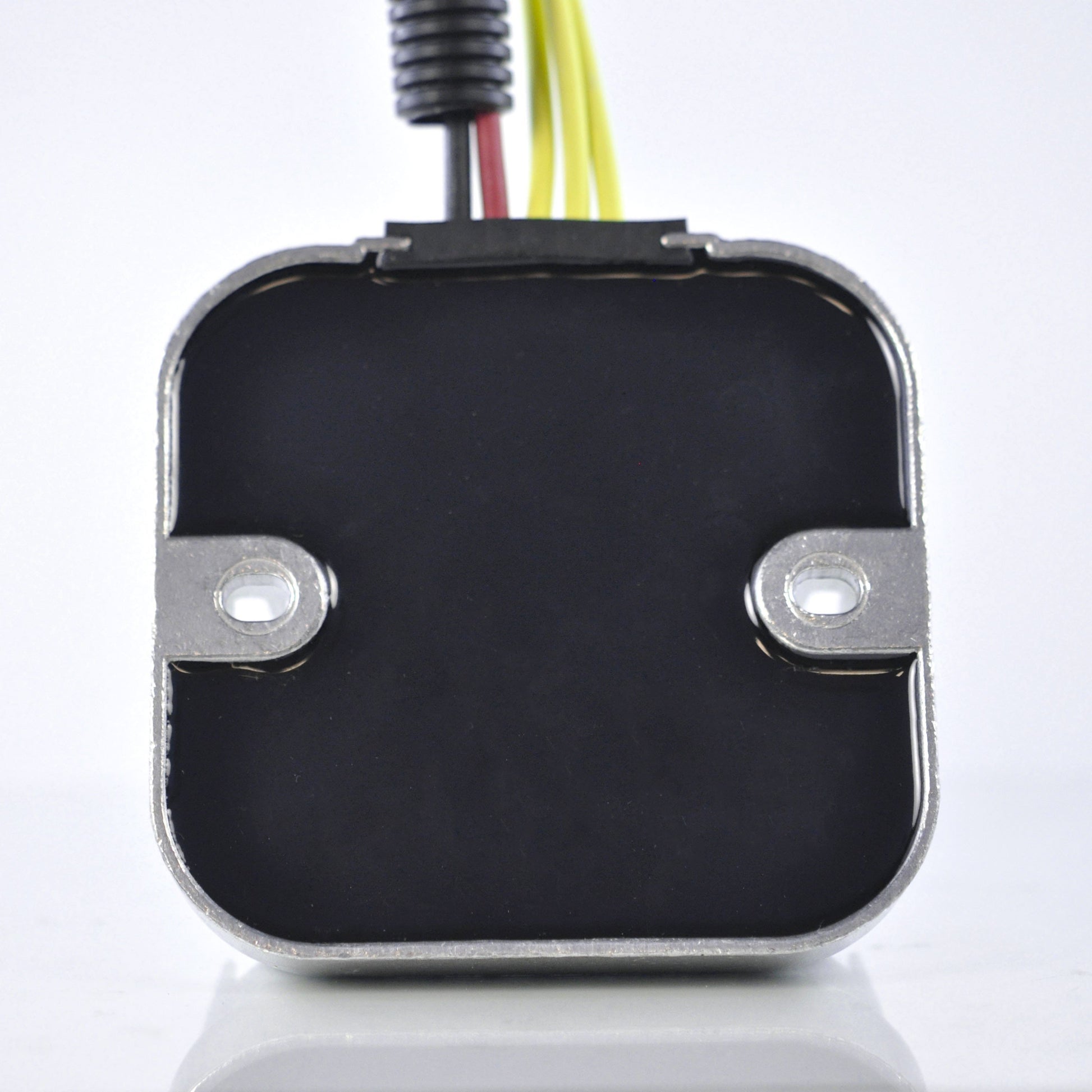

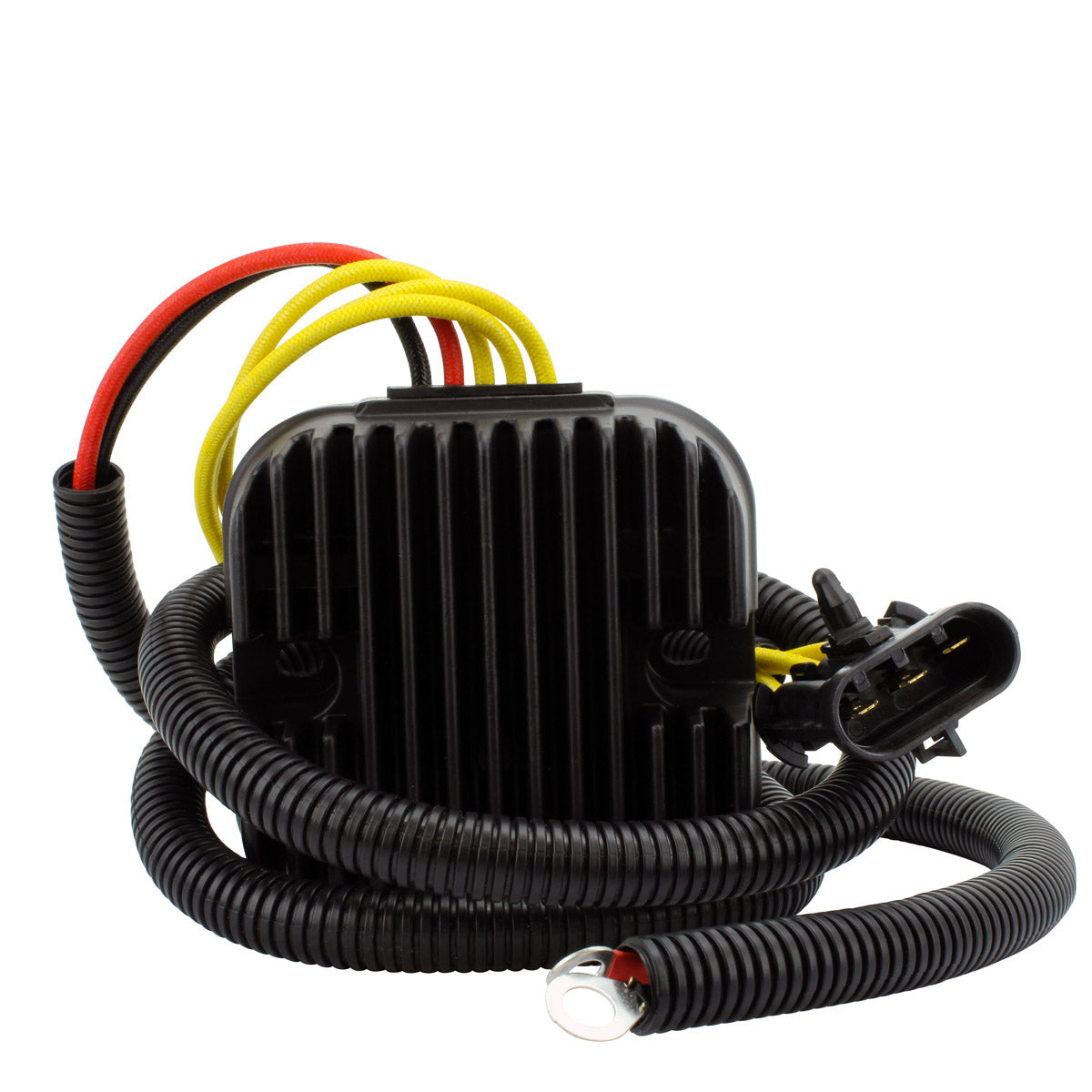

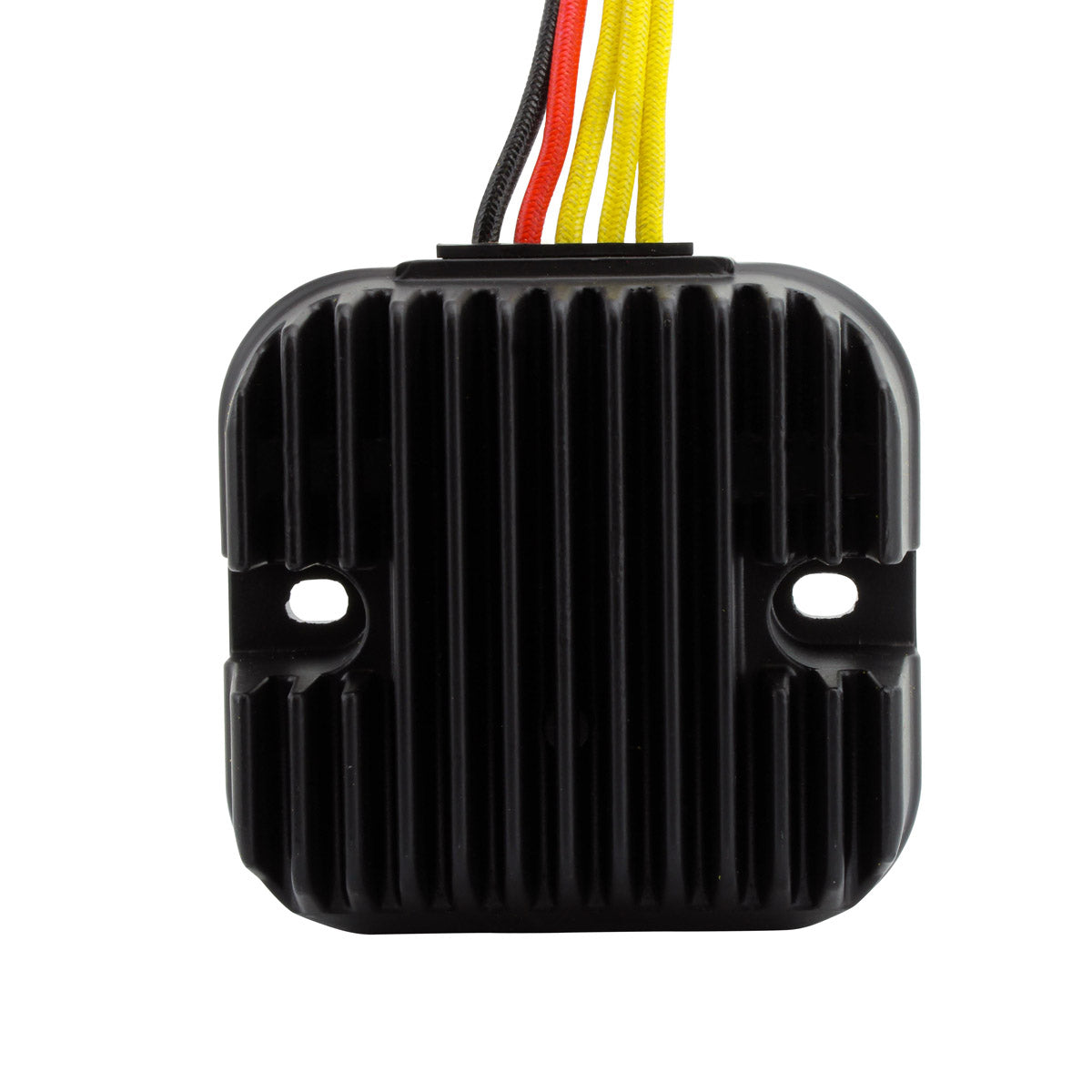

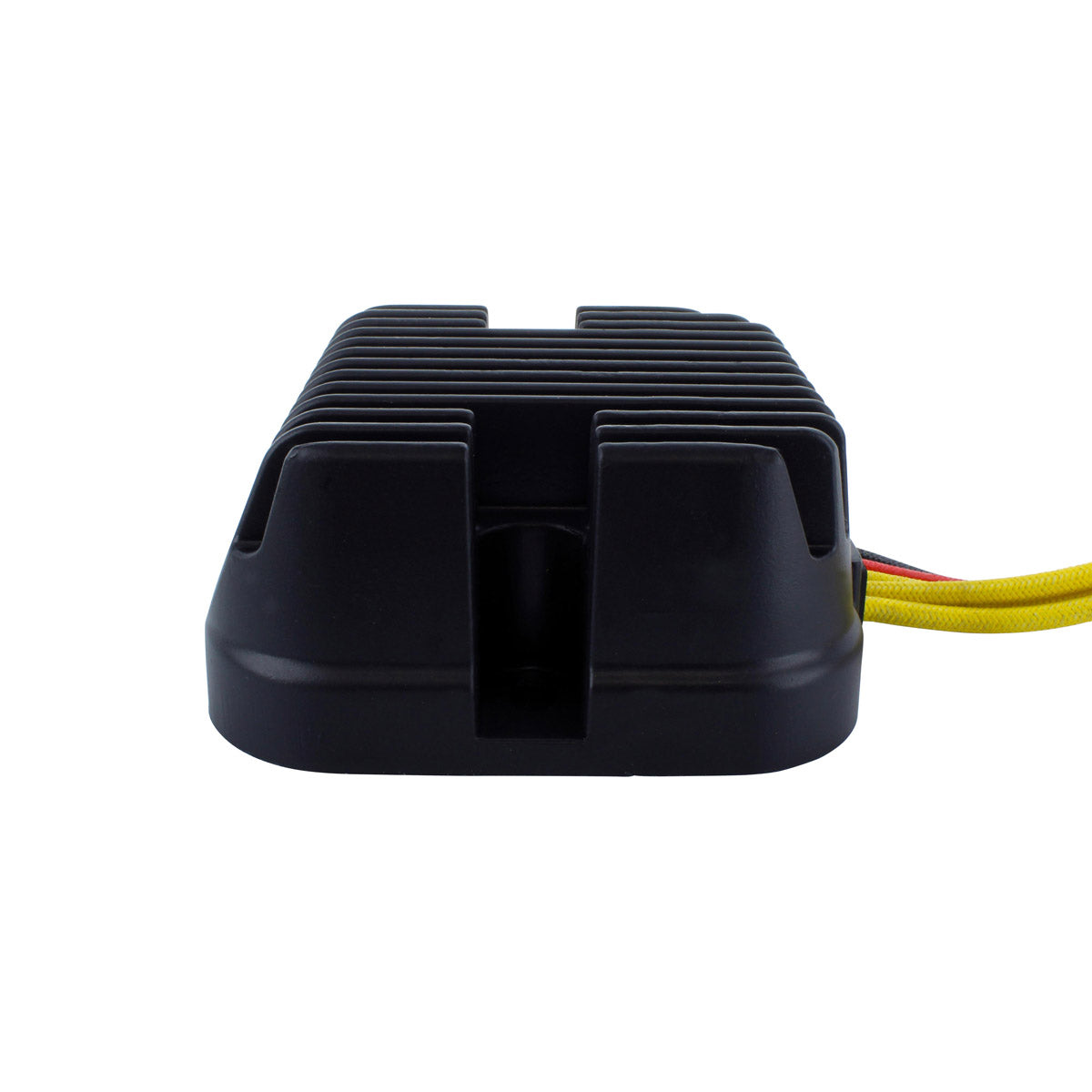

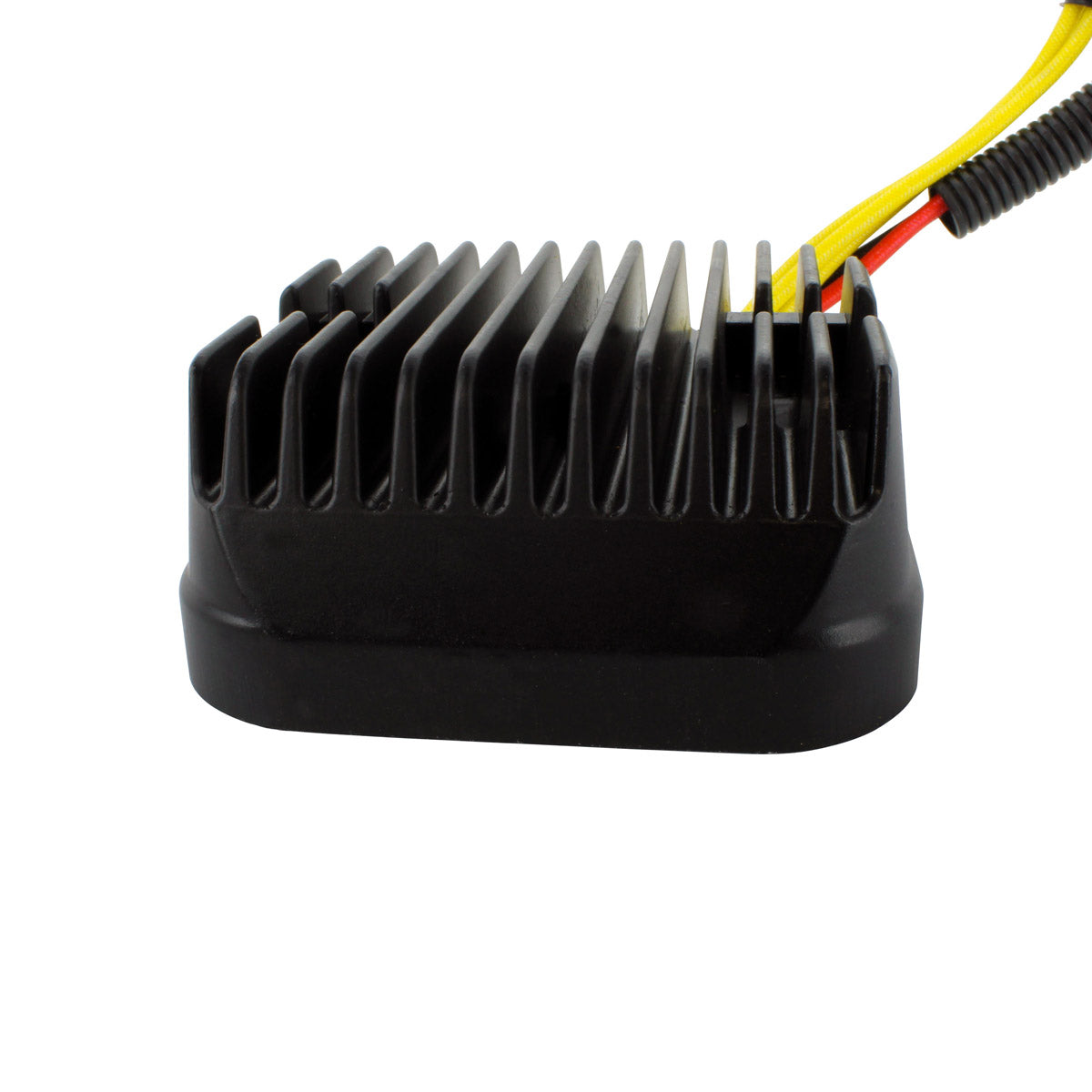

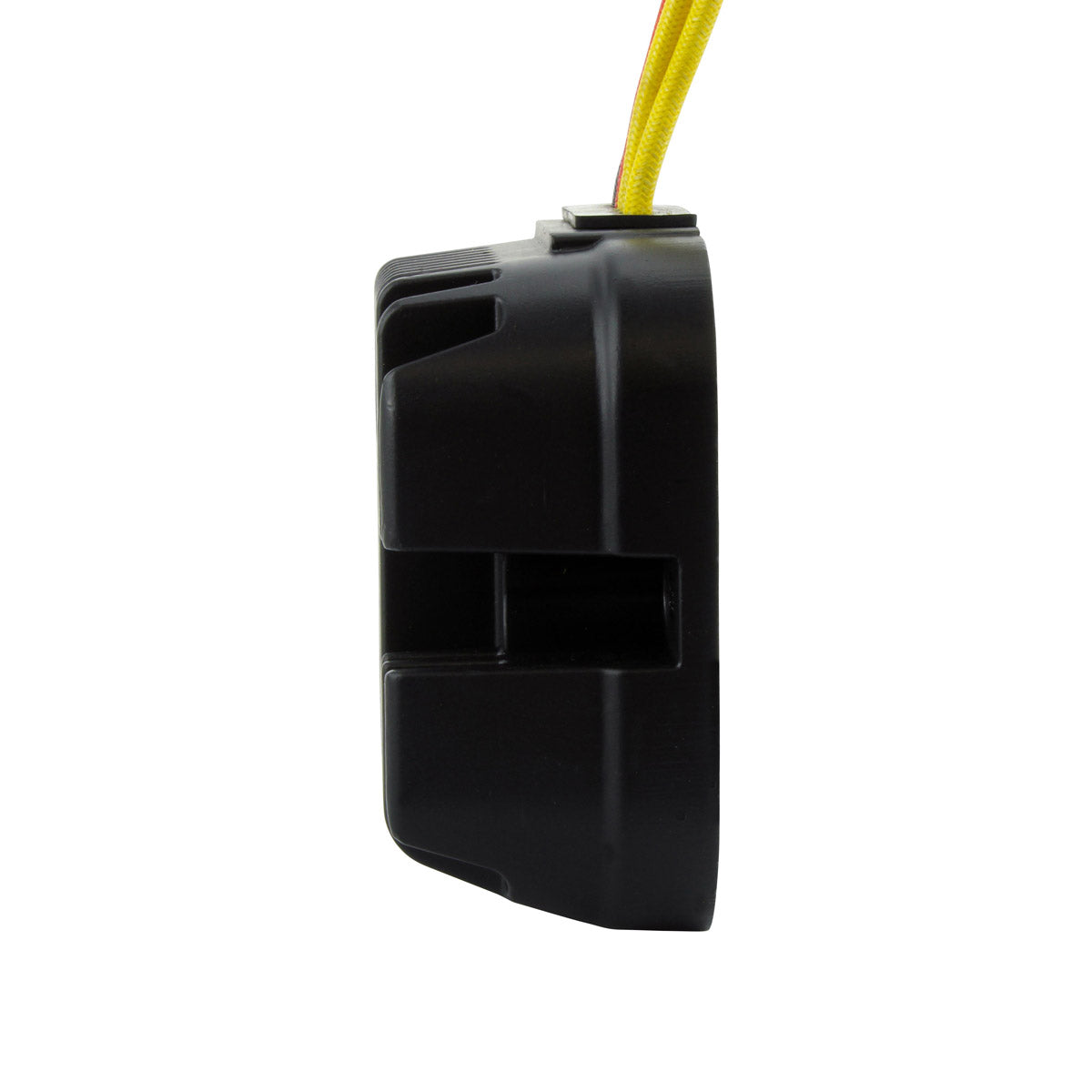

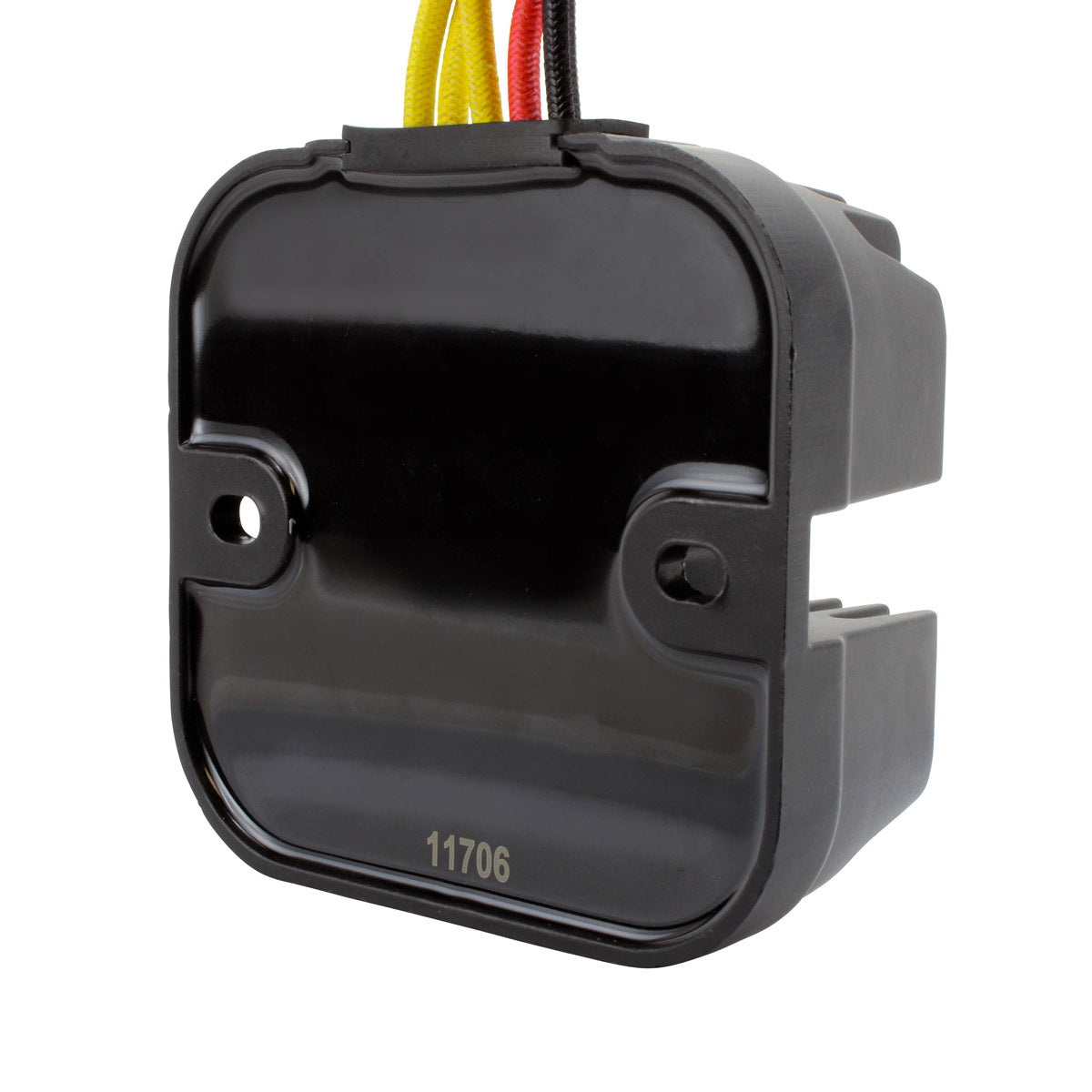

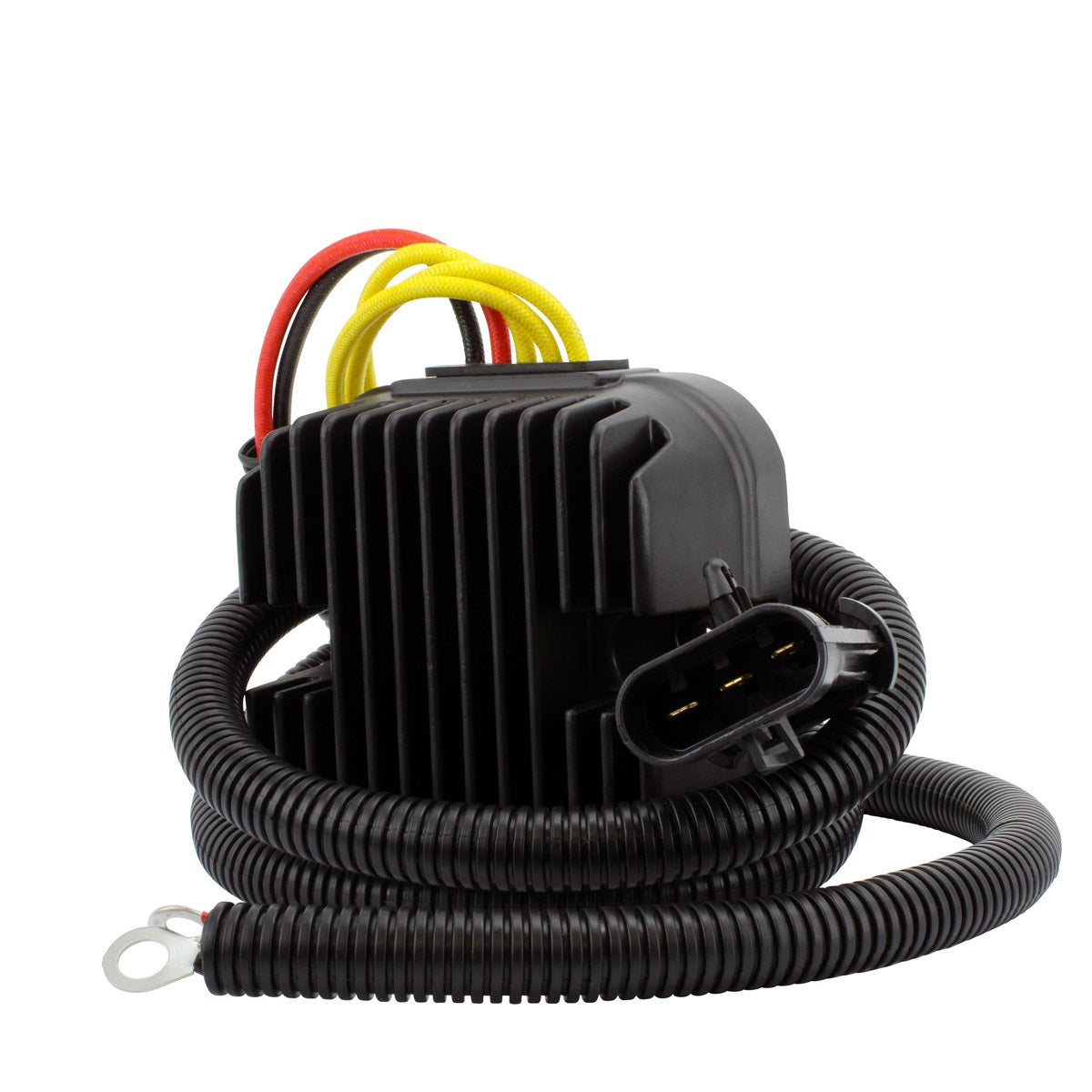

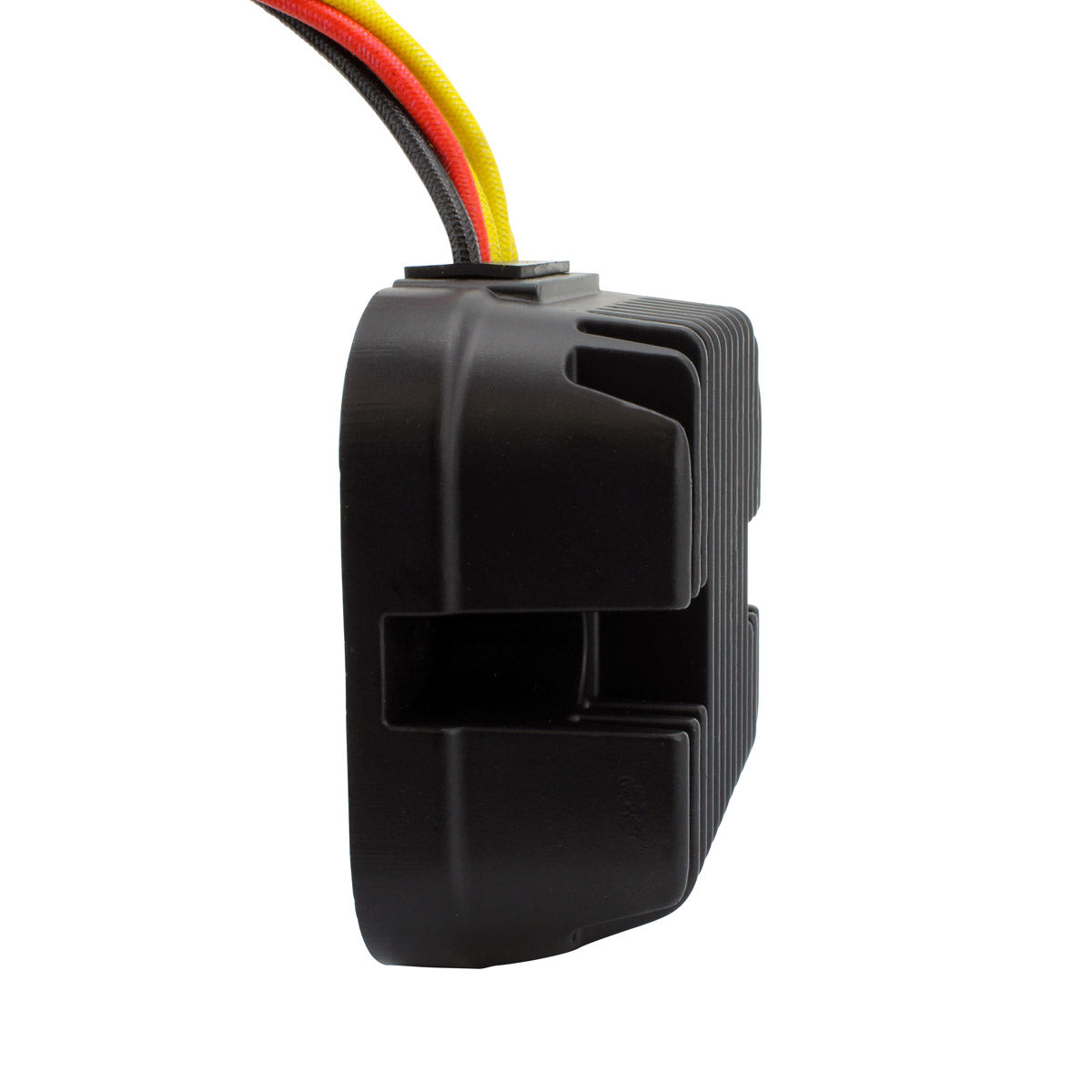

MOSFET Regulator Rectifier for Polaris Hawkeye, Scrambler and Sportsman 2010-2018 - a new aftermarket regulator / rectifier, supplied ready to fit.
The regulator/rectifier converts AC from the stator into regulated DC. When it fails you get boiling batteries and blown bulbs from overcharging, or a flat battery from no charge at all.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Direct-fit replacement, no modification required on listed applications
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RMS020-100174 |
| Component |
Regulator / Rectifier |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
| Model |
Years |
| Compatibility: Polaris Hawkeye, Scrambler, Sportsman models |
2010-2018 |
| Hawkeye 325 |
2015 |
| Scrambler 1000 XP (2014-2016), Euro |
2015 |
| Scrambler 850 (2014-2016), Euro |
2014-2015 |
| Sportsman 1000 XP |
2015-2016 |
| Sportsman 325 ETX |
2015 |
| Sportsman 450 HO |
2016-2018 |
| Sportsman 550 |
2010-2014 |
| Forest |
2011-2014 |
| Touring |
2011-2014 |
| Sportsman 570 (2014-2018), Touring |
2014-2018 |
| Sportsman 850 |
2015-2016 |
| Forest |
2012-2014 |
| XP EPS INTL |
2010-2015 |
| Sportsman X2 550 (2011-2018), X2 850 |
2011 |
Frequently Asked Questions
How do I test a regulator rectifier?
Measure battery voltage with the engine running: below about 13.5V means undercharging, above about 15V means the regulator has failed open and is overcharging. Check the stator output first so you do not replace the wrong part.

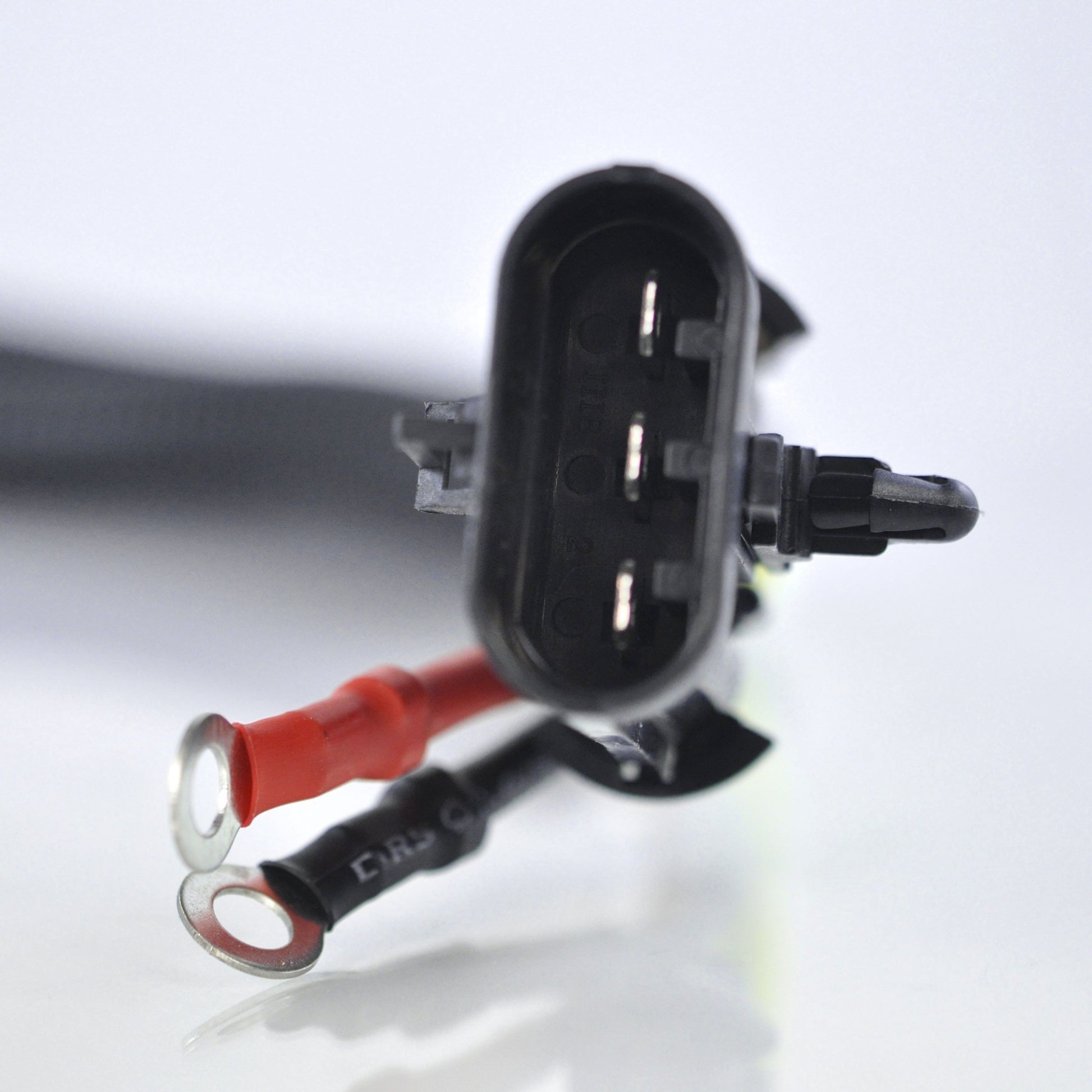

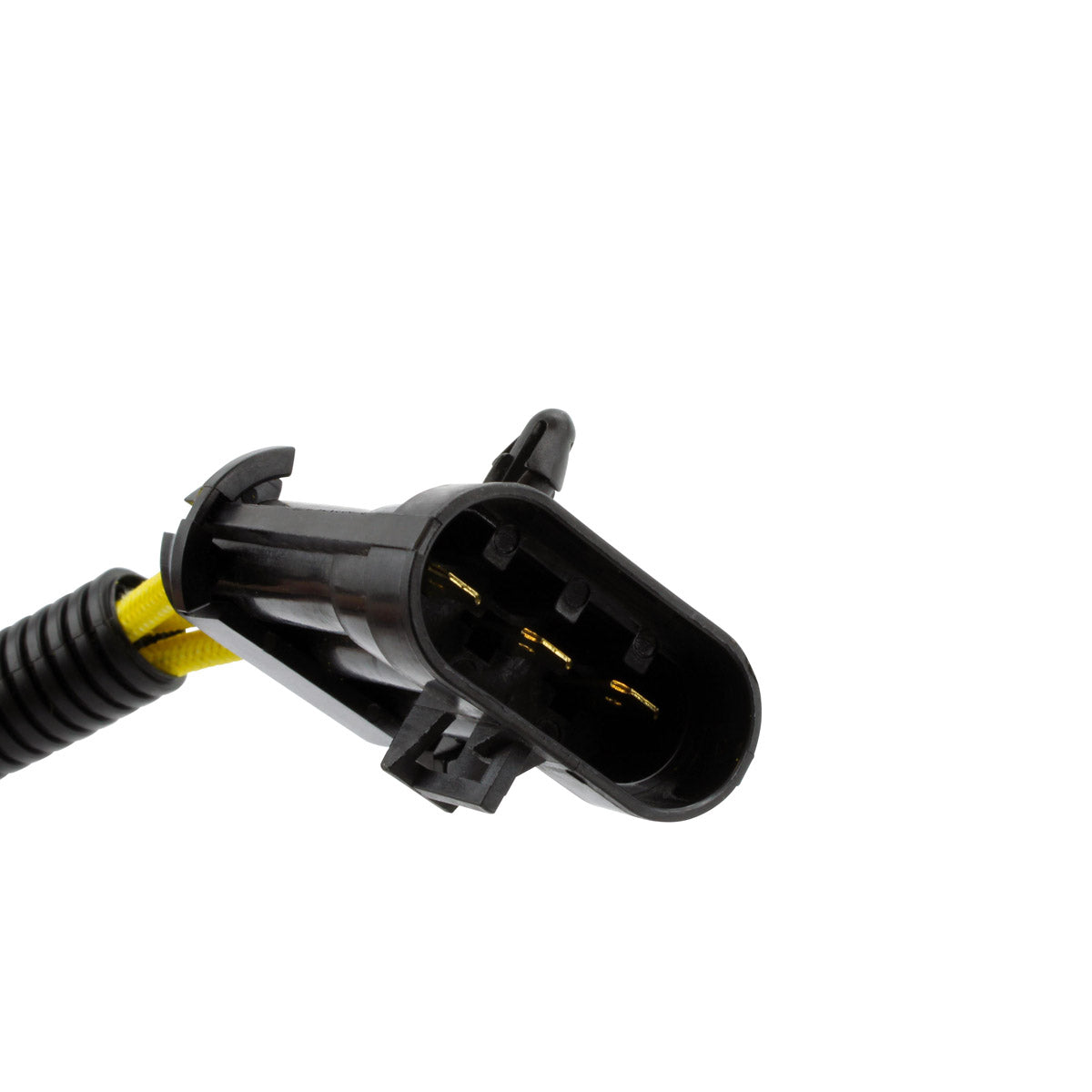

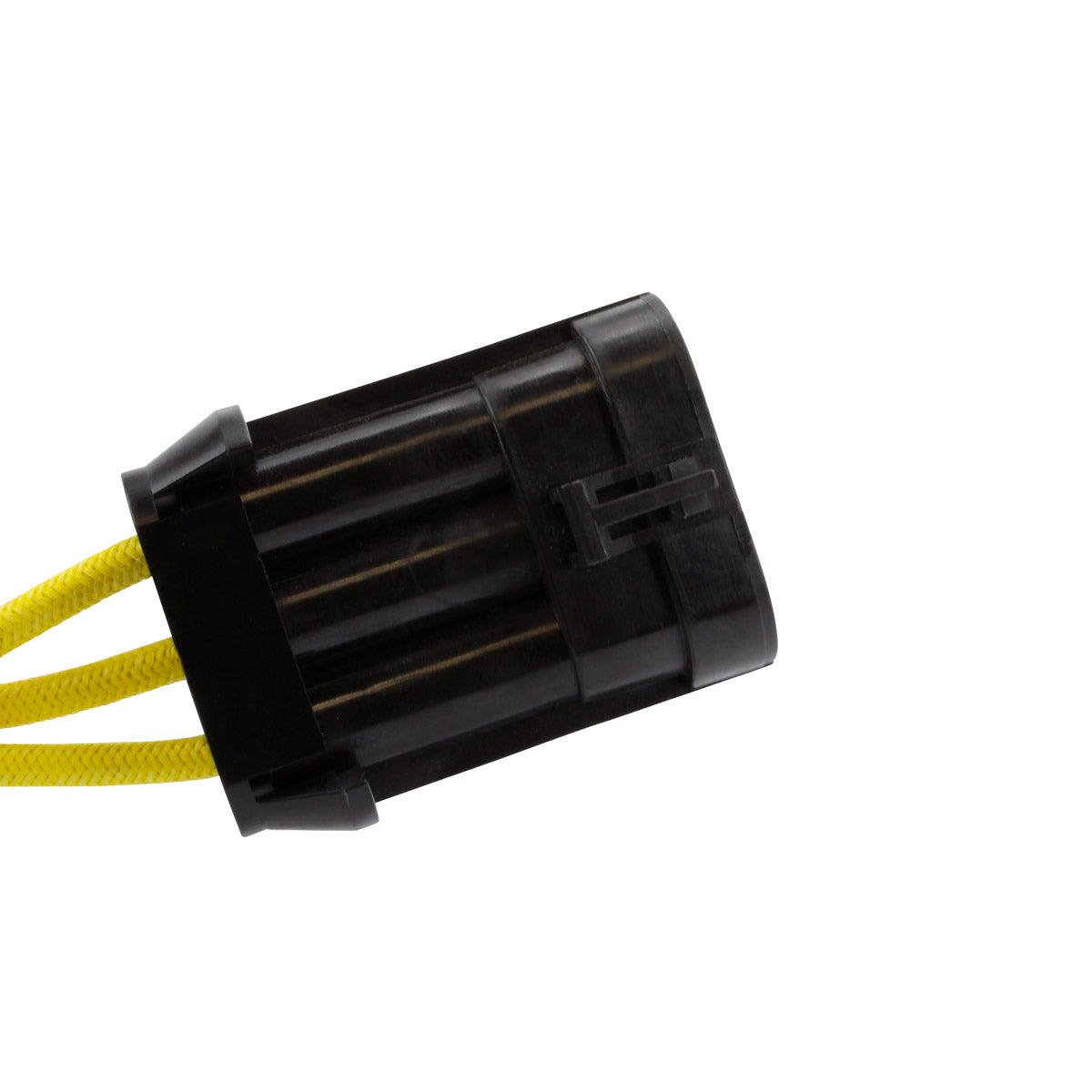

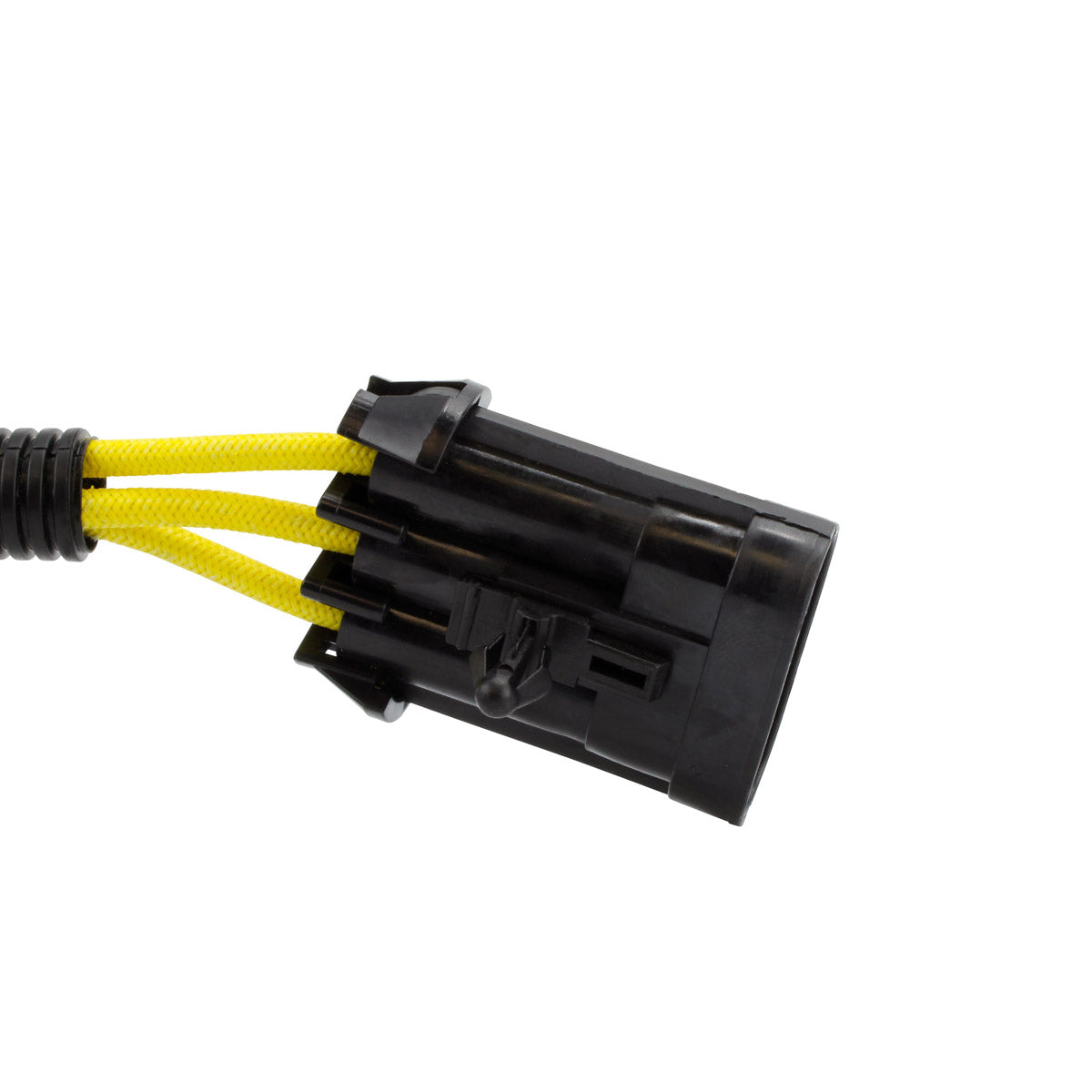

Does it come with the connector?
It is supplied with the original style connector on the models listed. Check the images against your existing unit.
Why do these fail so often?
Heat. They dissipate excess charging current as heat, so a blocked cooling fin area, a corroded earth or a weak battery all shorten their life. Mount it where it gets airflow.
Will a failed regulator damage anything else?
Yes - overcharging cooks batteries and blows bulbs, and a shorted regulator can take the stator with it. Fit the replacement promptly.
