Mosfet Regulator Rectifier for Polaris Hawkeye 300 & Sportsman 300, 400 HO 2006-2011
Mosfet Regulator Rectifier for Polaris Hawkeye 300 & Sportsman 300, 400 HO 2006-2011
SKU:RM30516
Free shipping over £150. Terms apply
Couldn't load pickup availability

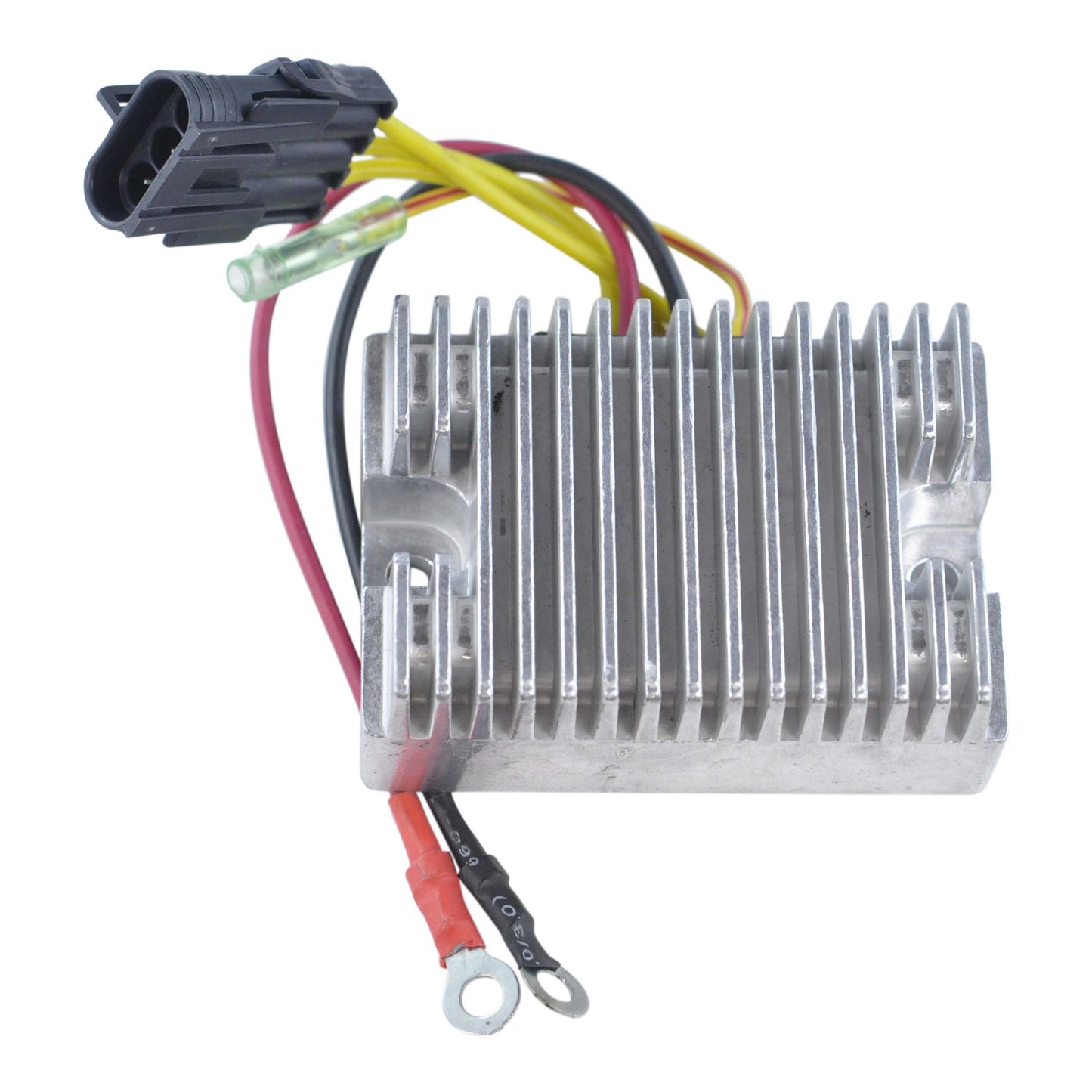

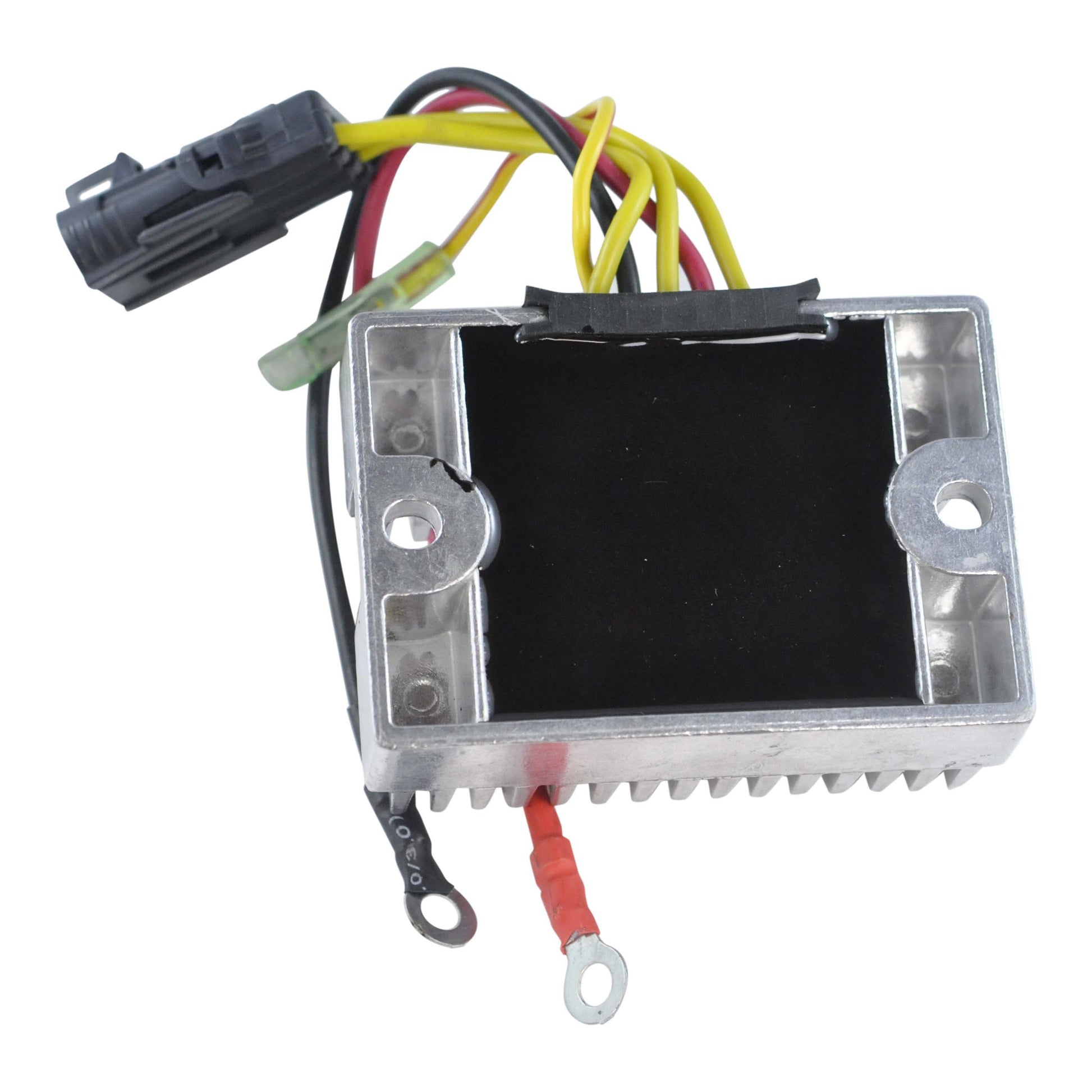

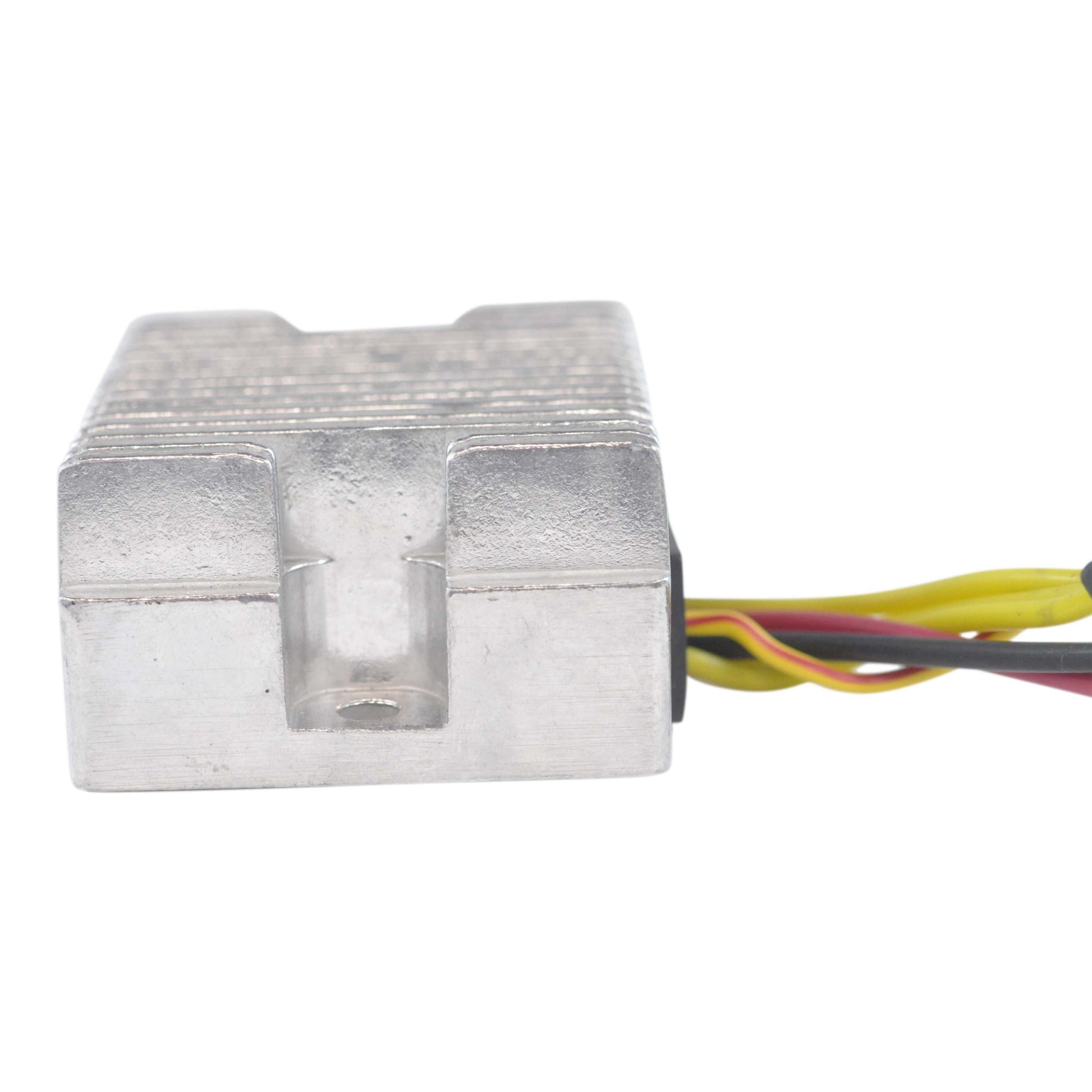

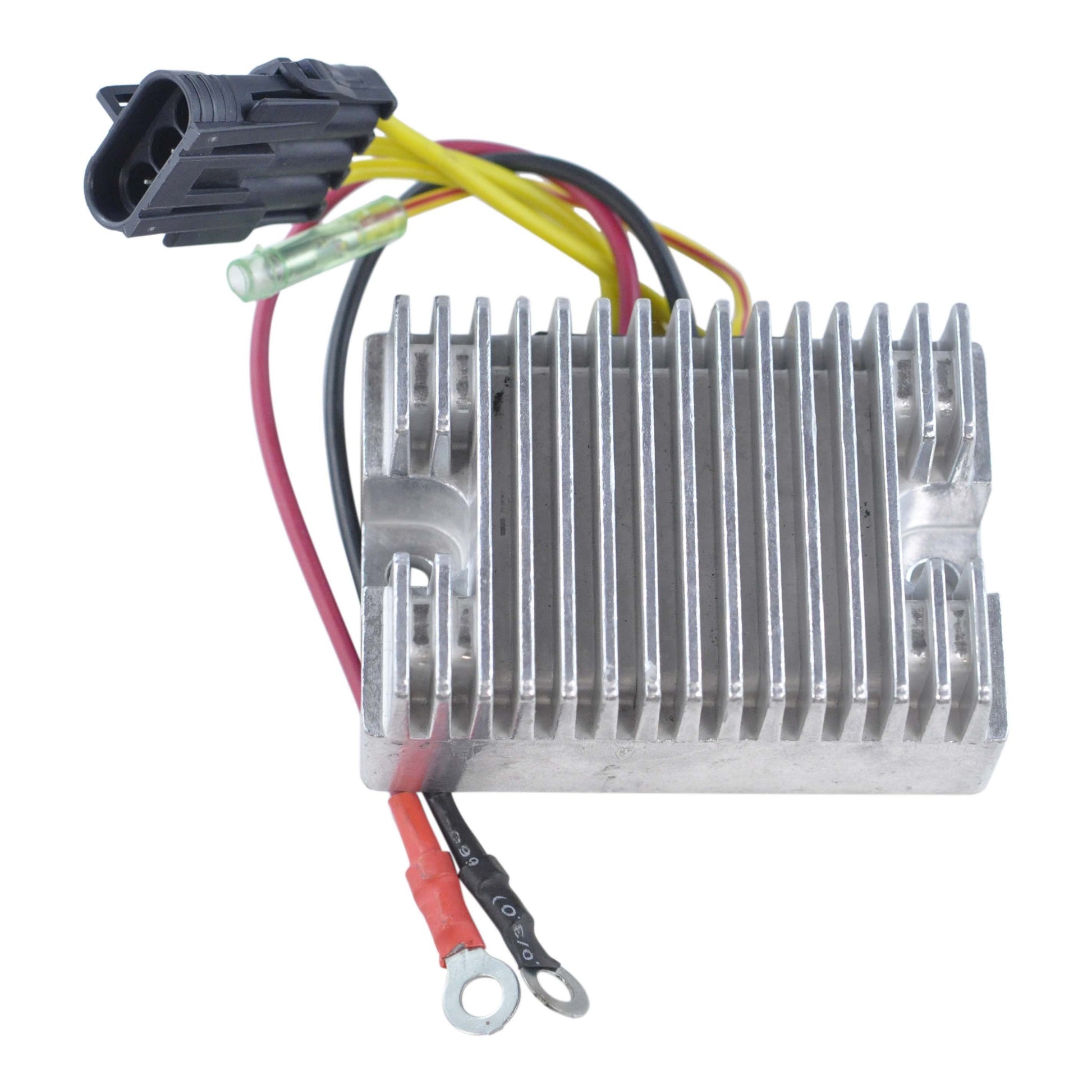

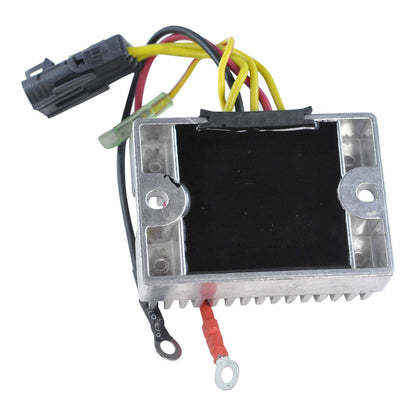

Mosfet Voltage Regulator Rectifier - Part RM30516
Polaris Hawkeye 300, Sportsman 300 and Sportsman 400 HO, 2006-2011
This is a brand new Mosfet voltage regulator rectifier for the Polaris Hawkeye 300 and Sportsman 300 and 400 HO. It does two jobs: it converts the alternating current produced by the stator into the direct current the machine actually uses, and it holds the charging voltage steady so the battery is topped up without being cooked. On these quads a failed regulator is one of the most common reasons for a battery that will not hold charge.
Mosfet technology is the reason to fit this unit rather than another diode-style replacement. A Mosfet regulator runs cooler than any OEM diode design, and heat is what kills regulators. This one also carries overheat protection: if it is pushed too hard it shuts itself down temporarily instead of burning out. It has an improved heat sink and higher grade electrical components throughout, and installation is plug and play - 4 plugs, 6 pins, 6 wires, mounting holes at 80 mm centres, exactly as the original.
Key Features
- Brand new Mosfet voltage regulator rectifier
- Runs cooler than all OEM diode style regulators
- Overheat protection - the unit switches off rather than burning out
- Improved heat sink for better thermal performance
- Higher grade electrical components than the original
- Plug and play direct replacement
- Rated to 50 A / 500 W maximum charging current
- Dispatched from the UK with a 12-month warranty
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30516 |
| Width | 70 mm |
| Length | 97 mm |
| Height | 36 mm |
| Wire lengths | 70 mm and 205 mm |
| Fixation holes centre to centre | 80 mm |
| Number of plugs | 4 |
| Number of pins | 6 |
| Number of wires | 6 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Hawkeye 300 | 2006-2011 |
| Polaris Sportsman 300 | 2006-2011 |
| Polaris Sportsman 400 HO | 2006-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4011182 | Polaris |
Frequently Asked Questions
Will it fit without modification?

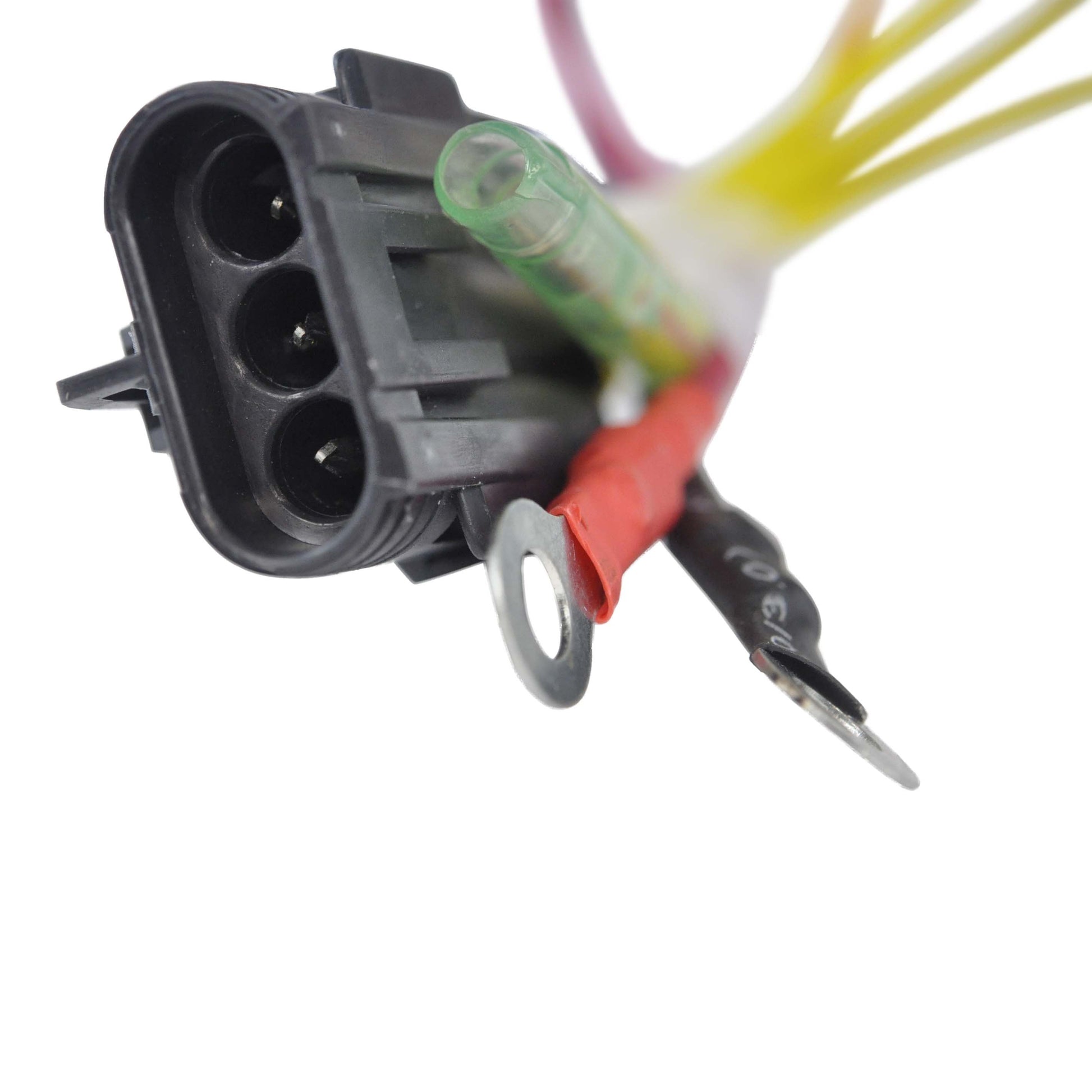

Yes. It is plug and play, with the same 4 plugs, 6 pins and 6 wires as the original and mounting holes at 80 mm centres. No cutting or splicing is required. Check the 70 mm and 205 mm wire lengths against your machine before ordering.
What is included?
The Mosfet regulator rectifier unit with its plugs and wiring. No mounting bolts or additional hardware are listed for this part, so reuse the fixings from the regulator you remove.
How do I know the old regulator has failed?
The usual signs are a battery that goes flat repeatedly, dim or flickering lights, or a battery that boils and needs topping up because it is being overcharged. Put a multimeter across the battery with the engine running: a working system should show around 14.5 V. A reading that stays down near battery voltage points to a regulator that has stopped charging, while anything above about 15 V means it has lost regulation and is overcharging.
What does Mosfet actually change?
Mosfet switching produces far less waste heat than the diode arrangement used in the original regulator, and heat is what destroys these units. Less heat means a longer service life, and if the unit is ever pushed beyond its limits the overheat protection shuts it down temporarily rather than letting it burn out permanently.
