MOSFET Regulator Rectifier for Suzuki VS700GL, VS750GL, VS800GL
MOSFET Regulator Rectifier for Suzuki VS700GL, VS750GL, VS800GL
SKU:RM30332
Free shipping over £150. Terms apply
Couldn't load pickup availability
MOSFET Voltage Regulator Rectifier - RM30332
Suzuki VS 700 GL, VS 750 GL Intruder and VS 800 GL Intruder - 1986-1997

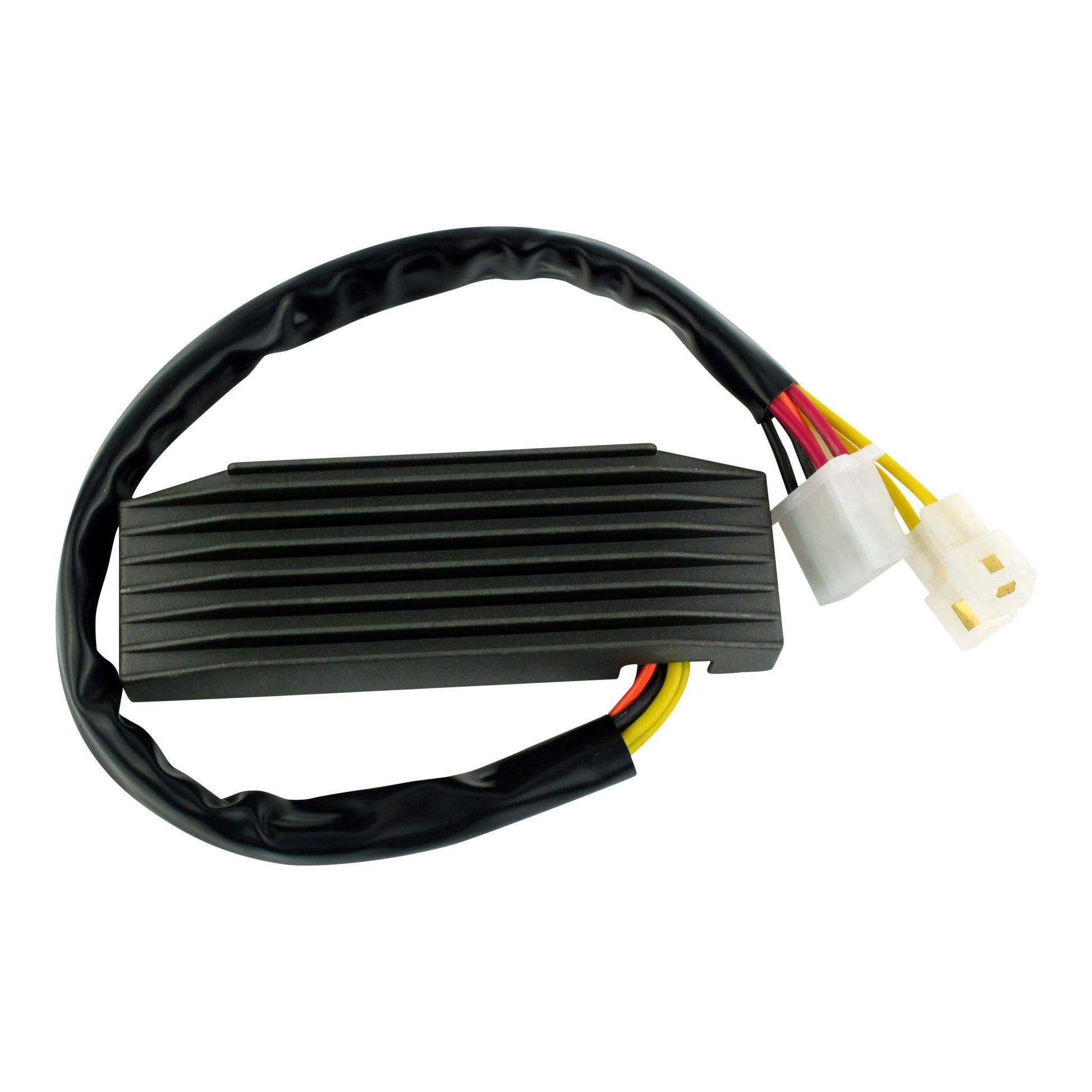

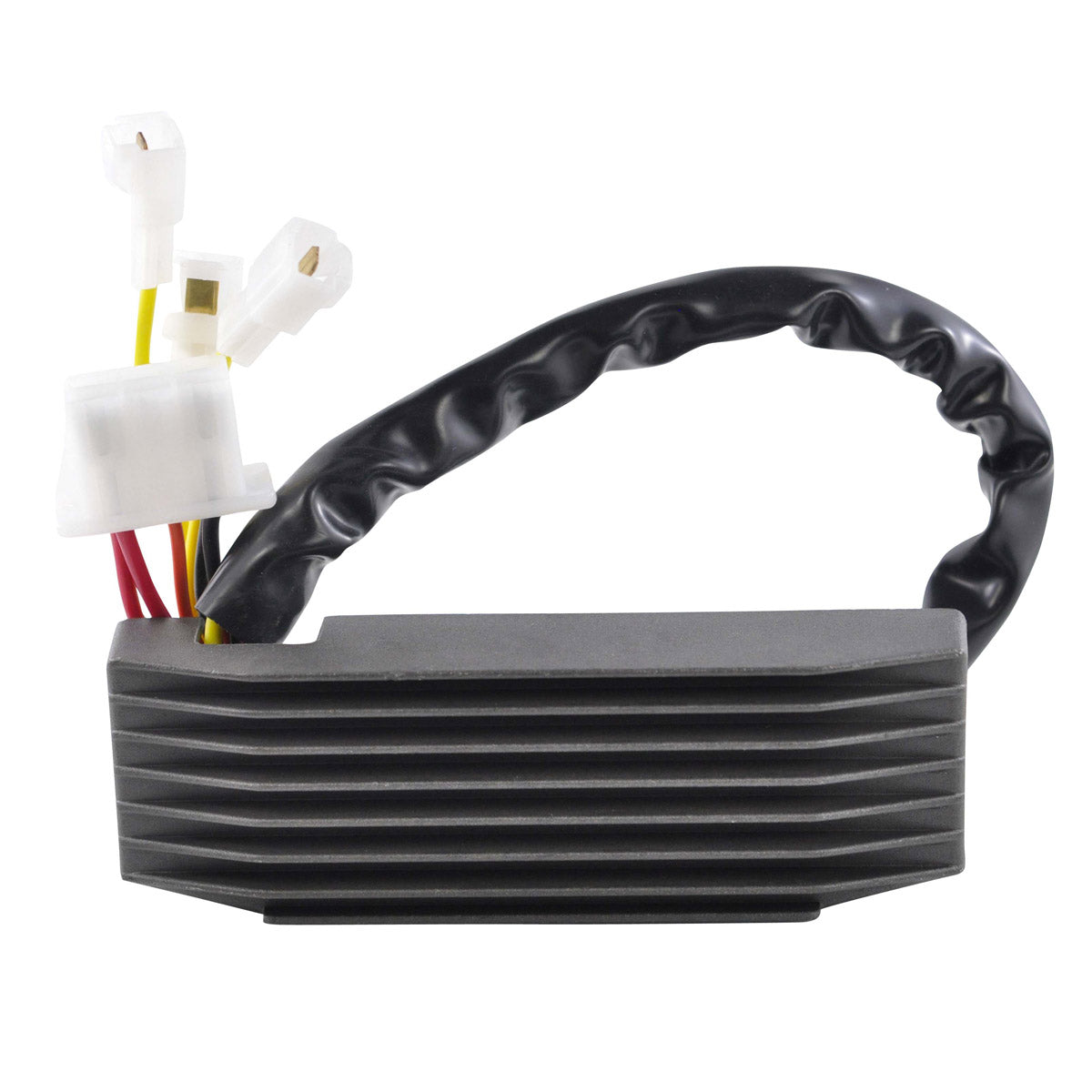

A brand new aftermarket MOSFET voltage regulator rectifier, built as a direct replacement for the original unit fitted to the Suzuki VS 700 GL, VS 750 GL Intruder and VS 800 GL Intruder. It is plug-and-play and a direct fit, so installation is straightforward and no assembly is required. The MOSFET design uses a higher grade of electric components than the original diode-style unit, with an improved heat sink and improved charging capabilities, and the quality exceeds the OEM equipment it replaces.
Every unit shipped is tested before it leaves the warehouse. This part also ships with the opposite connector - the main harness side plug - because that connector is very often found melted, corroded or otherwise defective and is a major cause of repeat electrical faults. Fitting a fresh connector at the same time as the regulator removes the most common source of the problem coming straight back. All item pictures are accurate; if you are in any doubt, compare the item against your original part before ordering.
Key Features
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required

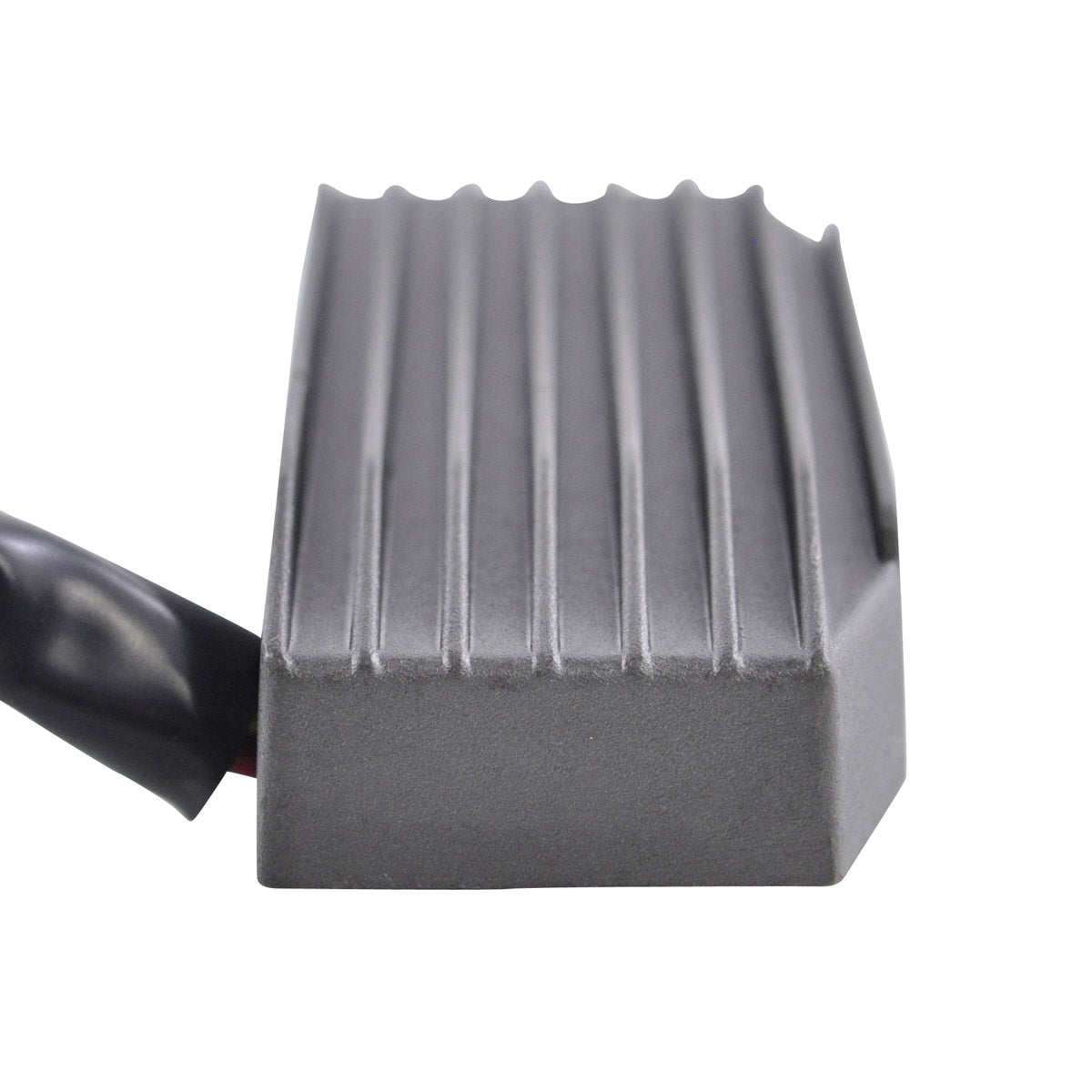

- MOSFET type with improved heat sink and charging capabilities
- Higher grade of electric components
- Quality exceeds the OEM equipment
- Opposite connector (main harness side) included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30332 |
| Width | 50 mm |
| Length | 144 mm |
| Height | 26 mm |
| Wires length | 500 mm |

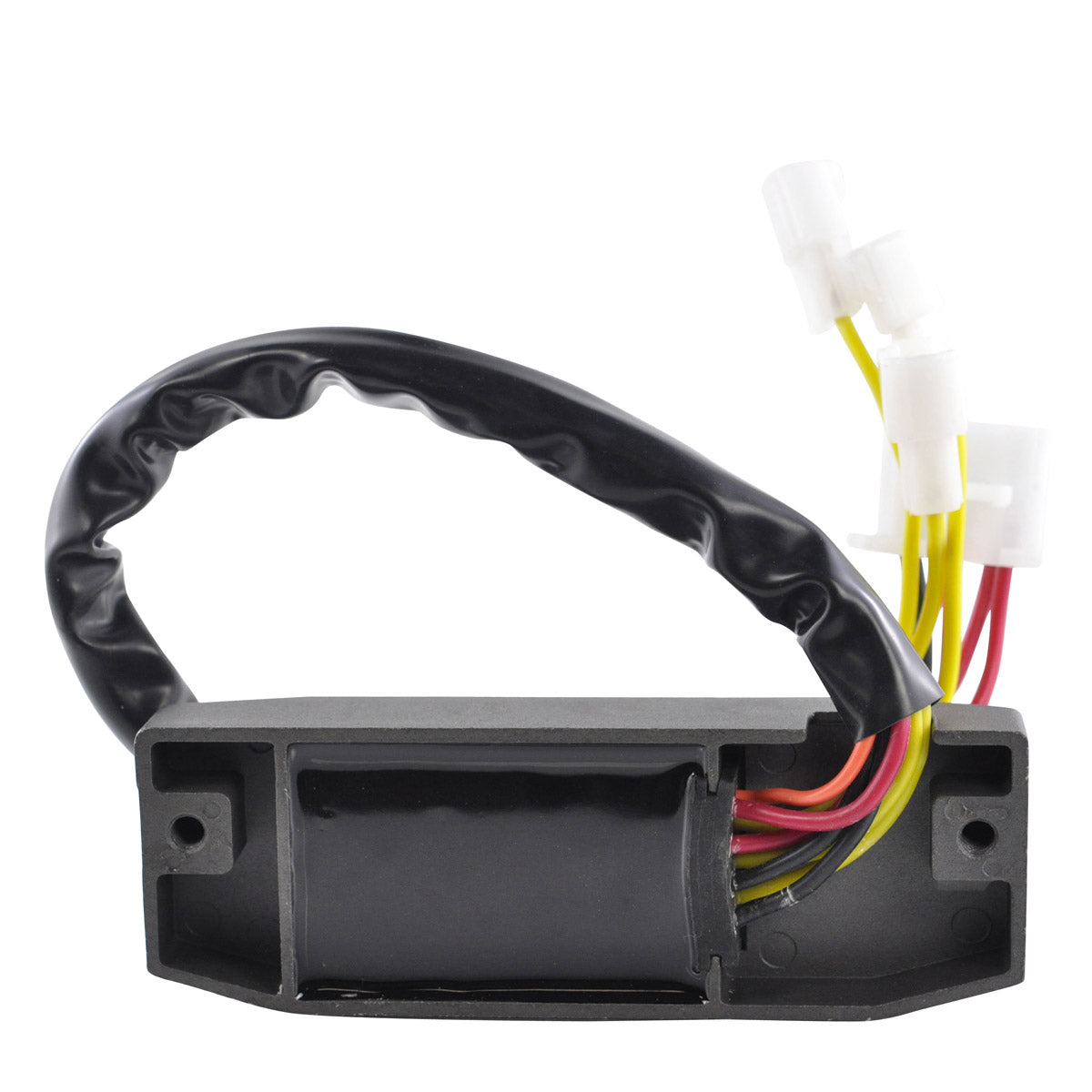

| Distance between fixation holes (centre to centre) | 130 mm |
| Number of plugs | 4 |
| Number of pins | 8 |
| Number of wires | 8 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki VS 700 GL | 1986-1997 |
| Suzuki VS 750 GL Intruder | 1986-1997 |
| Suzuki VS 800 GL Intruder | 1986-1997 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-38A00 | Suzuki |
Frequently Asked Questions
Do I need to modify the wiring to fit this regulator rectifier?

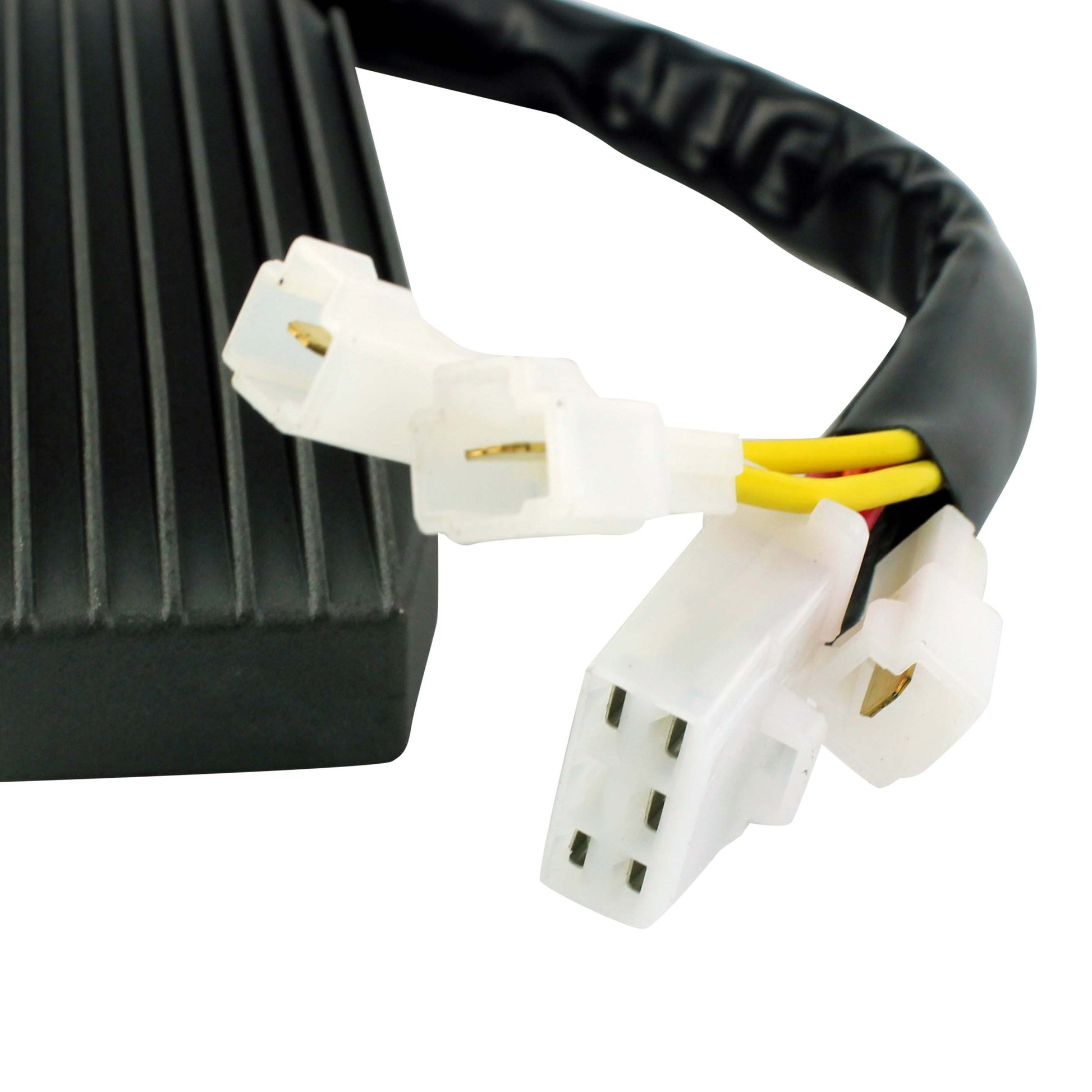

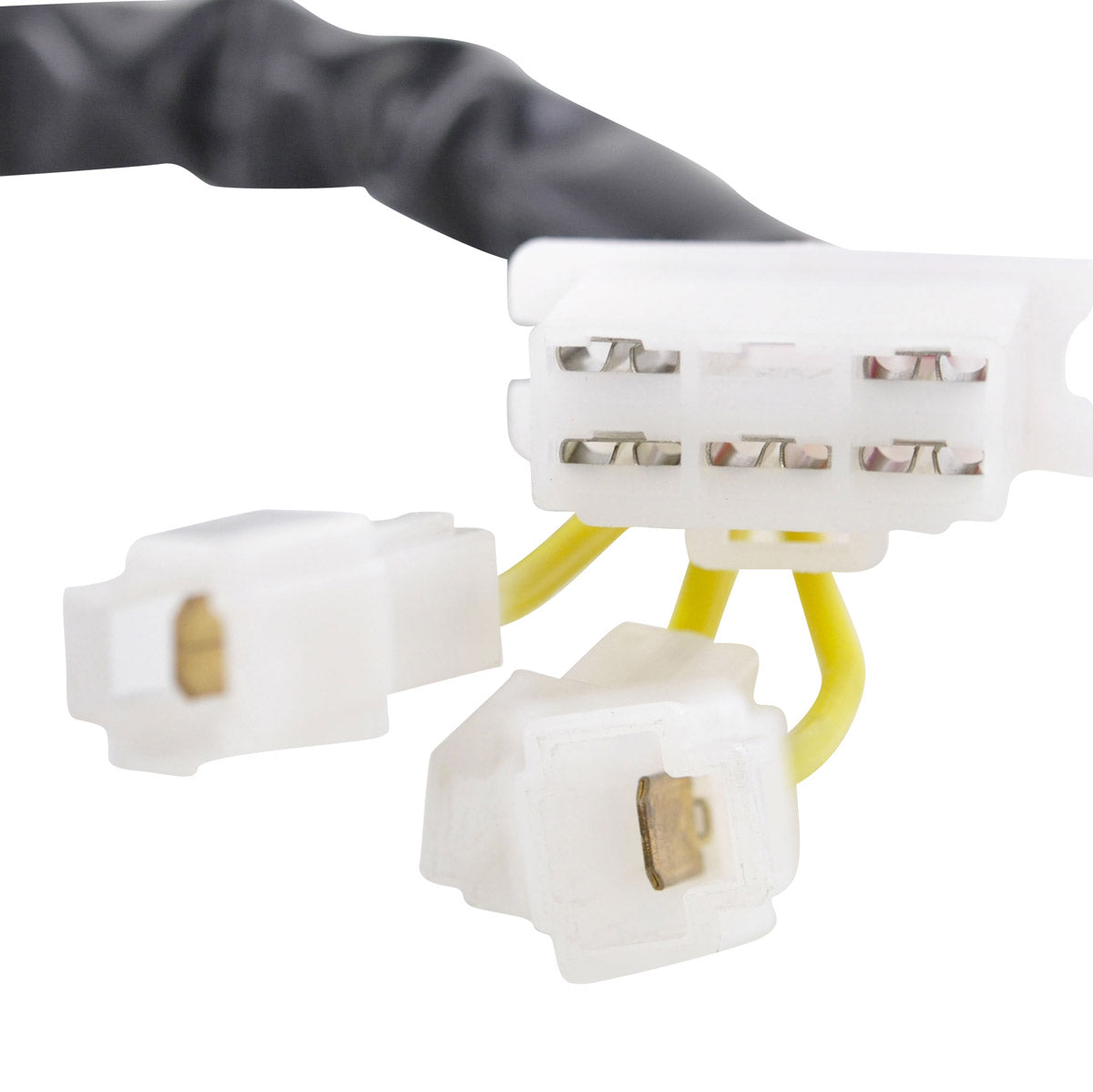

No. This is a direct replacement for your original unit and is plug-and-play, so it is a direct fit with easy installation and no assembly required. The unit has 4 plugs, 8 pins and 8 wires, with 500 mm of wire length and 130 mm between the fixation hole centres.
What is included in the box?
You receive the MOSFET regulator rectifier itself plus the opposite connector for the main harness side. That extra connector is included because the original harness plug is frequently found melted, corroded or defective, and replacing it at the same time prevents the same fault returning.
How can I tell that my old regulator rectifier has failed?
A healthy charging system should reach a minimum charging voltage of 14.5 V +/- 0.5 V at the battery with the engine running, and open circuit voltage should stay below 15 V. Readings that sit well under that figure, or that climb above it and boil the battery, point to a failed regulator rectifier. Melted or discoloured connector pins are another strong indicator.
Why choose a MOSFET unit over the original diode type?
MOSFET regulators run cooler than diode-style units. This one is built with a higher grade of electric components, an improved heat sink and improved charging capabilities, rated to a maximum charging current of 50 A / 500 W and an operating temperature range of -20 C to 85 C.
