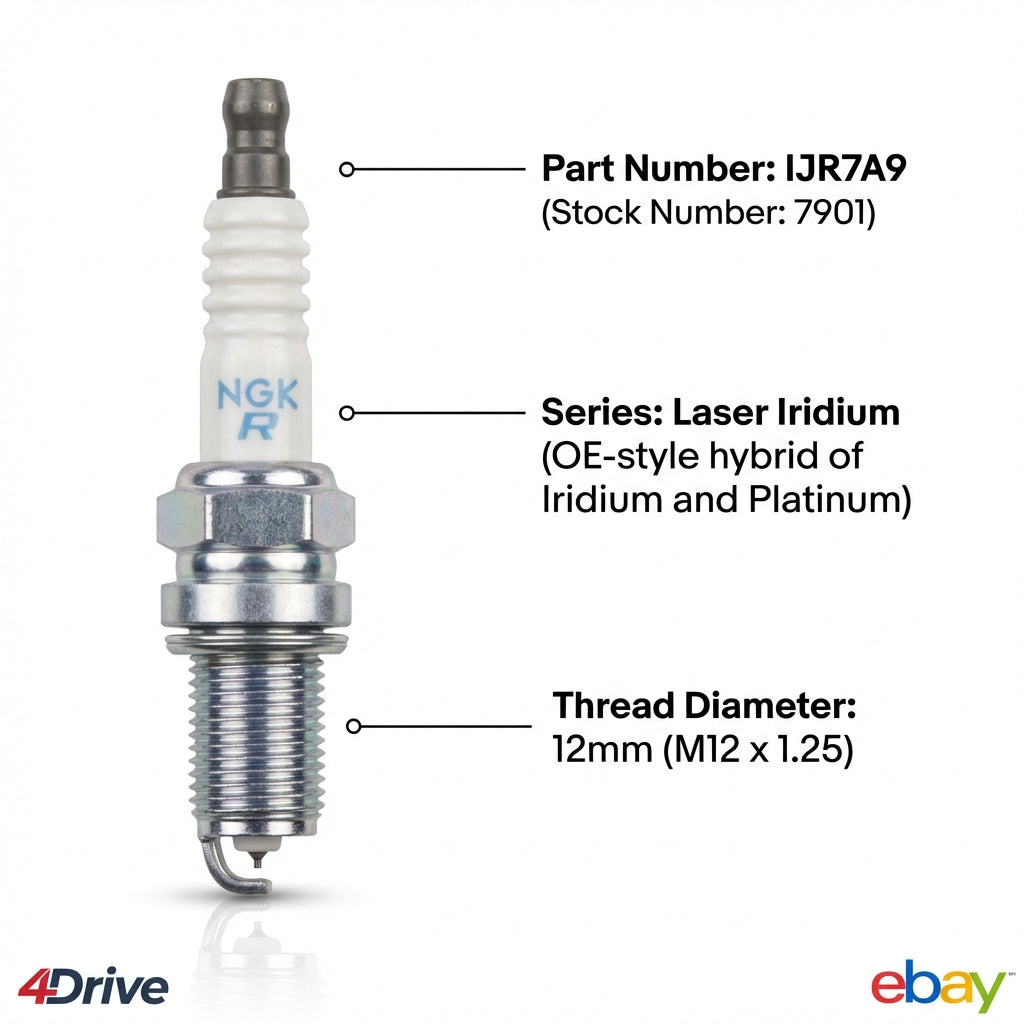

RELIABILITY: Laser Iridium technology ensures a service life up to 100,000 miles with superior resistance to spark erosion and high-temperature environments.

Key Features

• ✔ Fine wire iridium tipped center electrode
• ✔ Platinum pad on ground electrode for even wear
• ✔ Trivalent metal plating for anti-corrosion
• ✔ Superior ignitability & stable idle

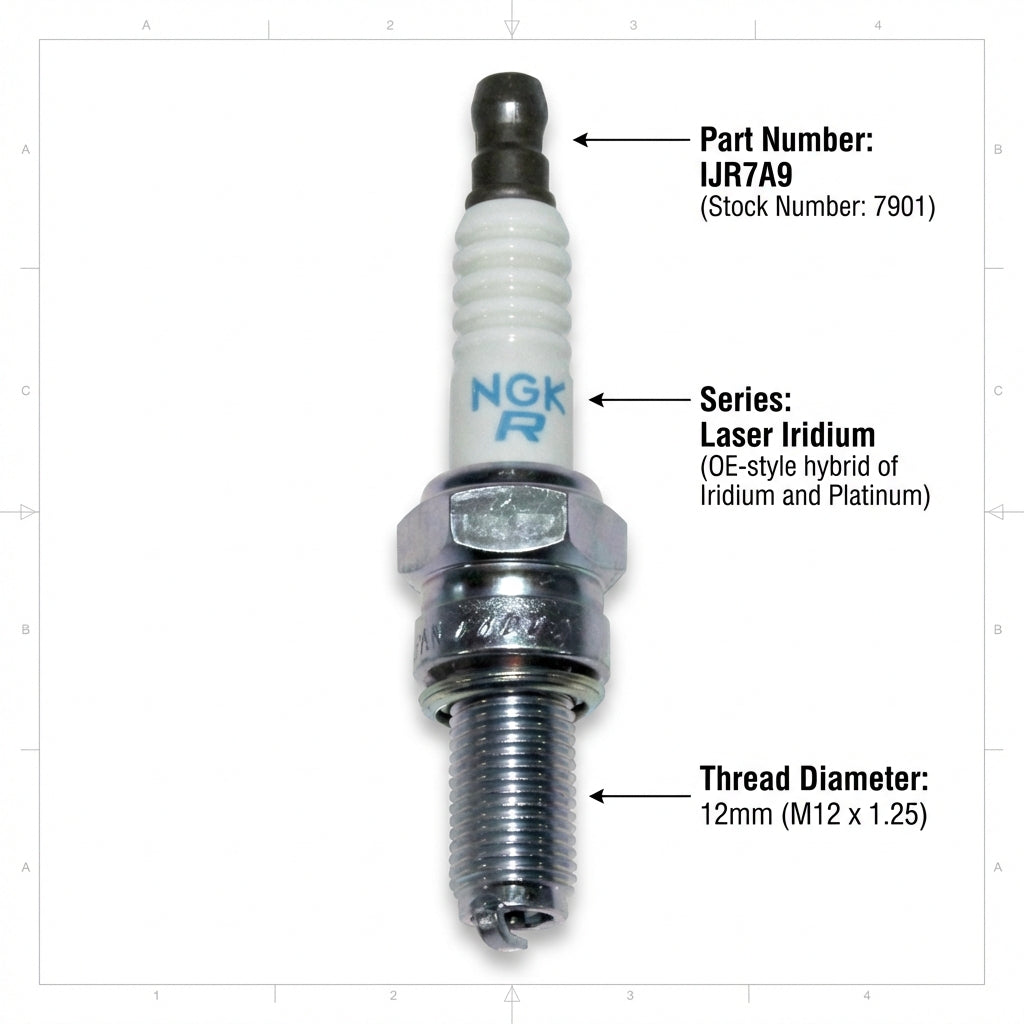

Technical Specs

Thread Size:	12mm
Reach:	19mm (3/4")
Hex Size:	18mm (11/16")
Gap:	0.9mm (0.035")
Heat Range:	7
Resistor:	Yes (5k Ohm)

Make	Model / Application	Year Range
Honda	TRX500FA FourTrax Foreman Rubicon	2001 - 2014
Honda	TRX500FGA FourTrax Foreman Rubicon GPScape	2004 - 2008
Honda	TRX500FPA FourTrax Foreman Rubicon w/ EPS	2009 - 2014

Is this a genuine original part?

This is a premium replacement NGK part, manufactured to meet or exceed original equipment (OE) standards for the Honda TRX500 series and other specified applications.

How do I know if it is compatible?

Check your vehicle's service manual or verify the part number currently installed. This plug replaces the Honda OE number 98069-5791U and the Denso VX22BC.

Does this plug require gapping before installation?

These plugs are pre-gapped at 0.9mm (0.035"). While they are ready for installation, always check the gap gently with a non-contact gauge to ensure it hasn't shifted during transit.
