Onan Starter Motor 12V 10-Tooth for Mitsubishi, Cummins & Mercury Marine - Replaces M2T56071
Onan Starter Motor 12V 10-Tooth for Mitsubishi, Cummins & Mercury Marine - Replaces M2T56071
SKU:410-48007
Free shipping over £150. Terms apply
Couldn't load pickup availability

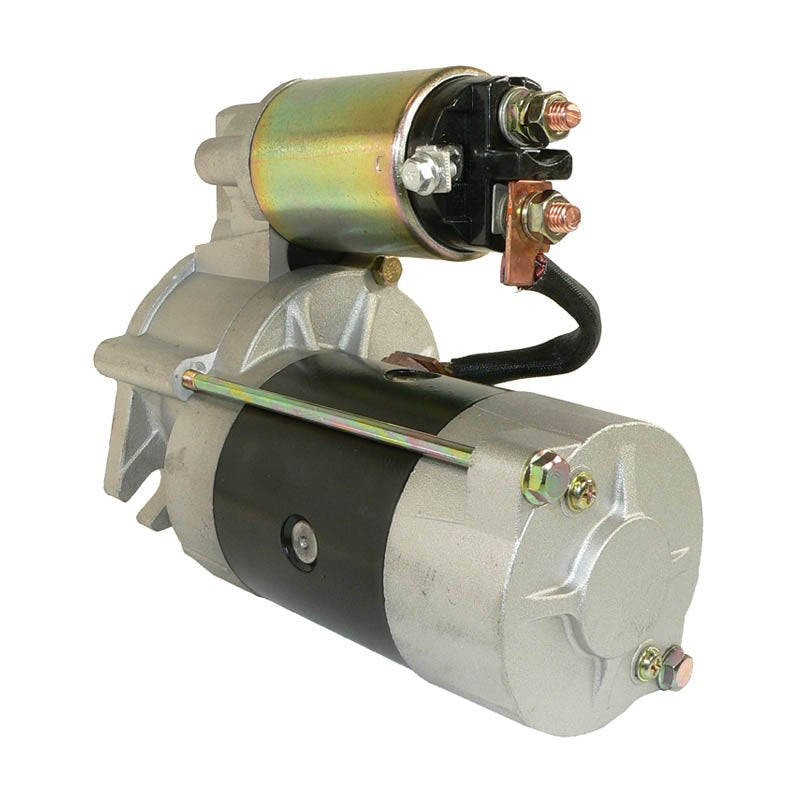

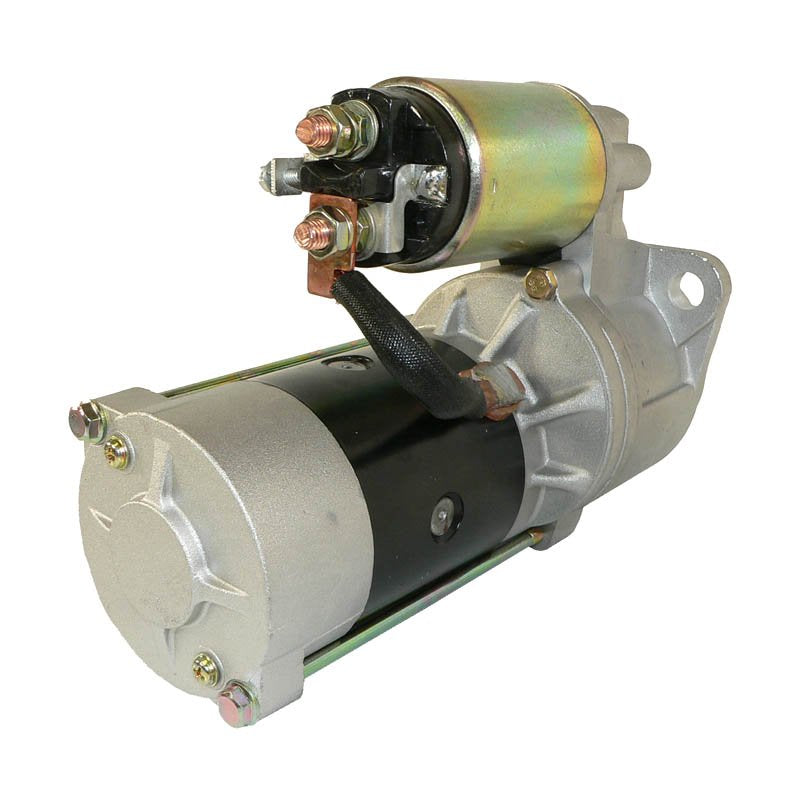

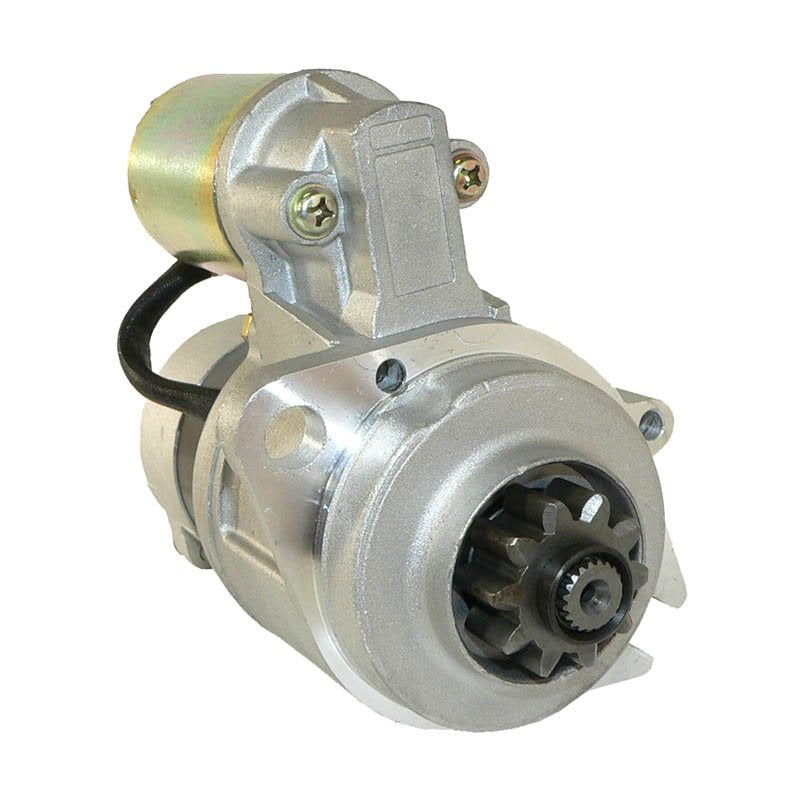

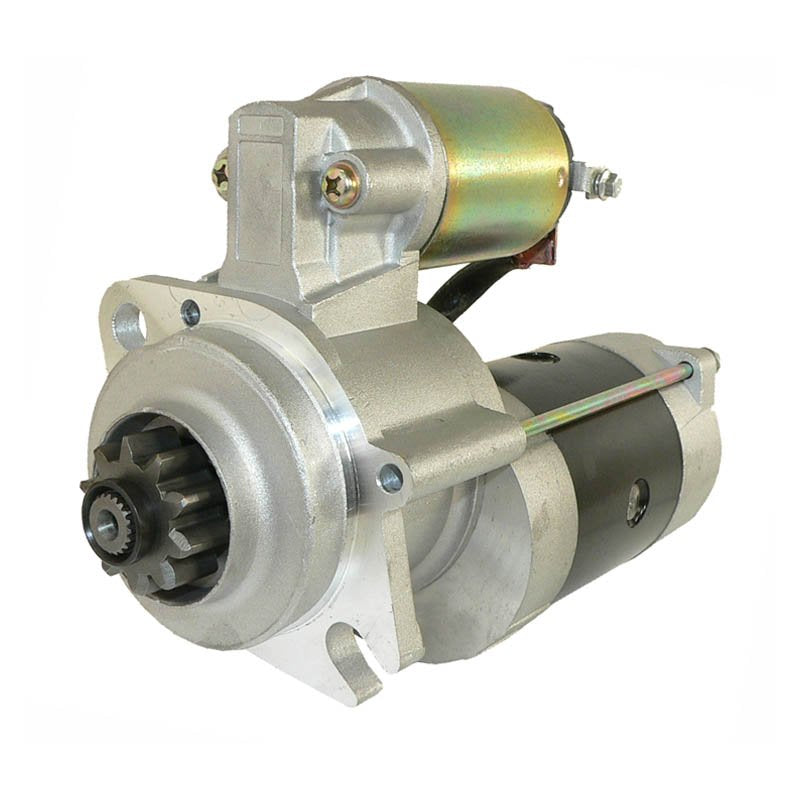

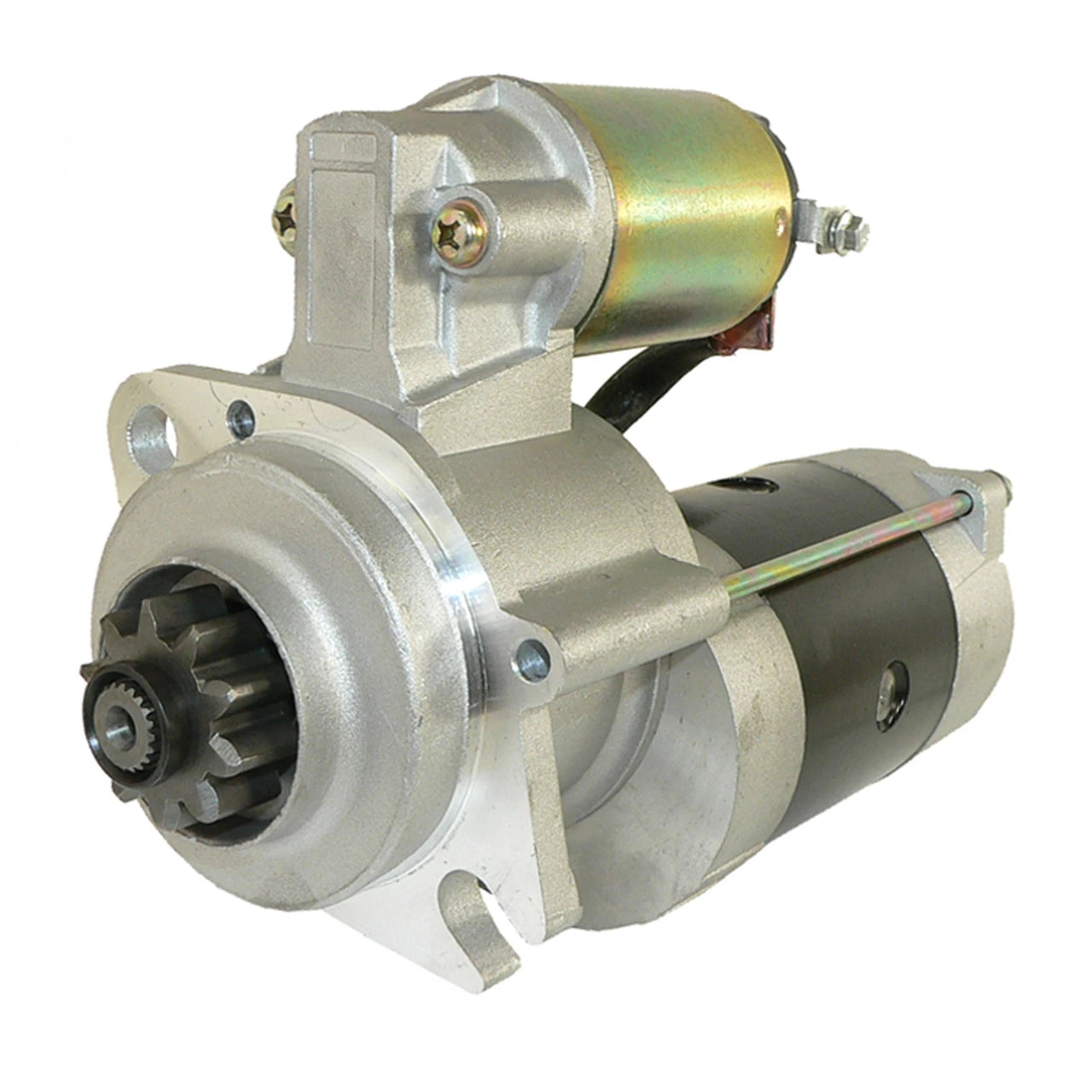

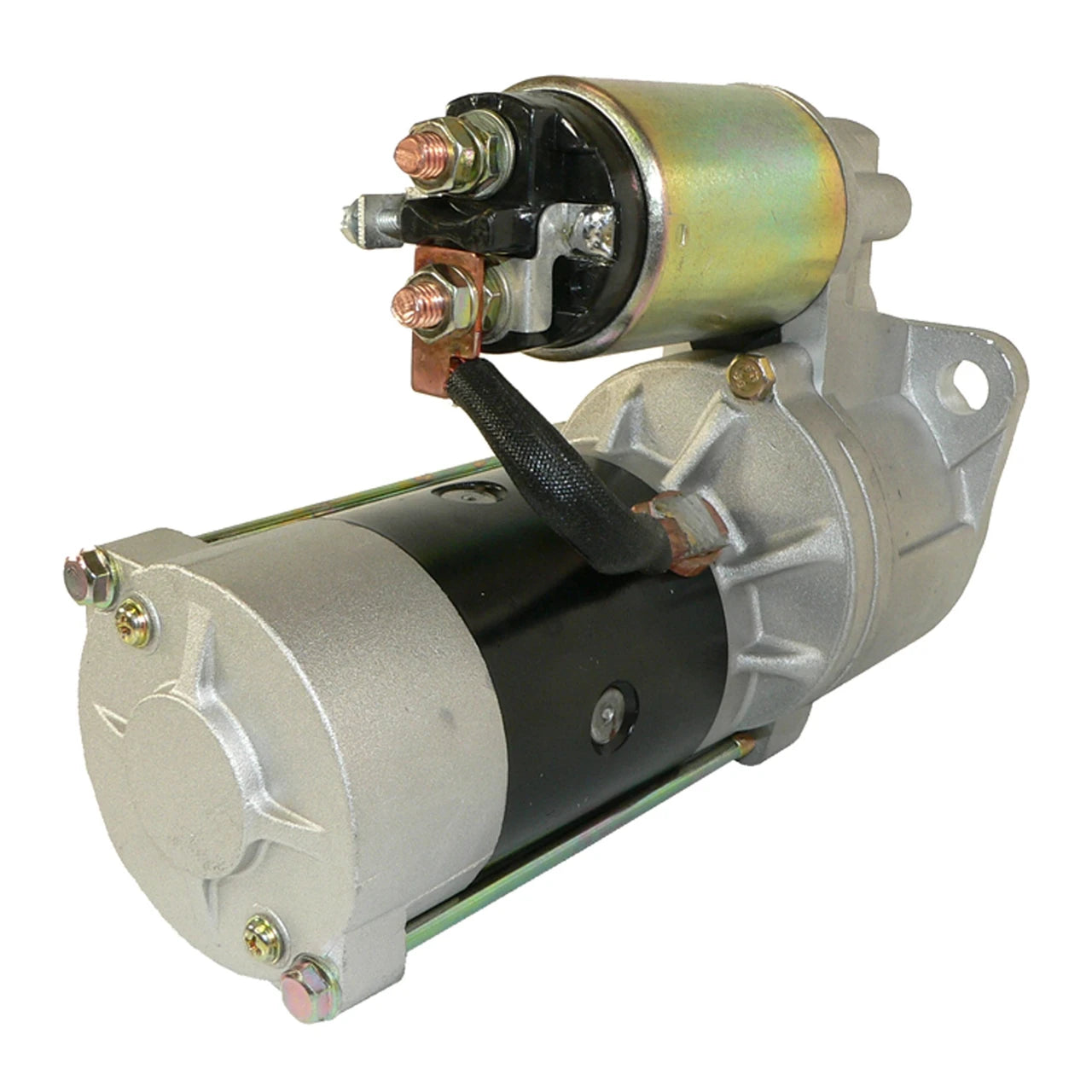

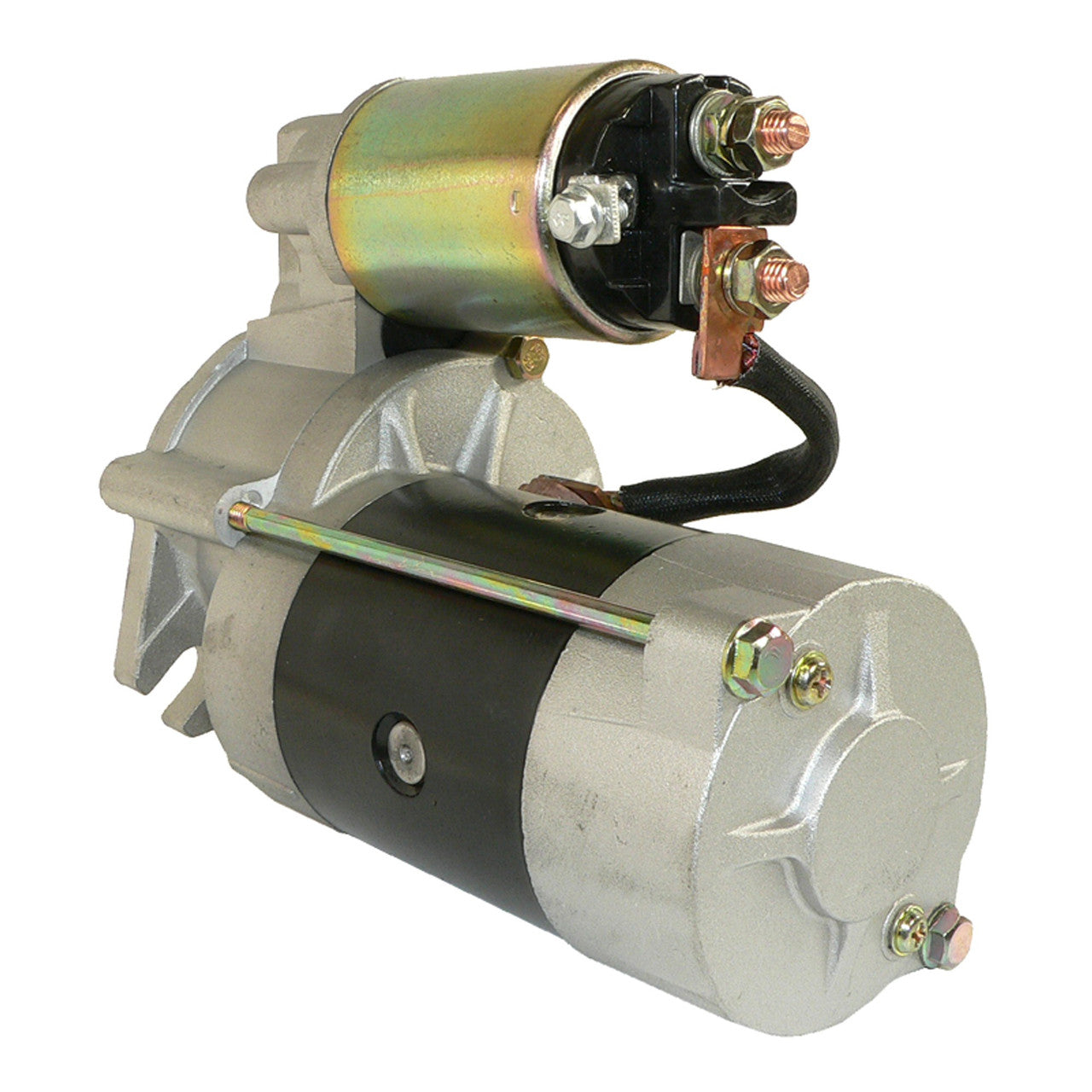

Onan / Mitsubishi Starter Motor 12V 10-Tooth
Onan generator sets | Mitsubishi engines | Cummins | Mercury Marine | Ford / New Holland
A new 12-volt, 10-tooth starter motor for Onan generator sets and the Mitsubishi engines used across Cummins, Mercury Marine and Ford / New Holland equipment.
Generator and marine auxiliary engines are started far more often than a road vehicle, so the starter is a wear item. This unit is built to the original Mitsubishi specification for reliable restarts on standby and continuous-duty sets.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- 12-volt, 10-tooth pinion matched to the Mitsubishi original
- Suits Onan generator sets and Mitsubishi-powered marine and industrial engines
- Built for frequent start cycles typical of gensets and auxiliary engines
- Wide OEM cross-reference across Onan, Cummins, Mercury and Lucas numbers
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 410-48007 |
| Component | Starter Motor |
| Voltage | 12 Volts |
| Tooth Count | 10 Teeth |
| Condition | New aftermarket |
| Original Equipment Type | Mitsubishi |
| Warranty | 12 months |
Application / Fitment Guide
| Equipment Make | Application |
|---|---|
| Onan | Generator sets - OE refs 191-1888, 191-1959, 191-1394, 191-1807 |
| Mitsubishi | Industrial and marine engines - M2T56071 / M2T56072 / M2T56081 |
| Cummins | Engines using the Mitsubishi starter - OE ref C0191180700 |
| Mercury Marine | Marine engines - OE ref 8M6007371 |
| Ford / New Holland | OE ref 507461 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| M2T56071 | Mitsubishi |
| M2T56072 | Mitsubishi |
| M2T56081 | Mitsubishi |
| 191-1888 | Onan |
| 191-1959 | Onan |
| 191-1394 | Onan |
| 191-1807 | Onan |
| C0191180700 | Cummins |
| 8M6007371 | Mercury Marine |
| 507461 | Ford / New Holland |
| DRS3236 | Delco |
| S9923 | Lucas Electric |
| LRS01478 | Lucas Electric |
| SMT0028 | Arrowhead |
| 17008 | Lester |
| 103-232 | Pic Picture ID |
| 103-232A | Pic Picture ID |
Frequently Asked Questions
Will this fit my Onan generator set?
If your existing starter carries an Onan 191-series number (191-1888, 191-1959, 191-1394 or 191-1807) or a Mitsubishi M2T560-series number, this is the correct replacement. Check the pinion has 10 teeth before fitting.
Can I use it on a Mercury Marine engine?
Yes, where Mercury specifies 8M6007371. It is the same Mitsubishi starter supplied under a Mercury part number.
Why do generator starters fail sooner than vehicle starters?
Standby and prime-power sets start and stop many times a day, and often sit in damp or dusty enclosures. Brush wear and solenoid contact erosion therefore happen far faster than on a road vehicle.
Do I need to change the solenoid separately?
No - the solenoid is supplied fitted to the starter as a complete assembly.
