Pickup Coil 185 Ohms for Arctic Cat ATVs
Arctic Cat 350, 366, 400, 425, 450 and 500, Alterra and TRV 400, 450 and 500, XC 450, XR 500, 2008-2023 - Part Number RM00140

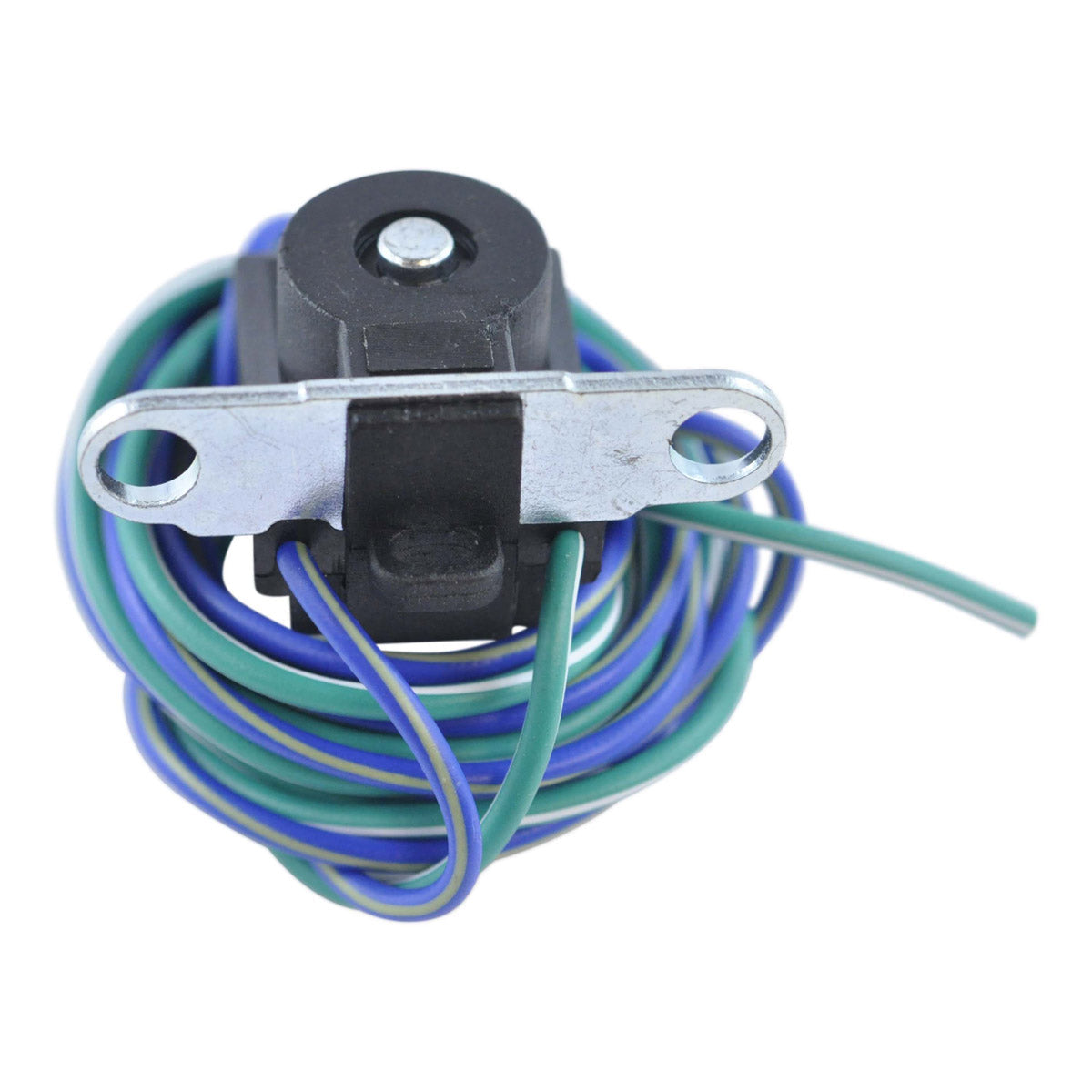

A brand new pickup coil, also called a pulsar coil, for Arctic Cat ATVs built between 2008 and 2023. It covers the 350, 366, 400, 425, 450 and 500 machines, the Alterra and TRV in 400, 450 and 500 form, the XC 450 and the XR 500. This is the small trigger coil that sits alongside the stator and tells the ignition when to fire, and it is a part that is often no longer available through the original equipment manufacturer.

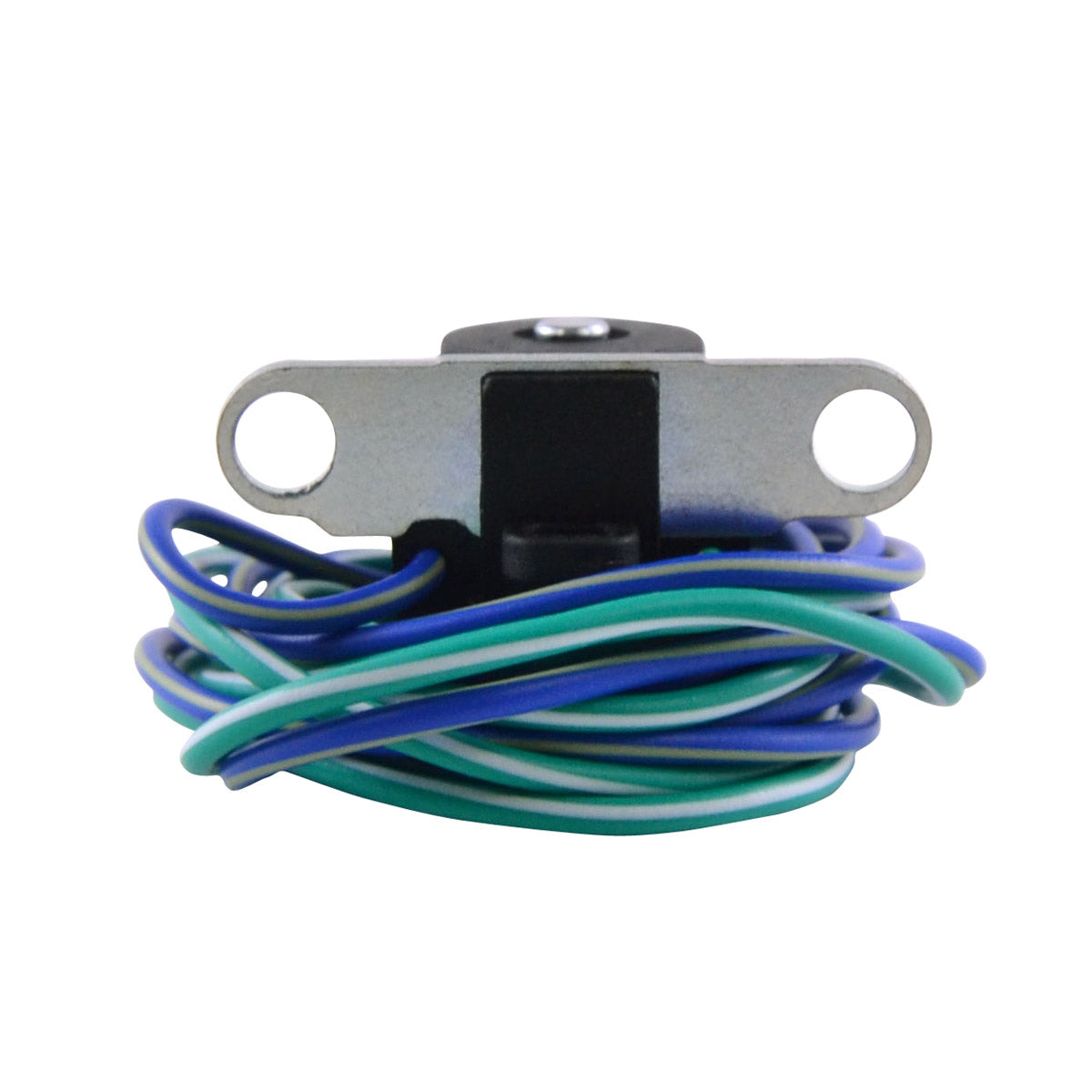

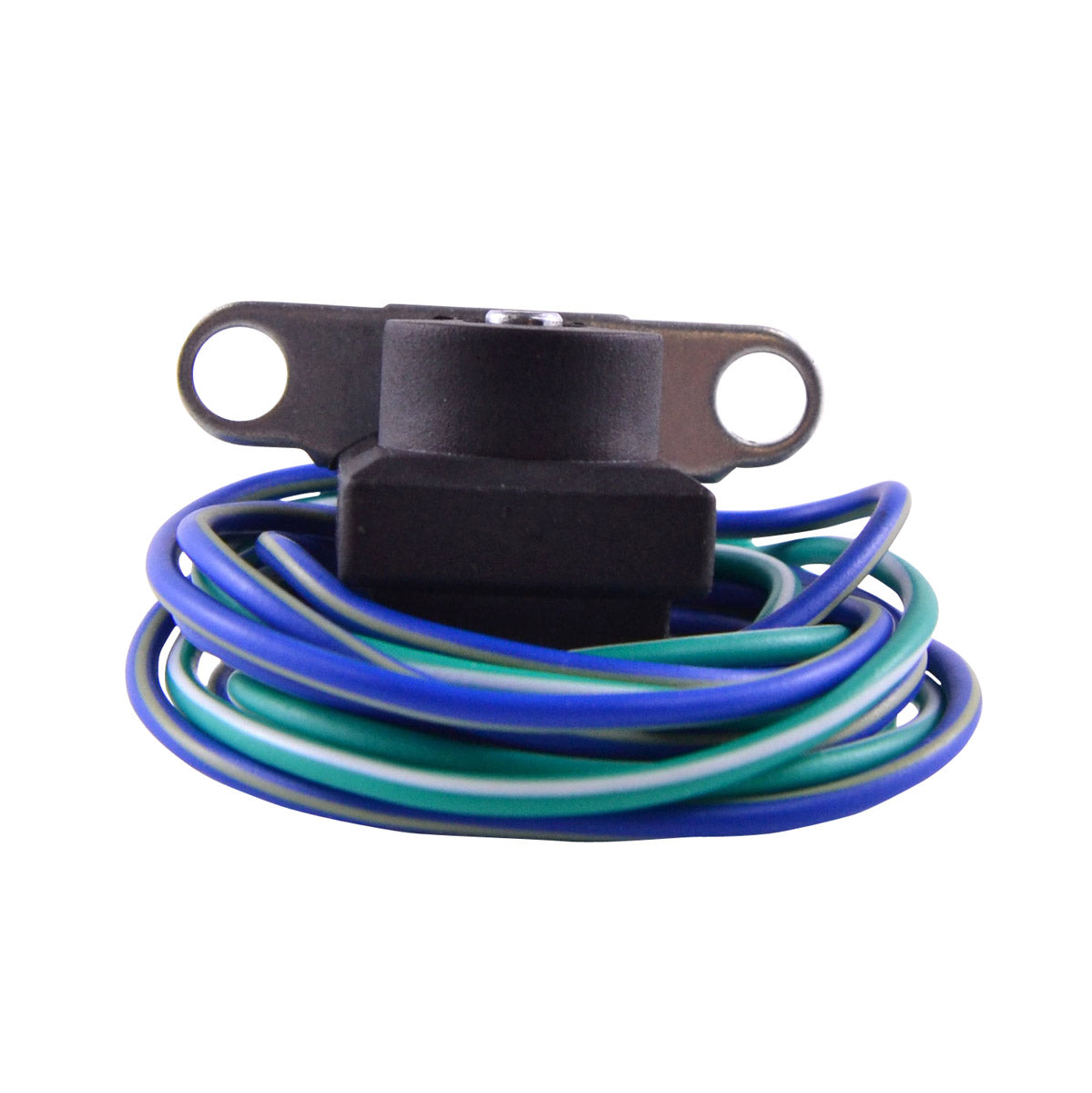

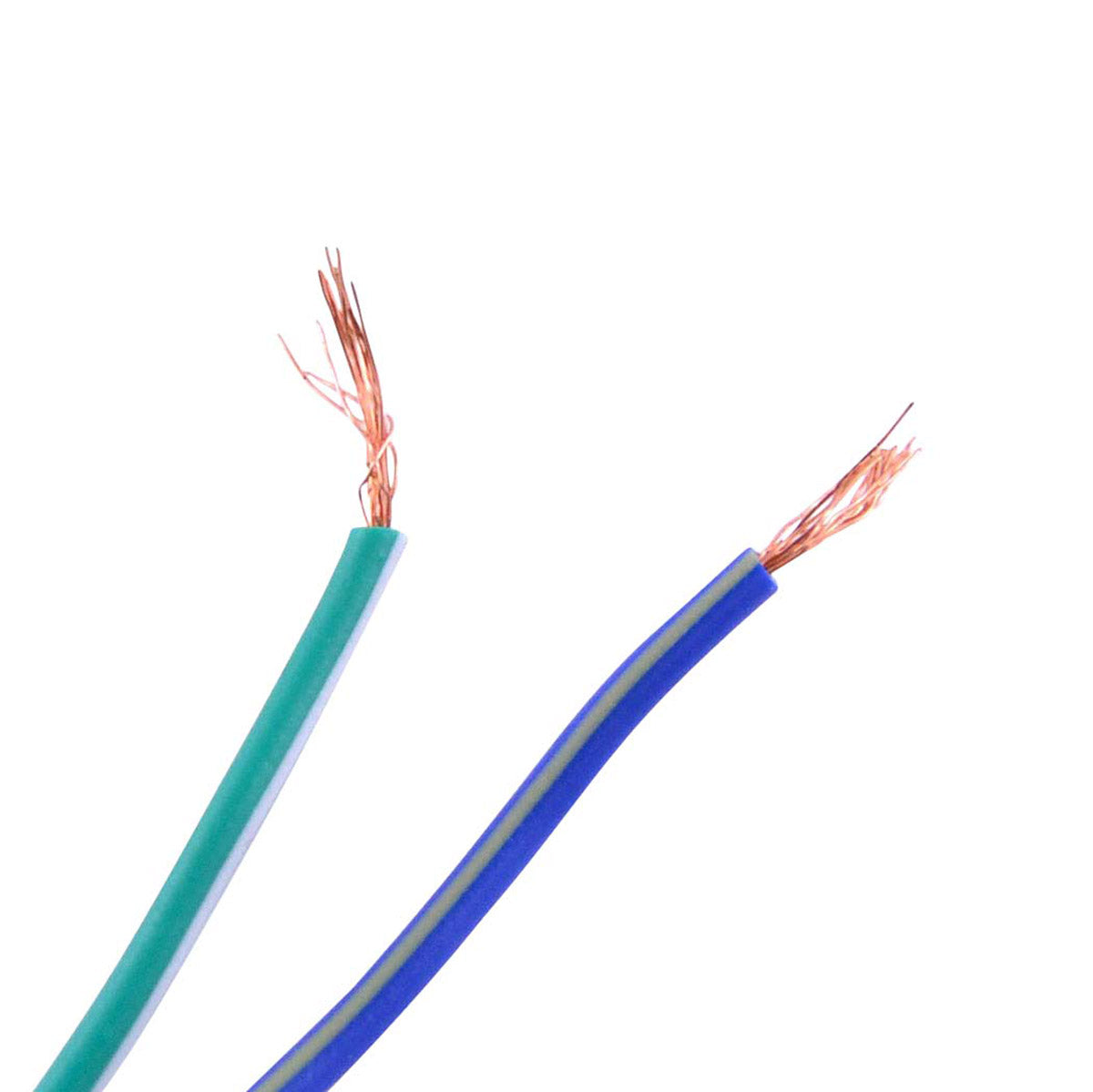

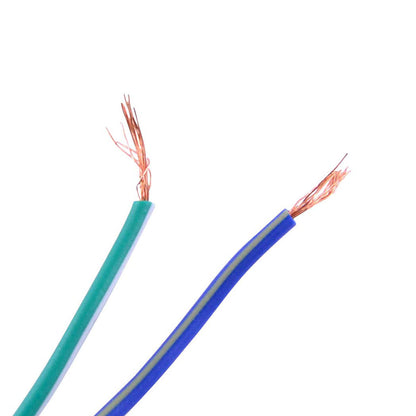

The coil is supplied with a 415 mm wire lead and a bracket with 35 mm centre to centre fixing, matching the original mounting so it fits into the stator housing without modification. Resistance measured blue wire to green wire is 185 ohms plus or minus 20 per cent, which is the figure to test your existing coil against before ordering. Every unit is tested before it is shipped, and the photographs on this listing are accurate representations of the item supplied.
Key Features
- Brand new pickup / pulsar coil for the stator ignition system
- Often no longer available through the original equipment manufacturer
- 185 ohms blue to green, plus or minus 20 per cent
- 415 mm wire length
- Bracket fixing 35 mm centre to centre
- Two wires
- All products tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM00140 |
| Resistance, Blue to Green | 185 ohms +/- 20% |
| Number of Wires | 2 |
| Wire Length | 415 mm |
| Bracket, Centre to Centre | 35 mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat 350, 366, 400, 425, 450 and 500 | 2008-2023 |
| Arctic Cat Alterra 400, 450 and 500 | 2008-2023 |
| Arctic Cat TRV 400, 450 and 500 | 2008-2023 |
| Arctic Cat XC 450 | 2008-2023 |
| Arctic Cat XR 500 | 2008-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3323-200 | Arctic Cat |
| 0802-056 | Arctic Cat |
Frequently Asked Questions
Does it fit without modification?
Yes. The bracket fixing is 35 mm centre to centre, matching the original mounting inside the stator housing, and the 415 mm lead reaches the loom without extending it. No modification is needed.
What is supplied?
The pickup coil on its bracket with the 415 mm two-wire lead. Every unit is tested before it is shipped.
How do I check whether my pickup coil has failed?
Measure the resistance between the blue and green wires with a multimeter. A healthy coil for this application reads 185 ohms, allowing plus or minus 20 per cent. An open circuit, a short, or a reading well outside that band means the coil has failed. A failed pickup coil typically shows up as no spark at all, or as a machine that cuts out when hot and restarts once it has cooled.
Is this the same as a pulsar coil or trigger coil?
Yes. Pickup coil, pulsar coil and trigger coil are all names for the same component - the small sensing coil that reads the flywheel and signals the ignition when to fire.
