Pickup / Pulsar Coil - 100 Ohms
Honda TRX 420 Rancher FA and FPA, 2009-2014 - RMSTATOR RM00147

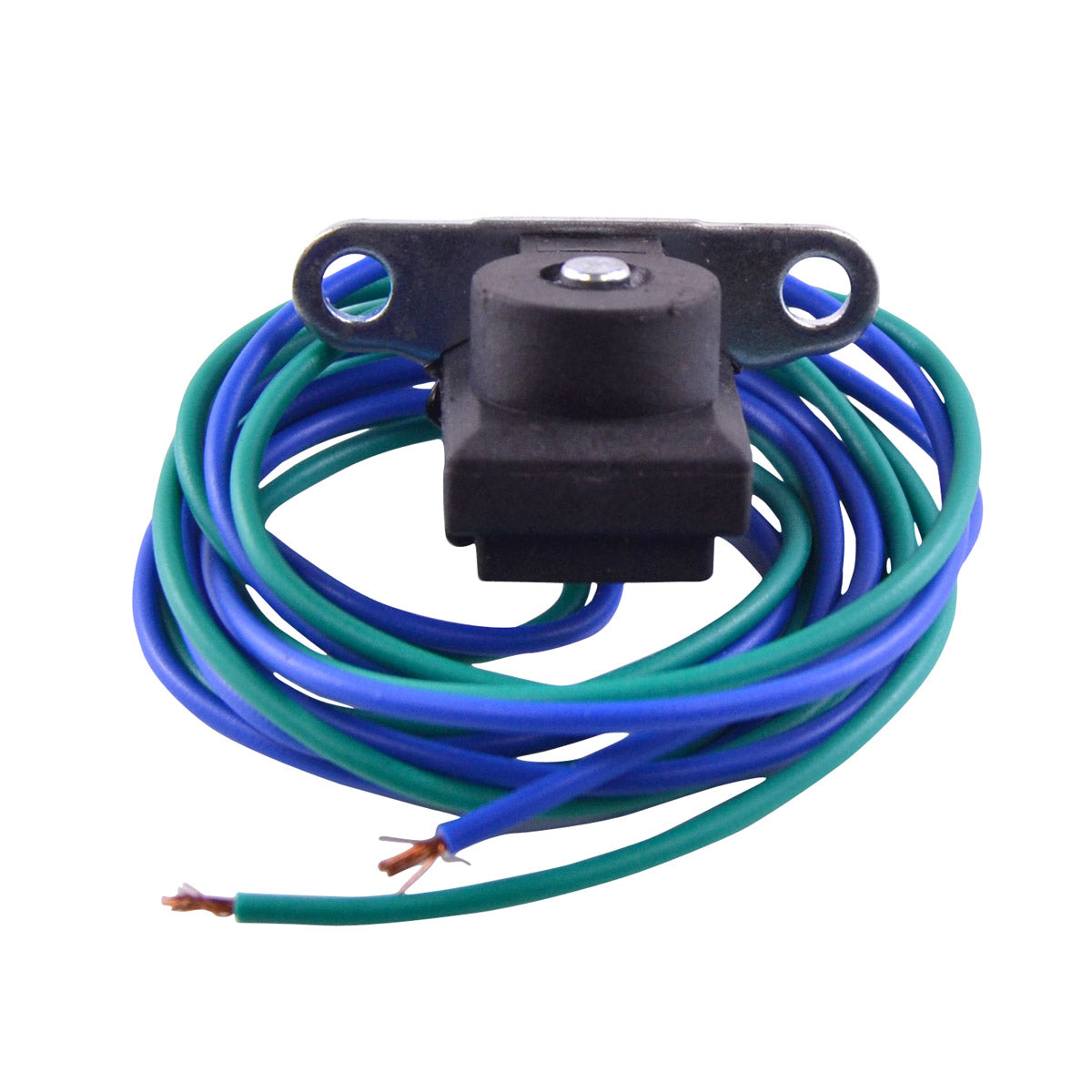

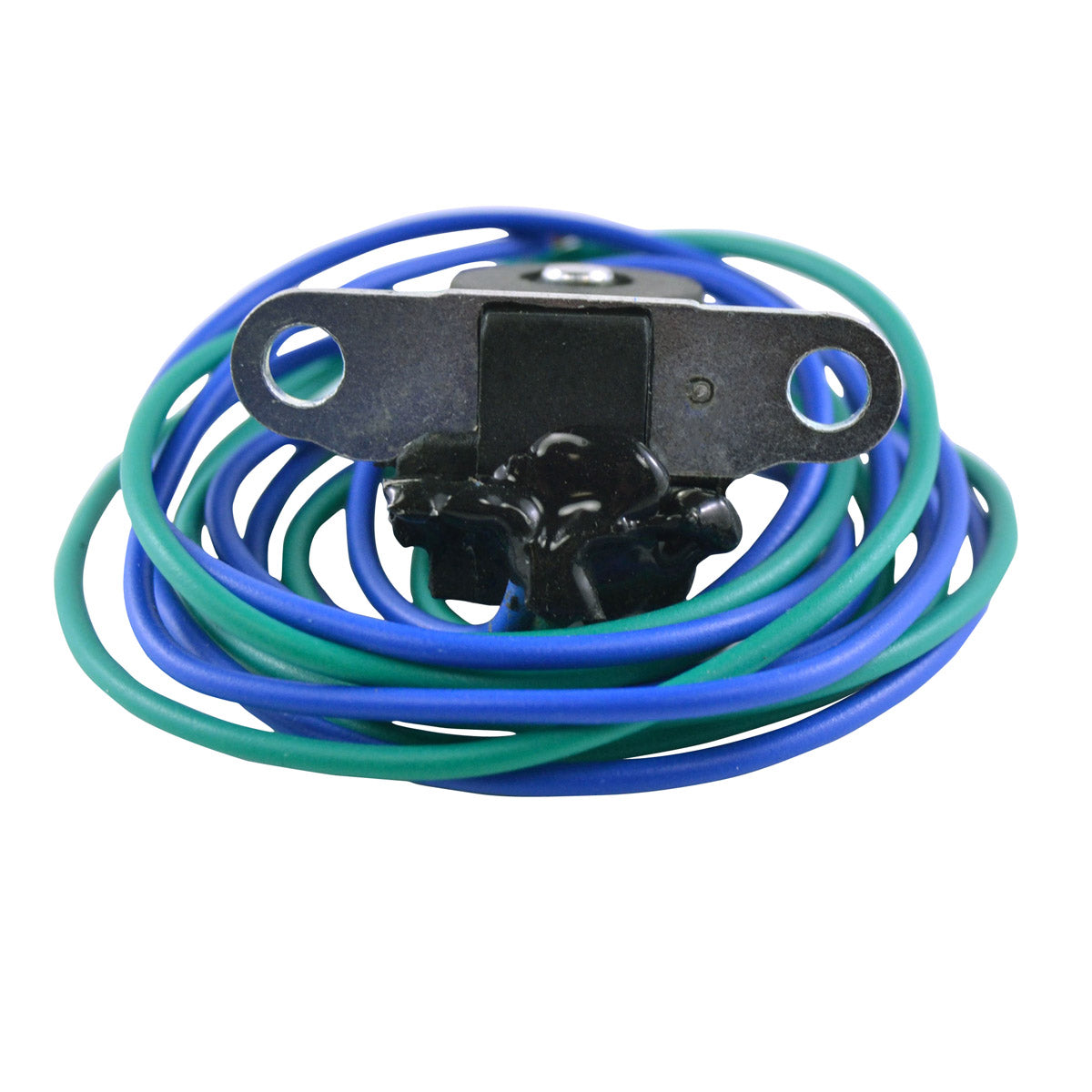

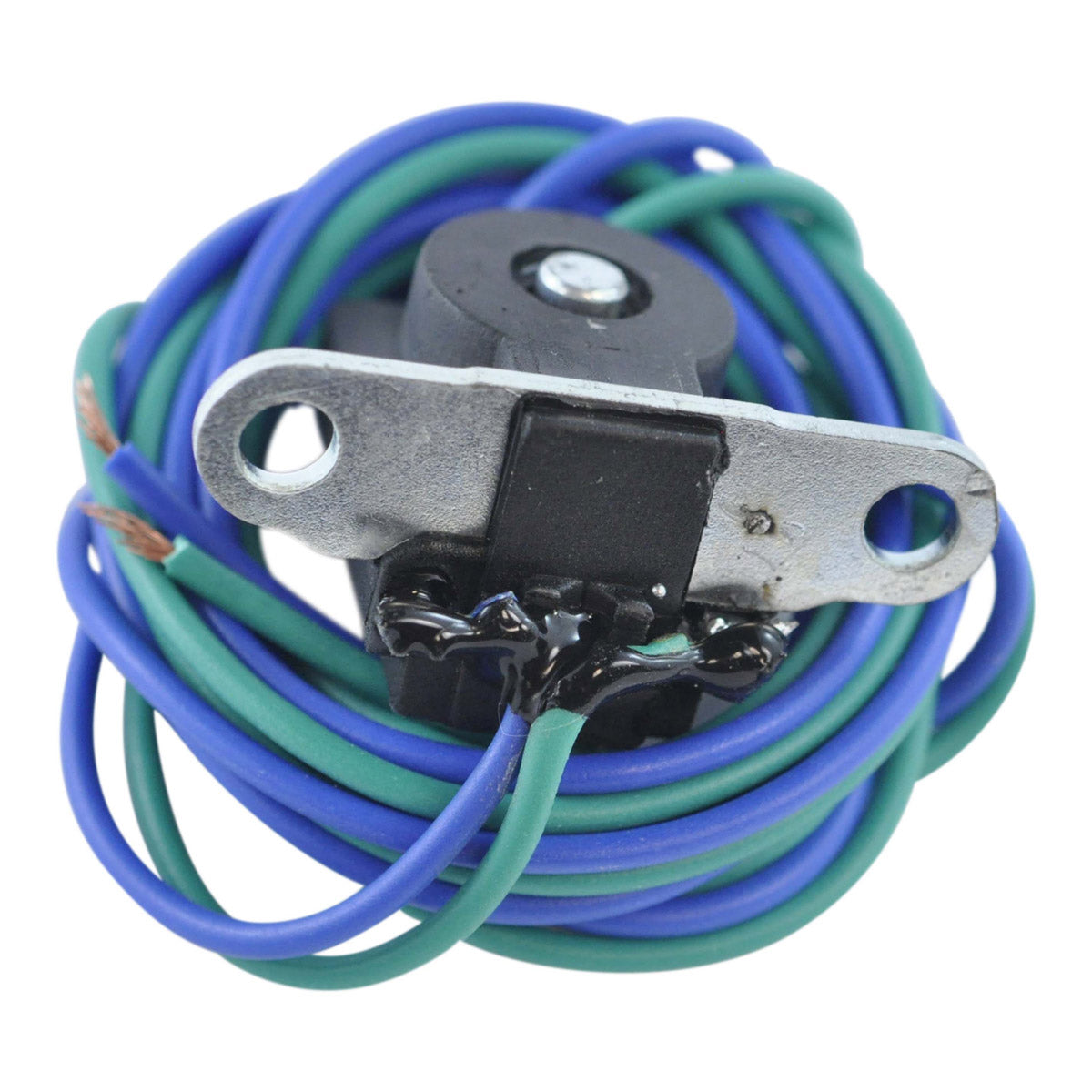

This is a brand new pickup coil, also called a pulsar or pulse generator coil, from RMSTATOR, part number RM00147. It is supplied so that you can repair your existing stator rather than replace the whole assembly, which is often the only route available because this component is frequently unavailable on its own from the original manufacturer. It replaces Honda part numbers 31120-HP7-A00 and 31120-HP7-A01 and is specified for the Honda TRX 420 Rancher FA and FPA from 2009 to 2014.
The pickup coil is the small sensor mounted beside the flywheel that tells the ignition system where the crankshaft is. As the trigger on the flywheel sweeps past it, the coil generates a voltage pulse and the CDI or ECU uses that pulse to decide when to fire the spark. If the winding goes open circuit, drifts badly out of specification, or the leads chafe through, the ignition loses its timing reference completely - so the usual symptoms are no spark and a no start condition, an engine that cuts out and will not restart until it cools, or an intermittent misfire that comes and goes with engine temperature and vibration. This unit carries two wires, blue and green, 330 mm long, and reads 100 ohms plus or minus 20 percent between them. All products shipped are tested. All item pictures are accurate - if in doubt, do not hesitate to compare our item to your original part.
Key Features
- Brand new pickup / pulsar coil for stator repair
- Often unavailable from the OEM manufacturer
- Replaces Honda 31120-HP7-A00 and 31120-HP7-A01

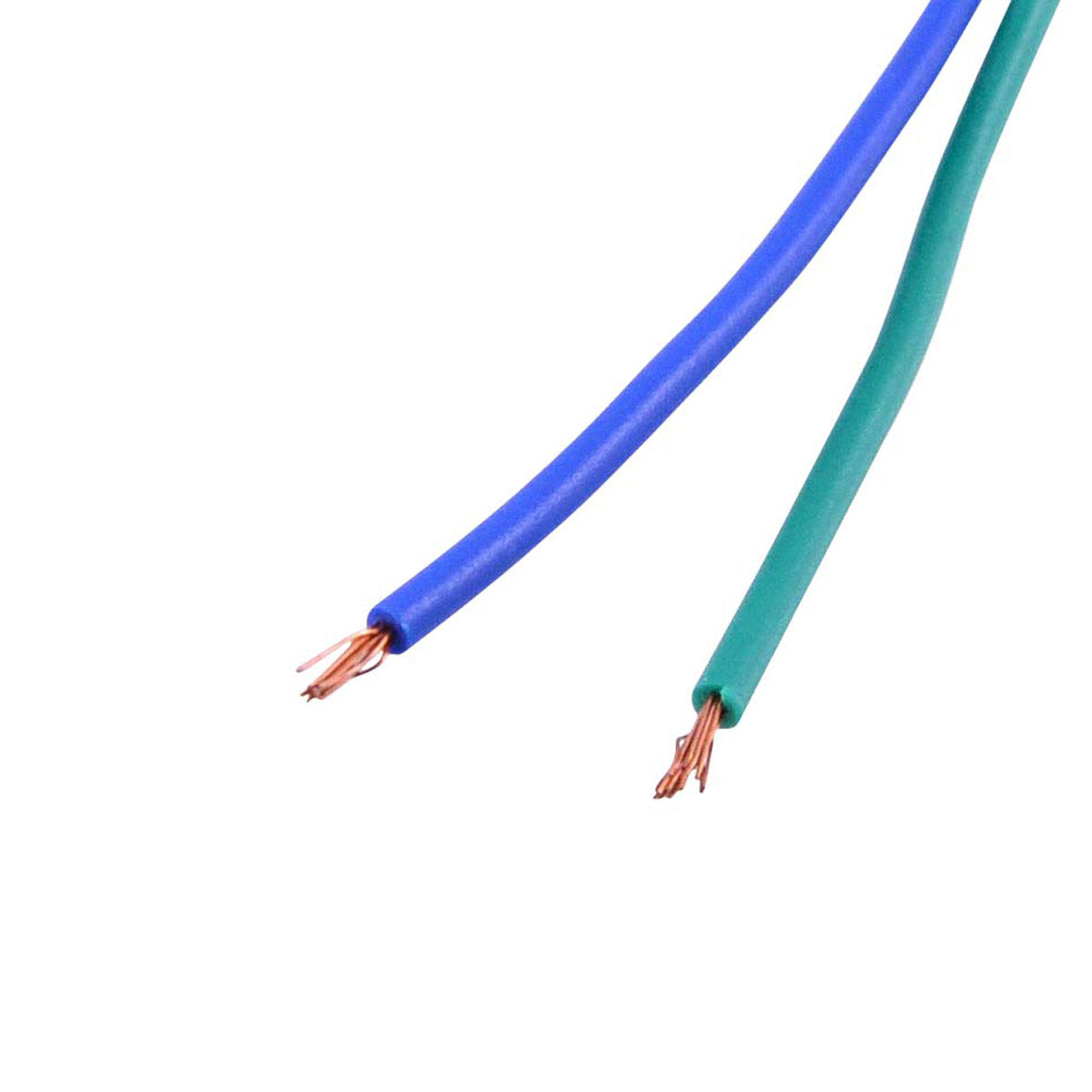

- Two wires, blue and green, 330 mm long
- Wire to wire resistance 100 ohms plus or minus 20 percent
- Bracket centre to centre 35 mm
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM00147 |
| Component | Pickup / pulsar coil |
| Bracket centre to centre | 35 mm |
| Wires length | 330 mm |
| Number of wires | 2 |
| Wire colours | Blue, Green |
| Wire to wire resistance (Blue to Green) | 100 ohms +/- 20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda TRX 420 Rancher FA | 2009-2014 |
| Honda TRX 420 Rancher FPA | 2009-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HP7-A00 | Honda |
| 31120-HP7-A01 | Honda |
Frequently Asked Questions
Will it fit without modification?
Yes, on the listed models. The bracket centres are 35 mm and the leads are 330 mm long, matching the original. Compare the part against your old one and check the OEM number 31120-HP7-A00 or 31120-HP7-A01 before ordering - RMSTATOR specifically invite that comparison.
What is included?
The pickup / pulsar coil on its mounting bracket, with two 330 mm leads in blue and green. No additional hardware is listed for this part.
How do I know the old pickup coil has failed?
The most common sign is no spark and an engine that turns over but will not start. Others are cutting out under load or when hot with no restart until the engine cools, and an intermittent misfire. Measure the resistance between the blue and green wires with the connector unplugged - the specification is 100 ohms plus or minus 20 percent, so anything open circuit, shorted, or well outside that band indicates a failed coil.
Do I have to replace the whole stator?
No. This coil is sold specifically so that the stator can be repaired rather than replaced. If the stator windings themselves test correctly and only the pickup coil is out of specification, fitting this part restores the ignition trigger without the cost of a complete stator assembly.
