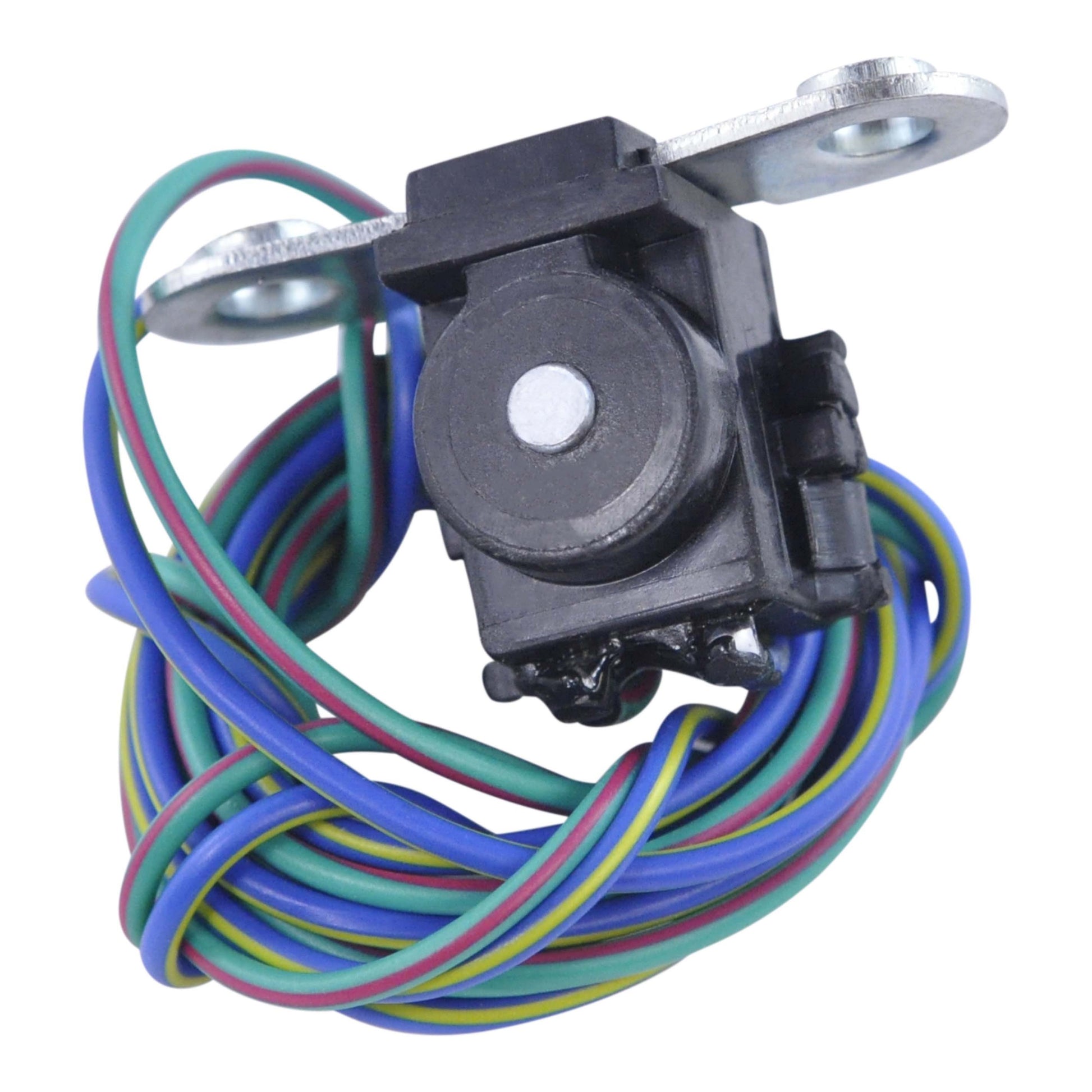

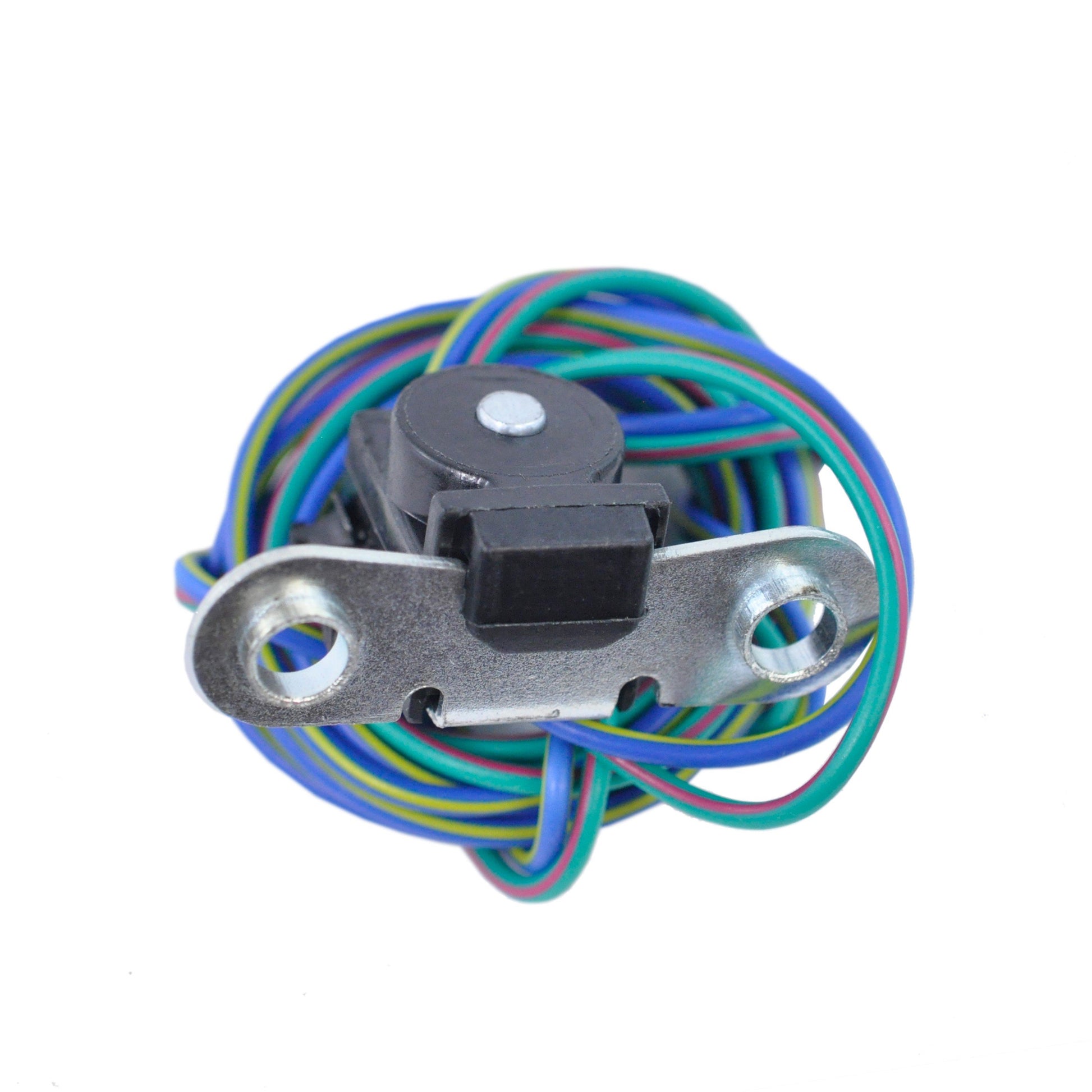

Pick-Up Coil for Honda TRX 400 Sportrax & TRX 400X 1999-2014
Fits Honda TRX 400 Sportrax EX (1999-2008) and TRX 400X (2009-2014)
This is a replacement pick-up coil built to OEM specifications for the Honda TRX 400 Sportrax EX and TRX 400X. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, mounting on the same baseplate as the stock coil.
The coil is a 12-volt pick-up coil with a resistance of 250 ohms +/-20% measured Blue to Green, mounting on a 35mm centre-to-centre bracket with an 800mm wire length, matching the electrical output and mounting of the factory-fitted pick-up coil on this application.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt pick-up coil
- Coil resistance: 250 ohms +/-20% (Blue to Green)
- Bracket centre to centre: 35mm, wire length 800mm
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Pick Up Coil |
| Voltage | 12V |
| Bracket Centre to Centre | 35mm |
| Wire Length | 800mm |
| Resistance | 250 ohms +/-20% (Blue to Green) |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda TRX 400 Sportrax EX | 1999-2008 |
| Honda TRX 400X | 2009-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HN1-000 | Honda |
| 31120-HN1-003 | Honda |
| 31120-HN1-A40 | Honda |
| 31120-HN1-A41 | Honda |
Frequently Asked Questions
Will this pick-up coil fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit on the Honda TRX 400 Sportrax EX and TRX 400X, with wiring connected by soldering to your existing loom.
What is included in the box?
One replacement pick-up coil, ready to mount to your existing baseplate.
How do I know my old pick-up coil has failed?
Common signs include no spark, an erratic spark, or intermittent stalling - test the coil resistance against the value above to confirm.
Does fitting this coil require soldering?
Yes, the new coil's leads are soldered to your OEM wiring harness and insulated with heat shrink, as this coil is supplied without a moulded connector.
