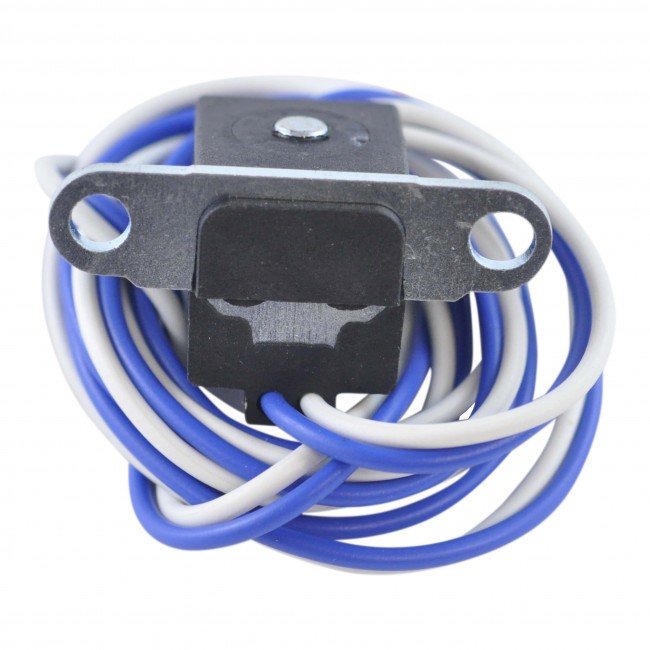

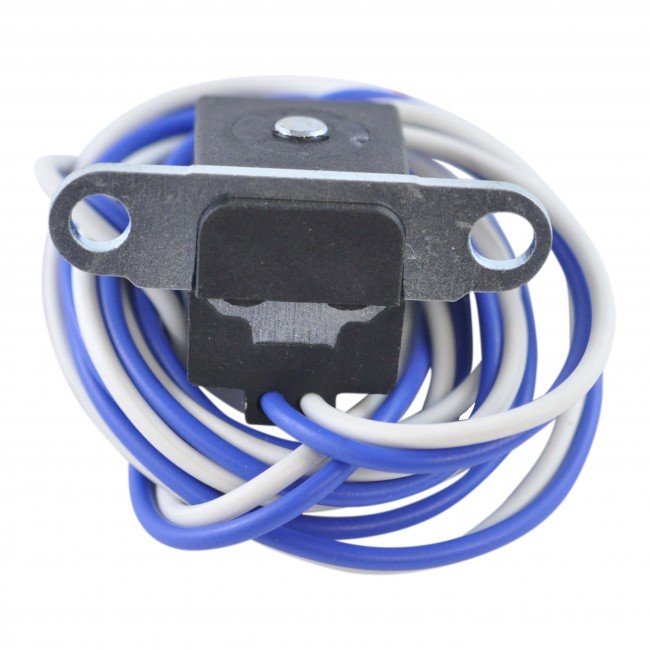

Pick-Up Coil for Suzuki KingQuad, Arctic Cat 700 & Wildcat 1000
Fits Suzuki LTA 450/500/700/750 KingQuad, Arctic Cat 700/TRV 700 and Wildcat 1000 Series
This is a replacement pick-up coil built to OEM specifications, shared across a range of Suzuki KingQuad ATVs and Arctic Cat 700, TRV 700 and Wildcat 1000 series machines. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment.
The coil is a 12-volt, 2-wire pick-up coil with a resistance of 200 ohms +/-20% measured Blue to White, mounting on a 35mm centre-to-centre bracket with a 610mm wire length, matching the electrical output and mounting of the factory-fitted pick-up coil on these applications.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt pick-up coil
- Coil resistance: 200 ohms +/-20% (Blue to White)
- 2-wire coil, bracket centre to centre 35mm, wire length 610mm
- Covers Suzuki KingQuad, Arctic Cat 700/TRV 700 and Wildcat 1000 applications
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Pickup Coil |
| Voltage | 12V |
| Bracket Centre to Centre | 35mm |
| Wire Length | 610mm |
| Number of Wires | 2 |
| Wire Colours | Blue, White |
| Resistance | 200 ohms +/-20% (Blue to White) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki LTA 450X KingQuad | 2007-2010 |
| Suzuki LTA 500X KingQuad | 2009, 2011-2016 |
| Suzuki LTA 700X KingQuad | 2005-2007 |
| Suzuki LTA 750X / LTA 750Z KingQuad AXi | 2008-2016 |
| Arctic Cat 700 / TRV 700 | 2006-2008 |
| Arctic Cat Wildcat 1000 Series | 2012-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-11H00 | Suzuki |
| 32101-31G00 | Suzuki |
| 32101-31G01 | Suzuki |
| 3430-067 | Arctic Cat |
| 0802-072 | Arctic Cat |
| 0802-064 | Arctic Cat |
Frequently Asked Questions
Will this pick-up coil fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit across the listed Suzuki KingQuad and Arctic Cat applications - please confirm your OEM part number against the cross-reference table above before ordering.
What is included in the box?
One replacement pick-up coil, ready to mount to your existing baseplate.
How do I know my old pick-up coil has failed?
Common signs include no spark, an erratic spark, or intermittent stalling - test the coil resistance against the value above to confirm.
Does fitting this coil require soldering?
Yes, the new coil's leads are soldered to your OEM wiring harness and insulated with heat shrink, as this coil is supplied without a moulded connector.
