Pickup Coil 177 Ohms for Suzuki LTF 250 Ozark & LTZ 250 Quadsport Z250 2002-2014
Pickup Coil 177 Ohms for Suzuki LTF 250 Ozark & LTZ 250 Quadsport Z250 2002-2014
SKU:RM00142
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator Pickup Coil 177 Ohms for Suzuki Ozark and Quadsport
Suzuki LTF 250 Ozark Manual, LTZ 250 and Quadsport Z250 - 2002-2014
A brand new pickup coil, also known as a pulsar coil or trigger coil, rated at 177 ohms and supplied so that you can repair your existing stator rather than replace the whole assembly. It is made for the Suzuki LTF 250 Ozark Manual, the LTZ 250 and the Quadsport Z250, covering model years 2002 to 2014. Coils of this type are often no longer available separately from the original manufacturer, which is why we stock them as a standalone service item. Our part number for this coil is RM00142.

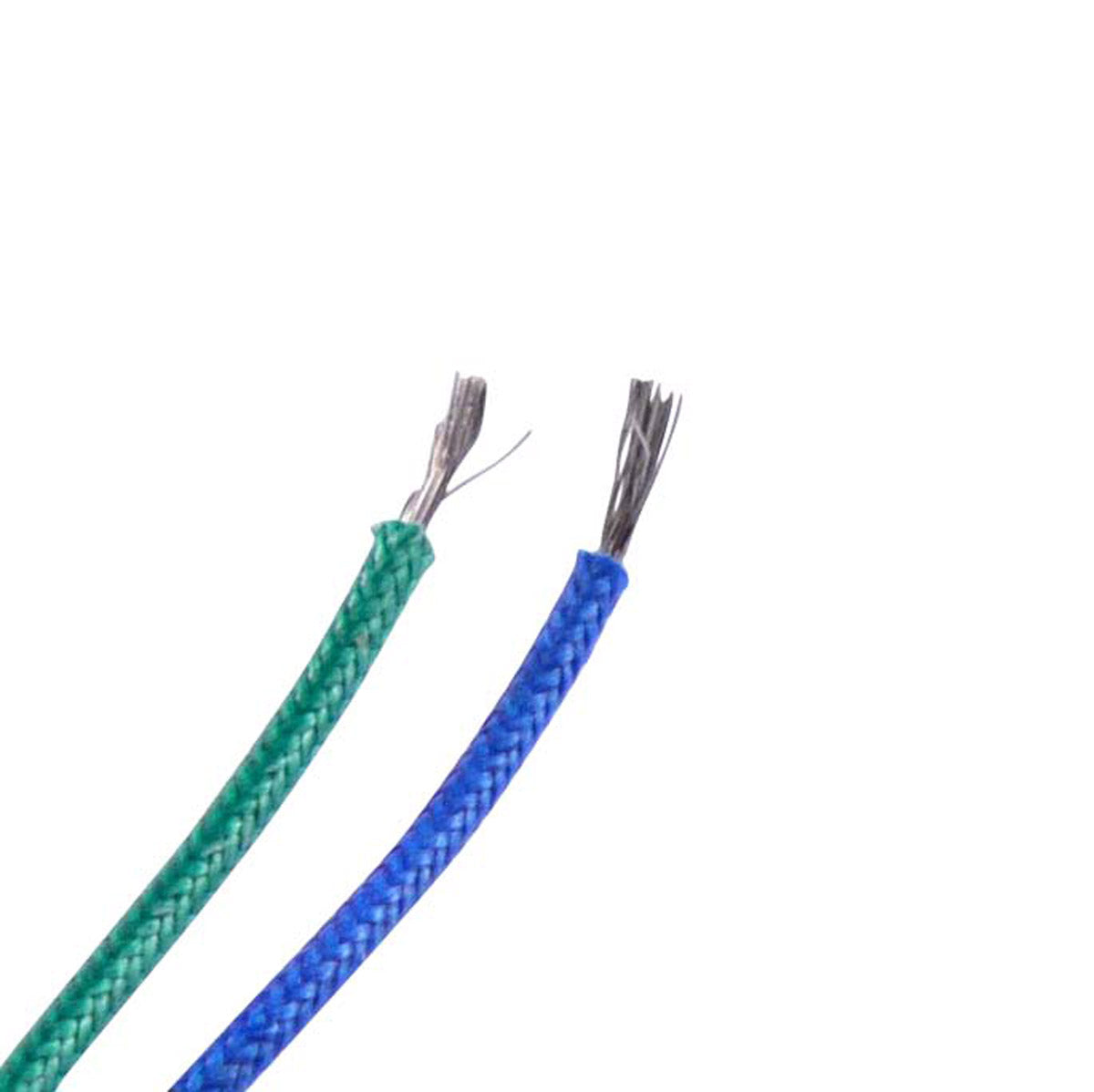

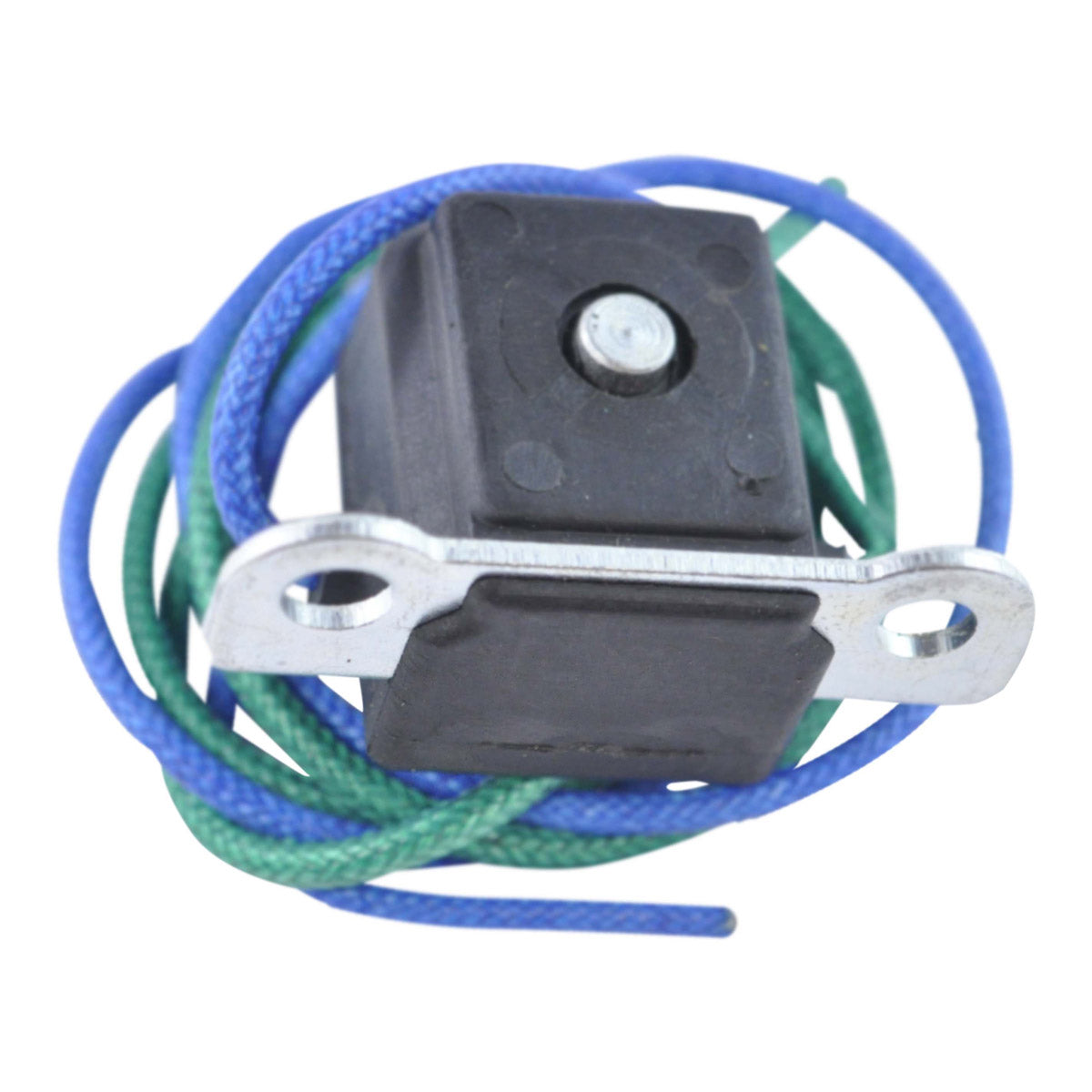

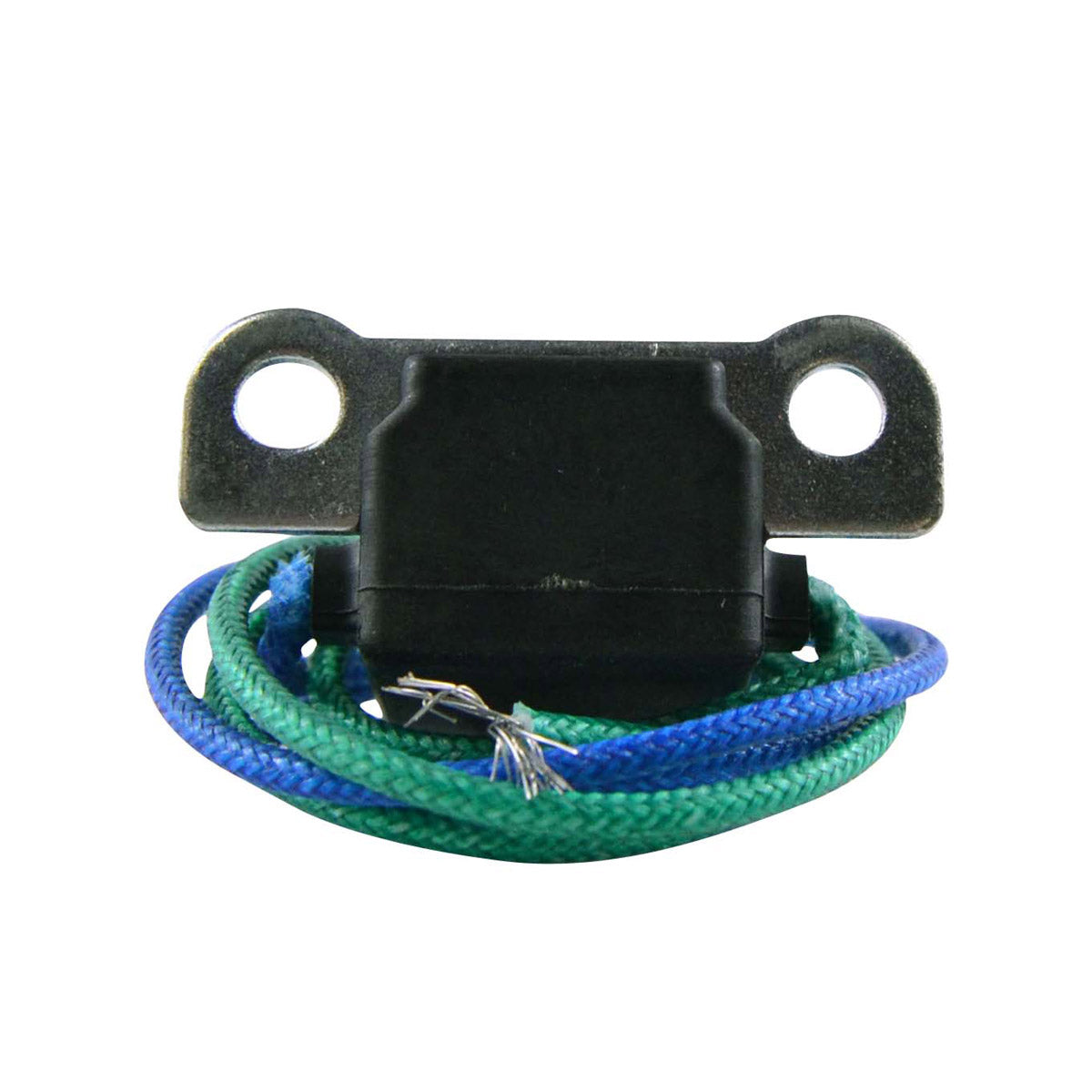

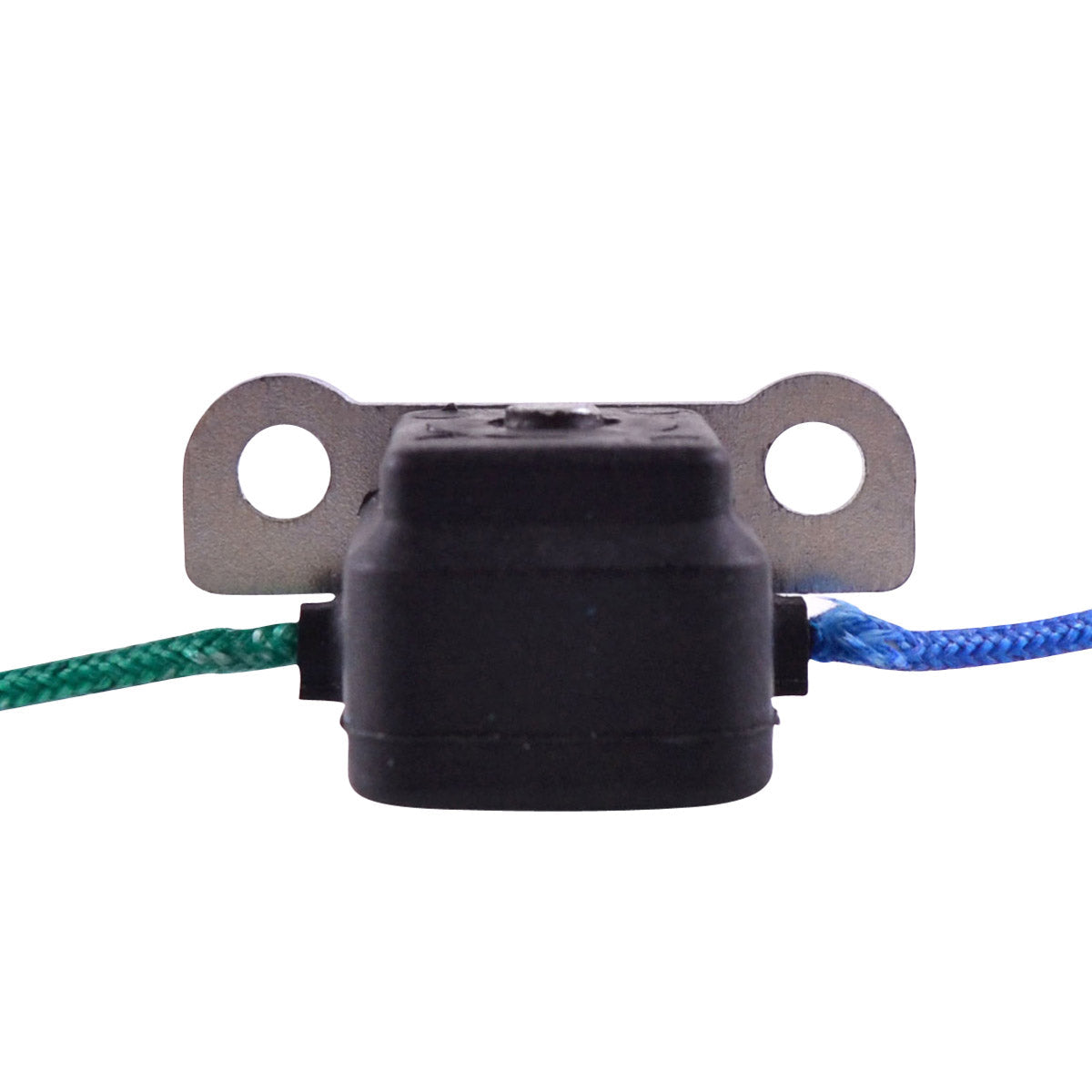

The coil carries two wires, coloured blue and green, with a wire length of 280 mm and a bracket spacing of 30 mm centre to centre. Measured wire to wire, blue to green reads 177.2 ohms with a tolerance of plus or minus 20 per cent, which is the figure to compare against when testing your original coil with a multimeter. Every unit is tested before it is shipped. All of our item photographs show the actual part - if you are in any doubt, compare them against your original coil before ordering.
Key Features
- Brand new pickup / pulsar coil for stator repair
- Rated at 177 ohms
- Two wires: blue and green
- 280 mm wire length
- 30 mm bracket centre to centre
- Supplied as a service part where the OEM item is often unavailable
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM00142 |
| Rating | 177 ohms |
| Bracket Centre to Centre | 30 mm |
| Wire Length | 280 mm |
| Number of Wires | 2 |
| Wire Colours | Blue, Green |
| Number of Pins | N/A |
| Wire to Wire Resistance | Blue to Green = 177.2 ohms +/- 20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki LTF 250 Ozark Manual | 2002-2014 |
| Suzuki LTZ 250 | 2002-2014 |
| Suzuki Quadsport Z250 | 2002-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-05G00 | Suzuki |
Frequently Asked Questions
Does this coil need any modification to fit?
No. It matches the original in bracket spacing at 30 mm centre to centre and in wire count and colour, so it mounts in the standard position and wires back the same way. No drilling or rewiring is required on the models listed above.
What is supplied?
The pickup coil itself, with its two wires already fitted at 280 mm length. It is a service part for repairing an existing stator, so no stator plate or mounting hardware is included.
How do I tell whether my old pickup coil has failed?
The usual signs are no spark at all, an engine that cranks but will not fire, or a misfire that worsens as the engine warms up. Measure the resistance between the blue and green wires with a multimeter: a healthy unit reads about 177.2 ohms with a tolerance of plus or minus 20 per cent. An open circuit, a short to earth, or a reading well outside that band means the coil has failed.
Which OEM part number does this replace?
Suzuki 32101-05G00. Compare that number against the one on your original unit, and check the resistance reading, before ordering.
