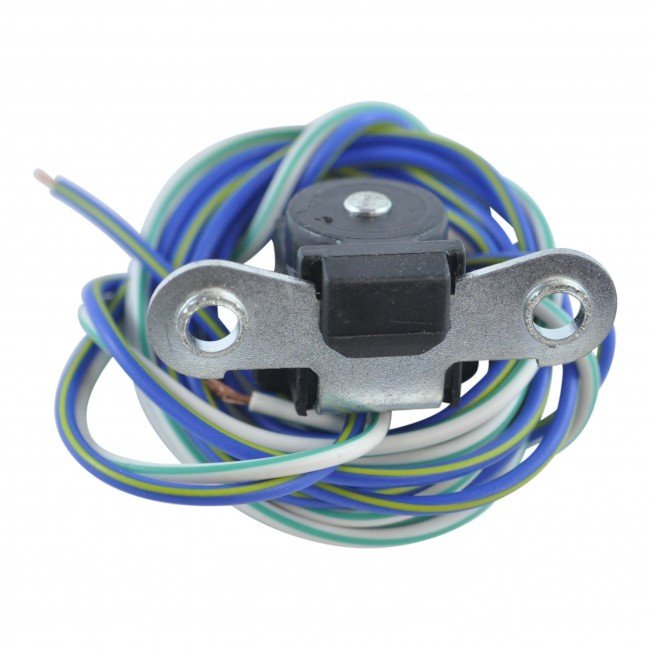

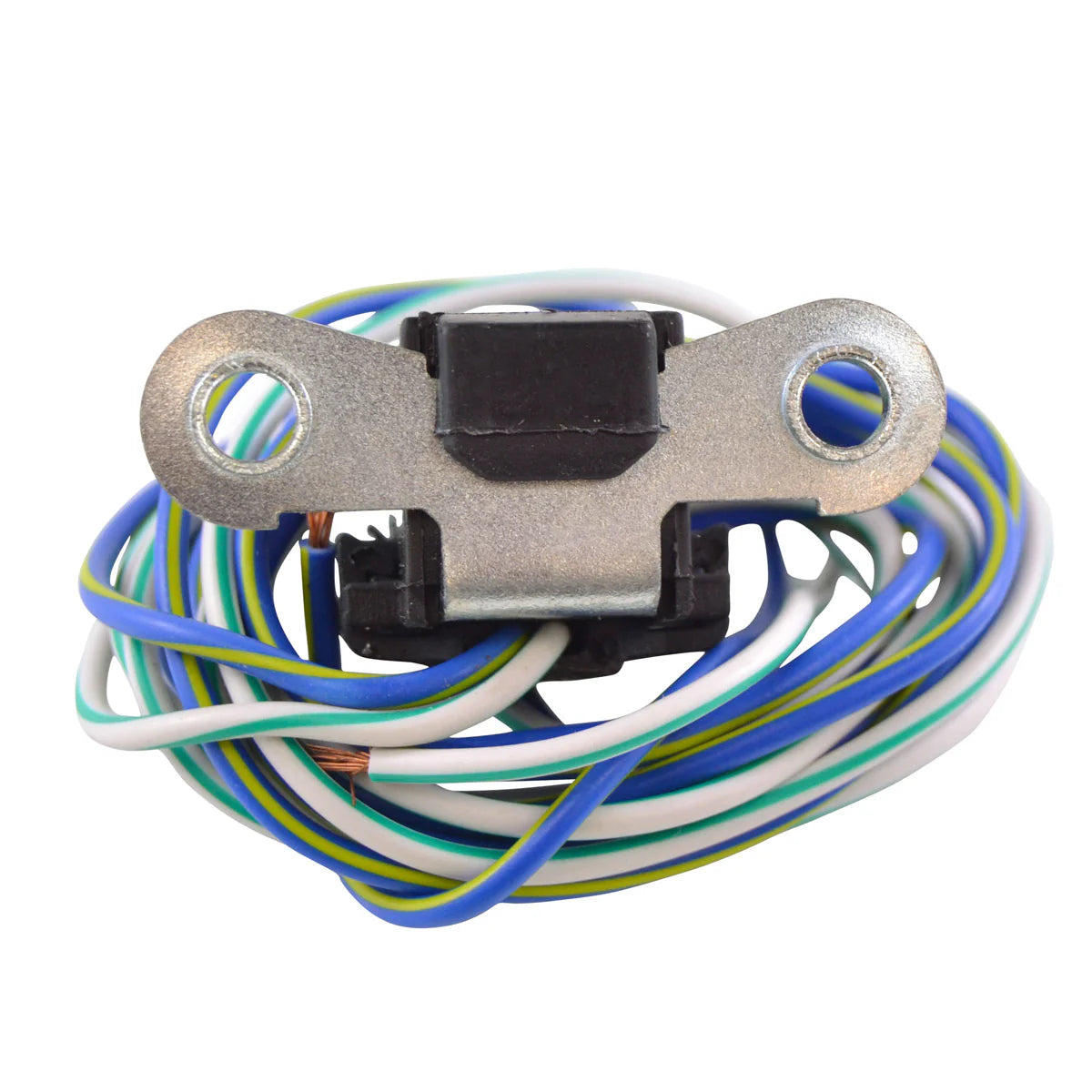

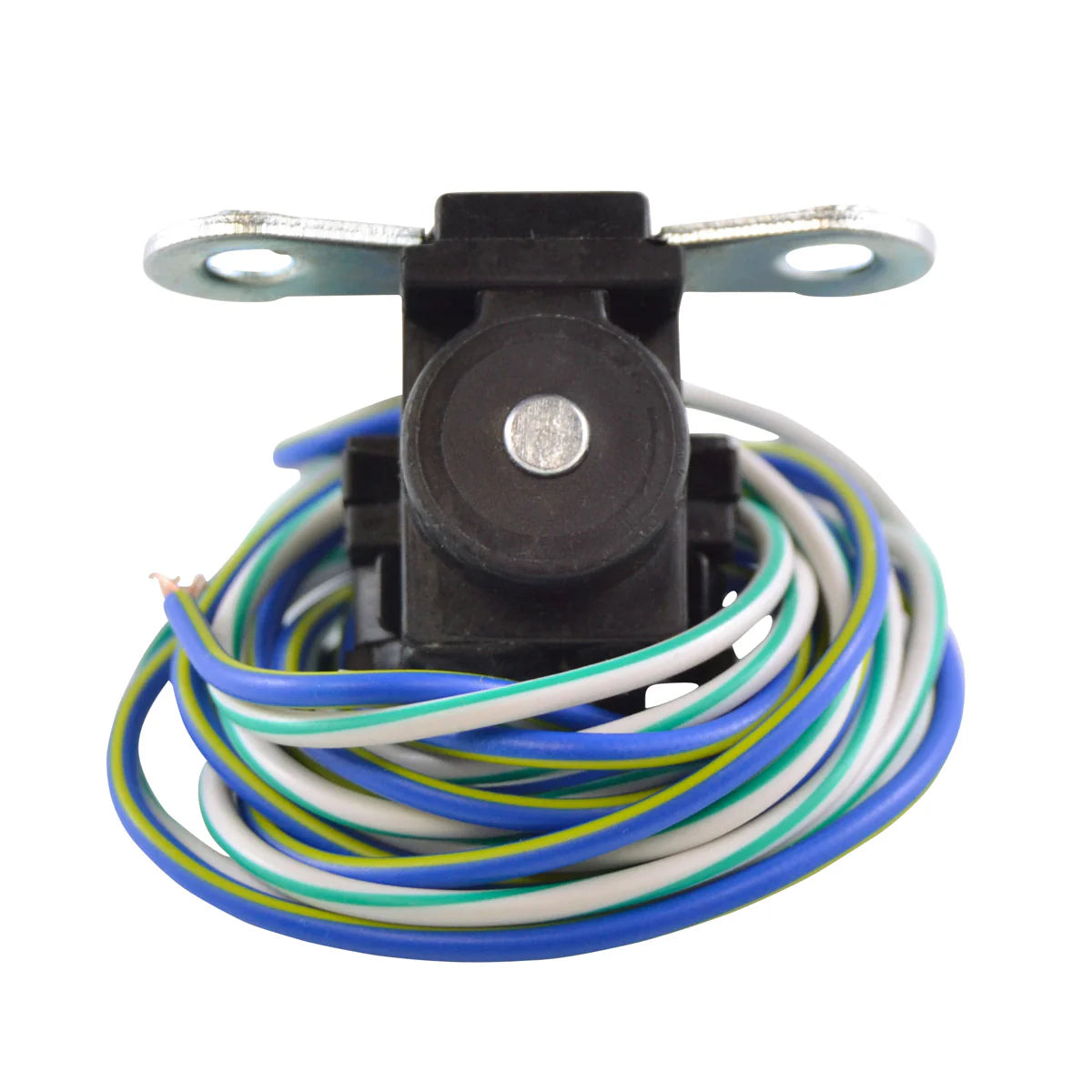

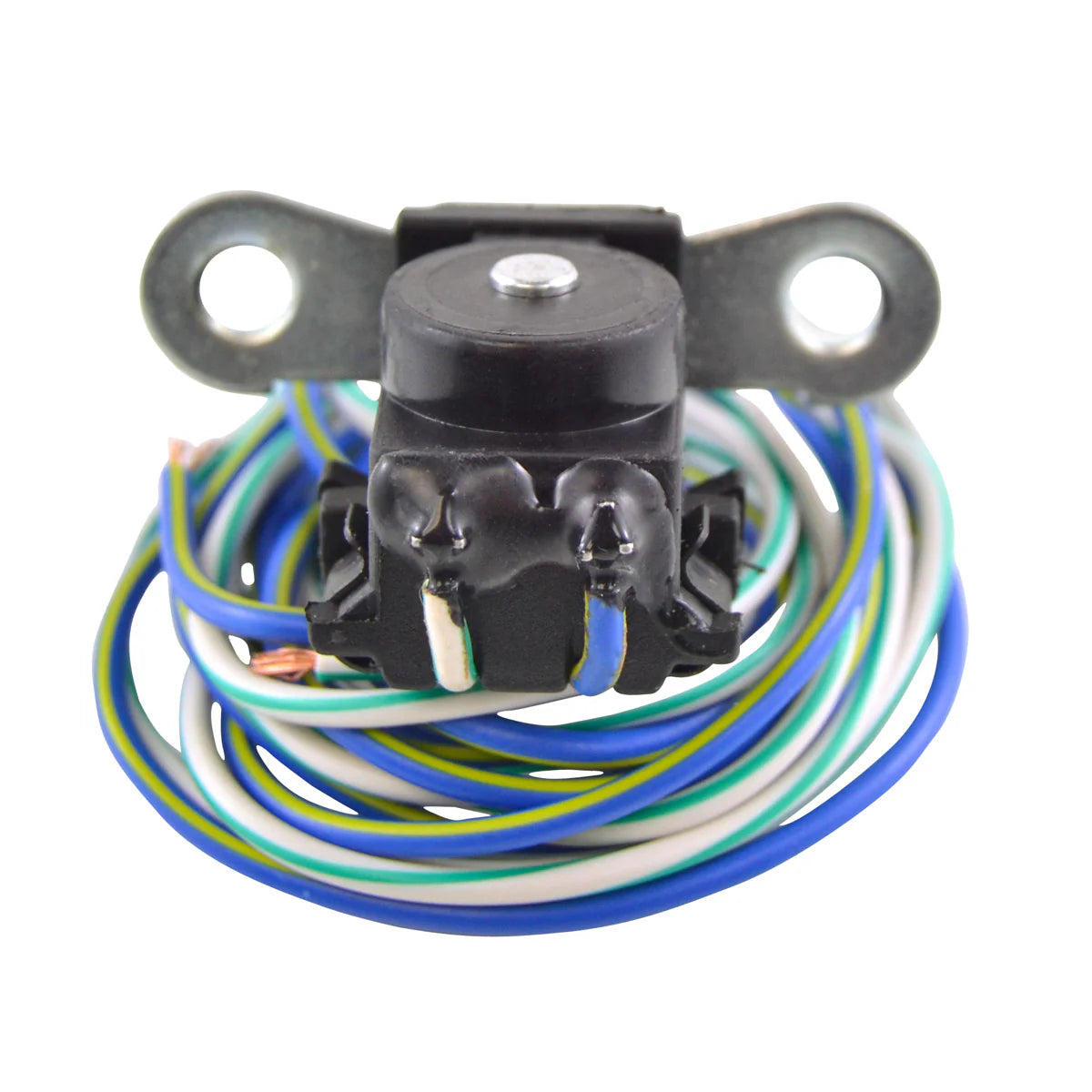

Pick-up Coil (300 Ohms) for Yamaha Raptor 700
Premium Quality Replacement Stator Pulsar Coil
Is your Yamaha Raptor 700 experiencing hard starts, misfires, or a complete loss of spark? The pick-up coil (pulsar coil) is a critical component of the ignition system that signals the CDI unit to fire the spark plug. This 4Drive / Aftermarket pick-up coil is specifically wound to 300 Ohms to provide a strong, consistent signal, effectively revitalizing your stator assembly without the need for a full, costly stator replacement.
Key Features
- ✔ Direct Stator Repair: Save on costs by replacing only the failed coil.
- ✔ High-Grade Winding: Rated at 300 Ohms for reliable signal output.
- ✔ Plug & Solder Ready: Includes lead wires for direct integration.
- ✔ Tested Performance: Every unit is resistance-tested before shipping.
Technical Specs
| Resistance: | 300.6 Ohms (+/- 20%) |
| Wire Count: | 2 Wires |

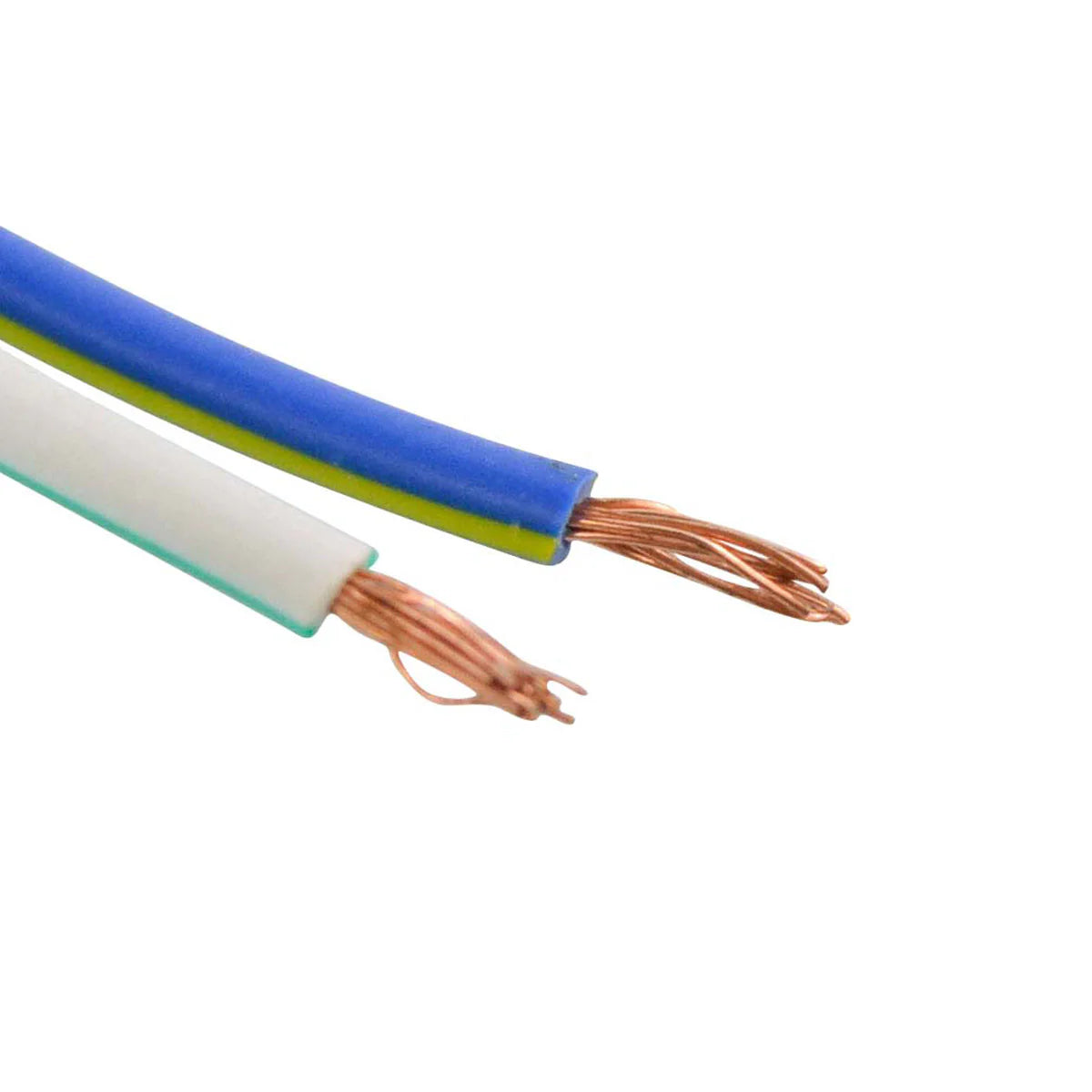

| Wire Colors: | Blue & White/Green |
| Bracket (C-to-C): | 35mm |
| Wire Length: | 285mm |
| Dimensions: | 25mm x 20mm x 16mm |
Compatibility / Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Yamaha | YFM 700 R Raptor | 2006 - 2015 |
| Yamaha | YFM 700 Raptor Special Edition (SE) | 2006 - 2015 |
| Yamaha | YFM 700 Raptor GYTR Edition | 2007 |
OEM Cross Reference
| Yamaha OEM Number: | 1S3-81410-00-00 (Stator Assembly Reference) |
| Aftermarket Part Number: | RM00163--A--Y / PC10-300 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original stator part number is 1S3-81410-00-00, this pick-up coil is the correct replacement.
What is the recommended air gap for installation?
For proper ignition timing, rotate the flywheel so the raised node aligns with the pick-up coil. Adjust the gap as close as possible, but ensure it is no less than 0.010 inches.
Note: Please verify your original part number and wire colors against the references above before purchasing. Domain: 4drive.co.uk
