Pick-Up Pulsar Coil for Honda ATC, FL400R & TRX Models 1985-2014
Fits Honda ATC, FL400R Pilot and TRX 125-650 models across 1985-2014

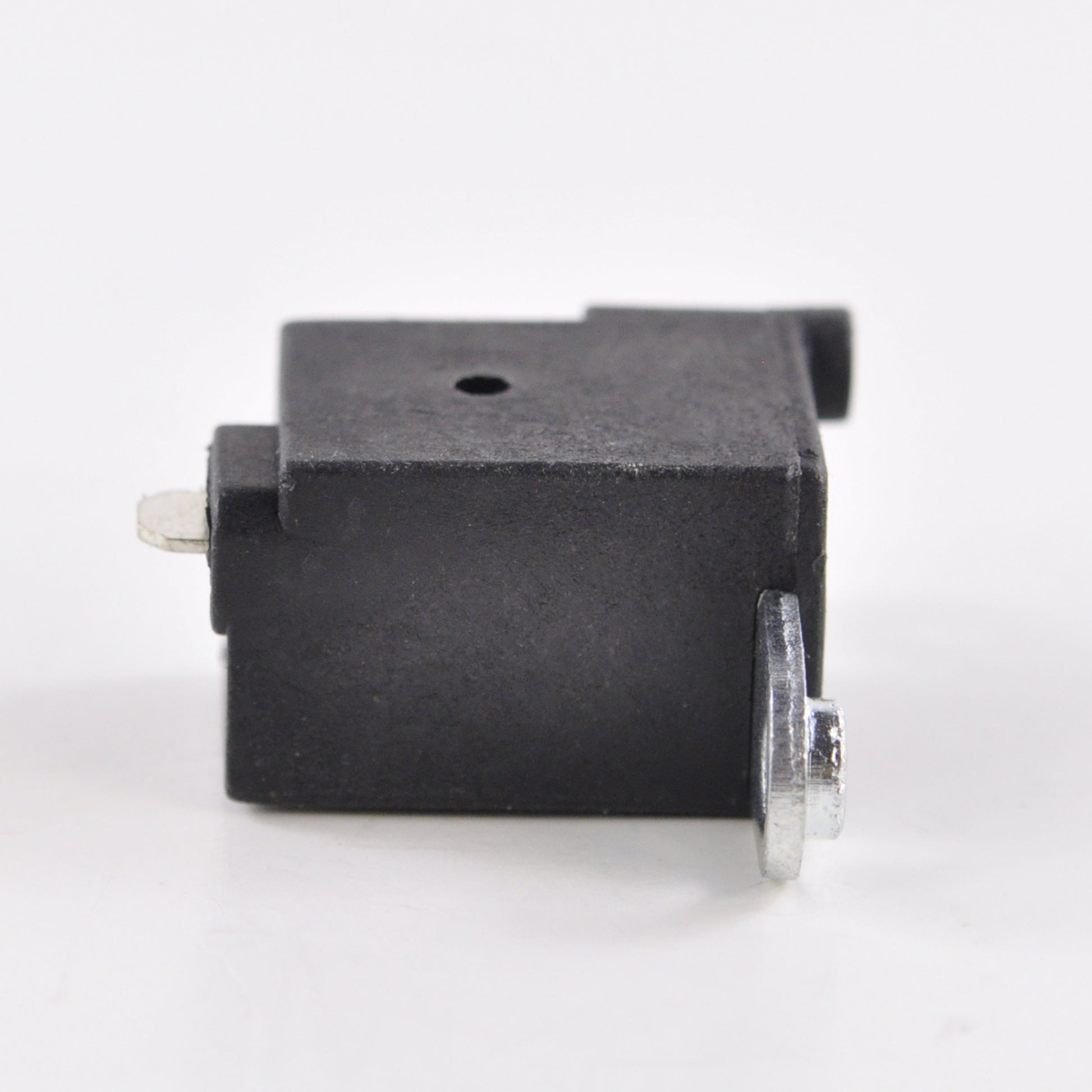

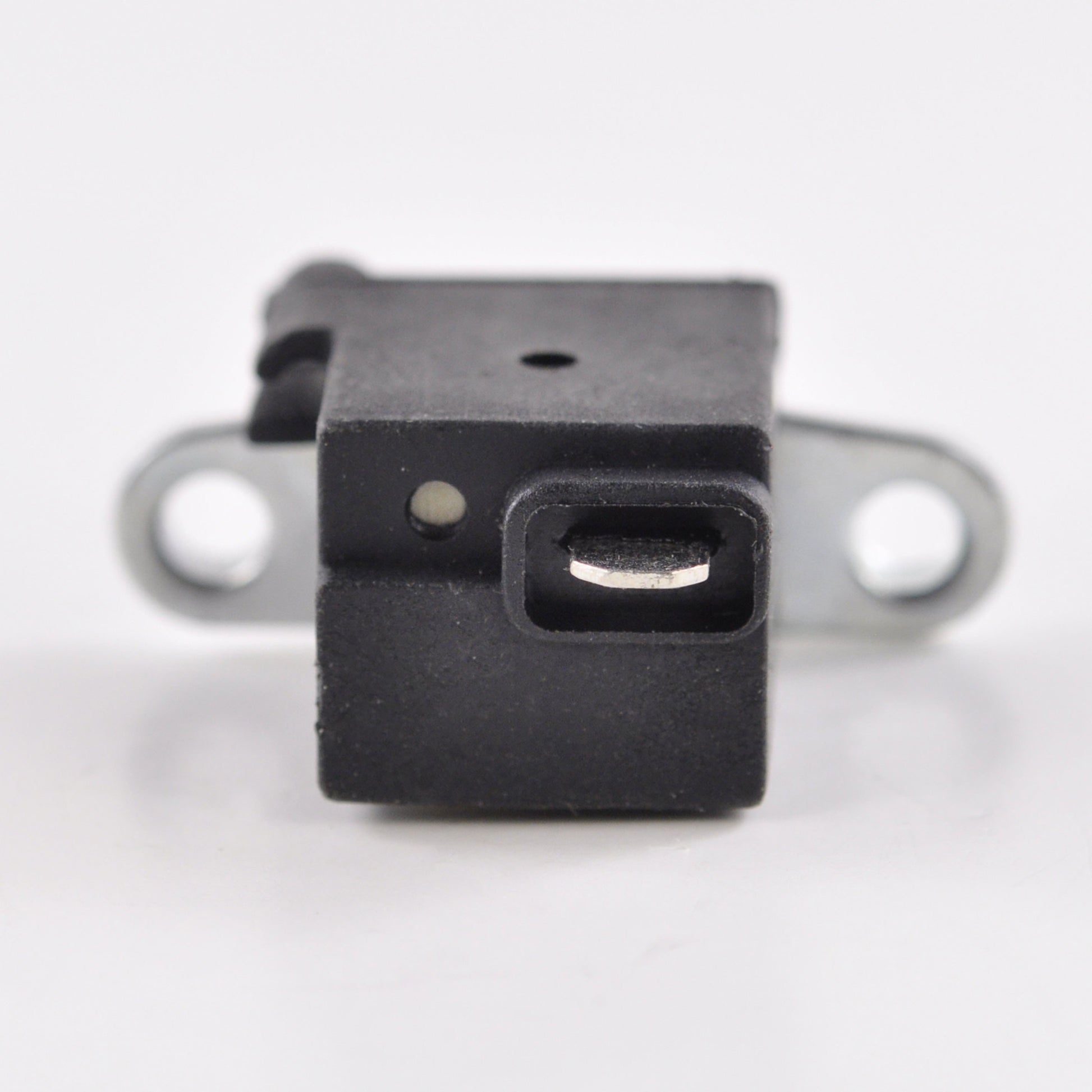

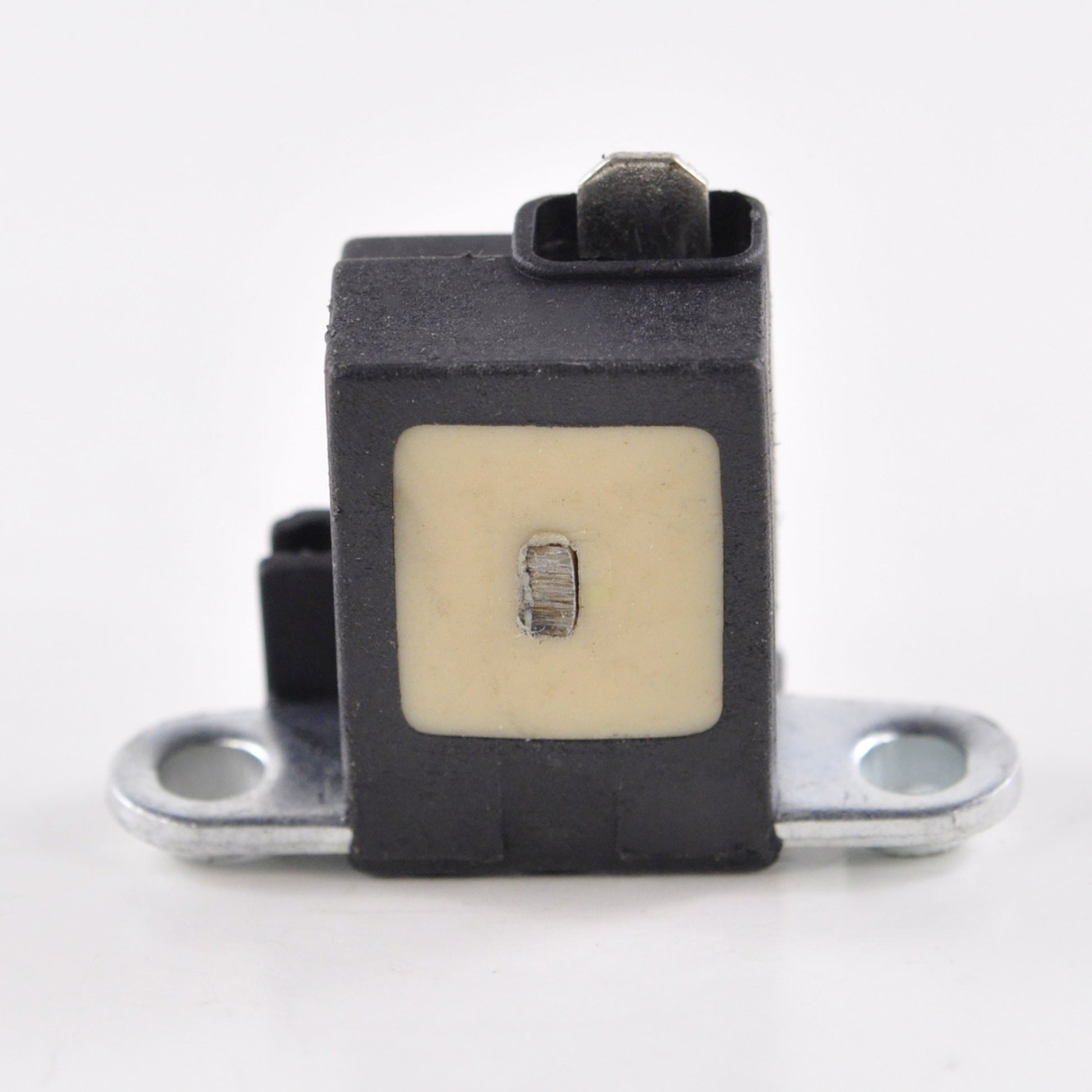

This is a replacement pick-up (pulsar) coil built to OEM specifications, shared across a wide range of Honda ATC, FL400R Pilot and TRX ATV models. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment.
The coil is a single-pin pulsar with a resistance of 350 ohms +/-20% measured Pin to ground (metal bracket), and a 36mm bracket centre-to-centre spacing, matching the electrical output and mounting of the factory-fitted pick-up coil on these applications.
Key Features
- Direct OEM fit and function - no modification required
- Coil resistance: 350 ohms +/-20% (Pin to ground)
- Single-pin pick-up coil
- Bracket centre to centre: 36mm
- Covers Honda ATC, FL400R Pilot and TRX 125-650 applications
Technical Specs
| Specification | Detail |
|---|---|
| Number of Pins | 1 |
| Resistance | 350 ohms +/-20% (Pin to ground) |
| Bracket Centre to Centre | 36mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda ATC 125M / ATC 200X | 1986-1987 |
| Honda ATC 250SX | 1985-1987 |
| Honda FL 400R Pilot | 1989-1990 |
| Honda TRX 125/200 Fourtrax | 1986-1996 |
| Honda TRX 250 Series | 1985-2014 |
| Honda TRX 300/350 Series | 1986-2008 |
| Honda TRX 400/450/500 Series | 1995-2014 |
| Honda TRX 650 Rincon | 2003-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 30300-HA0-003 | Honda |
| 30300-HA0-010 | Honda |
| 30300-HA0-013 | Honda |
| 30300-HA0-023 | Honda |
| 30300-HA0-033 | Honda |
| 30300-HA7-671 | Honda |
Frequently Asked Questions
Will this pick-up coil fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit across the listed Honda ATC, FL400R and TRX applications - please confirm your OEM part number against the cross-reference table above before ordering.
What is included in the box?
One replacement pick-up (pulsar) coil, ready to mount to your existing baseplate.
How do I know my old pick-up coil has failed?
Common signs include no spark, an erratic spark, or intermittent stalling - test the coil resistance against the value above to confirm.
Does the air gap need adjusting after fitting?
Yes, on certain models the air gap between the flywheel raised node and the pick-up coil should be checked and set to no less than 0.010 inches before starting.
