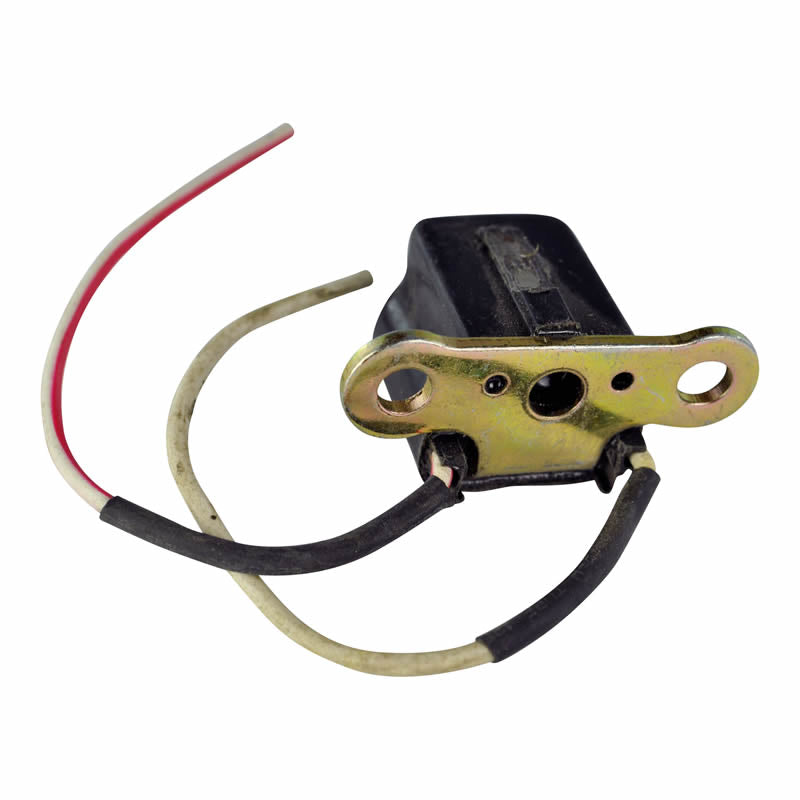

Pick-Up Pulsar Coil for Polaris Big Boss 400, Sportsman 400 & Xplorer 400
Fits Polaris 400 Big Boss, Sportsman 400, Xplorer 400, Xpress 400 and 600cc L/C models 1993-2002
This is a replacement pick-up (pulsar) coil built to OEM specifications for a range of Polaris 400 and 600cc liquid-cooled ATV models. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment.
The coil is a 2-wire pulsar with a resistance of 130 ohms +/-20% measured Red/White to White, mounting on a 30mm centre-to-centre bracket with a 400mm wire length, matching the electrical output and mounting of the factory-fitted pick-up coil on these applications.
Key Features
- Direct OEM fit and function - no modification required
- Coil resistance: 130 ohms +/-20% (Red/White to White)
- 2-wire, 2-terminal pick-up coil
- Bracket centre to centre: 30mm, wire length 400mm
- Covers Polaris Big Boss 400, Sportsman 400, Xplorer 400 and Xpress 400 applications
Technical Specs
| Specification | Detail |
|---|---|
| Dimensions | 22mm (H) x 22mm (L) x 18mm (W) |
| Bracket Centre to Centre | 30mm |
| Wire Length | 400mm |
| Number of Wires | 2 |
| Number of Terminals | 2 |
| Resistance | 130 ohms +/-20% (Red/White to White) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris 400L / Big Boss 400L | 1994-1997 |
| Polaris Sport 400L | 1995 |
| Polaris Sportsman 400 | 1994-1996 |
| Polaris Xplorer 400 Series | 1995-2002 |
| Polaris Xpress 400L | 1996-1997 |
| Polaris 600 XCR / XC 600 / XLT 580/600 Series (Carb L/C) | 1993-1997 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3084763 | Polaris |
| 3084511 | Polaris |
Frequently Asked Questions
Will this pick-up coil fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit across the listed Polaris applications, with wiring connected by soldering to your existing loom.
What is included in the box?
One replacement pick-up (pulsar) coil, ready to mount to your existing baseplate.
How do I know my old pick-up coil has failed?
Common signs include no spark, an erratic spark, or intermittent stalling - test the coil resistance against the value above to confirm.
Does the air gap need adjusting after fitting?
Yes, on certain models the air gap between the flywheel raised node and the pick-up coil should be checked and set to no less than 0.010 inches before starting.
