Pick-Up Pulsar Coil for Yamaha Apex 1000, XVS Stryker & V Star 1300
Apex 1000 and X-TX 2011-2017 - XVS Stryker, V Star and Tourer 1300 2007-2017 - Part RM00134

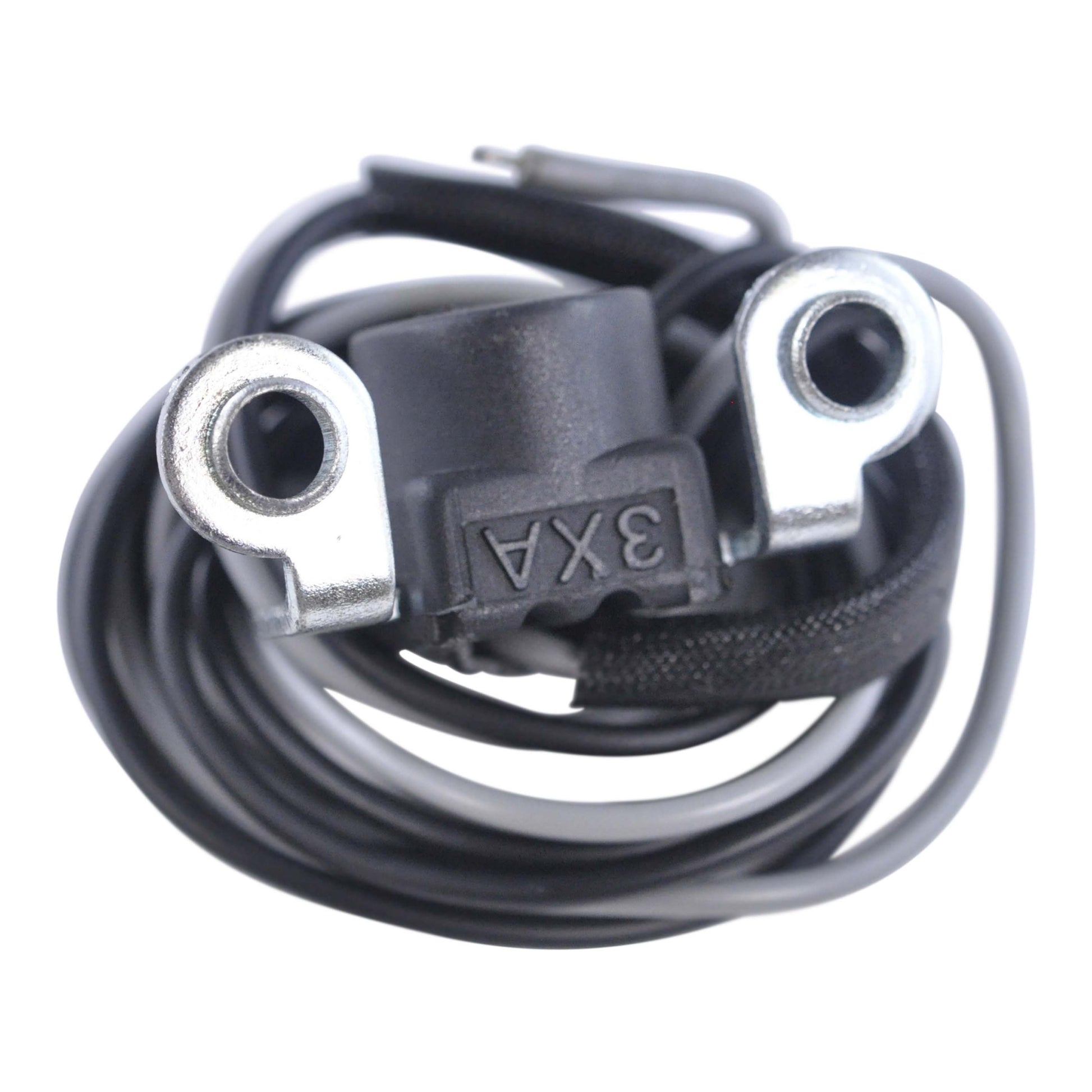

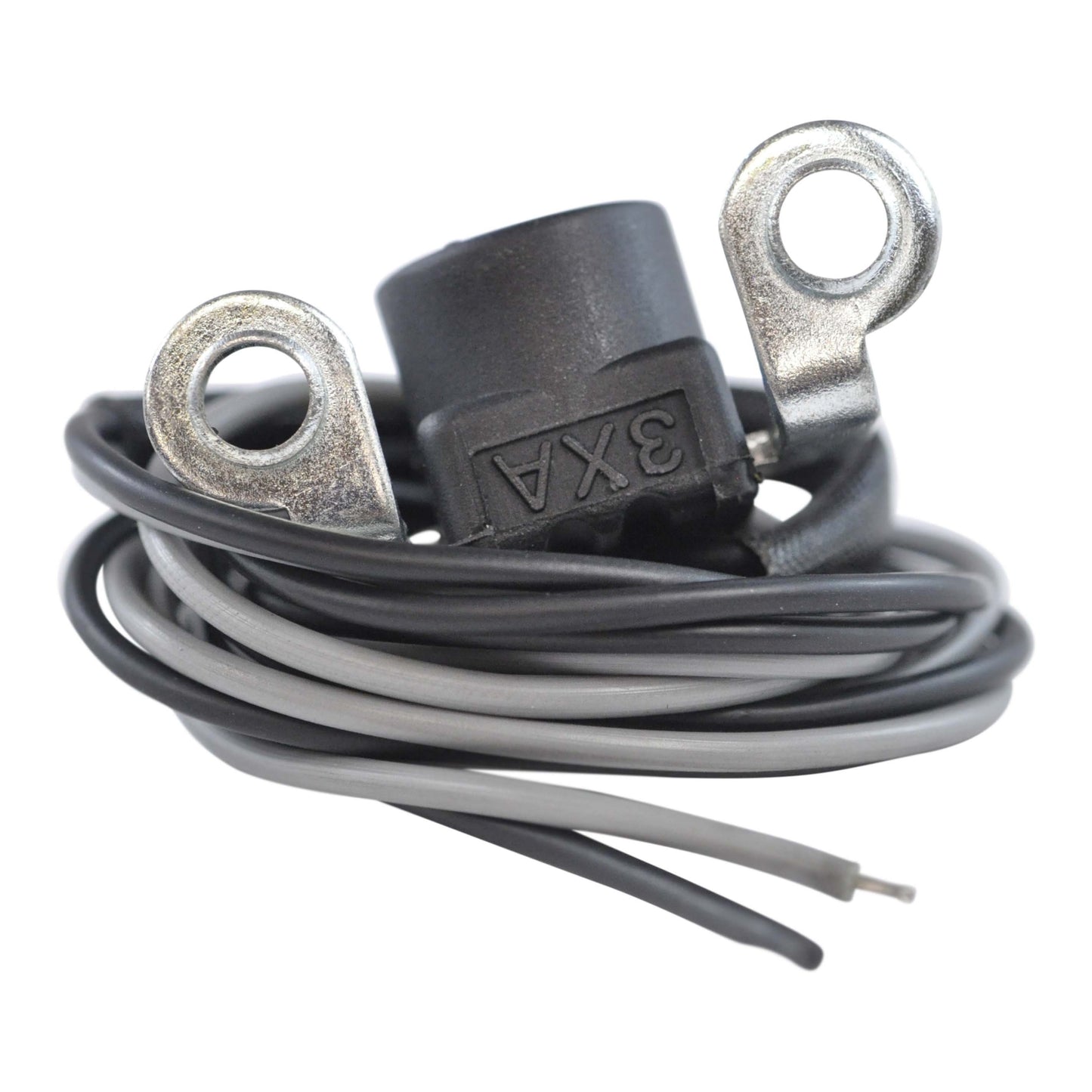

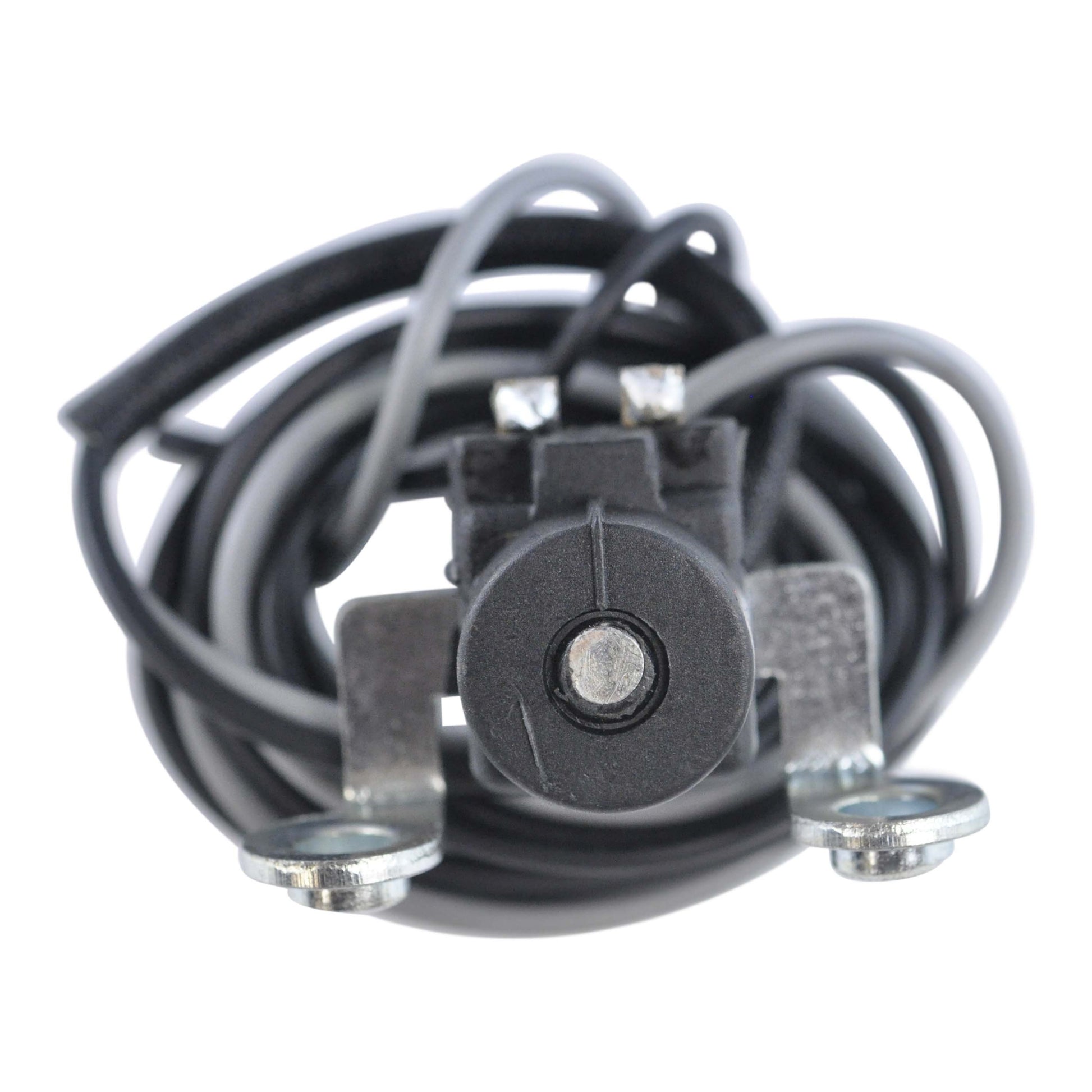

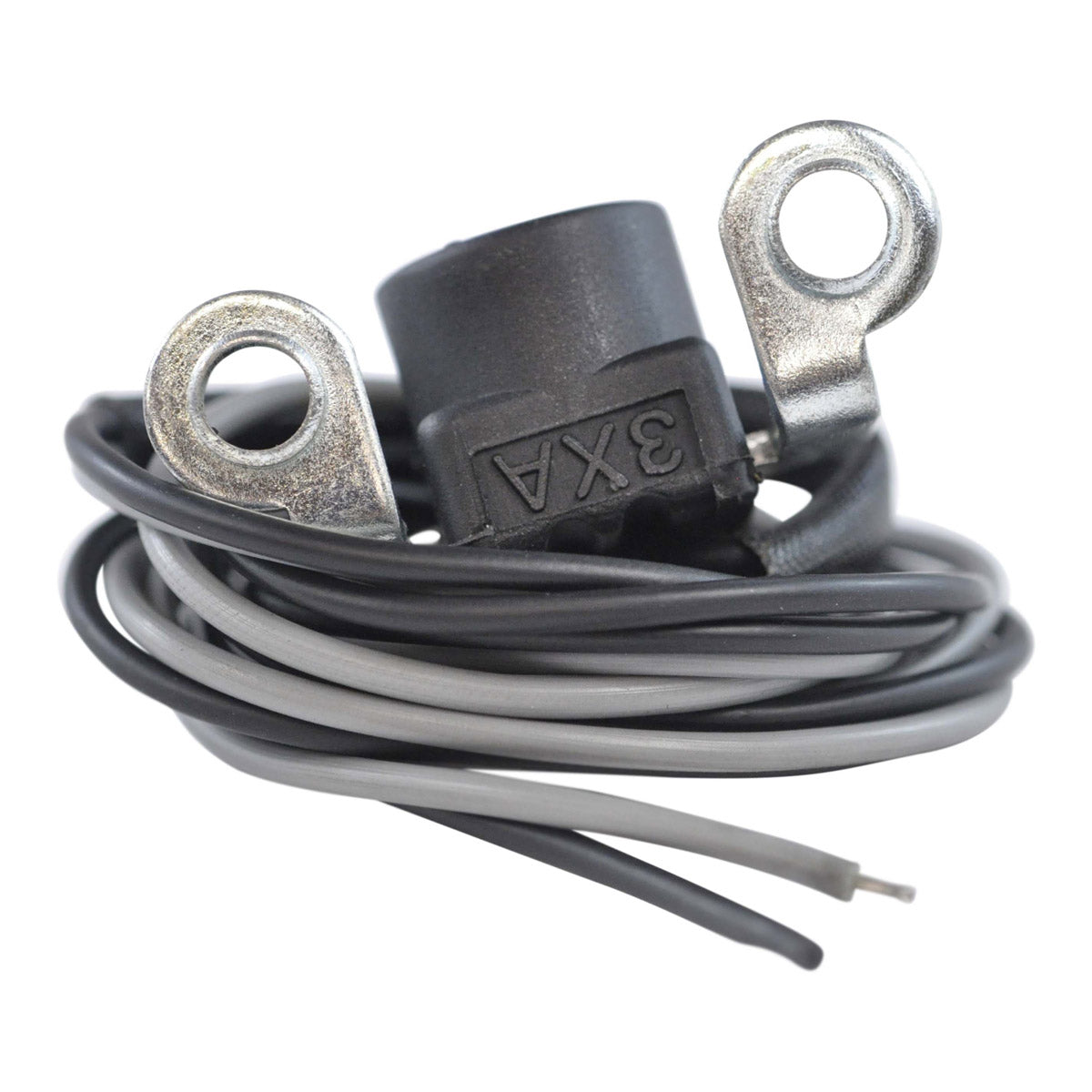

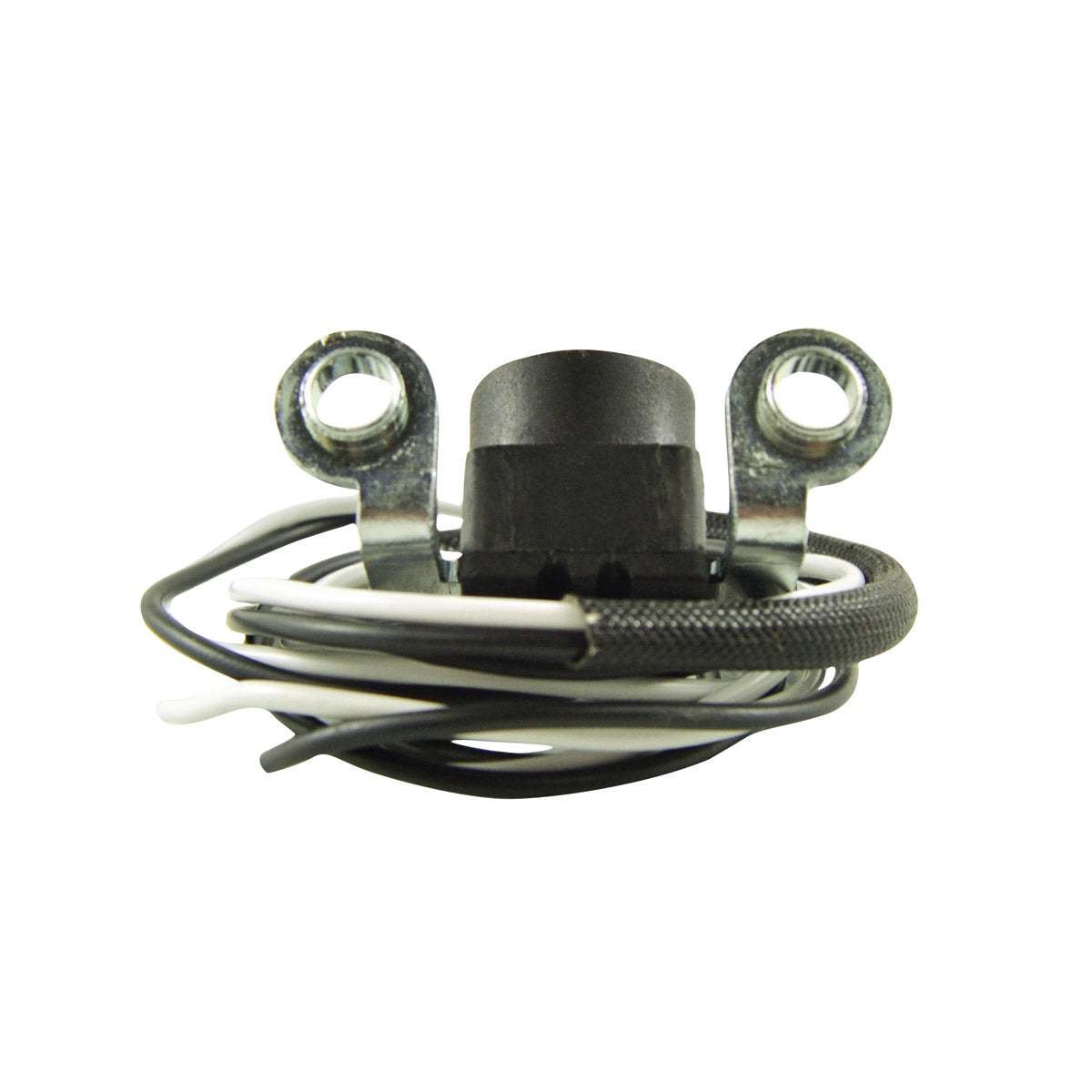

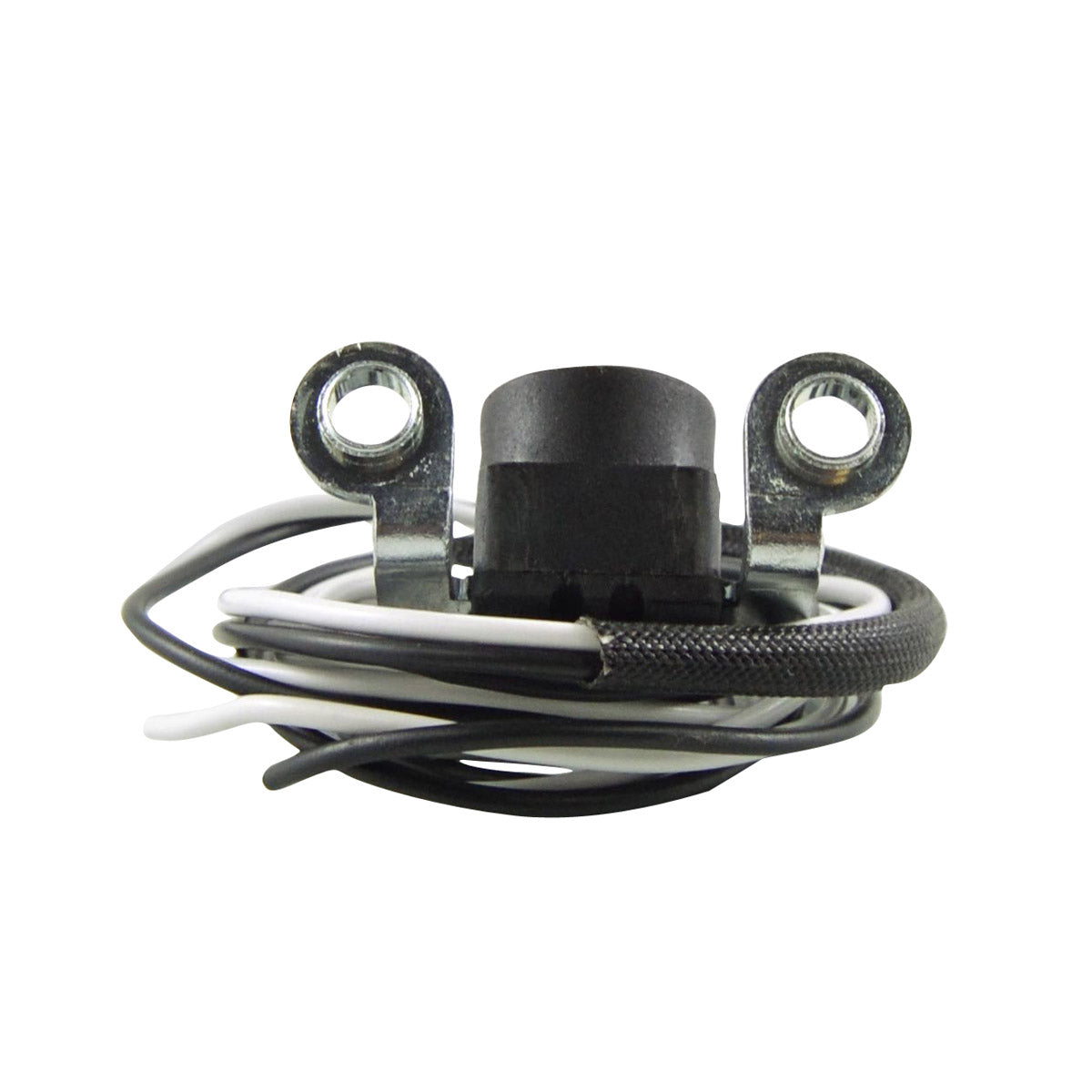

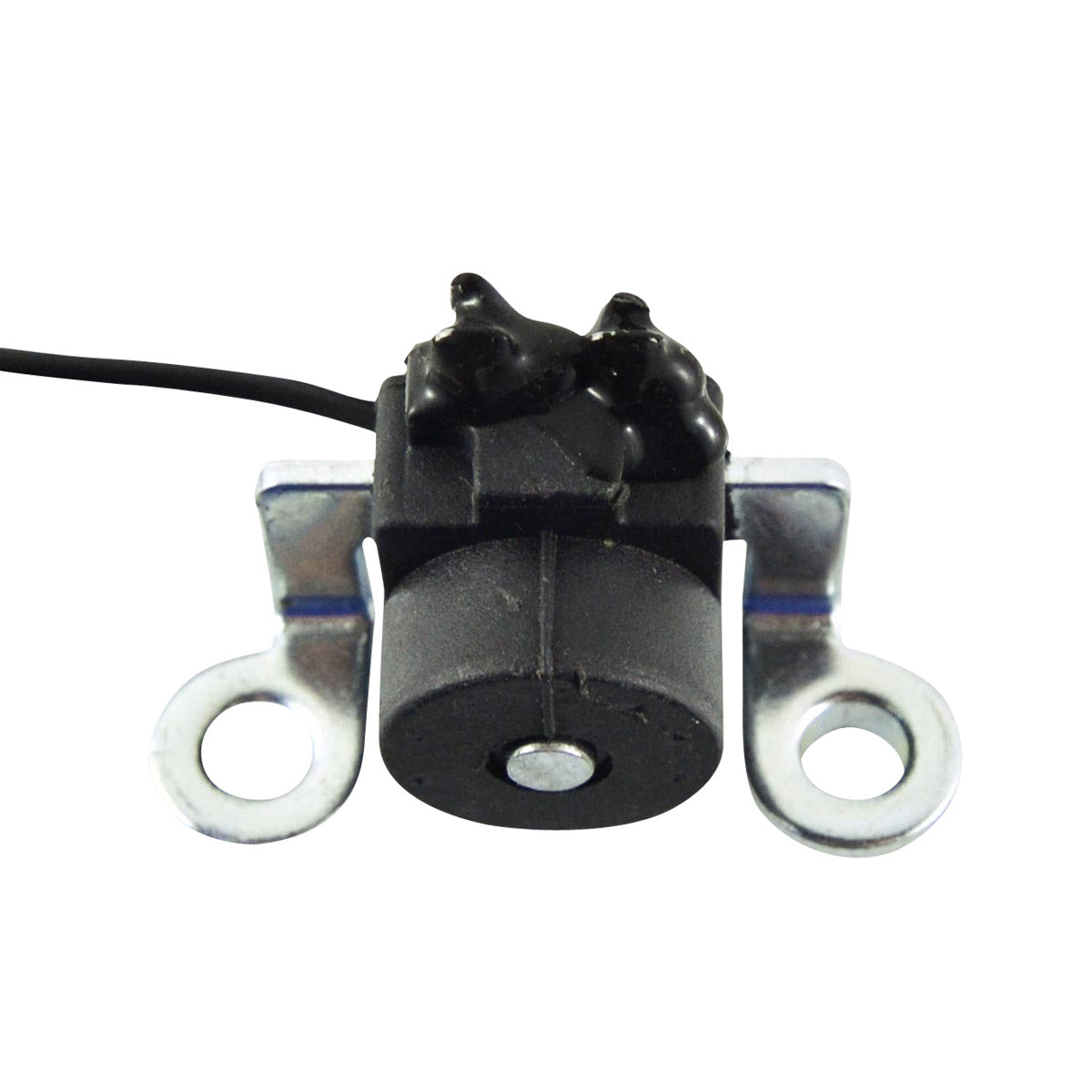

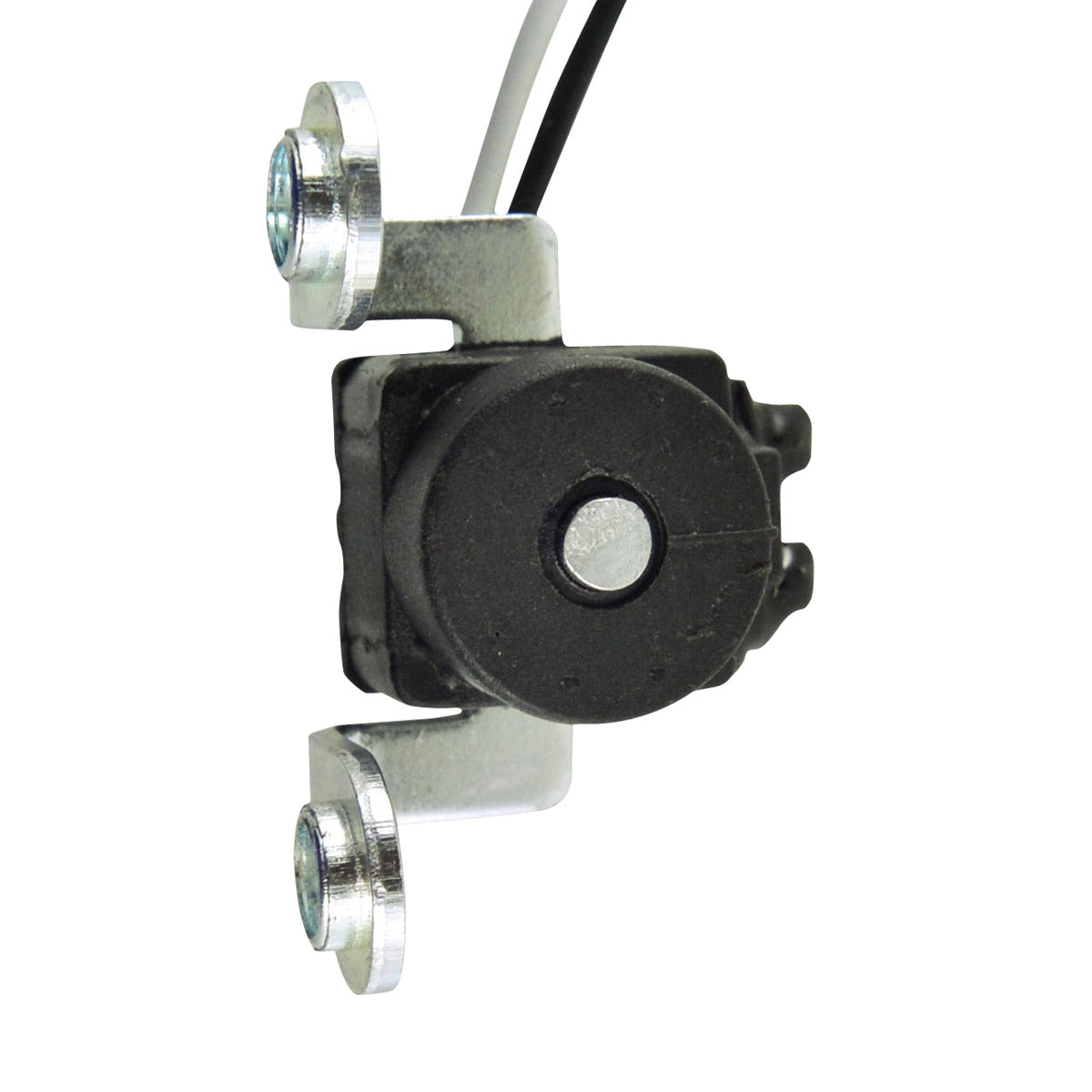

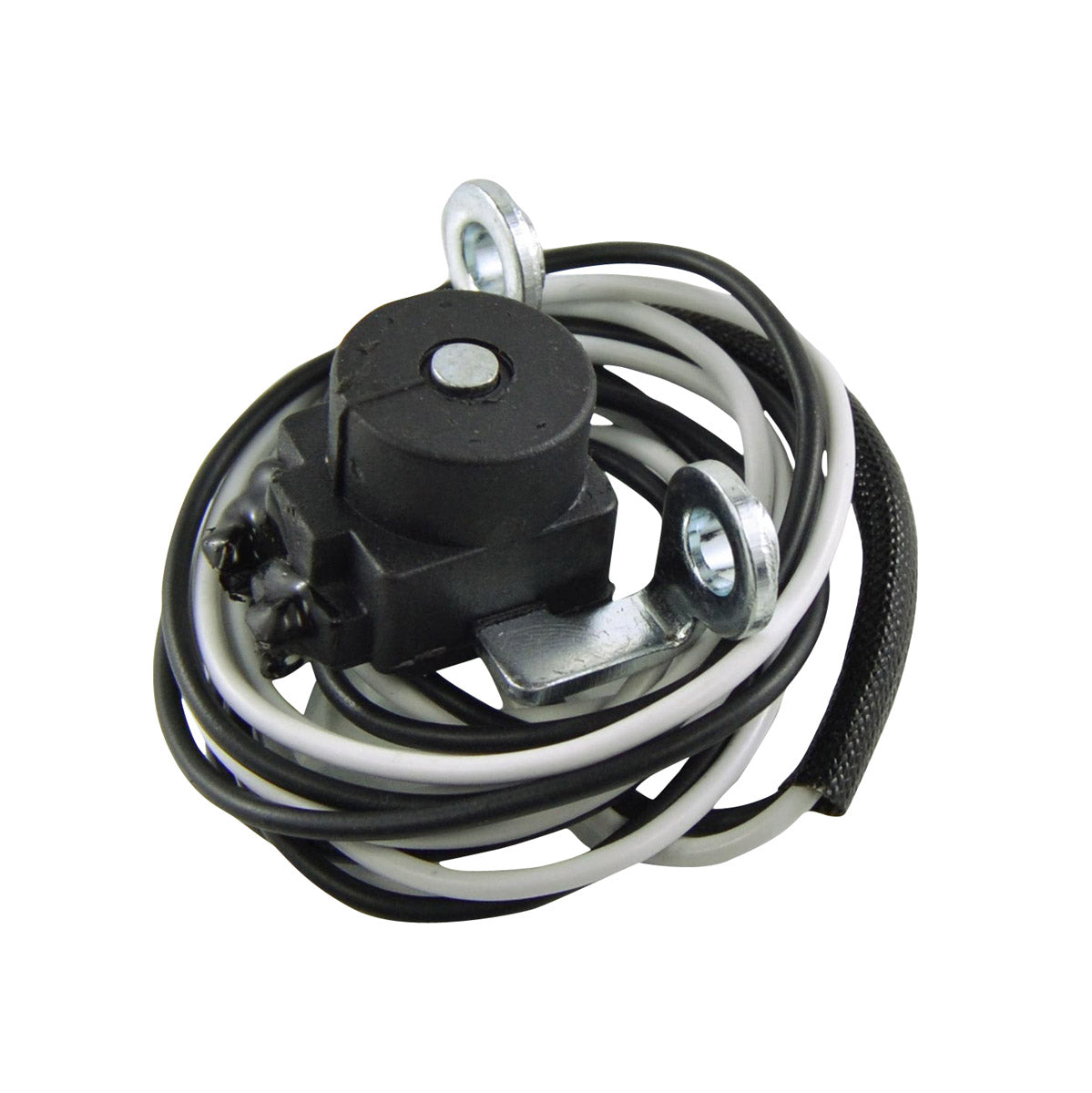

A brand new pick-up pulsar coil, also known as the crankshaft position sensor, for Yamaha Apex 1000 and X-TX snowmobiles and for the XVS Stryker, V Star and Tourer 1300 motorcycles. This is the sensor that tells the ignition system exactly where the crankshaft is, so the CDI or ECU can fire the coils at the right moment. When it drifts out of specification or fails outright, the engine typically throws Yamaha diagnostic code 12 for a faulty crankshaft position sensor.
Yamaha normally supplies this sensor only as part of a complete stator assembly, which is a very expensive way to fix a single failed coil. This part lets you replace just the pick-up coil instead, at a fraction of the cost of the dealer assembly, and it is frequently available here when the OEM part is not. Every unit is tested before it leaves us and works alongside the rest of your original electrical components.
Key Features
- Brand new pick-up pulsar coil, not a reconditioned unit
- Direct alternative to replacing the whole stator assembly
- Resistance held to 270 ohms plus or minus 20 per cent
- Generous 900 mm wire length for routing to the original plug

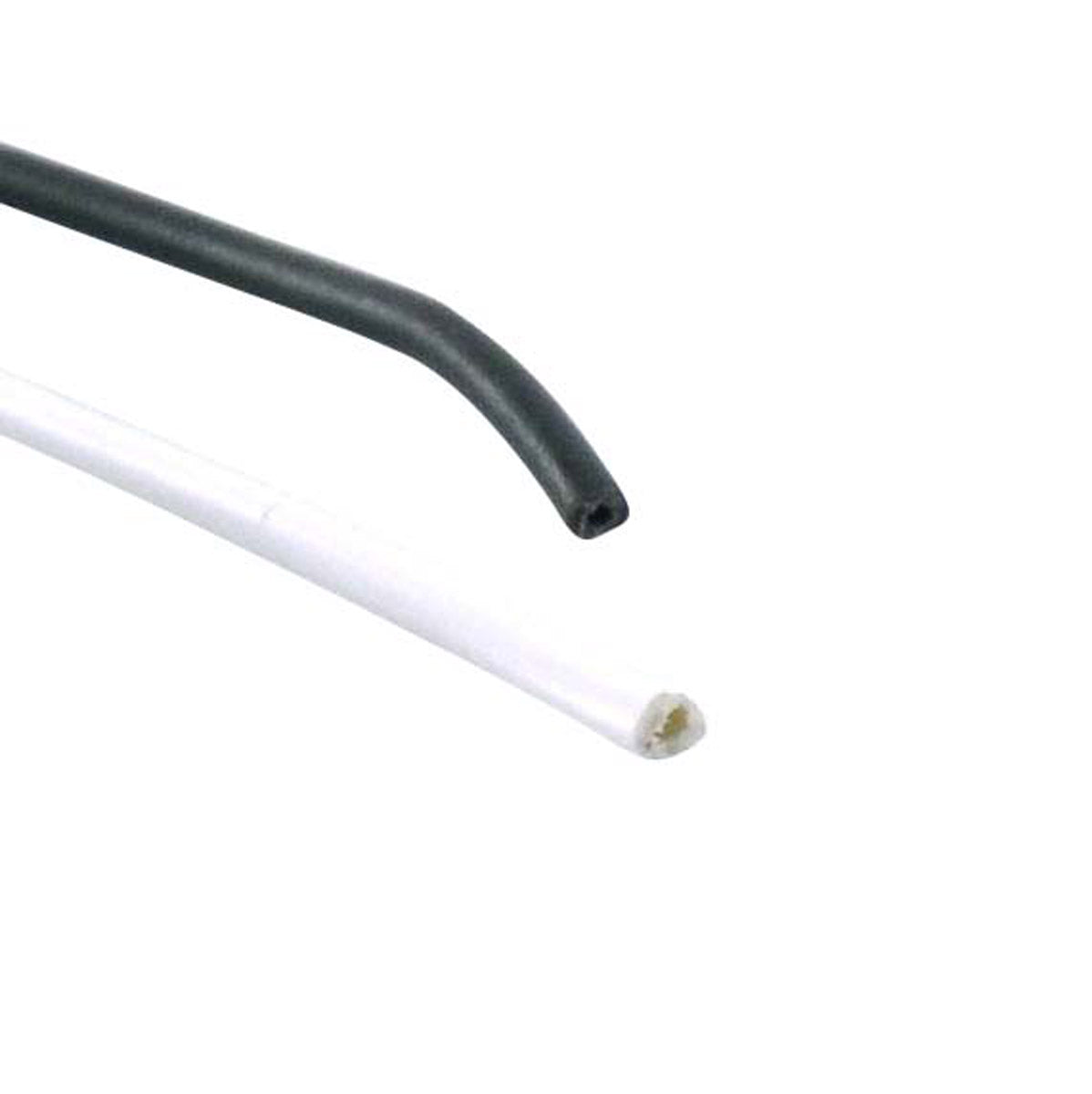

- Two-wire, two-pin arrangement matching the original sensor
- Often available when the OEM sensor is out of stock
- Every unit electrically tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM00134 |
| Resistance, black to grey wire | 270 ohms +/-20% |
| Height | 20 mm |
| Length | 23 mm |
| Width | 19 mm |
| Bracket centre to centre | 35 mm |
| Wire length | 900 mm |
| Number of wires | 2 |
| Number of pins | 2 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha Apex 1000 | 2011-2017 |
| Yamaha Apex X-TX | 2011-2017 |
| Yamaha XVS Stryker | 2007-2017 |
| Yamaha V Star 1300 | 2007-2017 |
| Yamaha V Star Tourer 1300 | 2007-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8HG-81410-00-00 | Yamaha |
| 3D8-81410-00-00 | Yamaha |
| 3D8-81410-10-00 | Yamaha |
| 3D8-81410-20-00 | Yamaha |
Frequently Asked Questions
Will this fit without modifying my machine?
Yes. It is built to the original sensor dimensions, with the same 35 mm bracket centres and the same two-wire, two-pin output, so it mounts in the standard location and connects to the standard harness on the models listed above.
What do I actually receive?
You receive the pick-up pulsar coil itself with its 900 mm lead. It is a repair part for your existing stator assembly, so no flywheel, stator plate or gasket is supplied.
How do I know my old pick-up coil has failed?
The usual symptom is Yamaha diagnostic code 12, reported as a fault in the crankshaft position sensor, along with no spark, an intermittent misfire or a refusal to start. Measure the resistance between the black and grey wires with the plug disconnected: a healthy coil reads about 270 ohms, within 20 per cent either way. An open circuit or a badly out-of-range reading confirms the coil.
Do I have to buy a whole stator to fix code 12?
No. That is the point of this part. Yamaha normally only lists the sensor as part of a complete stator assembly, but the failure is almost always the pick-up coil alone, and this replaces just that coil.
