Pick-Up Pulsar Coil for Yamaha YFZ 350 Banshee 1987-2006
Pick-Up Pulsar Coil for Yamaha YFZ 350 Banshee 1987-2006
SKU:RM00104
Free shipping over £150. Terms apply
Couldn't load pickup availability

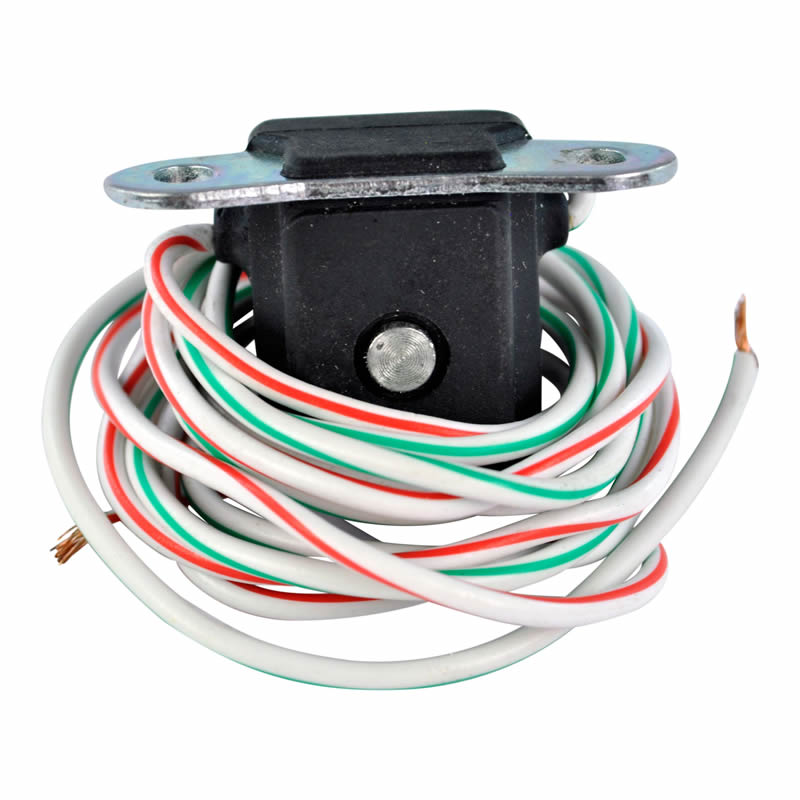

Pick-Up Pulsar Coil for Yamaha YFZ 350 Banshee 1987-2006
Fits Yamaha YFZ 350 Banshee (1987-2006)
This is a replacement pick-up (pulsar) coil built to OEM specifications for the Yamaha YFZ 350 Banshee. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, mounting on the same baseplate as the stock coil so the flywheel, baseplate and wiring loom can all be reused.
The coil is a 4-wire pulsar with a resistance of 100 ohms +/-20% measured Brown to White, and a 30mm bracket centre-to-centre spacing, matching the electrical output and mounting of the factory-fitted pick-up coil on this application. As with the original equipment, this coil is supplied without a moulded connector, so the leads are soldered directly to the existing loom and insulated with heat shrink.
Key Features
- Direct OEM fit and function - no modification required
- Coil resistance: 100 ohms +/-20% (Brown to White)
- 4-wire pick-up coil
- Bracket centre to centre: 30mm
- Mounts to the original baseplate - no flywheel or baseplate changes needed
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Number of Wires | 4 |
| Resistance | 100 ohms +/-20% (Brown to White) |
| Bracket Centre to Centre | 30mm |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFZ 350 Banshee | 1987-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2GU-85510-50-00 | Yamaha |
| 3GG-85510-00-00 | Yamaha |
| 3GG-85510-01-00 | Yamaha |
Frequently Asked Questions
Will this pick-up coil fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit on the Yamaha YFZ 350 Banshee, with wiring connected by soldering to your existing loom.
What is included in the box?
One replacement pick-up (pulsar) coil, ready to mount to your existing baseplate.
How do I know my old pick-up coil has failed?
Common signs include no spark, an erratic spark, or intermittent stalling - test the coil resistance against the value above to confirm.
Does the air gap need adjusting after fitting?
Yes, the air gap between the flywheel raised node and the pick-up coil should be checked and set to no less than 0.010 inches before starting.
