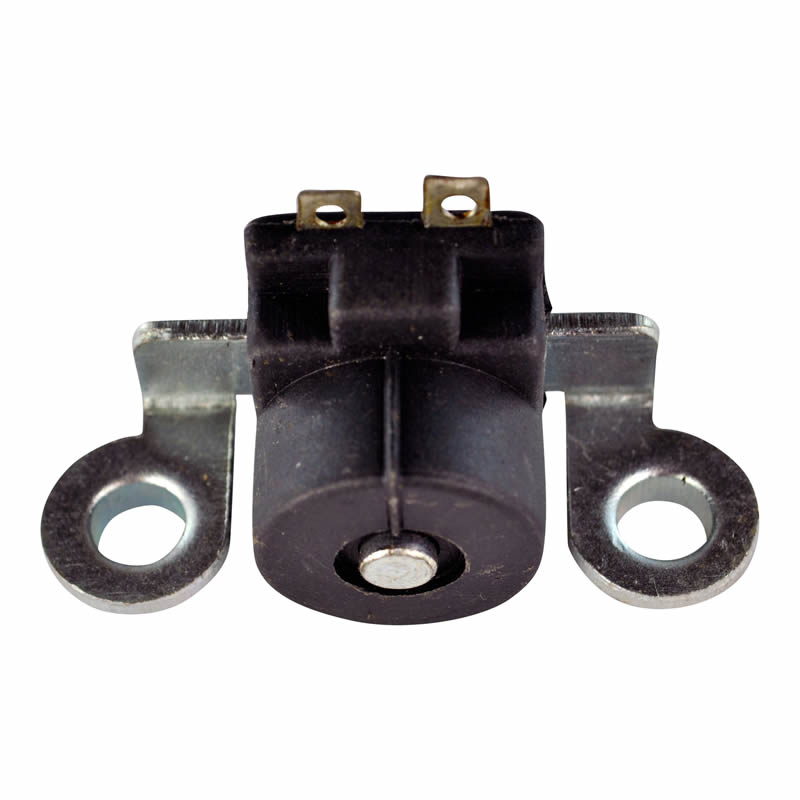

Pick-Up Pulsar Coil for Yamaha YFZ 450 2004-2009 & 2012-2013
Fits Yamaha YFZ 450 (2004-2009 and 2012-2013)
This is a replacement pick-up (pulsar) coil built to OEM specifications for the Yamaha YFZ 450. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, mounting on the same baseplate as the stock coil.
The coil is a 2-pin pulsar with a resistance of 290 ohms +/-20% measured between both pins, and a 35mm bracket centre-to-centre spacing, matching the electrical output and mounting of the factory-fitted pick-up coil on this application.
Key Features
- Direct OEM fit and function - no modification required
- Coil resistance: 290 ohms +/-20% (between both pins)
- 2-pin pick-up coil
- Bracket centre to centre: 35mm
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Number of Pins | 2 |
| Resistance | 290 ohms +/-20% (between both pins) |
| Bracket Centre to Centre | 35mm |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFZ 450 | 2004-2009 |
| Yamaha YFZ 450 | 2012-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5TG-81410-00-00 | Yamaha |
| 5TG-81410-01-00 | Yamaha |
| 5TG-81410-02-00 | Yamaha |
| 5TG-81410-03-00 | Yamaha |
| 5TG-81410-10-00 | Yamaha |
Frequently Asked Questions
Will this pick-up coil fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit on the Yamaha YFZ 450, with wiring connected by soldering to your existing loom.
What is included in the box?
One replacement pick-up (pulsar) coil, ready to mount to your existing baseplate.
How do I know my old pick-up coil has failed?
Common signs include no spark, an erratic spark, or intermittent stalling - test the coil resistance against the value above to confirm.
Does the air gap need adjusting after fitting?
Yes, the air gap between the flywheel raised node and the pick-up coil should be checked and set to no less than 0.010 inches before starting.
