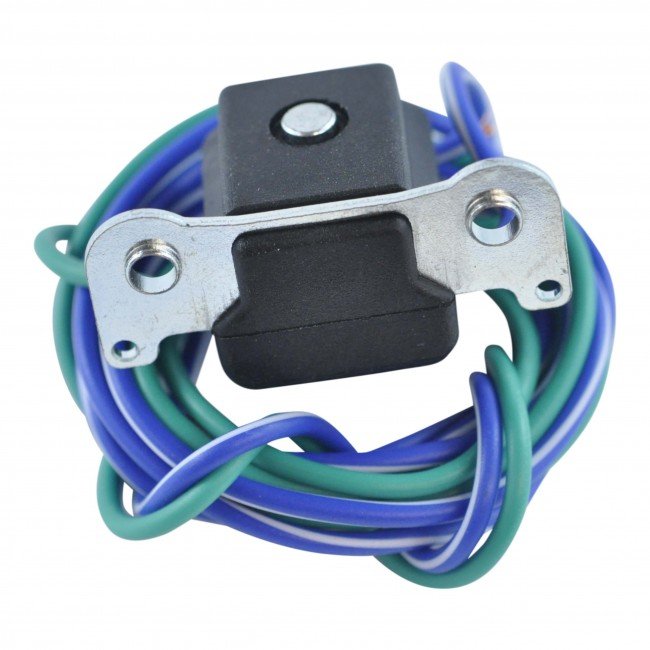

Pickup Coil for Arctic Cat 250 & 300 1998-2005
Fits Arctic Cat 250 & 300 ATVs, 1998-2005
This pickup coil is a direct replacement for the ignition trigger coil fitted to Arctic Cat 250 and 300 ATVs. It is built to OEM electrical specification for a factory fit and function, so it bolts straight into the stator housing with no modification.
The coil is a 12V, 2-wire unit (Blue/White and Green) with a wire-to-wire resistance of 116 Ohms +/-20%, matching the factory trigger signal expected by the ignition module.
Key Features
- Direct OEM fit and function replacement
- 12V pickup (trigger) coil
- 2-wire design, Blue/White and Green wiring
- Wire-to-wire resistance 116 Ohms +/-20%
- 310mm wire length for a straight factory-style connection
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Number of Wires | 2 |
| Wire Colours | Blue/White & Green |
| Wire-to-Wire Resistance | Blue/White to Green = 116 Ohms +/-20% |
| Bracket Centre-to-Centre | 30mm |
| Wire Length | 310mm |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Arctic Cat 250 | 1998-2005 |
| Arctic Cat 300 | 1998-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3430-021 | Arctic Cat |
| 3430-069 | Arctic Cat |
Frequently Asked Questions
Will this fit without modification?
Yes, this pickup coil is a direct plug-in replacement for the original Arctic Cat trigger coil - no cutting or splicing is required.
What's included?
One pickup coil with its factory-length wiring, ready to fit in place of the original.
How do I know my pickup coil has failed?
Common symptoms include no spark, intermittent misfiring, or a no-start condition once other ignition components have been ruled out. Testing wire-to-wire resistance against the 116 Ohms +/-20% spec above will confirm a fault.
Does this fit both the 250 and 300 models?
Yes, this pickup coil is listed by Arctic Cat as a shared part across the 250 and 300 ATV range for the 1998-2005 model years.
