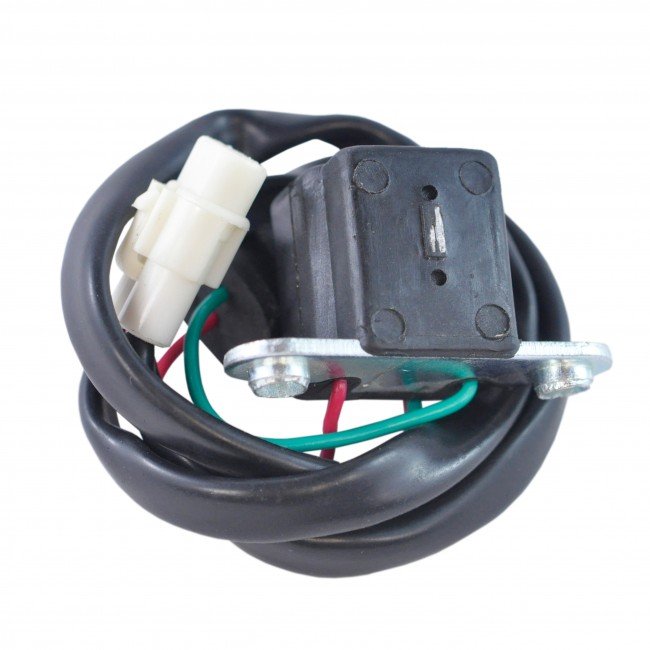

Pickup Coil for Polaris Outlaw 450 S & Outlaw 525 2007-2011
Fits Polaris Outlaw 450 S (2008-2010) & Outlaw 525 (2007-2011)
This pickup coil is a direct replacement for the ignition trigger coil fitted to Polaris Outlaw 450 S and Outlaw 525 quads. It is built to OEM electrical specification, matching the original fit and function so it bolts straight into the stator/flywheel housing with no modification.
The coil is a 12V, 2-wire unit (Green/Red) with a wire-to-wire resistance of 135 Ohms +/-20%, matching the factory pickup coil's trigger signal for the ignition module.
Key Features
- Direct OEM fit and function replacement
- 12V pickup (trigger) coil
- 2-wire design, Green/Red wiring
- Wire-to-wire resistance 135 Ohms +/-20%
- 400mm wire length for a straight factory-style connection
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Number of Wires | 2 |
| Wire Colours | Green / Red |
| Wire-to-Wire Resistance | Green/Red = 135 Ohms +/-20% |
| Bracket Centre-to-Centre | 35mm |
| Wire Length | 400mm |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Polaris Outlaw 450 S | 2008-2010 |
| Polaris Outlaw 525 | 2007-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4011799 | Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes, this pickup coil is a direct plug-in replacement for the original Polaris trigger coil - no cutting or splicing is required.
What's included?
One pickup coil with its factory-length wiring and connector, ready to fit in place of the original.
How do I know my pickup coil has failed?
Common symptoms include no spark, intermittent misfiring, or a no-start condition once other ignition components have been ruled out. Testing wire-to-wire resistance against the 135 Ohms +/-20% spec above will confirm a fault.
Can I use a different wire colour code?
The coil may use different wire colours to your original loom - all wires are installed in the correct order, so simply match by function rather than colour when connecting.
