Pickup Pulsar Coil for Honda TRX 420, TRX 450 & TRX 500 2004-2013
Pickup Pulsar Coil for Honda TRX 420, TRX 450 & TRX 500 2004-2013
SKU:RM00135
Free shipping over £150. Terms apply
Couldn't load pickup availability
Pickup Pulsar Coil for Honda TRX 420, 450 & 500 - RM00135
Honda TRX420, TRX450 and TRX500 - 2004-2013

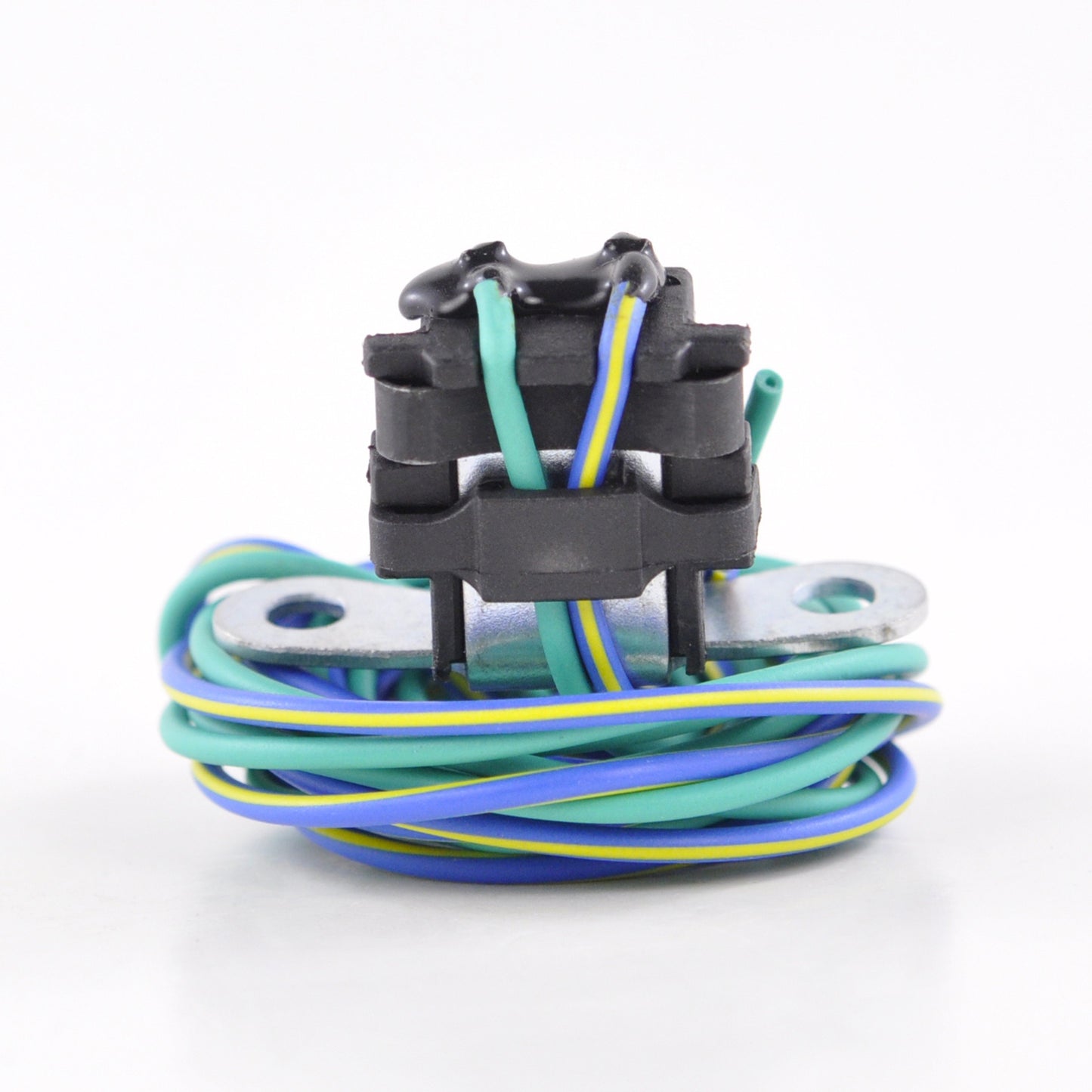

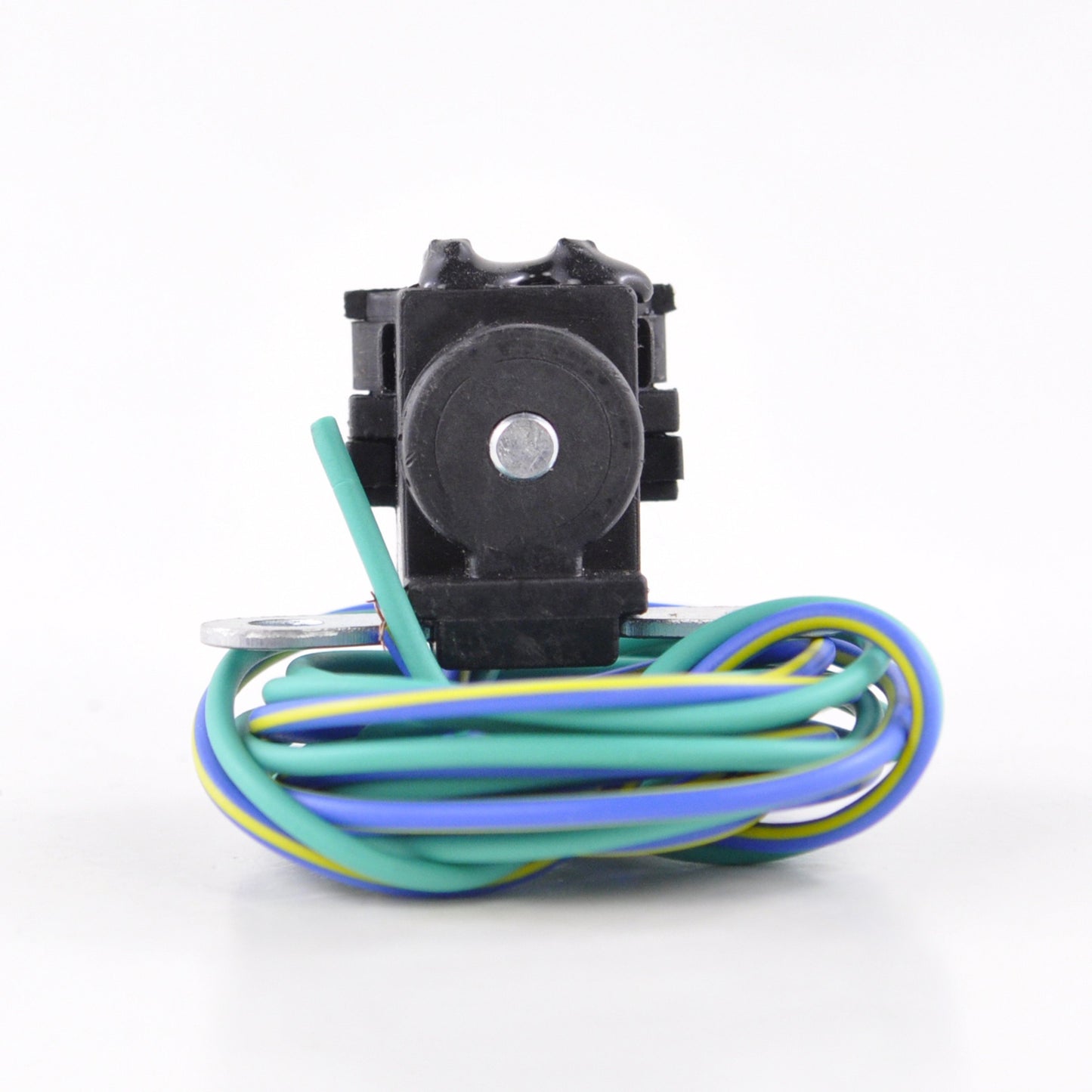

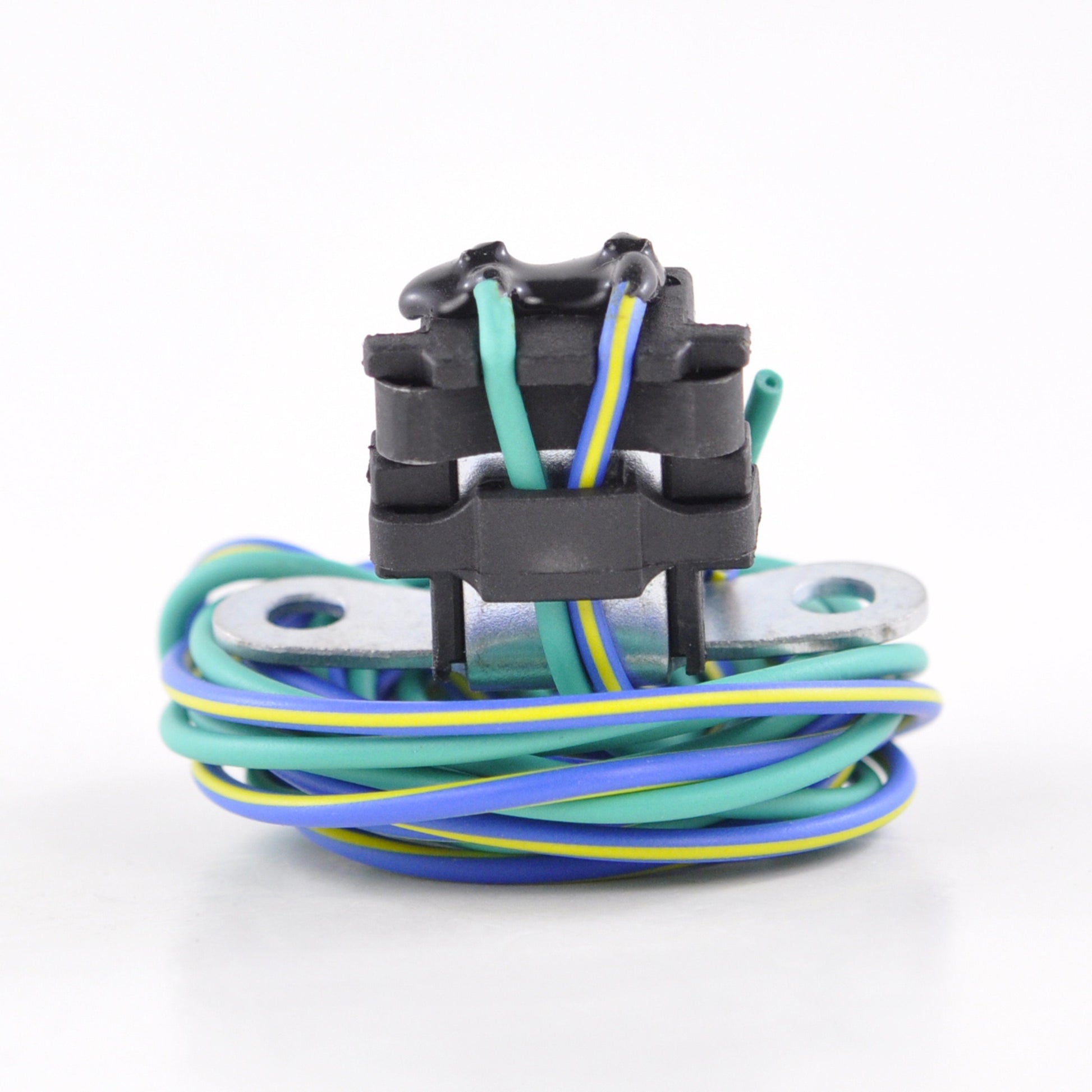

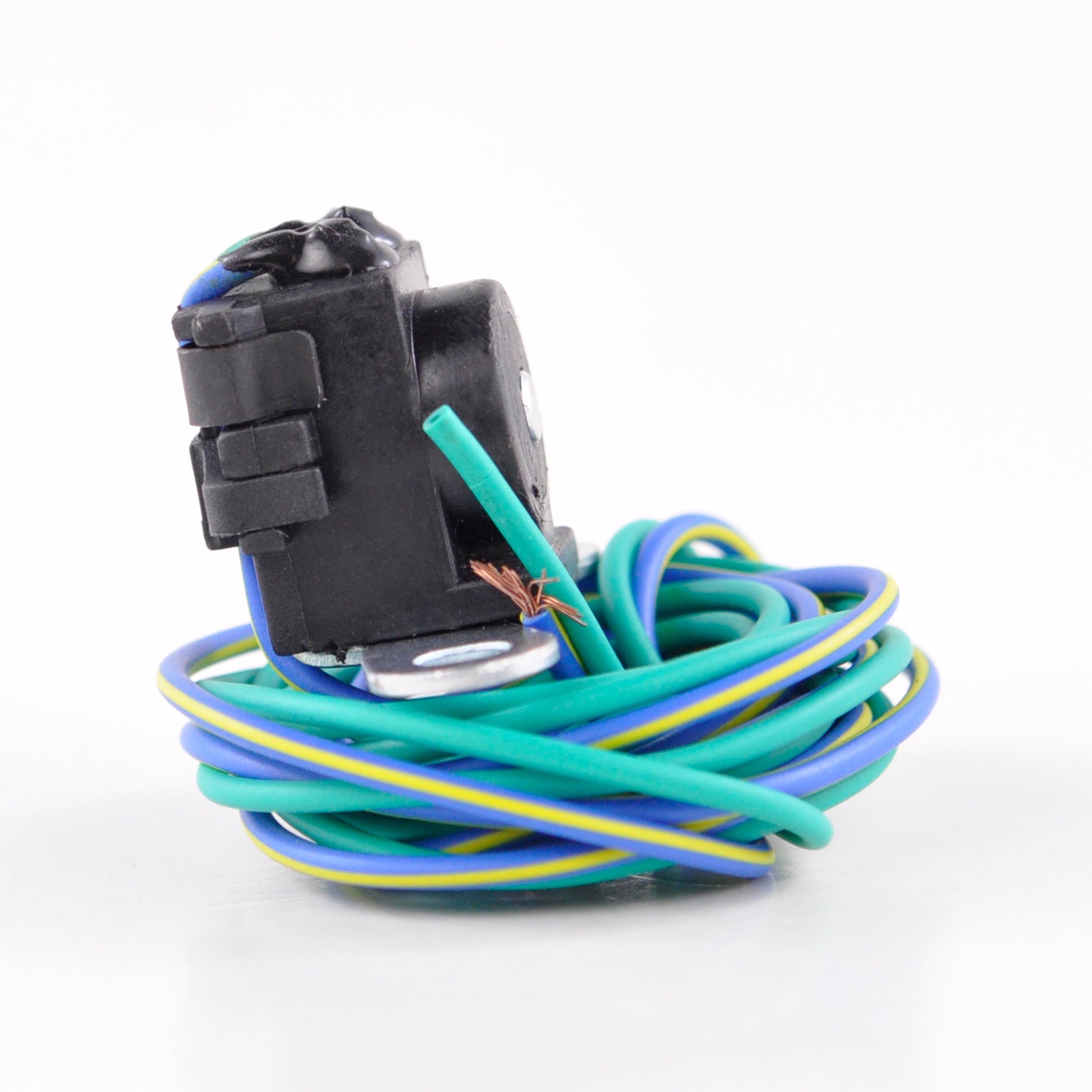

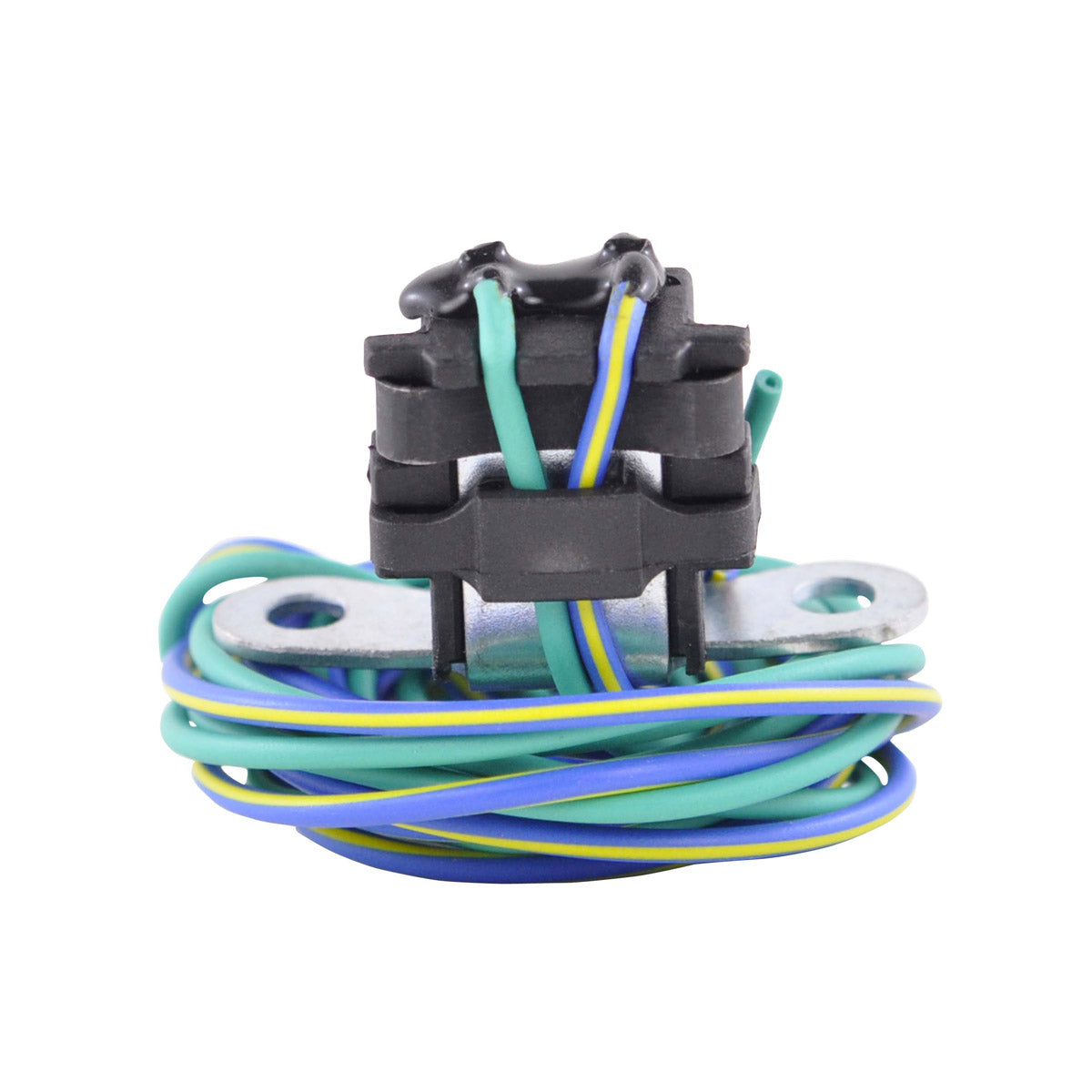

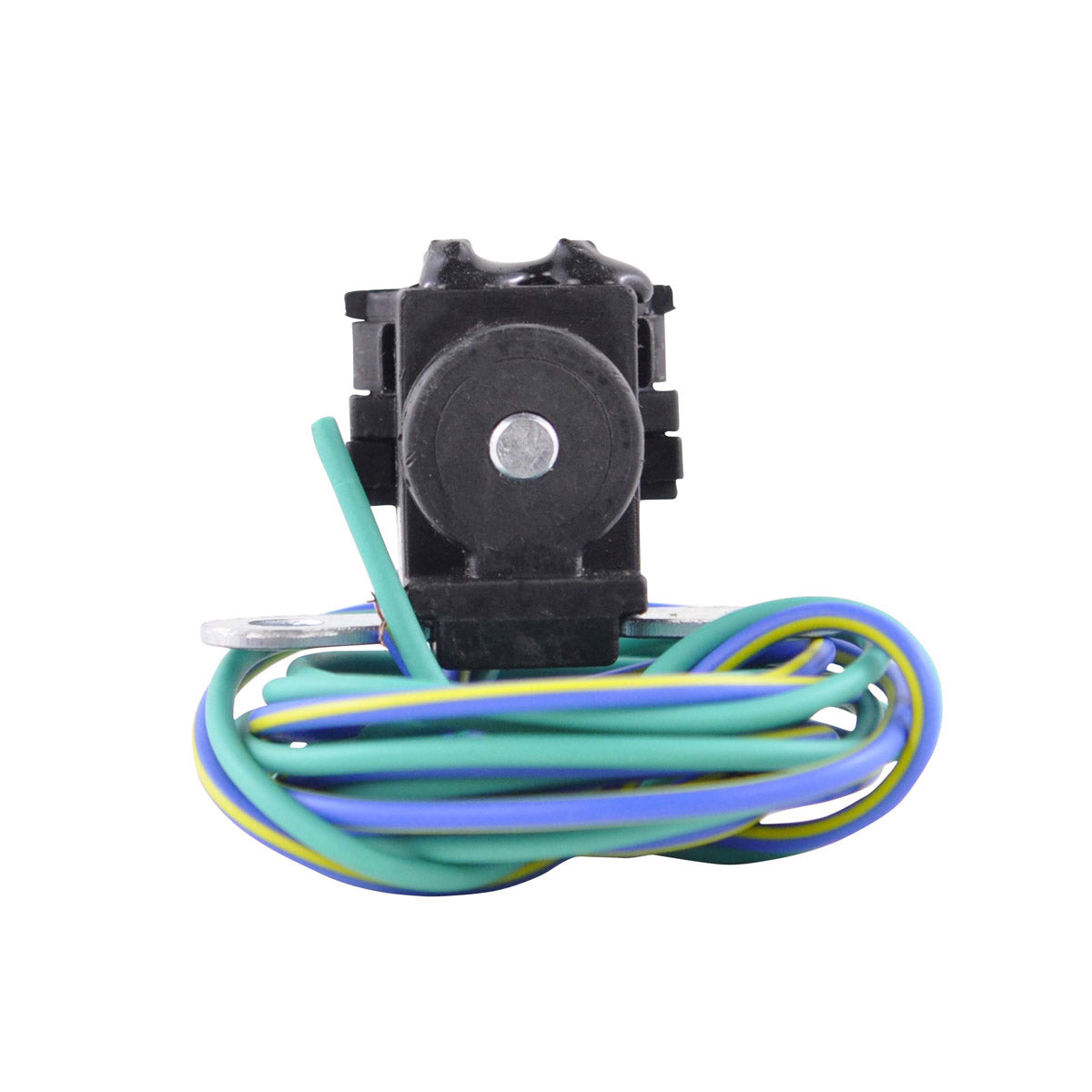

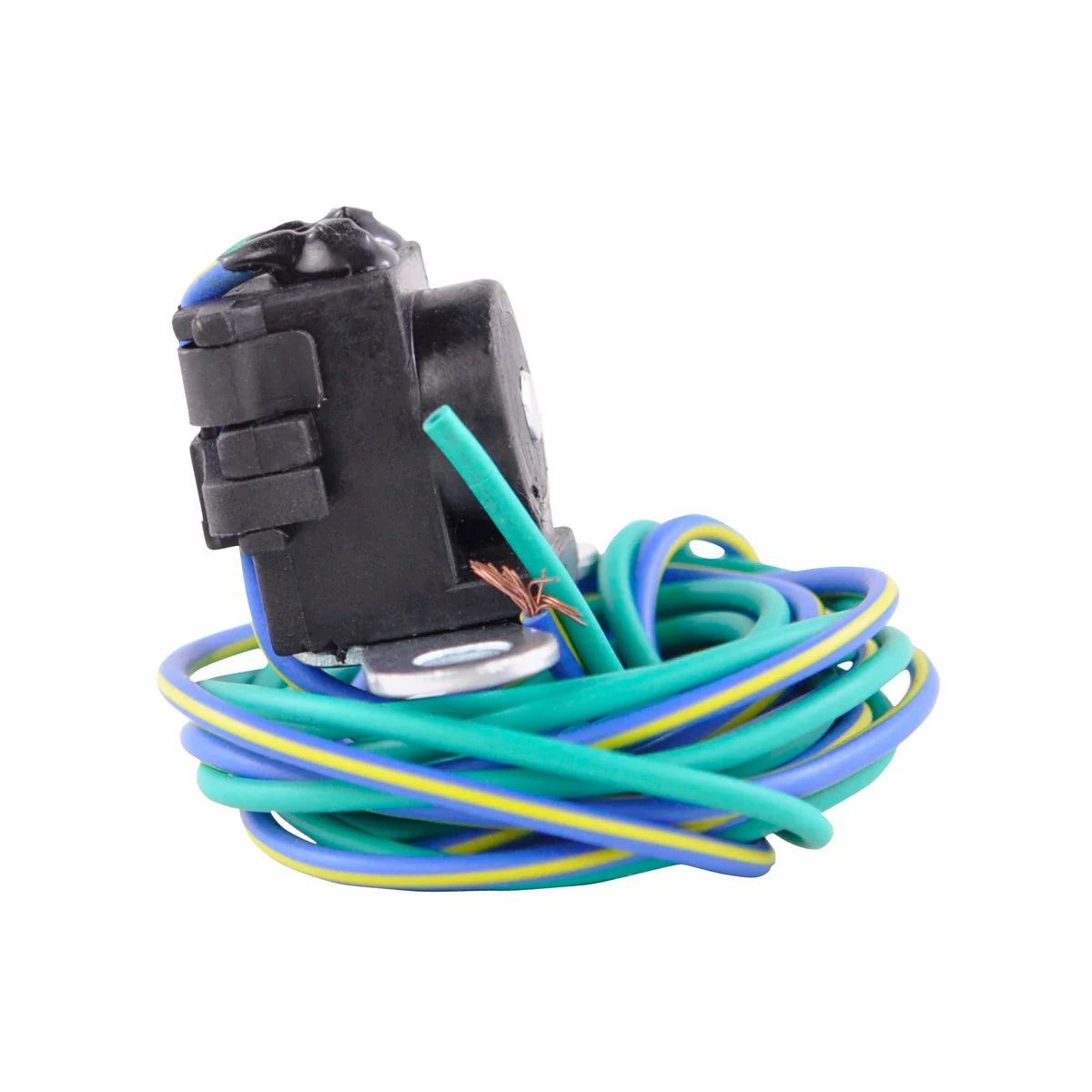

A brand new aftermarket pickup pulsar coil supplied under RMSTATOR part number RM00135, made as a stator repair part for the Honda TRX420, TRX450 and TRX500 quads built between 2004 and 2013. The pulsar coil is the small sensor mounted alongside the flywheel that reads the timing trigger and tells the ignition system precisely when to fire. When it fails the machine typically will not start, loses spark once it warms through, or runs with timing that wanders under load.
RMSTATOR supply this coil on its own so a stator assembly can be repaired rather than replaced, which matters on these models because the pulsar coil is often unavailable separately from the original manufacturer. The coil is wound to a nominal 250 ohms to match the resistance of the original sensor and carries a long 980 mm two wire tail, so it routes back to the loom exactly as the factory part did. Every unit is bench tested before dispatch, and the product photographs are accurate, so if you are in any doubt compare the item against your original part before ordering.
Key Features
- Brand new aftermarket pickup / pulsar coil, not a reconditioned unit
- Nominal 250 ohms resistance, plus or minus 20 per cent
- Bracket mounting centres of 34 mm to match the original sensor

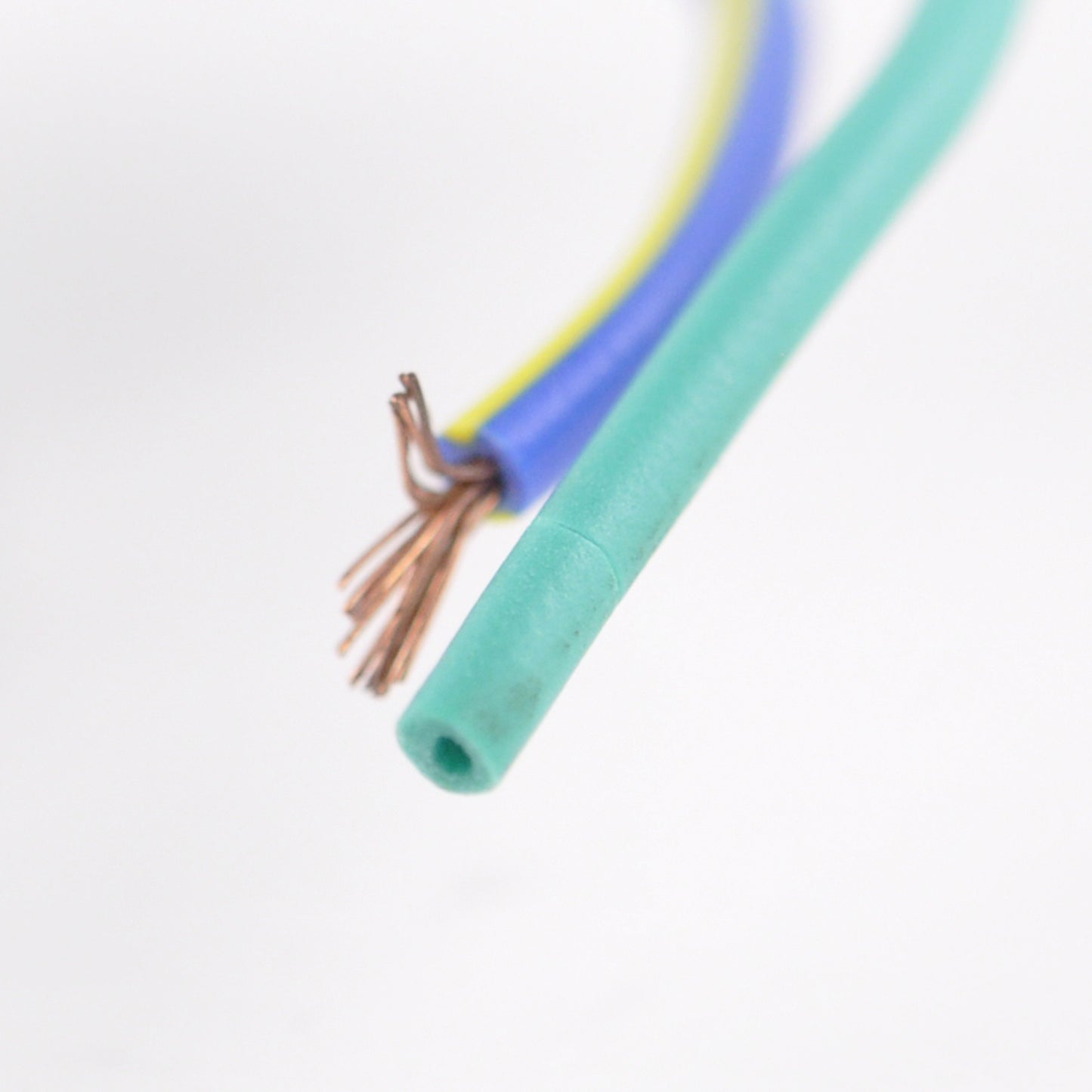

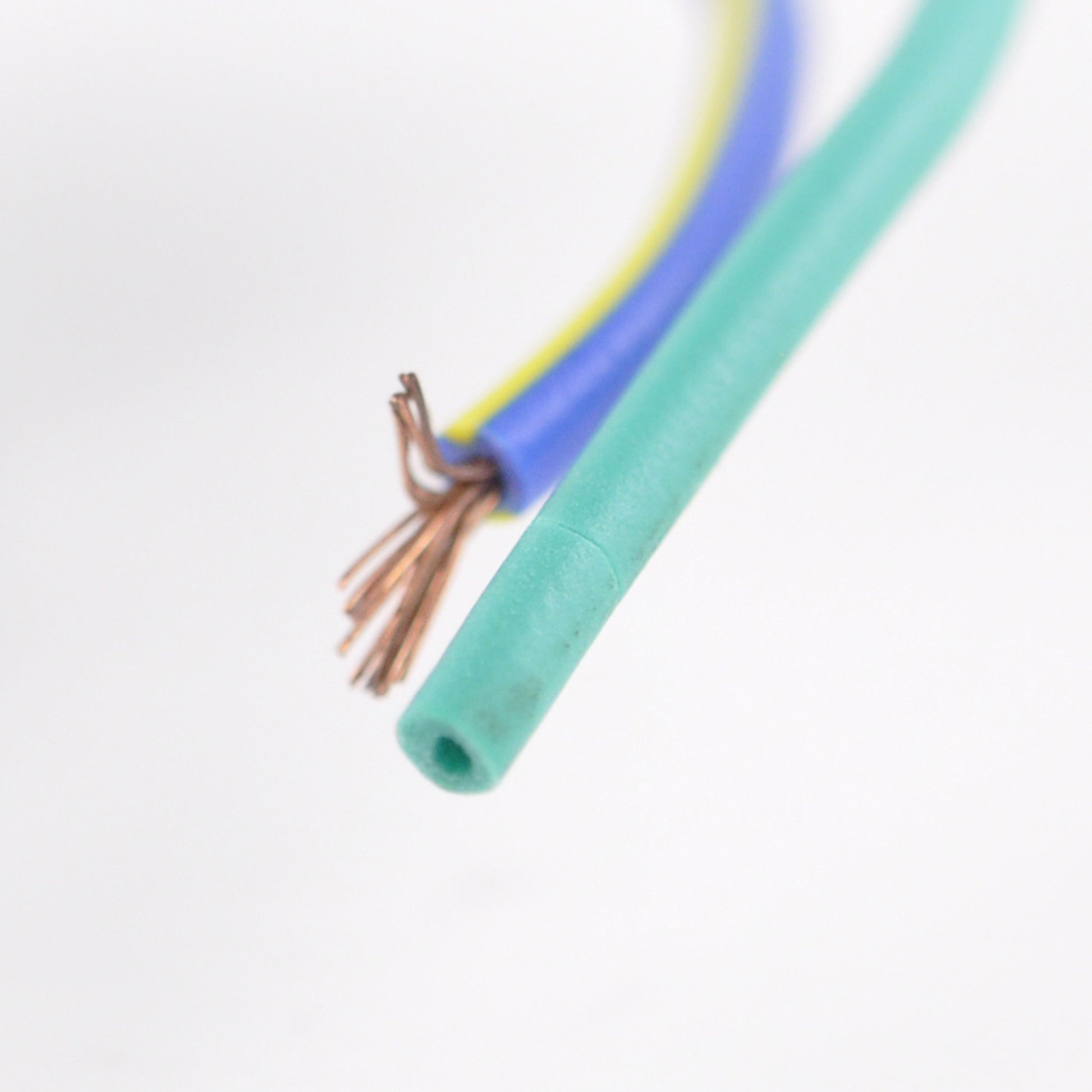

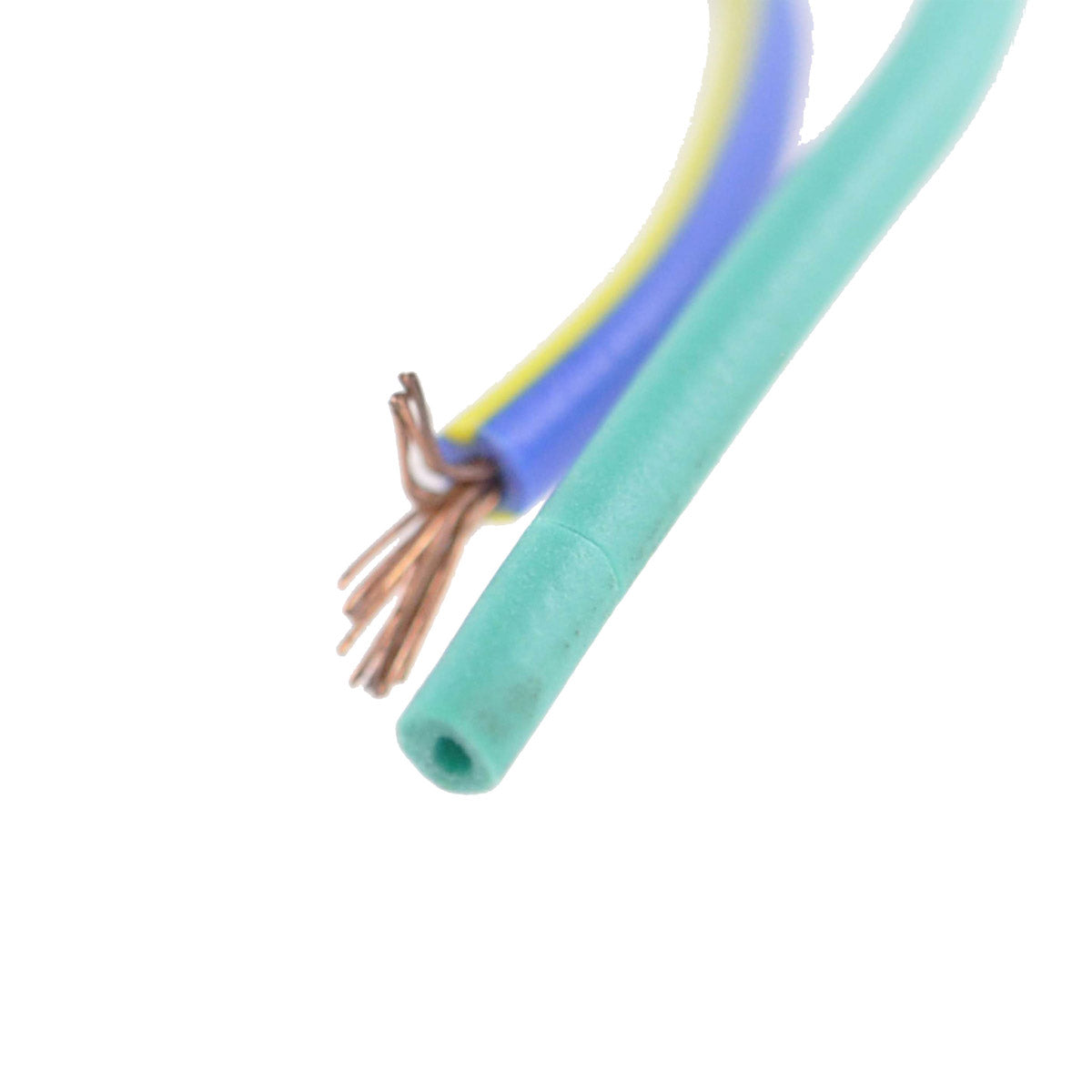

- Two wires with a long 980 mm tail for factory routing
- Supplied as a stator repair part where the OEM no longer sells the coil on its own
- Every unit is tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Height | 27 mm |
| Length | 22 mm |
| Width | 24 mm |
| Bracket centre to centre | 34 mm |
| Wire length | 980 mm |
| Number of wires | 2 |
| Wire to wire resistance | 250 ohms, plus or minus 20 per cent |
| RMSTATOR part number | RM00135 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda TRX 420 (TRX420) | 2004-2013 |
| Honda TRX 450 (TRX450) | 2004-2013 |
| Honda TRX 500 (TRX500) | 2004-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HP1-003 | Honda |
| 31120-HP1-601 | Honda |
| 31120-HP0-A00 | Honda |
| 31120-HP0-A01 | Honda |
| 31120-HP5-A51 | Honda |
| 31120-HP5-601 | Honda |
| 31120-HR0-F01 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. The bracket mounting centres are 34 mm, matching the original sensor, and the 980 mm wire tail allows the loom to be routed as the factory part was. Confirm the number on your original coil against the cross reference table above before ordering.
What is included?
One pickup pulsar coil with a two wire lead, tested before dispatch. No other stator components are supplied with it.
How do I know my old pulsar coil has failed?
Measure the resistance across the two coil wires with a multimeter. A healthy unit reads about 250 ohms, within plus or minus 20 per cent. An open circuit, a dead short, or a reading well outside that band indicates the coil has failed. Common symptoms are no spark at all, a machine that cranks but will not fire, and cutting out once the engine is hot.
Can I repair the stator with this rather than replacing it?
Yes, that is what this part is for. RMSTATOR sell the pulsar coil separately so the assembly can be rebuilt instead of buying a complete stator, which is often the only route available because Honda frequently do not supply the coil on its own.
