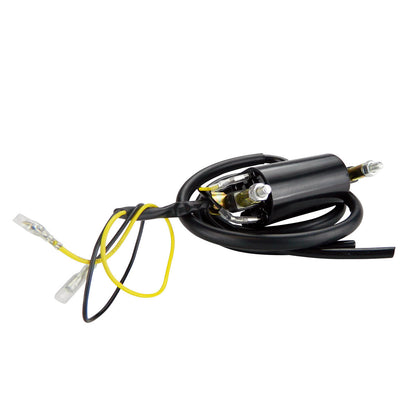

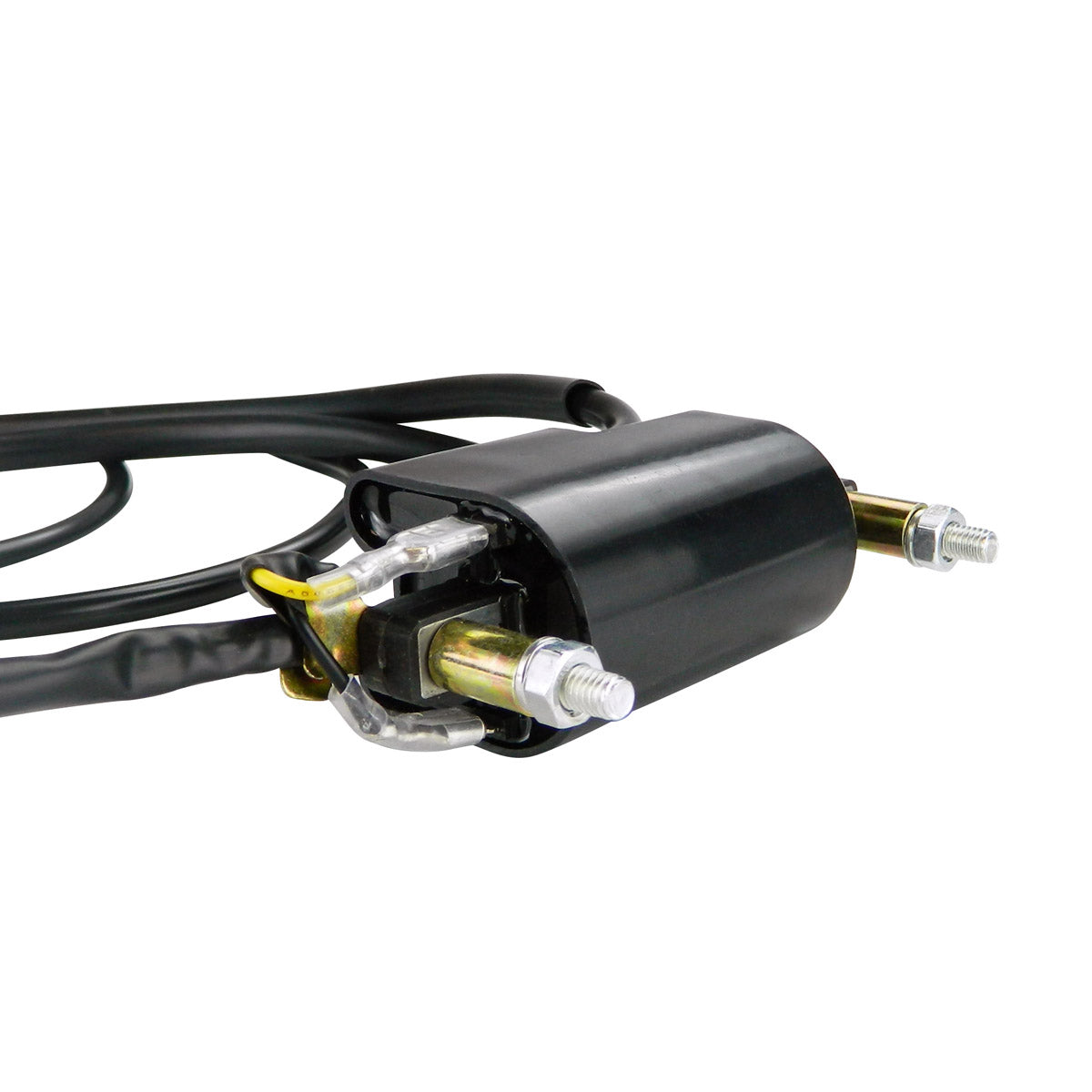

6 Volt Dual Lead Ignition Coil, Pillar Type

Pillar type electronic ignition conversion coil for Honda, Kawasaki, Suzuki and Yamaha

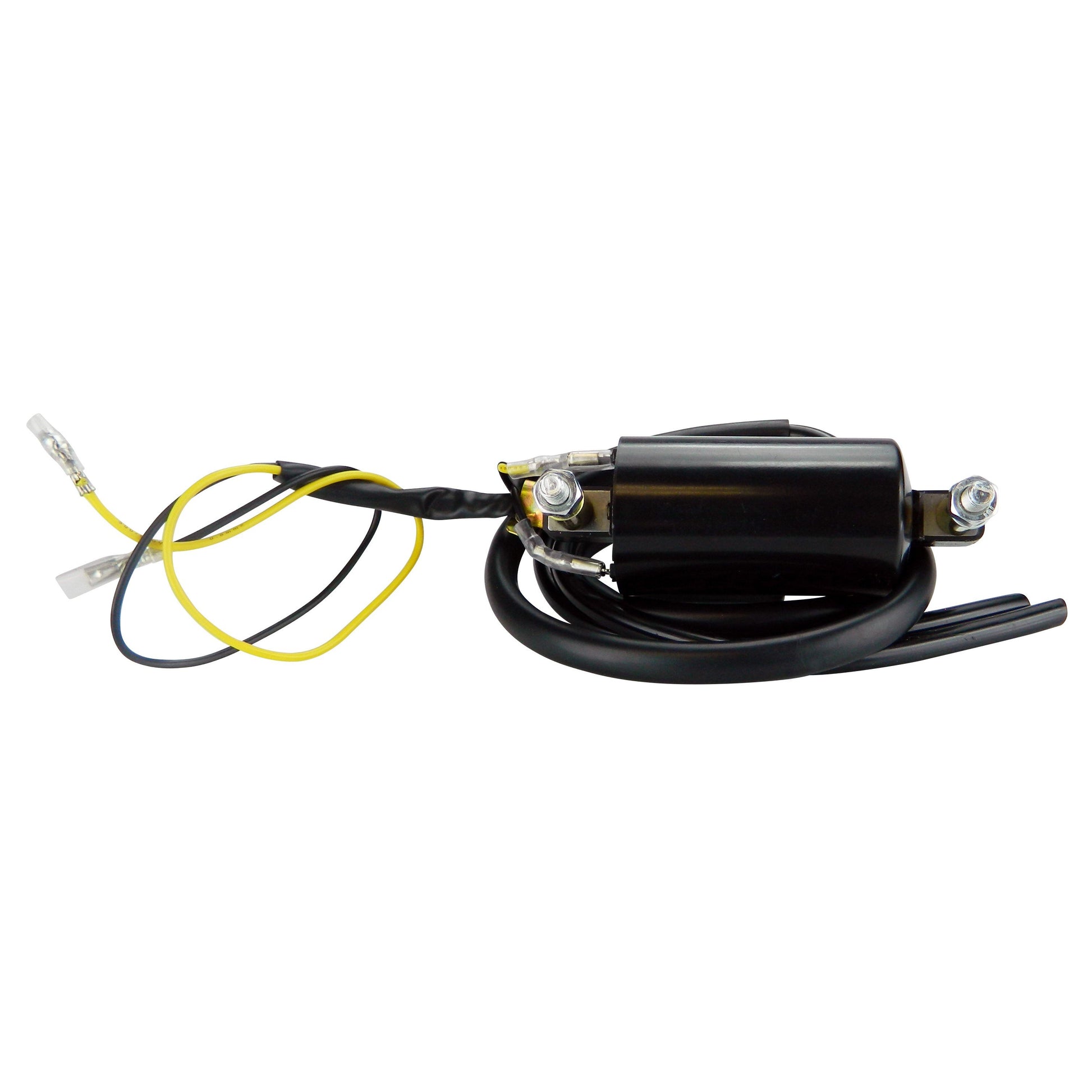

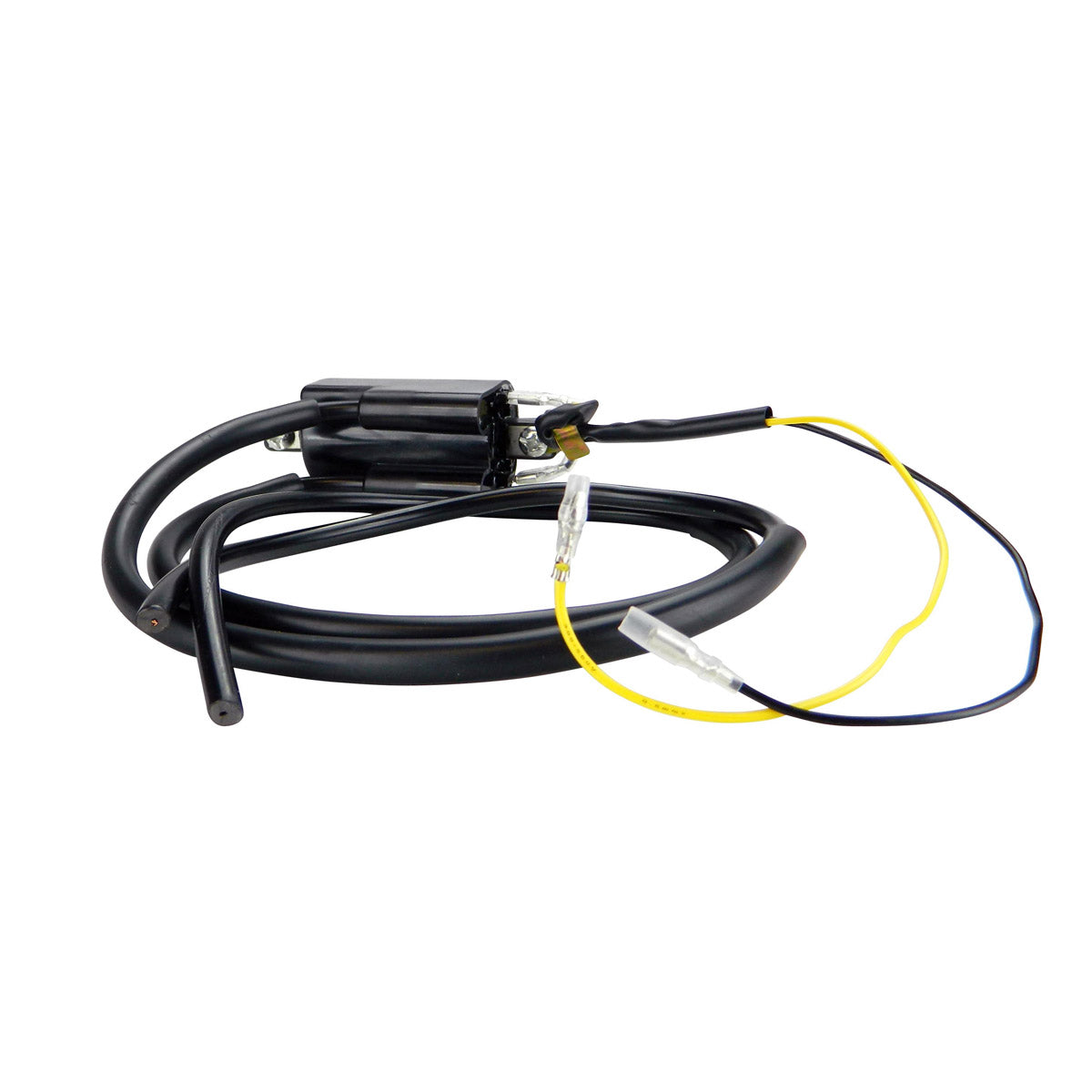

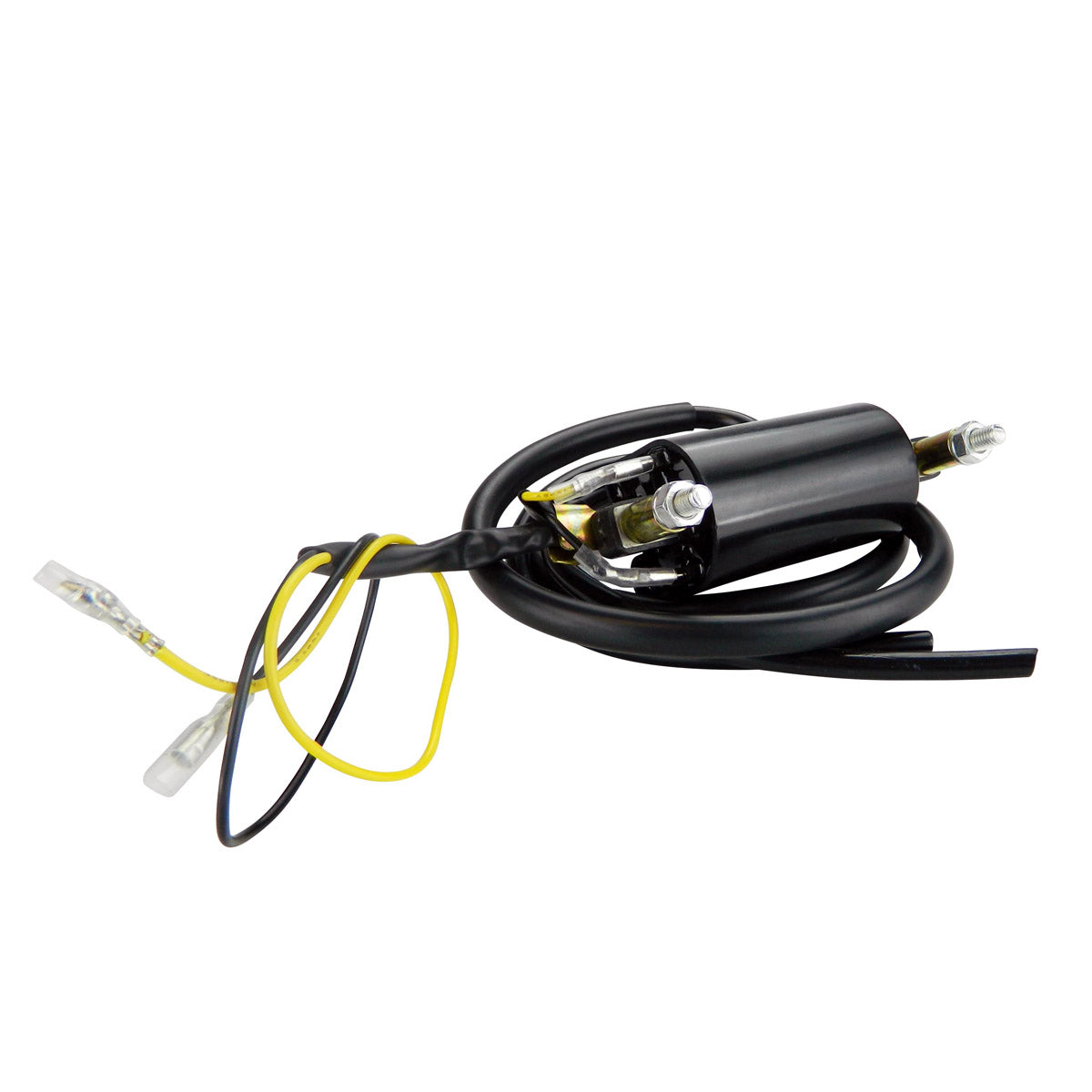

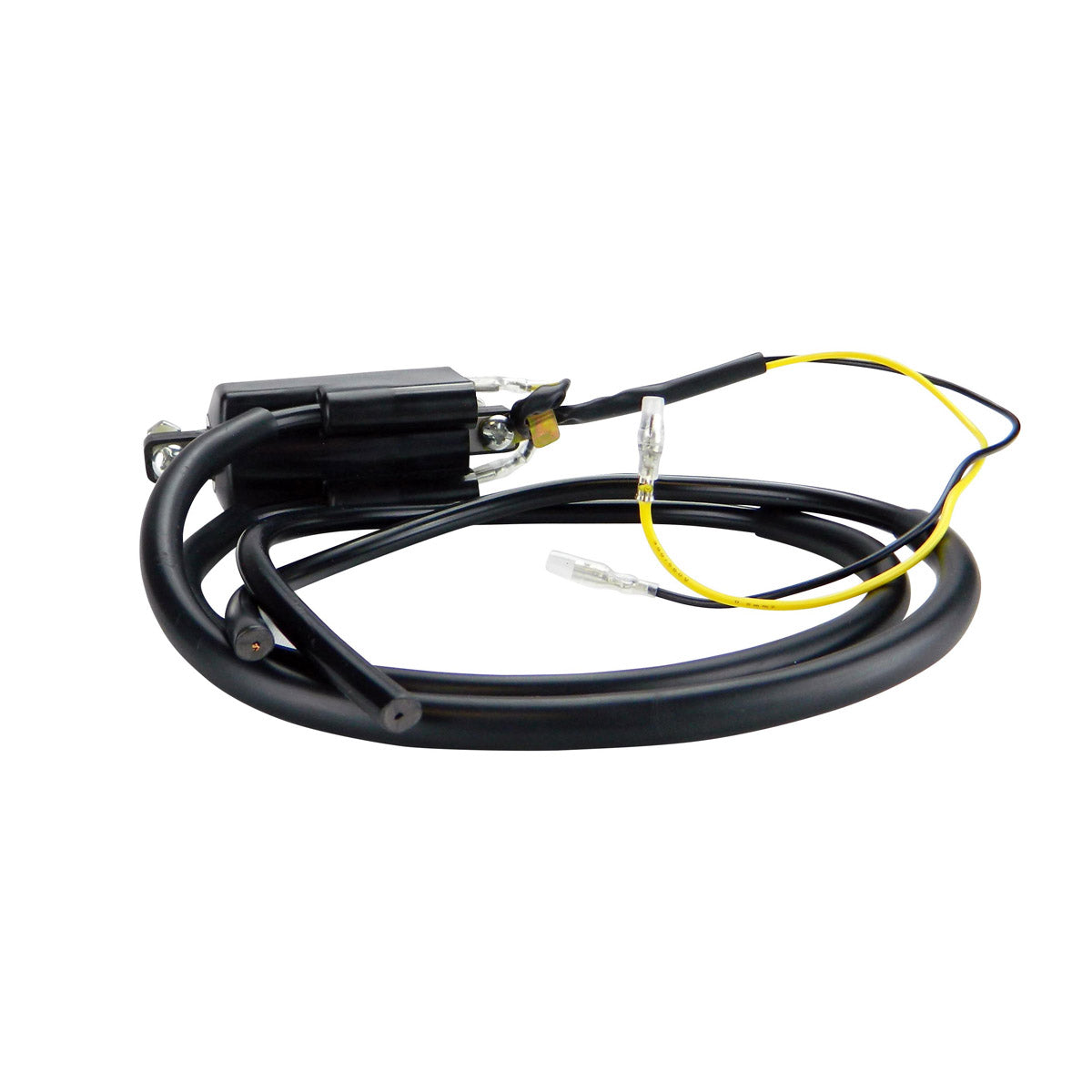

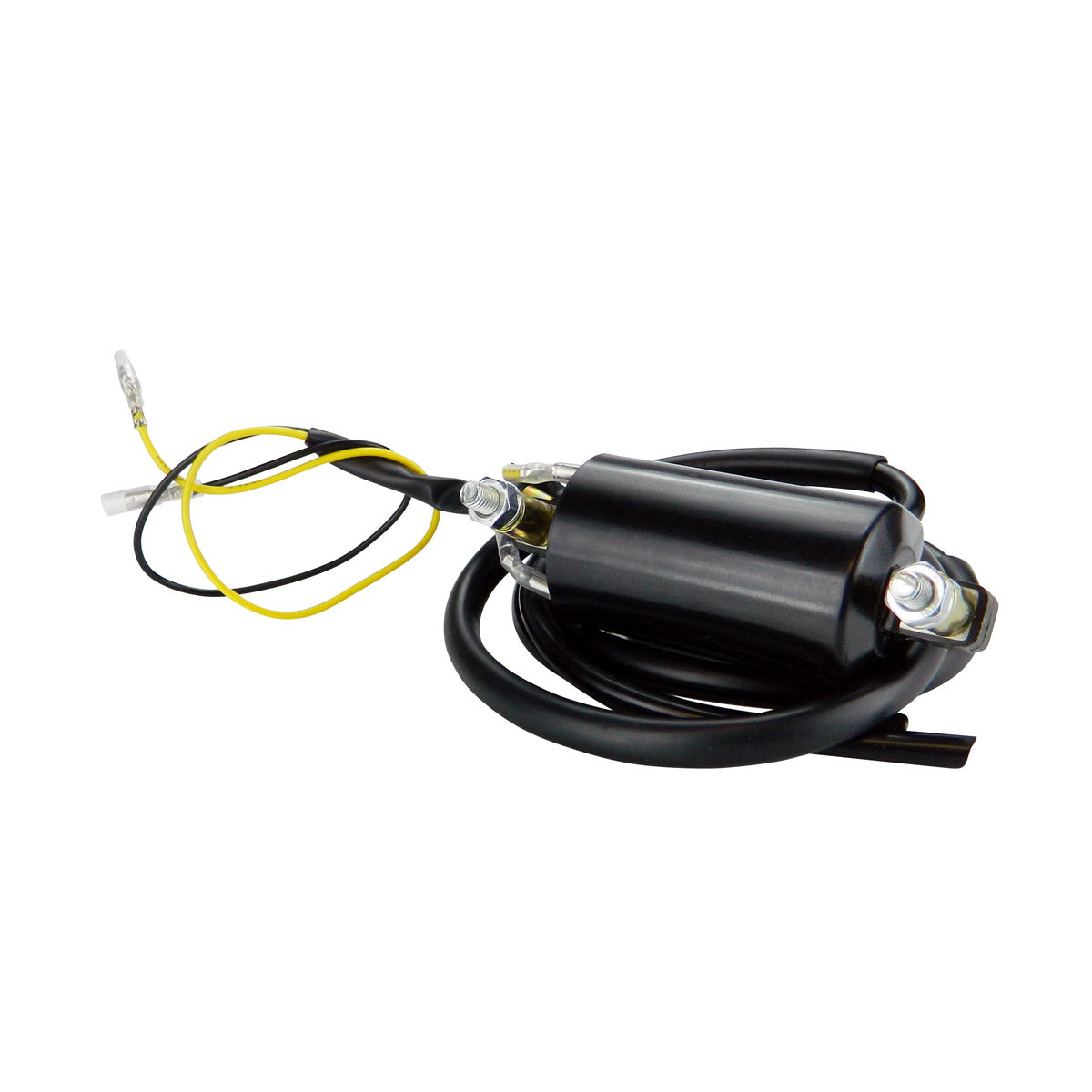

A brand new aftermarket 6 volt external ignition coil of the pillar type electronic ignition conversion pattern, supplied as a direct replacement for the original unit. RMSTATOR describes this part as plug and play, direct fit and easy to install, and states that all products shipped are tested before despatch. Part number RMS060-104477 is listed by RMSTATOR as a universal fit coil suited to classic Honda, Kawasaki, Suzuki and Yamaha machines running a 6 volt ignition system.

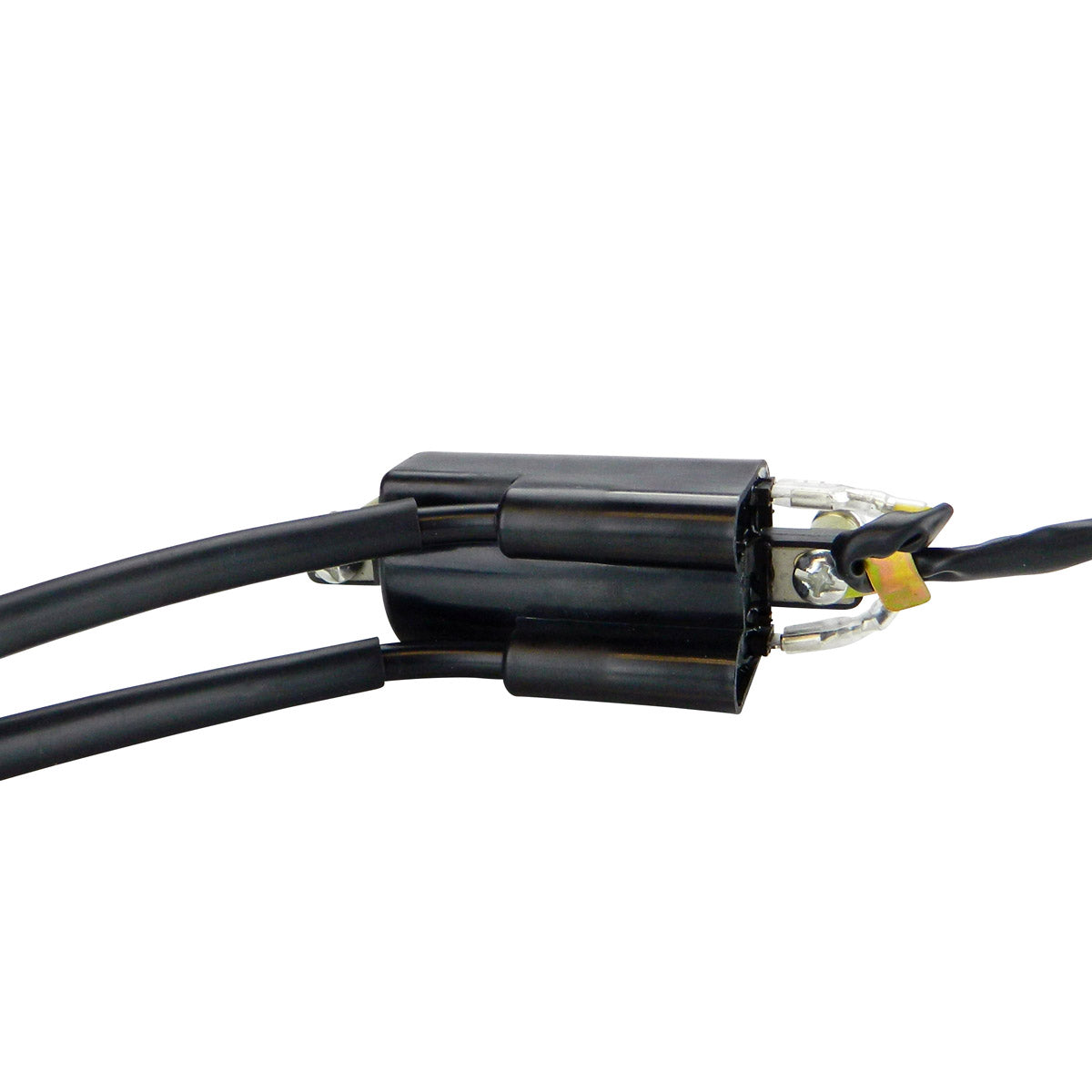

The ignition coil is the transformer that turns the low voltage supplied by the ignition system into the high voltage needed to jump the spark plug gap. This is a dual lead coil, which means it feeds two spark plug leads from a single body, the arrangement commonly used on parallel twins where both cylinders fire together. It carries a resistance of 1.5 ohms and is specified for 6 volt systems, so it must be matched to a 6 volt machine rather than a 12 volt one. The coil body measures 100 mm long, 50 mm wide and 45 mm high, with 450 mm of high tension lead and mounting holes 90 mm apart centre to centre. Because this is a pillar type unit, the leads screw into pillars on the coil body rather than being moulded in, which makes replacing a perished or arcing HT lead straightforward without changing the coil.

RMSTATOR notes that all item pictures are accurate and that if you are in any doubt you should not hesitate to compare the item shown against your original part. Because this is a universal fit component, the physical dimensions, the 90 mm mounting centres, the 6 volt rating and the 1.5 ohm resistance are what determine whether it suits your machine, rather than a make and model listing.
