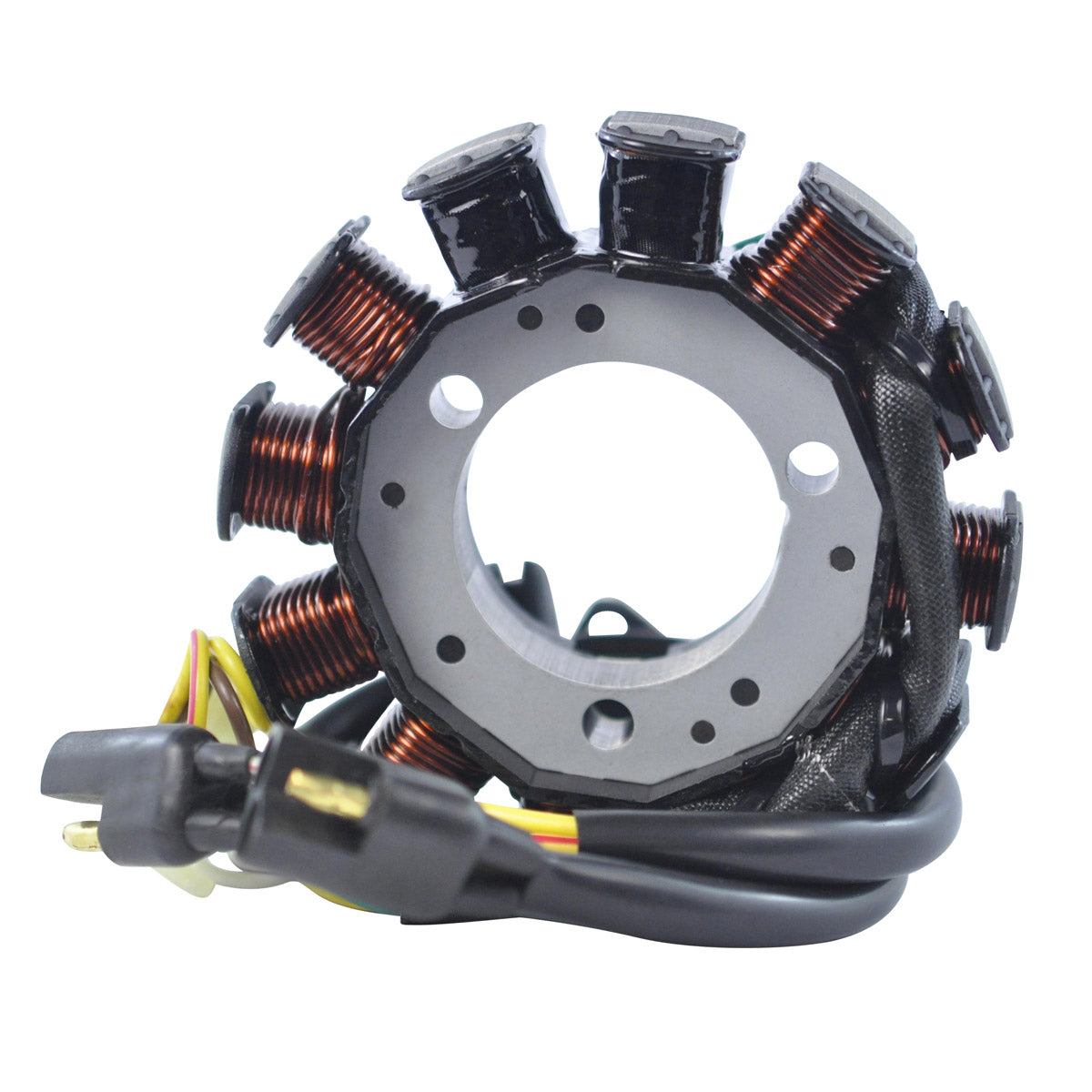

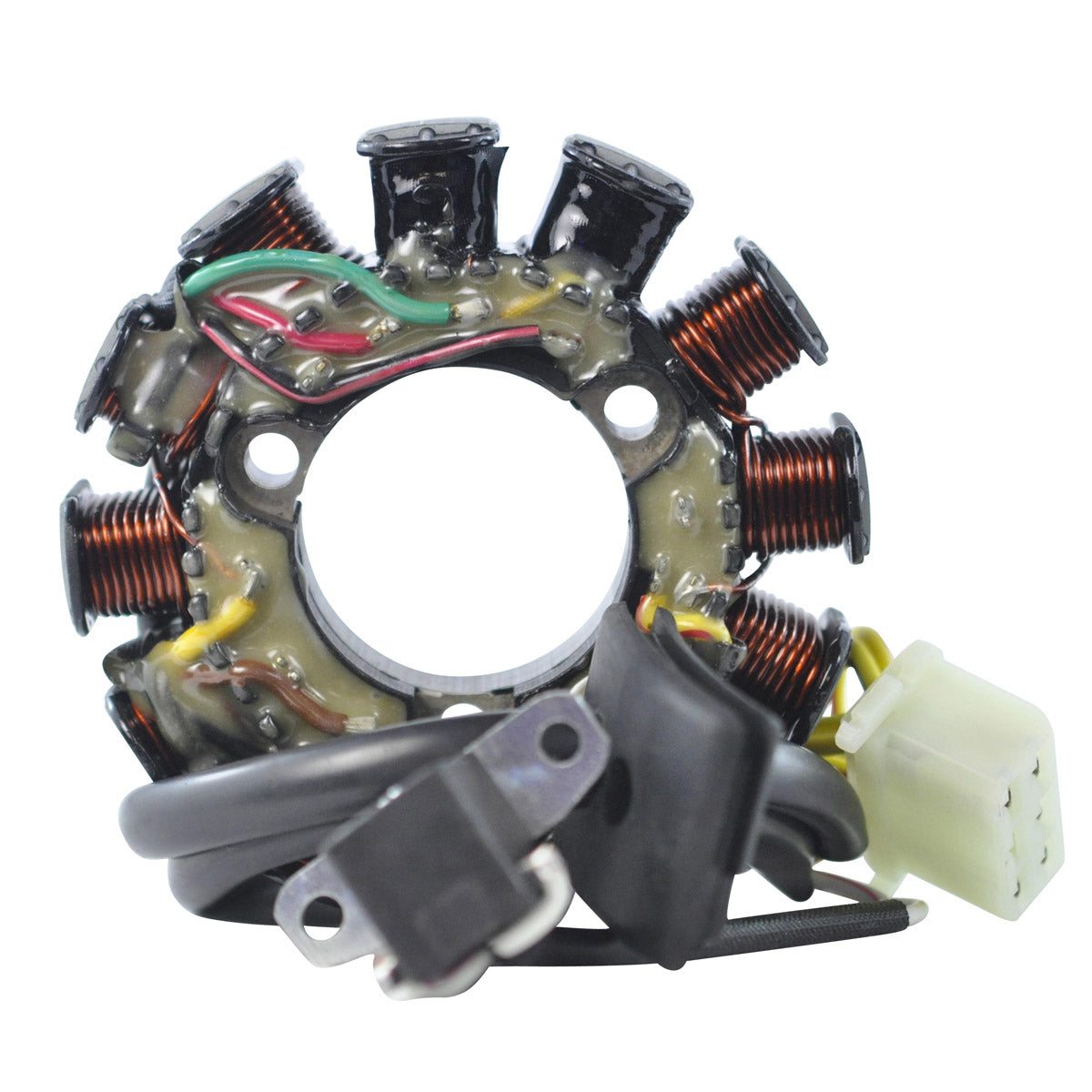

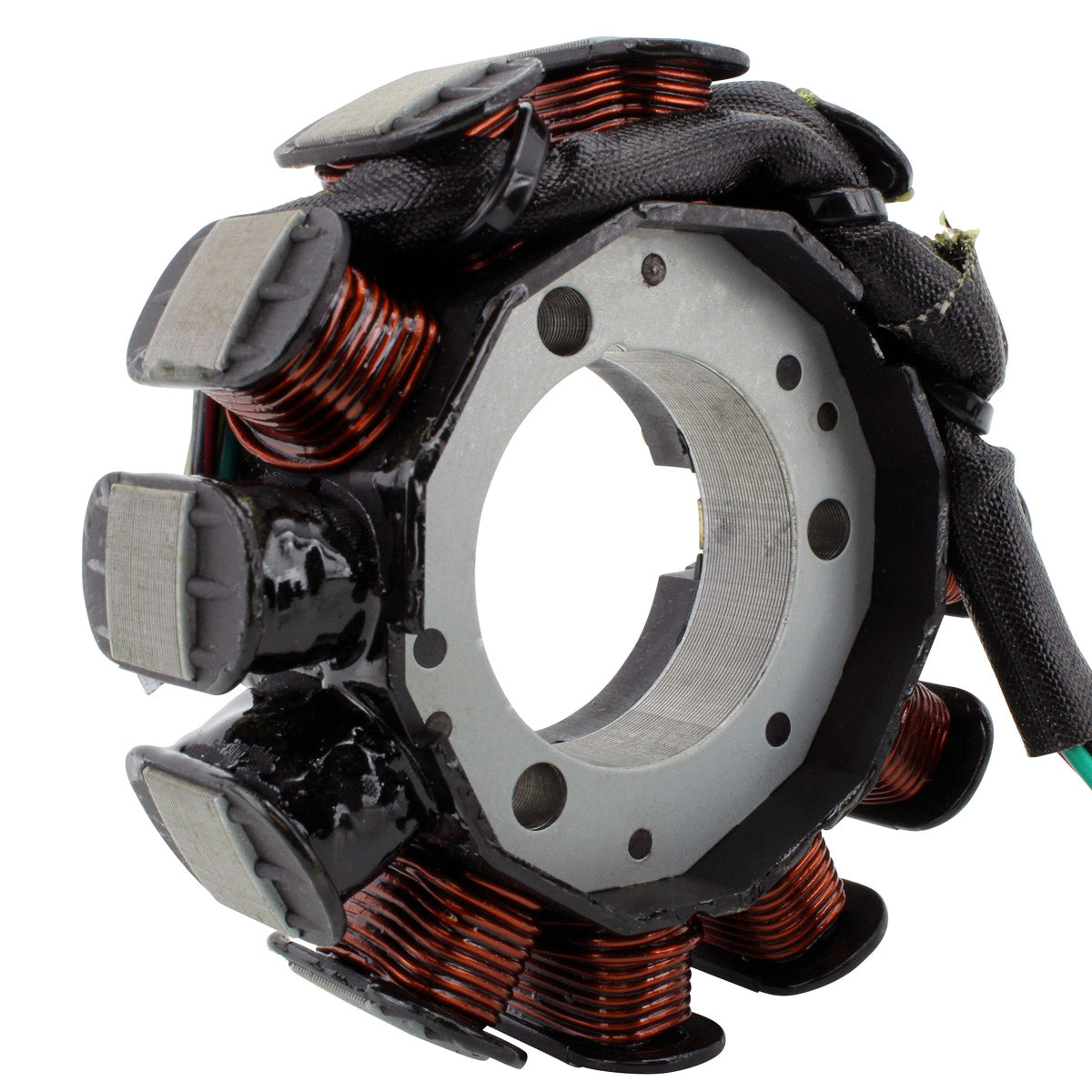

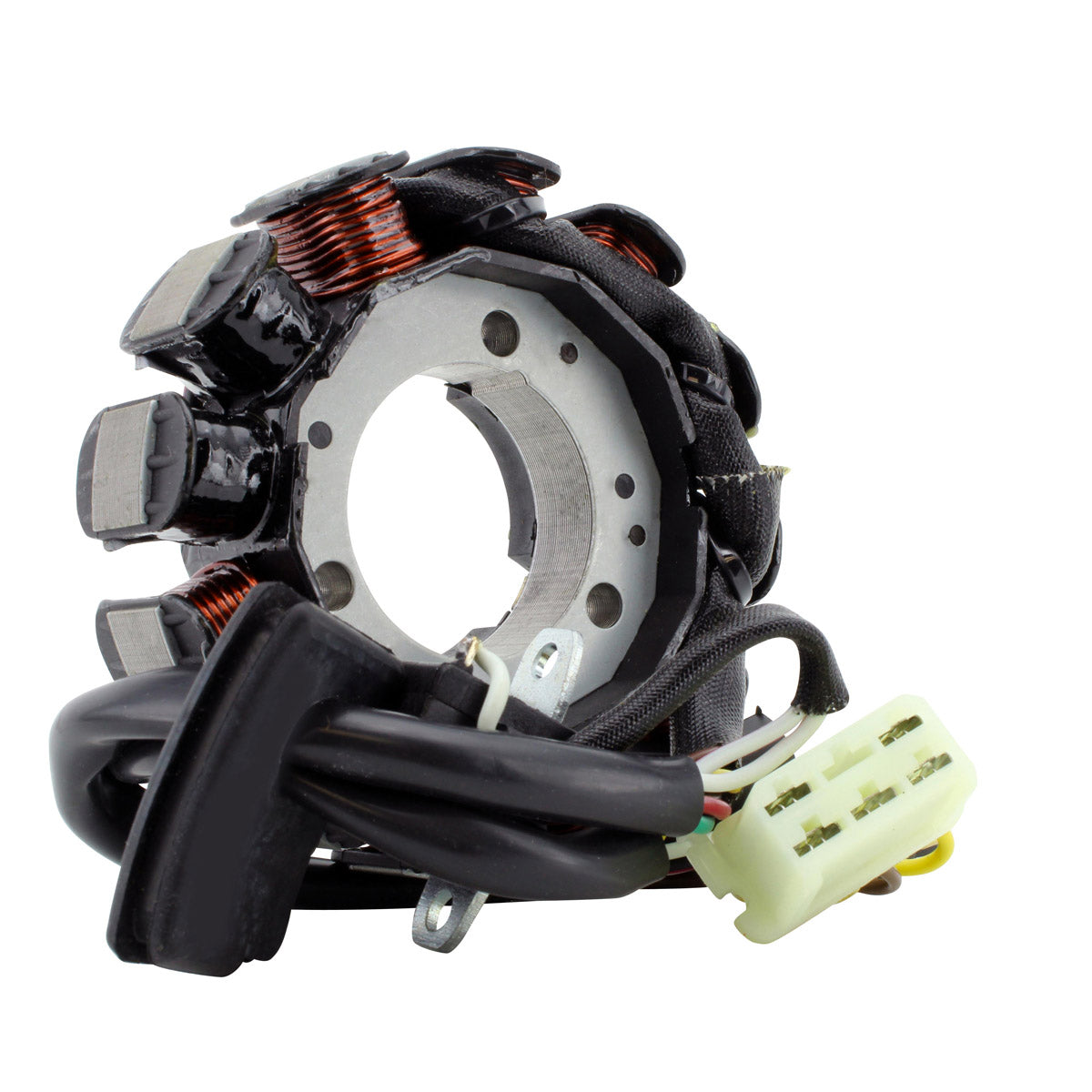

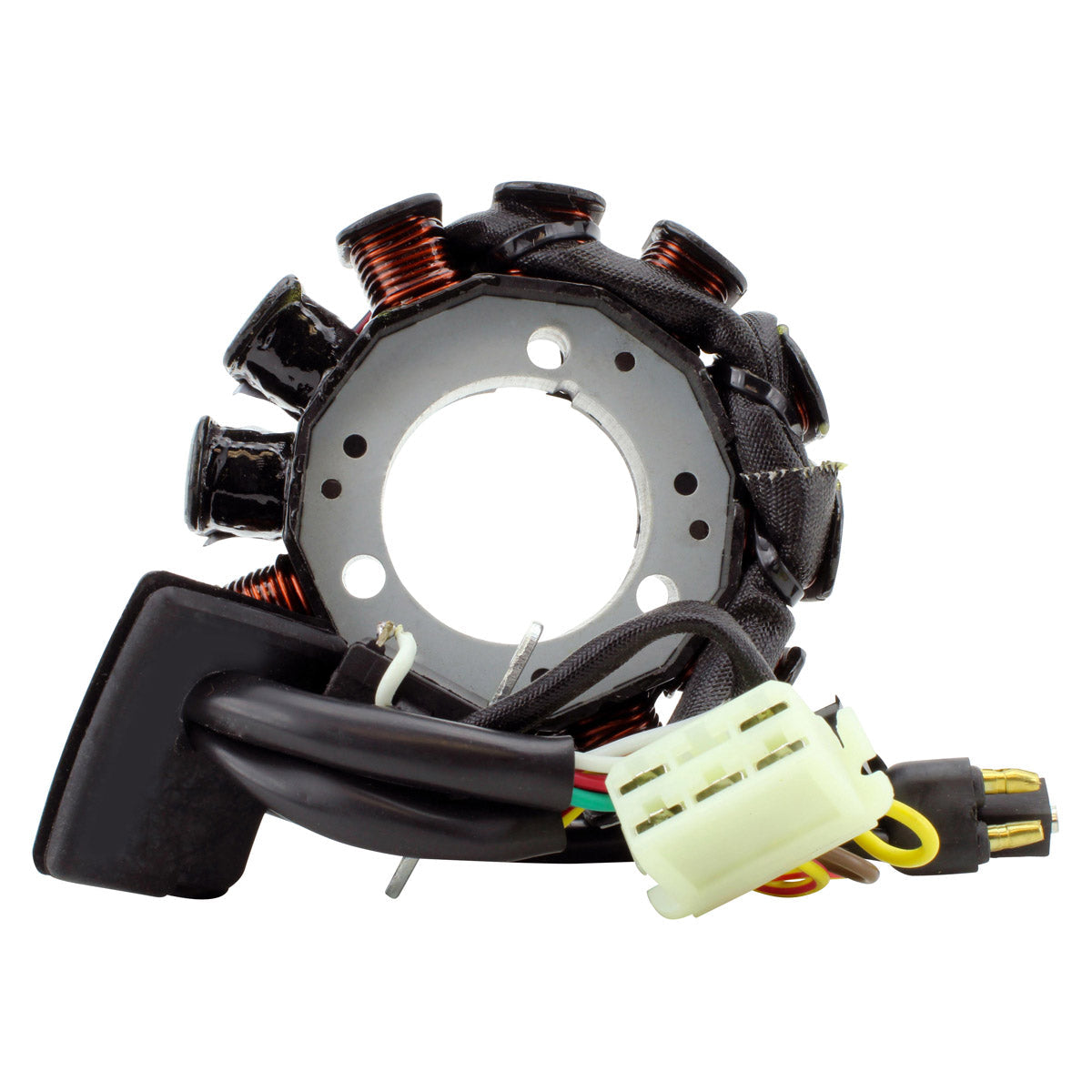

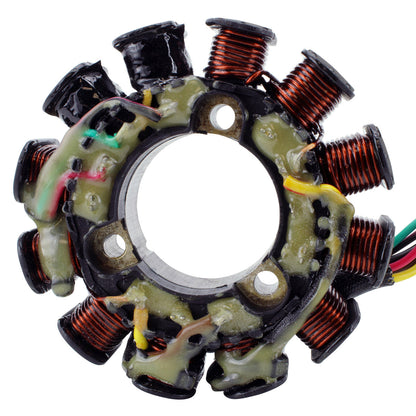

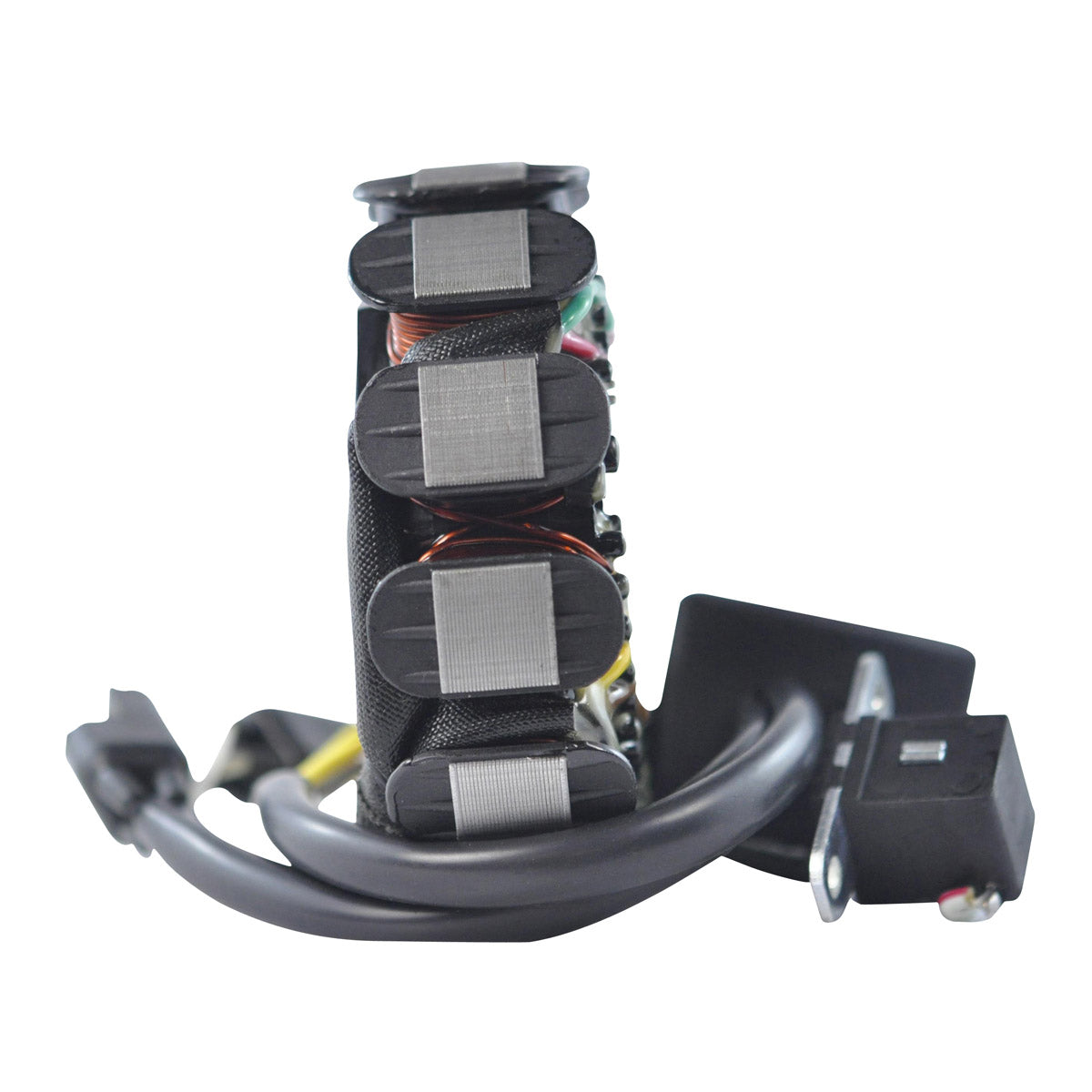

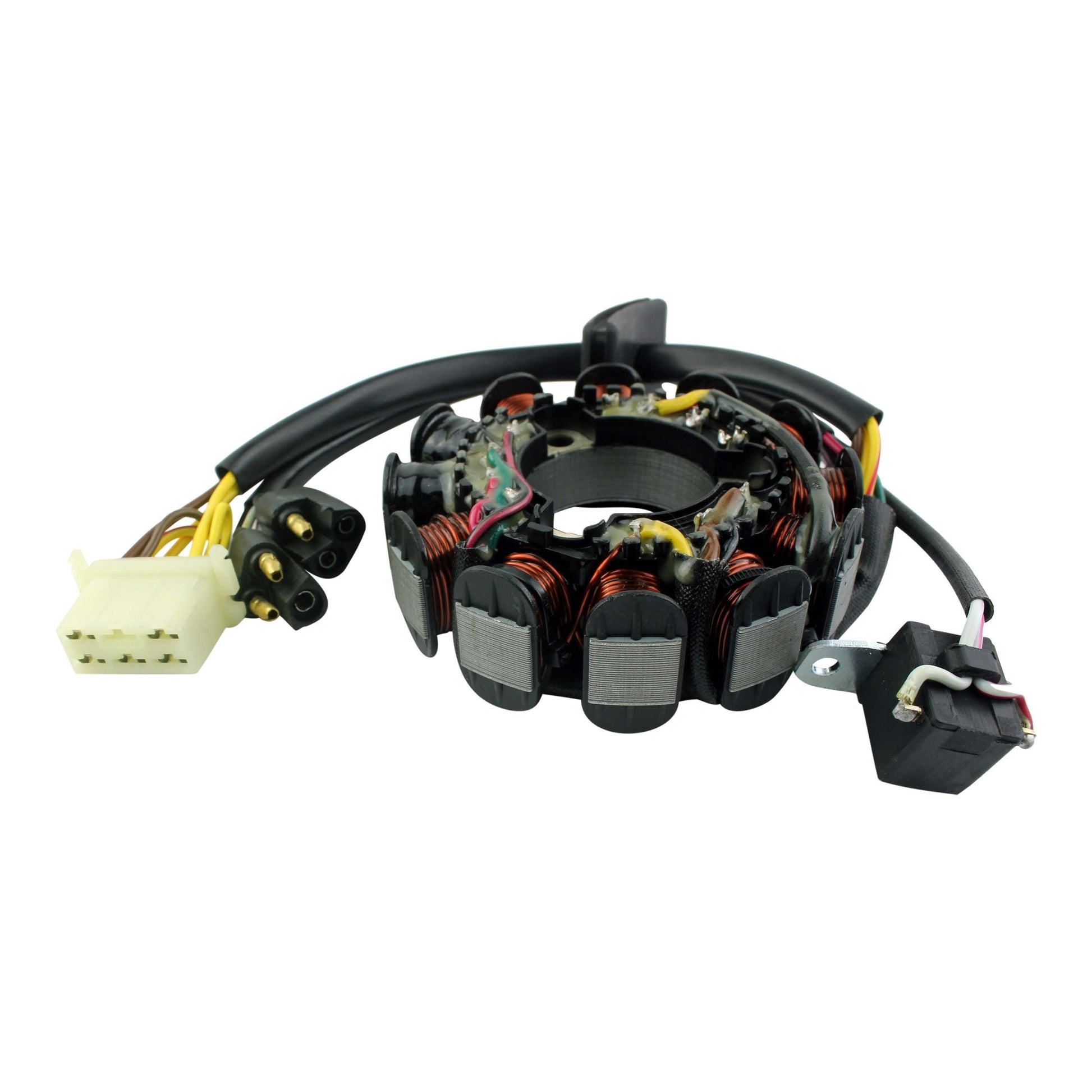

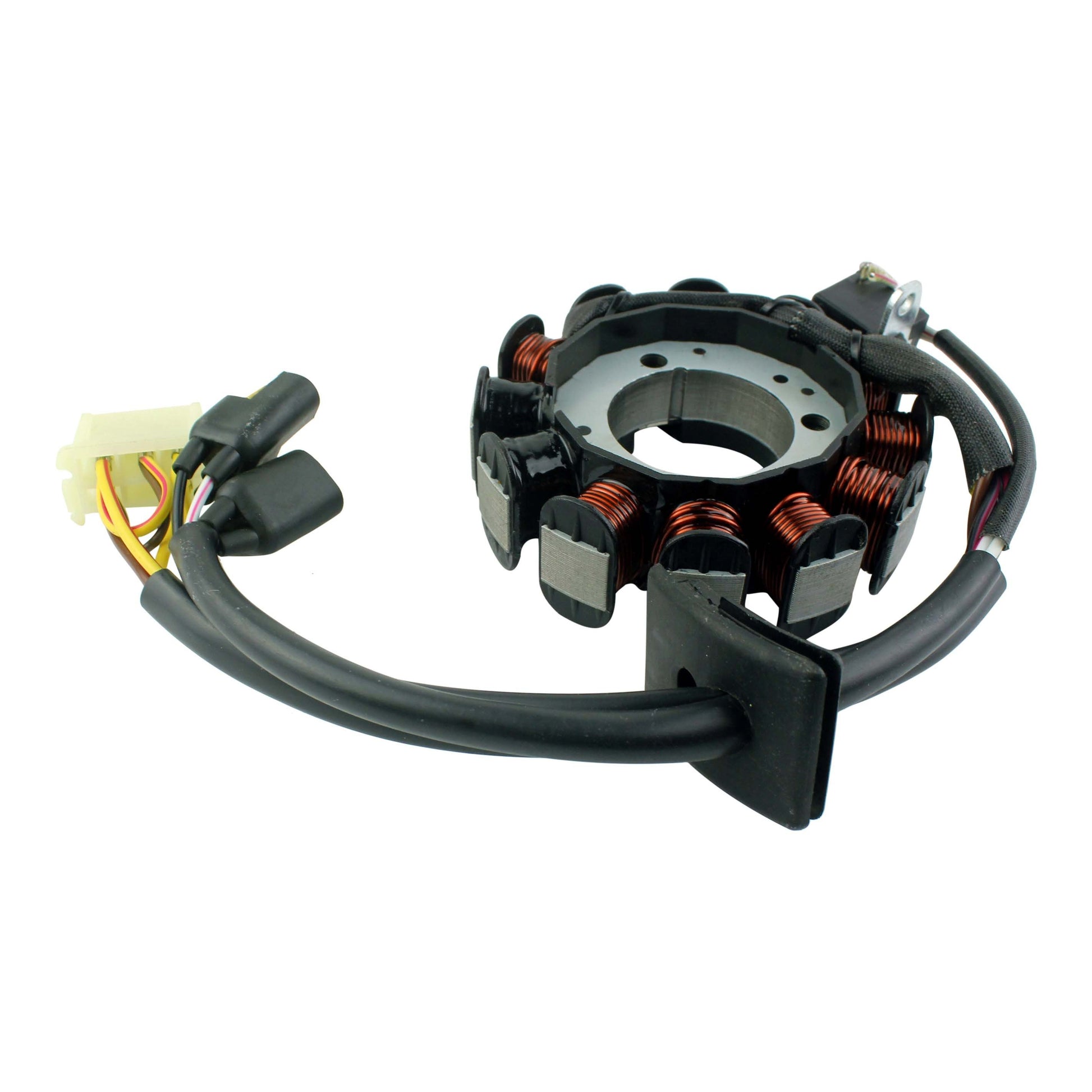

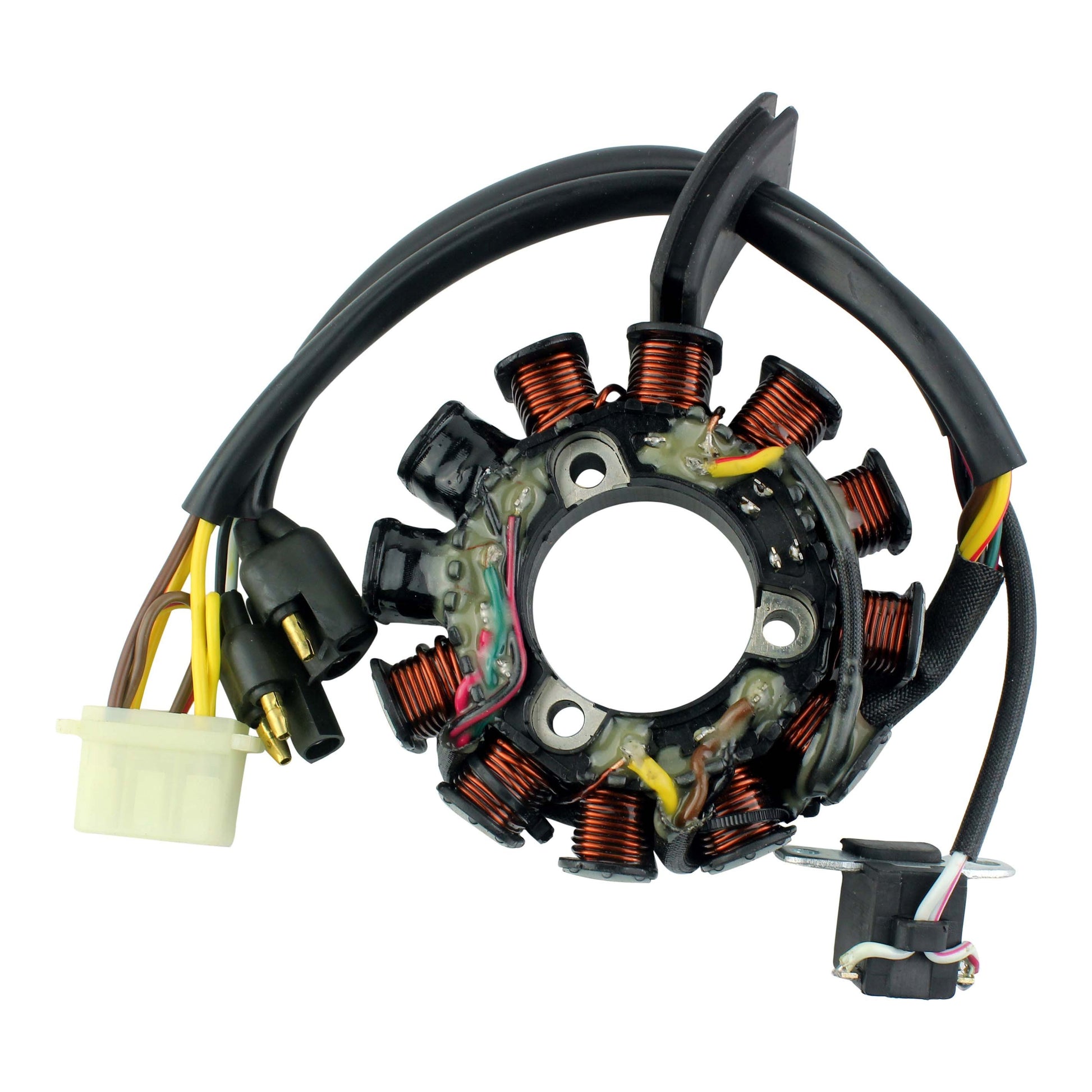

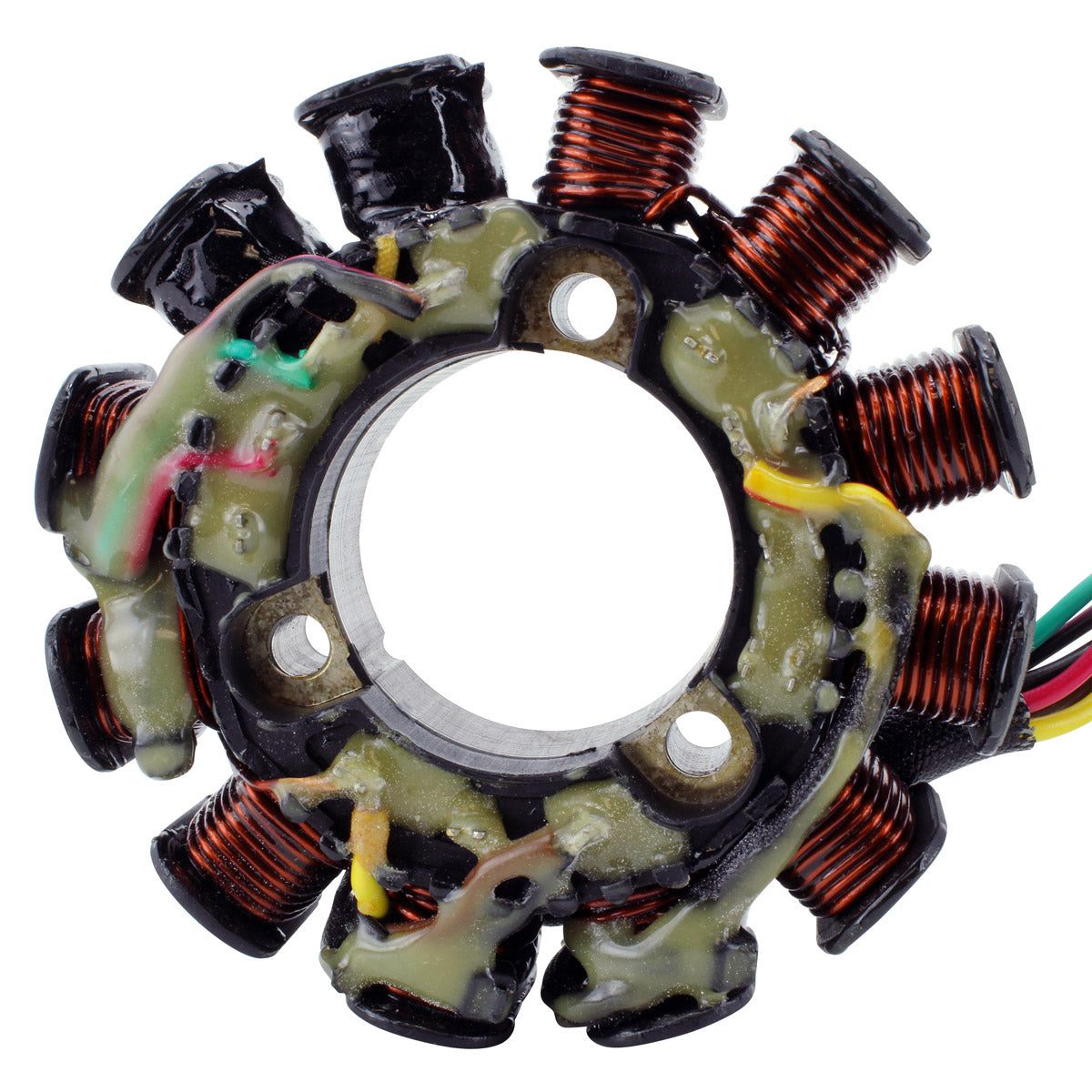

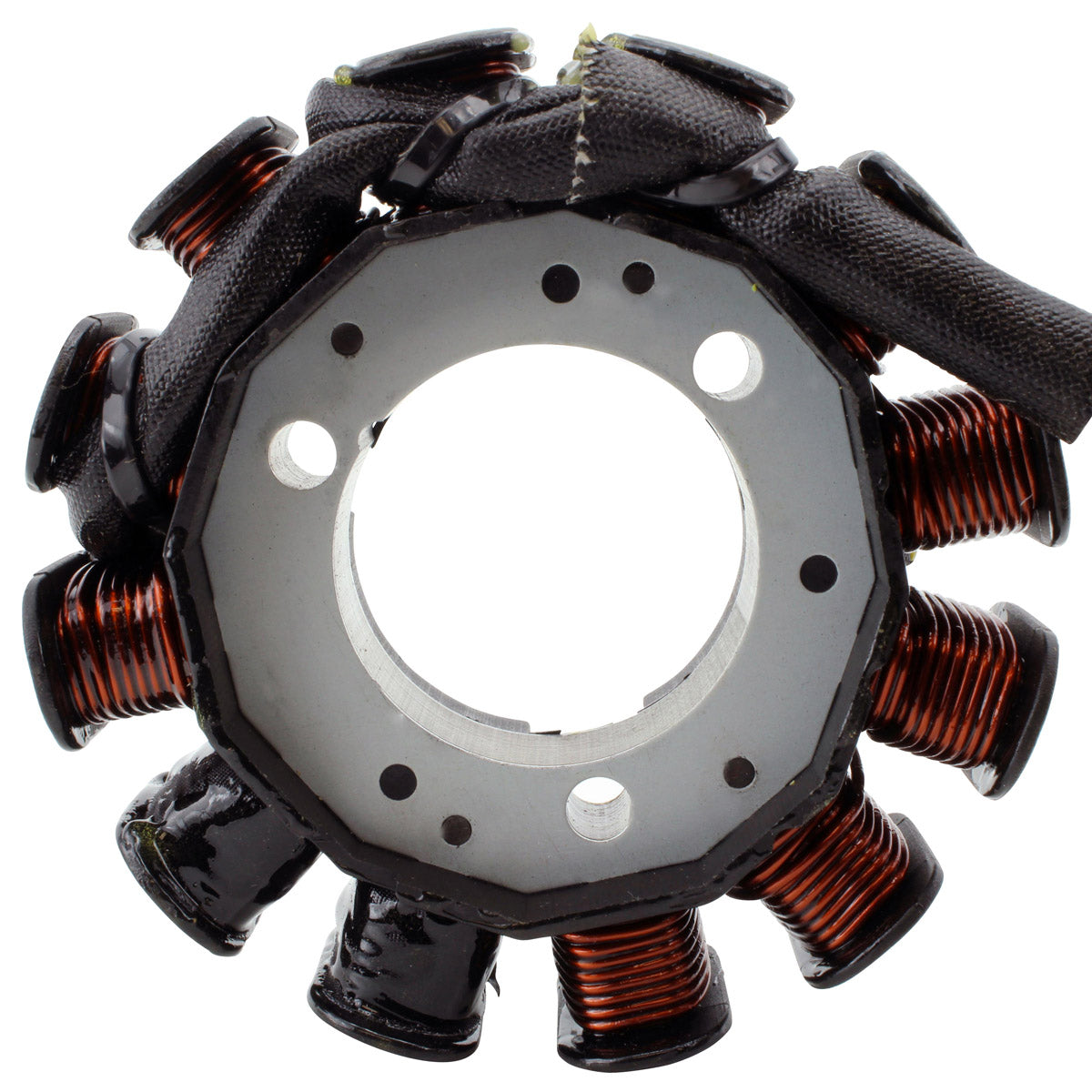

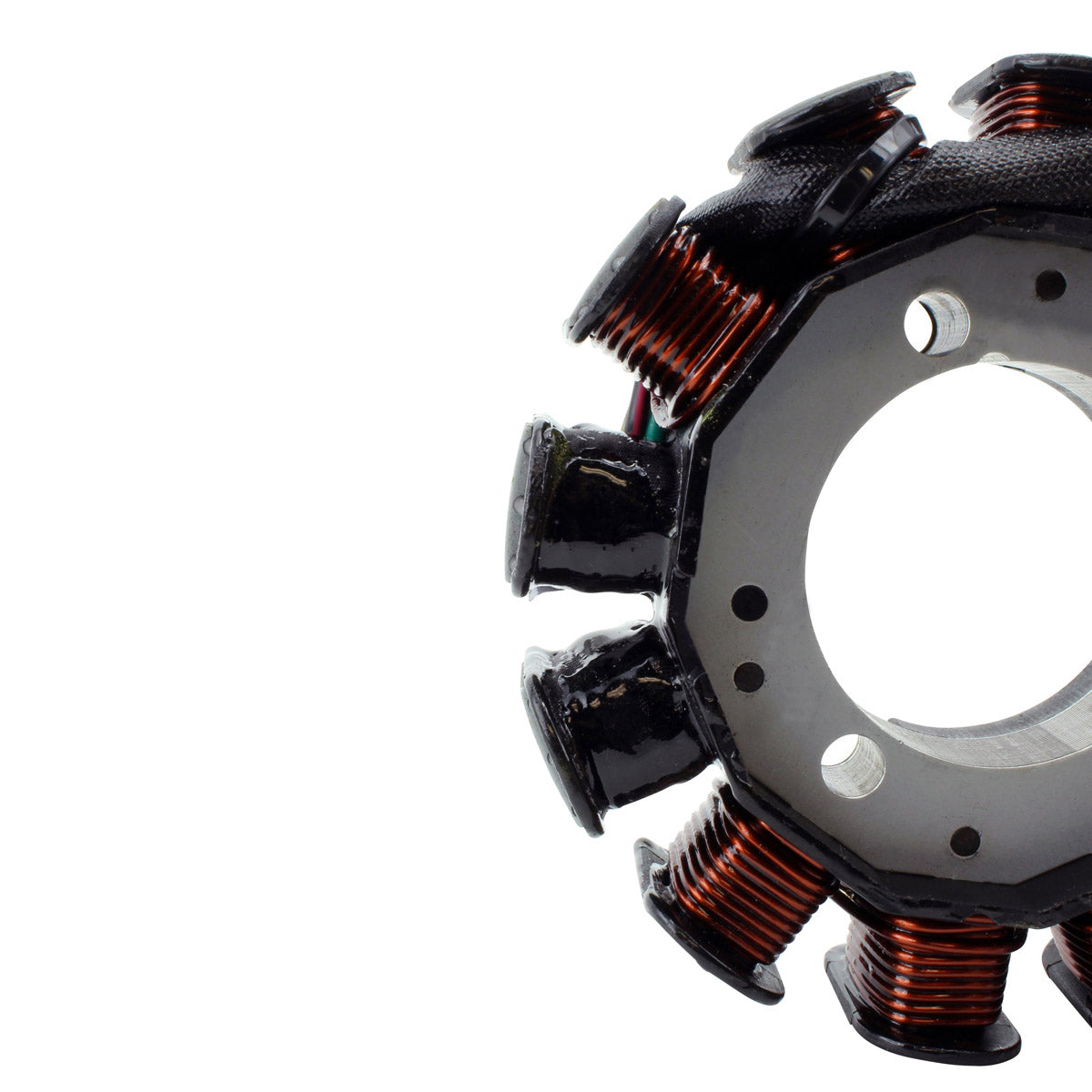

This is a brand new stator built as a direct replacement for the original unit fitted to the Polaris Classic, Edge, Indy, Touring and Transport 340 cc carburettor fan-cooled snowmobiles built between 2004 and 2008. It cross references Polaris part number 3089472 and is a plug-and-play, direct fit item that mounts on the standard fixings and uses the factory connectors, so there is no cutting or splicing of the harness.
The assembly is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. It arrives complete: the pickup pulsar coil is included alongside the connector and rubber grommet, so the ignition trigger is replaced at the same time as the charging and source windings rather than being reused. All products are tested before shipment, and the winding resistances below let you confirm the diagnosis on your existing part first.
Key Features
- Brand new stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

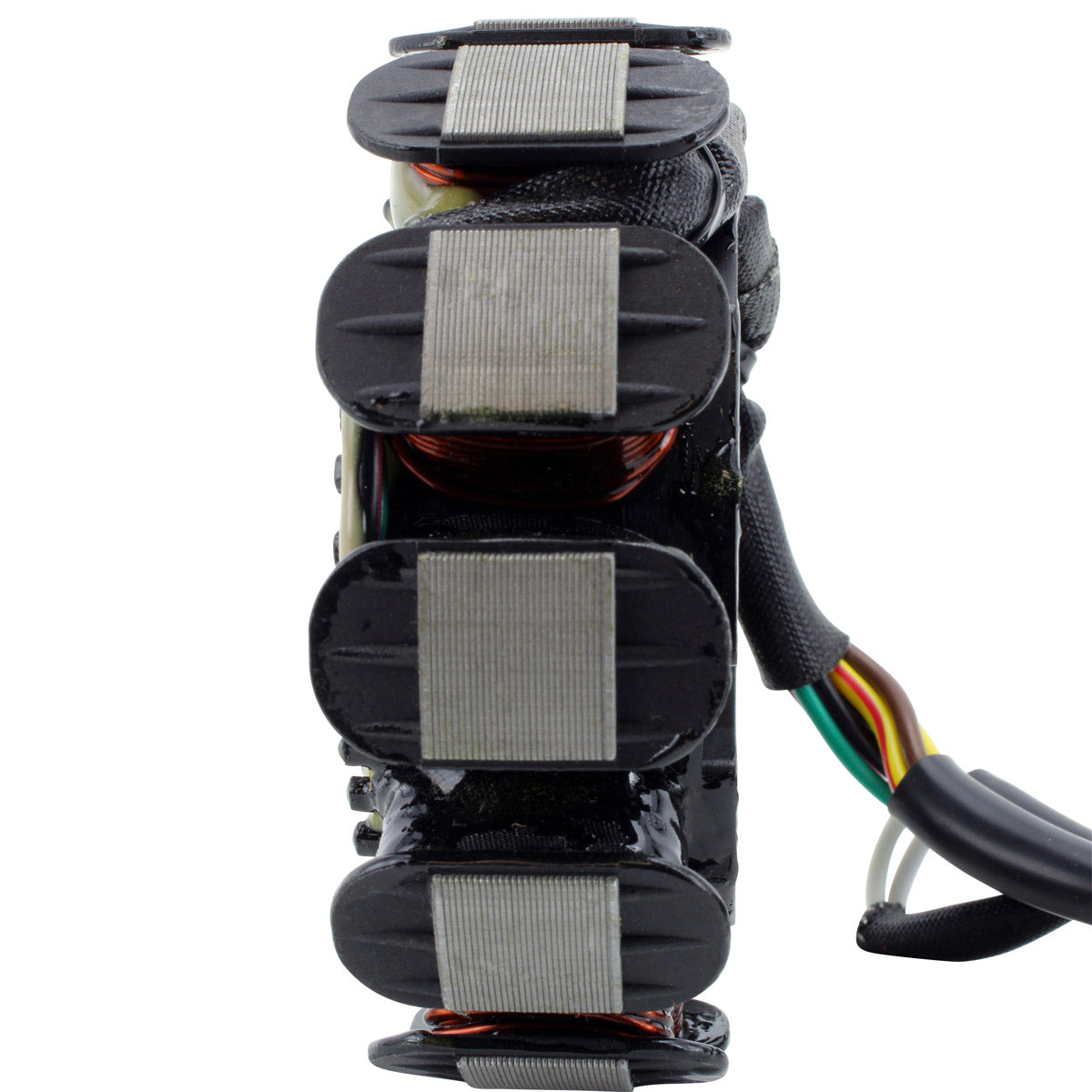

- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pickup pulsar coil included

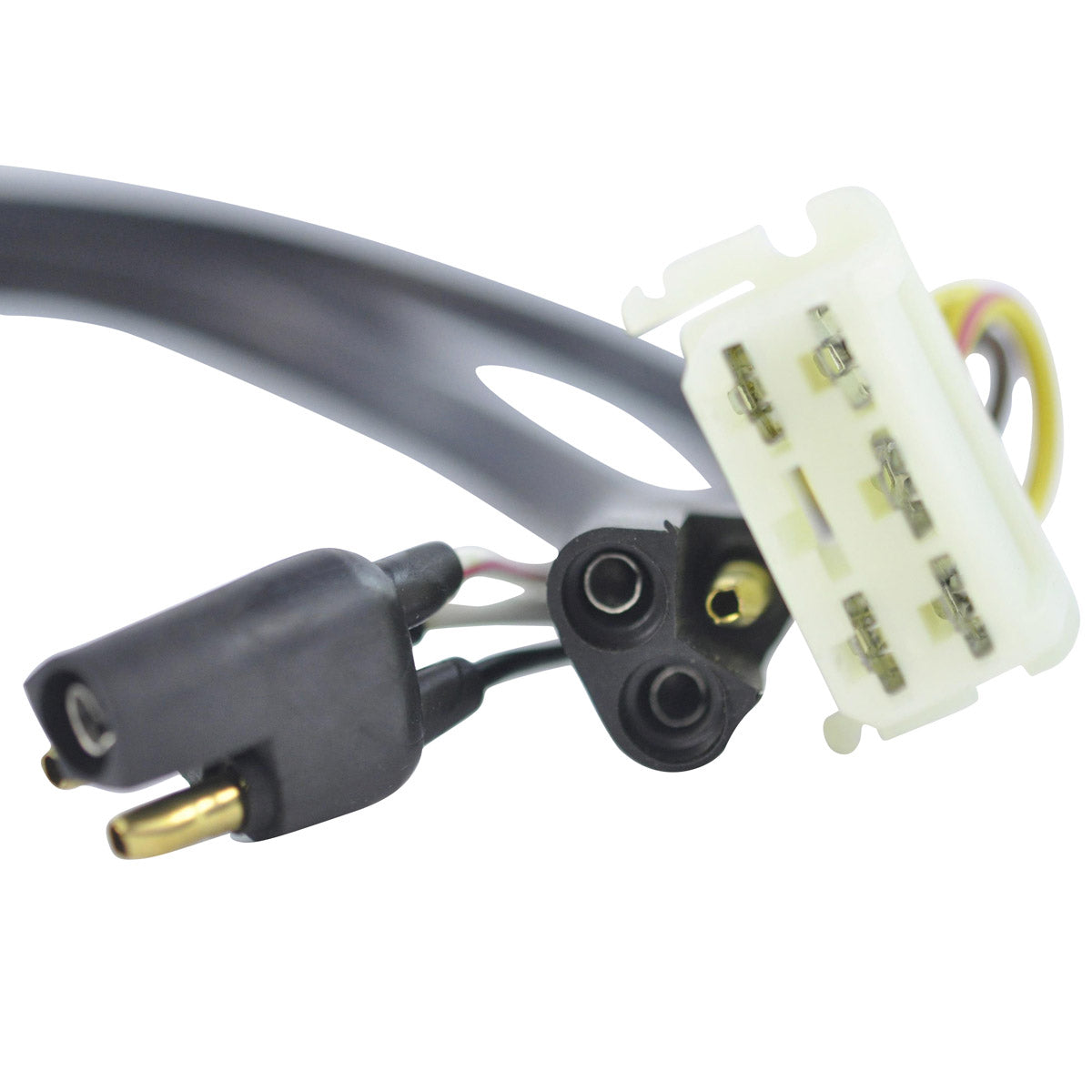

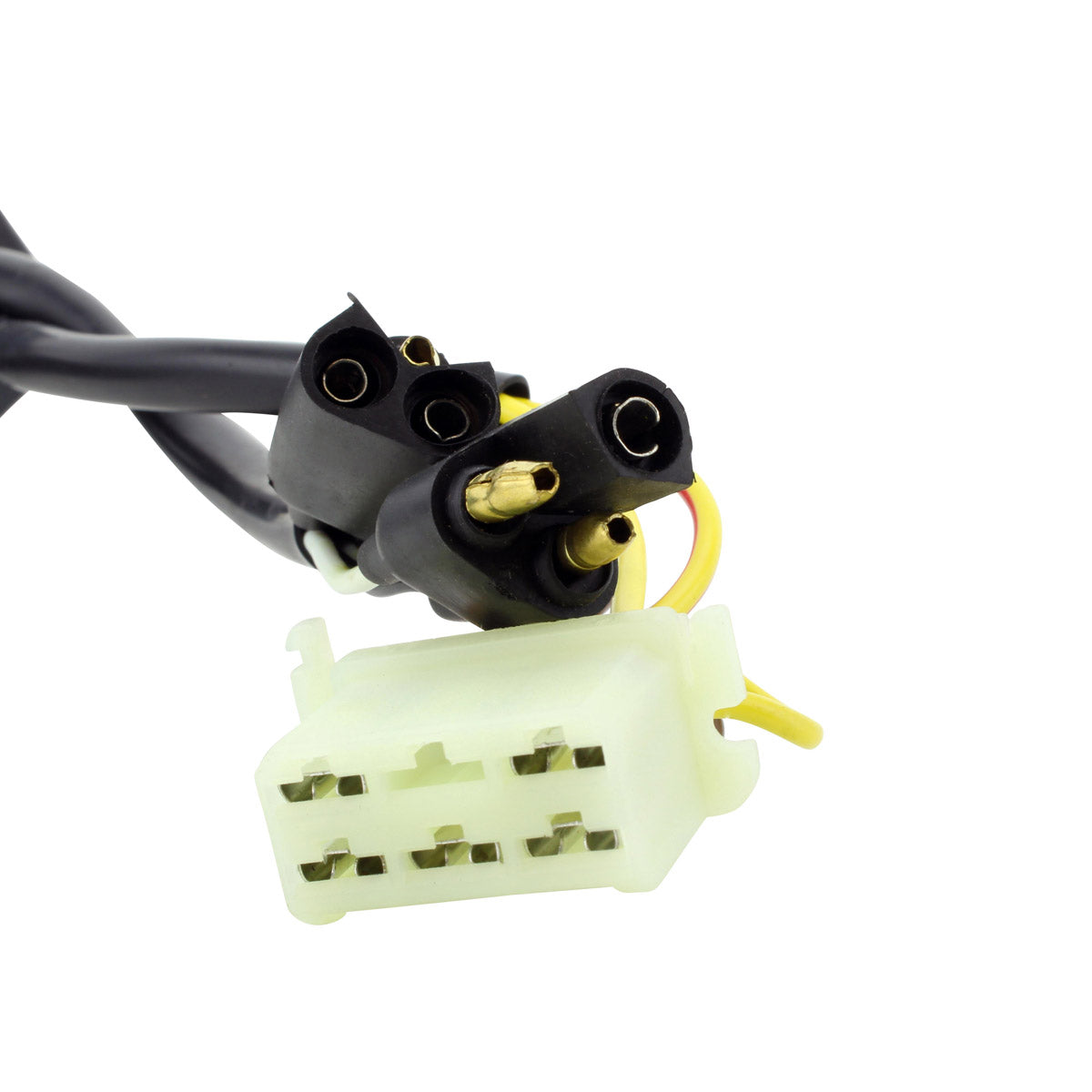

- Connector included
- Rubber grommet included
- All products tested before shipment
- Cross references Polaris 3089472
Technical Specs
| Specification |
Detail |
| Part number |
RM01224 |
| Interior diameter |
41 mm |
| Exterior diameter |
104 mm |
| Thickness |
15 mm |
| Wire length (stator to grommet) |
65 mm |
| Wire length (grommet to plug) |
160 mm |
| Pickup coil wire length |
120 mm |
| Number of wires |
12 |
| Number of plugs |
3 |
| Number of pins |
11 |
| Alternator resistance (yellow to yellow/red) |
0.4 ohms +/- 20% |
| Pickup resistance (white/red to white) |
200 ohms +/- 20% |
| Source resistance (green and black/red to red) |
20 ohms +/- 20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Classic 340 cc Carb F/C |
2004-2008 |
| Polaris Edge 340 cc Carb F/C |
2004-2008 |
| Polaris Indy 340 cc Carb F/C |
2004-2008 |
| Polaris Touring 340 cc Carb F/C |
2004-2008 |
| Polaris Transport 340 cc Carb F/C |
2004-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3089472 |
Polaris |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct, plug-and-play replacement for the original stator on these 340 cc carburettor fan-cooled Polaris machines, using the standard mounting points and factory connectors, so no cutting or splicing is required. Check that your original unit carries part number 3089472 before ordering.
What is included in the box?
The stator unit, the pickup pulsar coil, the connector and the rubber grommet. All products are tested before shipment.
How do I know my old stator has failed?
The usual symptoms are no spark or an intermittent spark, hard starting, a battery that will not charge, dim lights and the engine cutting out under load. Verify with a multimeter: the alternator winding should read 0.4 ohms +/- 20% from yellow to yellow/red, the pickup 200 ohms +/- 20% from white/red to white, and the source winding 20 ohms +/- 20% from green and black/red to red. Open circuits or readings well outside those bands confirm a failed stator.
Does this replace the ignition trigger as well?
Yes. The pickup pulsar coil is supplied on the assembly, with a 120 mm pickup lead, so the ignition trigger is renewed along with the charging and source windings. The complete unit carries 12 wires in 3 plugs with 11 pins.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
