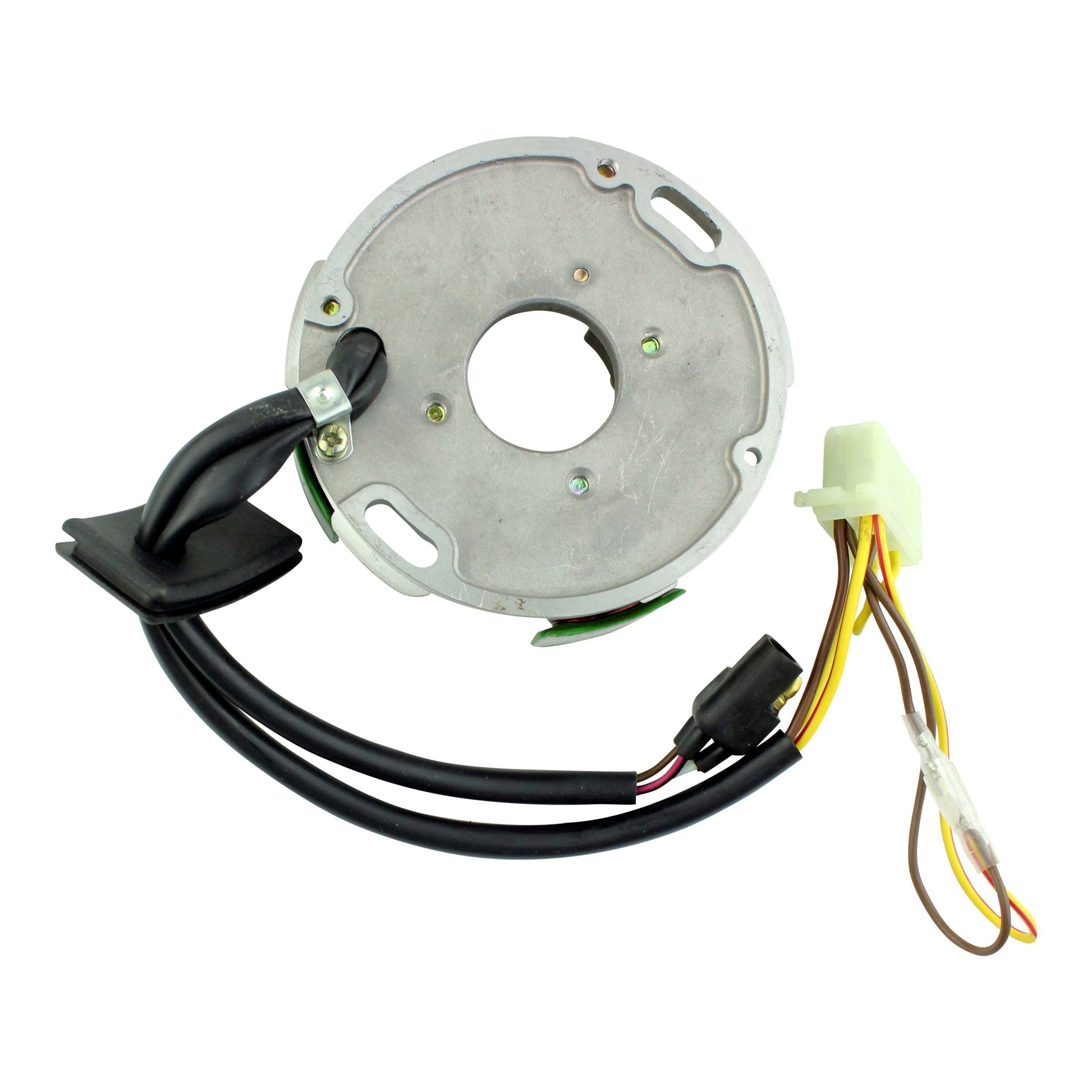

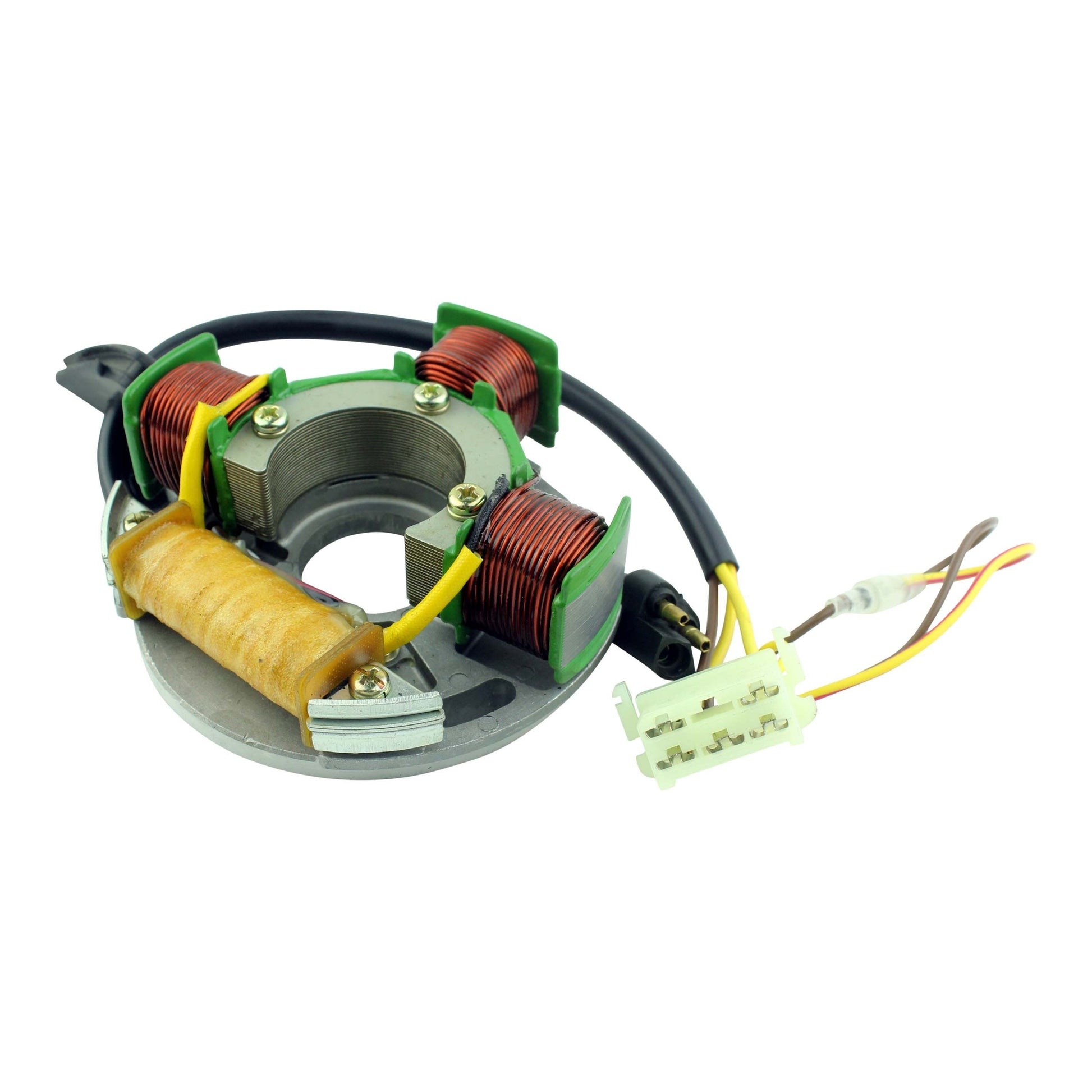

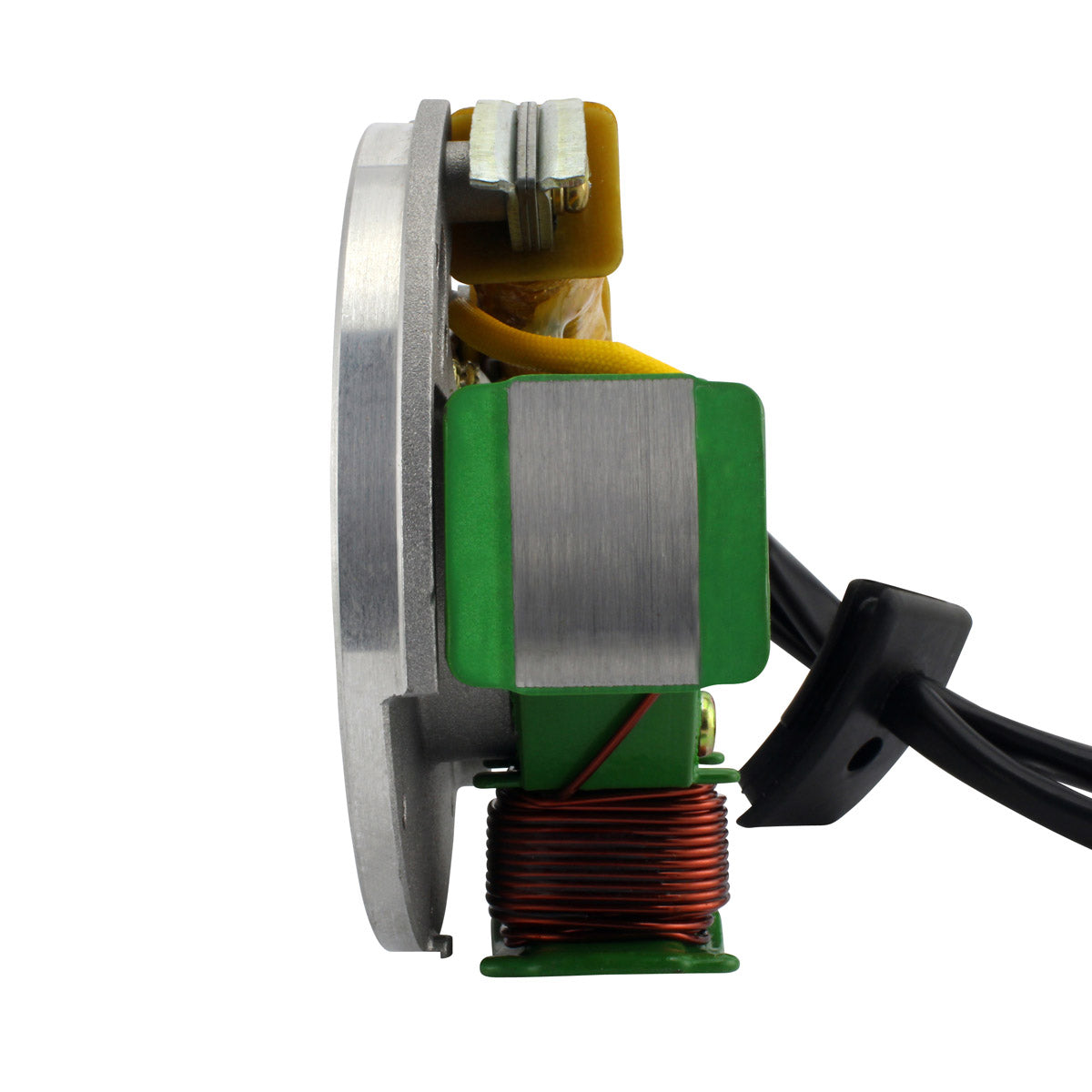

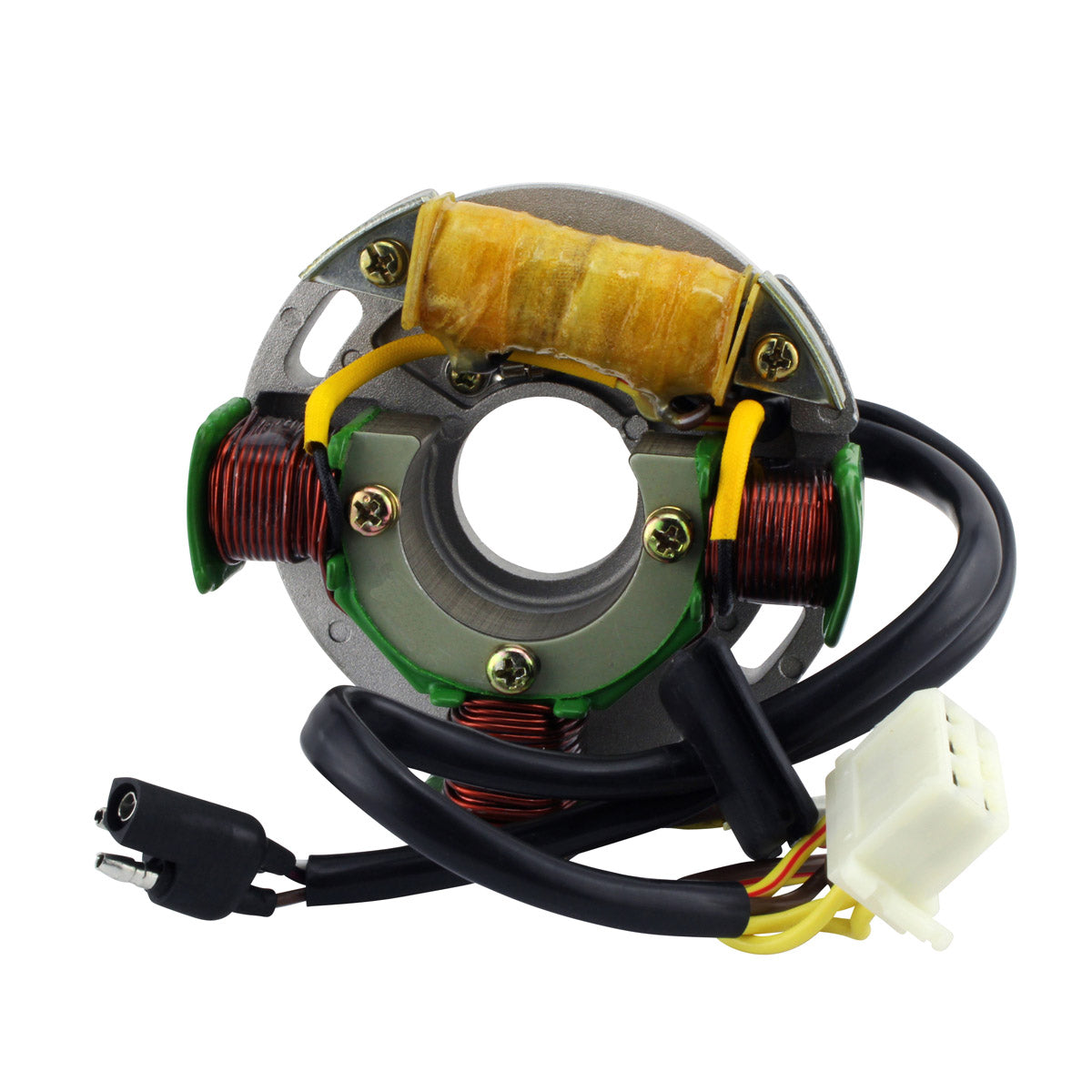

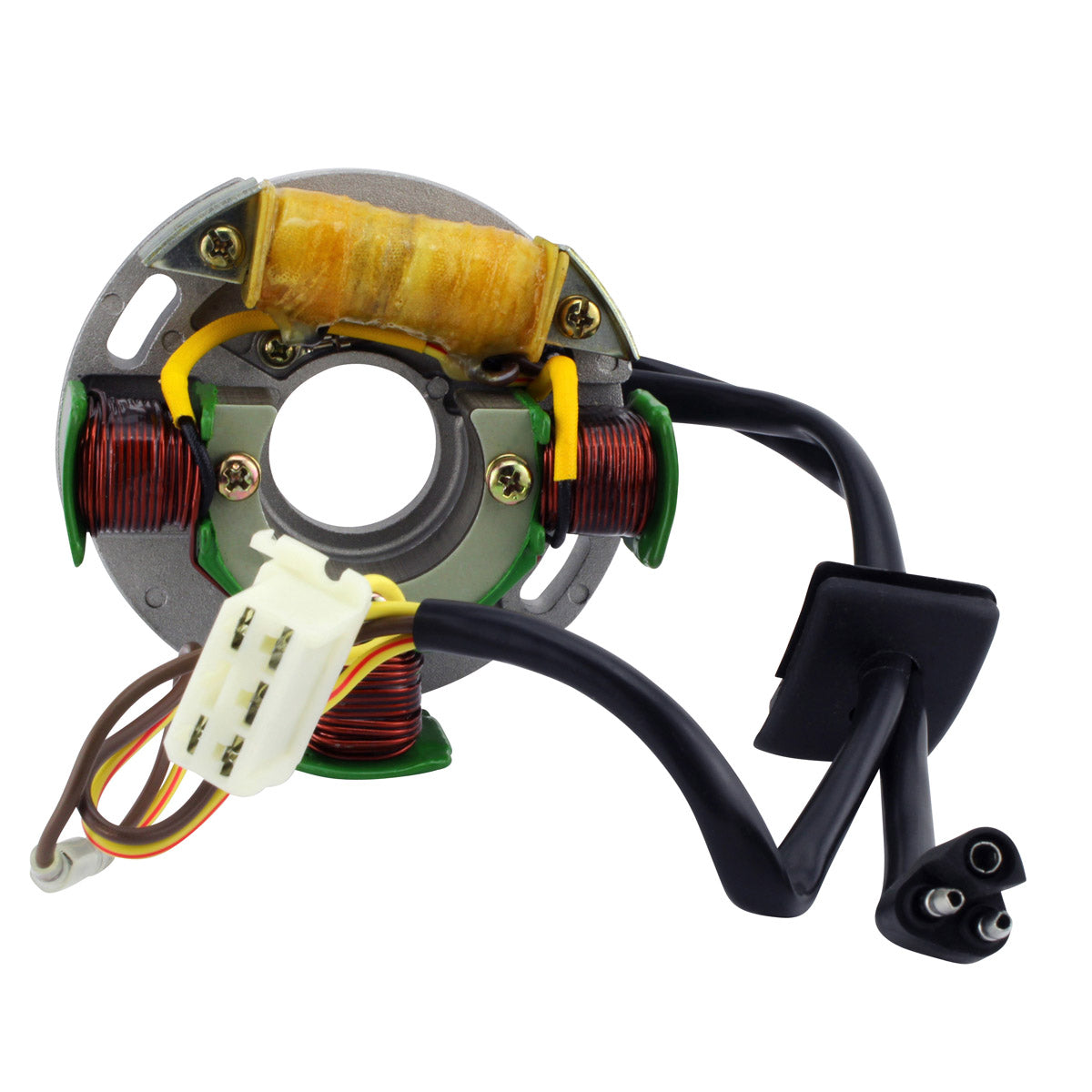

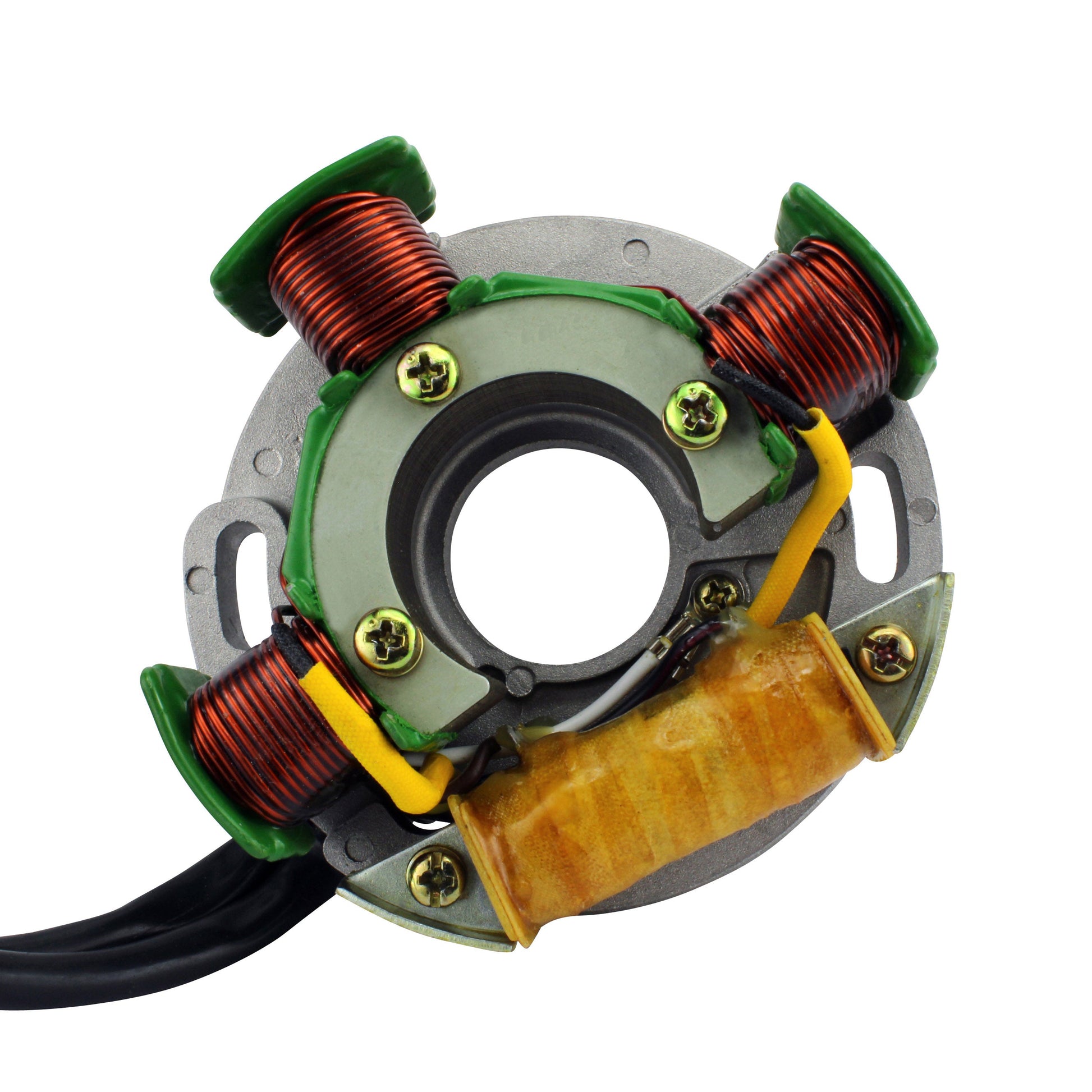

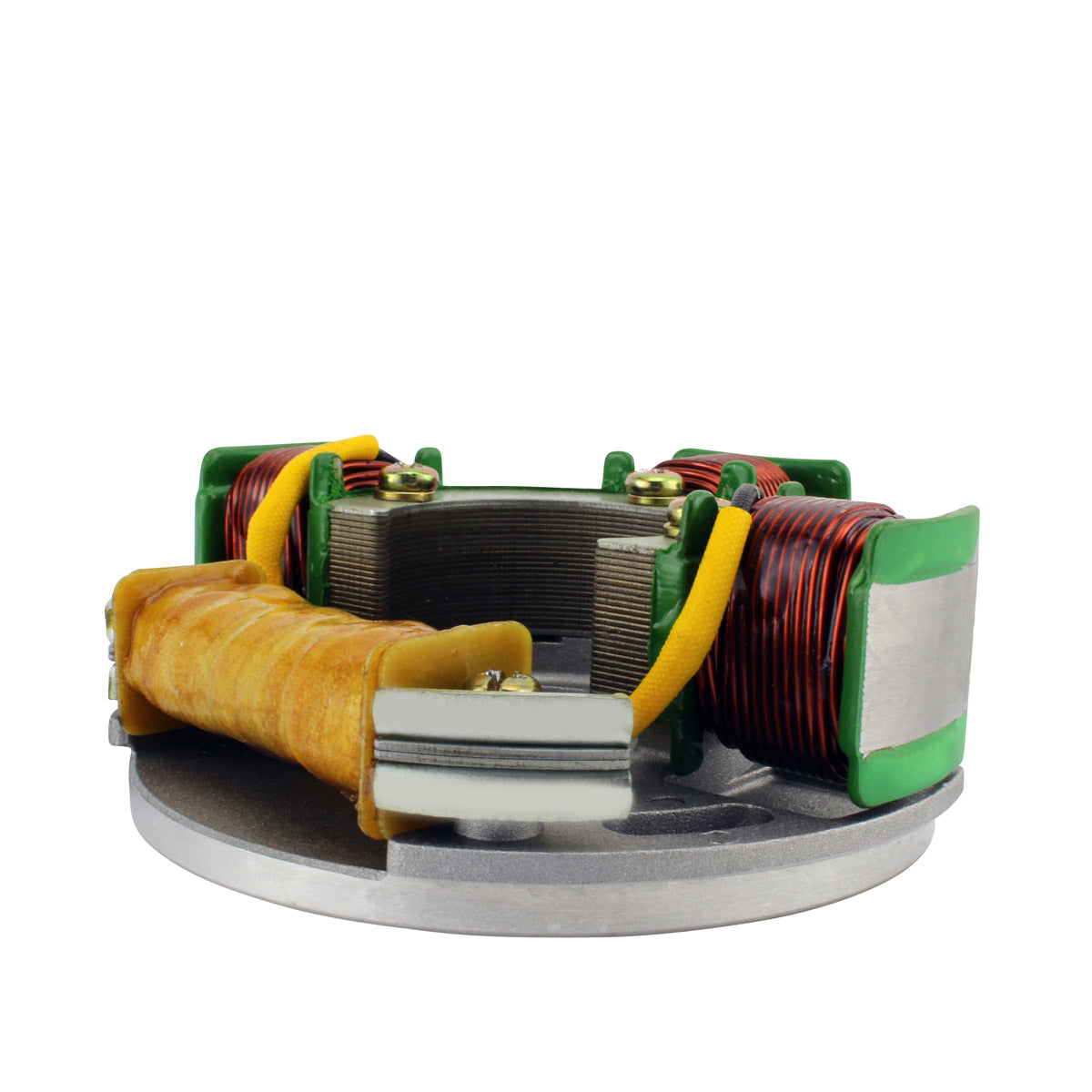

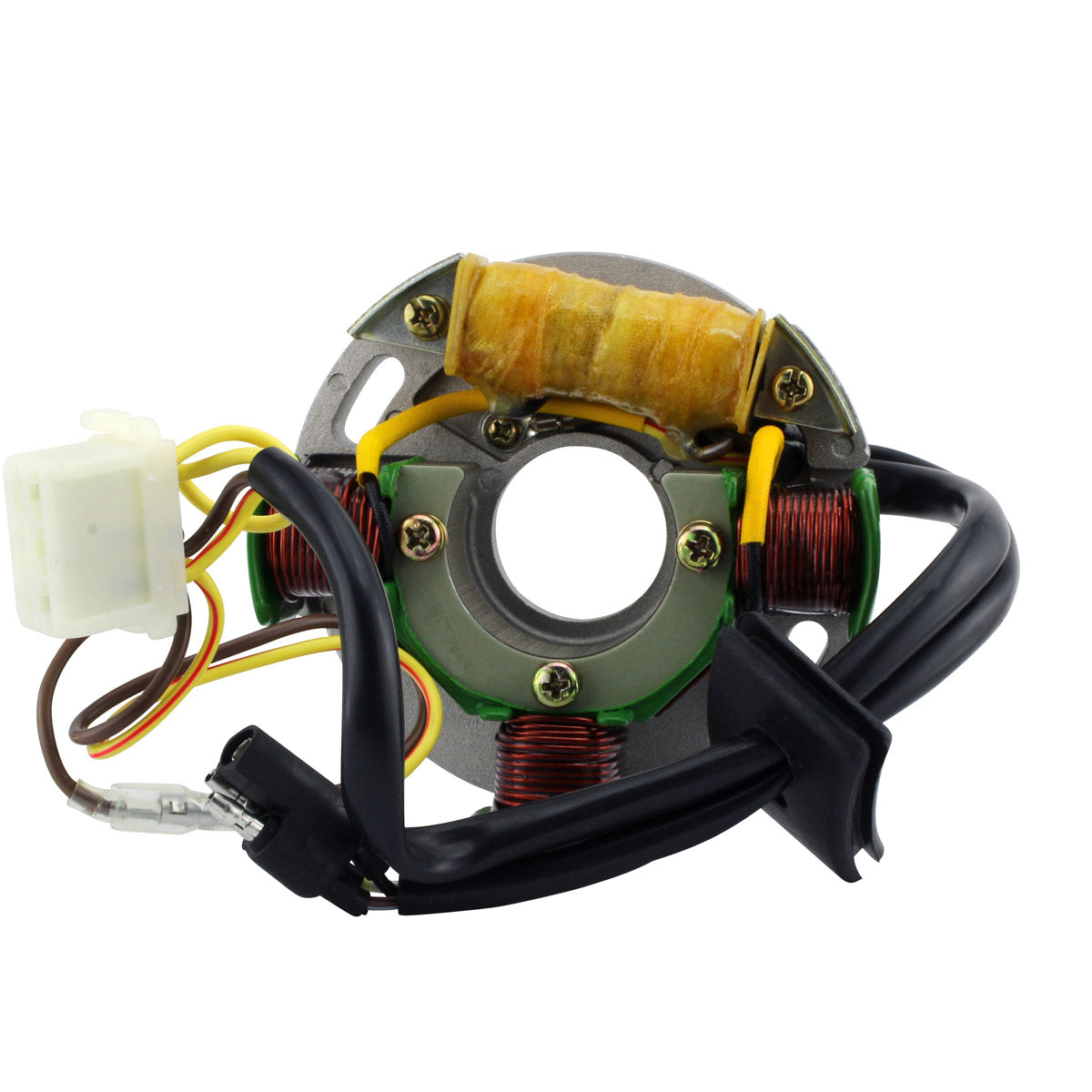

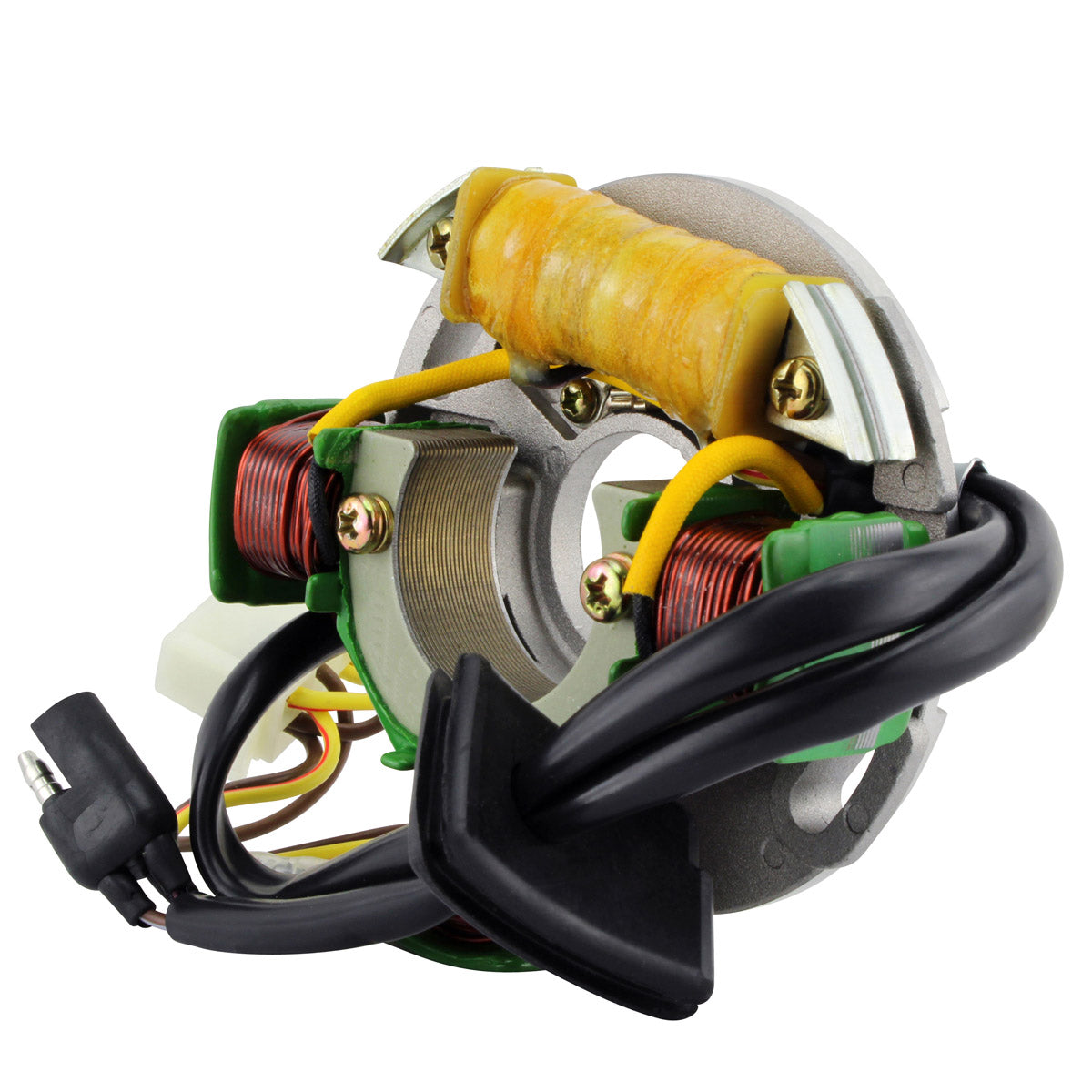

A brand new aftermarket stator built as a direct replacement for the original charging unit fitted to a wide range of Polaris snowmobiles. It is a plug-and-play, direct fit part and comes as a complete assembly with the connector, the rubber grommet and the back plate already fitted, so it drops straight into the recess the old unit came out of. The part number is RM01278.
The unit carries nine wires terminating in two plugs with eight pins between them, and is wound on the highest grade lamination materials using the highest grade copper windings, resistant to 200 degrees Celsius. Every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

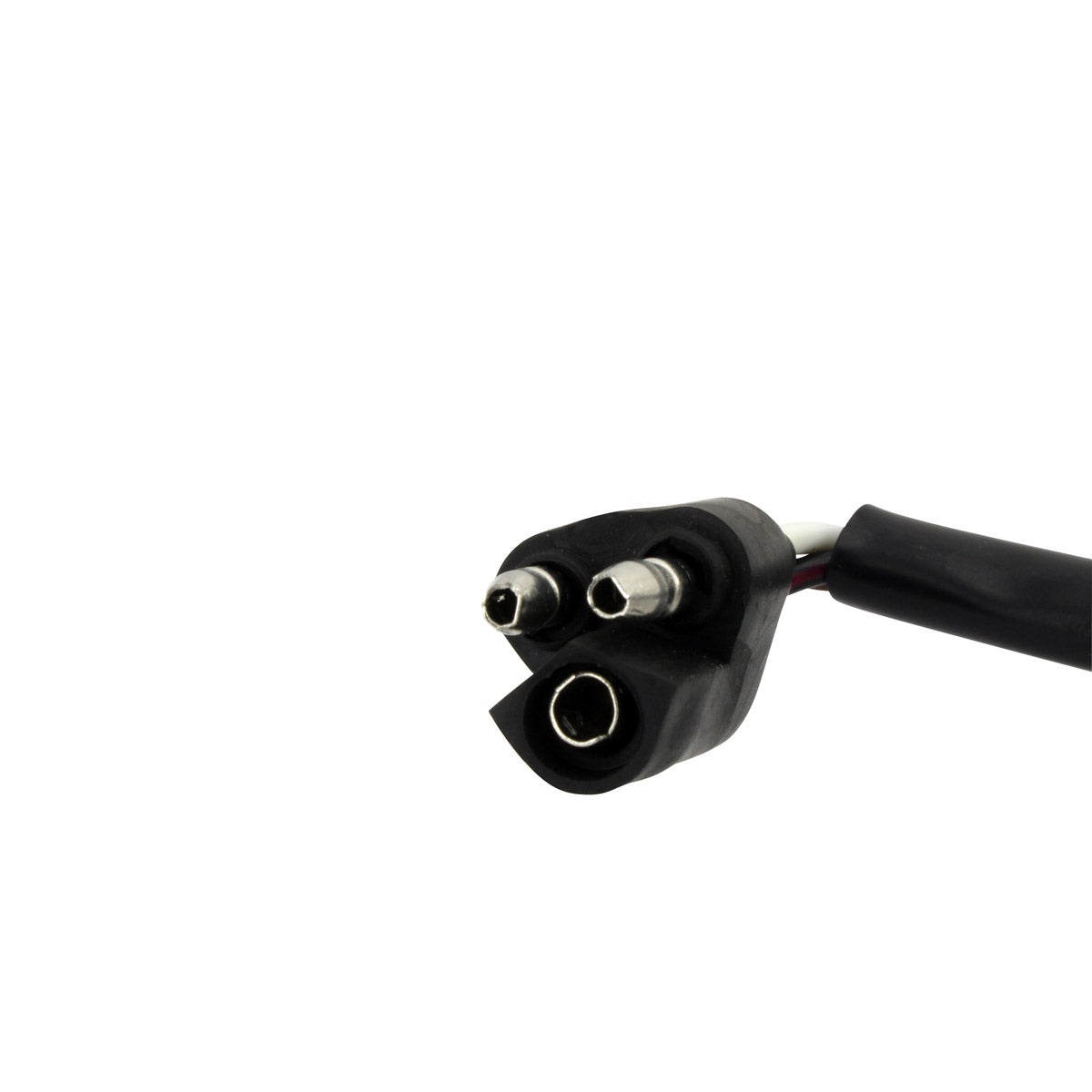

- Connector included

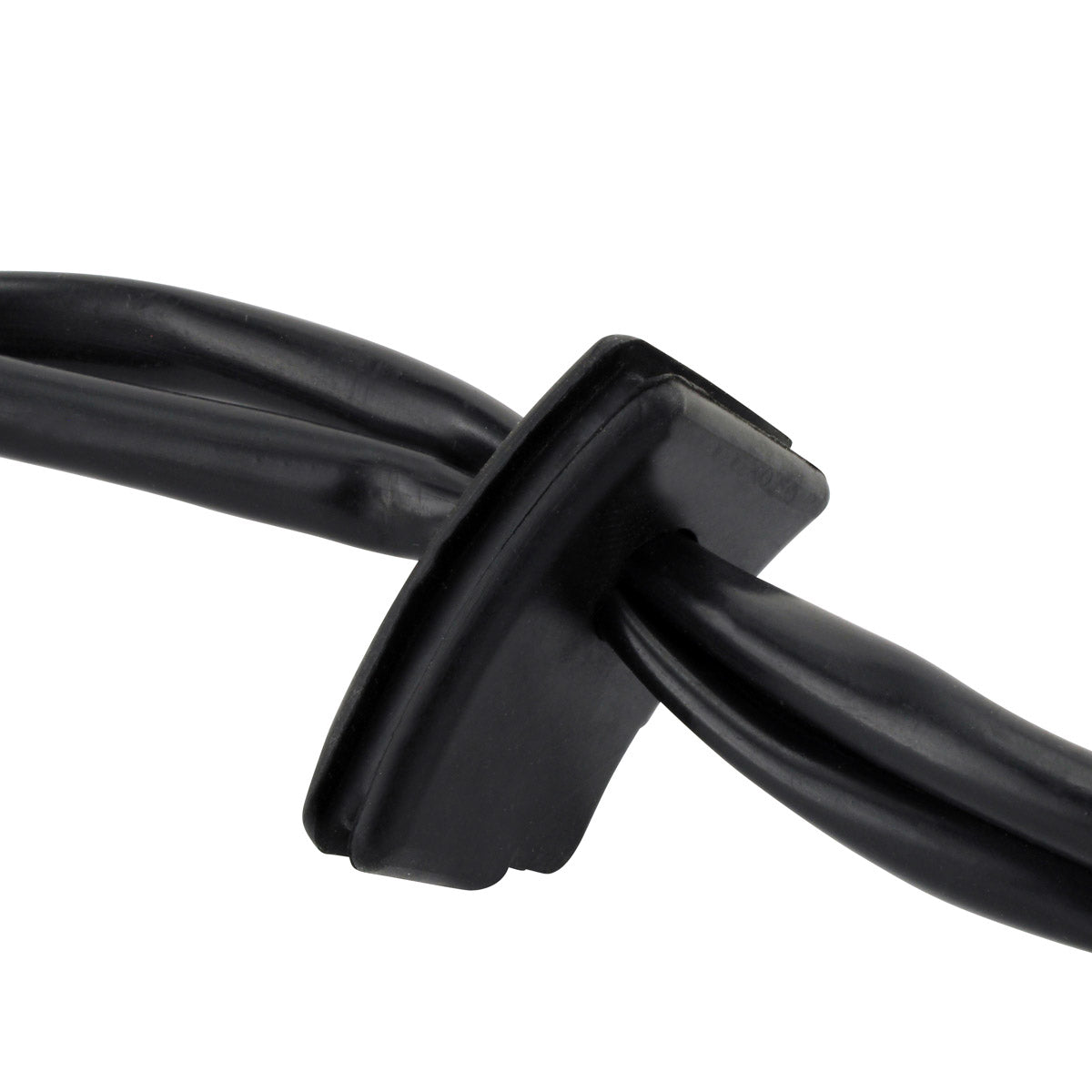

- Rubber grommet included
- Back plate included
- All products shipped are tested
- Part number RM01278
Technical Specs
| Specification |
Detail |
| Part number |
RM01278 |
| Interior diameter |
32 mm |
| Exterior diameter |
112 mm |
| Thickness |
18 mm |
| Wire length, stator to grommet |
170 mm |
| Wire length, grommet to plug |
15 mm and 130 mm |
| Number of wires |
9 |
| Number of plugs |
2 |
| Number of pins |
8 |
| Alternator resistance, yellow to yellow |
0.4 ohms +/- 20% |
| Source resistance, brown/white to red/black |
195 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris 340 Indy |
1990-2006 |
| Polaris 440 Indy |
1990-2006 |
| Polaris 500 Indy |
1990-2006 |
| Polaris 500 Classic |
1990-2006 |
| Polaris 500 Touring |
1990-2006 |
| Polaris 500 Widetrak |
1990-2015 |
| Polaris 500 LX |
1990-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3083984 |
Polaris |
| 3083987 |
Polaris |
| 3083990 |
Polaris |
| 3083991 |
Polaris |
| 3084004 |
Polaris |
| 3084281 |
Polaris |
| 3084286 |
Polaris |
| 3087004 |
Polaris |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Polaris unit, with the connector and rubber grommet already fitted. No cutting or splicing of the loom is required.
Is the back plate included?

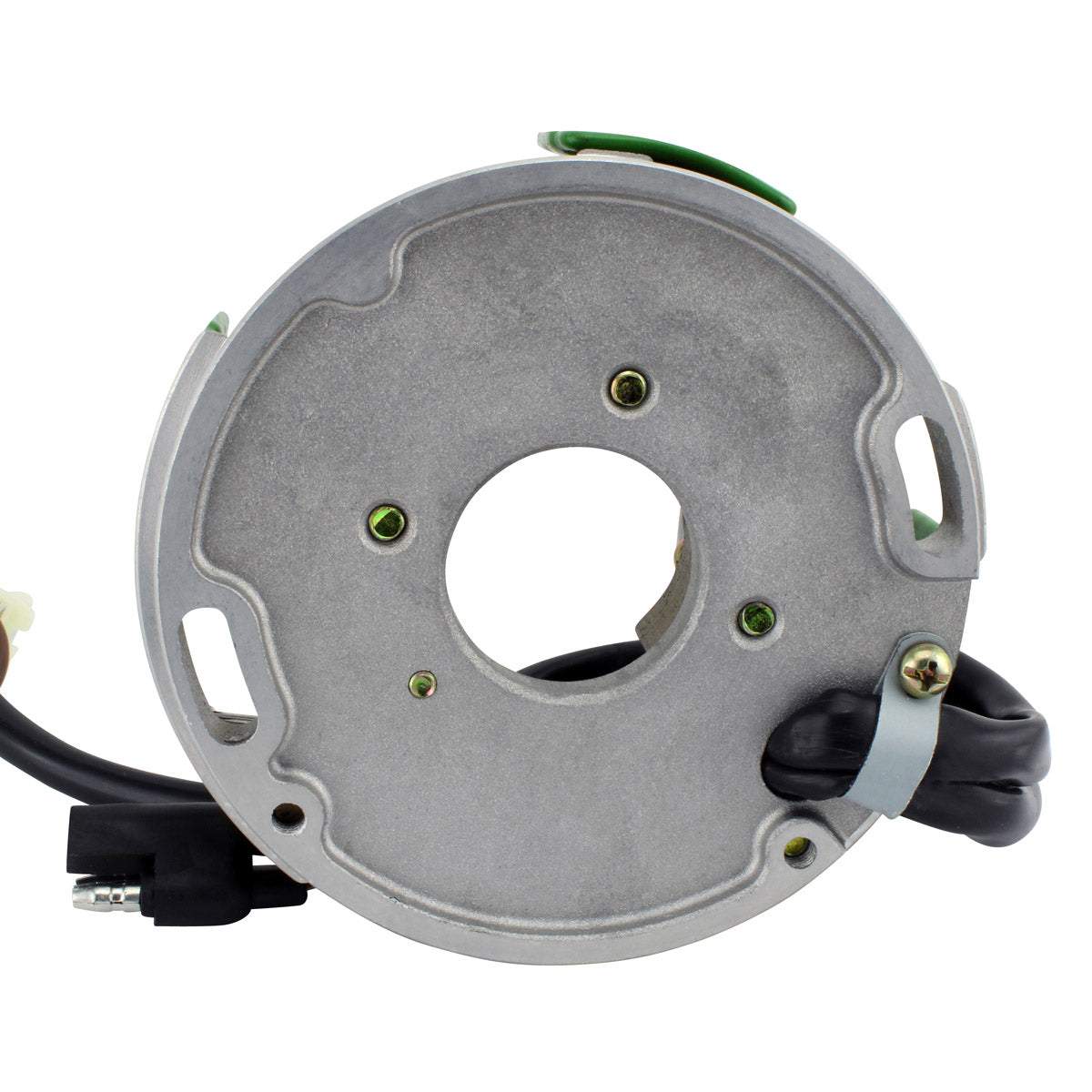

Yes. The back plate is supplied with this stator, along with the connector and the rubber grommet, so you are not reusing the plate from the failed unit.
What is included in the box?
The stator assembly, the connector, the rubber grommet and the back plate. Every unit is tested before it is shipped.
How do I know my original stator has failed?
A multimeter check is the quickest confirmation. This unit reads 0.4 ohms +/- 20% yellow to yellow across the alternator windings and 195 ohms +/- 20% brown/white to red/black across the source coil. A reading that is open circuit, shorted to earth, or well outside those figures points to a failed stator.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
