Stator with Pick-Up Pulsar Coil for Polaris 440 and 550 Snowmobiles
Pro X, Classic, IQ Shift, Edge LX, Supersport, Trail RMK, Touring and Transport 440 / 550 Carb F/C, 2002-2013

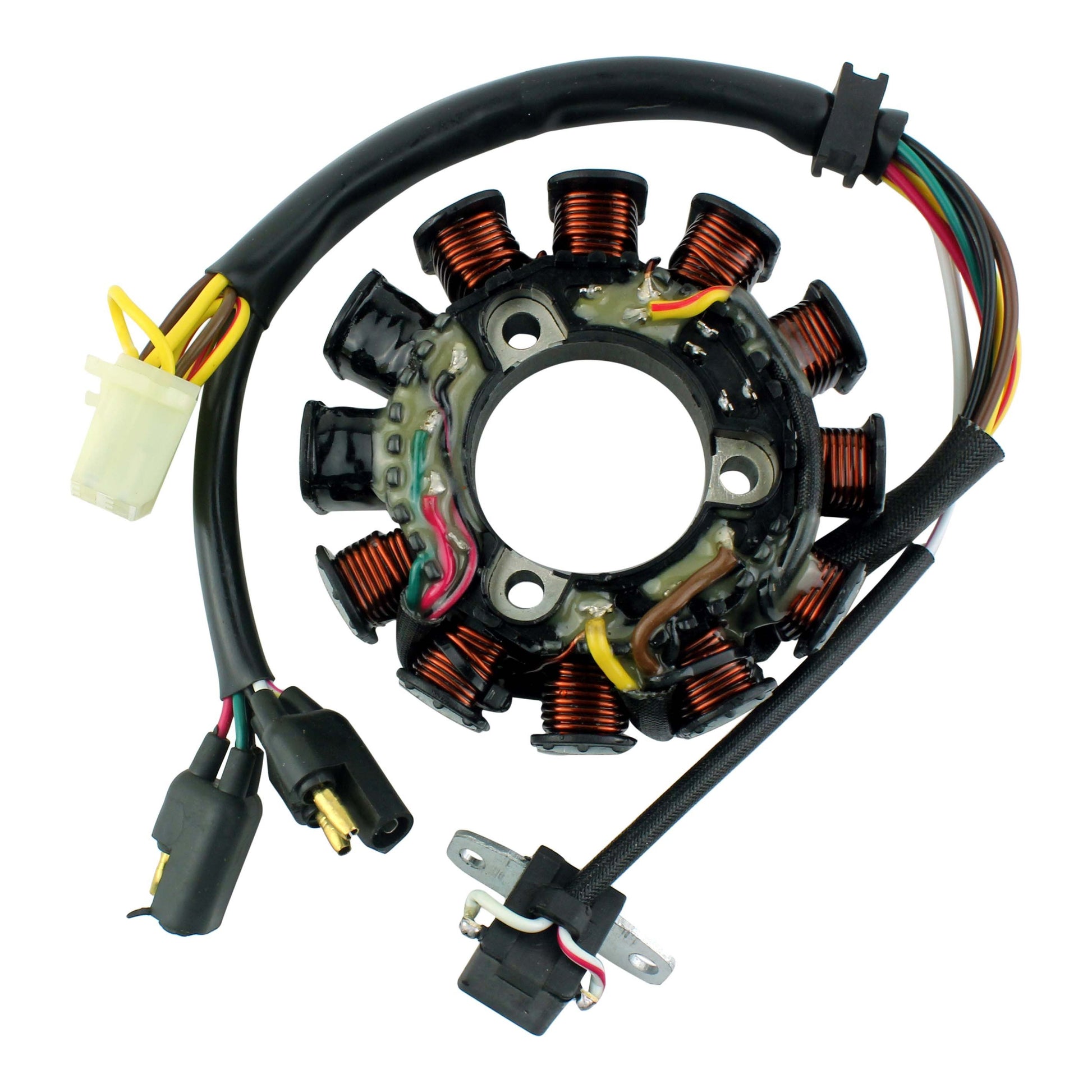

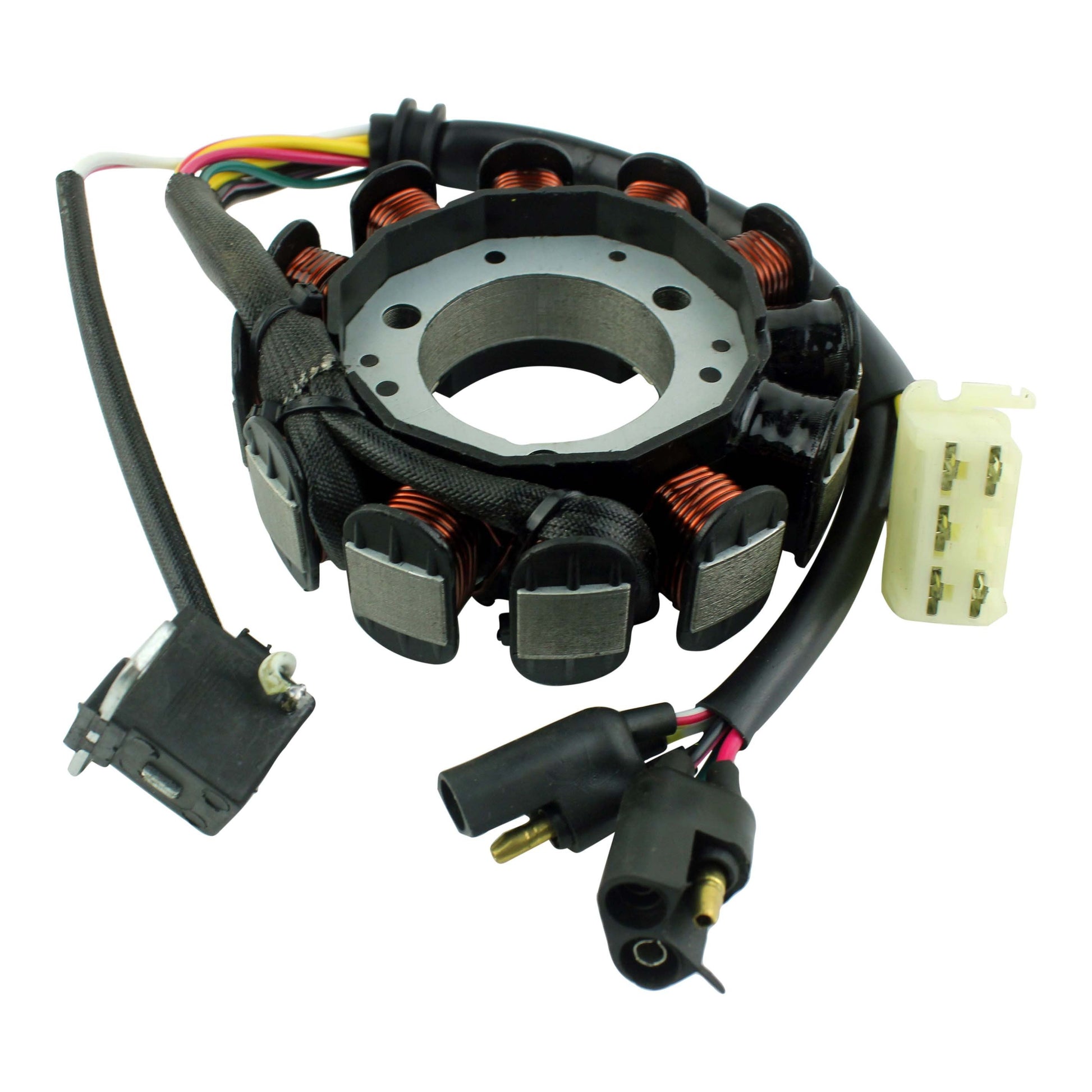

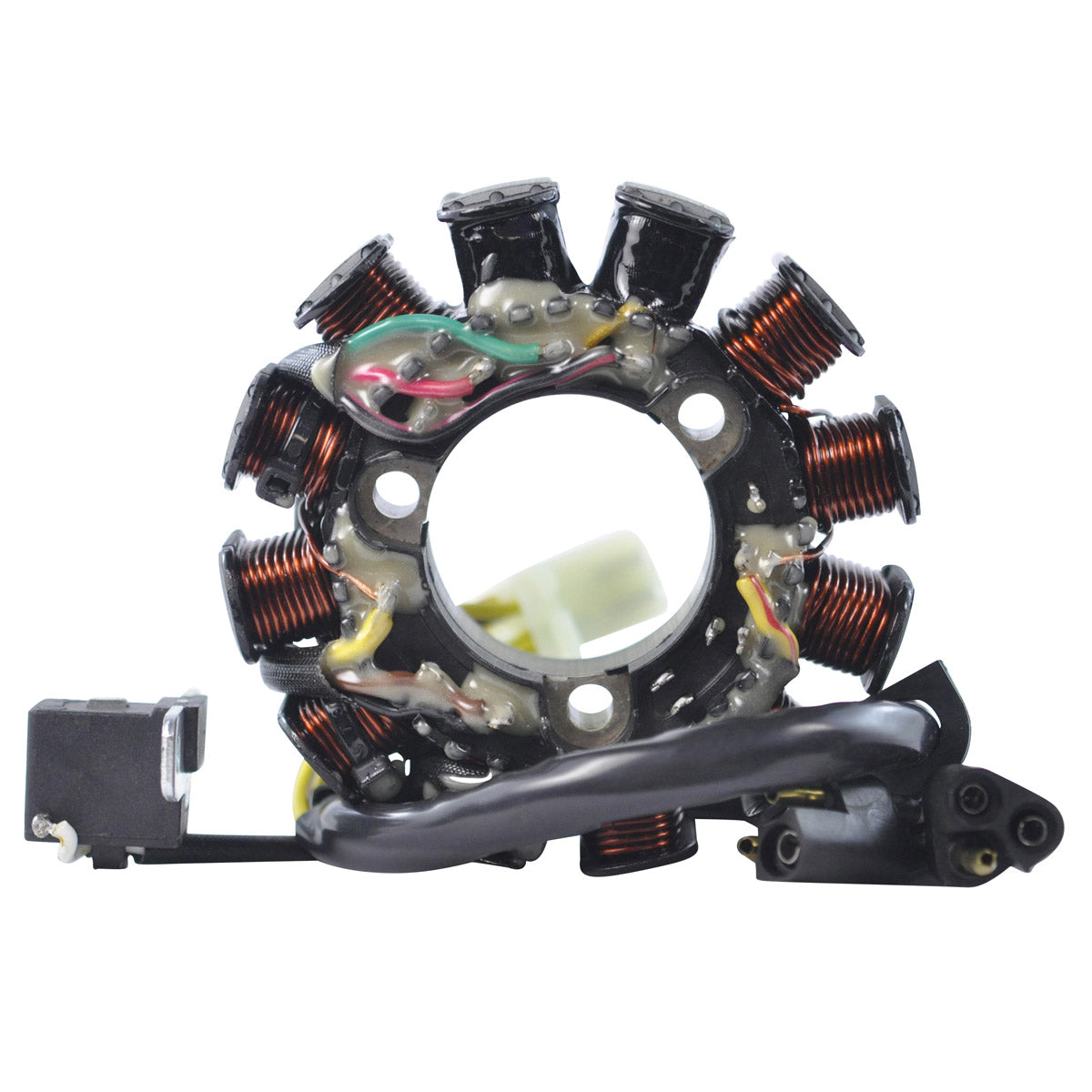

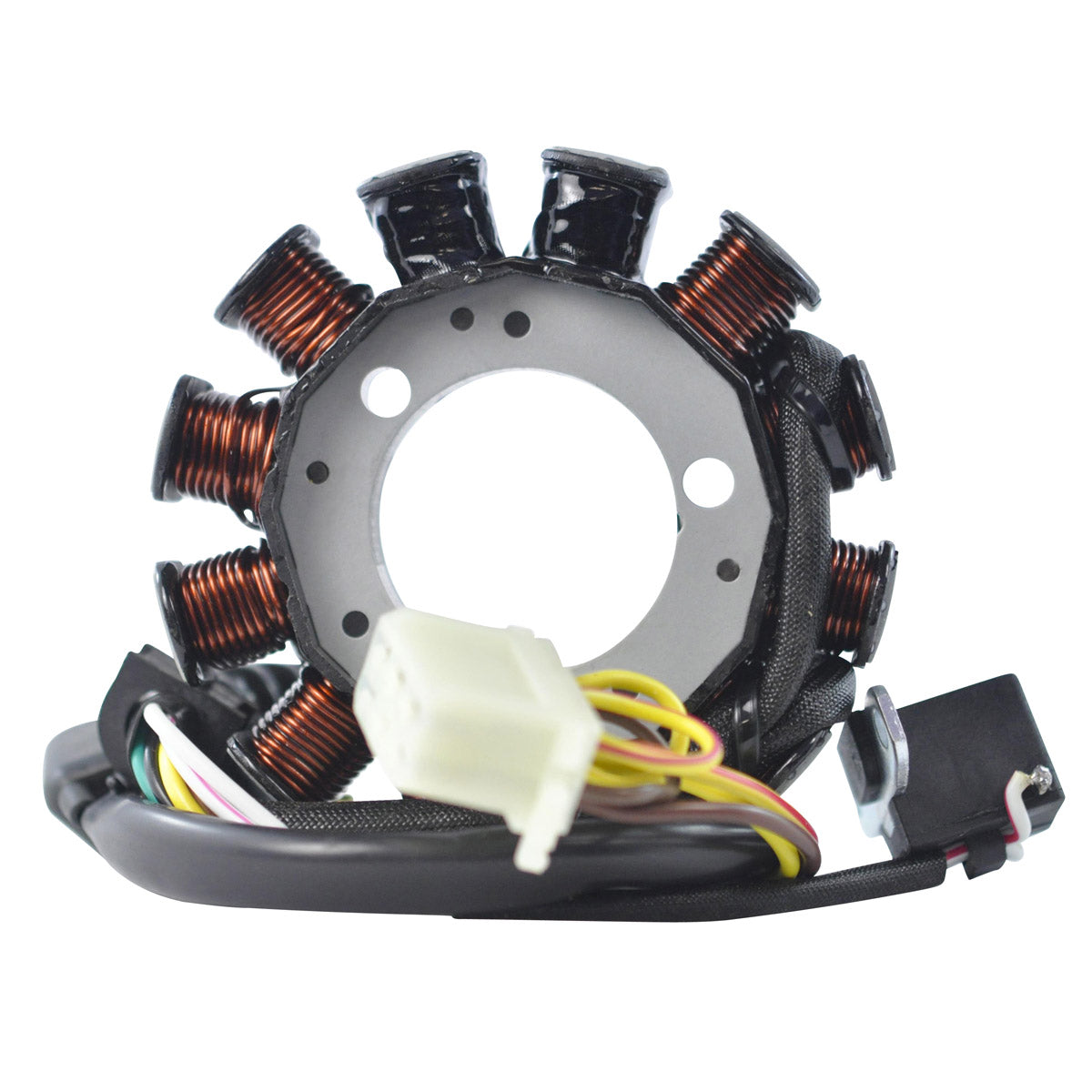

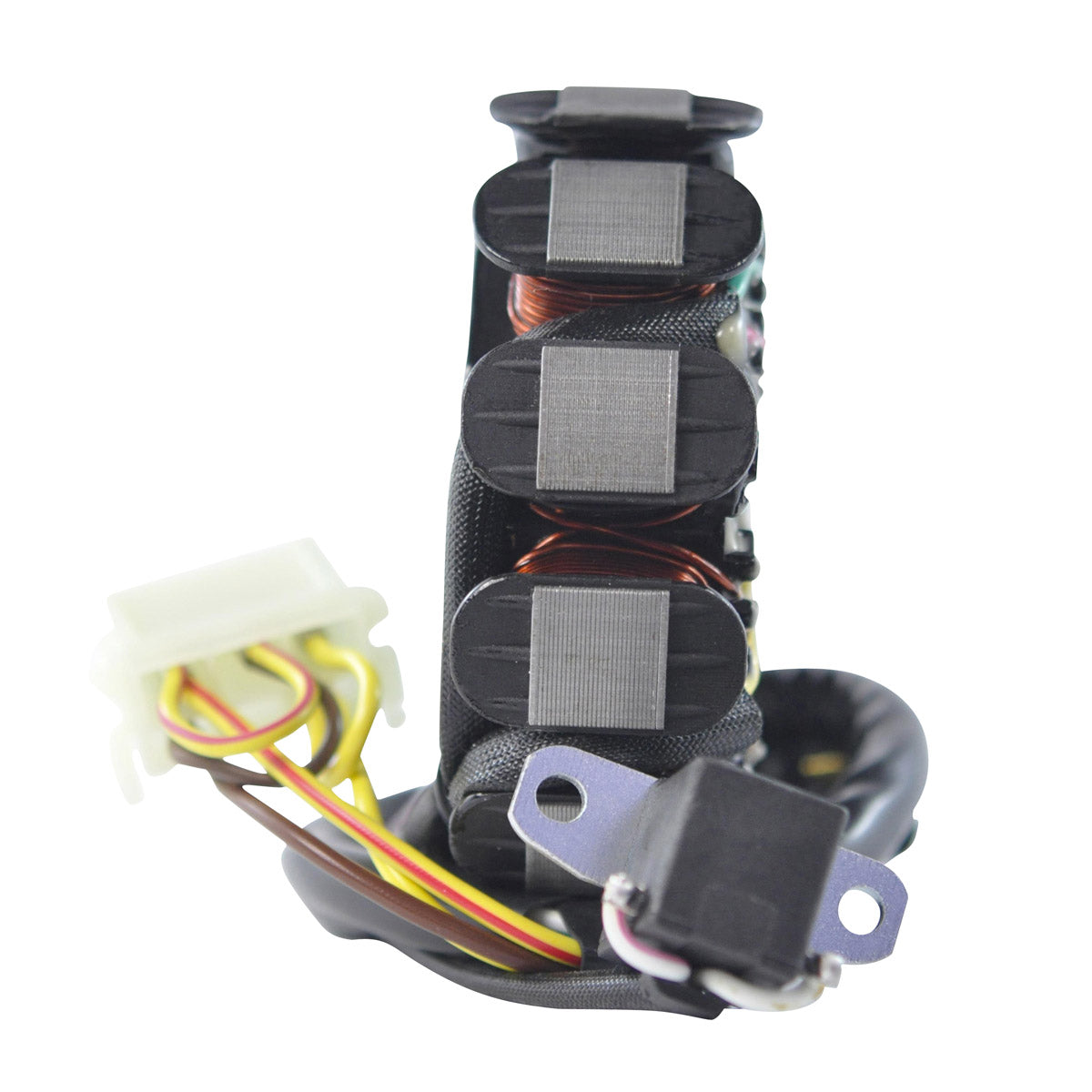

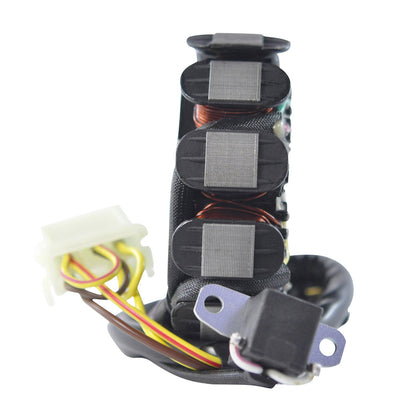

A brand new stator for the Polaris 440 and 550 carburetted fan-cooled snowmobile range, supplied with the pick-up pulsar coil already fitted. It is a direct replacement for the original unit, so it drops into the factory position and plugs into the standard connectors with no changes to the loom.
This is a twelve-wire assembly carrying the alternator windings, the pick-up pulsar coil and two source coils on one backing, which means a single part restores charging and ignition together. Highest grade lamination materials and highest grade copper windings, resistant to 200 degrees Celsius, are used throughout, and every unit is tested before it is shipped. Part number RM01239.
Key Features
- Brand new stator, not a repaired or rewound core
- Direct replacement to your original unit - plug-and-play, direct fit, easy installation
- Pick up pulsar coil included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

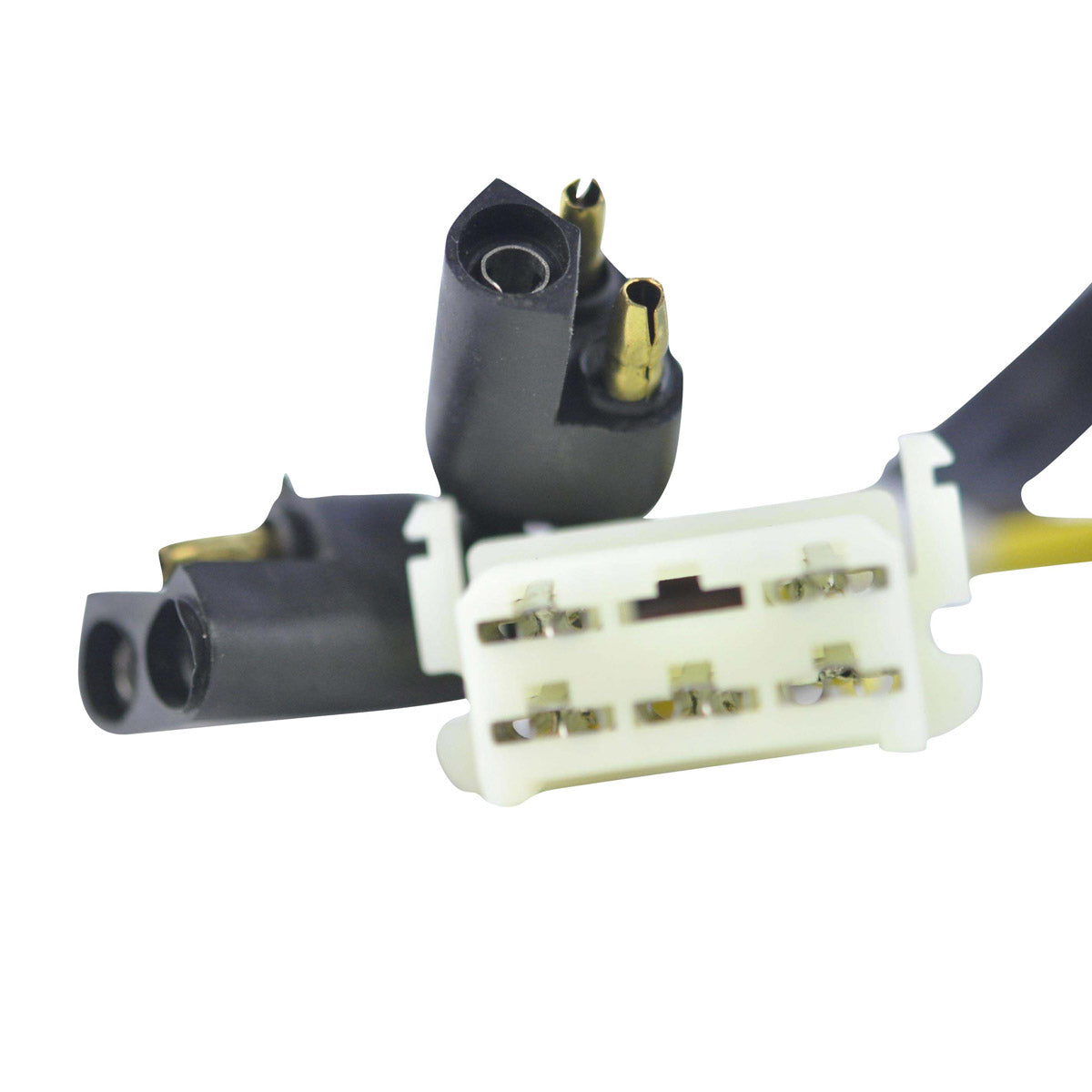

- Connector and rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01239 |
| Interior diameter | 41 mm |
| Exterior diameter | 104 mm |
| Thickness | 14 mm |
| Length of wires stator to grommet | 60 mm |
| Length of wires grommet to plug | 160 mm |
| Length of pickup coil's wire to grommet | 120 mm |
| Number of wires | 12 |
| Number of plugs | 3 |
| Number of pins | 11 |
| Alternator resistance | Yellow to Yellow/Red = 0.4 ohms +/-20% |
| Alternator resistance | Yellow to Brown = 0.4 ohms +/-20% |
| Pickup coil resistance | White to White/Red = 190 ohms +/-20% |
| Source coil resistance | Green to Black/Red = 14 ohms +/-20% |
| Source coil resistance | Green to Red = 14 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Pro X 440 / 550 | 2002-2013 |
| Polaris Classic 440 / 550 | 2002-2013 |
| Polaris IQ Shift 440 / 550 | 2002-2013 |
| Polaris Edge LX 440 / 550 | 2002-2013 |
| Polaris Supersport 440 / 550 | 2002-2013 |
| Polaris Trail RMK 440 / 550 | 2002-2013 |
| Polaris Touring 440 / 550 | 2002-2013 |
| Polaris Transport 440 / 550 | 2002-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3089937 | Polaris |
| 3087212 | Polaris |
| 3087187 | Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct fit for the listed Polaris 440 and 550 carburetted fan-cooled machines, uses the three original plugs and the factory grommet, and needs no rewiring.
What is included?
The stator, the pick-up pulsar coil, the connectors and the rubber grommet. The recoil housing gasket and the mounting screws are not supplied.
How do I tell whether my old stator has failed?
With the plugs disconnected, check Yellow to Yellow/Red and Yellow to Brown at about 0.4 ohms, White to White/Red at about 190 ohms, and Green to Black/Red and Green to Red at about 14 ohms each, all within plus or minus 20 percent. A winding that is open circuit or shorted to the stator plate has failed.
The machine will not start but the battery charges - can this still be the stator?
Yes. On this assembly the source coils and the pick-up pulsar coil sit on the same plate as the alternator windings, so an ignition fault can appear while charging still works normally. Test the 190 ohm pick-up and the 14 ohm source coils before condemning the CDI.
